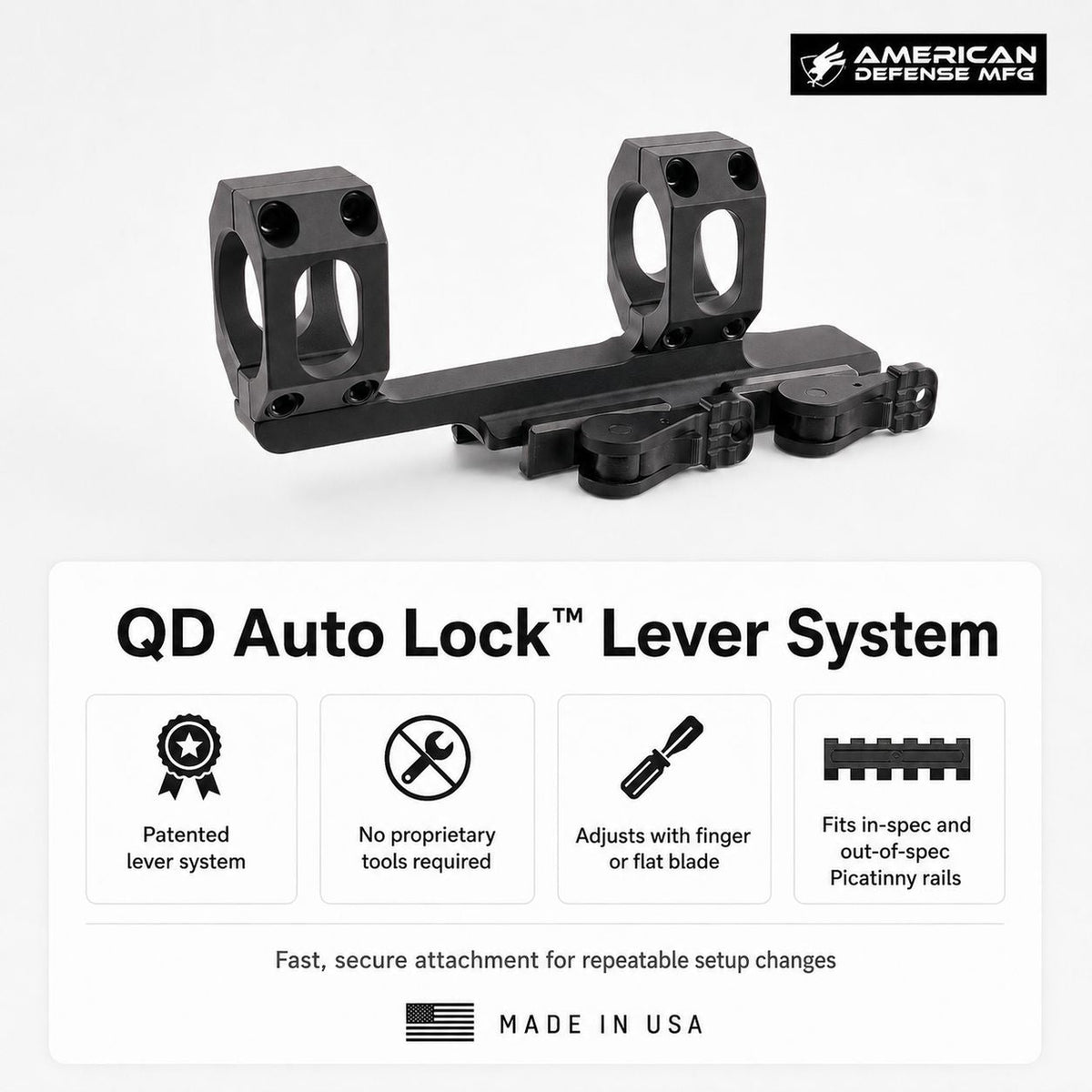

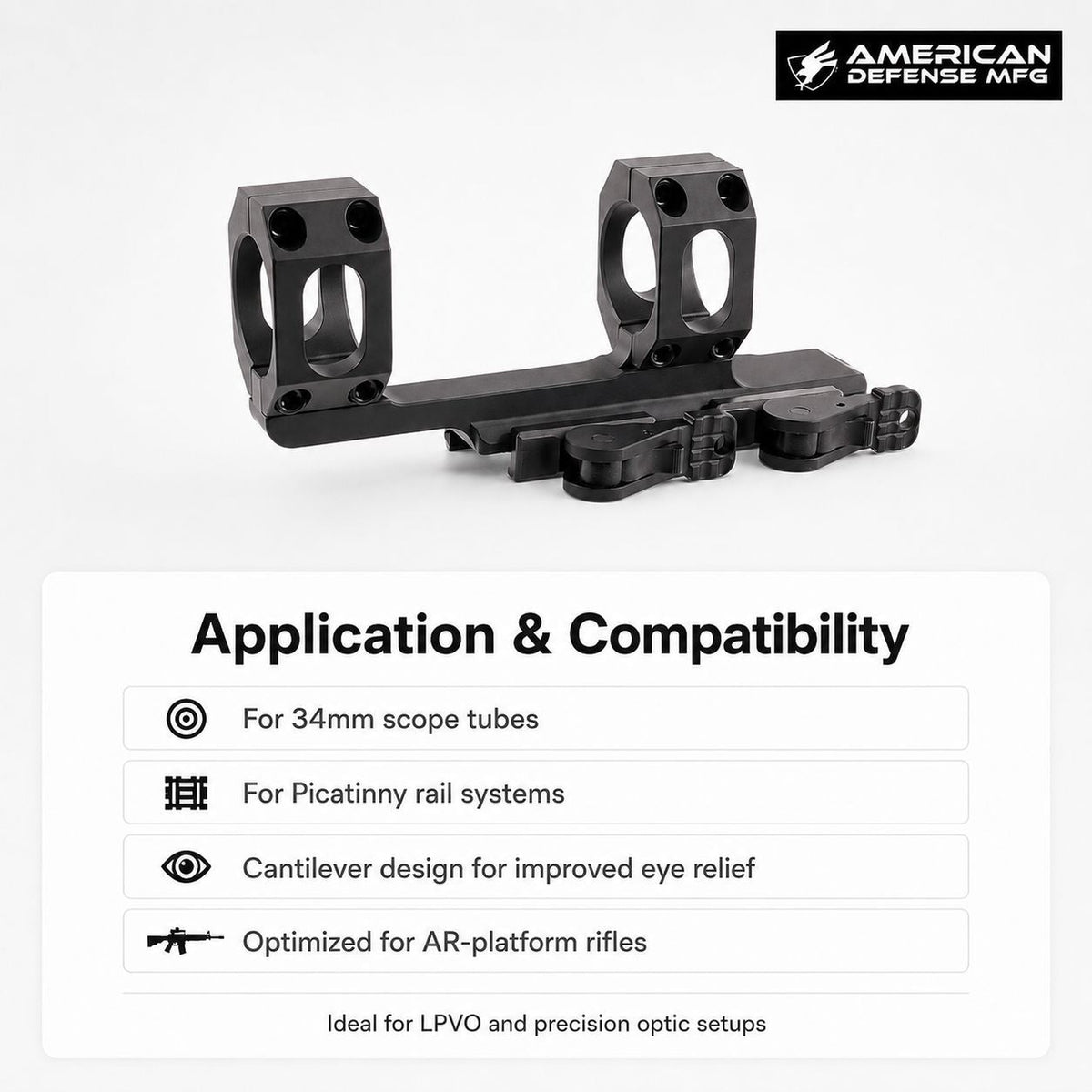

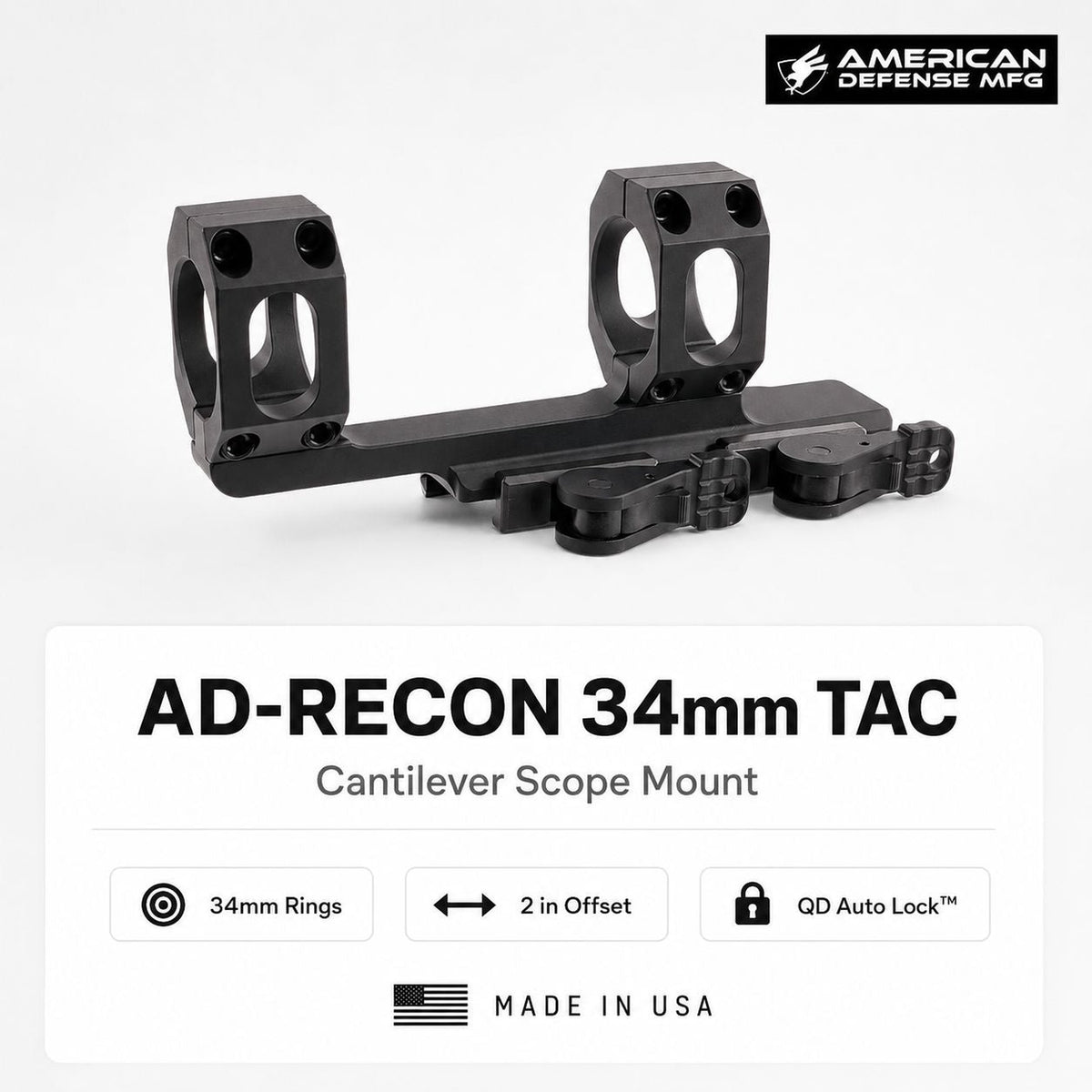

The American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers is an American Defense Mfg. cantilever quick-detach scope mount, part number AD-RECON-34-TAC, with 34mm rings at standard height on ADM's patented Auto Lock quick-detach lever, which self-adjusts to in-spec and out-of-spec Picatinny rails without tools and returns to zero when refitted. It is machined from 6061-T6 aluminium with a Type III hardcoat finish and made in the USA. Levers are the low-profile TAC pattern, which sit closer to the rail than the standard levers.
How It Compares
The AD-RECON is the full-size cantilever: the rings sit forward of the clamp so a scope can be set far enough back on a straight-pull or self-loading action to give proper eye relief. Other options in the range include AD-RECON 1 inch (25.4mm) standard height, AD-RECON 30mm standard height, AD-RECON 30mm medium height. For a lighter mount in the same pattern see the AD-DELTA-C lightweight cantilever mount; for a rear-set one-piece mount with no offset the AD-RECON-SL super low mount; and for a longer 3in reach the AD-RECON-X extended cantilever mount. Browse the full American Defense Mfg. range and rifle scope mounts for every tube size.
Ideal For
- Civilian Service Rifle and practical rifle, where the optic must come off and back on without losing zero
- Straight-pull rifles used for target and gallery rifle shooting
- Quick-detach removal for travel, transit cases and barrel cleaning
- Deer stalking and night fox rifles that share one optic between platforms

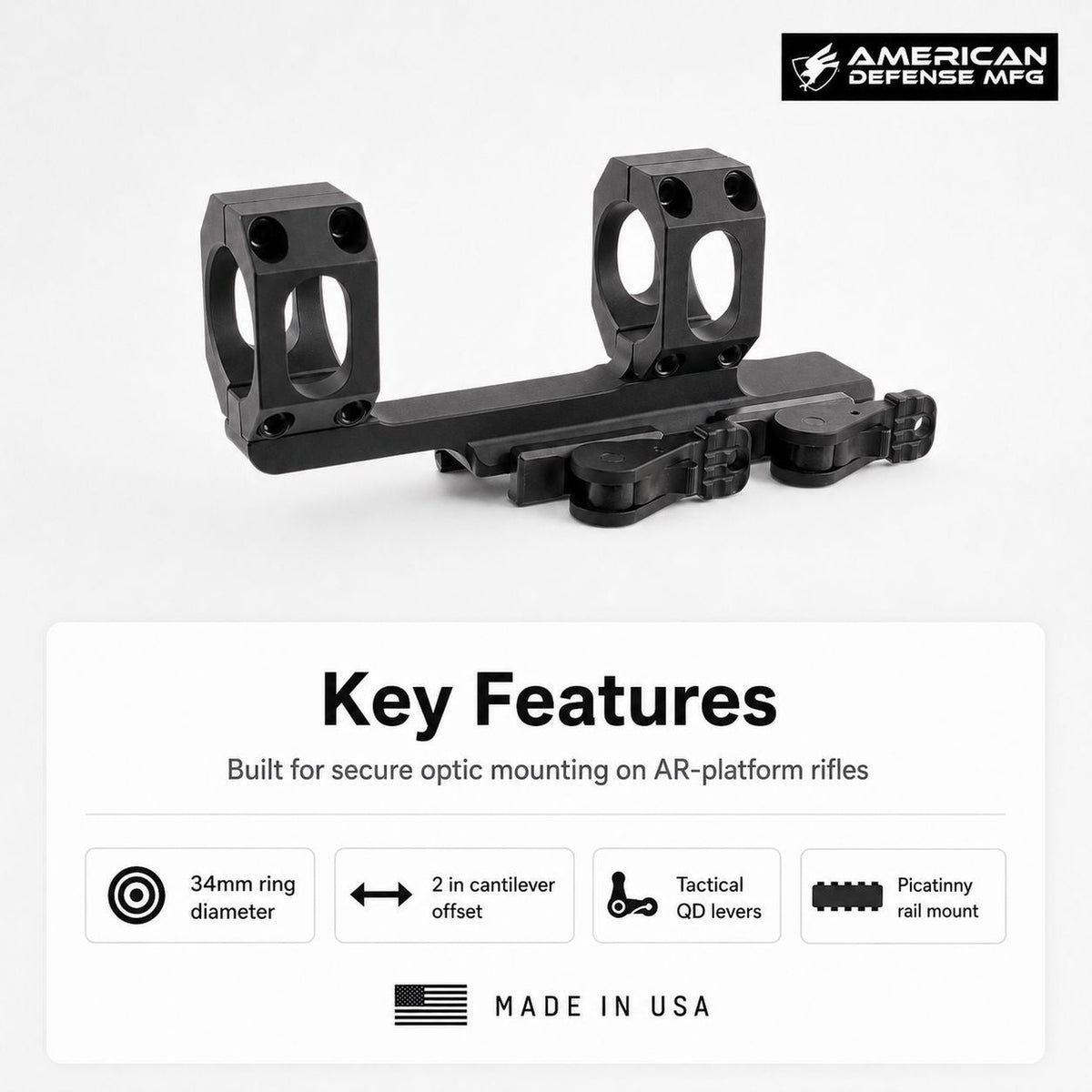

Key Features
-
Rings: 34mm
-
Height: Standard
-
Mount: Picatinny, using ADM's patented Auto Lock quick-detach lever
-
Levers: TAC low-profile levers
-
Return to zero: Auto Lock lever self-adjusts to in-spec and out-of-spec Picatinny rails and returns to zero
-

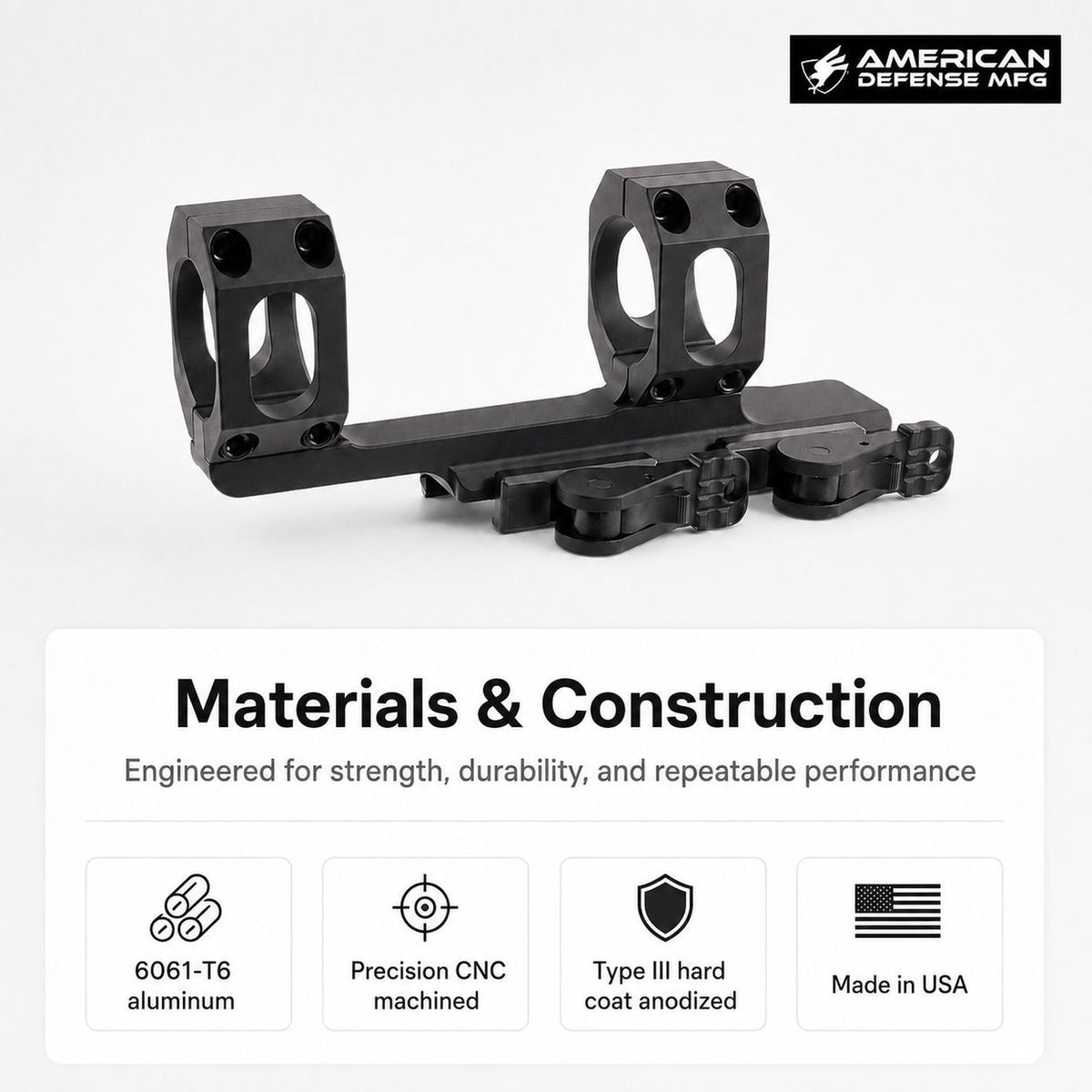

Material: 6061-T6 aluminium, Type III hardcoat
-
Origin: Made in USA

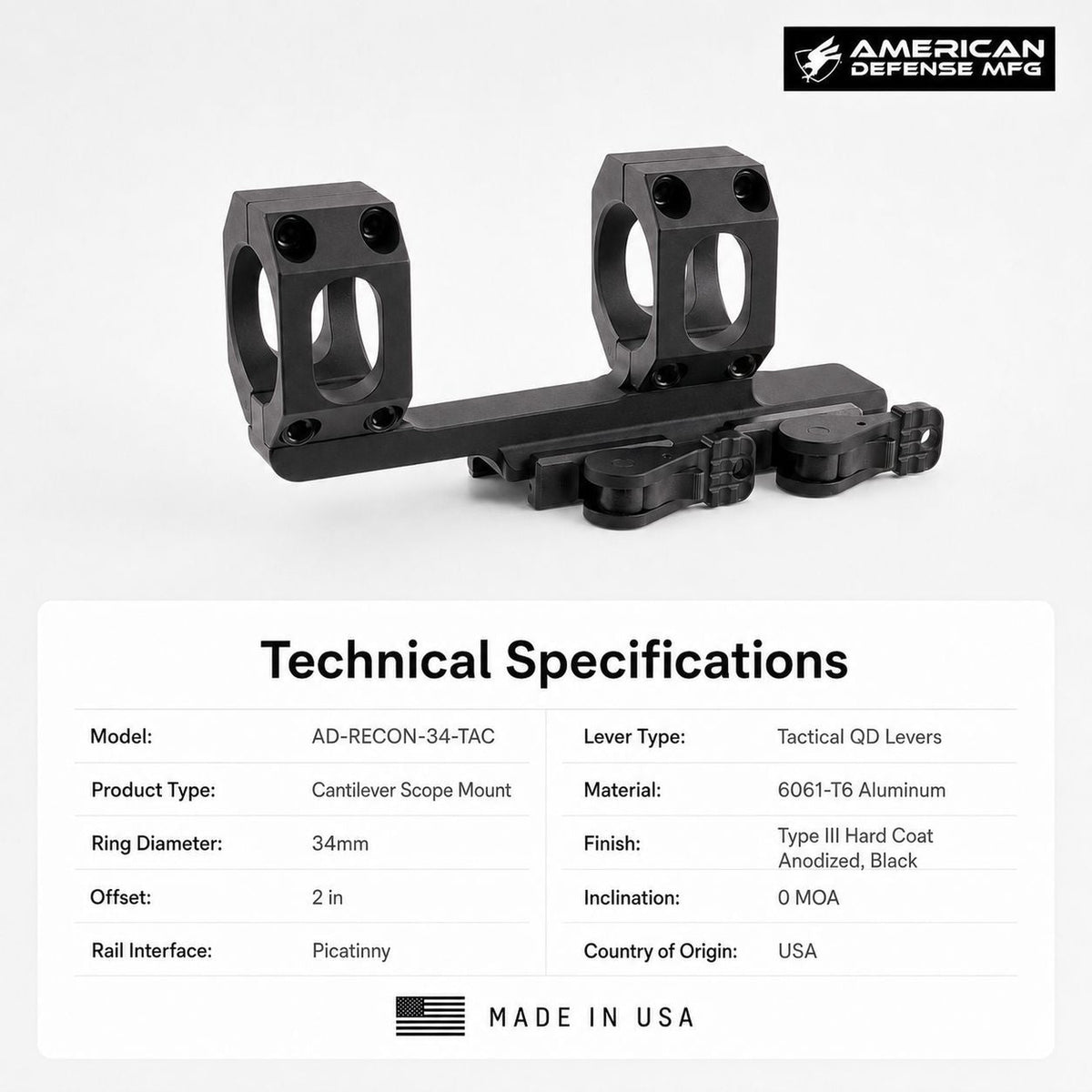

Technical Specifications
| Type |
Cantilever QD scope mount |
| Ring Size |
34mm |
| Height |
Standard |
| Levers |
TAC (low-profile) |
| Material |
6061-T6 aluminium, Type III hardcoat |
| Origin |
USA |
| MPN / UPC |
AD-RECON-34-TAC / 818503014147 |
What's Included
- 1 × American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers (AD-RECON-34-TAC)
- Mounting hardware
Warranty
Covered by the American Defense Mfg. lifetime warranty against defects in materials and workmanship.
UK Delivery & Support
Every order is dispatched tracked from our UK warehouse, so there are no import duties or customs surprises, and you are backed by UK-based aftersales support from our team.
Frequently Asked Questions
Which scope tube does the American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers take?
It takes a 34mm scope tube.
What rail does the American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers fit?
It fits a MIL-STD-1913 Picatinny rail. The Auto Lock lever self-adjusts to both in-spec and out-of-spec rails, so it clamps correctly on a wider range of receivers and handguards than a fixed-tension mount.
Does the American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers return to zero after removal?
Yes. It uses American Defense Mfg.'s patented Auto Lock quick-detach lever, which self-adjusts to the rail and returns the optic to zero when refitted, so it can be taken off for travel or cleaning and put straight back on.
What height does the American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers give?
This is the standard-height version of the AD-RECON. American Defense also lists the AD-RECON in other heights and ring sizes, so pick the height that clears your objective bell and suits your cheek weld.
What are TAC levers on the American Defense AD-RECON Cantilever Scope Mount 34mm TAC Levers?
TAC levers are American Defense's low-profile lever pattern, which sit closer to the rail than the standard levers and are less likely to catch on kit or a sling.
