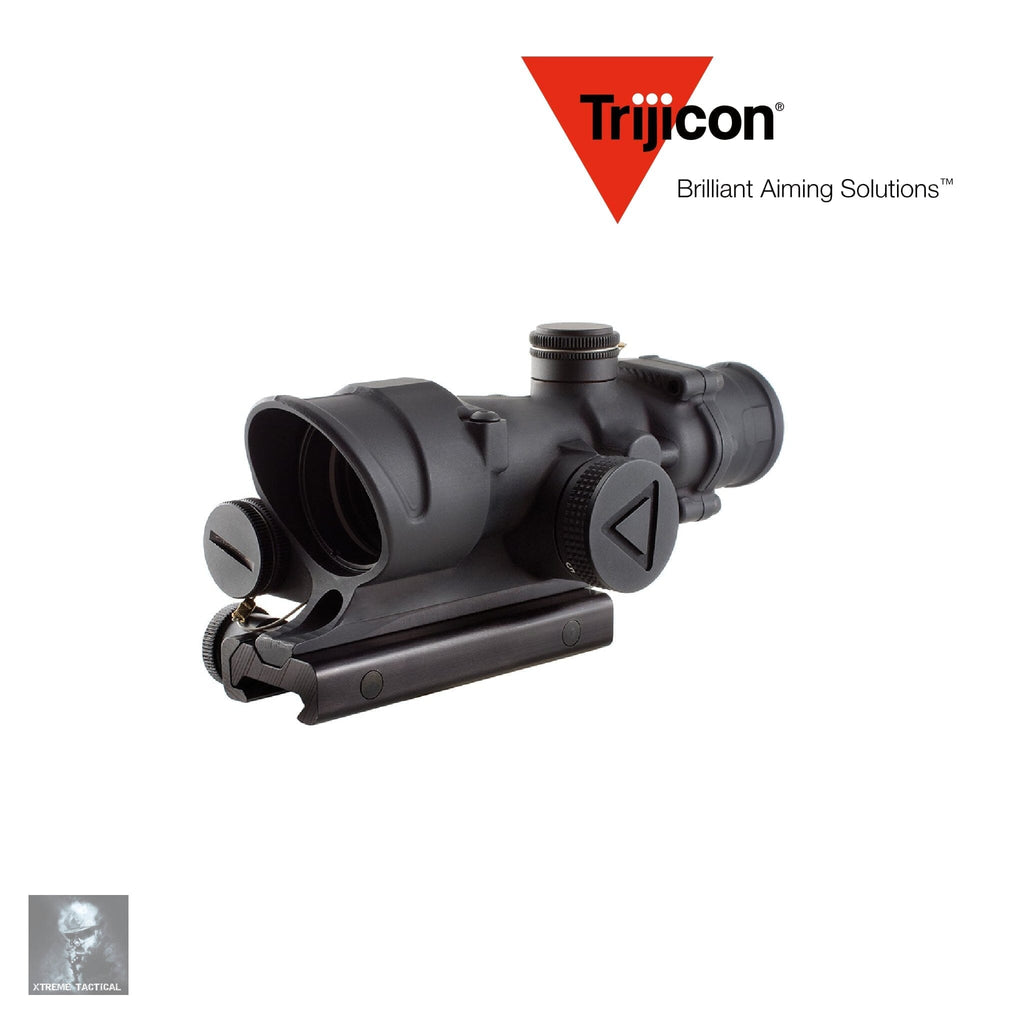

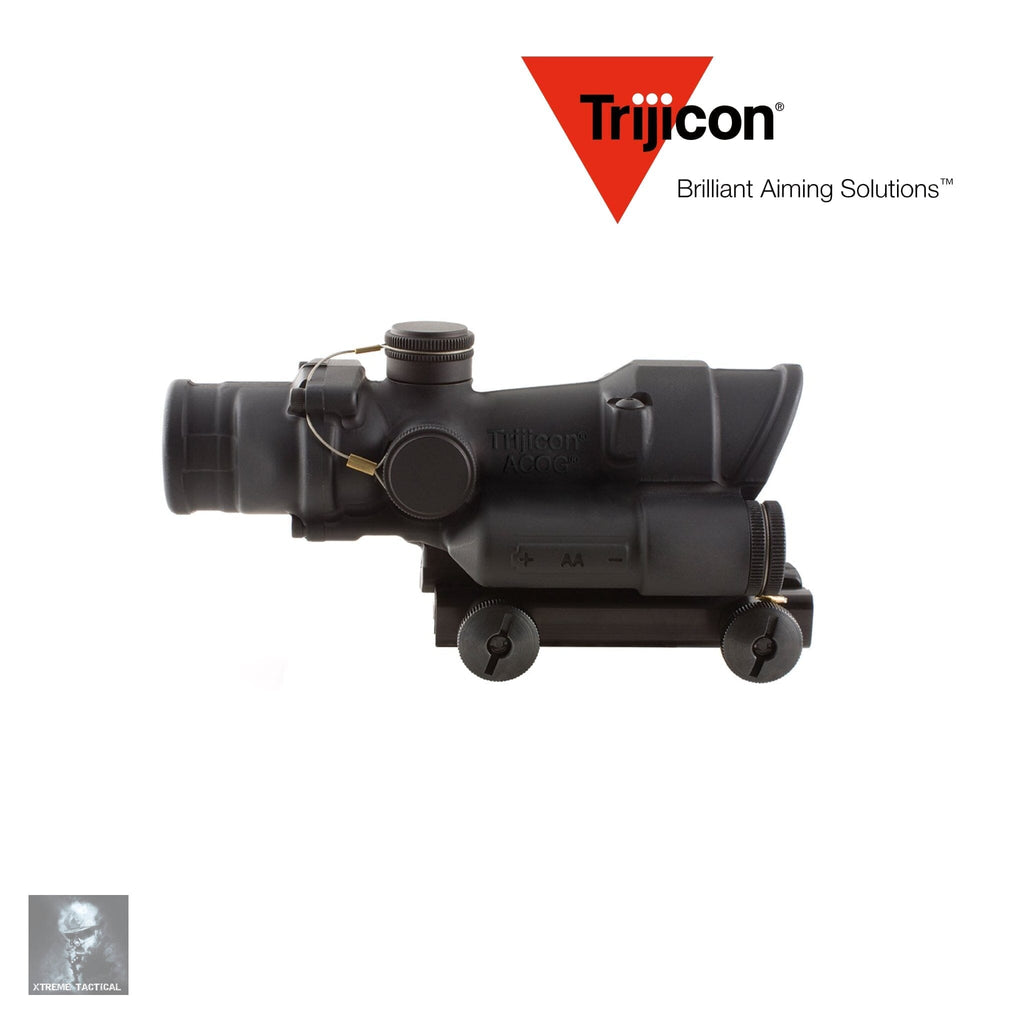

Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Red Chevron Reticle
Features
-
User‑Selectable LED Illumination (AA Powered): Six brightness levels with “off” detents between each for fast, repeatable intensity control; uses a single AA battery (alkaline or lithium).
-
Long Runtime: Delivers 12,000+ continuous hours on the mid (#4) setting at ~21 °C; lithium cells extend life and improve cold‑weather performance.
-
NV‑Compatible Low Levels: Dim settings work with night‑vision devices while minimizing bloom.
-
4× Fixed ACOG Optical System: Rugged prism design gives a bright, flat image and rapid target acquisition from CQB distances out to the effective range of 5.56 carbines.
-

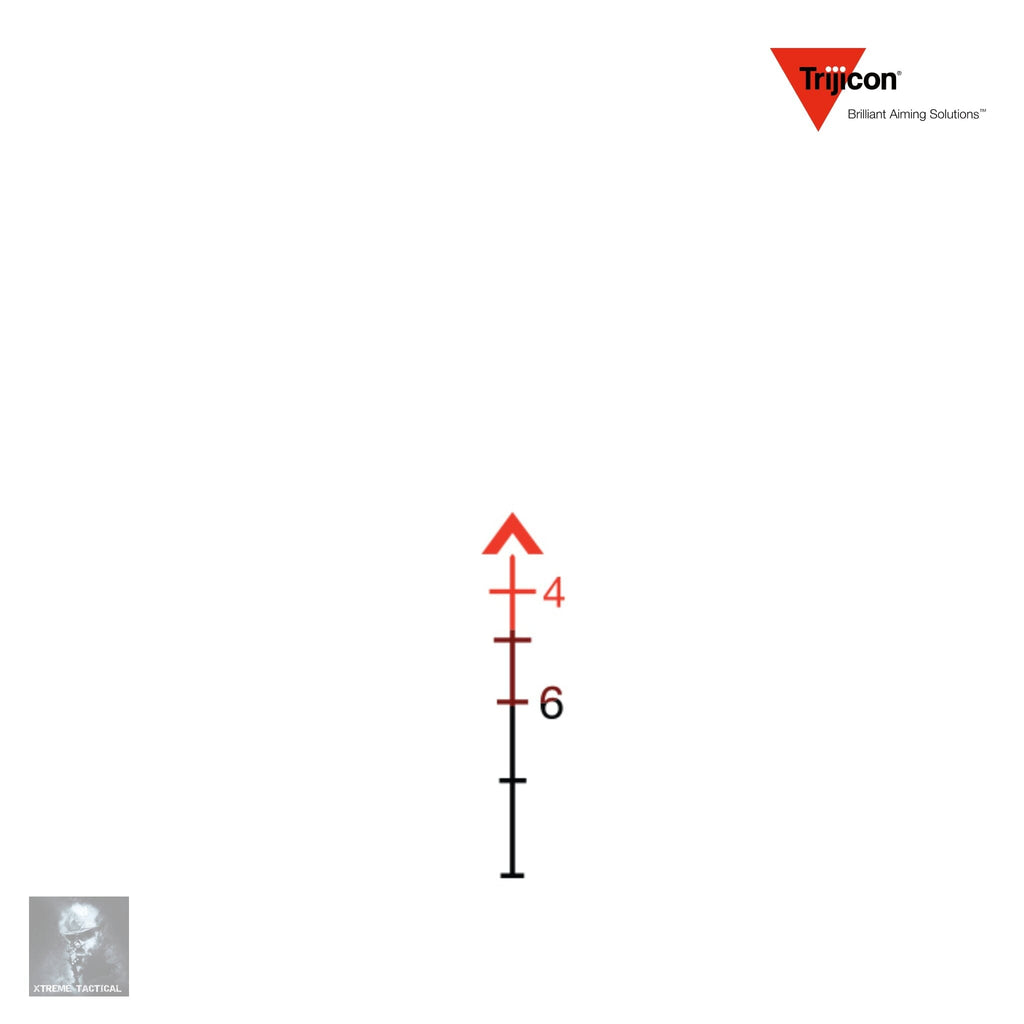

.223/5.56 BDC Red Chevron Reticle: Zero the chevron tip at 100 m; descending stadia provide calibrated bullet‑drop references for common 5.56 loads—fast center chevron up close, precise holds at distance.
-

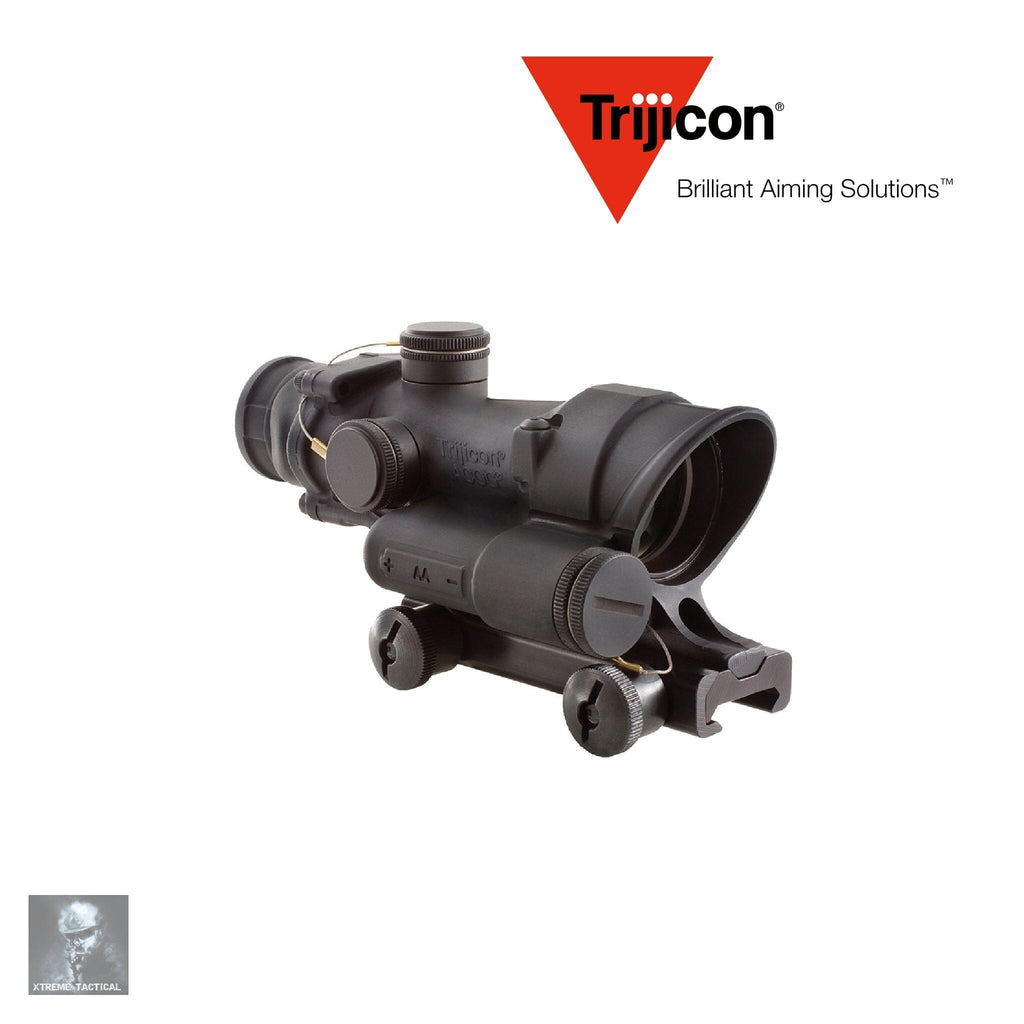

LED Battery Saddle Housing: Side battery compartment improves ergonomics and leaves clearance to add a piggyback reflex optic (RMR® compatible) if desired.
-
Forged 7075‑T6 Aluminum Construction: Shock, recoil, and duty‑abuse resistant; built to survive service calibers.
-
½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zeroing and in‑field corrections.
-
Weather / Duty Ready: Waterproof, nitrogen‑purged fog‑proof, temperature‑tested for harsh environments.
-
TA51 Flattop Picatinny Mount Included: Ready to install on MIL‑STD‑1913 / AR‑15 flattop receivers.
-
Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Red Chevron Reticle
|
Specification
|
Details
|
|
Manufacturer
|
Trijicon
|
|
Model / MPN
|
TA02‑D‑100393 / 100393
|
|
SKU
|
TA02‑D‑100393
|
|
UPC
|
719307308213
|
|
Country of Origin
|
USA
|
|
Magnification
|
4× fixed
|
|
Objective Lens Diameter
|
32 mm
|
|
Optical Design
|
Fixed‑power prism (integral ACOG housing)
|
|
Reticle
|
Red Chevron .223/5.56 BDC (LED illuminated)
|
|
Illumination Settings
|
6 user‑selectable LED brightness levels w/ “off” between each; NV‑friendly lows; AA powered
|
|
Battery Life
|
12,000+ hrs continuous on setting #4 @ ~21 °C (alkaline); longer w/ lithium
|
|
Eye Relief
|
1.5″ (38 mm)
|
|
Field of View @ 100 yd
|
36.8 ft (7°)
|
|
Exit Pupil
|
8.1 mm
|
|
Adjustment Click Value
|
½ MOA (≈2 clicks/inch @100 yd)
|
|
Total Adjustment Range
|
~40 MOA windage & elevation
|
|
Parallax Focus
|
Fixed at 100 m (≈109 yd)
|
|
Overall Length
|
6.0″ (152 mm) battery‑saddle housing
|
|
Weight
|
18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.)
|
|
Housing Material / Finish
|
Forged 7075‑T6 aluminum; matte black hard anodize
|
|
Optical Coatings
|
Fully multi‑coated
|
|
Waterproof / Fog‑Proof
|
Sealed; nitrogen‑purged; duty waterproof
|
|
Shock Resistance
|
Rated from .22 LR through .50 BMG recoil; field‑hard construction
|
|
Mount Interface
|
TA51 flattop Picatinny thumbscrew adapter (included)
|
Included Accessories
-
TA51 flattop Picatinny thumbscrew mount
-
AA battery (factory supplied; lithium recommended for extreme conditions)
-
Battery cap lanyard assembly
-
Adjuster cap lanyard assembly
-
Lens cleaning tool (LensPen® style)
-
Trijicon logo sticker
-
Owner’s manual
-
Warranty card / registration info
