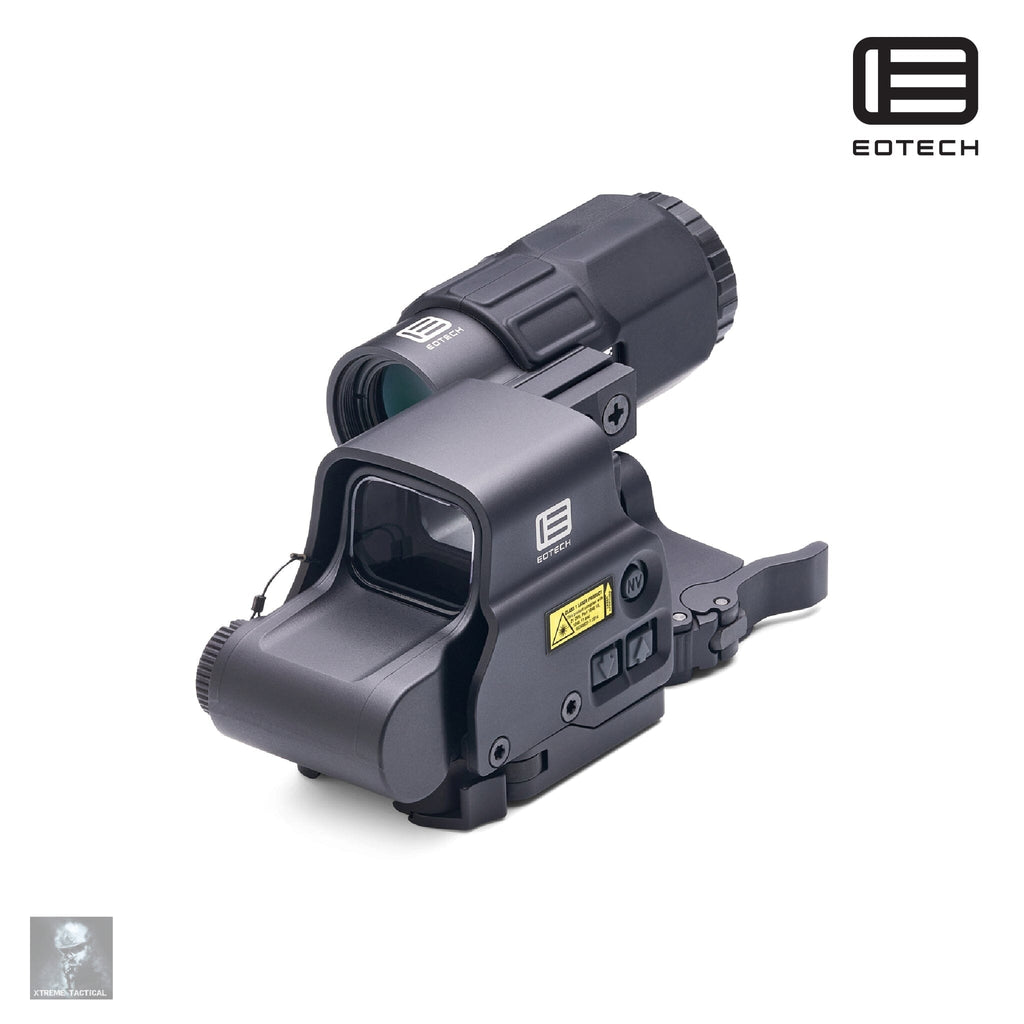

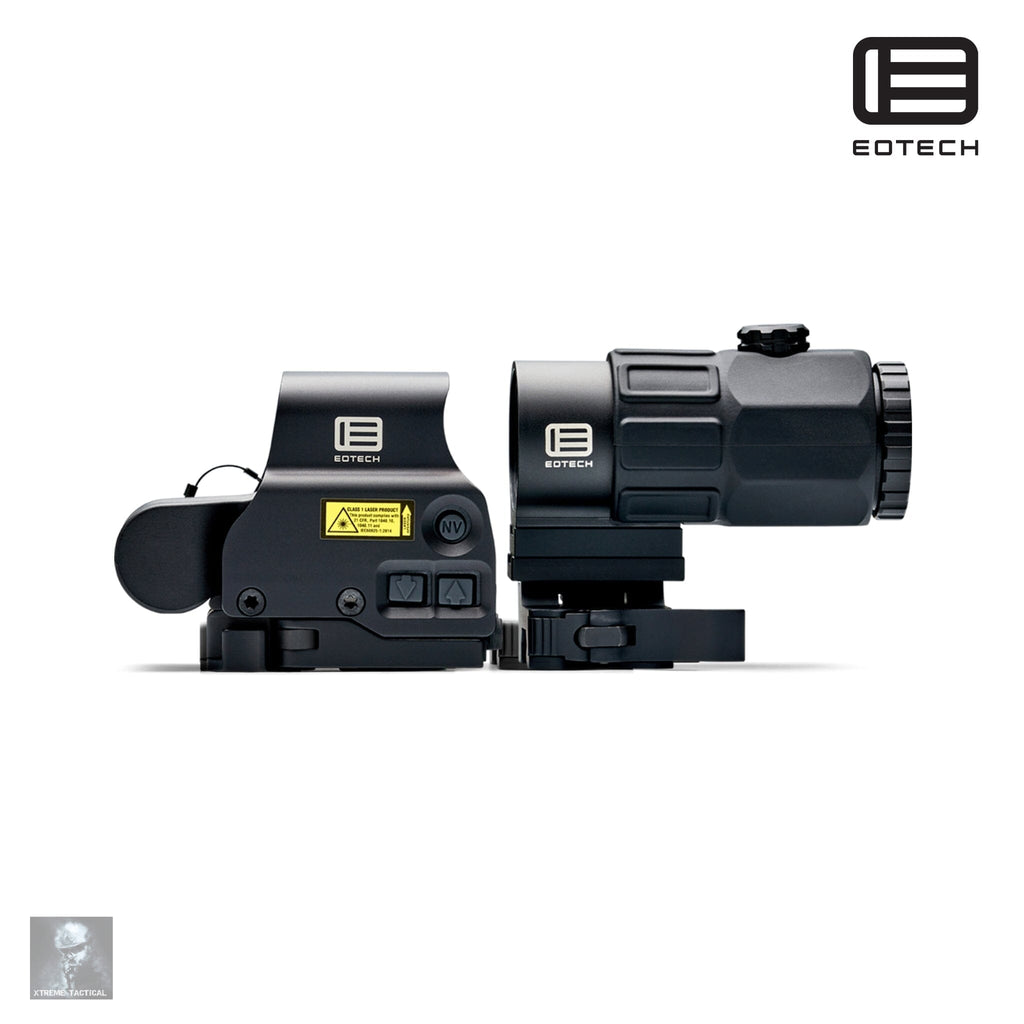

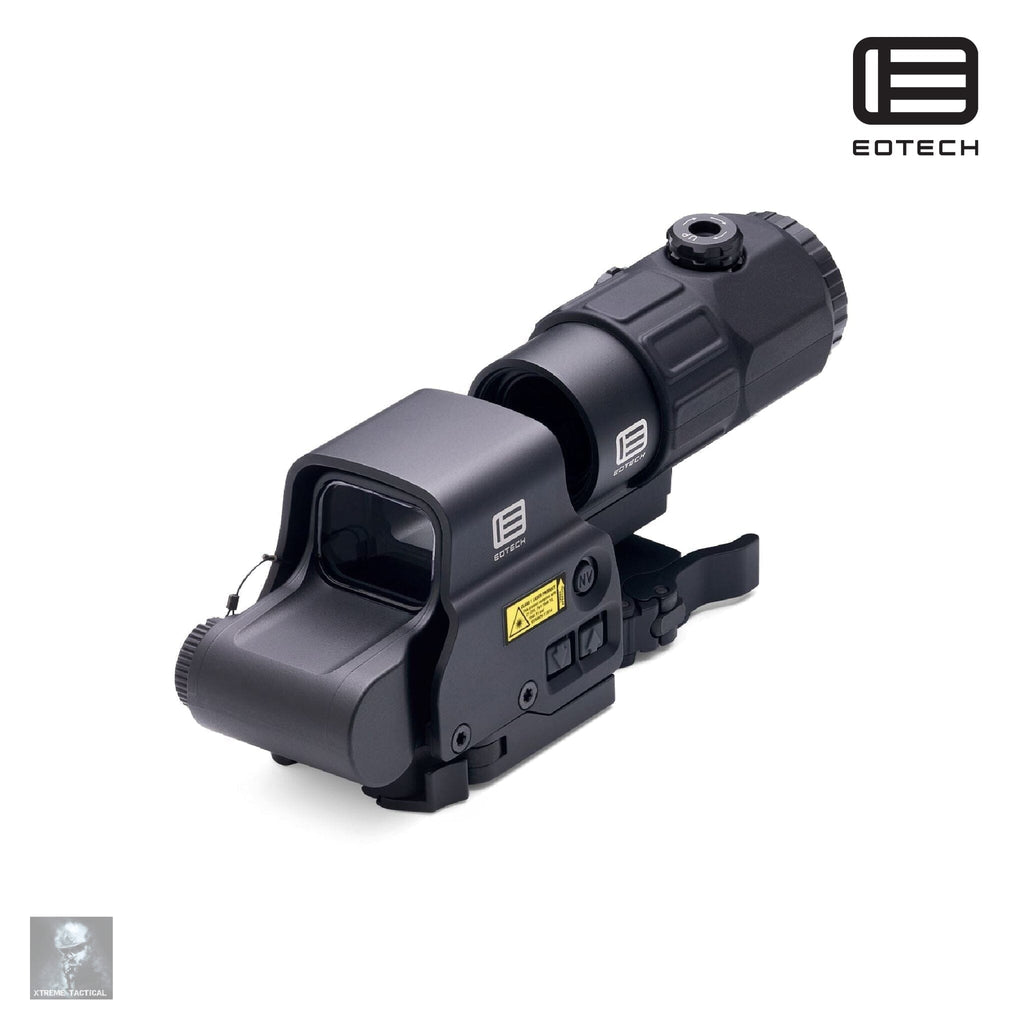

EOTech HHS V Hybrid Sight EXPS3-4 with G45.STS Magnifier
Features
-

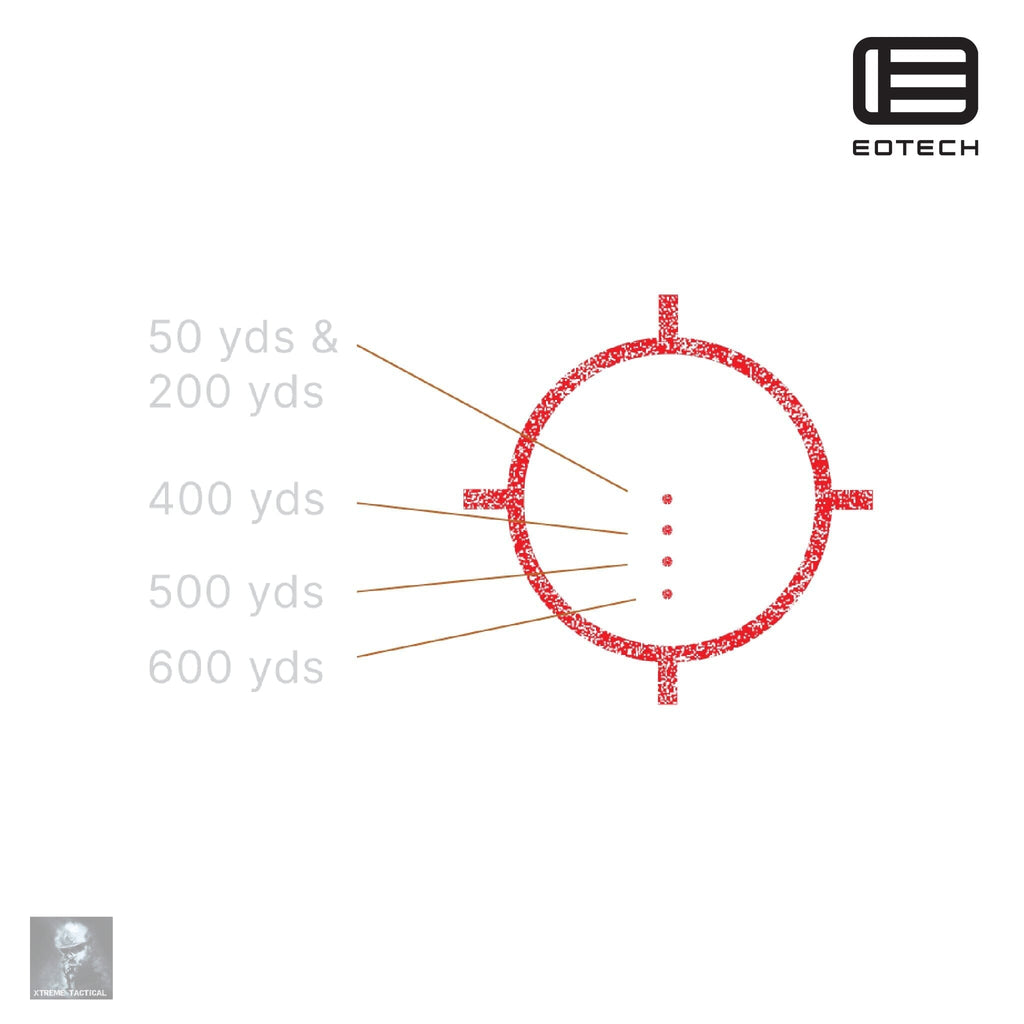

4-Dot Holographic Reticle: 68 MOA outer ring with four stacked 1 MOA dots for rapid acquisition and intuitive hold-over reference.
-
Hybrid Configuration: Seamlessly integrates the EXPS3-4 1× HWS with the 5× G45.STS magnifier for instant transitions between close-quarters and medium-range engagements.
-
Switch-To-Side (STS) Quick-Detach Mount: Tool-free lever with 7 mm riser lets you flip the magnifier off-axis and snap it back on zero in an instant.
-
Side-Button Illumination (Sight): Ergonomic controls offer 20 daylight + 10 night-vision compatible brightness levels.
-
Night-Vision Compatible: Both sight and magnifier optics optimized for use with Gen I–III+ NV devices.
-
Long Battery Life: Up to 1,000 continuous hours on a single CR123A at nominal setting.
-
Rugged, Weather-Resistant Build: O-ring sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
Technical Specifications for EOTech HHS V Hybrid Sight EXPS3-4 with G45.STS Magnifier
|
Specification
|
Details
|
|
Product Title
|
EOTech HHS V Hybrid Sight EXPS3-4 with G45.STS Magnifier (Black)
|
|
Model / MPN
|
HHS V
|
|
SKU
|
HHSV
|
|
UPC
|
672294600749
|
|
Reticle
|
68 MOA ring with four 1 MOA dots
|
|
Sight Magnification
|
1×
|
|
Magnifier Power
|
5×
|
|
Illumination Settings
|
20 daylight + 10 night-vision compatible
|
|
Night-Vision Compatible
|
Yes
|
|
Battery
|
(1) CR123A lithium
|
|
Battery Life
|
Up to 1,000 continuous hours at nominal setting
|
|
Adjustment Graduation
|
0.5 MOA per click
|
|
Windage / Elevation Travel
|
±50 MOA each
|
|
Eye Relief
|
Unlimited (sight); 2.6″ / 66 mm (magnifier)
|
|
Field of View
|
90 ft @ 100 yd (sight); 4.4° (magnifier)
|
|
Dimensions (L × W × H)
|
7.7″ × 2.3″ × 3.3″ (195.6 × 58.4 × 83.8 mm)
|
|
Weight
|
24 oz / 680 g
|
|
Water Resistance
|
IP67 (submersible to 10 m)
|
|
Operating Temperature
|
–40 °F to +140 °F (–40 °C to +60 °C)
|
|
Housing Material / Finish
|
Hard-anodized aluminum, matte black
|
|
Mount Interface
|
Sight: tool-free QD lever for 1″ Weaver/MIL-STD-1913 rail (7 mm riser);Magnifier: STS quick-detach lever
|
|
Warranty
|
2-Year EOTech Warranty
|
