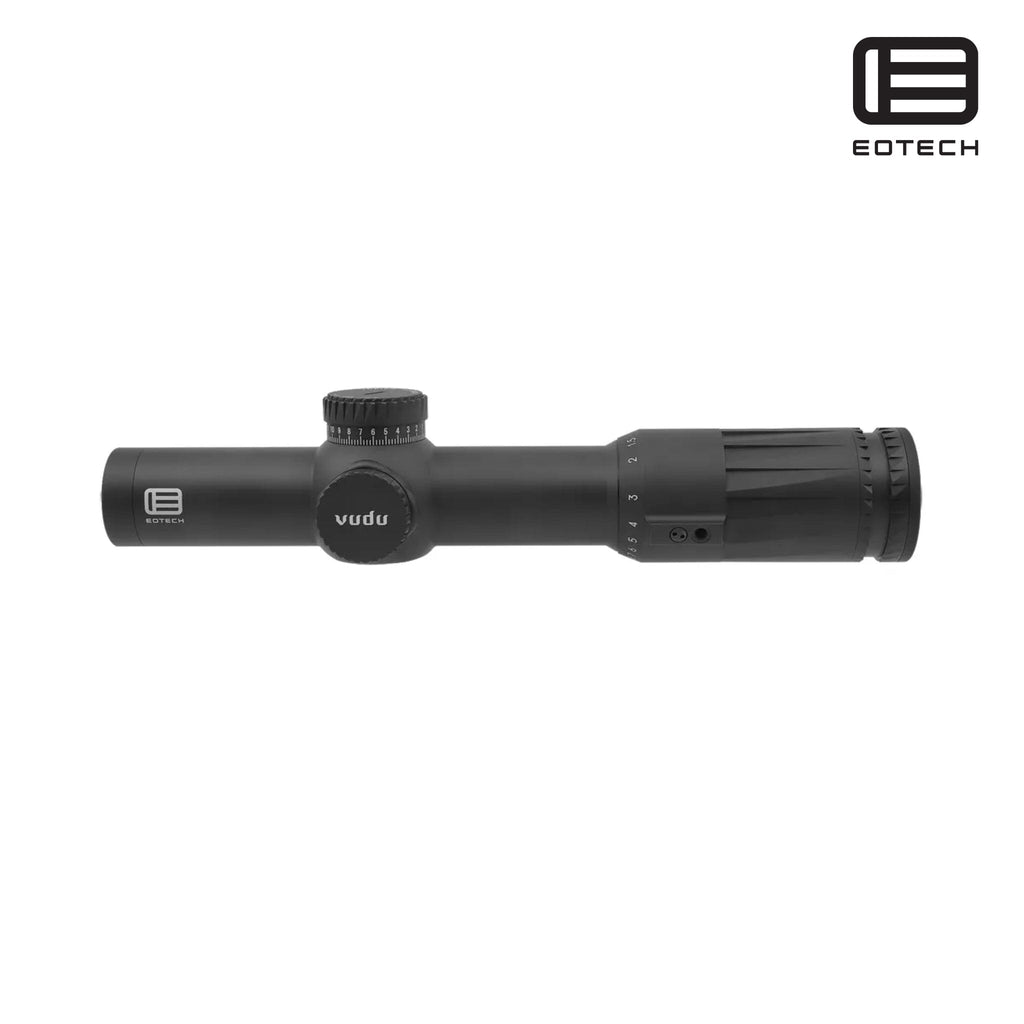

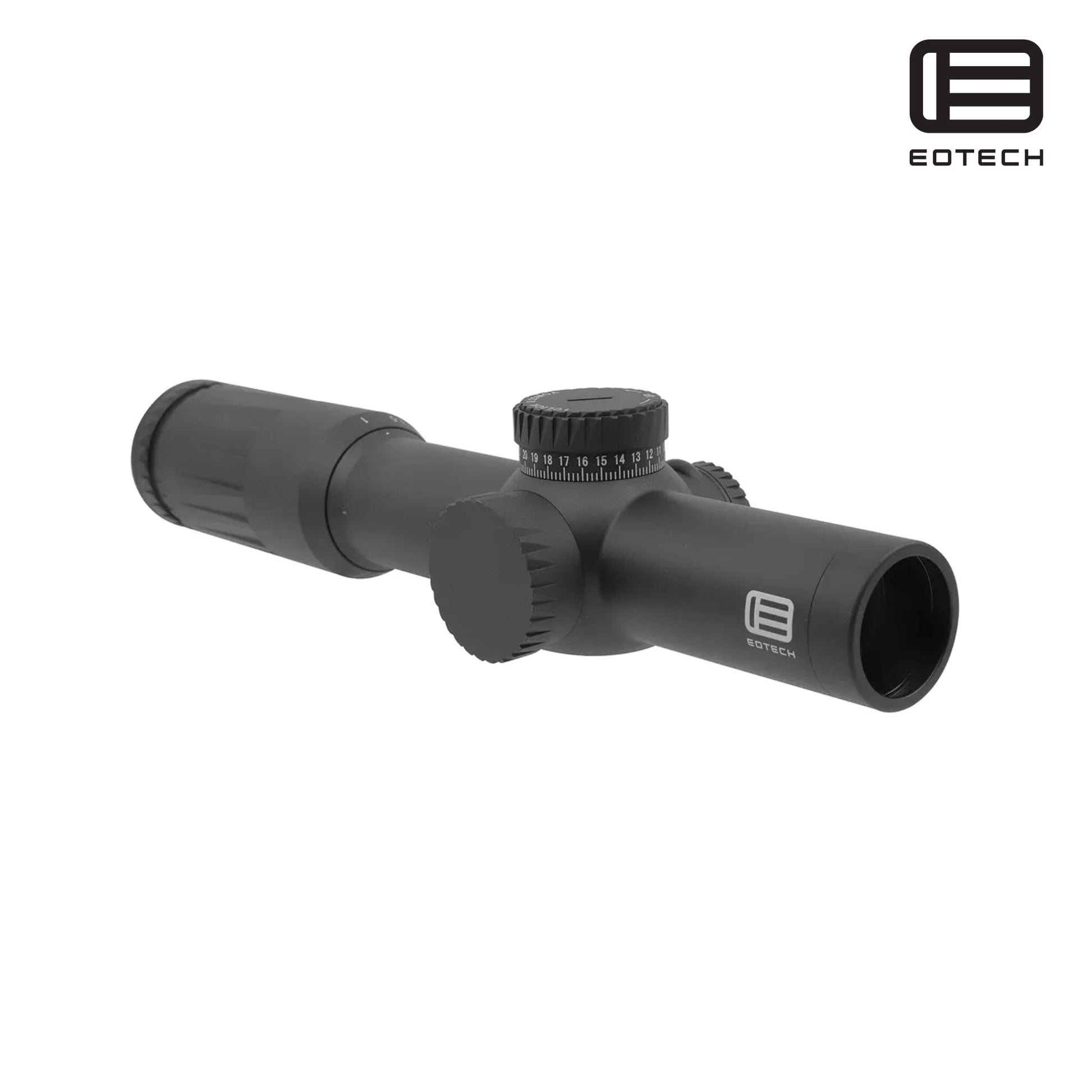

EOTech Vudu 1-10x28 FFP Rifle Scope SR-4 MOA Reticle

EOTech Vudu 1-10x28 FFP Rifle Scope SR-4 MOA Reticle offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.

Included in the box with the EOTech Vudu 1-10x28 FFP Rifle Scope SR-4 MOA Reticle

• Vudu 1-10X28 Rifle Scope
• Operator Manual
• Reticle Manual
• Throw Lever
• Lens Cleaning Cloth

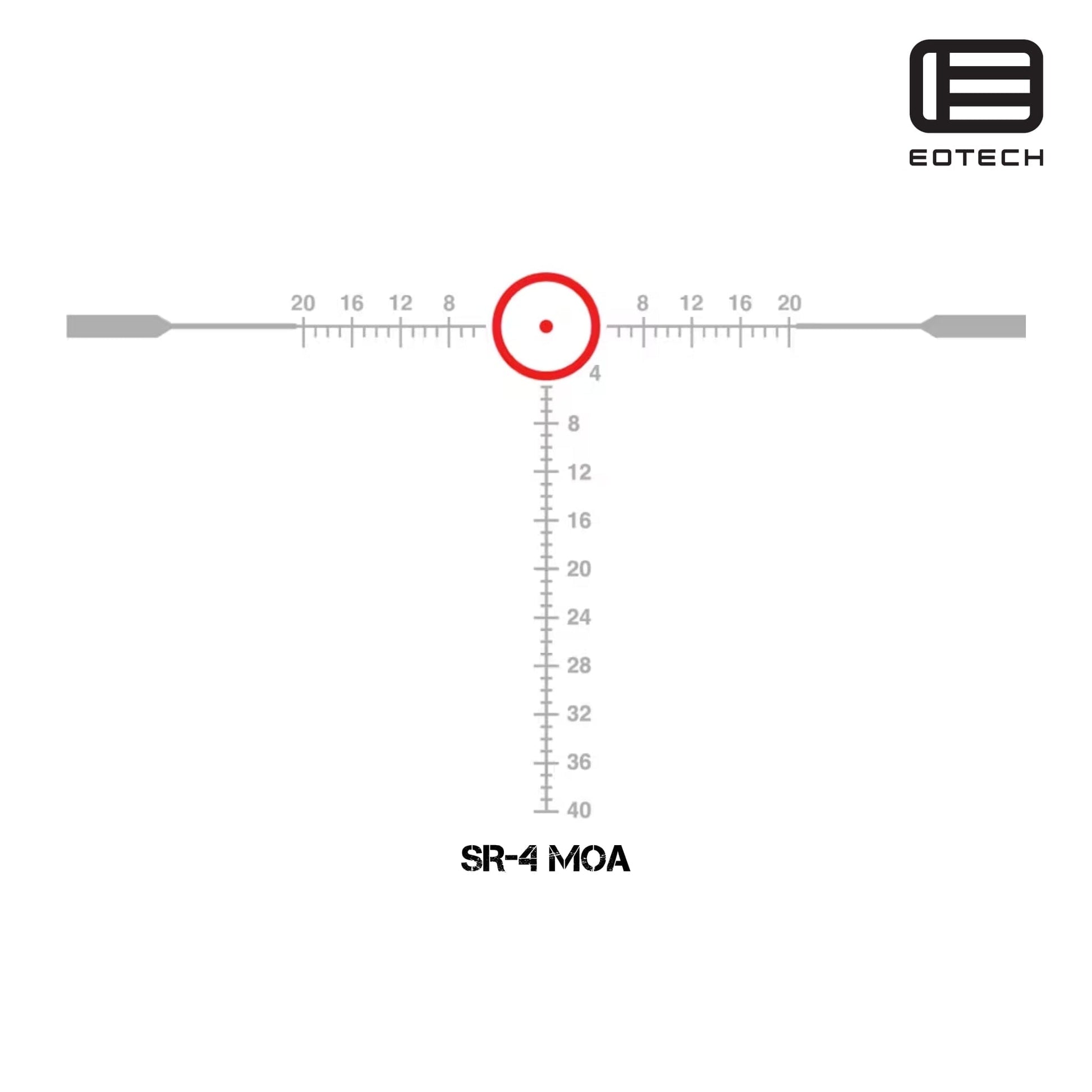

Vudu SR-4 MOA Reticle

The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.

• Adjustment Graduation Per Click: 0.25 MOA
• Adjustment Graduation Per Rotation: 40 MOA
• Total Elevation Travel: 100 MOA
• Total Windage Travel: 80 MOA

SPECIFICATIONS for the EOTech Vudu 1-10x28 FFP Rifle Scope SR-4 MOA Reticle

• First Focal Plane
• Overall Length: 10.63" (270 mm)
• Weight: 21.3 oz (603 g)
• Magnification: 1-10X
• Tube Diameter: 34 mm
• Objective Diameter: 28 mm
• Power Source: CR2032
• Eye Relief: 1X: 3.27-3.90" (83-99 mm) - 10X: 3.35-3.62" (85-92 mm)
• Field-of-View @ 100 Yards: 1X: 116.6 ft (35.5 m) - 10X: 11.7 ft (3.6 m)
• Country of Origin: Made in Japan
• SKU: VDU1-10FFSR4
• UPC: 672294110170
