EOTech Vudu 1-10×28 FFP Rifle Scope SR-5 MRAD Reticle with Daylight Bright Dot Black
Features
-

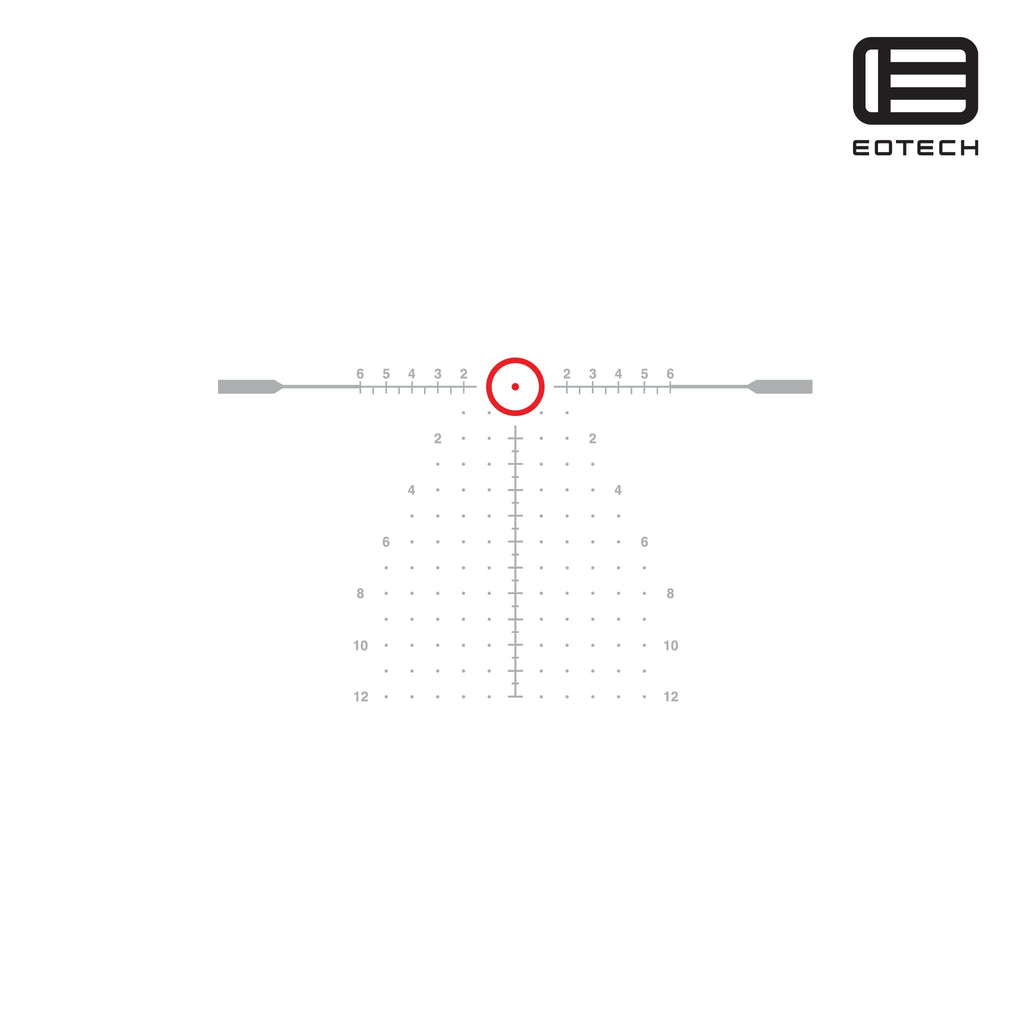

First Focal Plane SR-5 MRAD Reticle: Illuminated “speed-ring” with hash-marked crosshair, Christmas-tree hold lines, and a 0.1 MRAD center dot—accurate subtensions at any magnification.
-
Daylight Bright Dot Technology: Embedded diffraction grating and lensed LED concentrate illumination on the reticle center for exceptional visibility in bright conditions.
-
Wide 1–10× Zoom Range: Removable throw lever allows fast magnification changes from close-quarters to longer engagements.
-
Robust Aircraft-Grade Construction: One-piece 34 mm tube of forged 6061-T6 aluminum with hard-anodized matte-black finish delivers strength and corrosion resistance.
-
Locking Elevation & Capped Windage Turrets: Push-pull locking elevation turret (0.1 MRAD per click, 15 MRAD per revolution) and capped windage turret prevent accidental adjustments.
-
Fog-, Shock- & Water-Resistant: O-ring and nitrogen sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
-
Fixed Parallax at 100 yds: Eliminates parallax error for consistent long-range accuracy.
-
Battery-Powered Illumination: Single CR2032 battery provides hundreds of hours of reticle illumination.
Technical Specifications for EOTech Vudu 1-10×28 FFP Rifle Scope SR-5 MRAD Reticle with Daylight Bright Dot Black
Specification
|
Details
|
Product Title
|
EOTech Vudu 1–10×28 FFP Rifle Scope (SR-5 MRAD, Daylight Bright Dot)
|
Model / MPN
|
VDU1-10FFSR5-DF
|
SKU
|
VDU1-10SR5DF
|
UPC
|
672294110323
|
Magnification Range
|
1–10×
|
Objective Lens Diameter
|
28 mm
|
Tube Diameter
|
34 mm
|
Reticle
|
SR-5 MRAD FFP: illuminated speed-ring, hash-marked crosshair, Christmas-tree hold lines, 0.1 MRAD dot
|
Illumination Brightness
|
10 levels
|
Adjustment Graduation
|
0.1 MRAD per click; 15 MRAD per revolution
|
Total Elevation Travel
|
29 MRAD
|
Total Windage Travel
|
23 MRAD
|
Parallax
|
Fixed at 100 yds
|
Eye Relief
|
1×: 3.27–3.90″ (83–99 mm); 10×: 3.35–3.62″ (85–92 mm)
|
Field of View @ 100 yds
|
1×: 116.6 ft (35.5 m); 10×: 11.7 ft (3.6 m)
|
Throw Lever
|
Removable
|
Length
|
10.63″ (270 mm)
|
Weight
|
21.3 oz (603 g)
|
Power Source
|
(1) CR2032 battery
|
Waterproof Rating
|
IP67 (submersible to 10 m)
|
Operating Temperature
|
–40 °F to +140 °F (–40 °C to +60 °C)
|
Housing Material / Finish
|
Forged 6061-T6 aluminum, matte-black hard-anodized
|
Included Accessories
|
Operator Manual; Reticle Manual; Throw Lever; Lens Cleaning Cloth
|
