Description
From the legendary ACOG family of products, the LED ACOG is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an "off" between each setting, allowing the operator to determine how much to illuminate the reticle - even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours (on setting #4).
Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminum, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 3.5x35 LED ACOG is also compatible with most other 3.5x35 ACOG accessories available.
INCLUDES
-
Thumbscrew Flattop Adapter (TA51)
-
AA Battery
-
LENSPEN (TA56)
-
Lanyard Assembly for Adjuster Caps (TA71E)
-
Lanyard Assembly for Battery Cap
-
Trijicon Logo Sticker (PR15)
-
LED ACOG Manual
-
Warranty Card

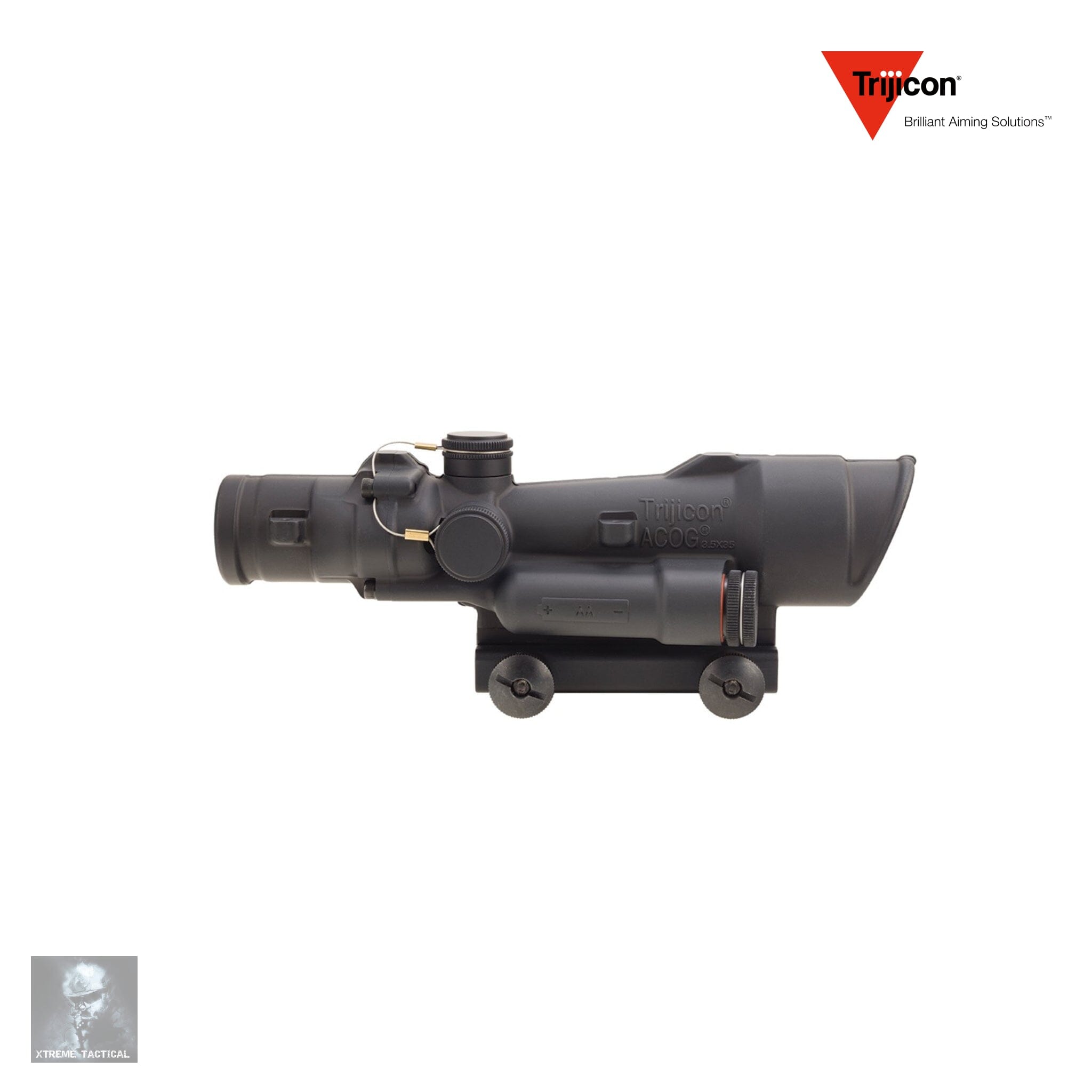

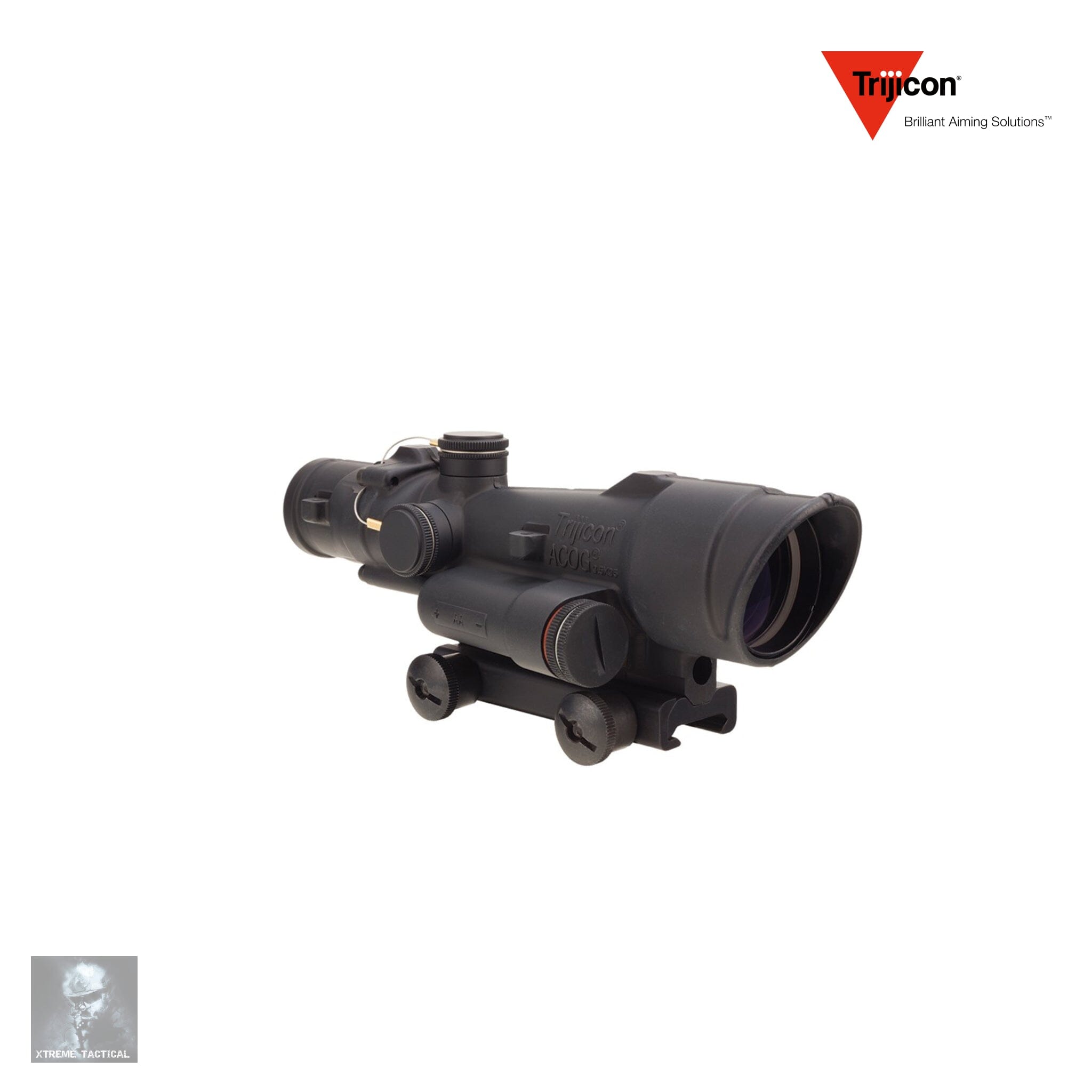

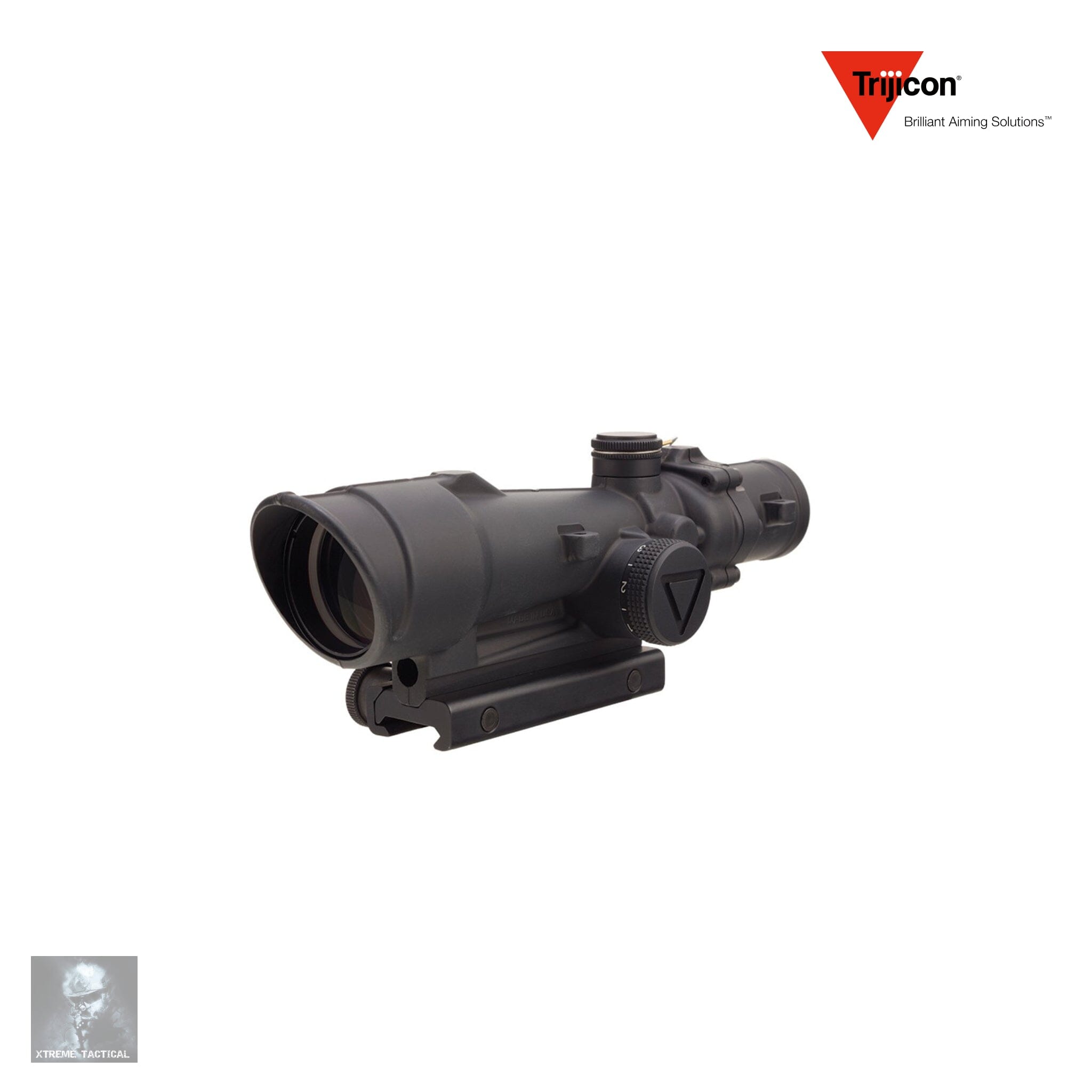

SPECIFICATIONS: Trijicon ACOG 3.5x35 LED Rifle Scope
-
Length x Width x Height: 8 in x 3 in x 2.6 in - (203.2mm x 76.2mm x 66.04mm)
-
Weight: 16.8 oz. (476.27g)
-
Magnification: 3.5x
-
Objective Size: 35mm
-
Day Reticle Color: Green
-
Night Reticle Colo: Green
-

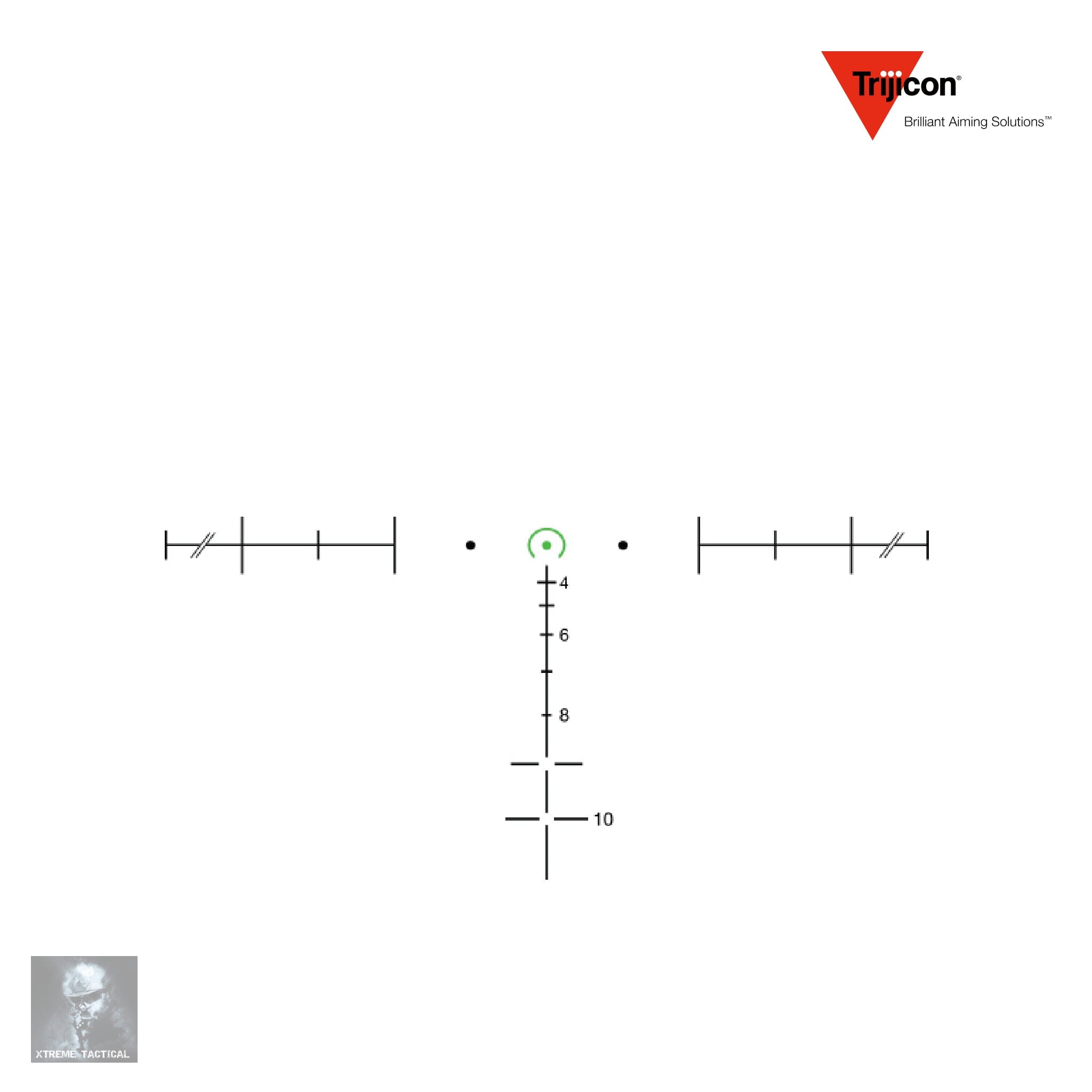

Bullet Drop Compensating (BDC): Yes
-
Bindon Aiming Concept (BAC): Yes
-
Illumination Source: LED
-
Illumination Settings: 6
-
Power Source: AA Lithium or Alkaline Battery
-
Battery Life: Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F)
-
Adjustment: 3 clicks per in. @ 100 yds
-
Adjustment Range: 40 MOA Total Travel
-
Eye Relief: 2.4 in. (60.96mm)
-
Exit Pupil: 0.39 in. (9.91mm)
-
Field of View (degrees): 5.5°
-
Field of View (feet): 28.9 ft. @ 100 yds. (9.63m @ 100m)
-
Mount: Flattop Thumbscrew Mount (TA51)
-
Housing Material: Forged Aluminum
-
Finish: Matte Black
-
SKU: TA110-D-100494
-
UPC: 719307320987
