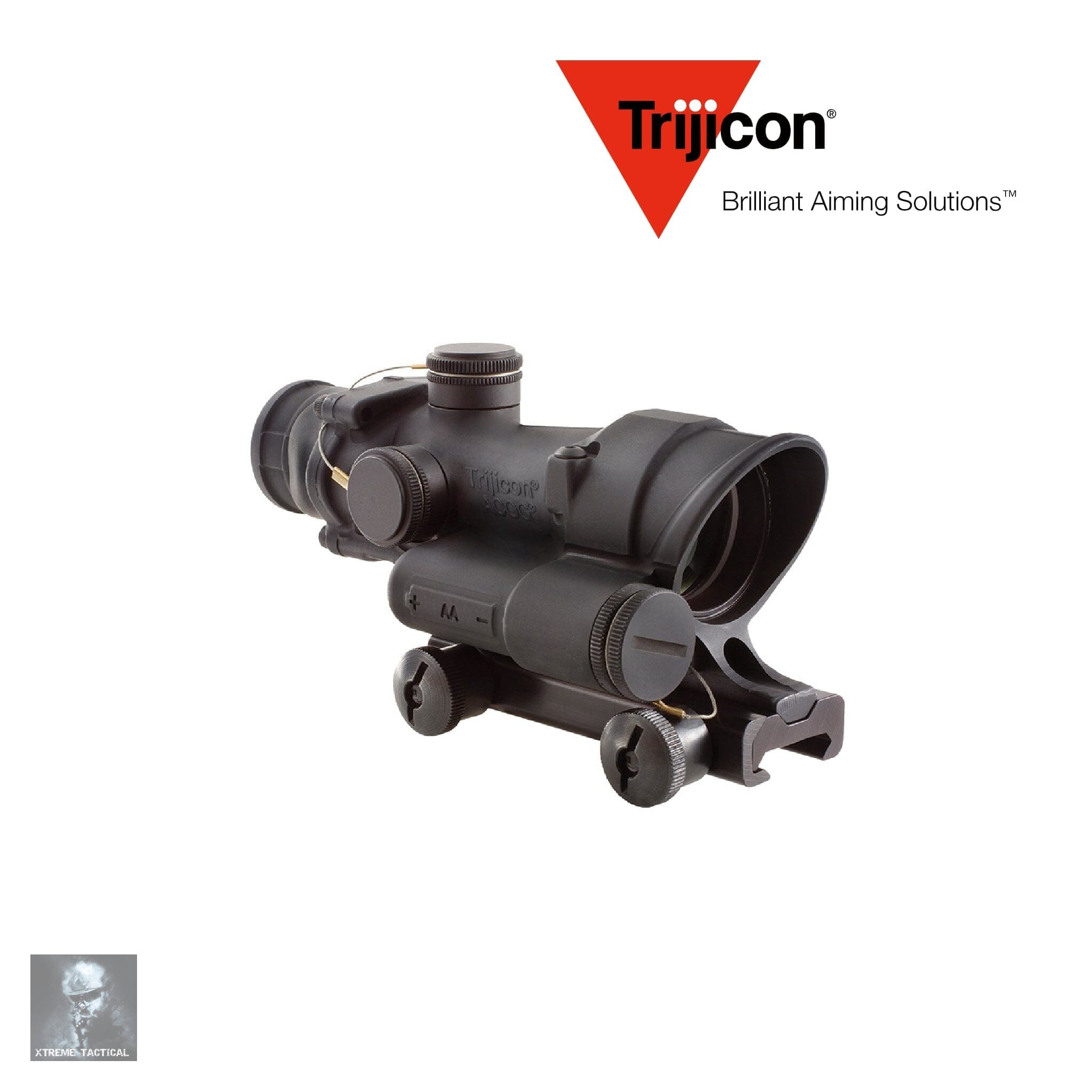

Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle
Features
-
User‑Selectable LED Illumination (AA Powered): Six brightness levels with “off” detents between each for instant return to preferred setting; runs on a widely available AA battery (alkaline or lithium).
-
Extended Battery Life: 12,000+ continuous hours on mid (#4) setting at ~21 °C; choose lithium cells for colder climates and maximum runtime.
-
NV‑Compatible Low Settings: Dim levels work with image‑intensified night‑vision gear while minimizing bloom.
-
4× Fixed ACOG Optical System: Rugged prism delivers bright, flat, repeatable 4× magnification for rapid carbine work from CQB to extended 5.56 distances.
-
.223/5.56 BDC Green Horseshoe/Dot Reticle: Fast illuminated horseshoe encircles a fine dot; descending ballistic stadia calibrated for common 5.56 NATO loads (100 m zero) enable rapid hold‑overs without dialing.
-
LED Battery Saddle Housing: Side battery compartment improves ergonomics and leaves clearance for optional piggyback reflex optics (e.g., RMR).
-
Forged 7075‑T6 Aluminum Construction: Near‑indestructible duty body—shock, recoil, and harsh‑environment resistant.
-
½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zeroing and in‑field corrections.
-
Weather & Duty Ready: Waterproof, fog‑proof (nitrogen‑purged), and temperature‑tested for service use.
-
TA51 Flattop Picatinny Mount Included: Ready for MIL‑STD‑1913 / AR‑15 flattops out of the box.
-
Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
TA02‑D‑100392 / 100392
|
SKU
|
TA02‑D‑100392
|
UPC
|
719307308206
|
Country of Origin
|
USA
|
Magnification
|
4× fixed
|
Objective Lens Diameter
|
32 mm
|
Optical Design
|
Fixed‑power prism (integral ACOG housing)
|
Reticle
|
Green Horseshoe/Dot .223/5.56 BDC (LED illuminated)
|
Illumination Settings
|
6 user‑selectable LED brightness levels w/ “off” between each; NV‑friendly lows; AA powered
|
Battery Life
|
12,000+ hrs continuous on setting #4 (~21 °C) w/ quality cell; longer w/ lithium
|
Eye Relief
|
1.5″ (38 mm)
|
Field of View @ 100 yd
|
36.8 ft (7°)
|
Exit Pupil
|
8.1 mm
|
Adjustment Click Value
|
½ MOA (≈2 clicks/inch @100 yd)
|
Total Adjustment Range
|
~40 MOA windage & elevation
|
Parallax Focus
|
Fixed at 100 m (≈109 yd)
|
Overall Length
|
6.0″ (152 mm) battery‑saddle housing
|
Weight
|
18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.)
|
Housing Material / Finish
|
Forged 7075‑T6 aluminum; matte black hard anodize
|
Optical Coatings
|
Fully multi‑coated, broadband treated
|
Waterproof / Fog‑Proof
|
Sealed; nitrogen‑purged; duty waterproof
|
Shock Resistance
|
Rated from .22 LR through .50 BMG recoil; field‑hard
|
Mount Interface
|
TA51 flattop Picatinny thumbscrew adapter (included)
|
Included Accessories
-
TA51 flattop Picatinny thumbscrew mount
-
AA battery (factory supplied; lithium recommended for extreme conditions)
-
Lanyard assembly for adjuster caps
-
Lanyard assembly for battery cap
-
Lens cleaning tool (LensPen® style)
-
Trijicon logo sticker
-
Owner’s manual
-
Warranty card / registration info
