Description

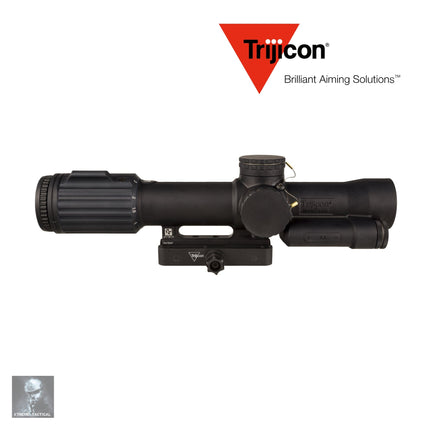

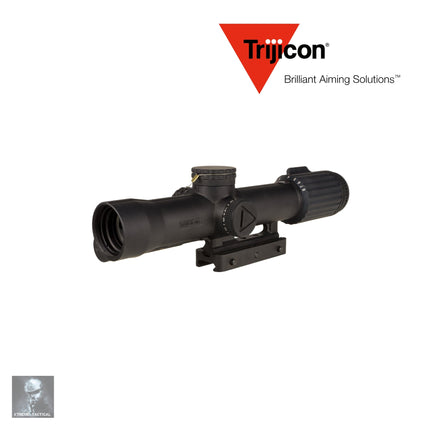

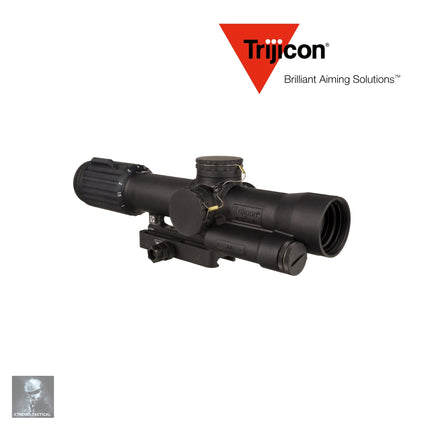

The Trijicon 1-8x28 VCOG (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle/MOA crosshair dot reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold.
With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
The Trijicon VCOG Mount w/ Q-LOC Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
- Matte black anodized finish
- Made in the USA
Torque Spec (to rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 44-66 in. / lbs.
INCLUDES
-
Quick Release Mount with Trijicon Q-LOC™ Technology
-
Lithium AA Battery
-
LENSPEN (TA56)
-
Trijicon Logo Sticker (PR15)
-
Manual
-
Warranty Card
SPECIFICATIONS: Trijicon VCOG 1-8x28 LED Rifle Scope
-
Finish: Matte
-
Waterproof: Yes
-
Weight: 28.9 Ounce
-
Battery: AA Lithium
-
Tube Diameter: 30mm
-
Power Variability: Variable
-
Minimum Power: 1x
-
Maximum Power: 8x
-
Adjustment Type: Click
-
Exposed Turrets: No
-
Finger Adjustable Turrets: Yes
-
Zero Stop: No
-
Turret Height: Low
-
Fast Focus Eye Piece: Yes
-
Lens Coating: Fully Multi-Coated
-
Warranty: Trijicon Limited Lifetime
-
Reticle: Red Crosshair
-
Reticle Construction: Glass Etched
-
Illuminated Reticle: Yes
-
Reticle Color: Red
-
Battery Type: AA
-
Holdover Reticle: Yes
-
Reticle Focal Plane Location: FFP
-
Fog Proof: Yes
-
Shock Proof: Yes
-
Overall Length: 10.8 Inches
-
Objective Lens Diameter: 28 Millimeter
-
Eye Relief: 4.0-3.9 Inches
-
Exit Pupil Diameter: 0.4-0.14 Millimeter
-
Field of View @ 100 Yards Minimum Power: 109.2 Feet
-
Field of View @ 100 Yards Maximum Power: 13.1 Feet
-
Adjustment Range: 35 MRAD
-
Country of Origin: United States of America
-
SKU: VC18-C-2400014
-
UPC: 719307617148
