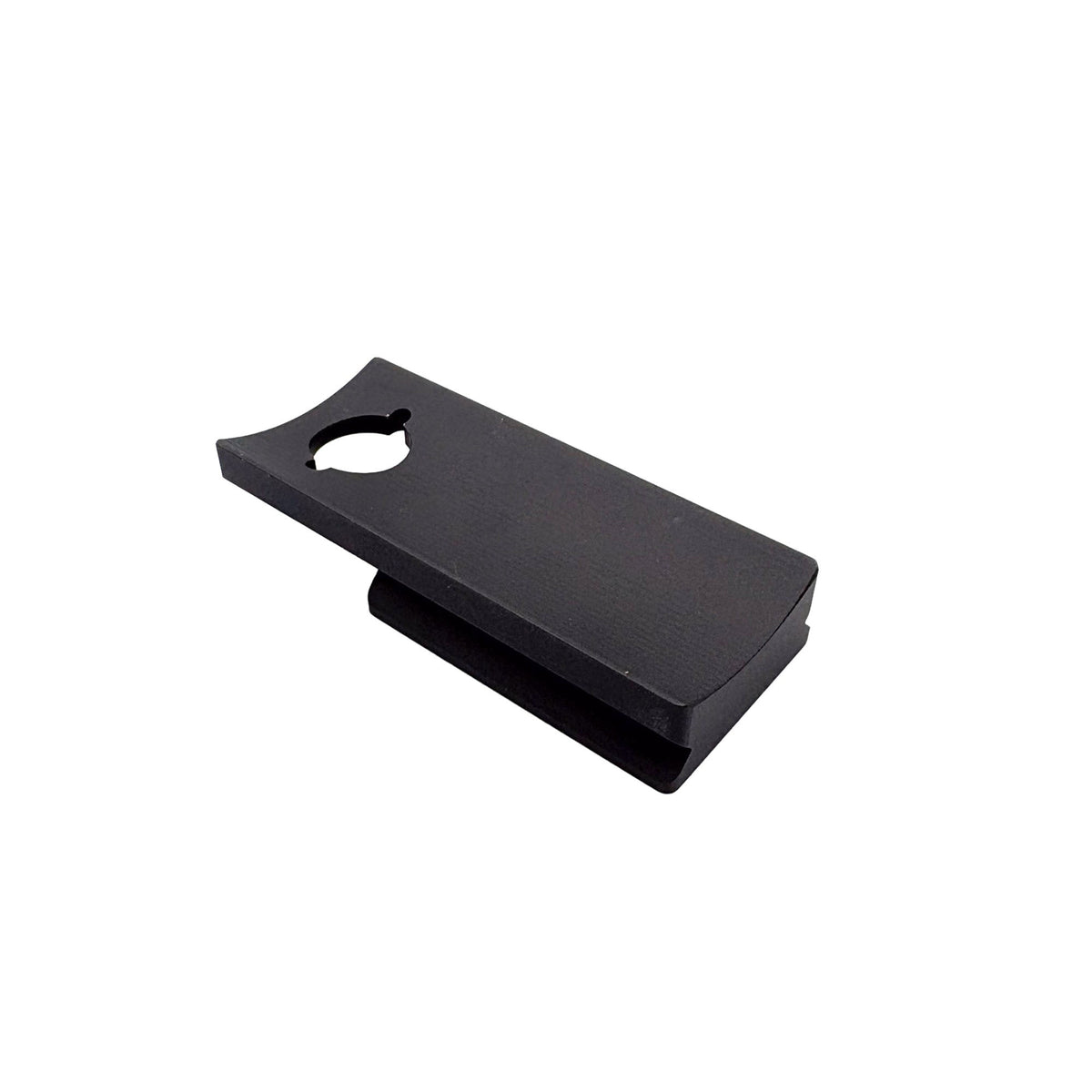

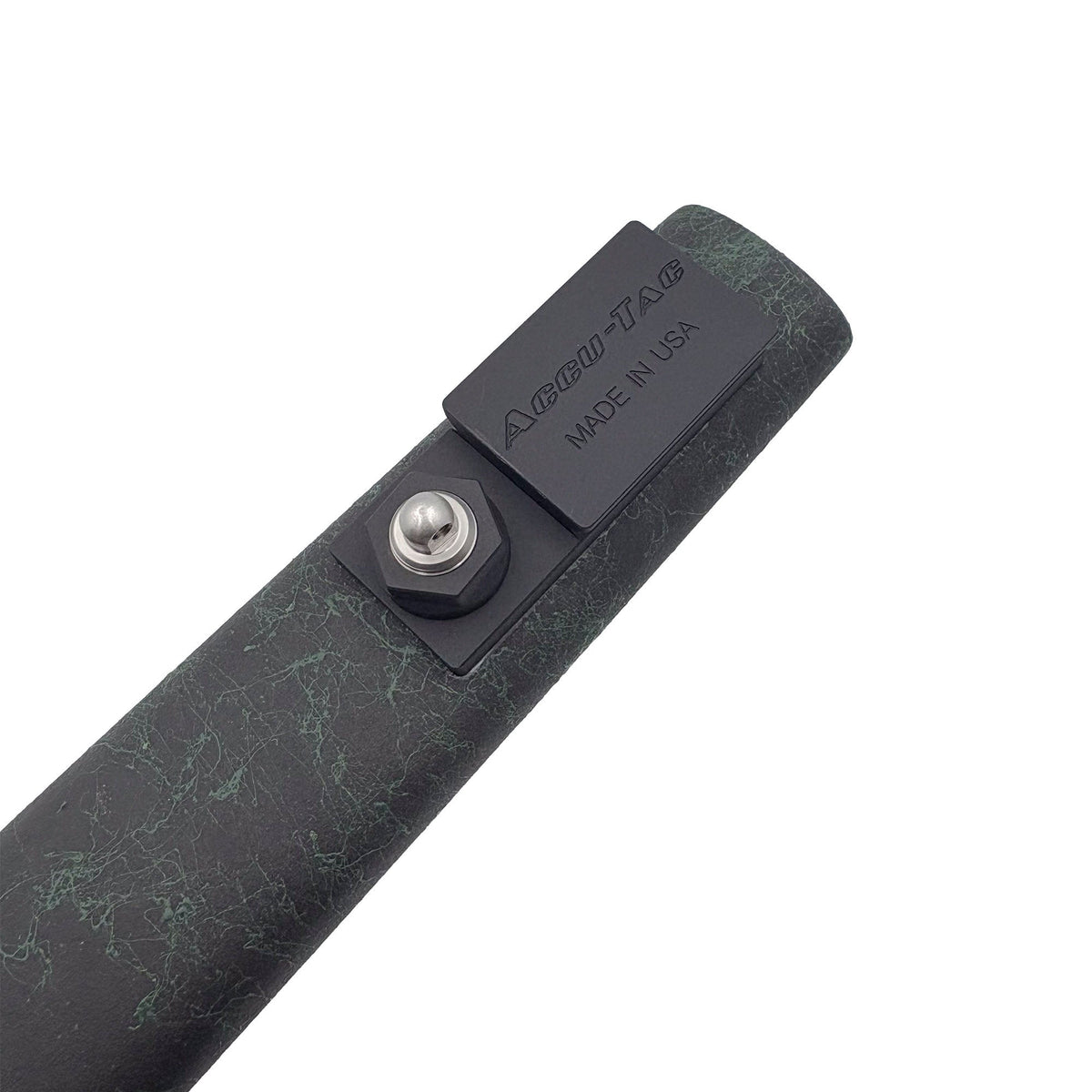

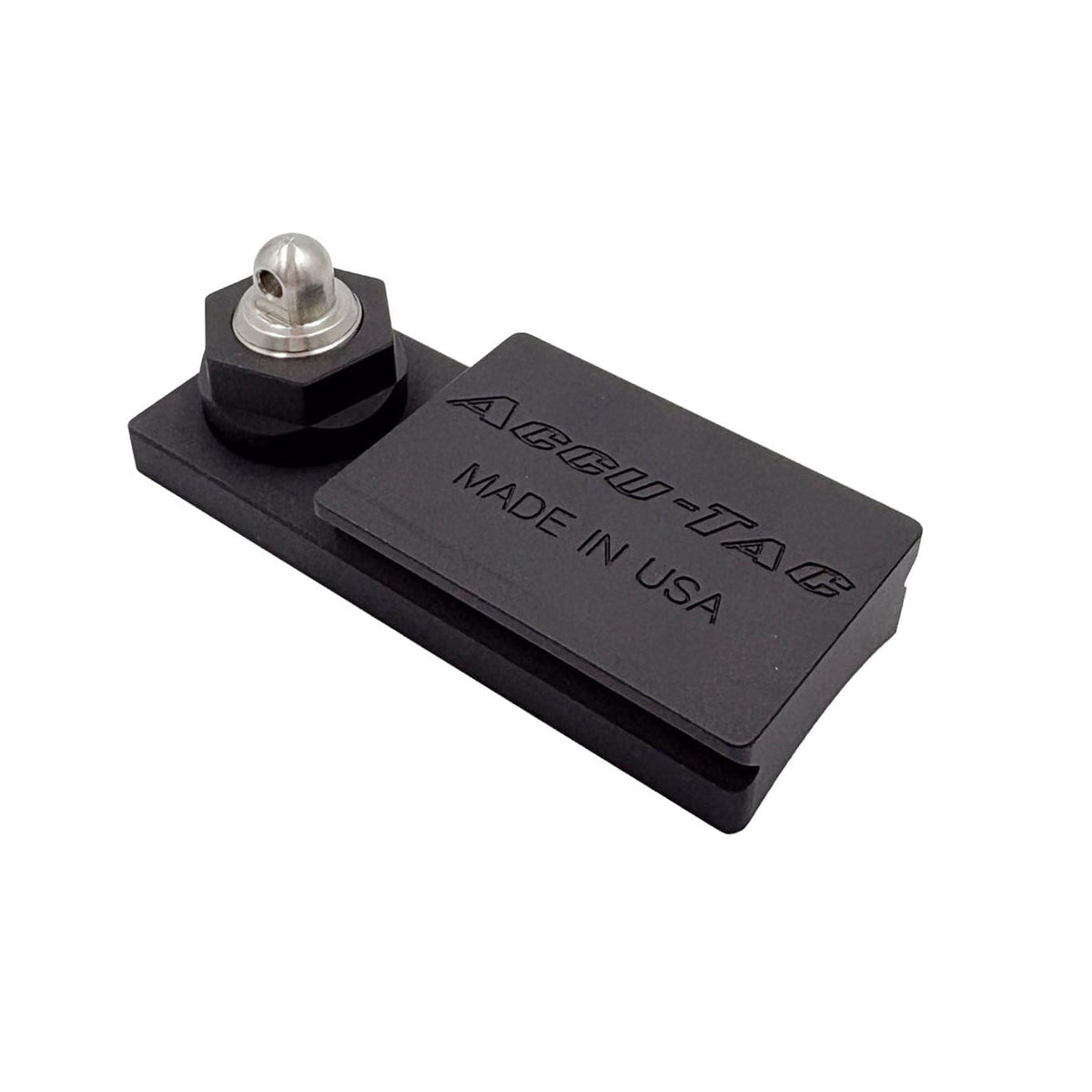

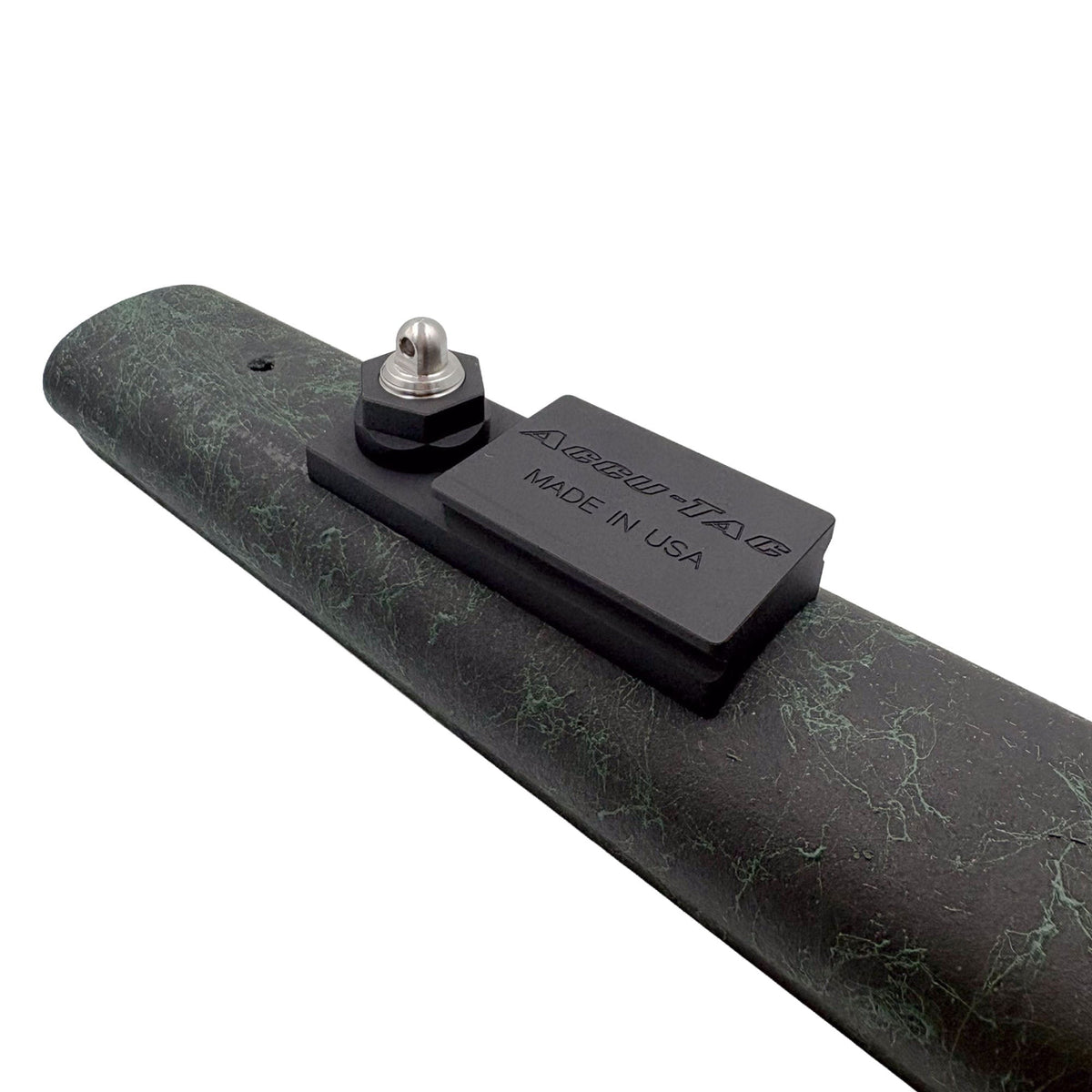

The Accu-Tac Arca Sling Stud Rail Adapter, part number ASSRA-300, mounts an Arca-Spec Accu-Tac bipod to a standard rifle sling stud, presenting an Arca-Swiss dovetail 3.5″ × 1.4″ (89 × 36 mm).
How It Compares
This is the Arca twin of the Picatinny adapter: it bolts to the front sling stud on a sporter stock and gives you an Arca-Swiss dovetail, so an Arca-Spec bipod such as the Accu-Tac BR-4 G2 Arca-Spec QD bipod or Accu-Tac HT-10 Arca-Spec hunting bipod can be fitted to a stalking rifle that has no chassis forend. If your bipod uses a Picatinny clamp, take the Accu-Tac Sling Stud Rail Adapter instead. Compare ARCA bipods and clamps, bipod rails and adapters and the Accu-Tac collection.
Ideal For
- Deer stalking rifles with a sling stud but no Arca rail
- Running one Arca-Spec bipod across a chassis rifle and a sporter
- Hill and woodland stalking where the bipod comes on and off between drives
- Adding Arca compatibility without replacing the stock
Key Features
-
Function: Turns a standard front sling stud into an Arca-Swiss dovetail
-
Rail interface: Arca-Swiss spec
-
Size: 3.5″ × 1.4″ (89 × 36 mm)
-
Compatibility: Mounts Arca-Spec Accu-Tac bipods to a standard rifle sling stud
-
Construction: 6061 aluminium alloy with stainless-steel hardware
-
Finish: Type III MIL-SPEC hard-anodise, flat black
Technical Specifications
| Material |
6061 aluminium alloy; stainless-steel hardware |
| Finish |
Type III (MIL-SPEC) hard anodise, flat black |
| Rail interface |
Arca-Swiss spec |
| Overall size |
3.5″ × 1.4″ (89 × 36 mm) |
| Compatibility |
Mounts Arca-Spec Accu-Tac bipods to a standard rifle sling stud |
| Brand |
Accu-Tac (USA) |
| SKU / MPN / UPC |
ASSRA-300 / ASSRA-300 / 858520006688 |
What's Included
- Arca sling stud rail adapter

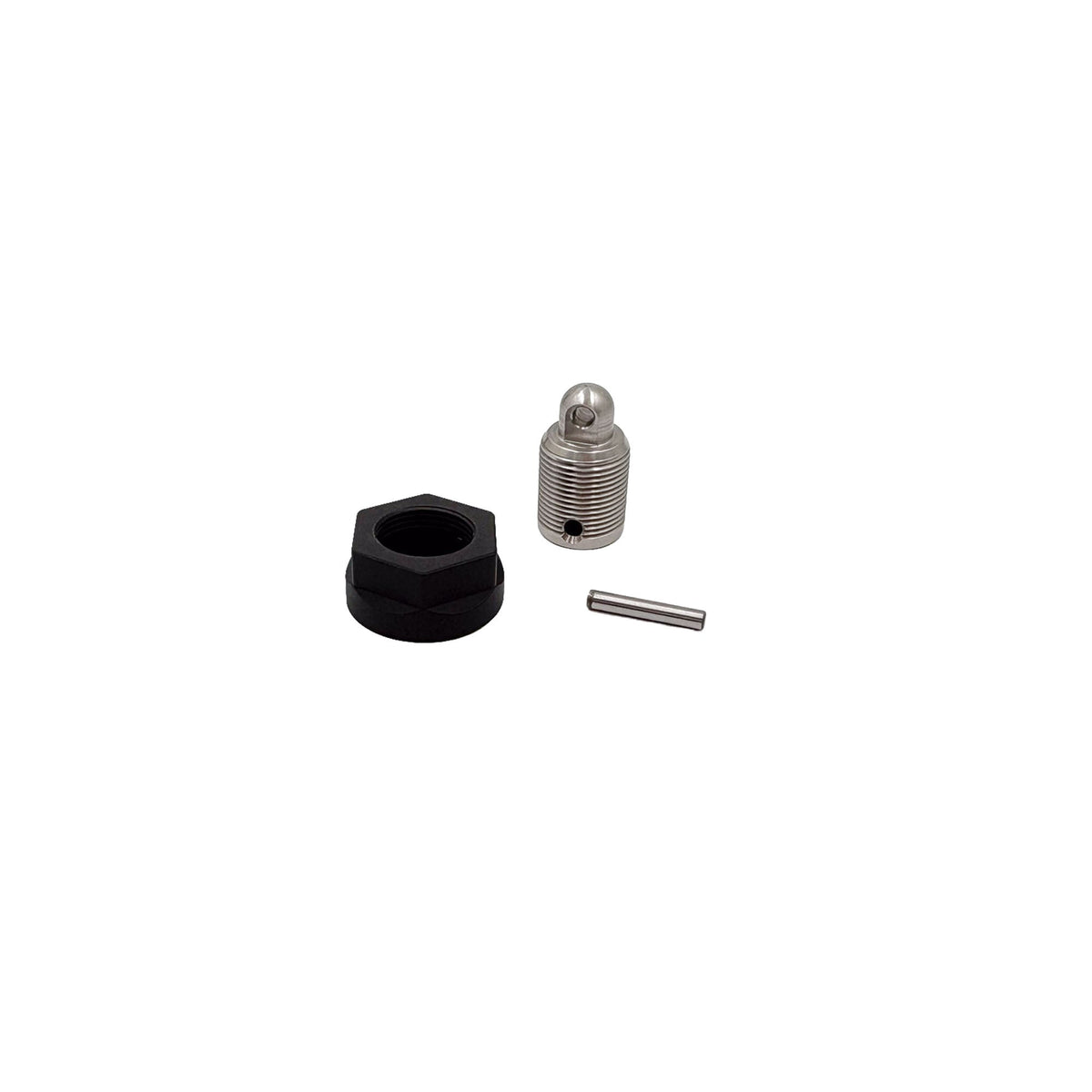

- Mounting hardware
Warranty
Covered by the Accu-Tac Limited Warranty against defects in materials and workmanship.
UK Delivery & Support
Every order is dispatched tracked from our UK warehouse, so there are no import duties or customs surprises, and you are backed by UK-based aftersales support from our team.
Frequently Asked Questions
What does the Accu-Tac Arca Sling Stud Rail Adapter do?
It bolts to a standard front sling stud and presents an Arca-Swiss dovetail, so an Arca-Spec Accu-Tac bipod can be fitted to a stock with no Arca rail.
Which bipods work with the Accu-Tac Arca Sling Stud Rail Adapter?
Arca-Spec Accu-Tac bipods. For Picatinny-clamp bipods use the Accu-Tac Sling Stud Rail Adapter (SSRA-200) instead.
How big is the Accu-Tac Arca Sling Stud Rail Adapter?
It measures 3.5″ × 1.4″, or 89 × 36 mm.
What is the Accu-Tac Arca Sling Stud Rail Adapter made from?
6061 aluminium alloy with stainless-steel hardware, finished in Type III MIL-SPEC hard-anodise, flat black.
