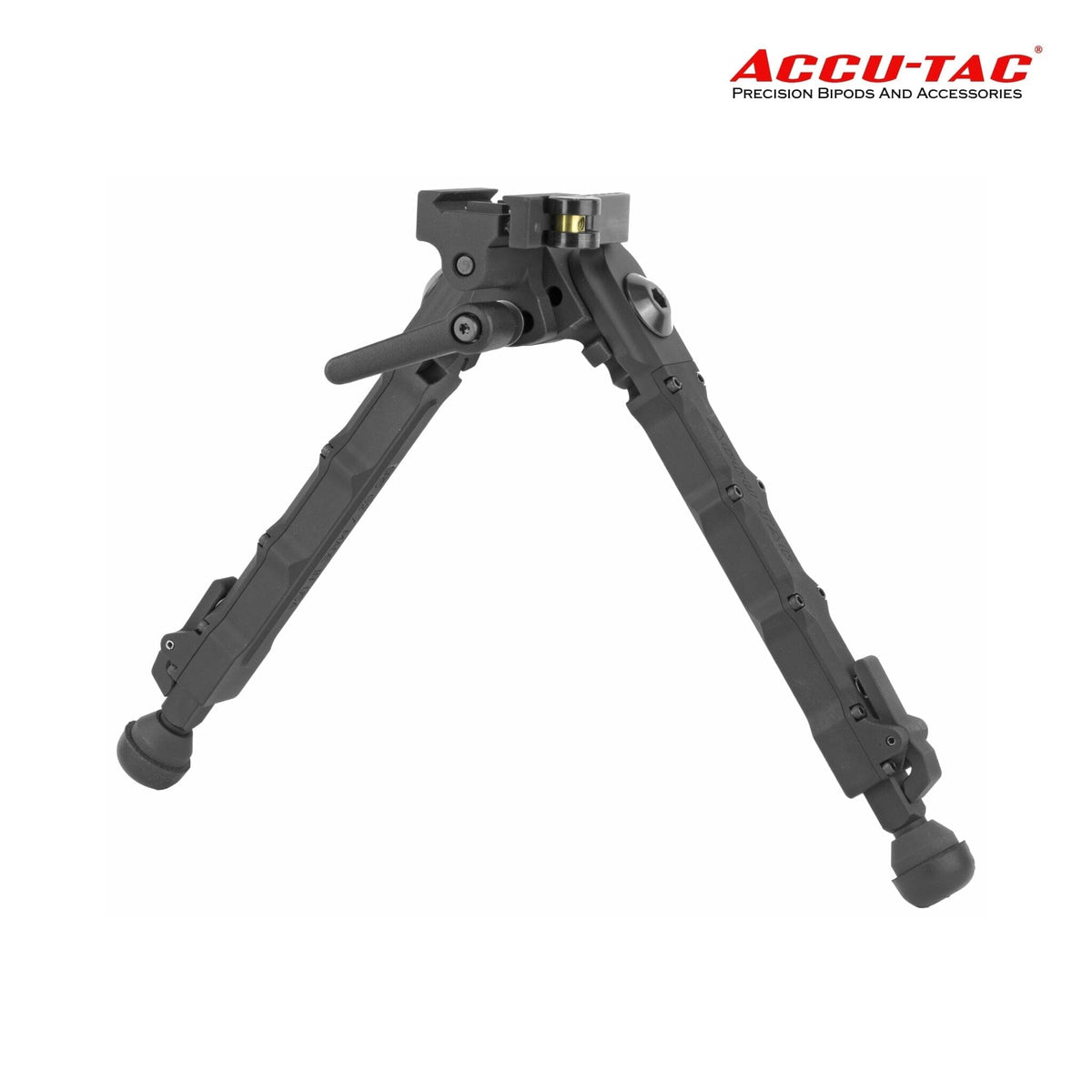

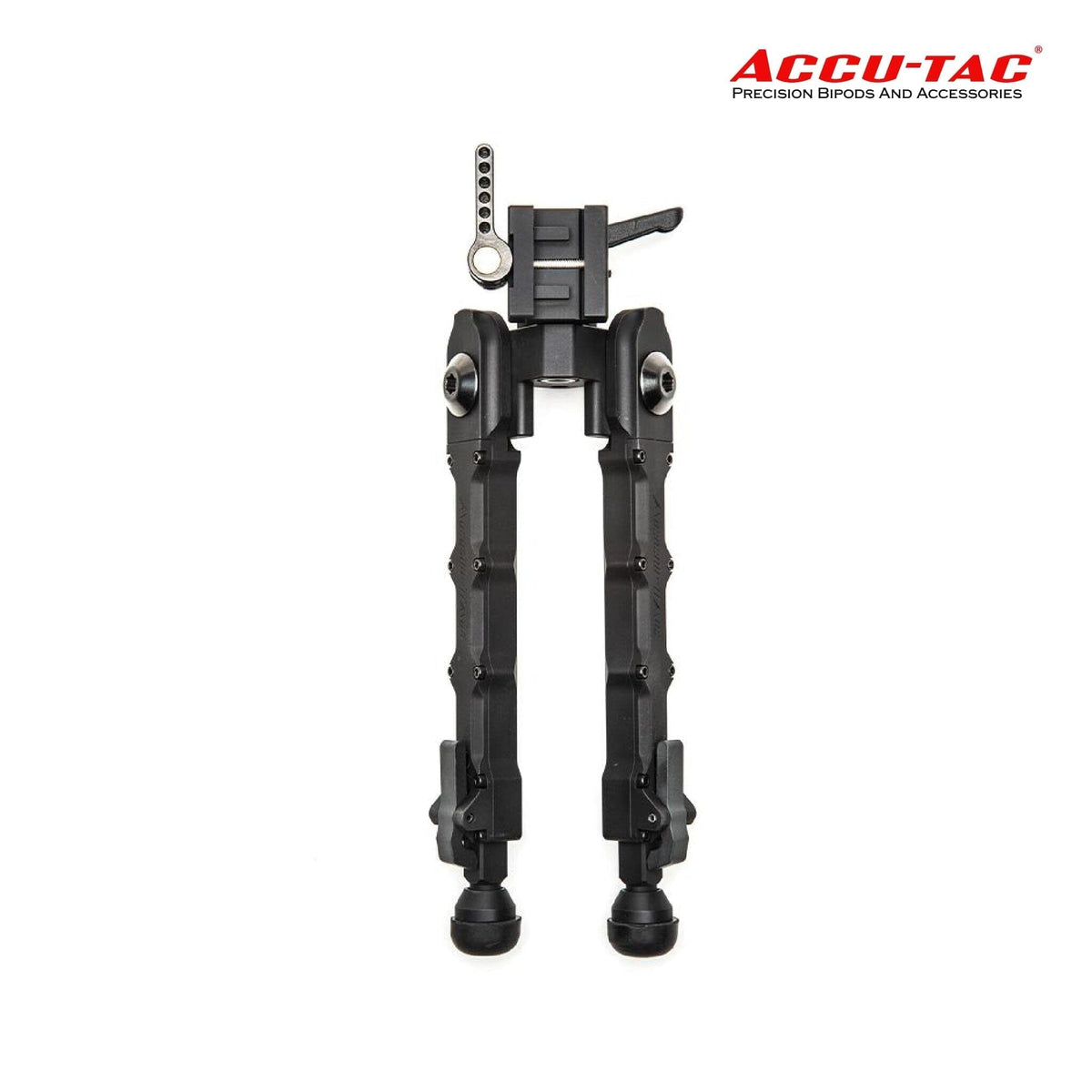

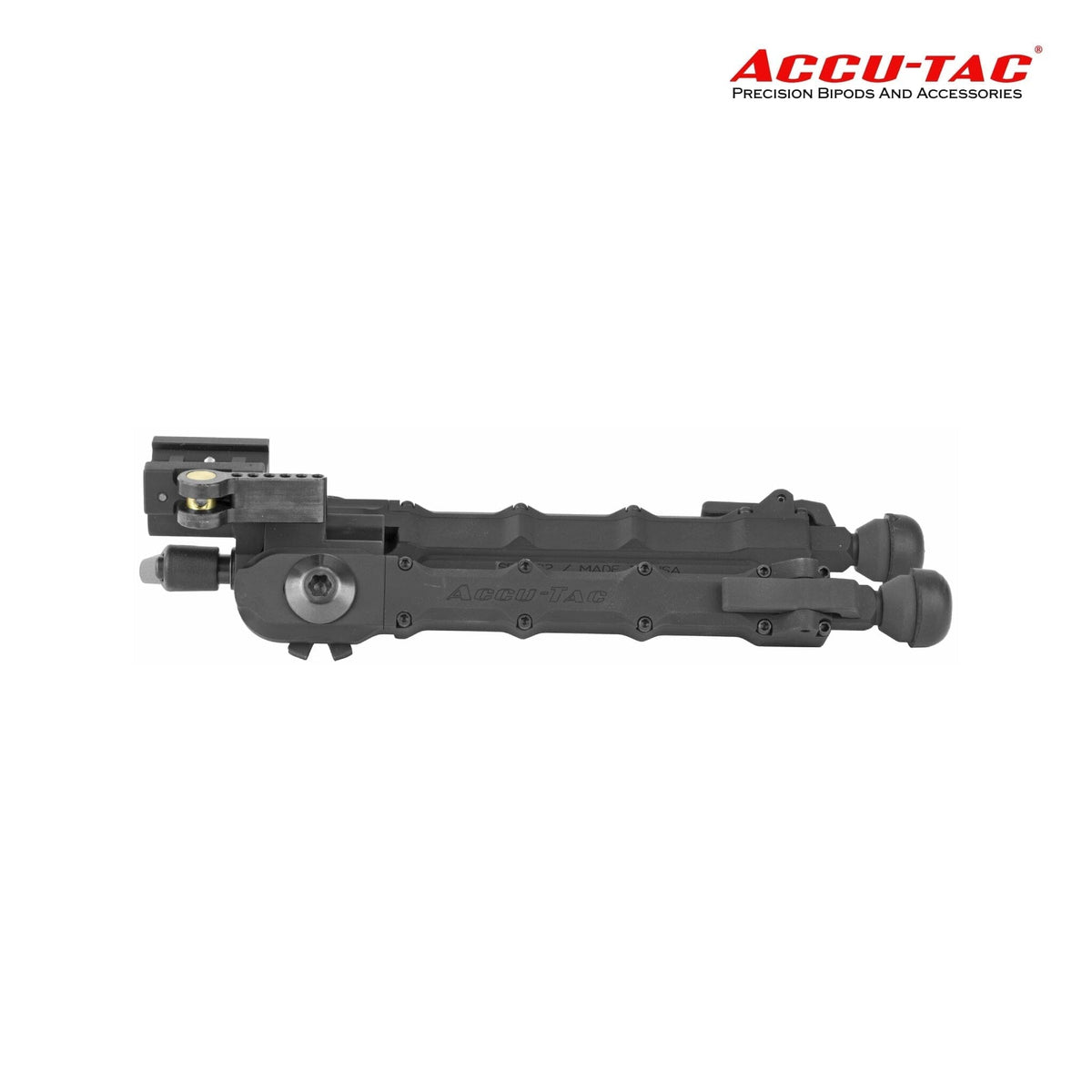

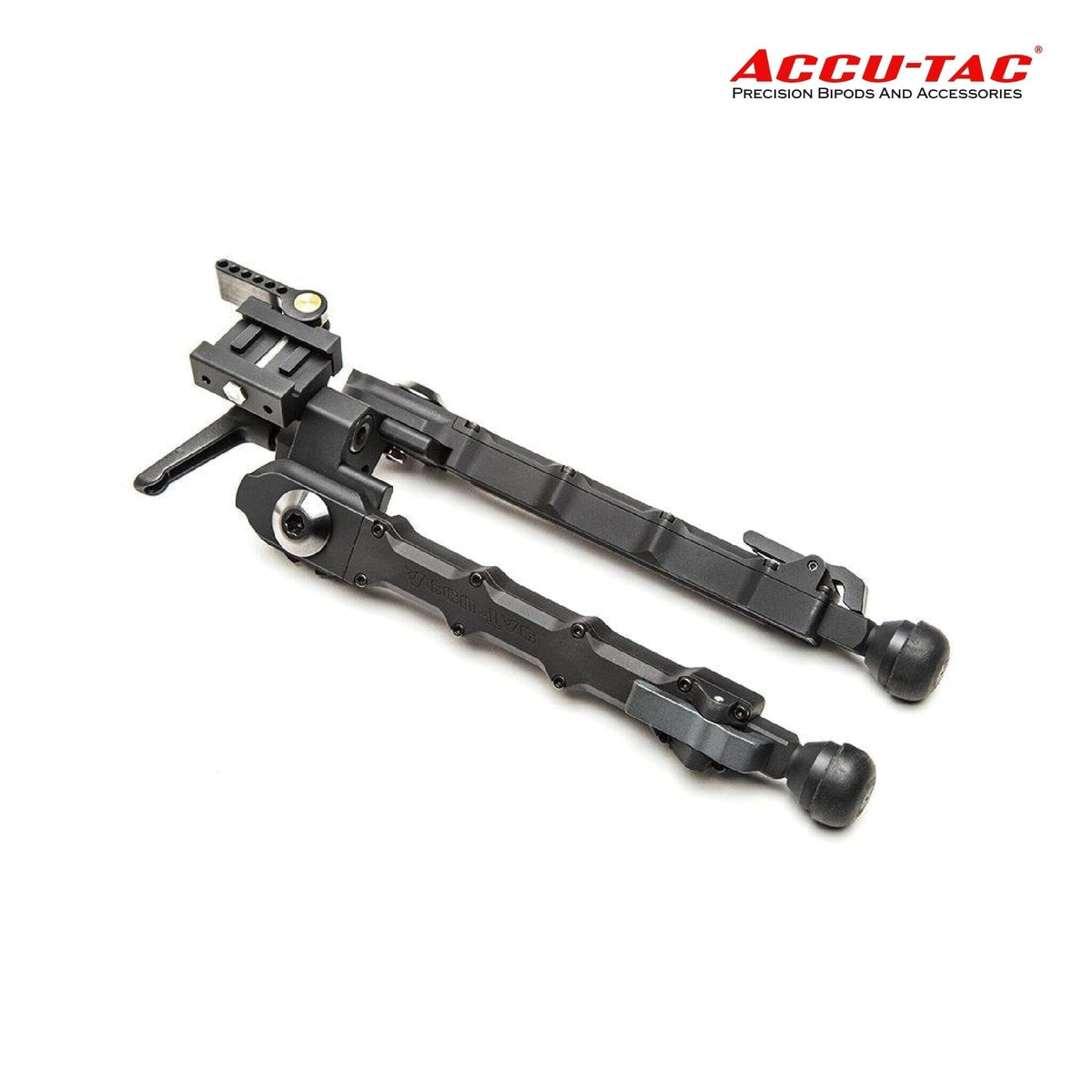

The Accu-Tac SR-5 G2 Picatinny QD Bipod Black is a US-made billet aluminium rifle bipod, part number SRB-G200, with a quick-detach clamp for MIL-STD-1913 Picatinny rail. Nine locking height notches run from 6.25″ / 159 mm at 45° up to 10.75″ / 273 mm at 90°, with a ±15° cant lever for levelling the rifle on a slope.
How It Compares
The SR-5 G2 is the tall G2: nine height notches take it to 10.75″ / 273 mm, which is what you want when grass or heather stops a low bipod working. For the other rail standard take the Accu-Tac SR-5 G2 Arca-Spec QD bipod, and where the ground is flat the shorter Accu-Tac BR-4 G2 Picatinny QD bipod sits the rifle lower. Add the Accu-Tac G2 Spiked Feet Set for soft going and Accu-Tac Spike Claws over the spikes for mud and snow. See every Accu-Tac bipod we stock, rifle bipods stocked in the UK and our bipod accessories.
Ideal For
- Woodland and hill stalking where grass, heather or bracken block a low prone shot
- Night fox and vermin control from prone with a lamp or thermal
- Long-range and PRS-style shooting that needs height on undulating ground
- Service and practical rifle from prone on rough or sloping ground
Key Features
-
Mount: Quick-detach clamp for MIL-STD-1913 Picatinny rail — fits and releases without tools and returns to zero
-
Height: 6.25″ / 159 mm at 45°; 8.00″ / 203 mm to 10.75″ / 273 mm at 90° over nine notches
-
Stance: 9.25″ / 235 mm to 15.75″ / 400 mm
-
Leg angles: 0°, 45°, 90° or folded, set independently on each leg
-
Cant: ±15° side-cant via a tension-set lever
-
Construction: 100% billet 6061-T6 aluminium with high-strength steel hardware
-
Finish: Type III hard-anodise (flat black)
-
Origin: Made in USA — designed, engineered and manufactured by Accu-Tac
Technical Specifications
| Mount Interface |
Quick-detach clamp for MIL-STD-1913 Picatinny rail |
| Materials |
6061-T6 aluminium; hardened-steel hardware |
| Leg Angles |
0°, 45°, 90°, folded |
| Height (legs @ 45°) |
6.25″ / 159 mm |
| Min. Height (legs @ 90°) |
8.00″ / 203 mm |
| Max. Height (legs @ 90°) |
10.75″ / 273 mm |
| Min. Stance (legs @ 45°) |
9.25″ / 235 mm |
| Max. Stance (legs @ 90°) |
15.75″ / 400 mm |
| Closed Width |
3.25″ / 82.5 mm |
| Closed Length |
9.00″ / 228.6 mm |
| Weight |
22 oz / 624 g |
| Cant Adjustment |
±15° via tension-set lever |
| Finish |
Type III hard-anodise (flat black) |
| Warranty |
Accu-Tac Limited Warranty |
| Brand |
Accu-Tac (USA) |
| SKU / MPN / UPC |
SRB-G200 / SRB-G200 / 858520006237 |
What's Included
- 1 × Accu-Tac SR-5 G2 Picatinny QD Bipod Black (SRB-G200)
- Manufacturer's documentation
Warranty
Covered by the Accu-Tac Limited Warranty against defects in materials and workmanship.
UK Delivery & Support
Every order is dispatched tracked from our UK warehouse, so there are no import duties or customs surprises, and you are backed by UK-based aftersales support from our team.
Frequently Asked Questions
What does the Accu-Tac SR-5 G2 Picatinny QD Bipod Black mount to?
It clamps to a MIL-STD-1913 Picatinny rail, so it fits a Picatinny forend rail, a rail section on an M-LOK or KeyMod handguard, or a Picatinny sling-stud adapter. The clamp fits and releases without tools and returns to zero.
What height does the Accu-Tac SR-5 G2 Picatinny QD Bipod Black give?
With the legs at 45° it stands at 6.25″ / 159 mm. With the legs at 90° it adjusts from 8.00″ / 203 mm to 10.75″ / 273 mm across nine locking notches.
Can the Accu-Tac SR-5 G2 Picatinny QD Bipod Black be canted on a slope?
Yes. It gives ±15° of side-cant through a tension-set lever, so the rifle can be levelled without moving the legs.
How much does the Accu-Tac SR-5 G2 Picatinny QD Bipod Black weigh?
The Accu-Tac SR-5 G2 Picatinny QD Bipod Black weighs 22 oz / 624 g.
Which spiked feet fit the Accu-Tac SR-5 G2 Picatinny QD Bipod Black?
The Accu-Tac G2 Spiked Feet Set (LRS-0200) fits all G2-series and Arca-Spec Accu-Tac bipods, including the SR-5 G2. The G1 Spiked Feet Set is for first-generation bipods only.
