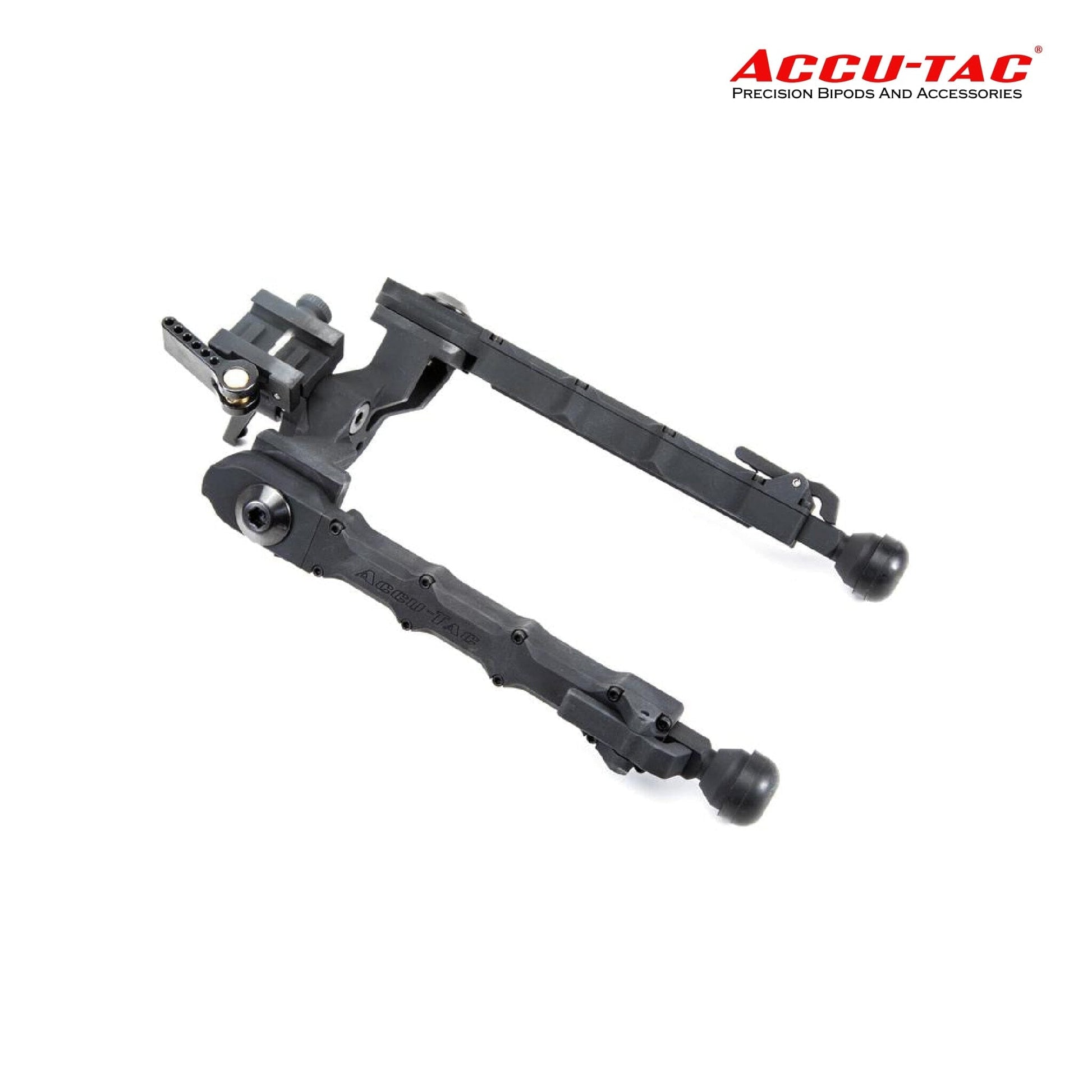

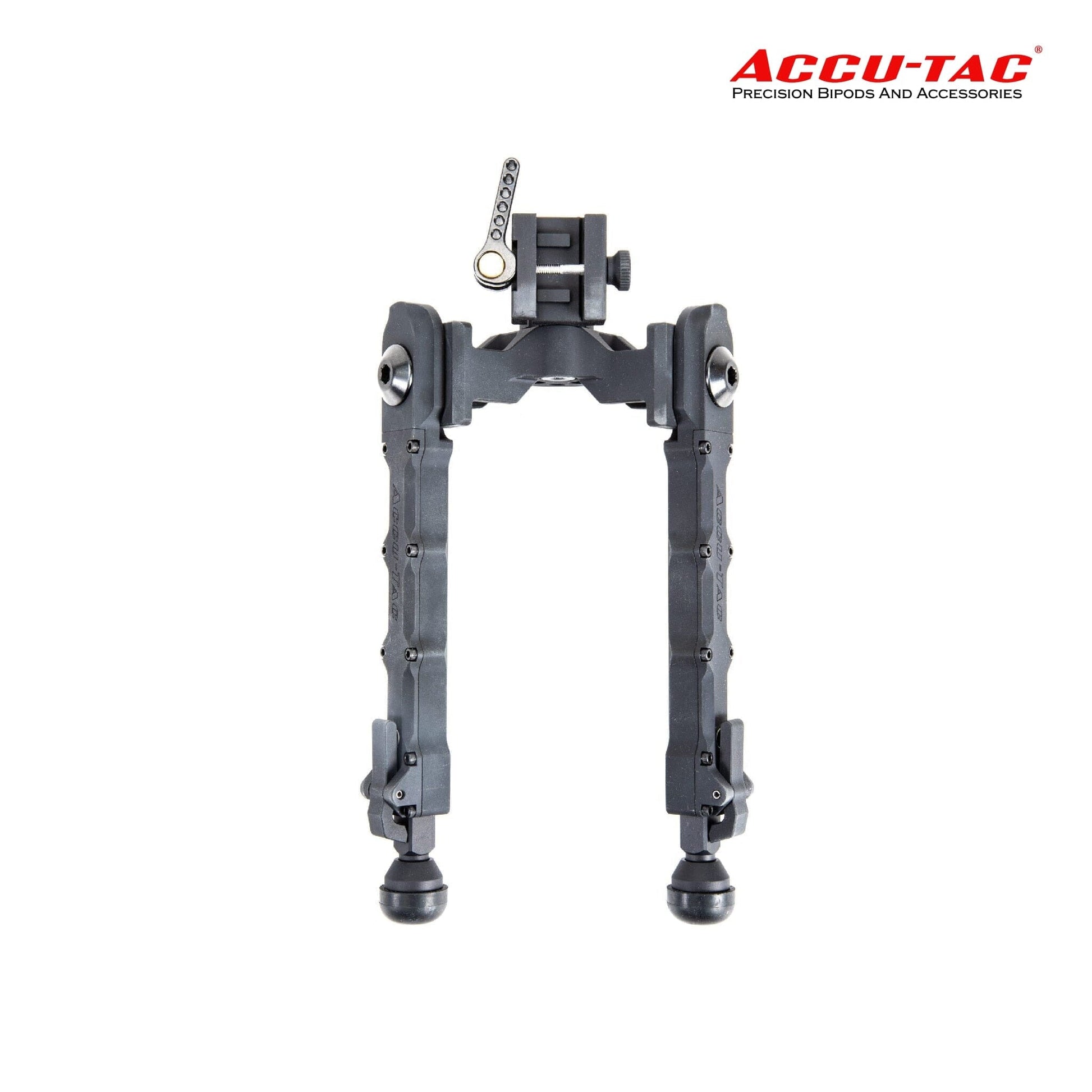

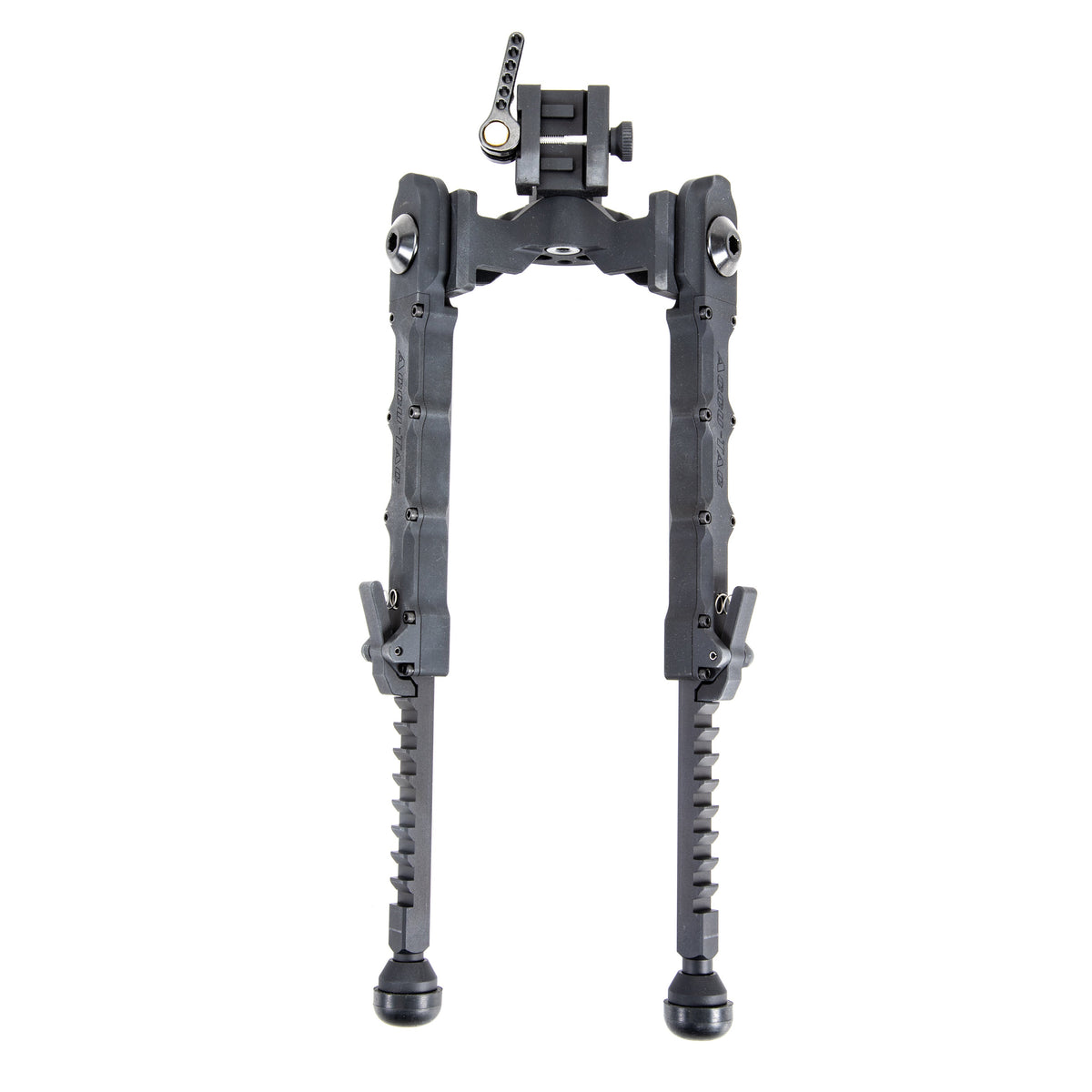

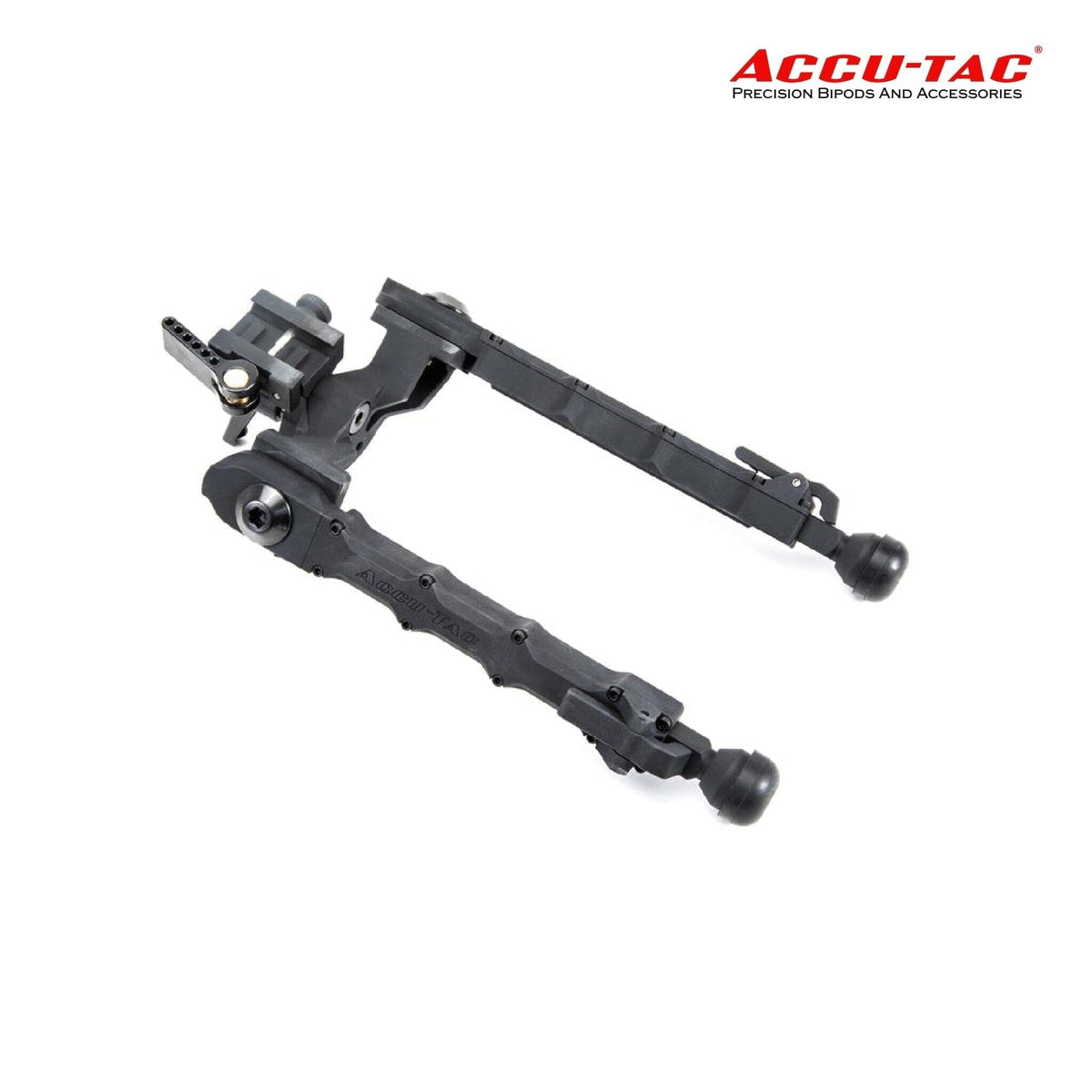

The Accu-Tac WB-5 Picatinny QD Bipod Black is a US-made billet aluminium rifle bipod, part number WBB-0500, with a quick-detach clamp for MIL-STD-1913 Picatinny rail. Five spring-loaded height notches run from 5.5″ / 139.7 mm with the legs at 45° to 7.25″–10.0″ / 184.2–254 mm at 90°, and a positive cant-lock lever gives ±35° of cant.
How It Compares

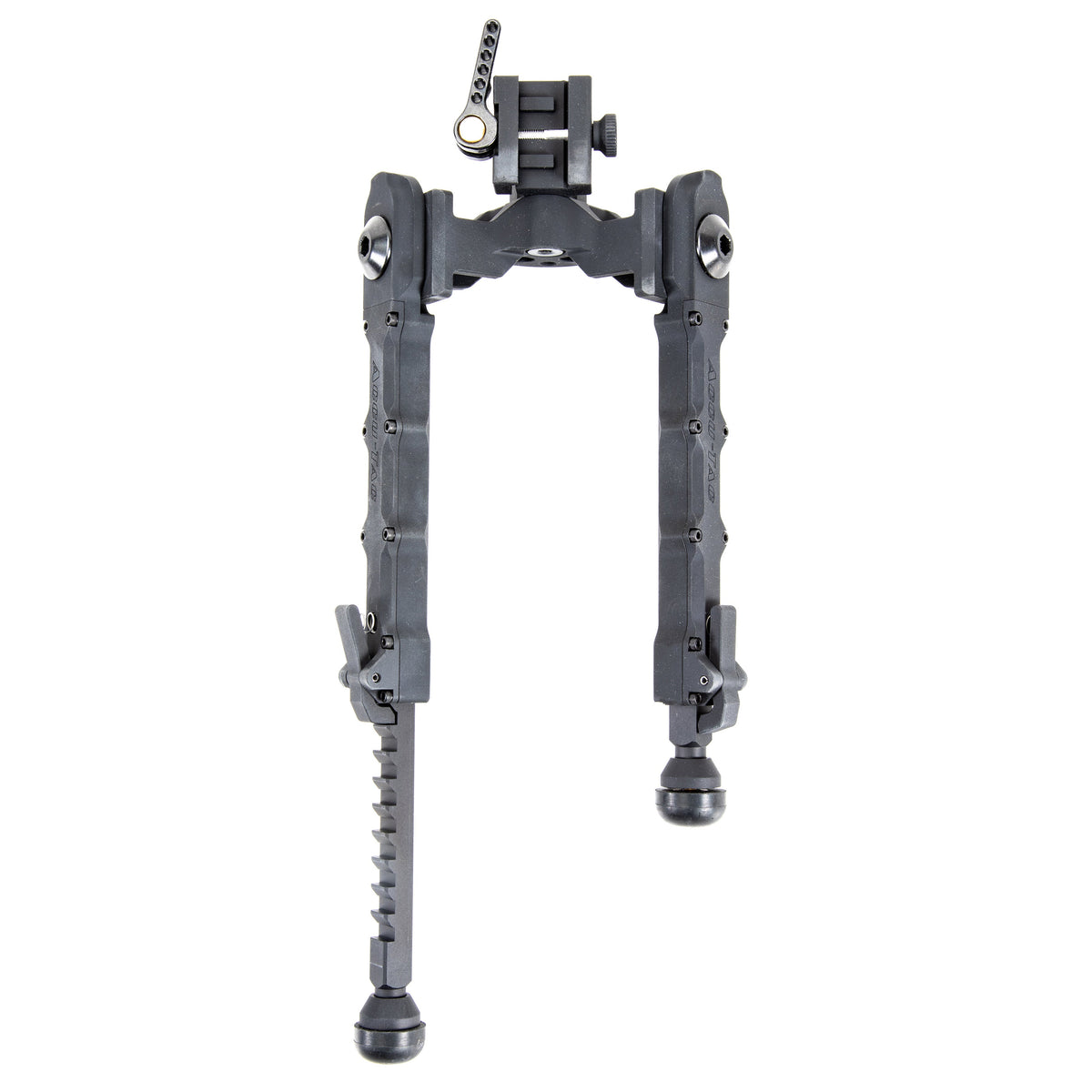

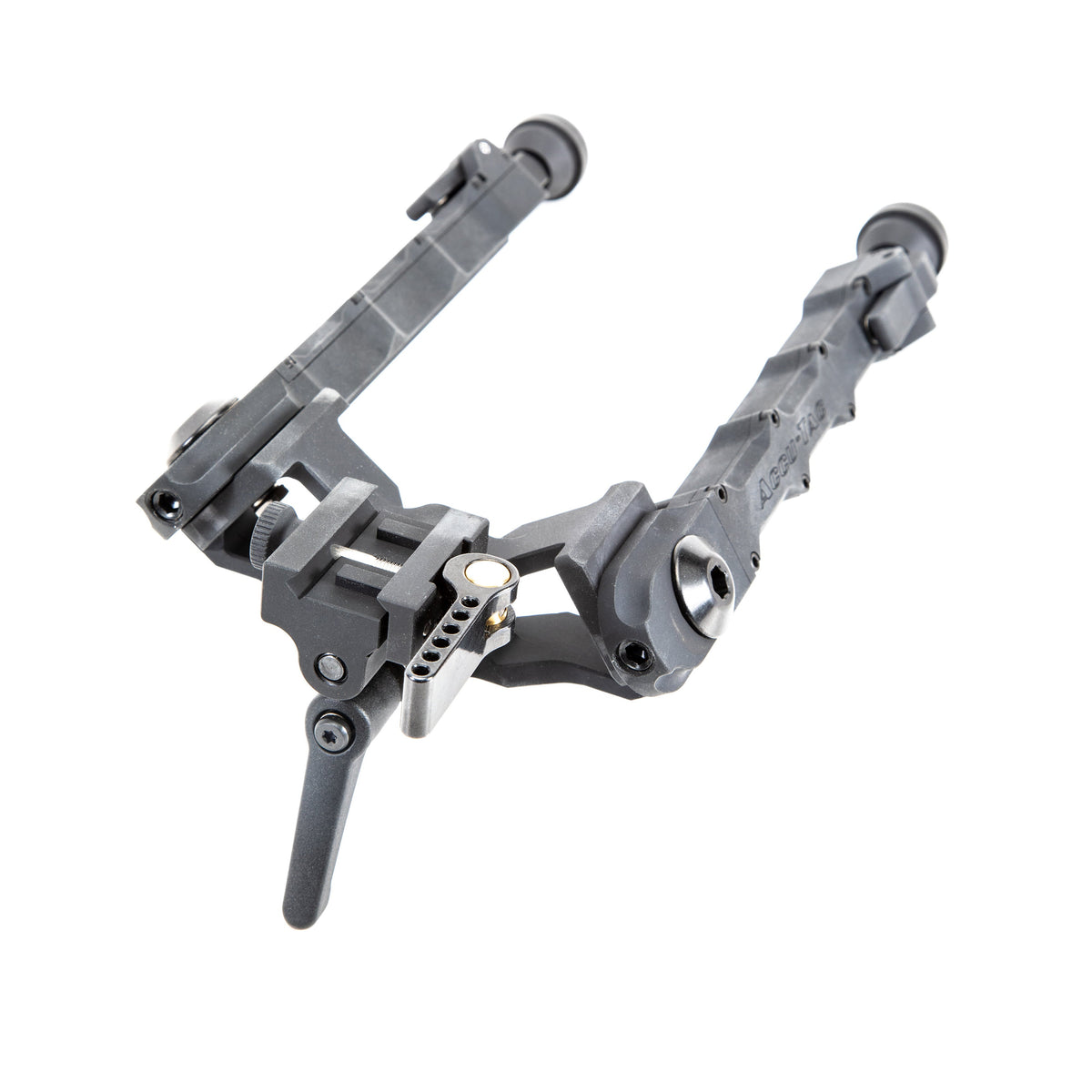

The wide-body WB chassis drops the rifle down between the legs and spreads the feet to 17.25″ / 438.2 mm, which is what kills the sideways hop under recoil. For the other rail standard take the Accu-Tac WB-5 Arca-Spec QD bipod in Black. The Accu-Tac WB-4 wide-body bipod sits lower and packs smaller. On a bench or firing point fit the Accu-Tac P-SKI Feet so the bipod slides rather than digs in. Compare our F-Class and benchrest bipod range, the complete bipod and monopod selection and bipod feet and mounting hardware.
Ideal For
- F-Class and benchrest competition where the rifle must track straight under recoil
- Long-range target rifle from a bench or mat
- Load development and zeroing that demands a repeatable rest
- Prone deer stalking on flat ground where a wide, low stance helps
Key Features
-
Mount: Quick-detach clamp for MIL-STD-1913 Picatinny rail — fits and releases without tools and returns to zero
-
Chassis: Wide-body design positions the rifle low between the legs for maximum stability
-
Height: 5.5″ / 139.7 mm at 45°; 7.25″–10.0″ / 184.2–254 mm at 90° over five notches
-
Stance: 11.0″ / 279.4 mm at 45°; 17.25″ / 438.2 mm at 90°
-
Cant: Up to ±35° with positive cant-lock lever
-
Leg angles: 0°, 45°, 90° or folded flat for stowage
-
Construction: 100% billet 6061-T6 aluminium with high-strength steel hardware
-
Finish: Type III hard-anodize (matte black)
-
Origin: Made in USA — designed, engineered and manufactured by Accu-Tac
Technical Specifications
| Mount Interface |
Quick-detach clamp for MIL-STD-1913 Picatinny rail |
| Materials |
6061-T6 aluminium; hardened-steel hardware |
| Cant Adjustment |
Up to ±35° with positive cant-lock lever |
| Leg Angles |
0°, 45°, 90°, folded |
| Height (45° legs) |
5.5″ / 139.7 mm |
| Height (90° legs) |
7.25″–10.0″ / 184.2–254 mm |
| Stance Width (45° legs) |
11.0″ / 279.4 mm |
| Stance Width (90° legs) |
17.25″ / 438.2 mm |
| Closed Width |
5.0″ / 127 mm |
| Closed Length |
9.0″ / 228.6 mm |
| Weight |
23.92 oz / 678 g |
| Finish |
Type III hard-anodize (matte black) |
| Warranty |
Accu-Tac Limited Warranty |
| Brand |
Accu-Tac (USA) |
| SKU / MPN / UPC |
WBB-0500 / WBB-0500 / 858520006336 |
What's Included
- 1 × Accu-Tac WB-5 Picatinny QD Bipod Black (WBB-0500)
- Manufacturer's documentation
Warranty
Covered by the Accu-Tac Limited Warranty against defects in materials and workmanship.
UK Delivery & Support
Every order is dispatched tracked from our UK warehouse, so there are no import duties or customs surprises, and you are backed by UK-based aftersales support from our team.
Frequently Asked Questions
What does the Accu-Tac WB-5 Picatinny QD Bipod Black mount to?
It clamps to a MIL-STD-1913 Picatinny rail, so it fits a Picatinny forend rail, a rail section on an M-LOK or KeyMod handguard, or a Picatinny sling-stud adapter. The clamp fits and releases without tools and returns to zero.
What height does the Accu-Tac WB-5 Picatinny QD Bipod Black give?
With the legs at 45° it stands at 5.5″ / 139.7 mm, and with the legs at 90° it covers 7.25″–10.0″ / 184.2–254 mm across five locking notches.
How wide is the stance on the Accu-Tac WB-5 Picatinny QD Bipod Black?
The stance is 11.0″ / 279.4 mm with the legs at 45° and 17.25″ / 438.2 mm with the legs at 90°.
How much cant does the Accu-Tac WB-5 Picatinny QD Bipod Black allow?
The positive cant-lock lever gives up to ±35°, which is enough to level the rifle across most slopes without moving the legs.
How much does the Accu-Tac WB-5 Picatinny QD Bipod Black weigh?
The Accu-Tac WB-5 Picatinny QD Bipod Black weighs 23.92 oz / 678 g.
Which feet fit the Accu-Tac WB-5 Picatinny QD Bipod Black?
The Accu-Tac P-SKI Feet are listed for wide-stance bipods including the WB models, and the Accu-Tac Sled Feet (SF-A000) fit all Accu-Tac G1 and G2 bipods.
