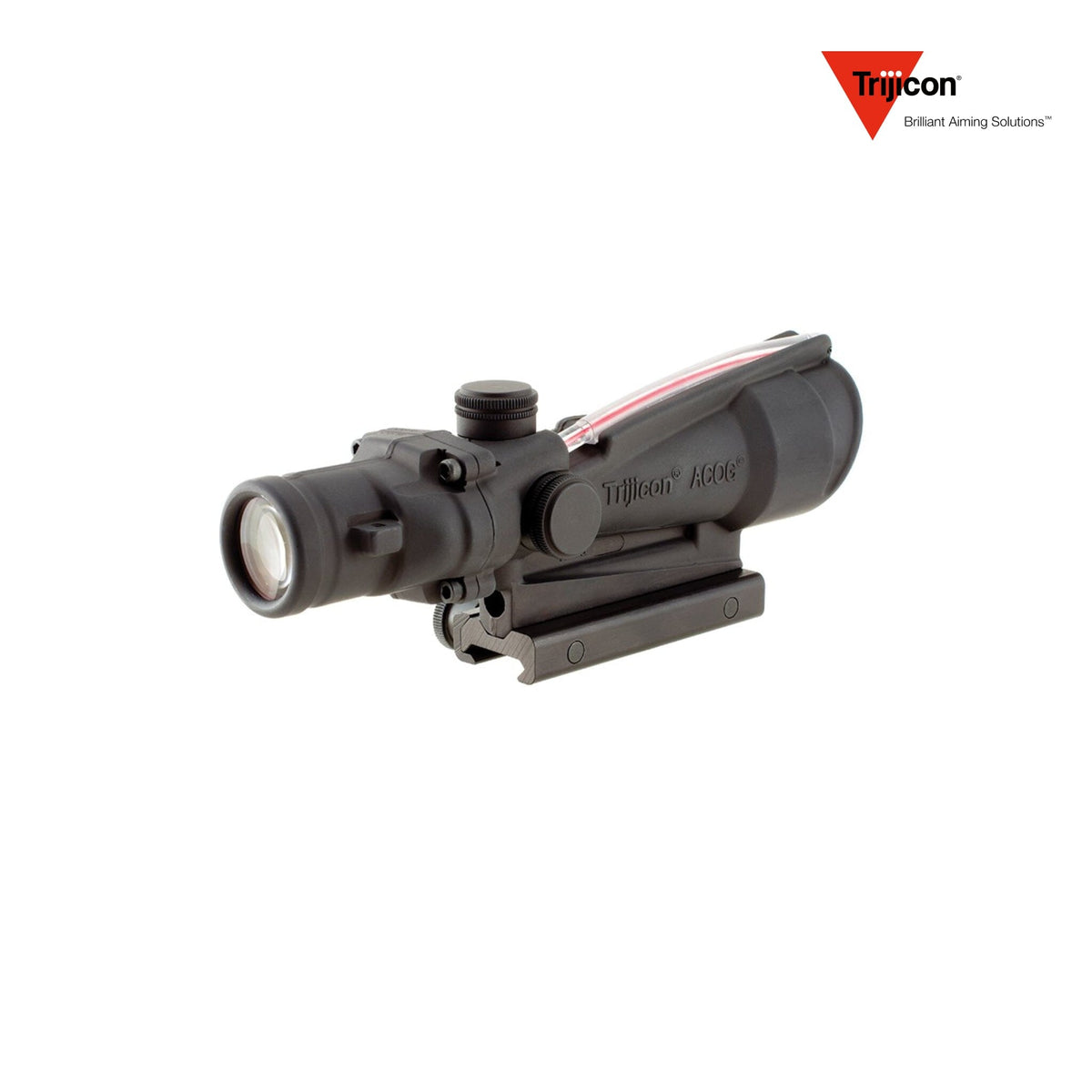

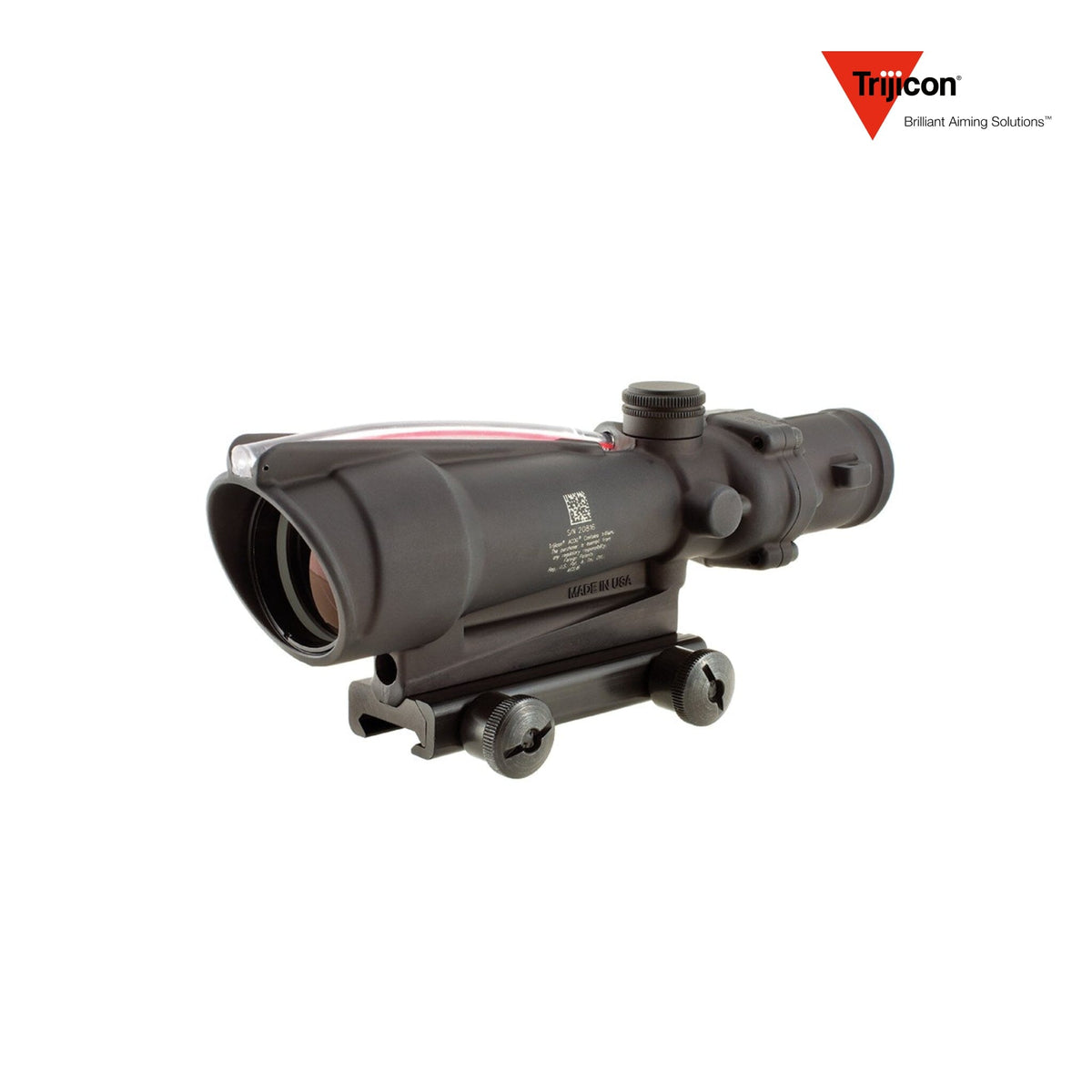

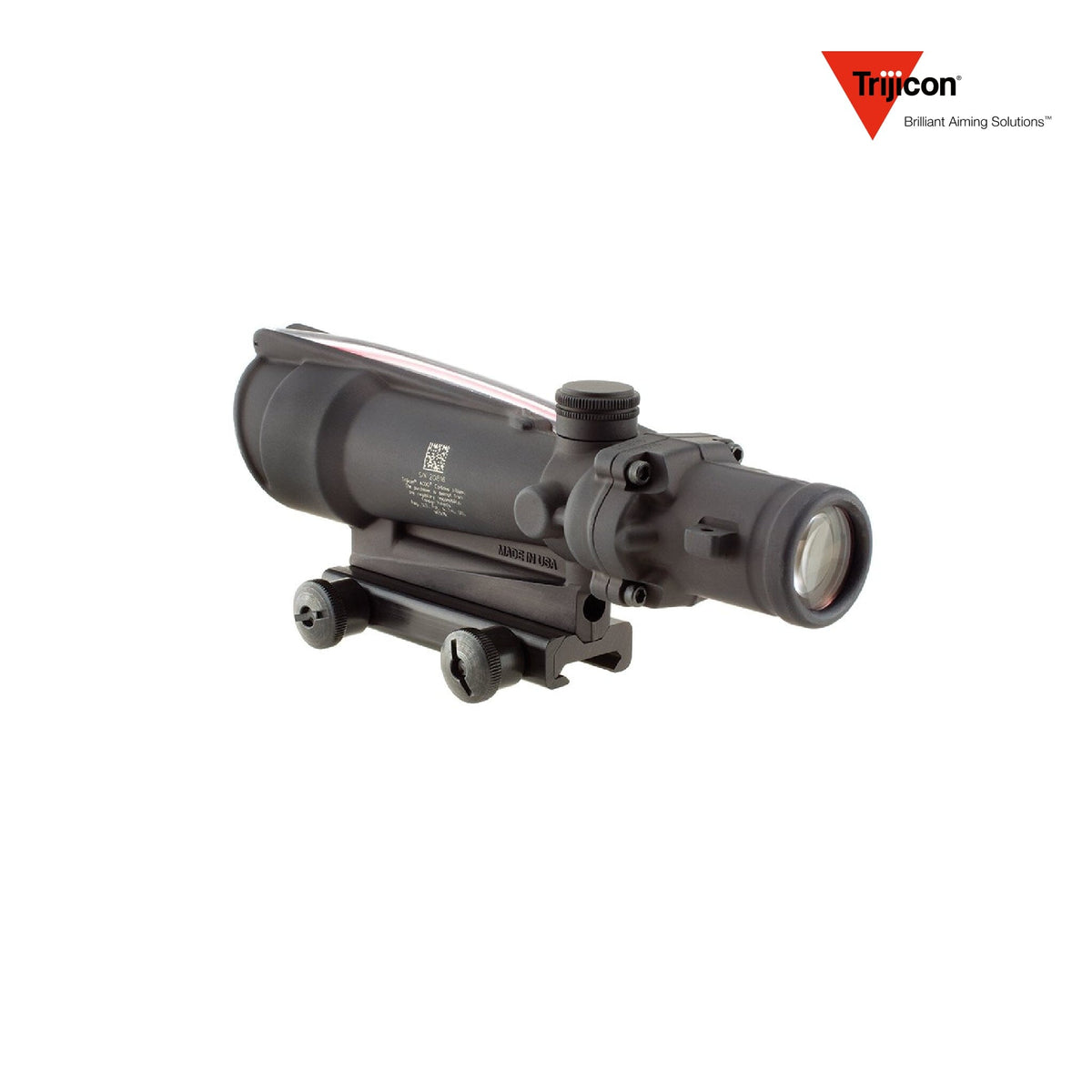

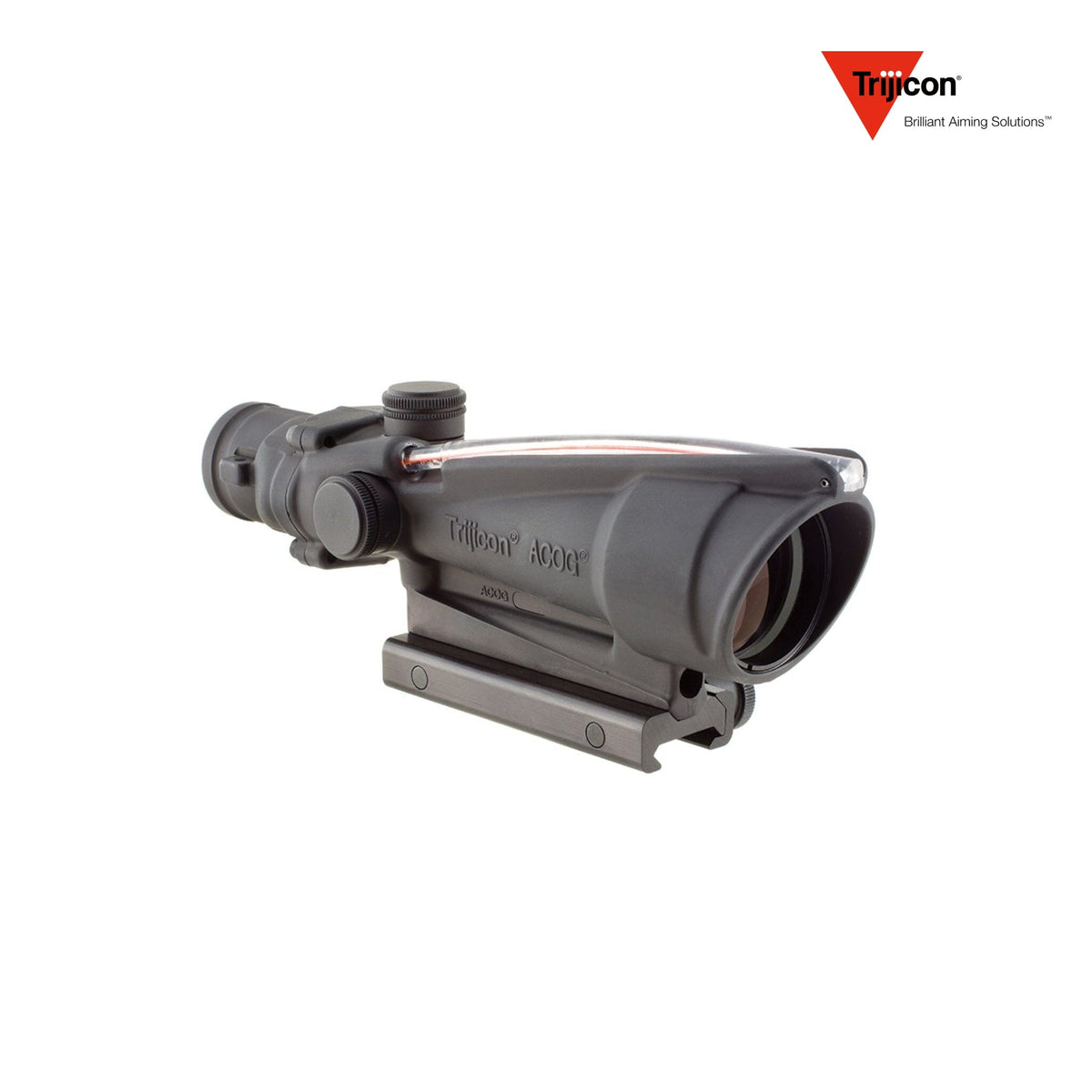

Trijicon ACOG 3.5x35 Rifle Scope Crosshair .308 BAC Red Reticle – TA11J-308

The Trijicon ACOG 3.5x35 Rifle Scope Crosshair .308 BAC Red Reticle (SKU TA11J-308) is a fixed 3.5x magnification, 35 mm objective prism rifle scope with an etched crosshair bullet drop compensating reticle calibrated for .308/7.62, illuminated in red by fibre optics and tritium with no battery of any kind.

Trijicon designed the ACOG — Advanced Combat Optical Gunsight — for military service, and the features that came out of that programme are the reason the range still sells: the reticle is etched into the prism rather than projected, so it cannot fail; a fibre-optic light pipe along the top of the housing feeds daylight into the reticle and self-adjusts to ambient brightness; and a sealed tritium lamp keeps the same aiming point lit after dark. That heritage is engineering, not marketing — a forged aluminium body, a waterproof seal and nothing to switch on.

Bindon Aiming Concept (BAC): the illuminated reticle is bright enough that, shot with both eyes open, your brain merges the magnified image from the sighting eye with the unmagnified view from the other. You get 3.5x magnification for the shot and something close to 1x situational awareness for everything around it.

Illumination Colour: Red — this configuration is also stocked as the Trijicon ACOG 3.5x35 rifle scope Crosshair .308 BAC Green reticle.

How It Compares

The reticle pattern is the choice to make here. This is the Crosshair, which gives you a fine crosshair as the primary aiming point, the most familiar picture for shooters coming from a conventional rifle scope. The alternatives on the same 3.5x35 body and the same .308/7.62 calibration are the ACOG 3.5x35 Chevron Red reticle and the ACOG 3.5x35 Horseshoe/Dot Red reticle. If your rifle is chambered in .223/5.56 instead, the same Crosshair reticle is calibrated for it as the ACOG 3.5x35 Crosshair .223 BAC Red reticle. A shorter, lighter fixed-power ACOG is the Trijicon ACOG 4x32 rifle scope, and for a magnified optic that runs on a battery-powered illuminated reticle instead, browse the wider prism scope range. See the whole range in Trijicon ACOG rifle scopes, the optics for straight-pull rifles and full Trijicon optics range, or read our guide to prism scopes and Trijicon buyer's guide.

Ideal For

• Straight-pull and target rifle shooting in .308/7.62, with the bullet drop compensator matched to the cartridge
• Deer stalking with a .308 rifle, where a battery-free tritium reticle stays visible in first and last light
• Target and gallery rifle disciplines wanting a fixed-power prism scope with an etched reticle that cannot wash out
• Shooters who want an optic with no battery to check, charge or replace before a shoot or a stalk

Key Features

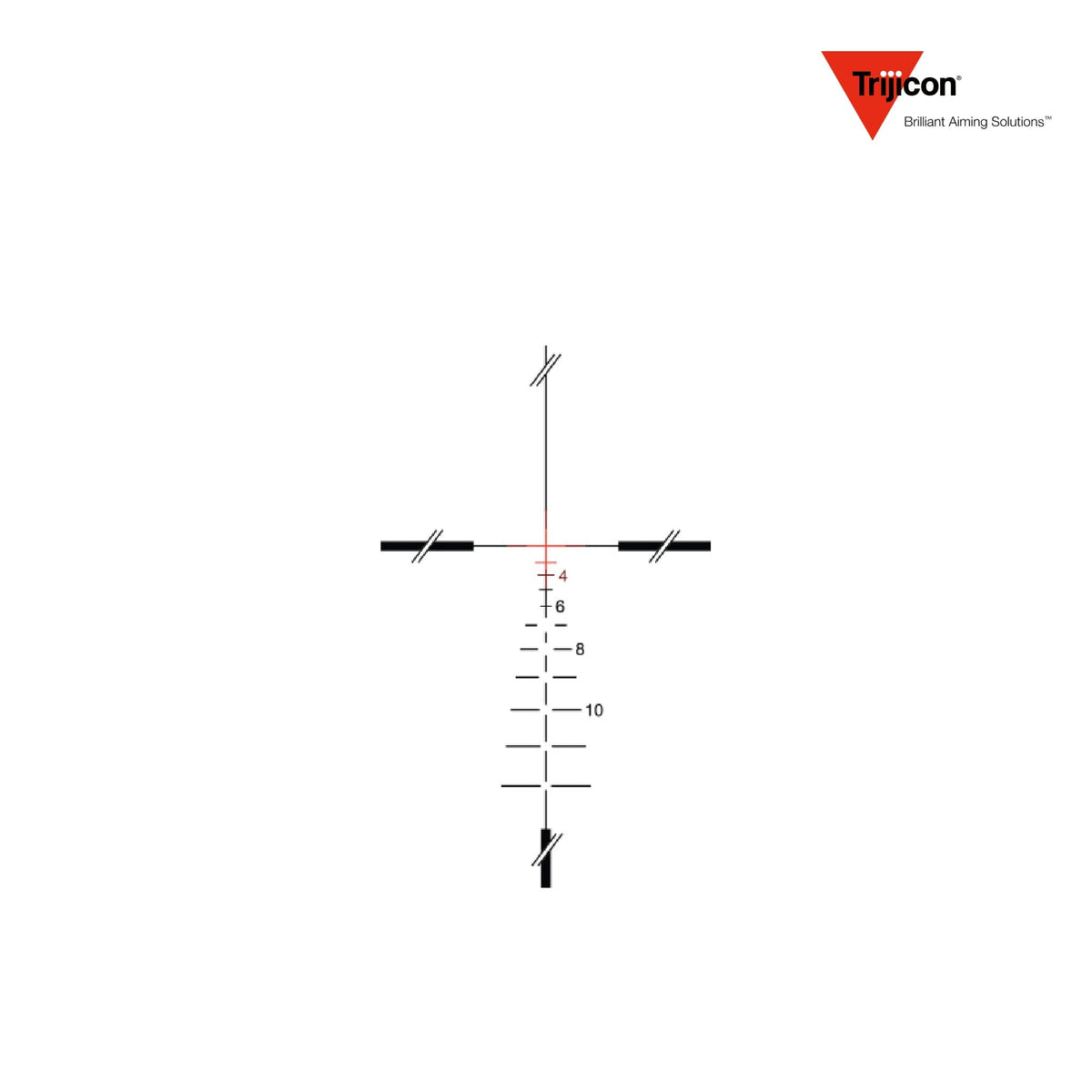

• Reticle: BAC Crosshair BDC — etched into the prism, calibrated for .308/7.62, Red illumination
• Illumination: Fibre optic and tritium, battery-free — daylight feeds the fibre and tritium lights the reticle in darkness
• Magnification / Objective: 3.5x magnification, 35 mm objective, fixed power
• Aiming Concept: Bindon Aiming Concept (BAC) for both-eyes-open shooting at magnification
• Eye Relief: 2.4 in (61 mm)
• Field of View: 28.9 ft at 100 yards (9.6 m at 100 m)
• Housing: Forged aluminium, matte black
• Origin: Made in USA

Technical Specifications

What's Included

• Trijicon ACOG 3.5x35 rifle scope (TA11J-308)
• Integrated mount
• Lens covers
• User manual
• Warranty documentation

Warranty

Covered by Trijicon's manufacturer's warranty. Keep your order confirmation as proof of purchase and register the optic with Trijicon after fitting; we handle warranty claims for you from the UK.

UK Delivery & Support

UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and Trijicon's warranty.

Frequently Asked Questions

Does the Trijicon ACOG 3.5x35 need batteries?
No — the Trijicon ACOG 3.5x35 rifle scope is battery-free. A fibre-optic light pipe along the top of the housing collects ambient daylight and feeds it into the etched reticle, and a sealed tritium lamp illuminates the same reticle in darkness, so there is no battery to fit, replace or find flat.

What is the Bindon Aiming Concept (BAC) on a Trijicon ACOG?
The Bindon Aiming Concept (BAC) is Trijicon’s name for shooting an illuminated ACOG with both eyes open. The reticle is bright enough that the brain favours the magnified sighting eye for the aiming point while still using the unmagnified view from the other eye, so you keep close-range speed and situational awareness at 3.5x magnification.

Which calibre is this ACOG reticle calibrated for — .223 or .308?
This Trijicon ACOG 3.5x35 (TA11J-308) is calibrated for .308/7.62: the bullet drop compensating stadia below the crosshair aiming point correspond to that cartridge. The same crosshair reticle is offered calibrated for .223/5.56 as the ACOG 3.5x35 Crosshair .223 BAC Red reticle.

What is the eye relief on the Trijicon ACOG 3.5x35?
The Trijicon ACOG 3.5x35 has 2.4 in (61 mm) of eye relief, which is generous for a prism optic and gives room for a firm cheek weld behind a .308 or .223 rifle.

What happens to the aiming point if the illumination is not visible?
The reticle is etched into the prism glass rather than projected, so the full crosshair aiming point and its bullet drop stadia remain black and usable against a bright background even when the tritium and fibre-optic illumination is not contributing.

Should I choose red or green illumination on the ACOG?
Both are the same reticle and the same calibration; only the illumination colour differs. Red tends to read more naturally against green vegetation and preserves dark adaptation, while green is the brighter colour to the human eye in daylight. This one is red — the ACOG 3.5x35 Crosshair Green reticle is the alternative, and our guide to green versus red illumination covers the difference in more detail.
