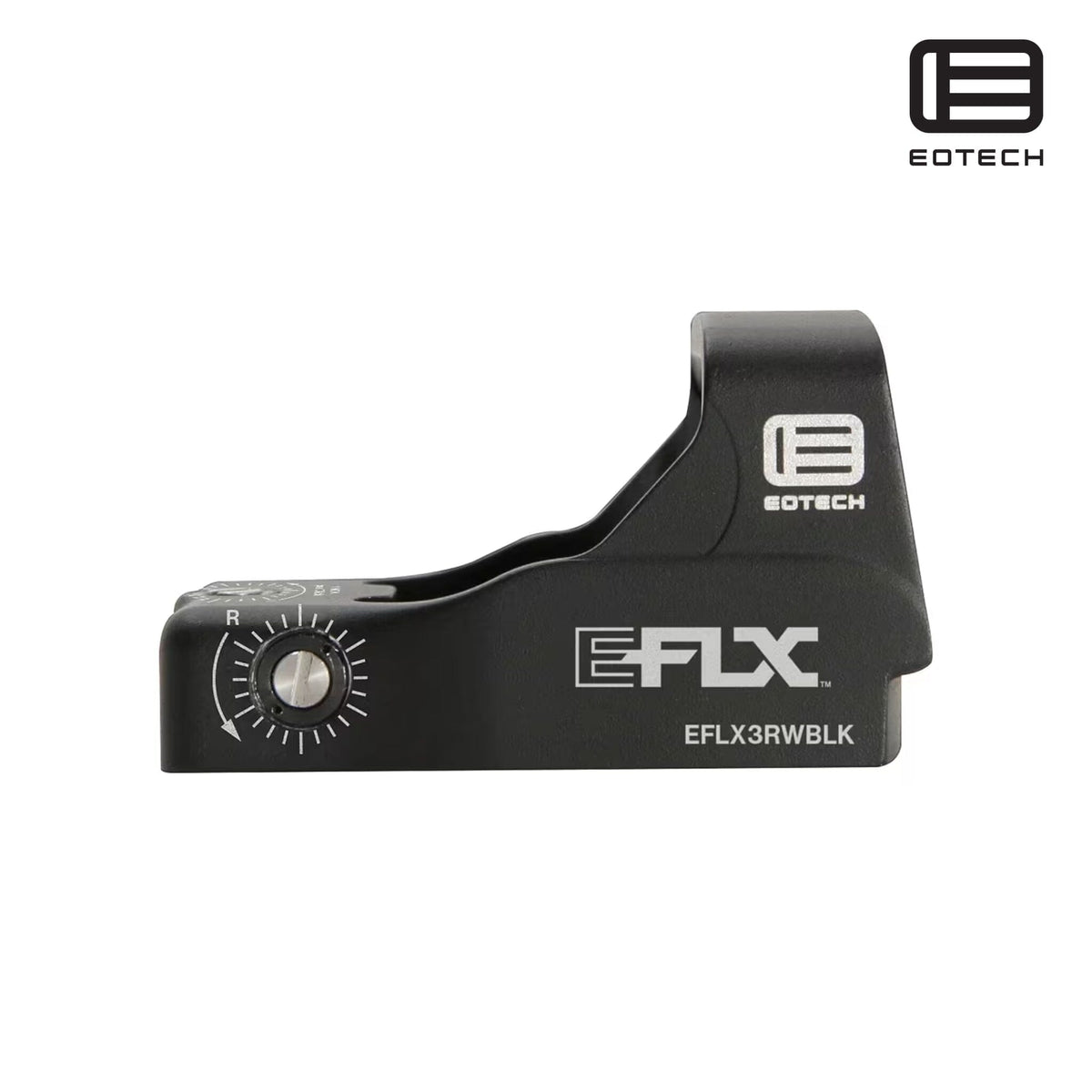

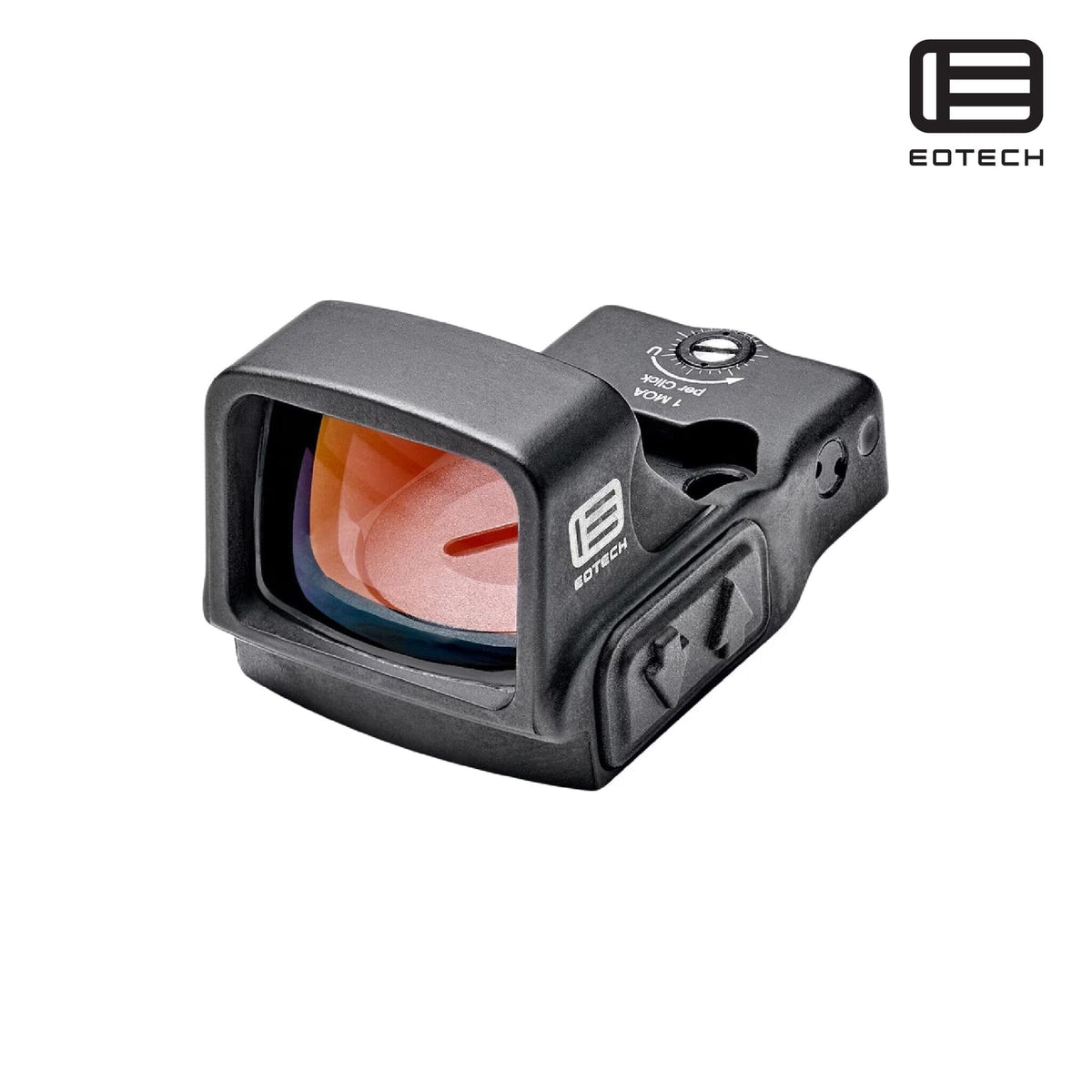

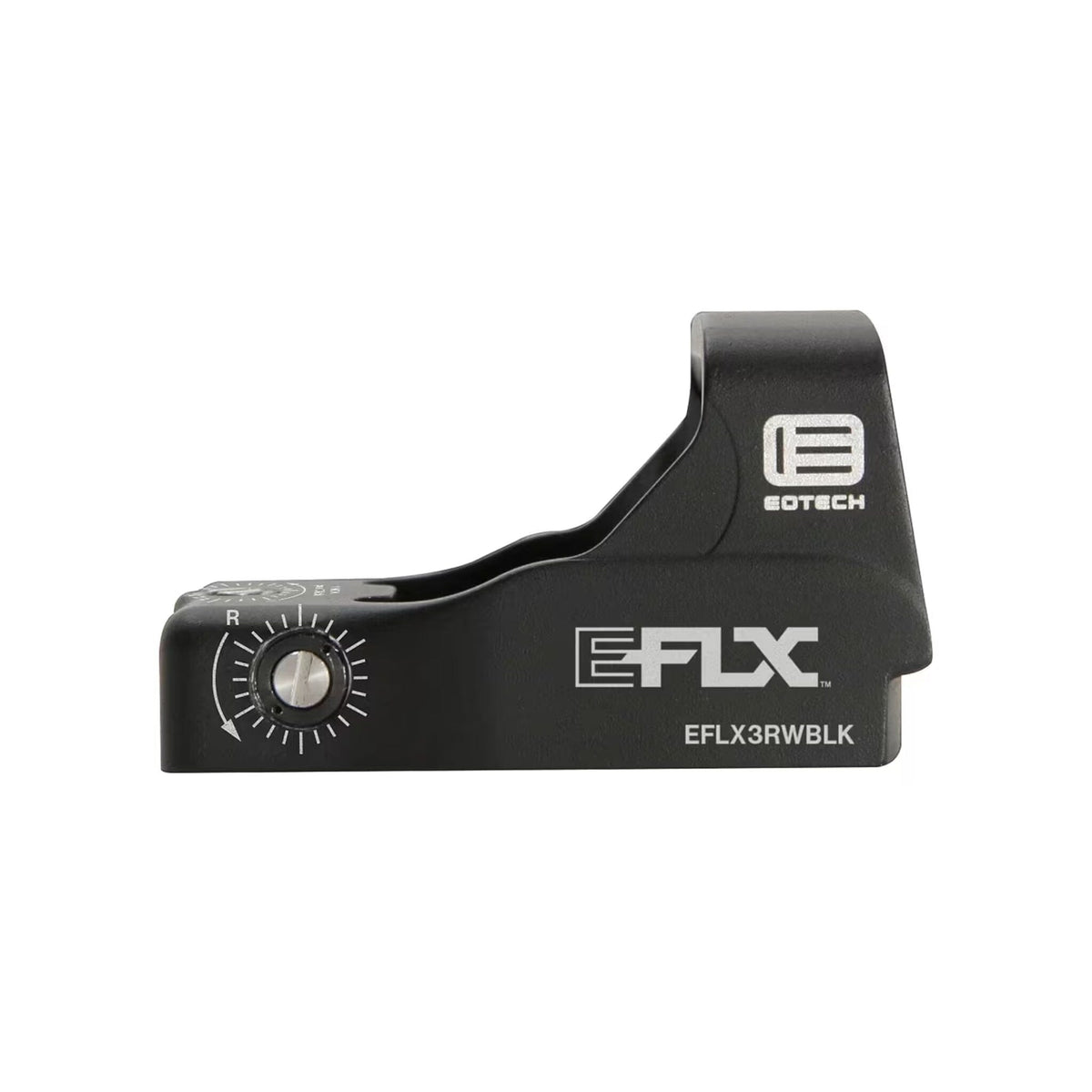

The EOTech EFLX Red Dot Sight 6 MOA (SKU EFLX6RWBLK) is a 1× open-emitter mini reflex pistol red dot sight with a 6 MOA red dot, the Leupold DeltaPoint Pro footprint and a 6061 aluminium housing in Black.
EOTech built the EFLX as its own answer to the optics-ready pistol: a large, square viewing window over a 1.4 oz (35 g) body, with the CR2032 sitting in a top-loading tray so a battery change never costs you your zero. The 6 MOA dot is the bolder of the two reticles EOTech offers here — about 6.3 in (160 mm) at 100 yards — which is what makes it quick to find on the draw and easy to track between targets.
Finish: Black — this dot size is also stocked as the EOTech EFLX 6 MOA red dot sight in Tan.
How It Compares
Want a finer dot for precision instead? The EOTech EFLX 3 MOA red dot sight covers less of the target at distance, and is also stocked as the EFLX 3 MOA red dot sight in Tan. Browse the whole EOTech range, every optic for optics-ready pistols and the mounts that carry them, or read our pistol red dot footprint compatibility chart and red dot size chart.
Compatibility
Leupold DeltaPoint Pro (DPP) footprint — the EFLX mounts directly to slides milled for the DeltaPoint Pro pattern, such as the Springfield Echelon, or to a rear-dovetail mounting adapter. It does not fit the Glock 43X MOS, which uses a different slim-slide footprint. Slide cuts vary between production runs, so confirm your pistol's cut or plate before ordering.
Ideal For
- Optics-ready pistols cut for the DeltaPoint Pro footprint, or fitted with a DPP adapter plate
- Practical pistol and speed-shooting disciplines where dot pickup on the draw decides the stage
- Airsoft gas blowback pistol builds on a DeltaPoint Pro cut
- Section 1 long-barrelled pistols and licensed revolvers on a DPP-cut slide or adapter plate

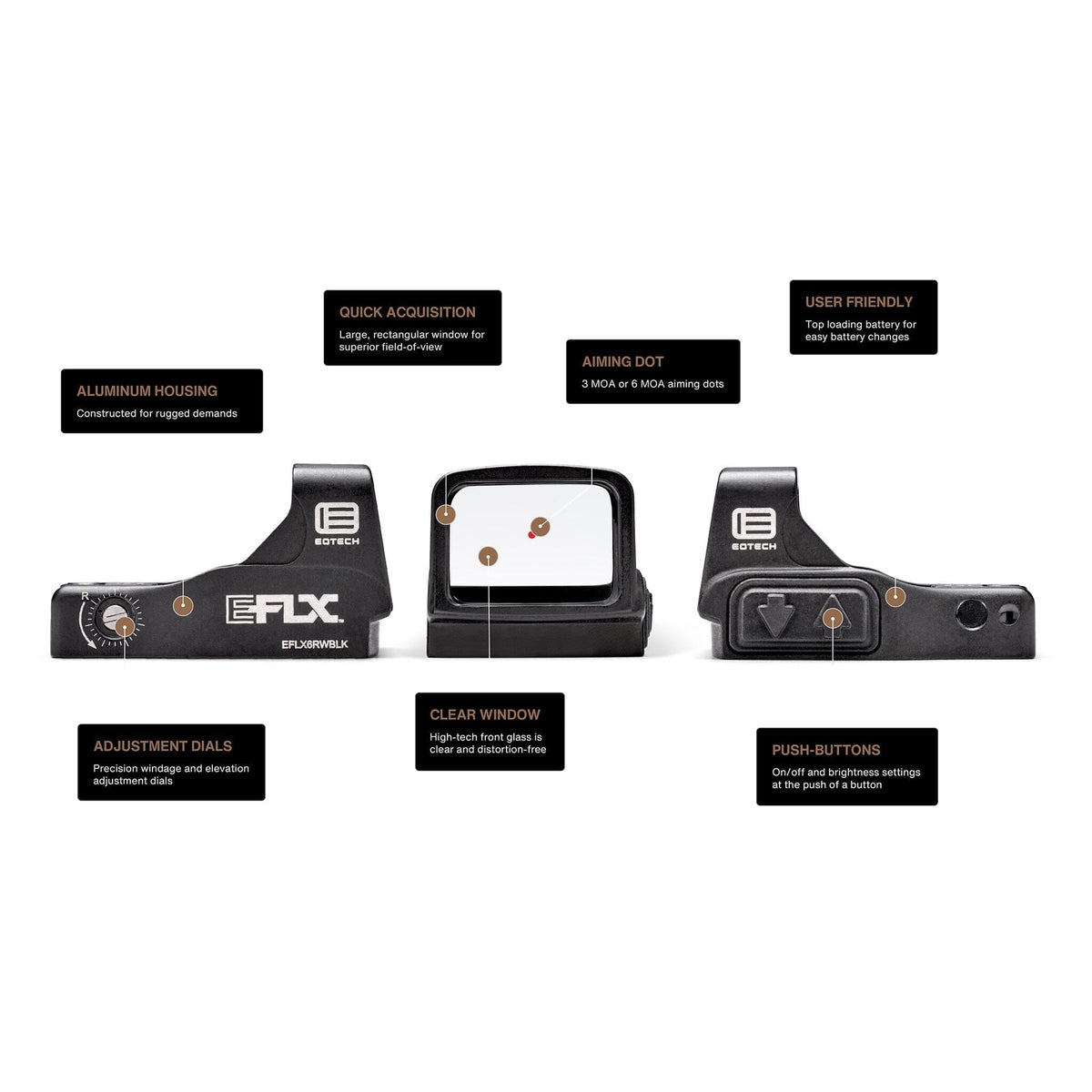

Key Features
-
Reticle: 6 MOA red dot — about 6.3 in (160 mm) at 100 yards
-

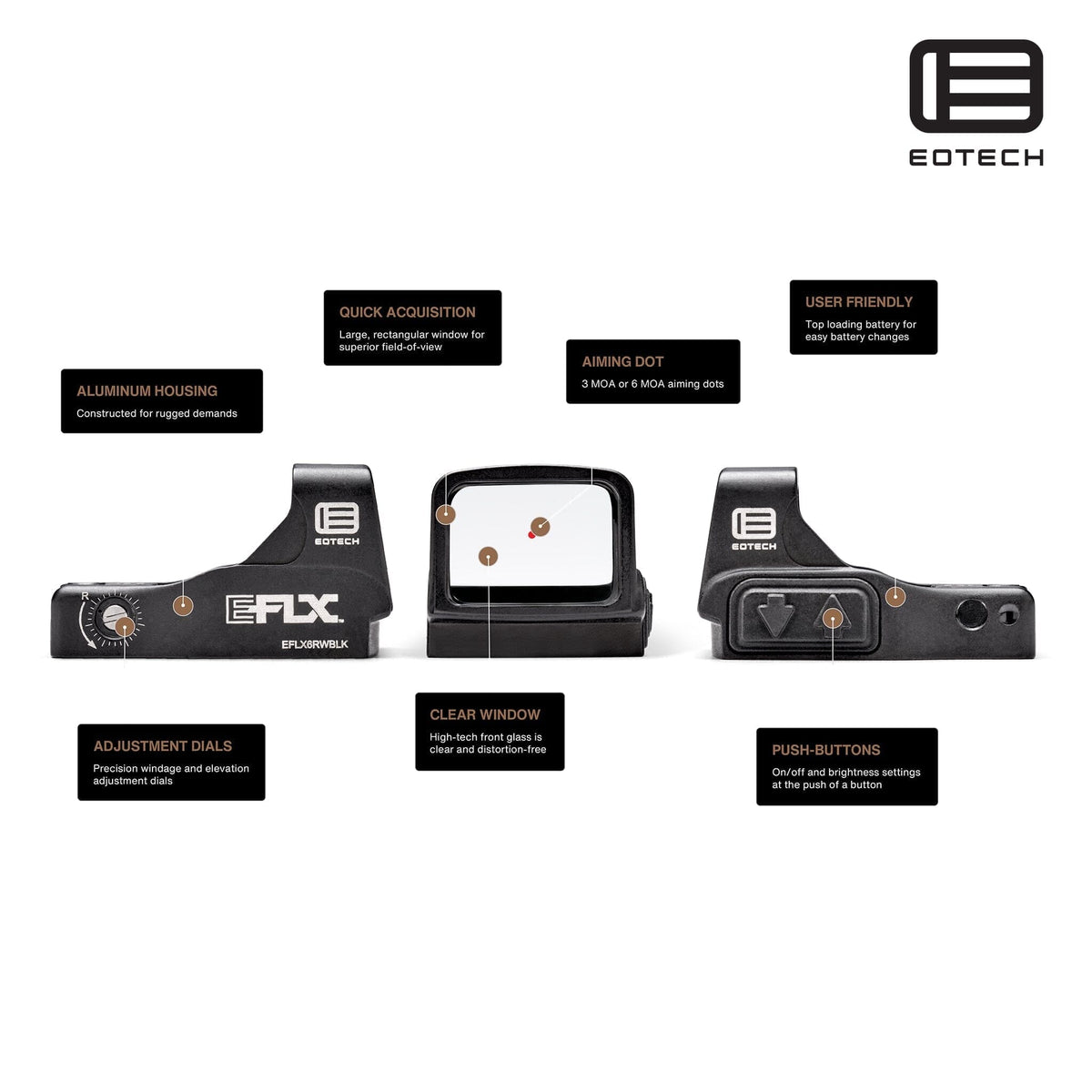

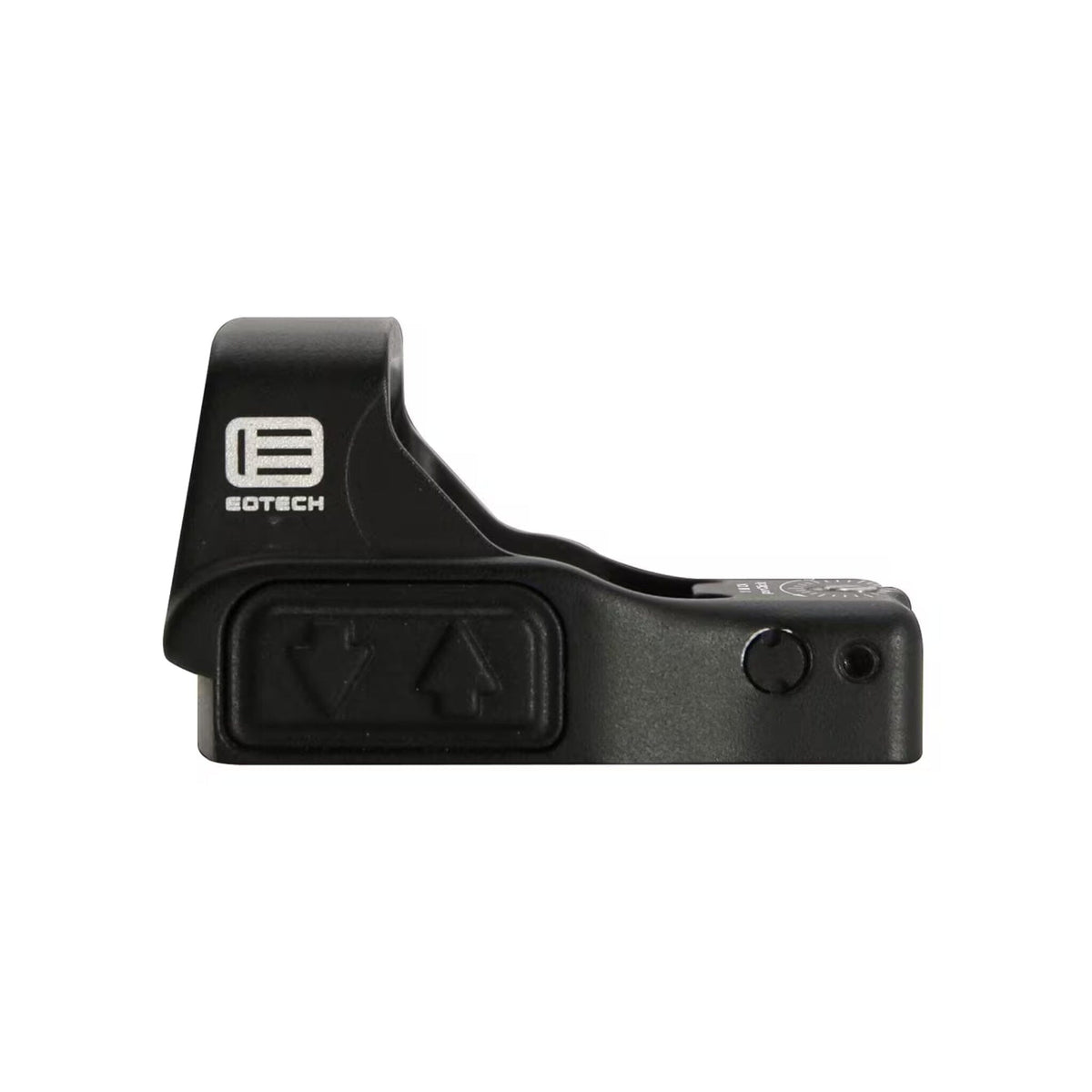

Illumination: LED, 8 daylight settings plus 1 night-vision setting, selected manually with the up and down buttons
-
Footprint: Leupold DeltaPoint Pro — fits DPP-cut slides directly, or a rear-dovetail mounting adapter
-

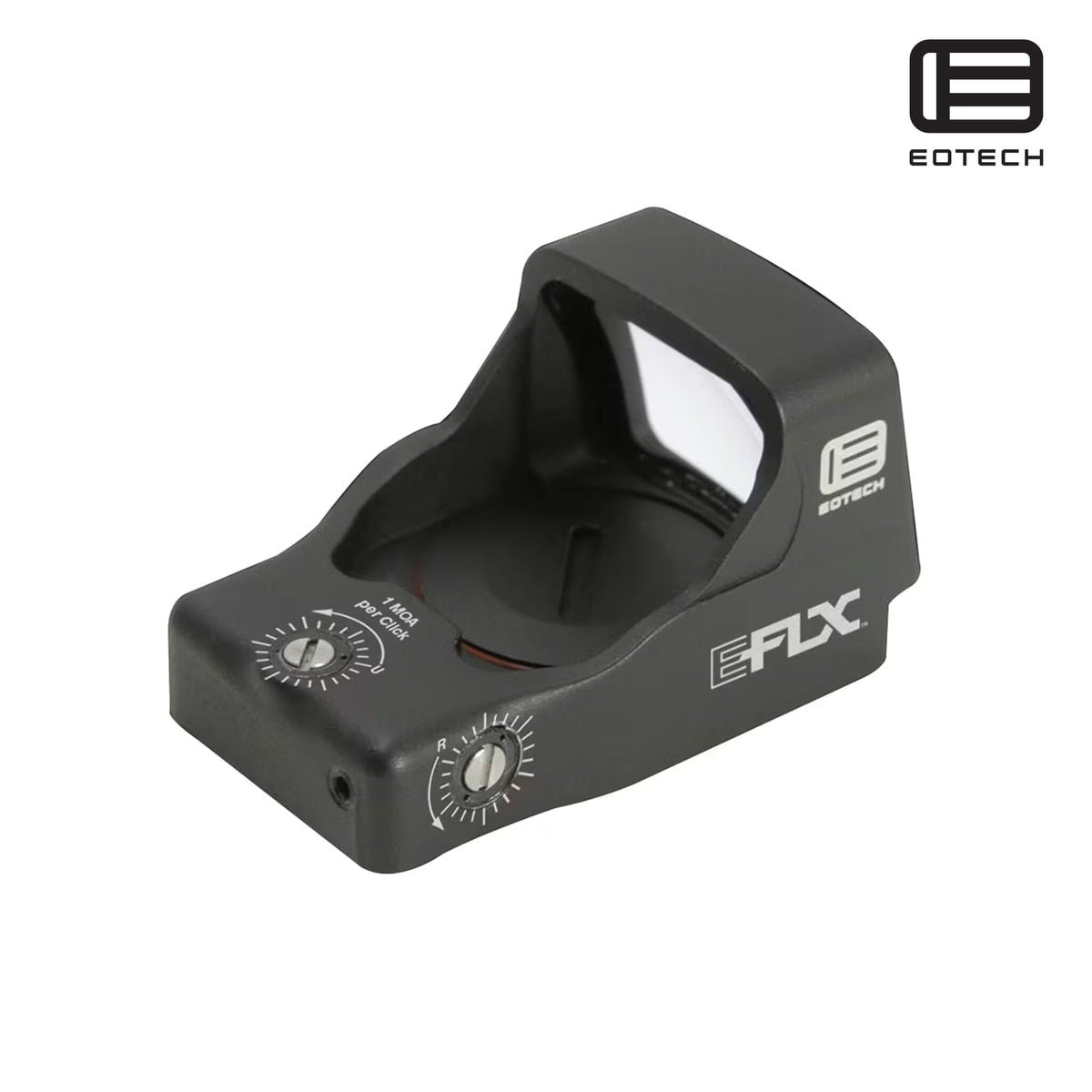

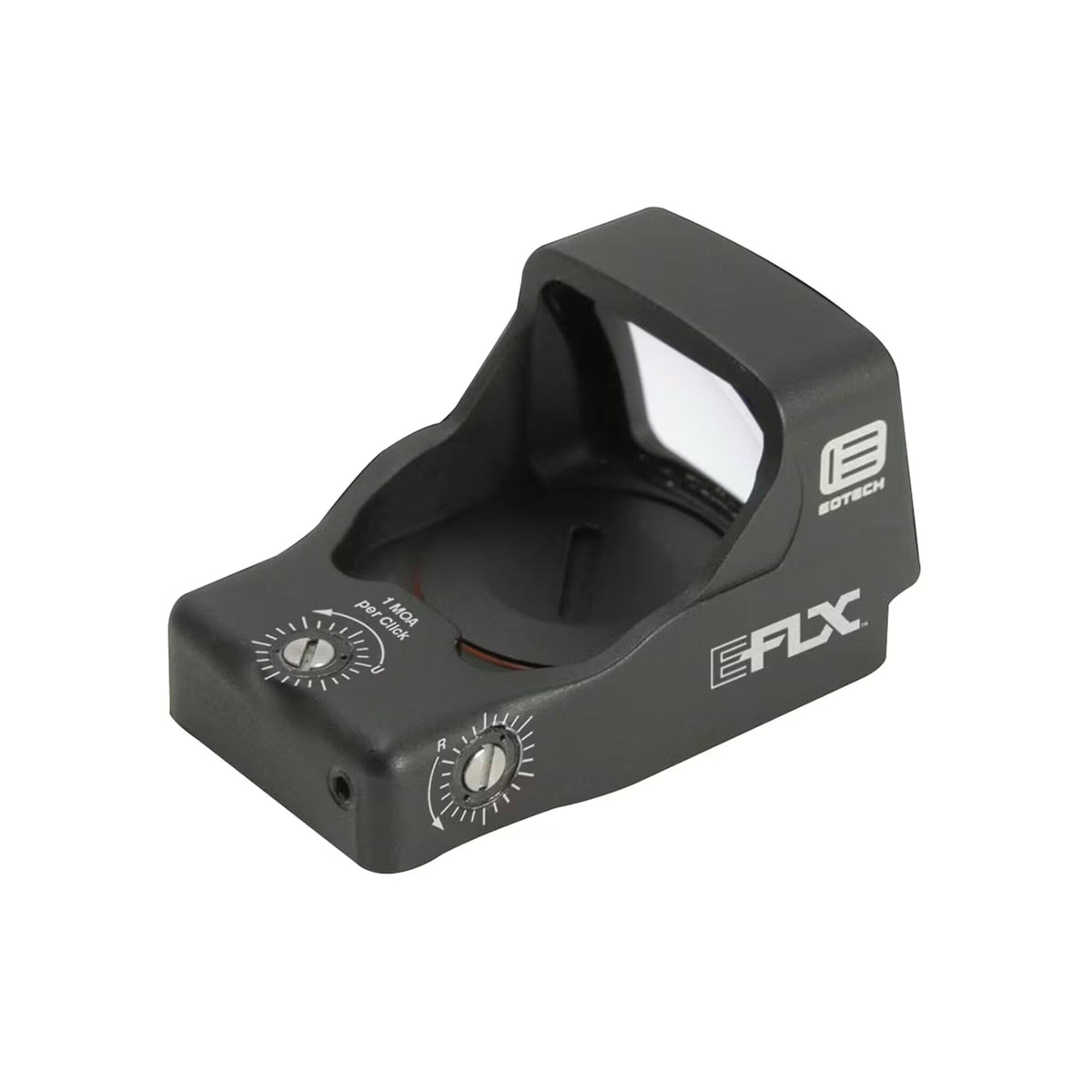

Power: One CR2032 coin cell in a top-loading tray — change it without unmounting the sight or re-zeroing
-
Battery Life: Approximately 20,000 hours at brightness level 5
-

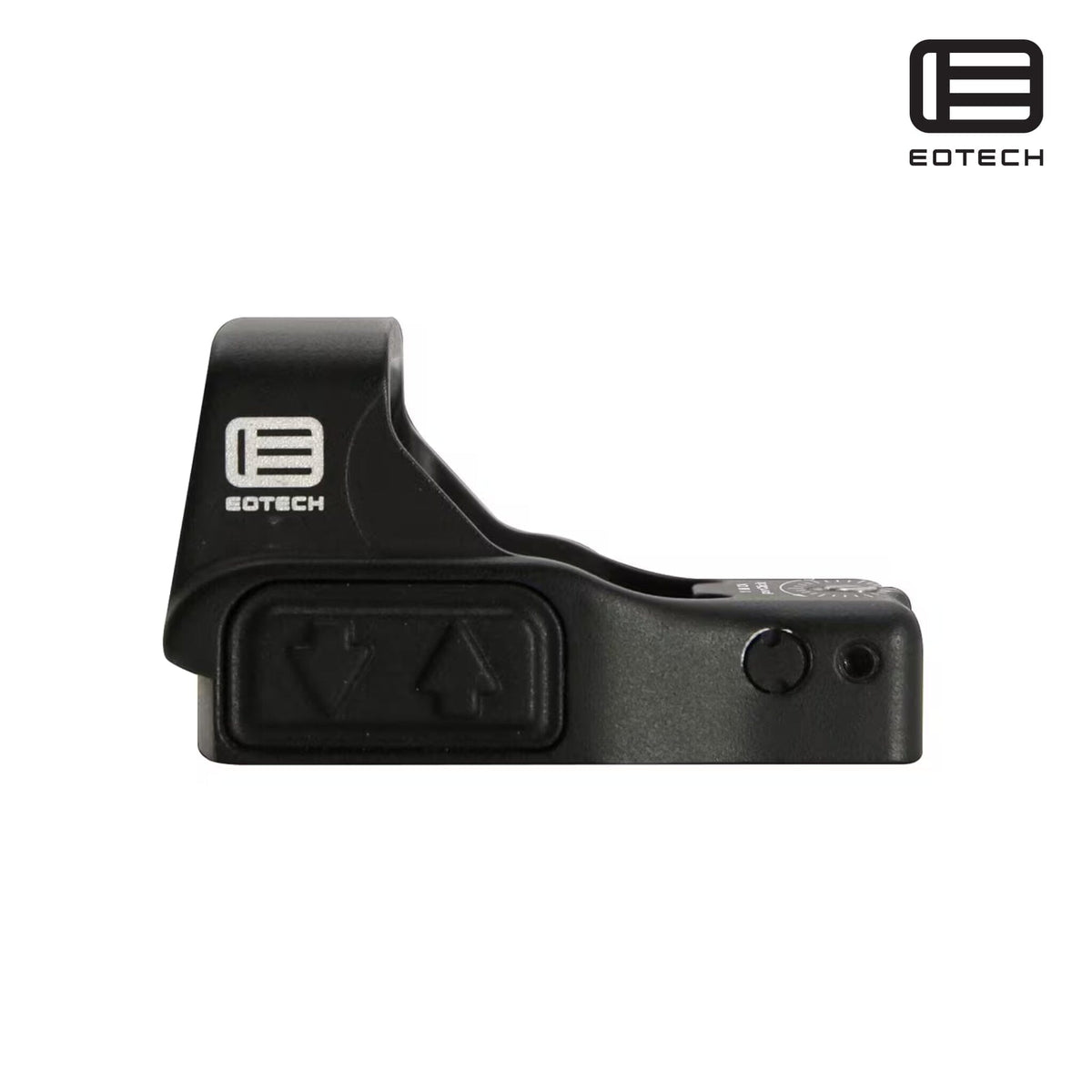

Adjustment: 1 MOA per click, windage and elevation
-

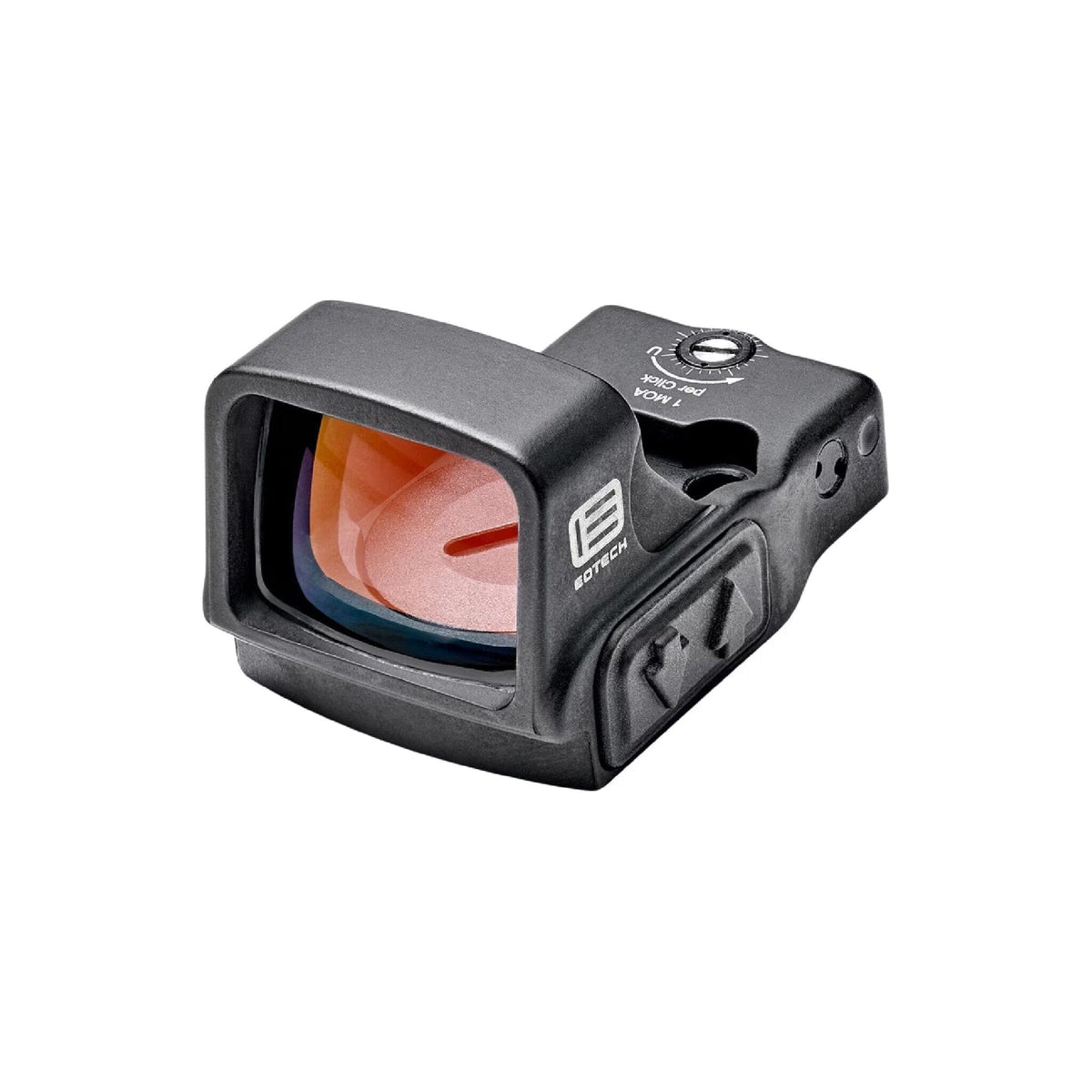

Housing: 6061 aluminium, 1.4 oz (35 g) with battery, finished in Black
-
Origin: Made in USA
Technical Specifications
| Optic Type |
Open emitter mini reflex sight |
| Magnification |
1× (non-magnifying) |
| Reticle |
6 MOA dot, red |
| Illumination |
LED, 8 daylight settings plus 1 night-vision setting |
| Brightness Control |
Manual, via the up and down buttons |
| Battery |
One CR2032 coin cell, top-loading tray |
| Battery Life |
Approximately 20,000 hours at brightness level 5 |
| Motion Activation |
None — user-selectable auto shut-off after 12 hours, or no shut-off |
| Footprint |
Leupold DeltaPoint Pro |
| Adjustment |
1 MOA per click, windage and elevation |
| Eye Relief |
Unlimited |
| Dimensions |
1.9 × 1.2 × 1.0 in (47 × 30.5 × 25.4 mm), L × W × H |
| Weight |
1.4 oz (35 g), with battery |
| Housing |
6061 aluminium |
| Finish |
Black |
| Country of Origin |
Made in USA |
| SKU / MPN / UPC |
EFLX6RWBLK / EFLX6RWBLK / 672294700067 |
What's Included
- EOTech EFLX pistol optic (EFLX6RWBLK)
- CR2032 battery
- Torx wrench and multi-adjustment tool
- Two M4 mounting screws
- Operator manual
Warranty
Covered by EOTech's 10-year warranty. Keep your order confirmation as proof of purchase and register the optic with EOTech after fitting; we handle warranty claims for you from the UK.
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and EOTech's 10-year warranty.
Frequently Asked Questions
What footprint does the EOTech EFLX use?
The EOTech EFLX uses the Leupold DeltaPoint Pro (DPP) footprint, so it fits slides milled for the DeltaPoint Pro pattern directly, or any optics-ready pistol fitted with a DPP adapter plate. Our pistol red dot footprint compatibility chart sets the common footprints side by side.
Will the EOTech EFLX fit my optics-ready pistol?
It fits directly on a DeltaPoint Pro cut — the Springfield Echelon is one confirmed example — and on other optics-ready pistols with the correct DPP plate or a rear-dovetail mounting adapter. It does not fit the Glock 43X MOS, which uses a different slim-slide footprint. Slide cuts vary between production runs, so confirm your pistol's cut before ordering.
Can I change the battery without removing the optic?
Yes — the EFLX takes a single CR2032 in a top-loading tray, so the cell swaps from above without unmounting the sight and without losing your zero.
Does the EOTech EFLX have shake-awake?
No — the EFLX has no motion activation. Instead it offers a user-selectable auto shut-off, either after 12 hours or not at all, so you choose whether the sight stays lit.
Why choose the 6 MOA dot on the EOTech EFLX?
A 6 MOA dot covers about 6.3 in (160 mm) at 100 yards, so it is the bolder of the two EFLX reticles and the faster of the two to pick up on the draw. Our red dot size chart compares dot sizes directly.
How long does the EFLX battery last?
Approximately 20,000 hours at brightness level 5 on the 6 MOA model, from a single CR2032 coin cell.
