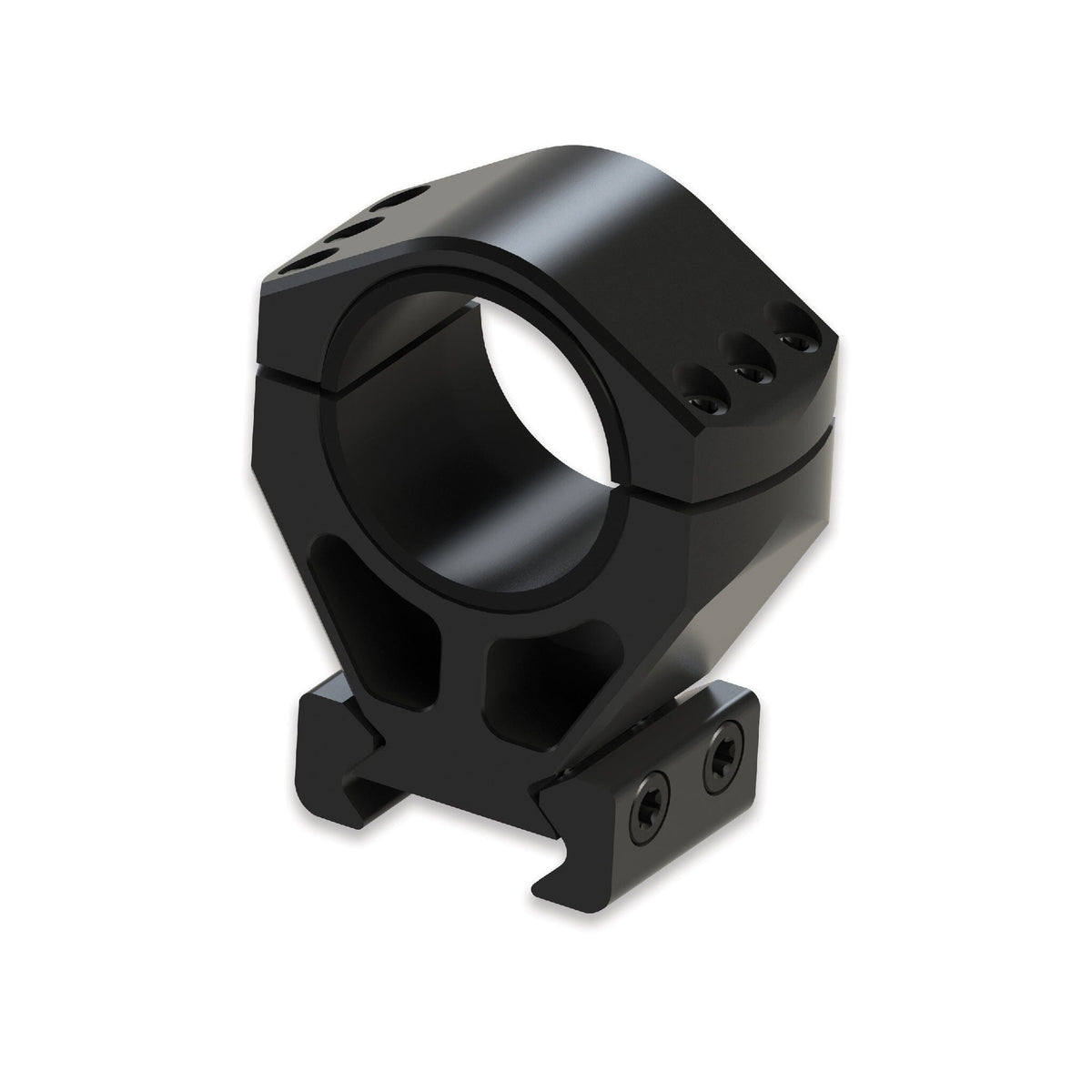

The Burris XTR Signature Scope Rings 30mm 1.50in Height (420223) are a two-ring set for 30mm scope tubes, sitting at a 1.50in (38.1 mm) optical centreline on any Picatinny or Weaver rail.
What sets the XTR Signature range apart is the Pos-Align insert system. Each set ships with one concentric 0 MOA set, one ±5 MOA set, one ±10 MOA set and two ±20 MOA sets, letting you build 0, 5, 10, 15, 20, 25, 30 or 40 MOA of cant without touching your windage or elevation turrets — so you keep your full internal adjustment range for shooting rather than spending it correcting the rail. The polymer inserts also grip the tube without marking it, and correct off-centre receiver holes, which removes the need to lap the rings or fit a tapered base.
How It Compares
Same rings, different height: Burris XTR Signature 30mm scope rings, 1.00in height (420221) and Burris XTR Signature 30mm scope rings, 1.25in height (420222). Same system, different tube size: Burris XTR Signature 1-inch scope rings, 1.50in height and Burris XTR Signature 34mm scope rings, 1.50in height. Browse all rifle scope rings, the full Burris scope mount and ring range, or the wider Burris optics range.
Ideal For
- Deer stalking rifles where the rail or receiver holes are not perfectly aligned and lapping is not an option
- Long-range, F-Class and benchrest shooting needing up to 40 MOA of extra elevation without a tapered base
- Straight-pull and practical rifle builds mounting a 30mm scope on Picatinny
- Night fox and vermin control set-ups where the scope moves between rifles and must not be marked
- Pairing with a 30mm long-range rifle scope that needs its full elevation travel kept for dialling
Key Features
-
Tube Diameter: 30mm — fits scopes with a 30mm main tube only
-
Optical Centreline Height: 1.50in (38.1 mm) measured from the rail to the centre of the scope tube
-
Pos-Align Inserts: One concentric 0 MOA set, one ±5 MOA set, one ±10 MOA set and two ±20 MOA sets
-
Cant Adjustment: Build 0, 5, 10, 15, 20, 25, 30 or 40 MOA of cant without using turret adjustment
-
Clamps: Self-centering dual steel clamps with full cross-through connection
-
Material: Aluminium ring bodies with solid steel clamps, matte finish
-
Fitting: Inserts grip the tube without marking it; no lapping required
-
Warranty: Burris Signature Warranty
Technical Specifications
| Tube Diameter |
30mm |
| Optical Centreline Height |
1.50in (38.1 mm) |
| Rail Fit |
Picatinny / Weaver |
| Material |
Aluminium ring bodies, solid steel clamps |
| Finish |
Matte |
| Cant Adjustment |
Up to 40 MOA via Pos-Align inserts |
| Ring Top Torque |
20 in-lb (2.3 Nm) |
| Cross-Bolt Torque |
45 in-lb (5.1 Nm) |
| Warranty |
Burris Signature Warranty |
| SKU / MPN / UPC |
420223 / 420223 / 000381202239 |
What's Included
- Two-ring set (30mm, 1.50in centre height)
- Pos-Align insert sets: one concentric 0 MOA set, one ±5 MOA set, one ±10 MOA set and two ±20 MOA sets
- Fitting hardware and instructions
Warranty
Burris back this with their Signature Warranty — no charge, no receipt, for life. It covers the rings against defects in materials and workmanship, is fully transferable, and needs no registration.
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays. Backed by UK-based aftersales support and the Burris Signature Warranty (formerly the Forever Warranty; the name changed in December 2025, the lifetime cover did not). International warranty claims are handled through us as your retailer, so you deal with a UK company rather than shipping to the US.
Frequently Asked Questions
What do the Pos-Align inserts on the Burris XTR Signature rings actually do?
They let you angle the scope inside the rings. Combining the supplied sets — one concentric 0 MOA set, one ±5 MOA set, one ±10 MOA set and two ±20 MOA sets — gives 0, 5, 10, 15, 20, 25, 30 or 40 MOA of cant, so you gain elevation for long range without spending your turret travel and without buying a tapered base.
Do I need to lap the Burris XTR Signature rings?
No. The self-centering clamps and polymer Pos-Align inserts align the scope and take up receiver-hole misalignment, so lapping is not required. The inserts also hold the tube without marking the finish.
What height are the Burris XTR Signature 30mm 1.50in rings (420223)?
1.50in (38.1 mm) measured from the rail to the centre of the scope tube. Burris does not give this set a height name — use the centreline figure, as retailer names for these rings are inconsistent.
What scope tube diameter do the Burris XTR Signature 420223 rings fit?
They fit scopes with a 30mm main tube only. Burris makes the XTR Signature range in 1 Inch, 30mm and 34mm, and the ring bore is not adjustable between them.
What torque should I use on the Burris XTR Signature rings?
Burris specifies 20 in-lb (2.3 Nm) on the ring top screws and 45 in-lb (5.1 Nm) on the cross-bolts, tightening alternately in an even pattern.
