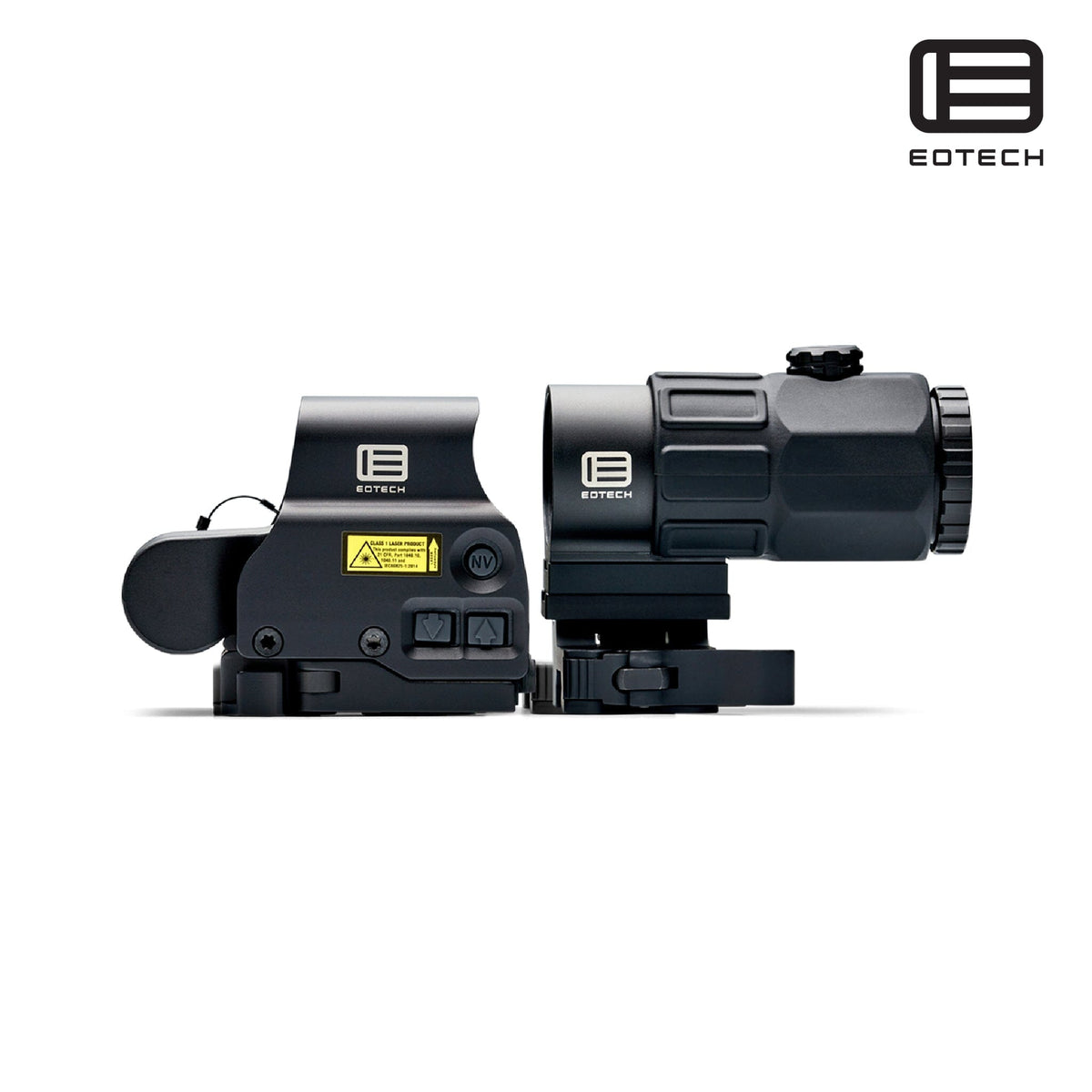

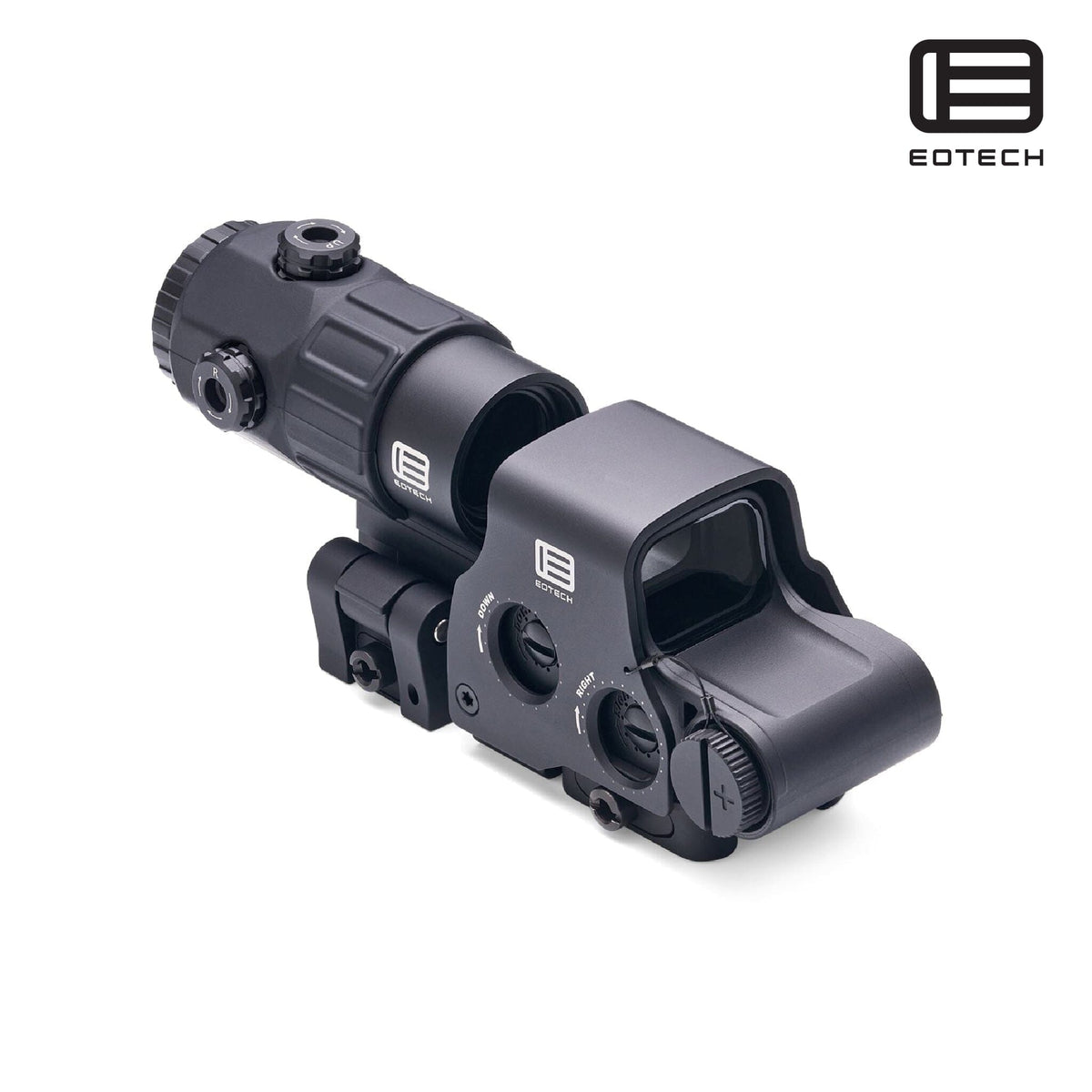

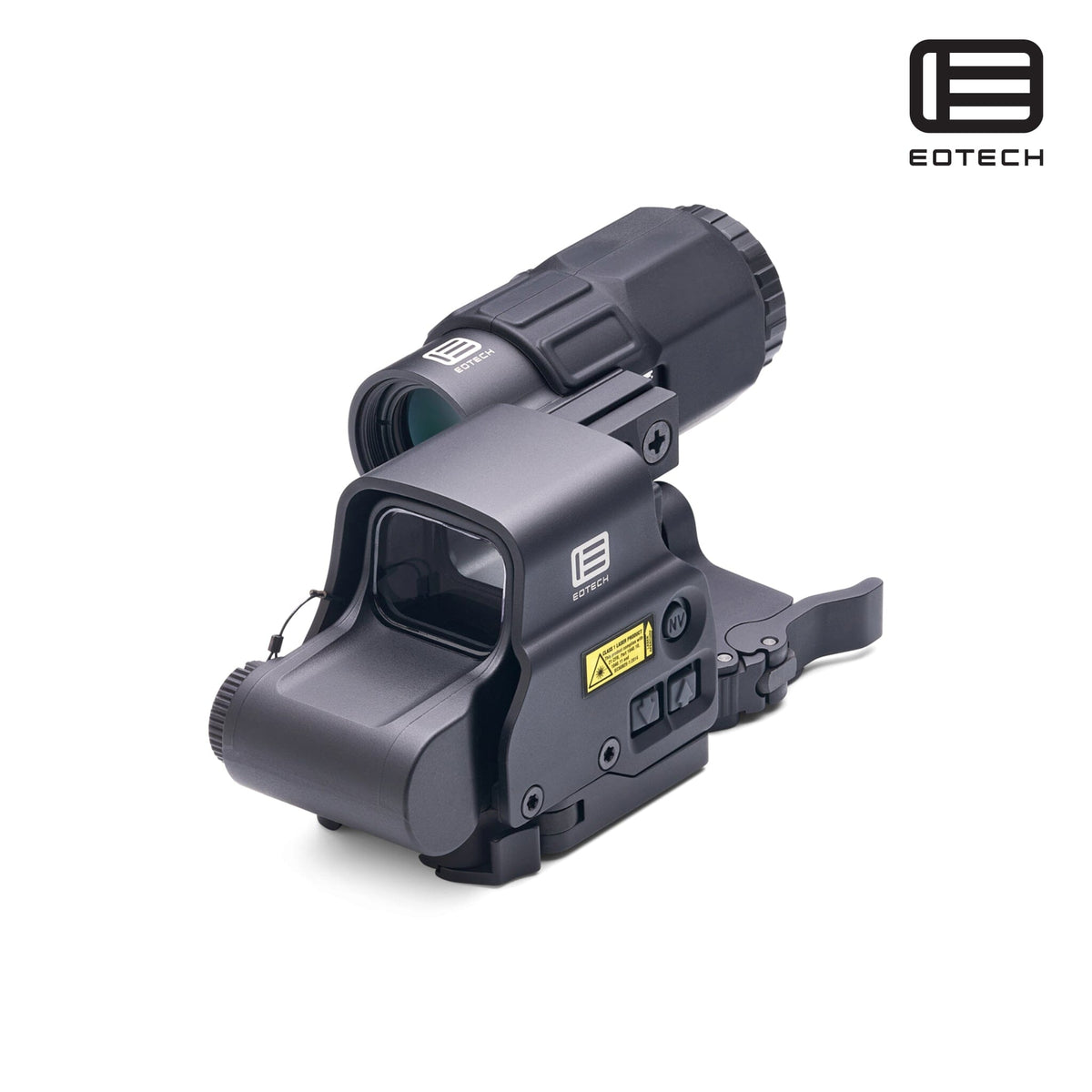

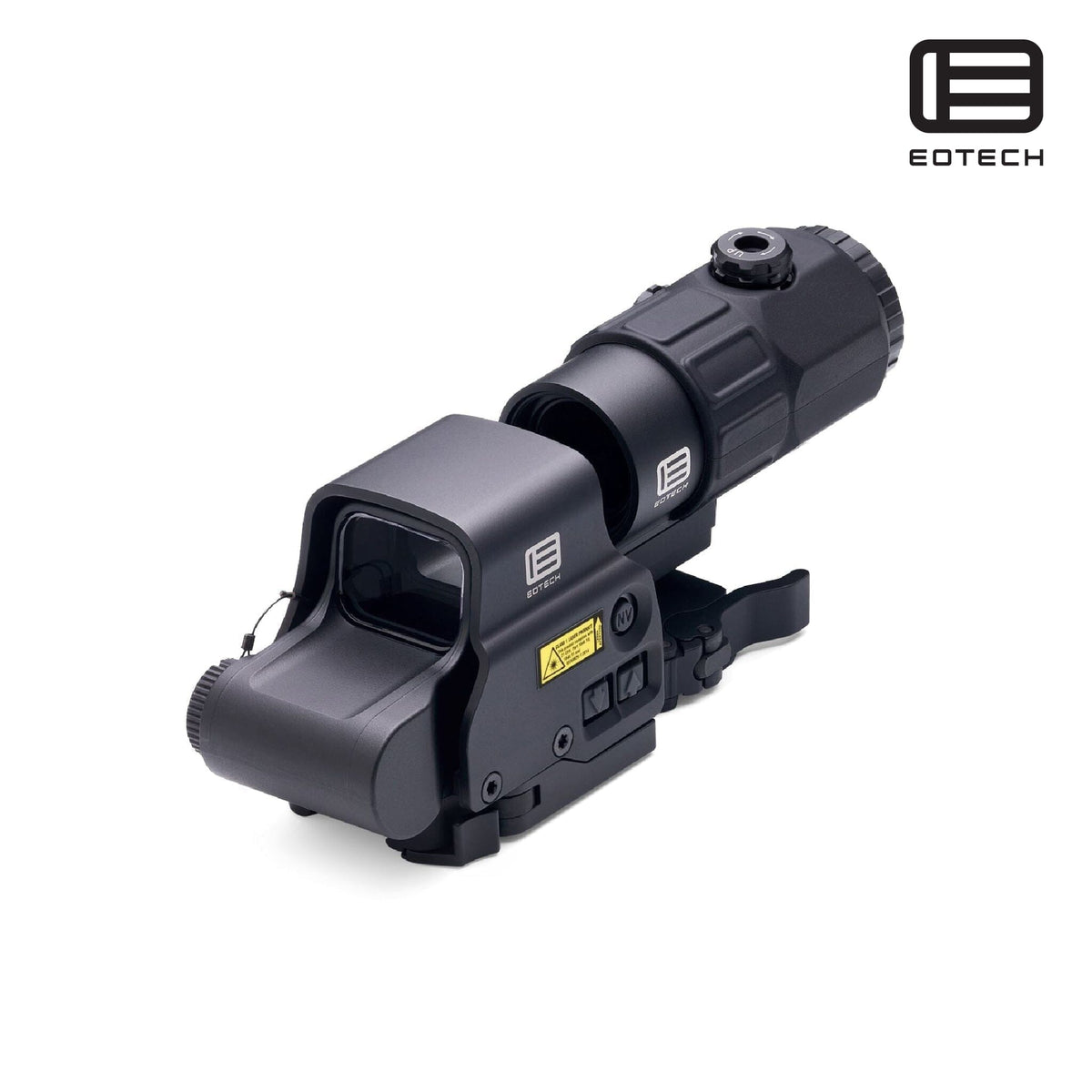

The EOTech HHS V is the long-reach member of the Hybrid Sight family, pairing the EXPS3-4 holographic weapon sight with the powerful G45 5× magnifier — the highest magnification EOTech offers in a hybrid package. Where the 3× systems are built for close-to-mid range, the HHS V extends your effective identification distance considerably while still snapping back to a true 1× holographic sight for speed up close.

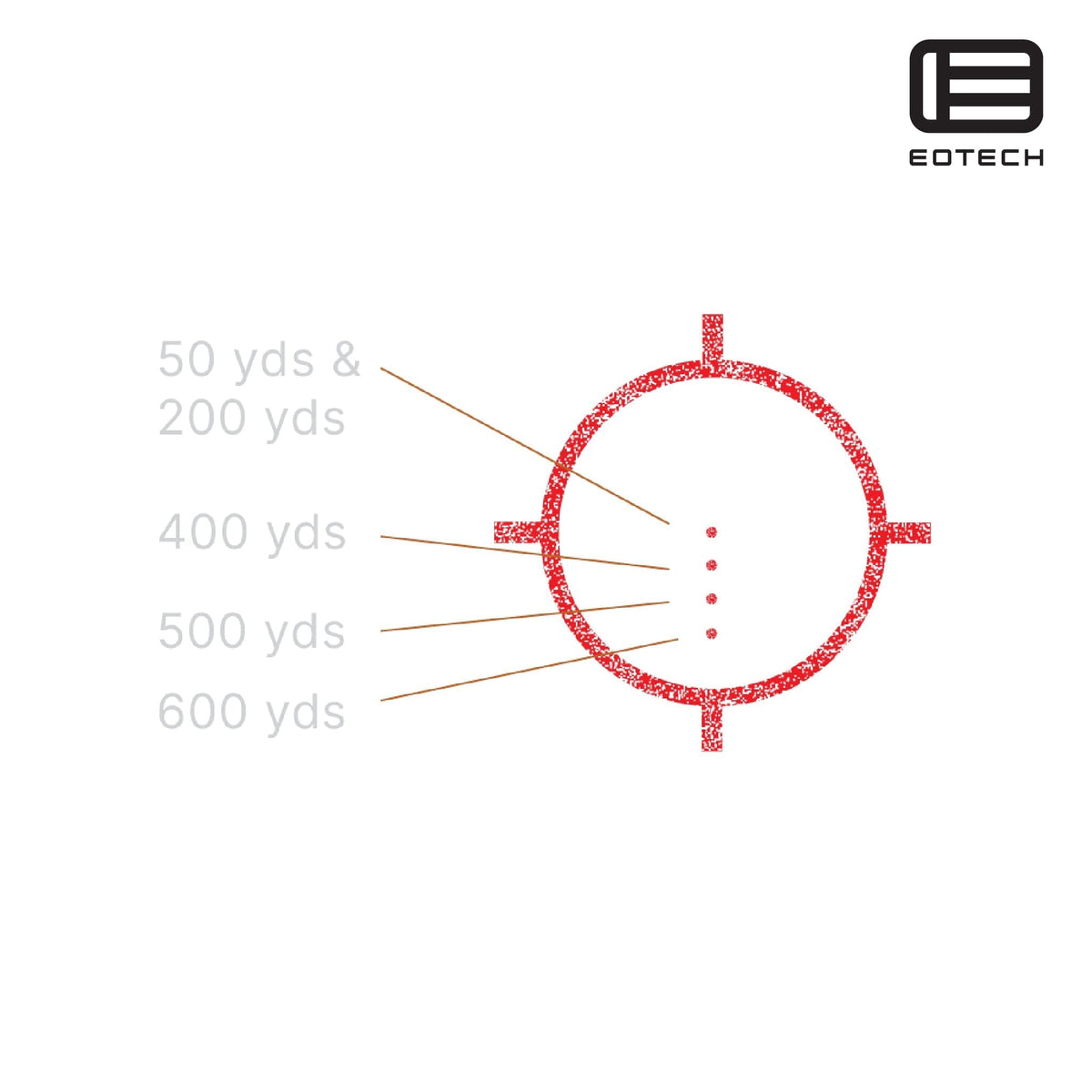

The EXPS3-4 runs EOTech's ranging reticle: a 68 MOA ring with four stacked 1 MOA dots for bullet-drop holdovers at distance. Both the sight and G45 are fully night-vision compatible, and the G45's STS (switch-to-side) mount flips the magnifier clear in an instant. Supplied with a protective case. UK-stocked for fast dispatch.
How the EOTech HHS systems compare
The HHS V is the 5× long-range option (EXPS3-4 + G45) with a four-dot ranging reticle. For a more compact 3× build with the dual-dot reticle, see the HHS VI (EXPS3-2 + G43); for the single-dot EXPS3-0 in FDE, see the HHS VIII Tan.
IDEAL FOR
- Close to extended range shooting
- Rapid transition between 1× and 5× magnification
- Night vision and low-light environments
- Duty and professional applications
KEY FEATURES
- Holographic Hybrid Sight System – integrated HWS and magnifier package
- EXPS3-4 HWS – holographic reticle with four aiming points for holdover
- G45 magnifier – 5× magnification for extended-range identification
- Switch-To-Side (STS) mount – rapid transition between magnified and unmagnified
- Side button controls – optimised for use with the magnifier
- Night vision compatible – supports NV devices
- Quick detach lever – fast attachment and removal
- Compact magnifier design – reduced footprint
TECHNICAL SPECIFICATIONS
EXPS3-4 Holographic Weapon Sight
| Optic Type |
Holographic Weapon Sight (HWS) |
| Magnification |
1× |
| Reticle |
68 MOA Ring with Four 1 MOA Dots |
| Reticle Colour |
Red |
| Parallax |
Parallax Free |
| Night Vision Compatible |
Yes |
| Brightness Settings |
20 Daylight / 10 Night Vision |
| Adjustment Increment |
0.5 MOA per click |
| Windage Adjustment Range |
±40 MOA |
| Elevation Adjustment Range |
±40 MOA |
| Battery Type |
CR123 Lithium |
| Battery Life |
Up to 1,000 Hours |
| Mount Type |
Quick Detach Lever (Picatinny / Weaver) |
| Water Resistance |
Submersible to 33 ft (10 m) |
G45 5× Magnifier (STS Mount)
| Magnification |
5× |
| Mount Type |
Switch-To-Side (STS) Quick Detach |
| Eye Relief |
2.6 in |
| Adjustment |
Tool-less Windage and Elevation |
WHAT'S INCLUDED
- EXPS3-4 Holographic Weapon Sight
- G45 Magnifier
- Switch-To-Side (STS) Mount
- CR123 Battery
- Protective Case
- User Documentation
UK Delivery & Support
This EOTech HHS V is genuine UK-stocked EOTech, dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based aftersales support and the full EOTech manufacturer warranty.
Frequently Asked Questions
How much magnification does the G45 provide?

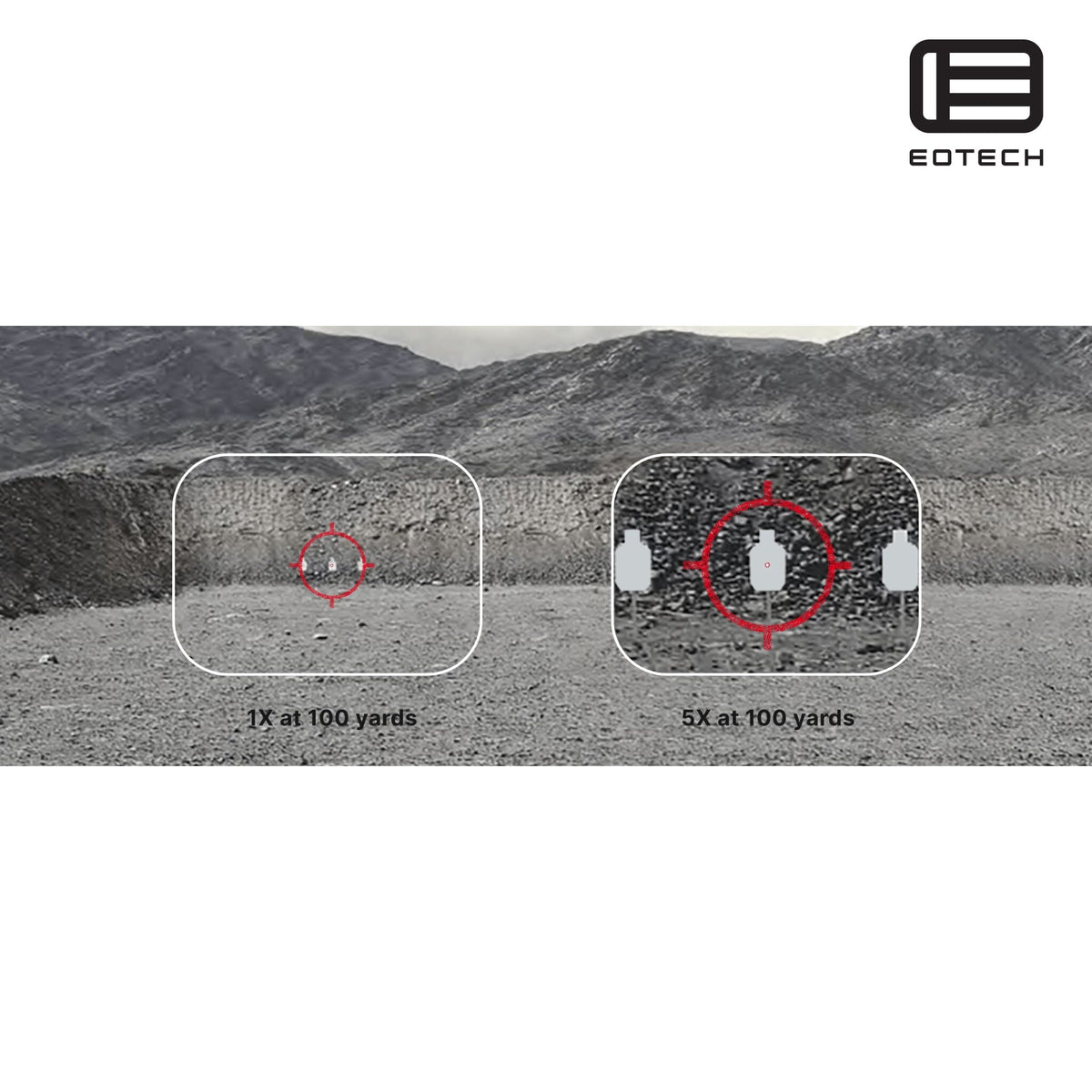

5× — the highest in EOTech's hybrid range, giving the HHS V noticeably more reach for target identification than the 3× G33/G43 systems.
What is the EXPS3-4 reticle?
A 68 MOA ring with four stacked 1 MOA dots, giving you bullet-drop holdover references for engaging targets at varying distances.
Is the HHS V night-vision compatible?
Yes — the EXPS3-4 has 10 dedicated night-vision settings, and the G45 magnifier is rated for night-vision use.
How does the HHS V differ from the HHS VI?
The HHS V uses the 5× G45 with the four-dot ranging reticle for distance; the HHS VI uses the compact 3× G43 with a dual-dot reticle for a lighter, close-to-mid-range setup.
What battery does it use?
A single CR123 lithium cell (included), rated for up to 1,000 hours.
