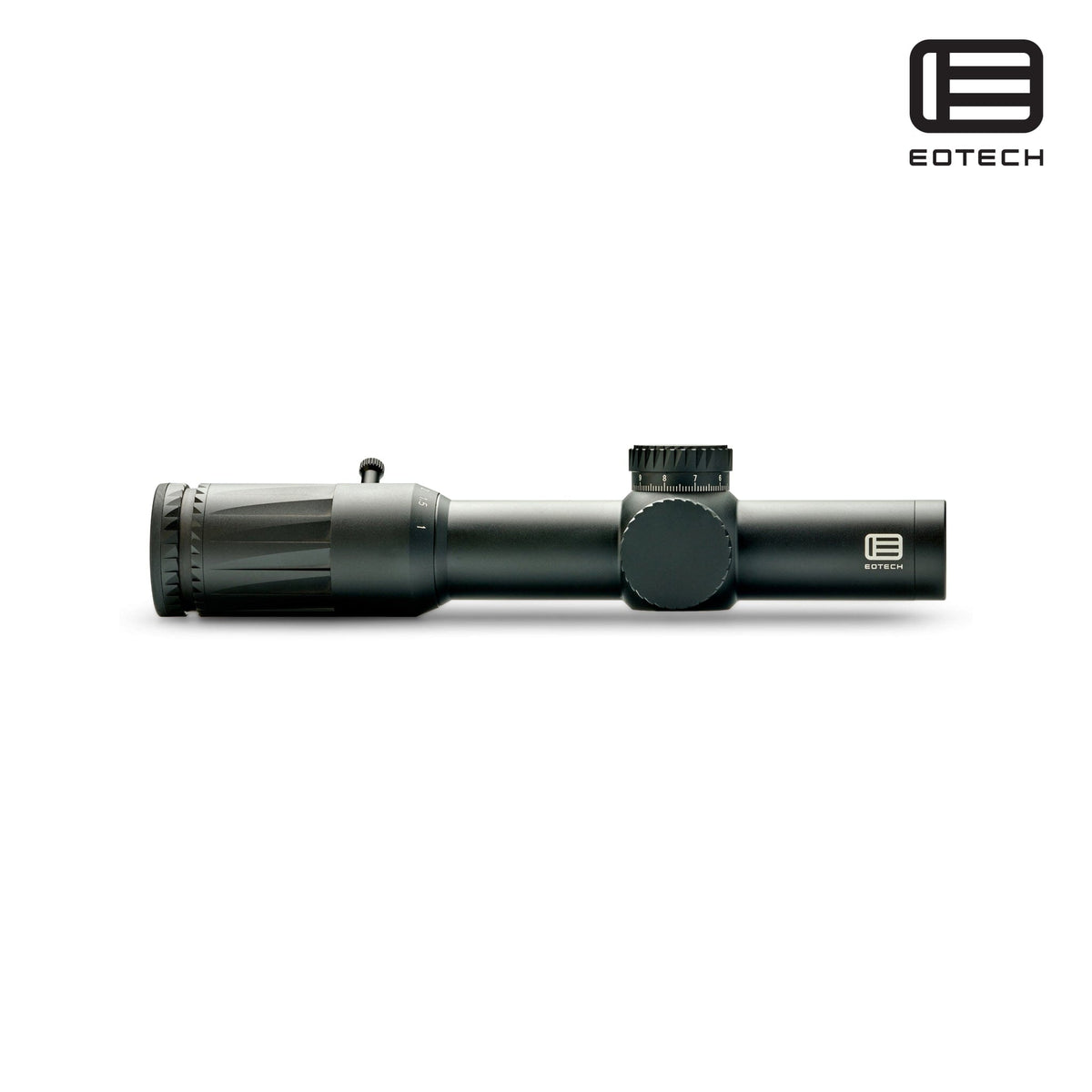

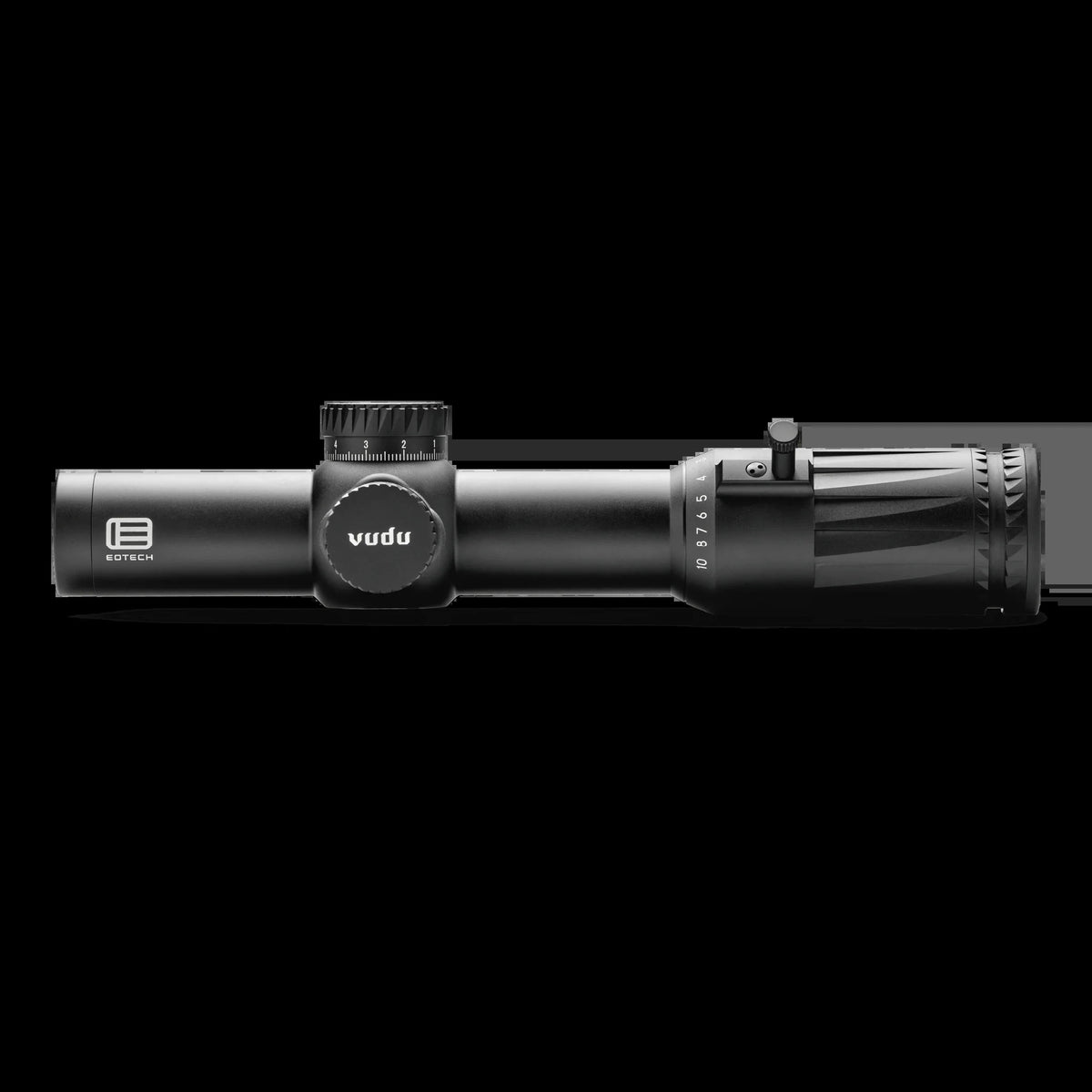

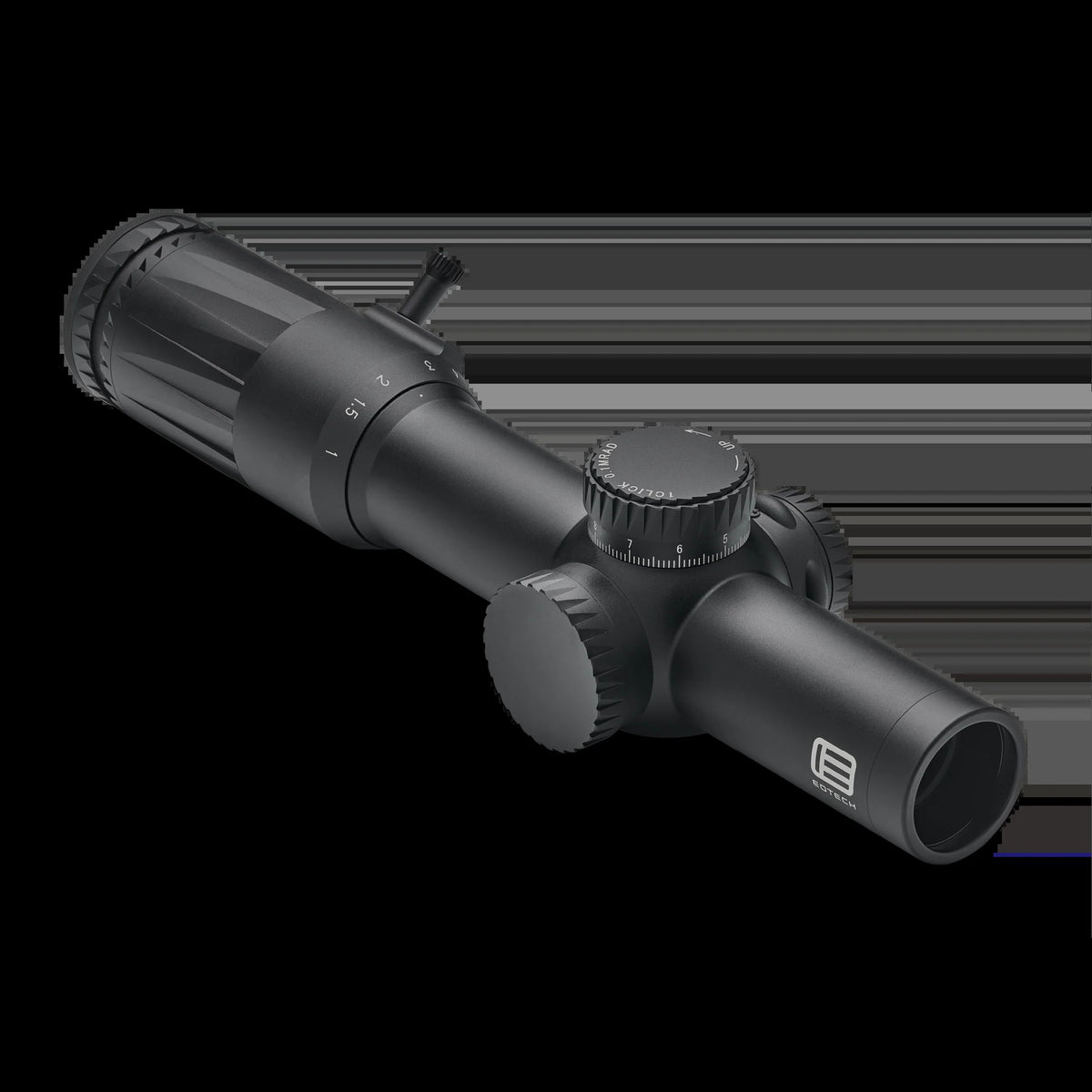

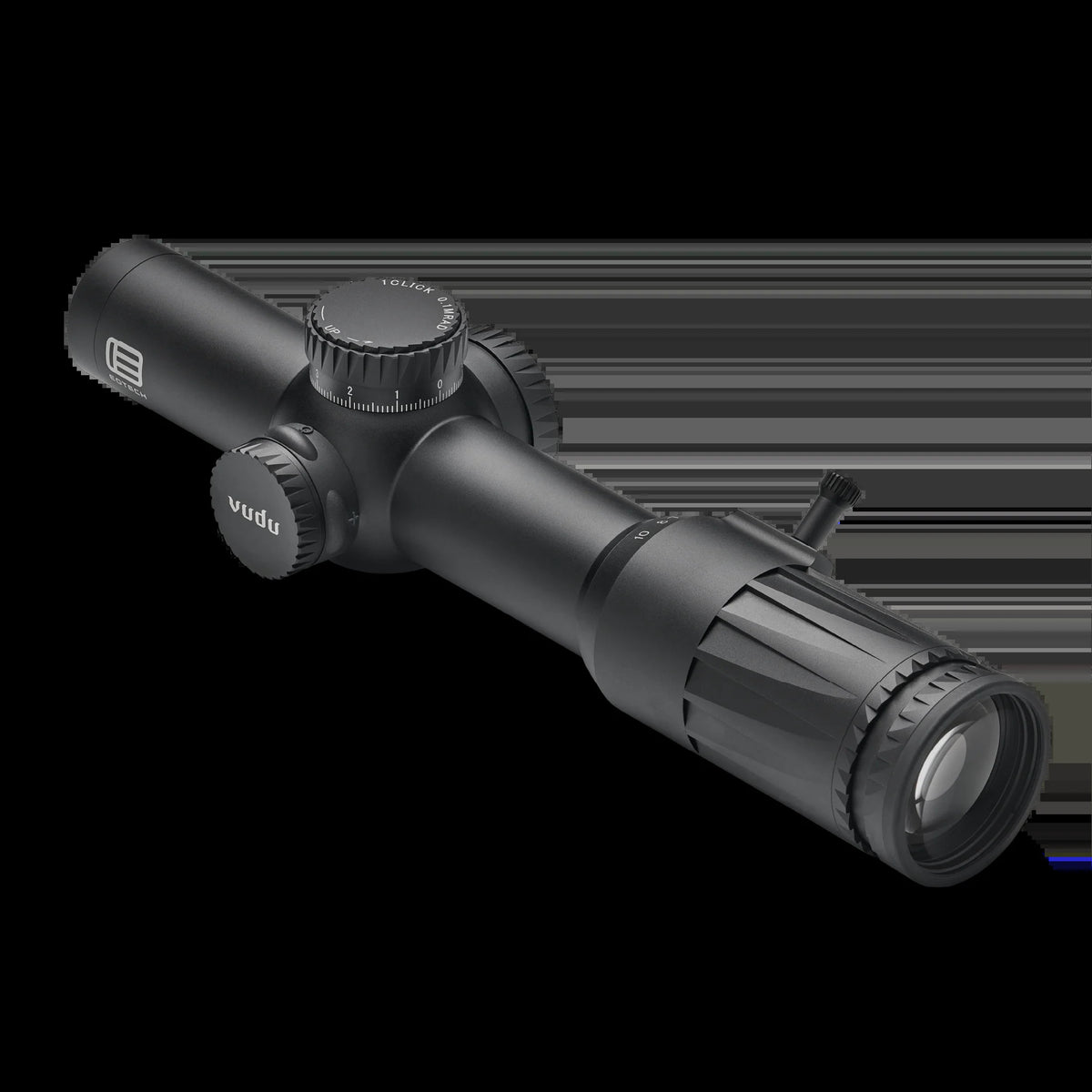

The EOTech Vudu 1-10x28 LPVO Rifle Scope in this listing is the first focal plane (FFP) model with the daylight-bright illuminated SR5 MRAD reticle, a 28 mm objective, a 34 mm tube and 0.1 MRAD per click adjustment.
Daylight-bright illumination is what separates this variant from the standard SR5. The centre of the reticle is bright enough to be used like a red dot in full sun at 1x, so the scope covers close-range speed and 10x precision without a second optic.
Finish: Black — also sold as the Vudu 1-10x28 daylight-bright SR5 LPVO rifle scope in Tan.
How It Compares
Want the standard illuminated SR5? The Vudu 1-10x28 SR5 MRAD is the non-daylight-bright version. Prefer MOA? See the SR4 MOA version. Want a smaller 1-6x? The Vudu 1-6x24 is lighter. Browse all LPVO rifle scopes and optics for straight-pull rifles.
Ideal For
- Civilian Service Rifle and practical rifle shooting
- Straight-pull AR-15 rifles wanting one optic for all distances
- Practical shotgun and 3-Gun stages
- Shooters who want red-dot speed at 1x without a second sight
Key Features
-

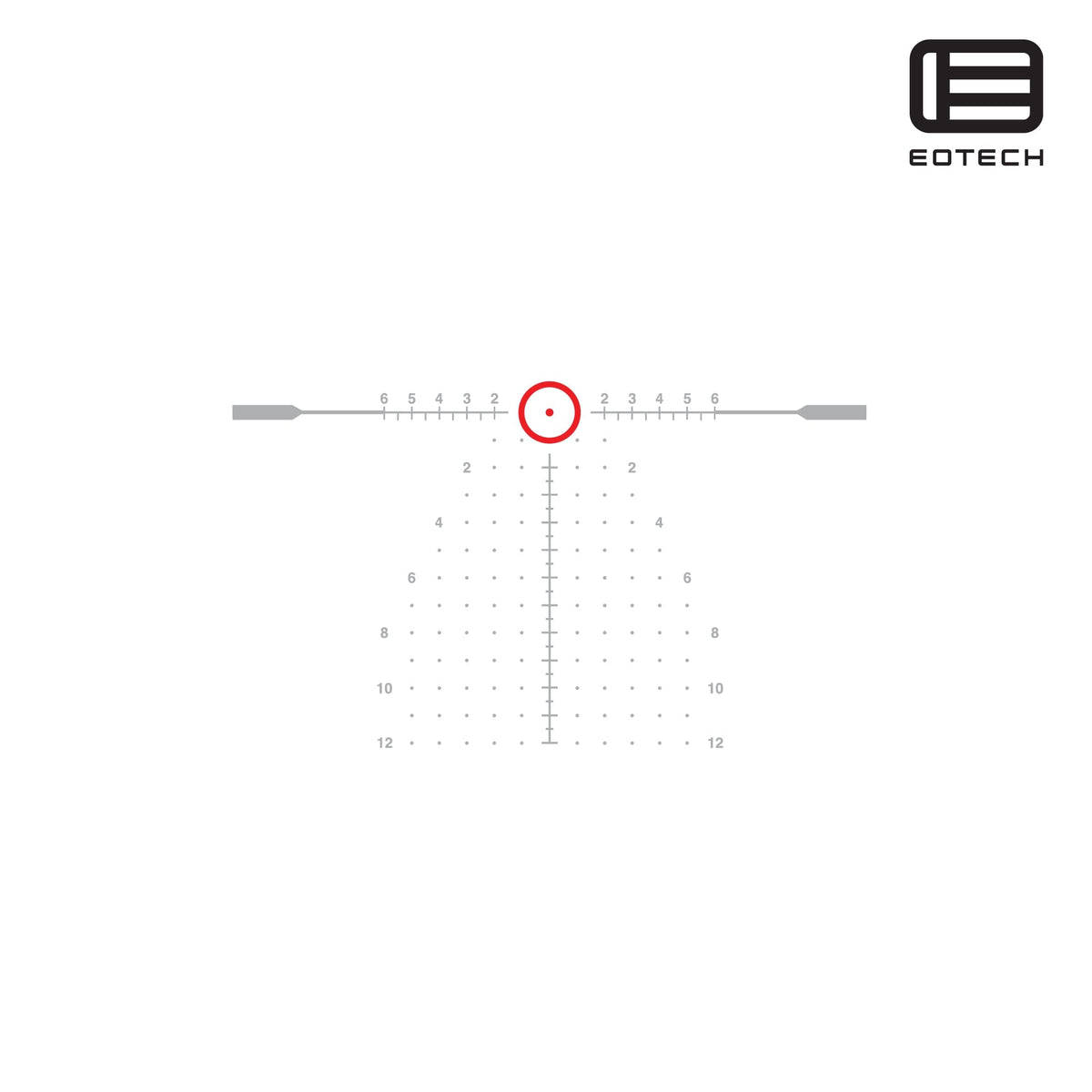

Reticle: SR5 MRAD, daylight-bright illuminated
-
Focal Plane: first focal plane (FFP) — subtensions true at every magnification
-
Turrets: 0.1 MRAD per click; 29 MRAD elevation / 23 MRAD windage
-
Tube: 34 mm
-
Weight: 21.3 oz (604 g)
-
Origin: Japan
Technical Specifications
| Magnification |
1-10x (variable) |
| Objective |
28 mm |
| Tube |
34 mm |
| Focal Plane |
First focal plane (FFP) |
| Reticle |
SR5 MRAD (daylight-bright illuminated) |
| Finish |
Black |
| Click Value |
0.1 MRAD per click |
| Adjustment Range |
29 MRAD elevation / 23 MRAD windage |
| Length / Weight |
10.63 in (270 mm) / 21.3 oz (604 g) |
| Origin |
Japan |
| MPN / UPC |
VDU1-10SR5DF / 672294110323 |
What's Included
- EOTech Vudu 1-10x28 LPVO rifle scope with SR5 MRAD reticle
- Lens covers and documentation
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and EOTech's warranty.
Frequently Asked Questions
What does daylight-bright mean on the EOTech Vudu 1-10x28 SR5?
The daylight-bright illumination on this EOTech Vudu 1-10x28 makes the reticle centre bright enough to be used like a red dot in full sunlight at 1x.
Is the EOTech Vudu 1-10x28 first or second focal plane?
The EOTech Vudu 1-10x28 is first focal plane (FFP), so the reticle scales with magnification and its subtensions are correct at any power.
What are the turret clicks on the EOTech Vudu 1-10x28?
The EOTech Vudu 1-10x28 adjusts in 0.1 MRAD per click, with 29 MRAD of elevation and 23 MRAD of windage available.
What mount does the EOTech Vudu 1-10x28 need?
The EOTech Vudu 1-10x28 has a 34 mm main tube, so it needs 34 mm rings or a 34 mm cantilever mount.
How much does the EOTech Vudu 1-10x28 weigh?
The EOTech Vudu 1-10x28 weighs 21.3 oz (604 g) and is 10.63 in (270 mm) long.
