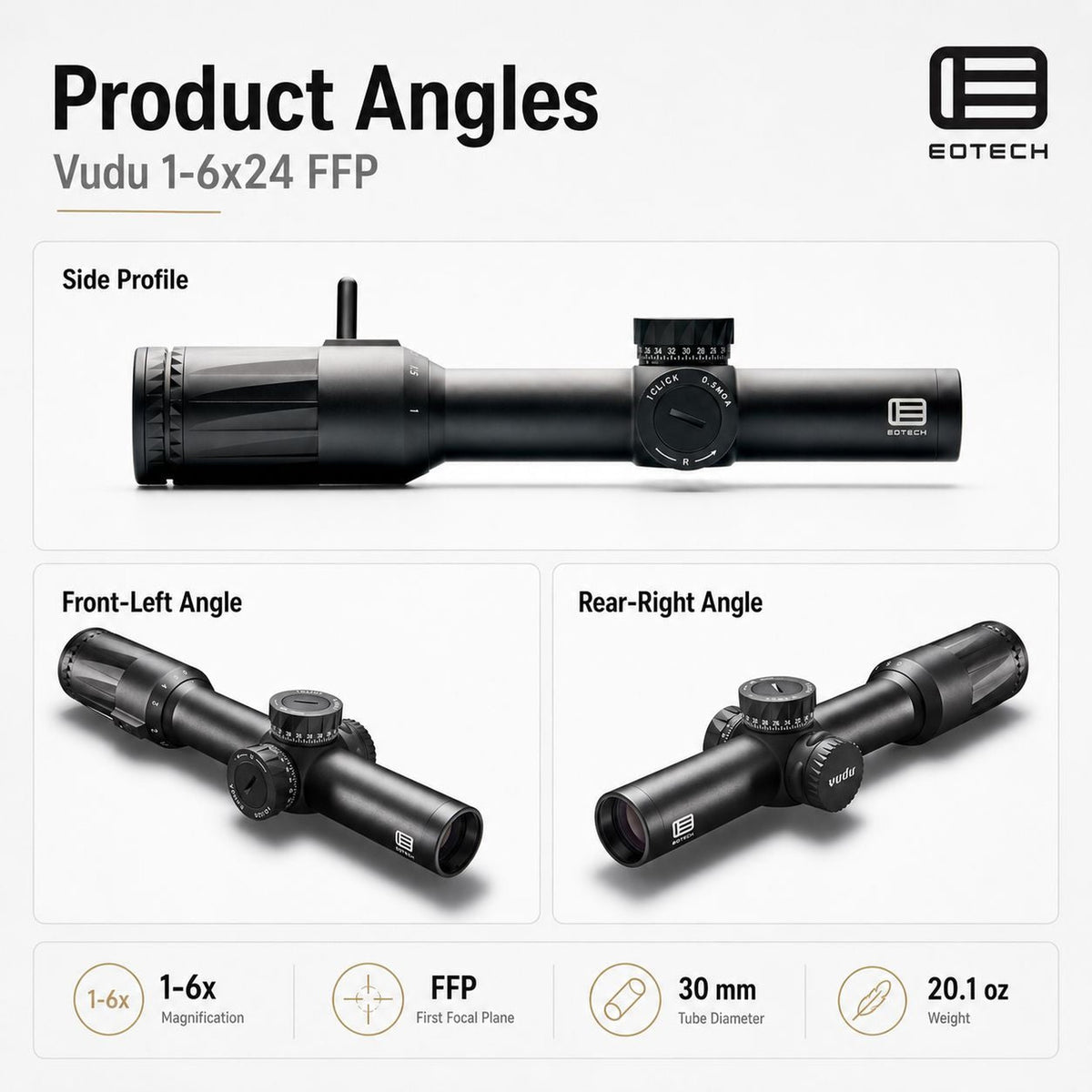

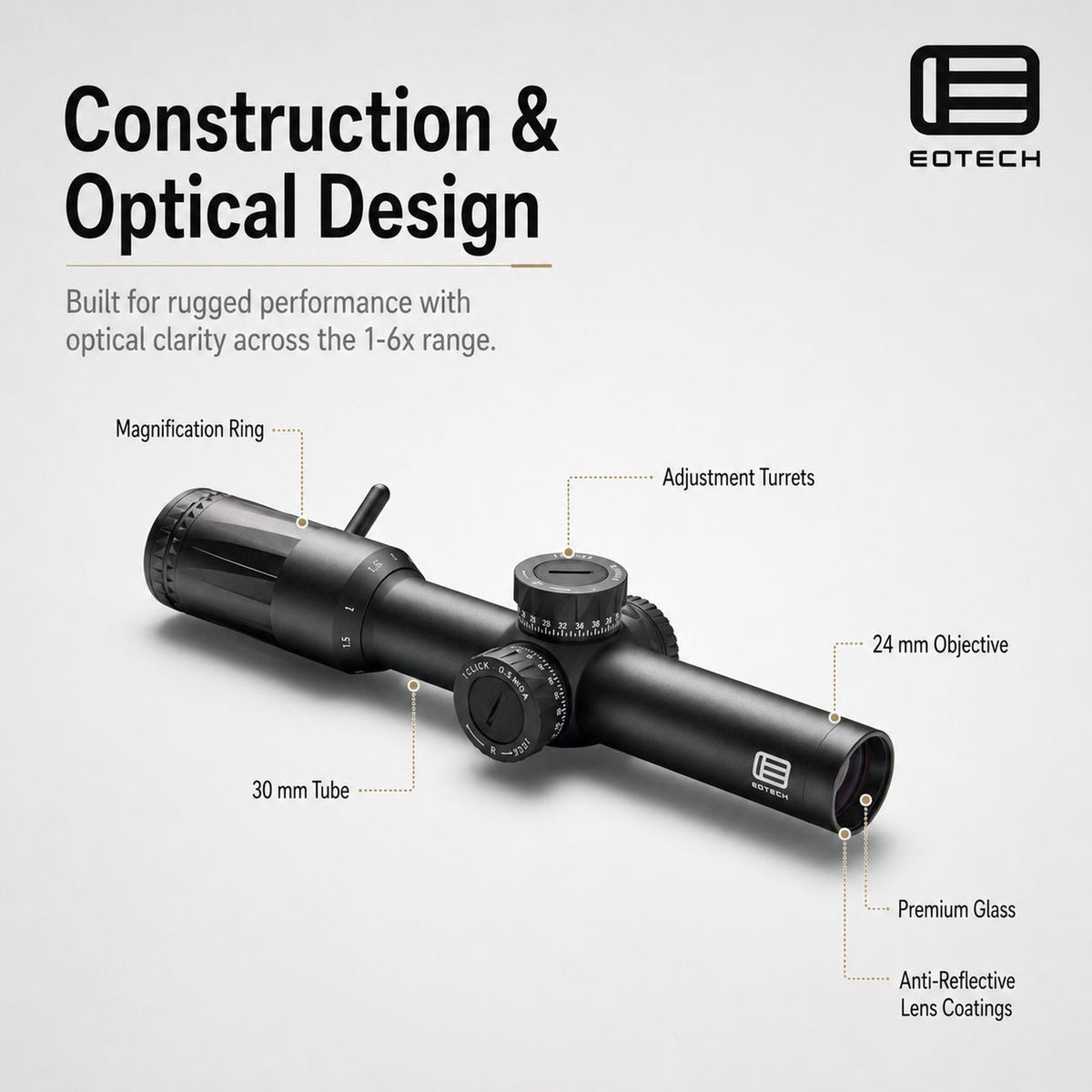

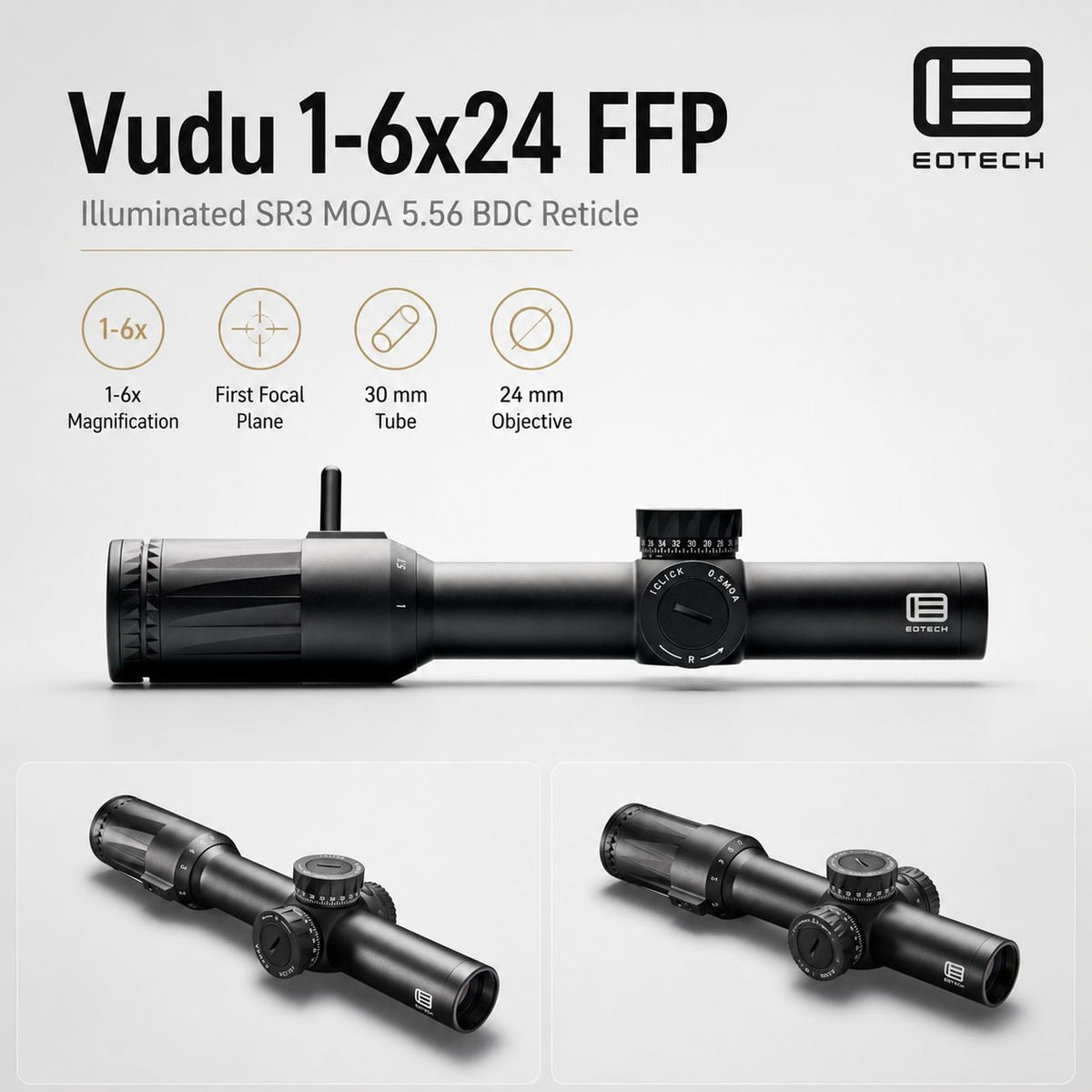

The EOTech Vudu 1-6x24 LPVO Rifle Scope in this listing is the first focal plane (FFP) model with the illuminated SR3 MOA 5.56 BDC reticle, a 24 mm objective, a 30 mm tube and a CR2032 illumination cell.

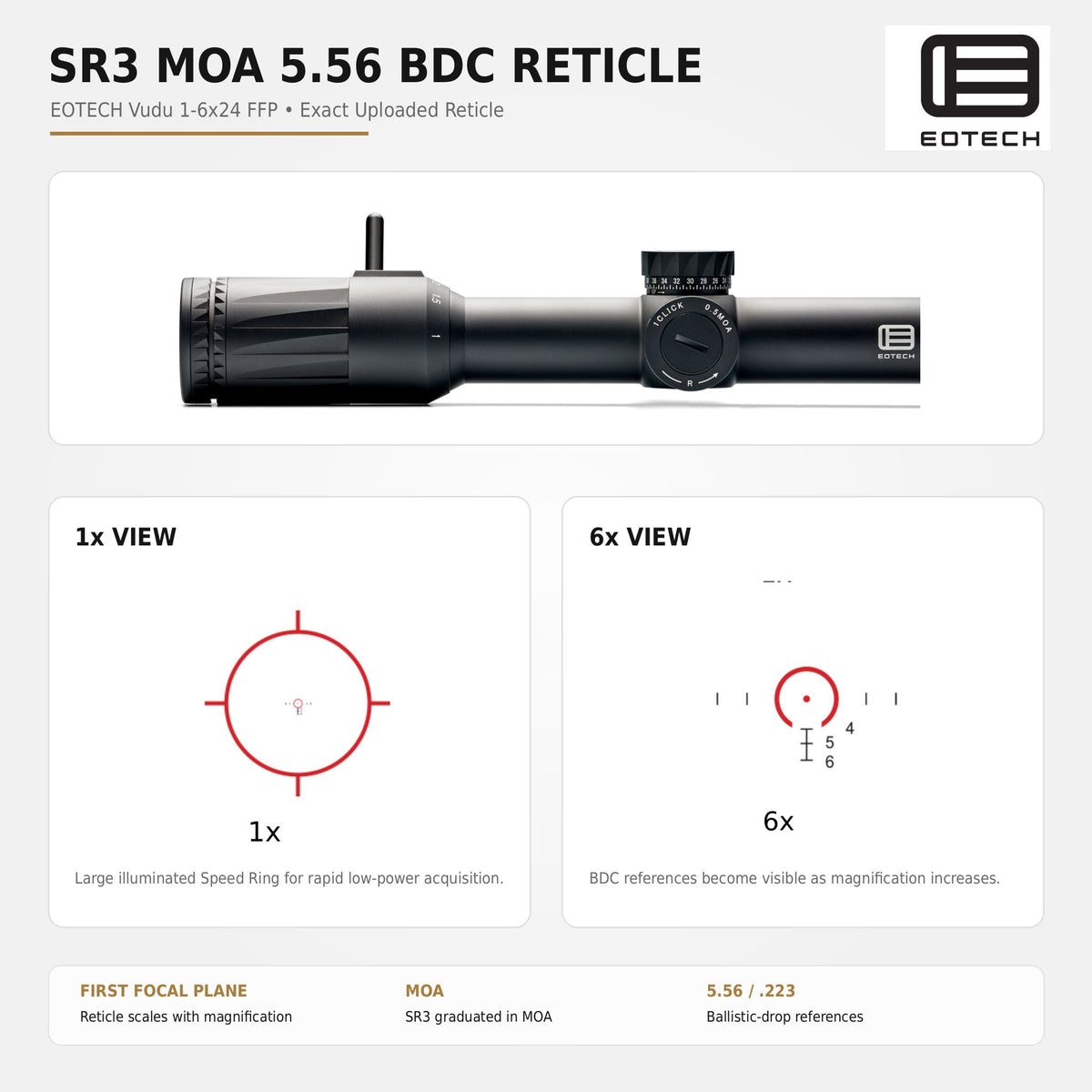

The SR3 is the 5.56-specific reticle in the Vudu 1-6x24 range: its bullet-drop marks are laid out in MOA for 5.56 ballistics, so holdovers are read straight off the reticle rather than calculated. Being first focal plane, those marks stay true at every magnification.
How It Compares
Shooting MRAD instead? The Vudu 1-6x24 SR1 MRAD is the milliradian version. Running 7.62? See the Vudu 1-6x24 SR2 7.62 BDC. Want more magnification? The Vudu 1-10x28 SR4 MOA reaches 10x. Browse all LPVO rifle scopes and optics for straight-pull rifles.
Ideal For
- Civilian Service Rifle in 5.56
- Straight-pull AR-15 rifles
- Practical rifle and 3-Gun stages
- Shooters who want ready-made 5.56 holdovers in the reticle

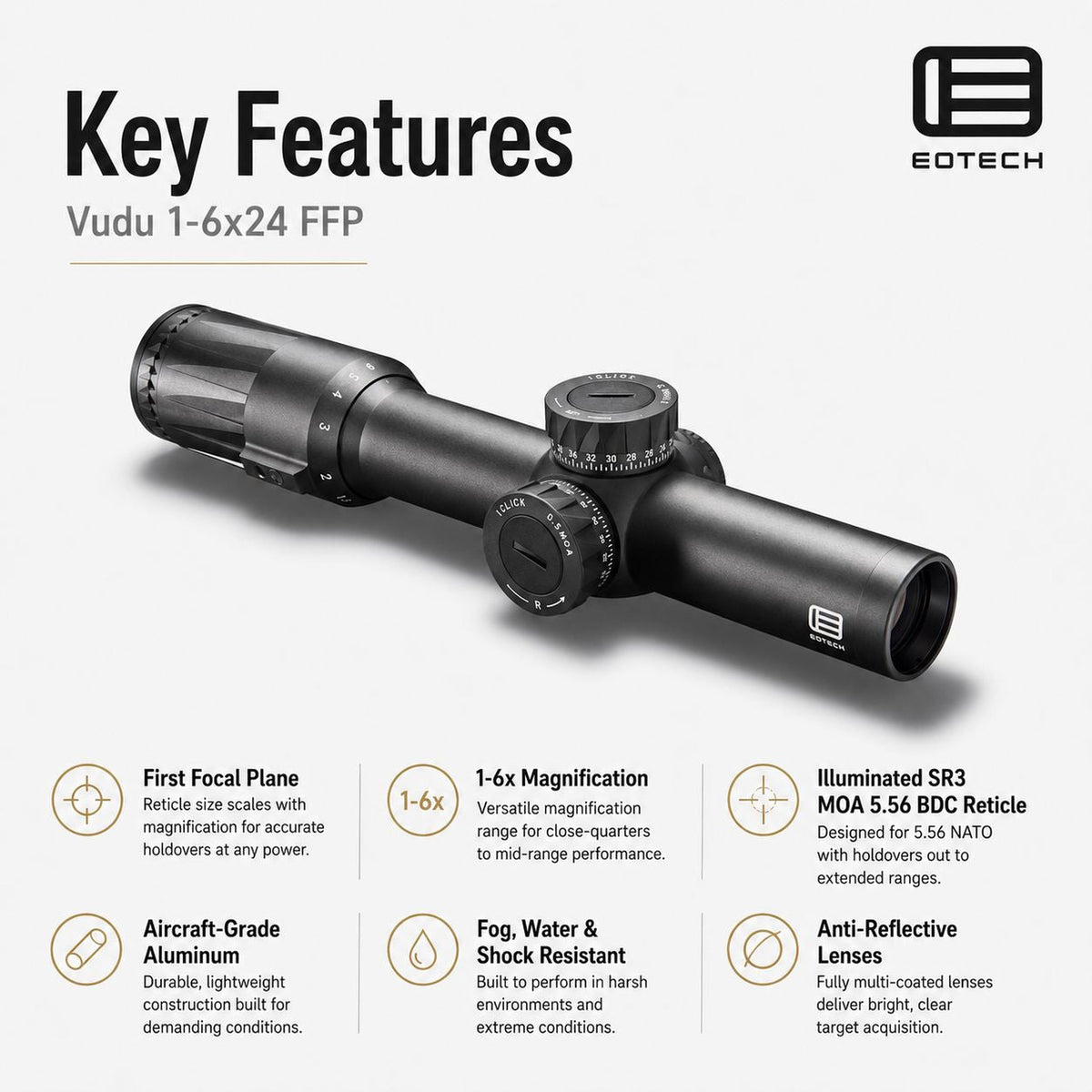

Key Features
-
Reticle: illuminated SR3 MOA with 5.56 BDC holdovers
-
Focal Plane: first focal plane (FFP) — subtensions true at every magnification
-
Magnification: 1-6x variable
-
Tube: 30 mm
-
Electronics: CR2032 illumination cell
-
Weight: 20.1 oz (570 g)

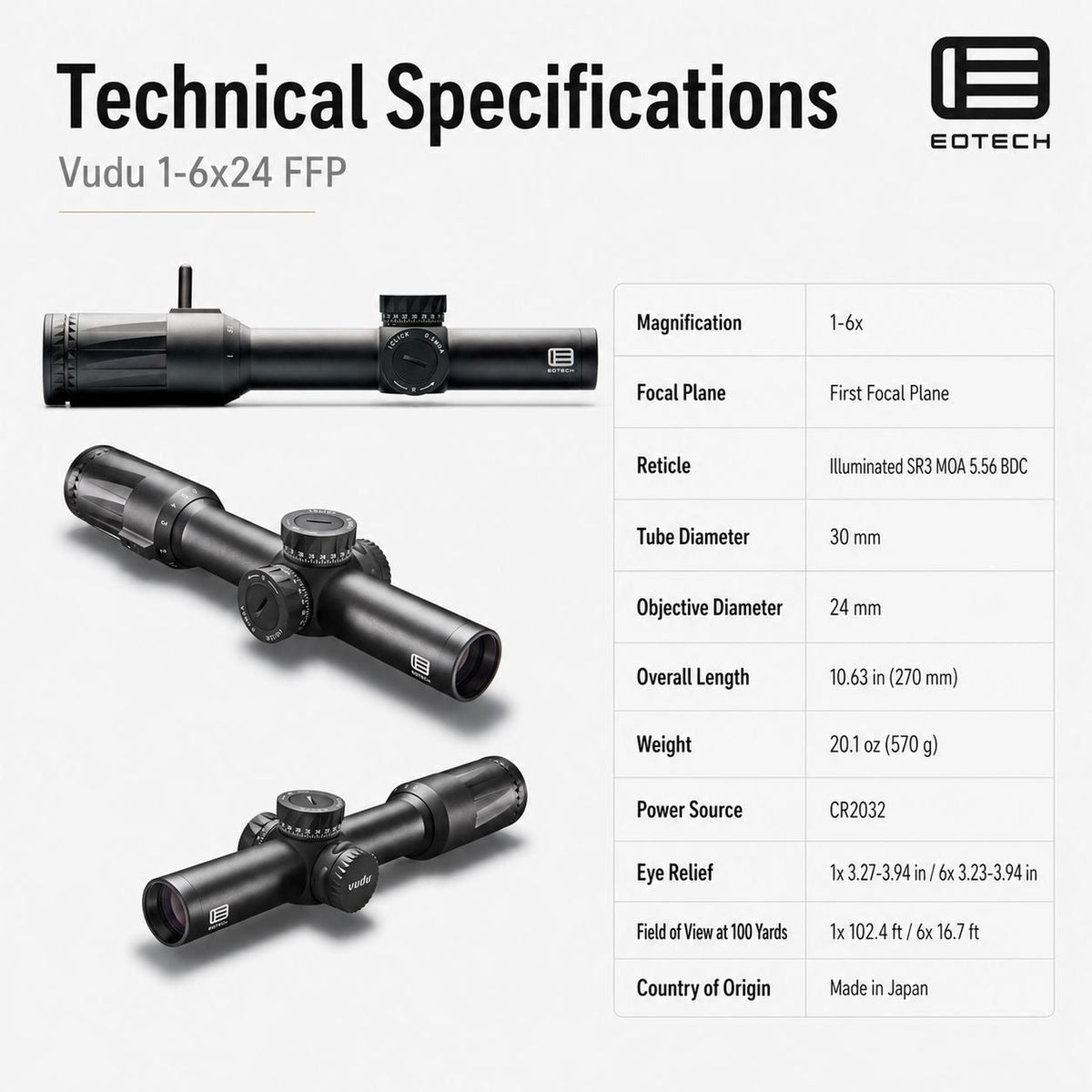

Technical Specifications
| Magnification |
1-6x (variable) |
| Objective |
24 mm |
| Tube |
30 mm |
| Focal Plane |
First focal plane (FFP) |
| Reticle |
Illuminated SR3 MOA 5.56 BDC |
| Battery |
CR2032 |
| Length / Weight |
10.63 in (270 mm) / 20.1 oz (570 g) |
| Origin |
Japan |
| MPN / UPC |
VUDU1-6FFPSR3 / 672294110026 |
What's Included
- EOTech Vudu 1-6x24 LPVO rifle scope with SR3 MOA reticle
- CR2032 battery, lens covers and documentation
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and EOTech's warranty.
Frequently Asked Questions
What is the SR3 reticle on the EOTech Vudu 1-6x24?
The SR3 is an illuminated MOA reticle in the first focal plane of the EOTech Vudu 1-6x24, with bullet-drop compensation marks laid out for 5.56.
Is the EOTech Vudu 1-6x24 SR3 first or second focal plane?
The EOTech Vudu 1-6x24 SR3 is first focal plane (FFP), so the reticle scales with magnification and its holdover marks are correct at any power.
What battery does the EOTech Vudu 1-6x24 SR3 use?
The EOTech Vudu 1-6x24 SR3 runs its illumination from a CR2032 cell.
What mount does the EOTech Vudu 1-6x24 need?
The EOTech Vudu 1-6x24 has a 30 mm tube, so it needs 30 mm rings or a 30 mm cantilever mount.
How much does the EOTech Vudu 1-6x24 weigh?
The EOTech Vudu 1-6x24 weighs 20.1 oz (570 g) and is 10.63 in (270 mm) long.
