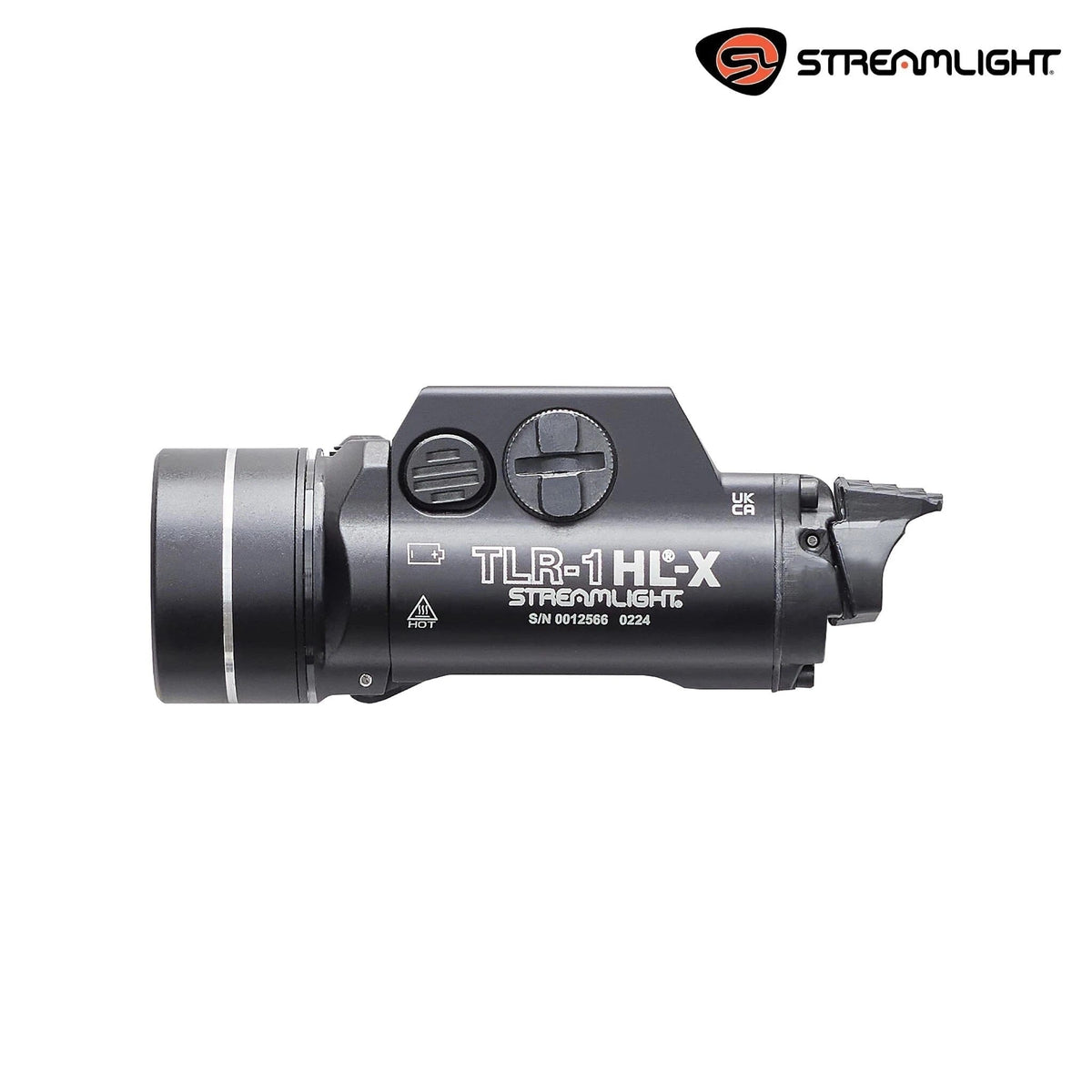

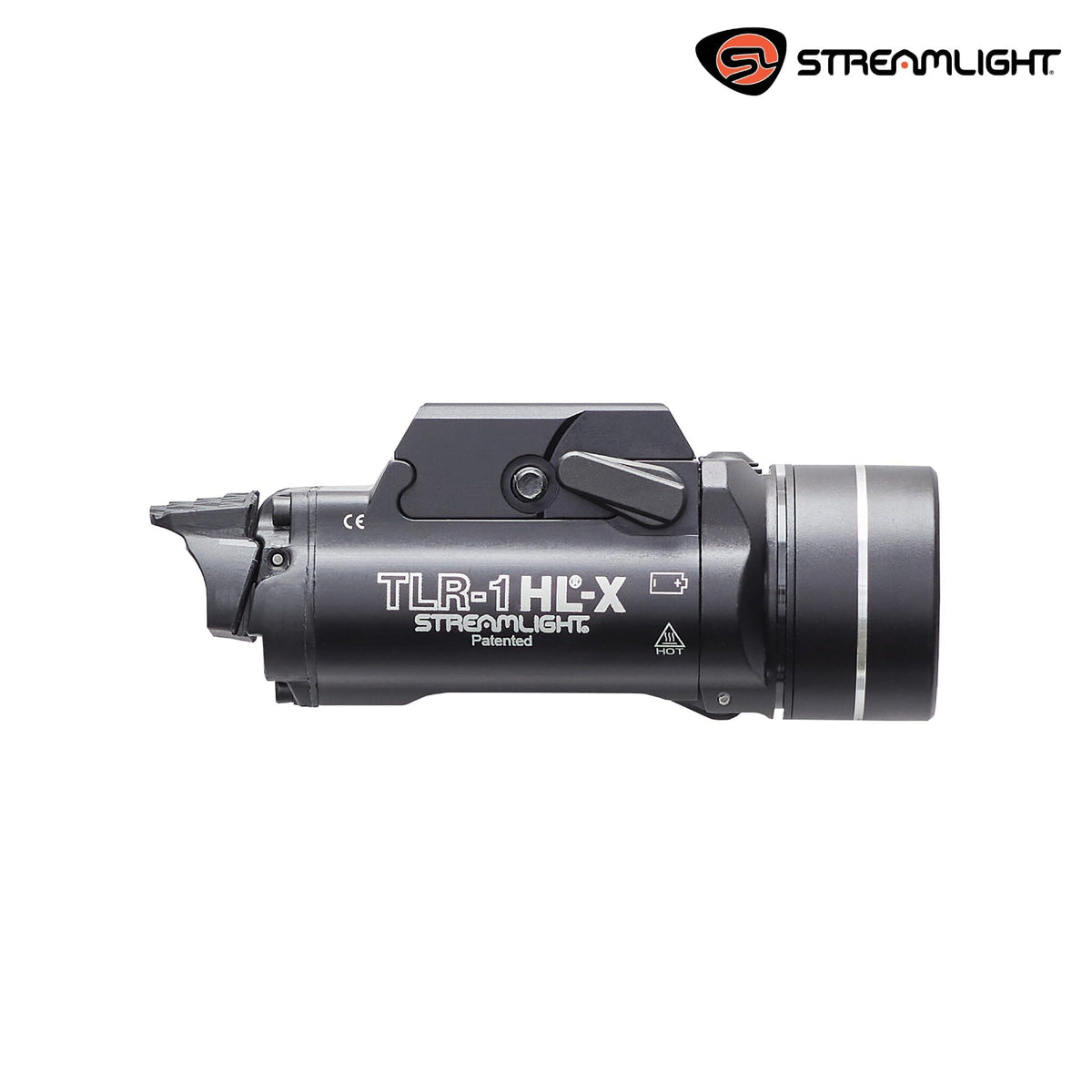

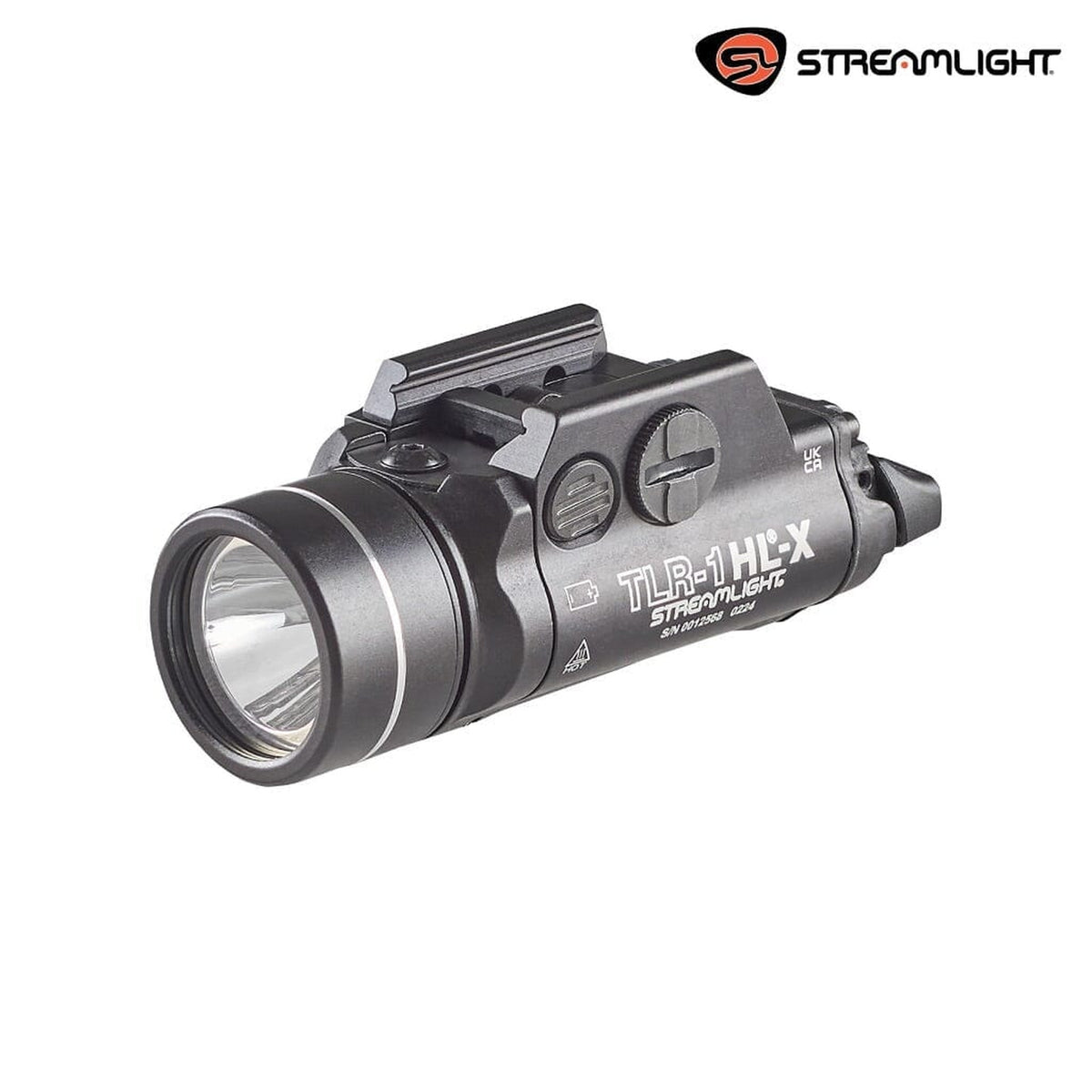

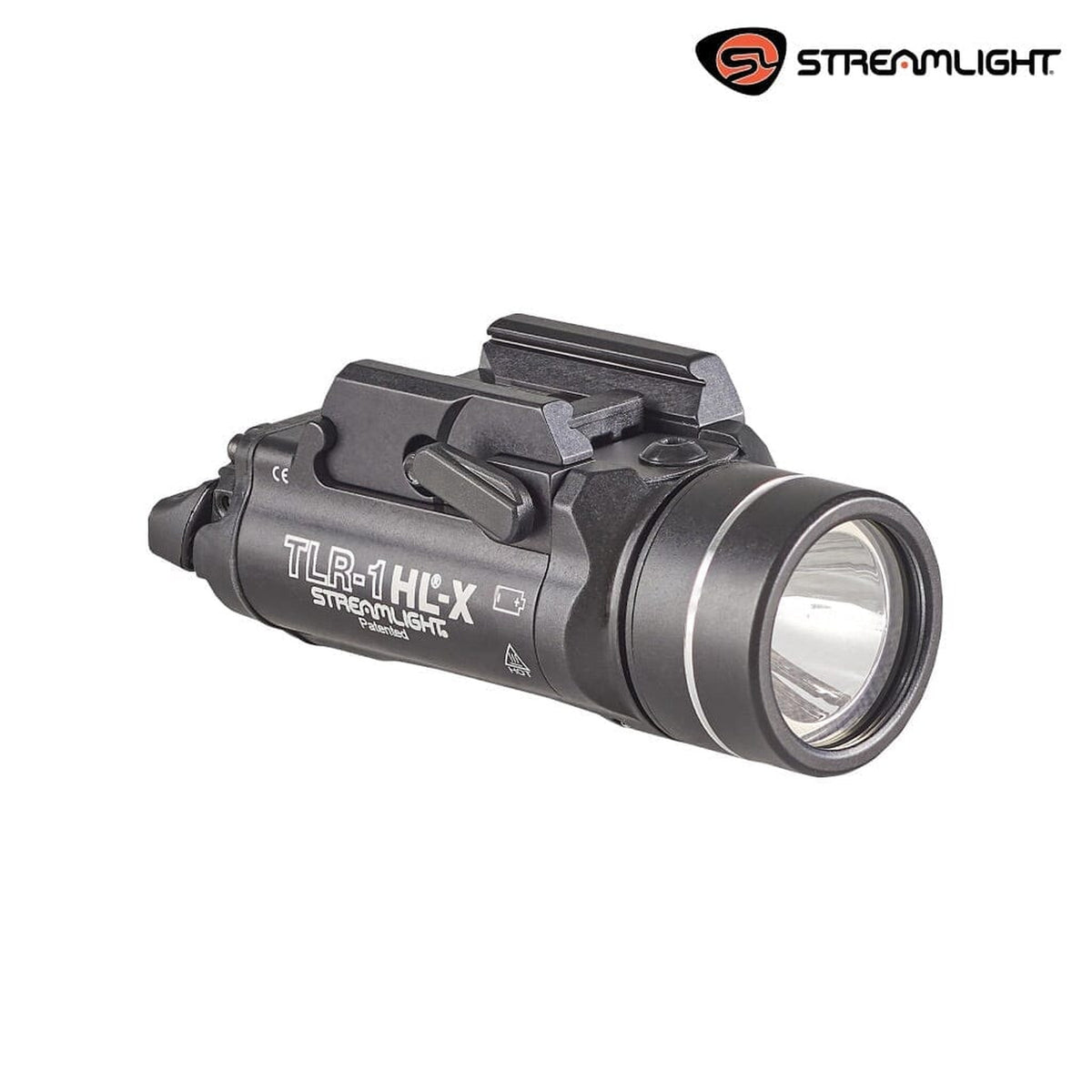

The Streamlight TLR-1 HL-X USB Weapon Light (part 69501) is a full-size rail-mounted weapon light for pistols and long guns, supplied with two SL-B9 USB-C rechargeable battery packs and a charging cord. On those packs it produces 1500 lumens output and 20,000 candela peak beam intensity for a 283-metre beam; on CR123A lithium cells it runs 1000 lumens and 15,000 candela for 245 metres.
A front-loading battery compartment lets cells be swapped without taking the light off the rail. The rear paddle switches are supplied in High and Extended High forms with ambidextrous operation, and the body is 6000-series aircraft aluminium with a black anodised finish, rated IPX7.
How It Compares
Happy with CR123A power? The TLR-1 HL-X weapon light with CR123A cells. Want far more throw? The TLR-1 HP-X at 77,000 candela. Want an aiming laser as well? The TLR-2 HL weapon light and red laser. Prefer the slim modern platform? The TLR-9 Flex. Read the Streamlight TLR comparison guide and our lumens versus candela chart, or browse all rechargeable weapon lights and the wider range of weapon-mounted lights.
Ideal For
- Full-size railed pistols and long guns, and 1:1 replicas on the same rail pattern
- Airsoft skirmish and milsim night games
- Northern Ireland permit-held pistols
- Farm, kennels and yard work after dark
- Duty-grade build for professional and security users
Key Features
- 1500 lumens / 20,000 candela / 283 metres on the two SL-B9 packs supplied
- 1000 lumens / 15,000 candela / 245 metres on CR123A lithium cells
- Front-loading battery compartment — change cells without removing the light from the rail
- High and Extended High rear paddle switches supplied; ambidextrous operation
- 6000-series aircraft aluminium, black anodised; rail grip clamp; IPX7
Technical Specifications
| Output |
1500 lumens (SL-B9) / 1000 lumens (CR123A) |
| Peak Beam Intensity |
20,000 candela (SL-B9) / 15,000 candela (CR123A) |
| Beam Distance |
283 metres (SL-B9) / 245 metres (CR123A) |
| Runtime |
1 hour (SL-B9) / 1.5 hours (CR123A) |
| Battery |
Two SL-B9 USB-C rechargeable packs (included); also runs two CR123A lithium cells |
| Activation |
Ambidextrous rear paddles — High and Extended High switches supplied |
| Length / Weight |
3.45 in (8.76 cm) / 5.19 oz (147 g) with SL-B9 packs, 4.94 oz (140 g) with CR123A |
| Mount |
Rail grip clamp |
| Material / Finish |
6000-series aircraft aluminium, black anodised |
| Waterproof |
IPX7 — waterproof to 1 metre for 30 minutes |
| SKU / MPN / UPC |
69501 / 69501 / 080926695016 |
| Warranty |
Streamlight Limited Lifetime |
What's Included
- Streamlight TLR-1 HL-X USB weapon light
- Two SL-B9 USB-C rechargeable battery packs
- USB-C charging cord
- Rail locating keys
- Manual
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and Streamlight's limited lifetime warranty.
Frequently Asked Questions
Which pistols and rifles does the Streamlight TLR-1 HL-X USB (69501) fit?
The Streamlight TLR-1 HL-X USB mounts by rail grip clamp to full-size rail-equipped pistols and to long guns with a compatible rail, using the rail locating keys supplied in the box.
How bright is the Streamlight TLR-1 HL-X USB and how far does the beam reach?
The Streamlight TLR-1 HL-X USB produces 1500 lumens output and 20,000 candela peak beam intensity for a 283-metre beam on its SL-B9 packs, or 1000 lumens and 15,000 candela for 245 metres on CR123A cells.
Is the Streamlight TLR-1 HL-X USB rechargeable, and what is in the box?
Yes — the Streamlight TLR-1 HL-X USB is supplied with two SL-B9 USB-C rechargeable battery packs and a USB-C charging cord. It is multi-fuel, so two CR123A lithium cells can be fitted instead.
How long does the Streamlight TLR-1 HL-X USB run for?
The Streamlight TLR-1 HL-X USB runs for 1 hour at 1500 lumens on its SL-B9 packs, or 1.5 hours at 1000 lumens on CR123A lithium cells.
What is the front-loading battery compartment for?
The front-loading compartment on the Streamlight TLR-1 HL-X USB lets you change the batteries without removing the light from the rail, so the mounting is not disturbed.
What is the difference between the Streamlight TLR-1 HL-X USB and the TLR-1 HL-X?
The light is the same. This USB package, part 69501, includes two SL-B9 rechargeable packs and a charging cord, while part 69500 includes two CR123A lithium primary cells.
