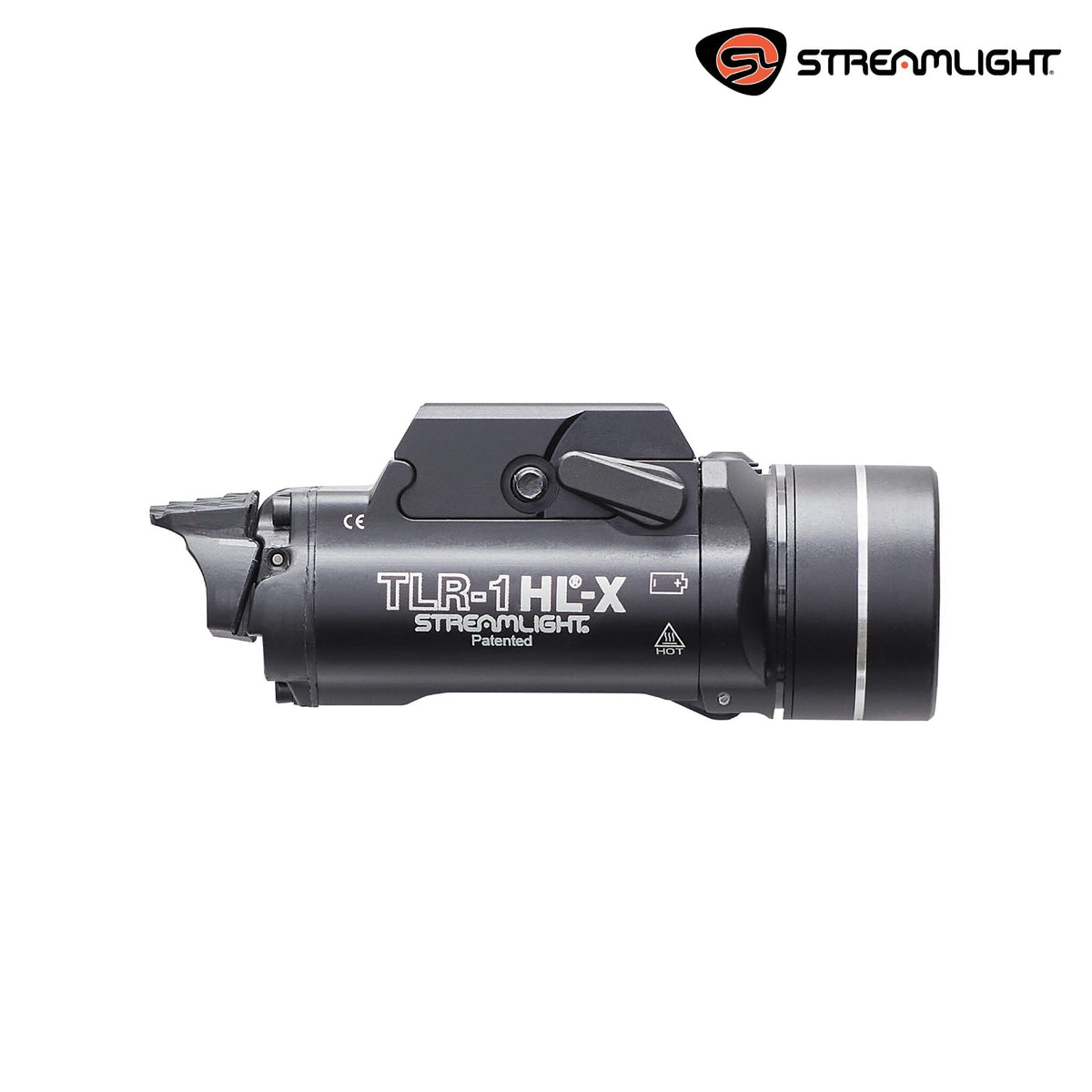

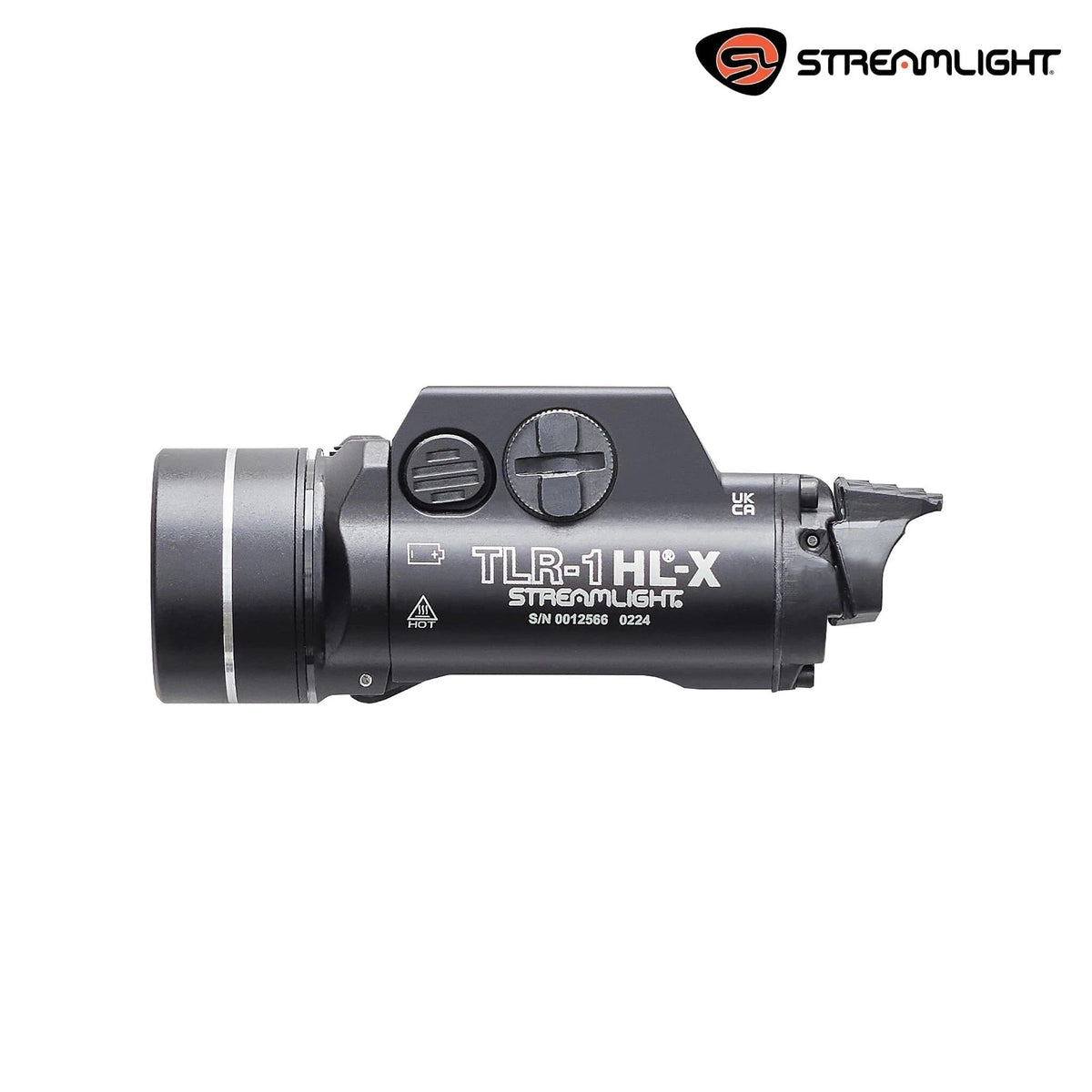

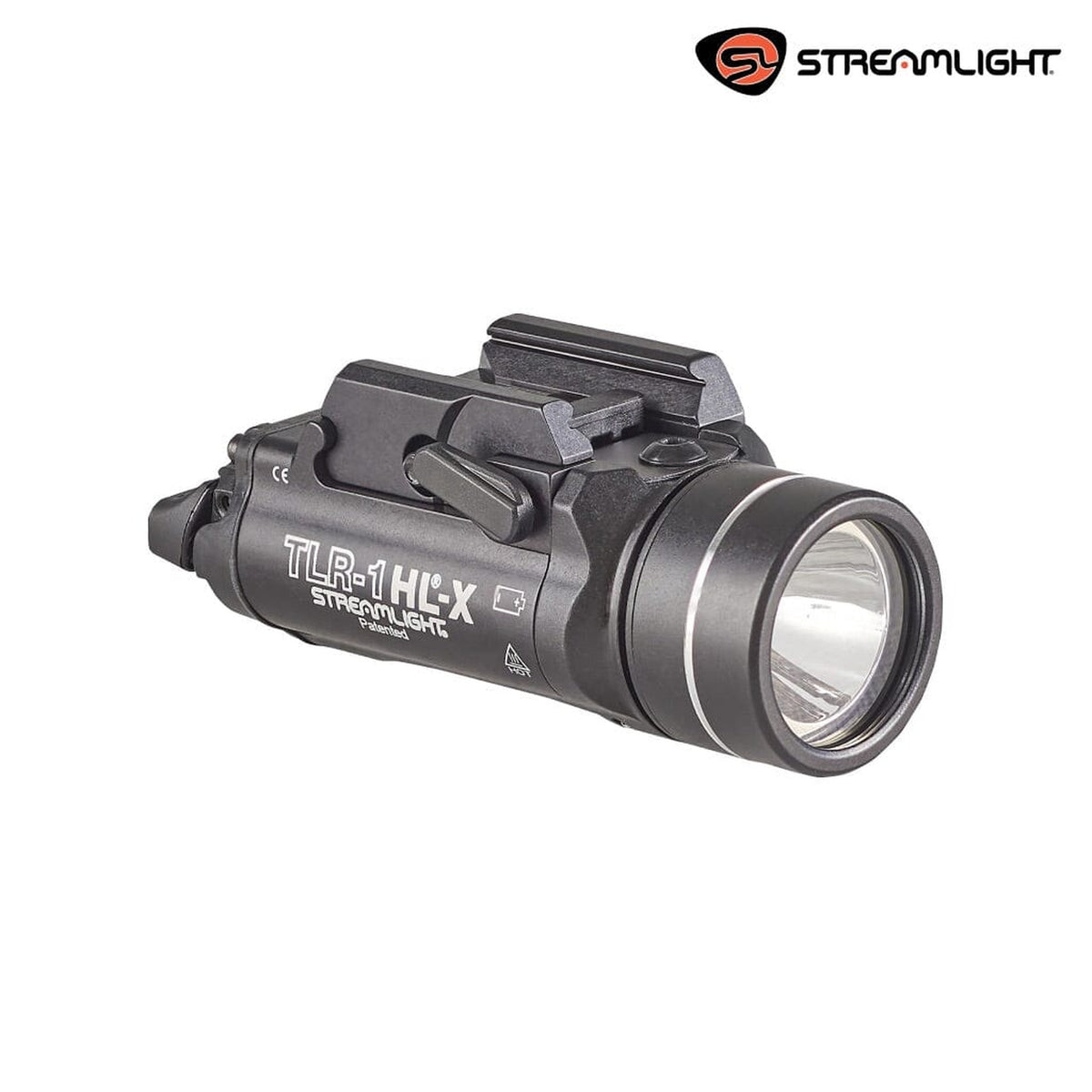

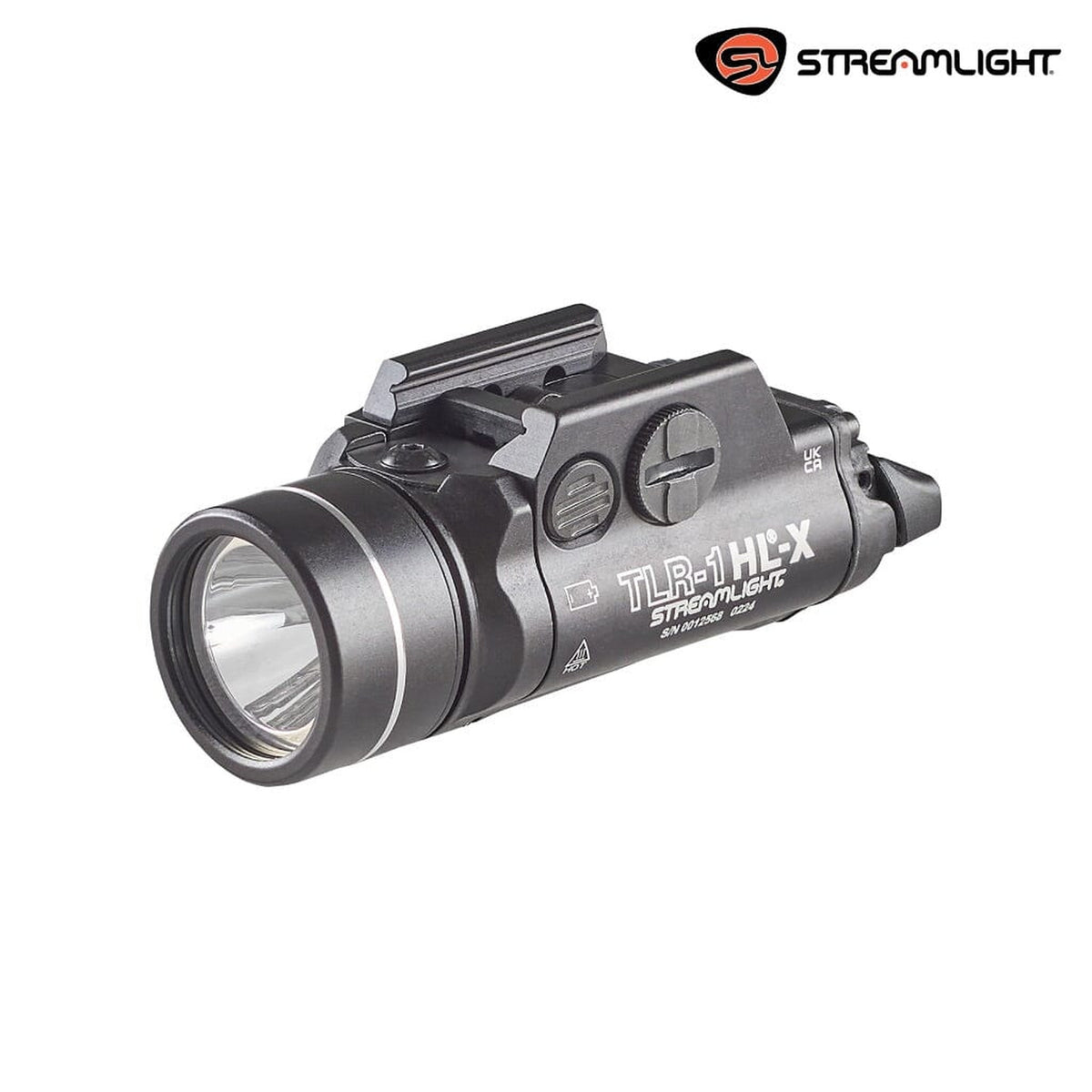

The Streamlight TLR-1 HL-X Weapon Light (part 69500) is a full-size rail-mounted weapon light for pistols and long guns. On the two CR123A lithium cells supplied it produces 1000 lumens output and 15,000 candela peak beam intensity for a 245-metre beam; fitted with SL-B9 USB-C rechargeable packs, sold separately, it rises to 1500 lumens and 20,000 candela for 283 metres.
The rear paddle switches are supplied in High and Extended High forms, so the ergonomics can be matched to your grip, and operation is ambidextrous. The body is 6000-series aircraft aluminium with a black anodised finish, mounted by a rail grip clamp and rated IPX7.
How It Compares
Want the rechargeable packs in the box? The TLR-1 HL-X USB weapon light, which ships with two SL-B9 packs and a cord. Want far more throw? The TLR-1 HP-X at 77,000 candela. Want an aiming laser as well? The TLR-2 HL weapon light and red laser. Prefer the slim modern platform? The TLR-9 Flex. Read the Streamlight TLR comparison guide and our lumens versus candela chart, or browse the full Streamlight TLR weapon light range and the wider range of weapon-mounted lights.
Ideal For
- Full-size railed pistols and long guns, and 1:1 replicas on the same rail pattern
- Airsoft skirmish and milsim night games
- Northern Ireland permit-held pistols
- Farm, kennels and yard work after dark
- Duty-grade build for professional and security users
Key Features
- 1000 lumens / 15,000 candela / 245 metres on the two CR123A cells supplied
- 1500 lumens / 20,000 candela / 283 metres on SL-B9 USB-C rechargeable packs (sold separately)
- High and Extended High rear paddle switches supplied; ambidextrous operation
- 1.5 hours on CR123A, 1 hour on SL-B9
- 6000-series aircraft aluminium, black anodised; rail grip clamp; IPX7
Technical Specifications
| Output |
1000 lumens (CR123A) / 1500 lumens (SL-B9, sold separately) |
| Peak Beam Intensity |
15,000 candela (CR123A) / 20,000 candela (SL-B9) |
| Beam Distance |
245 metres (CR123A) / 283 metres (SL-B9) |
| Runtime |
1.5 hours (CR123A) / 1 hour (SL-B9) |
| Battery |
Two CR123A lithium cells (included); also runs SL-B9 USB-C rechargeable packs |
| Activation |
Ambidextrous rear paddles — High and Extended High switches supplied |
| Length / Weight |
3.45 in (8.76 cm) / 4.94 oz (140 g) with CR123A cells |
| Mount |
Rail grip clamp |
| Material / Finish |
6000-series aircraft aluminium, black anodised |
| Waterproof |
IPX7 — waterproof to 1 metre for 30 minutes |
| SKU / MPN / UPC |
69500 / 69500 / 080926695009 |
| Warranty |
Streamlight Limited Lifetime |
What's Included
- Streamlight TLR-1 HL-X weapon light
- Two CR123A lithium batteries
- Rail locating keys
- Manual
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and Streamlight's limited lifetime warranty.
Frequently Asked Questions
Which pistols and rifles does the Streamlight TLR-1 HL-X (69500) fit?
The Streamlight TLR-1 HL-X mounts by rail grip clamp to full-size rail-equipped pistols and to long guns with a compatible rail, using the rail locating keys supplied in the box.
How bright is the Streamlight TLR-1 HL-X and how far does the beam reach?
The Streamlight TLR-1 HL-X produces 1000 lumens output and 15,000 candela peak beam intensity for a 245-metre beam on CR123A cells, rising to 1500 lumens and 20,000 candela for 283 metres on SL-B9 rechargeable packs.
What battery does the Streamlight TLR-1 HL-X use, and is it rechargeable?
The Streamlight TLR-1 HL-X 69500 ships with two CR123A lithium primary cells. It is multi-fuel, so it will also run two SL-B9 USB-C rechargeable packs, which are sold separately for this part number.
How long does the Streamlight TLR-1 HL-X run for?
The Streamlight TLR-1 HL-X runs for 1.5 hours on CR123A lithium cells, or 1 hour at the higher 1500-lumen output on SL-B9 rechargeable packs.
What is the difference between the Streamlight TLR-1 HL-X and the TLR-1 HL-X USB?
The light is the same. This 69500 package includes two CR123A lithium cells, while the USB package, part 69501, includes two SL-B9 USB-C rechargeable packs and a charging cord.
What are the High and Extended High switches on the Streamlight TLR-1 HL-X?
They are the two rear paddle switches supplied with the Streamlight TLR-1 HL-X, so you can choose the paddle length that best suits your grip and trigger-guard shape.
