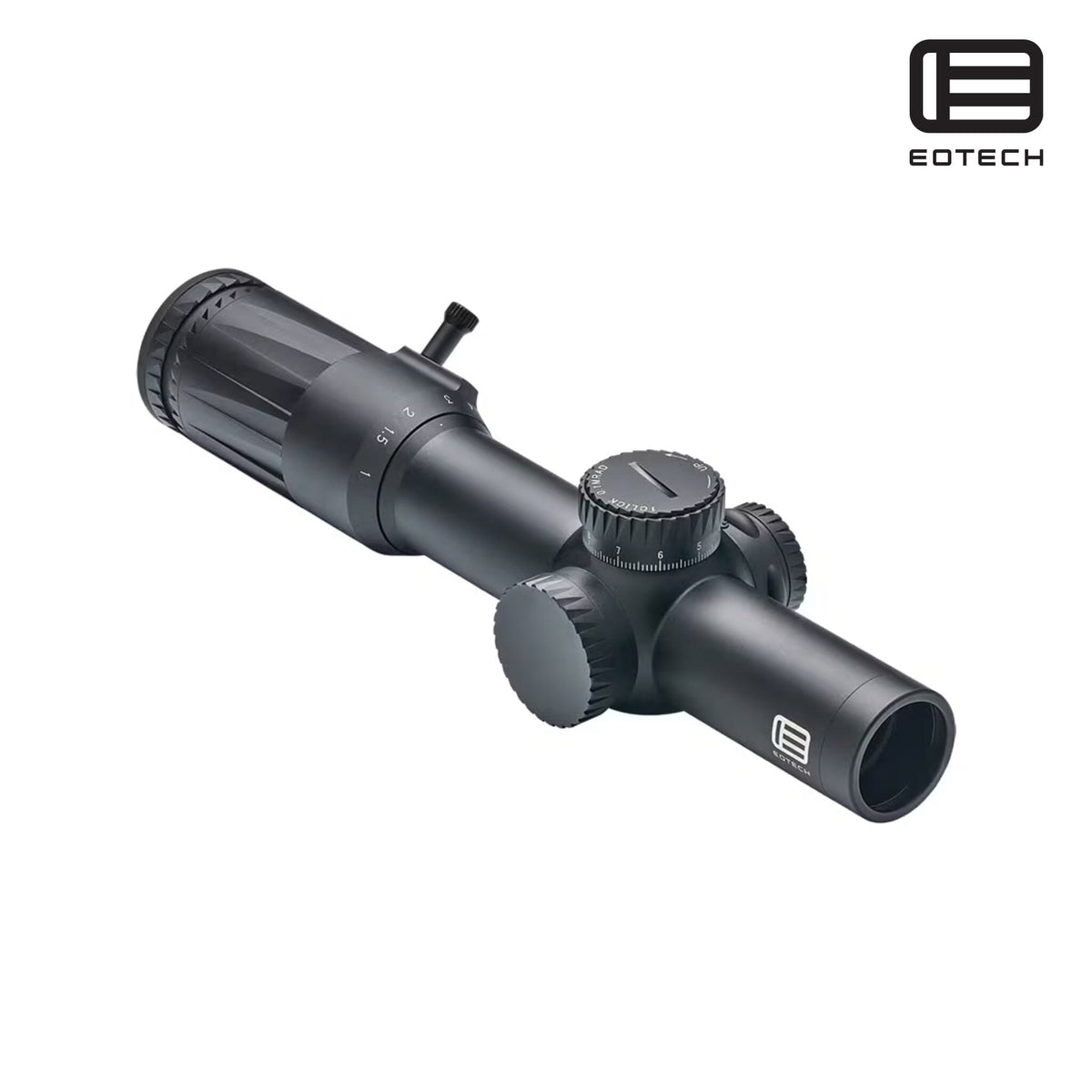

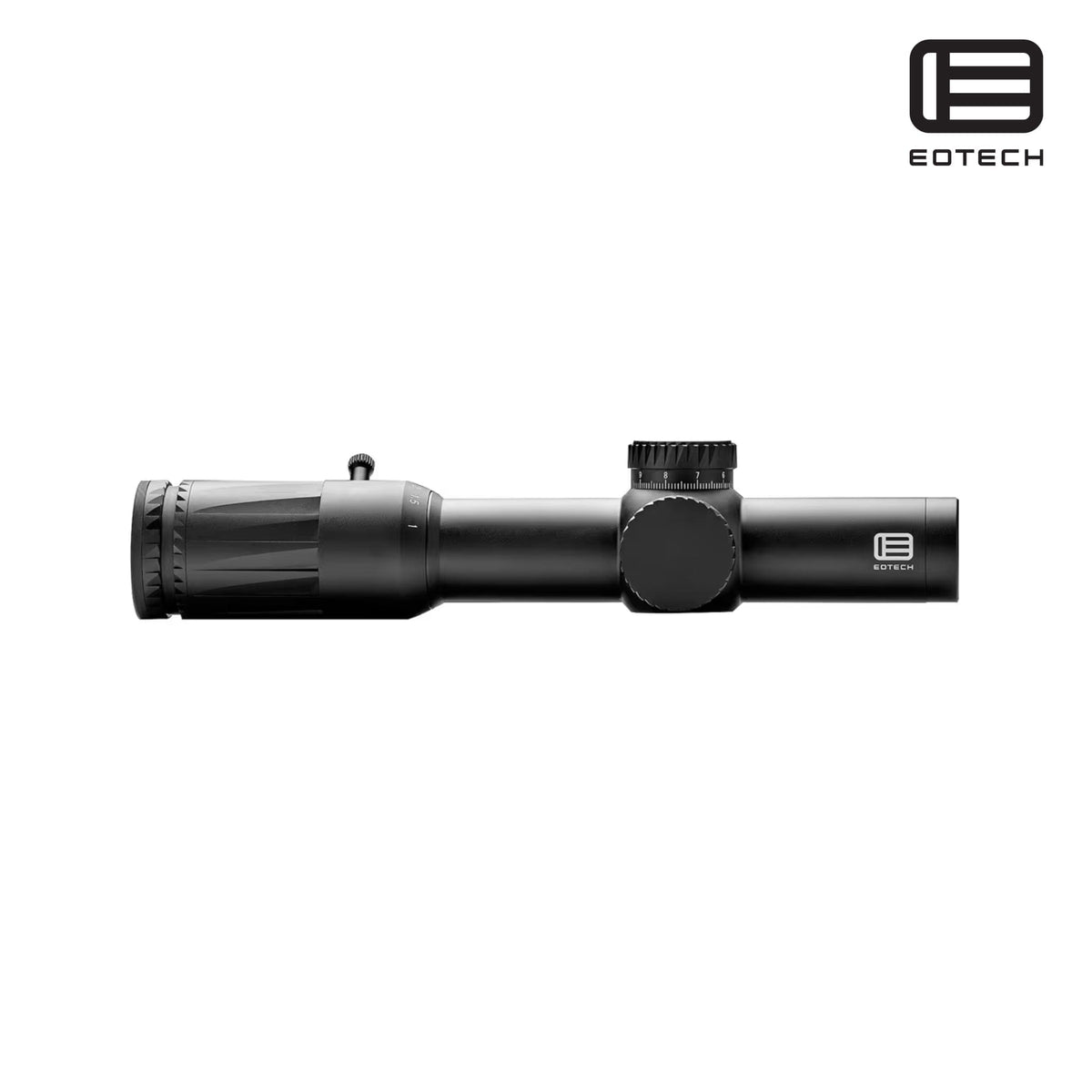

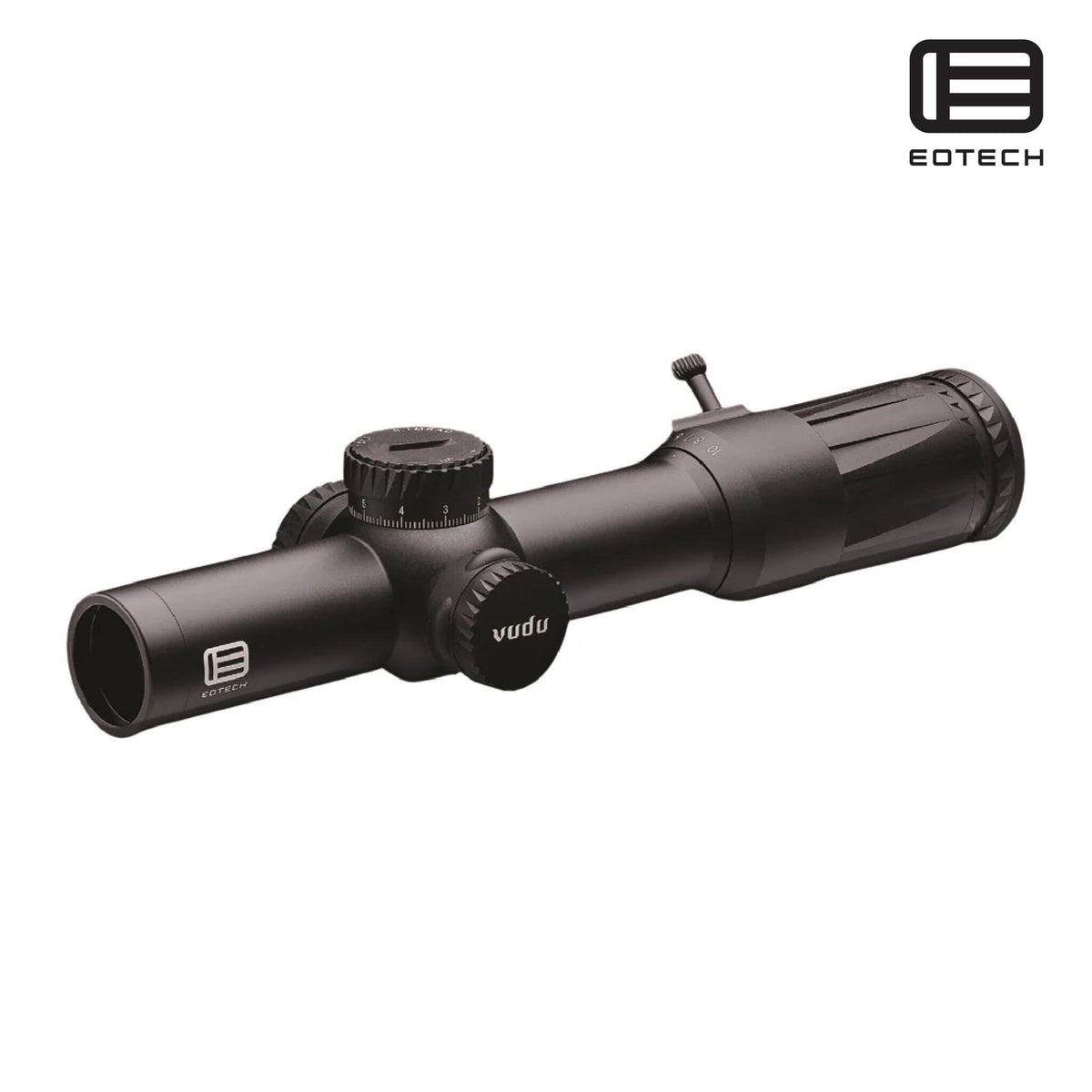

The EOTech Vudu 1-10x28 LPVO Rifle Scope in this listing is the first focal plane (FFP) model with the illuminated LE5 MRAD reticle, a 28 mm objective, a 34 mm main tube and 0.1 MRAD per click adjustment.
The LE5 is the pared-back MRAD reticle in the Vudu 1-10x28 range — fewer marks in the field of view than the SR5, which suits shooters who want a cleaner picture and dial rather than hold. The 1-10x range covers 116.6 ft of field of view at 1x down to 11.7 ft at 10x, measured at 100 yd.
How It Compares
Prefer the SR5 reticle? The Vudu 1-10x28 SR5 MRAD has more holdover detail, and the daylight-bright SR5 adds red-dot-bright illumination. Shooting MOA? See the SR4 MOA version. Browse all LPVO rifle scopes and read our LPVO buying guide.
Ideal For
- Civilian Service Rifle and practical rifle shooting
- Straight-pull AR-15 rifles wanting one optic for all distances
- Target and gallery rifle shooting in MRAD
- Shooters who prefer a cleaner, less crowded reticle
Key Features
-

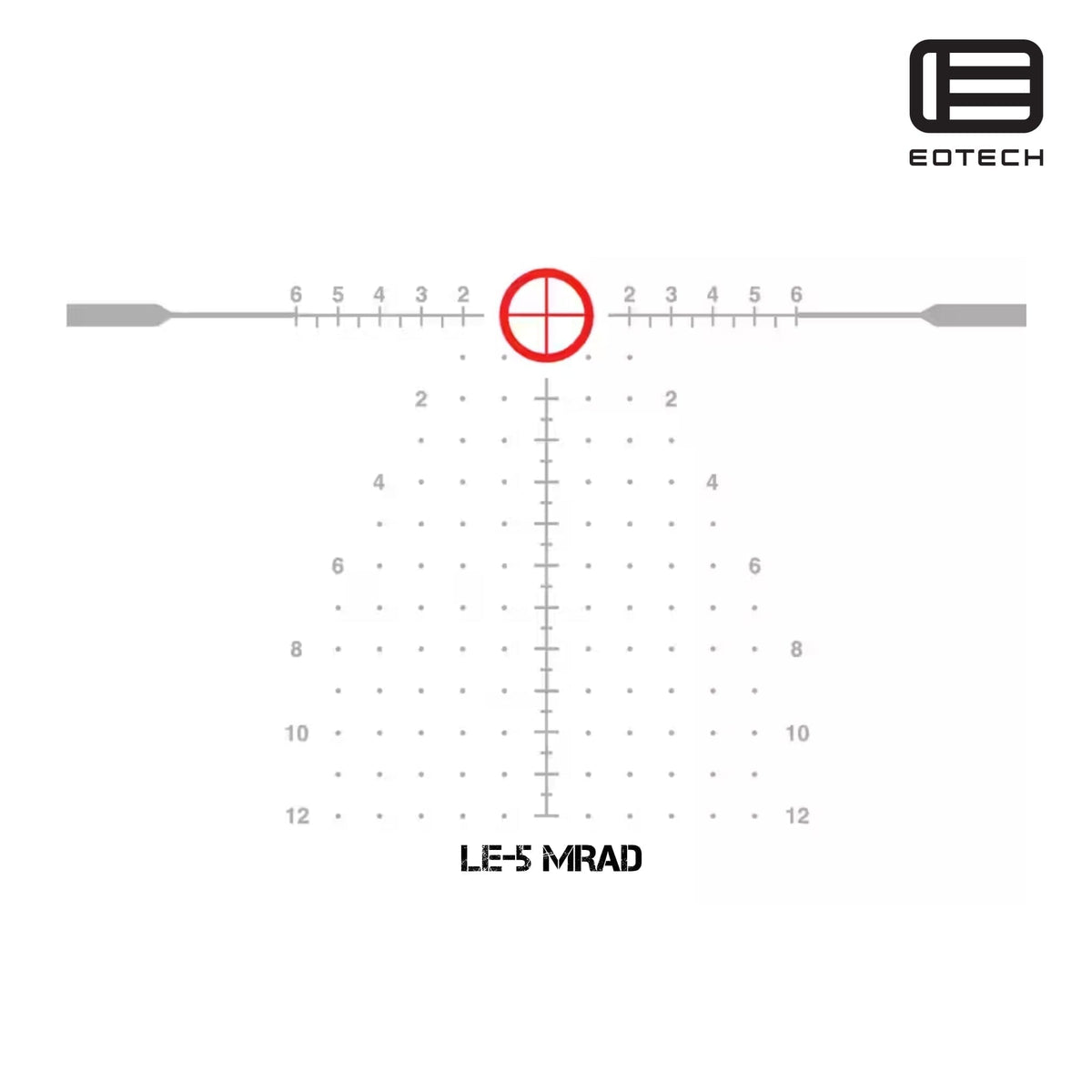

Reticle: LE5 MRAD, illuminated
-
Focal Plane: first focal plane (FFP) — subtensions true at every magnification
-
Turrets: 0.1 MRAD per click; 29 MRAD elevation / 23 MRAD windage
-
Tube: 34 mm main tube
-
Field of View: 116.6 ft at 1x / 11.7 ft at 10x, at 100 yd
-
Weight: 21.3 oz (604 g)
Technical Specifications
| Magnification |
1-10x variable |
| Objective |
28 mm |
| Tube |
34 mm main tube |
| Focal Plane |
First focal plane (FFP) |
| Reticle |
LE5 MRAD (illuminated) |
| Click Value |
0.1 MRAD per click |
| Adjustment Range |
29 MRAD elevation / 23 MRAD windage |
| FOV @ 100 yd |
116.6 ft (1x) / 11.7 ft (10x) |
| Length / Weight |
10.63 in (270 mm) / 21.3 oz (604 g) |
| Origin |
Made in Japan |
What's Included
- EOTech Vudu 1-10x28 LPVO rifle scope with LE5 MRAD reticle
- Lens covers and documentation
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and EOTech's warranty.
Frequently Asked Questions
What is the LE5 reticle on the EOTech Vudu 1-10x28?
The LE5 is an illuminated MRAD reticle in the first focal plane of the EOTech Vudu 1-10x28, with fewer marks in the field of view than the SR5.
Is the EOTech Vudu 1-10x28 LE5 first or second focal plane?
The EOTech Vudu 1-10x28 LE5 is first focal plane (FFP), so the reticle scales with magnification and its subtensions are correct at any power.
What are the turret clicks on the EOTech Vudu 1-10x28 LE5?
The EOTech Vudu 1-10x28 LE5 adjusts in 0.1 MRAD per click, with 29 MRAD of elevation and 23 MRAD of windage available.
What mount does the EOTech Vudu 1-10x28 need?
The EOTech Vudu 1-10x28 has a 34 mm main tube, so it needs 34 mm rings or a 34 mm cantilever mount.
What is the field of view on the EOTech Vudu 1-10x28 LE5?
The EOTech Vudu 1-10x28 LE5 gives 116.6 ft of field of view at 1x and 11.7 ft at 10x, measured at 100 yd.
