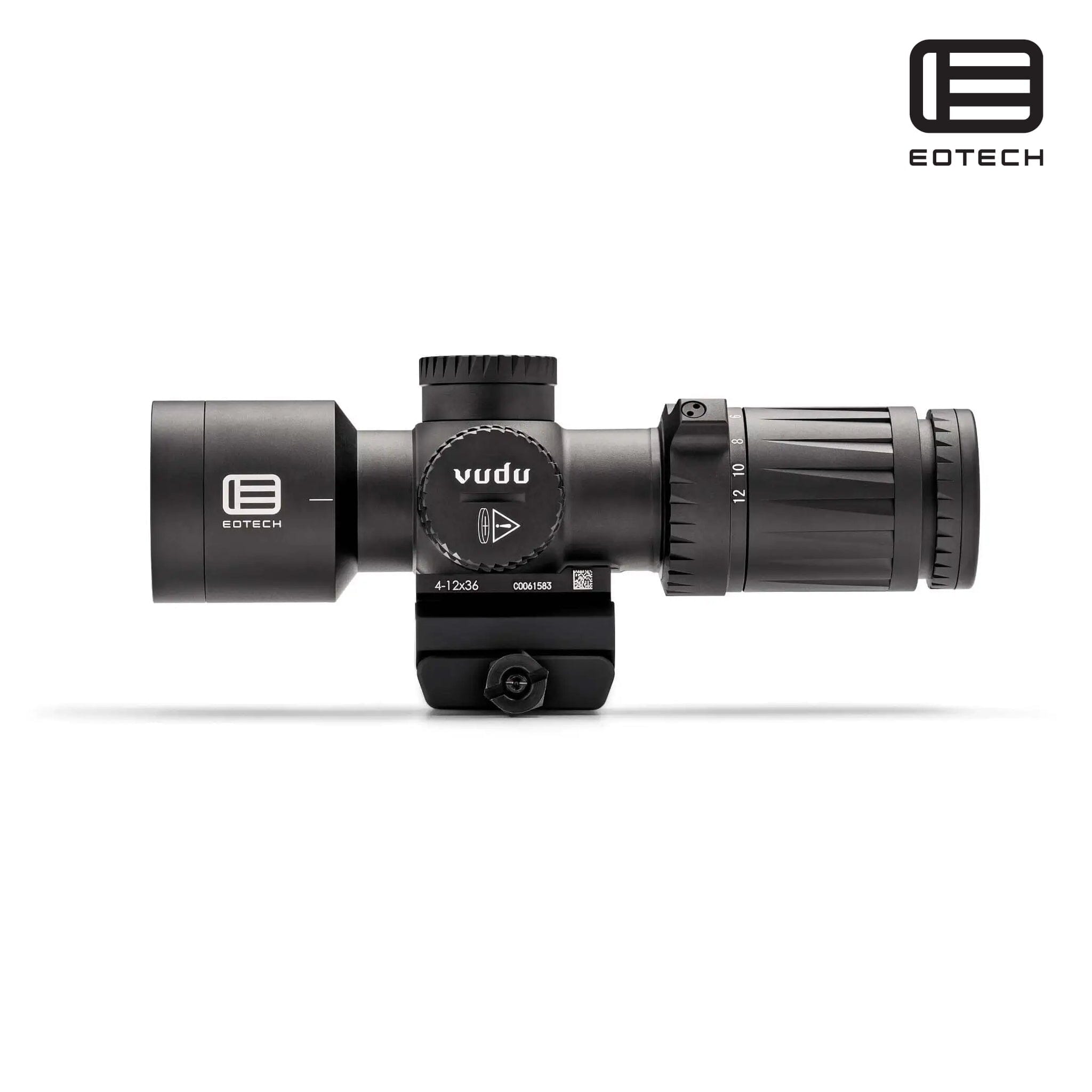

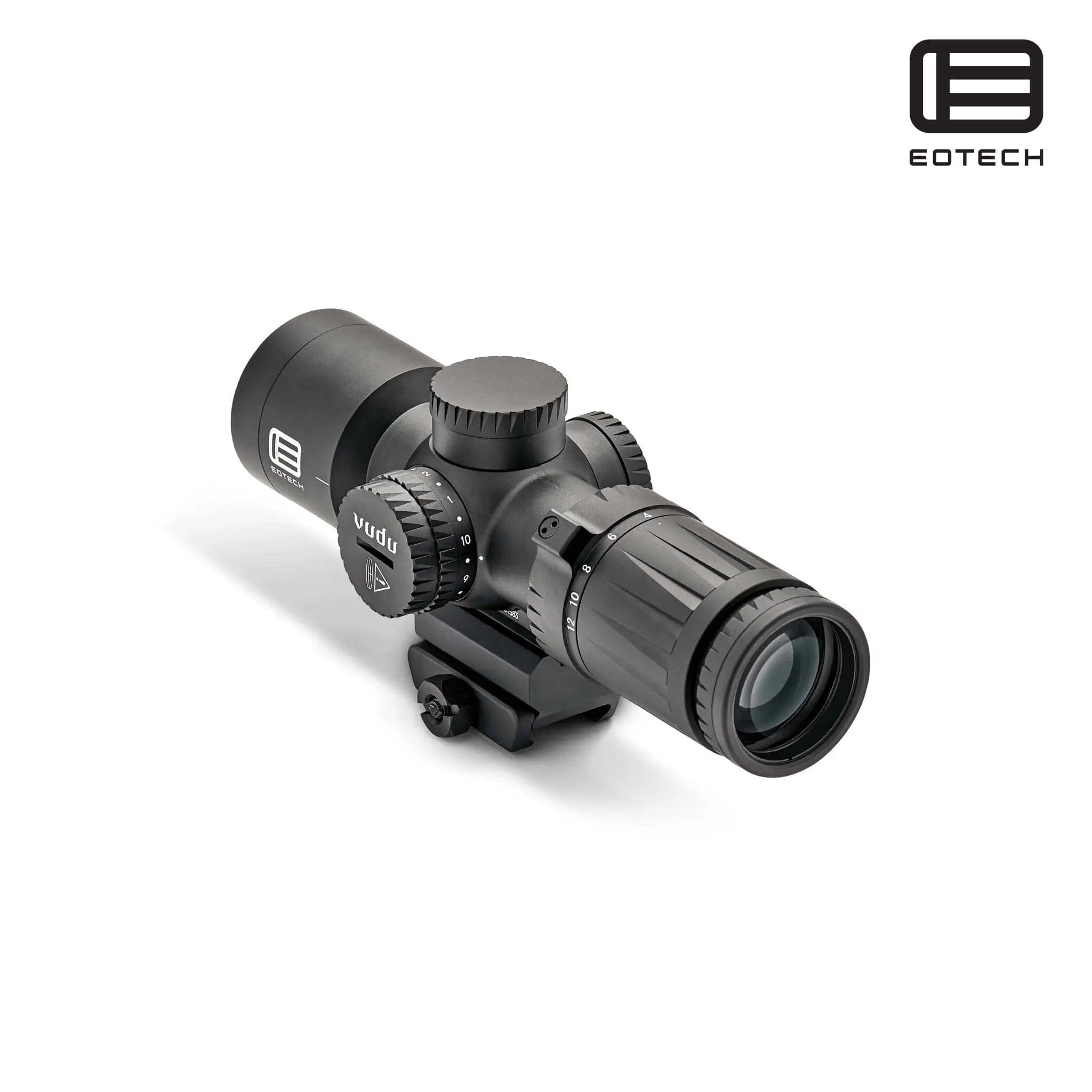

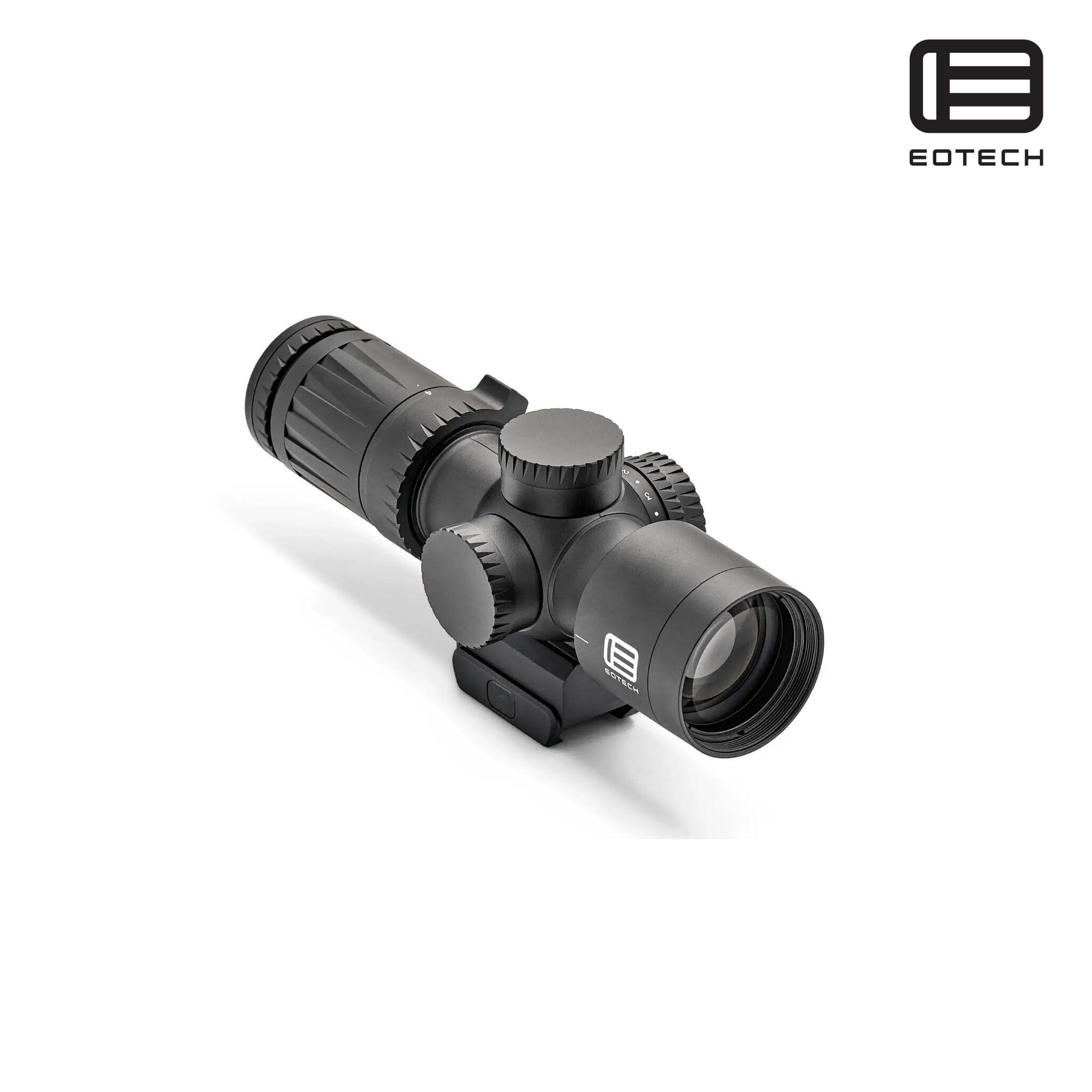

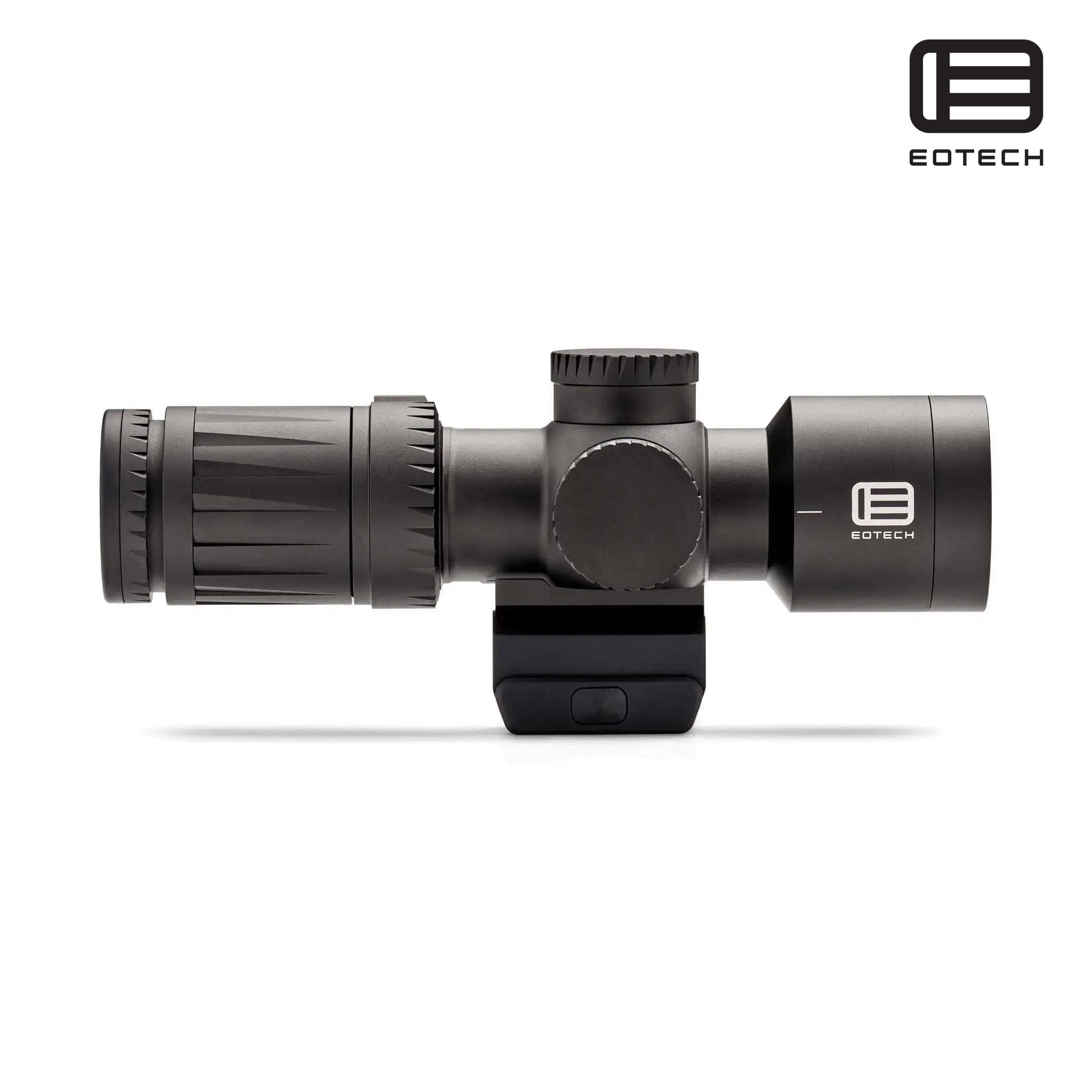

The EOTech Vudu 4-12x36 Rifle Scope in this listing is the first focal plane (FFP) model with the illuminated MD5 MRAD reticle, a 36 mm objective, a 30 mm tube and 0.1 MRAD per click adjustment.
The MD5 is the alternative MRAD reticle in this scope. As with every first focal plane optic, the reticle scales with magnification, so its subtensions remain true at 4x, 12x and everything between.
How It Compares
Prefer the other MRAD reticle? The MR5 MRAD version is the alternative. This scope is also sold with an offset red dot as the Vudu 4-12x36 MD5 with EFLX red dot. Want more magnification? The Vudu 5-25x50 goes further. Browse the Vudu range and our long-range rifle scopes.
Ideal For
- Target and gallery rifle shooting in MRAD
- Deer stalking at longer ranges
- Straight-pull rifles used for precision work
- Shooters who hold rather than dial, at any magnification
Key Features
-

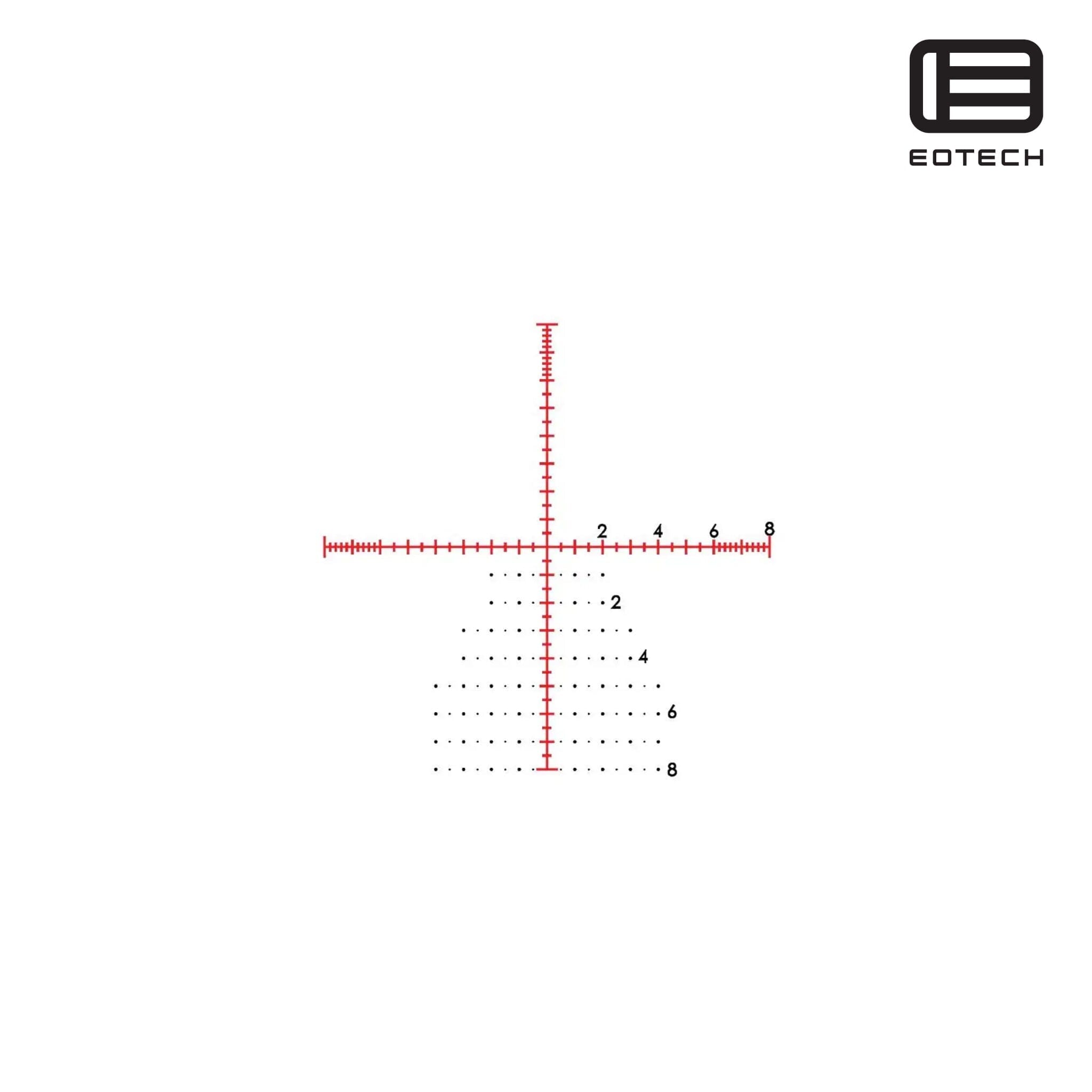

Reticle: MD5 MRAD, illuminated
-
Focal Plane: first focal plane (FFP) — subtensions true at every magnification
-
Turrets: 0.1 MRAD per click; 29 MRAD elevation / 23 MRAD windage
-
Tube: 30 mm
-
Field of View: 24.1 ft at 4x / 8.0 ft at 12x, at 100 yd
-
Weight: 21.0 oz (595 g)
Technical Specifications
| Magnification |
4-12x (variable) |
| Objective |
36 mm |
| Tube |
30 mm |
| Focal Plane |
First focal plane (FFP) |
| Reticle |
MD5 MRAD (illuminated) |
| Click Value |
0.1 MRAD per click |
| Adjustment Range |
29 MRAD elevation / 23 MRAD windage |
| FOV @ 100 yd |
24.1 ft (4x) / 8.0 ft (12x) |
| Length / Weight |
10.6 in (269 mm) / 21.0 oz (595 g) |
| Origin |
Japan |
What's Included
- EOTech Vudu 4-12x36 rifle scope with MD5 MRAD reticle
- Lens covers and documentation
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and EOTech's warranty.
Frequently Asked Questions
Is the EOTech Vudu 4-12x36 MD5 first or second focal plane?
The EOTech Vudu 4-12x36 with the MD5 MRAD reticle is first focal plane (FFP), so the reticle scales with magnification.
Is the MD5 reticle on the EOTech Vudu 4-12x36 illuminated?
Yes — the MD5 MRAD reticle in this EOTech Vudu 4-12x36 is illuminated.
What are the turret clicks on the EOTech Vudu 4-12x36 MD5?
The EOTech Vudu 4-12x36 MD5 adjusts in 0.1 MRAD per click, with 29 MRAD of elevation and 23 MRAD of windage available.
What is the field of view on the EOTech Vudu 4-12x36?
The EOTech Vudu 4-12x36 gives 24.1 ft of field of view at 4x and 8.0 ft at 12x, measured at 100 yd.
What tube diameter does the EOTech Vudu 4-12x36 have?
The EOTech Vudu 4-12x36 has a 30 mm tube, so it needs 30 mm rings or a 30 mm mount.
