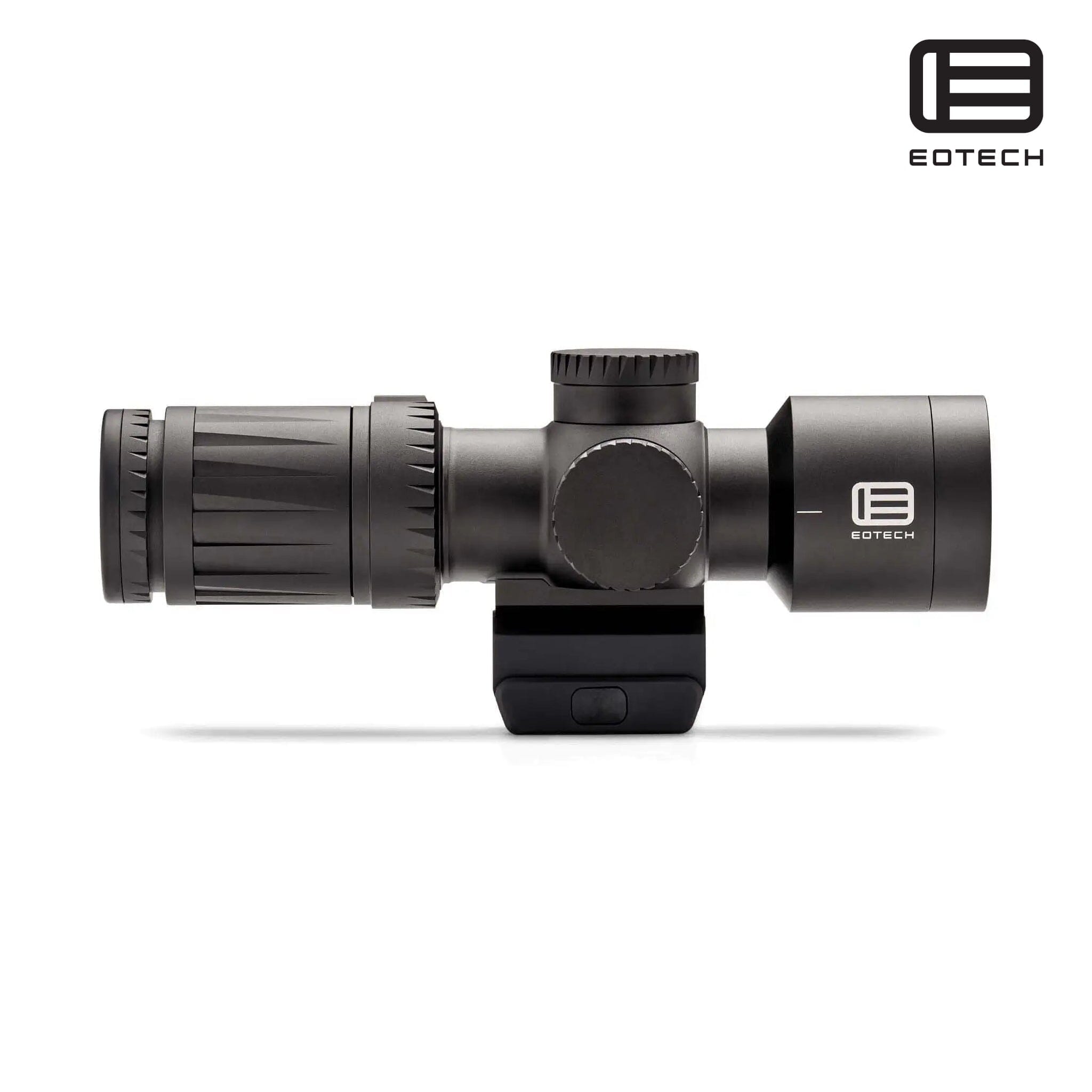

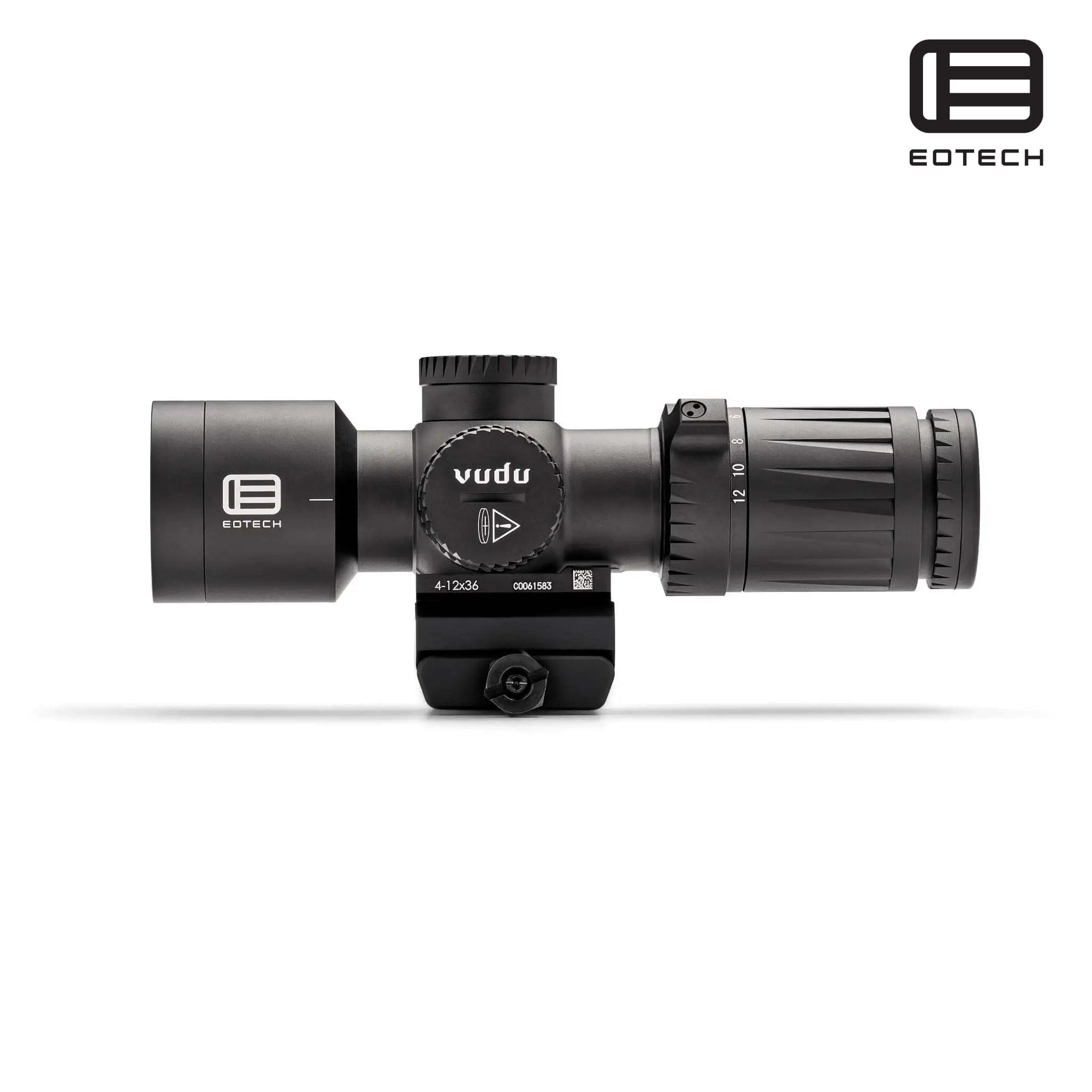

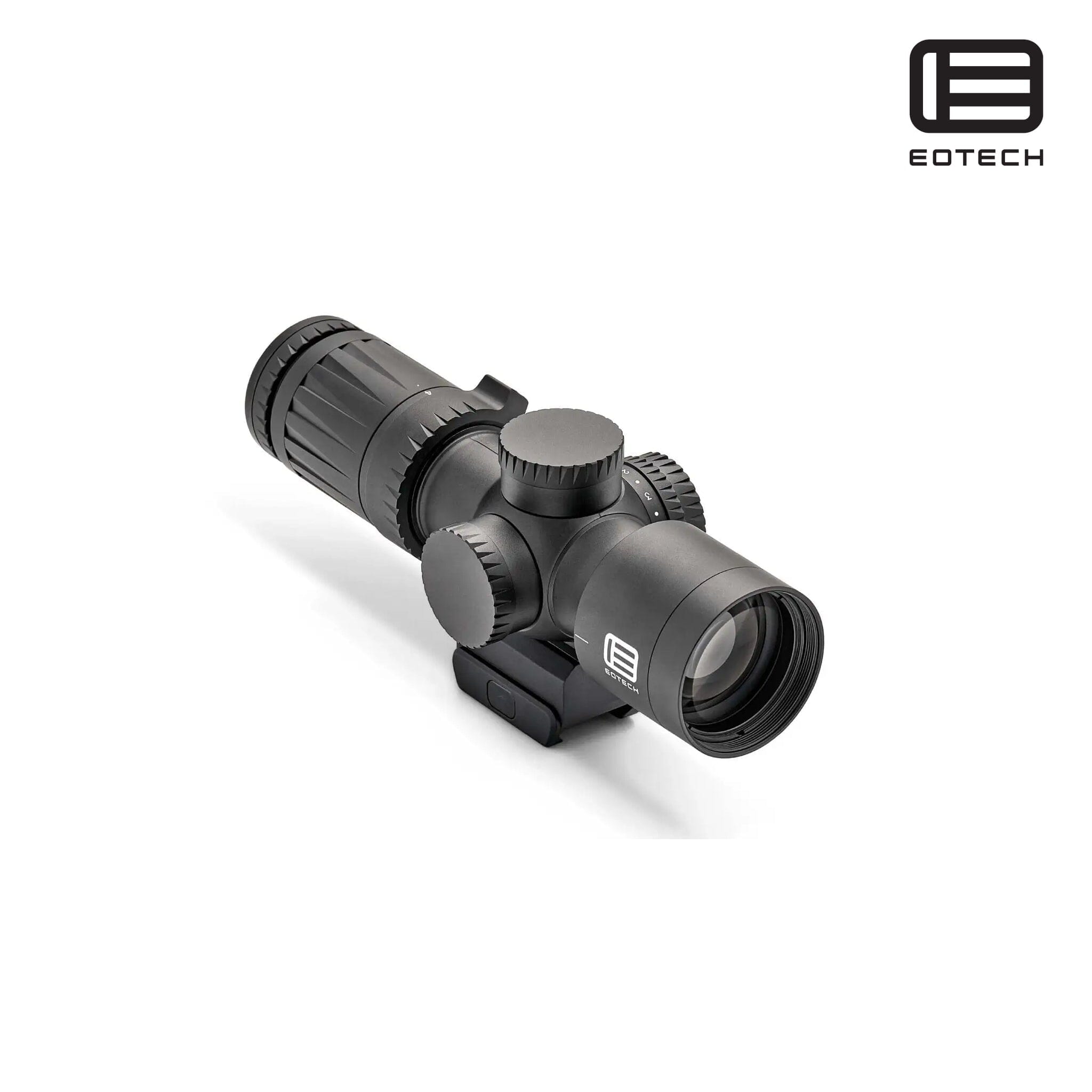

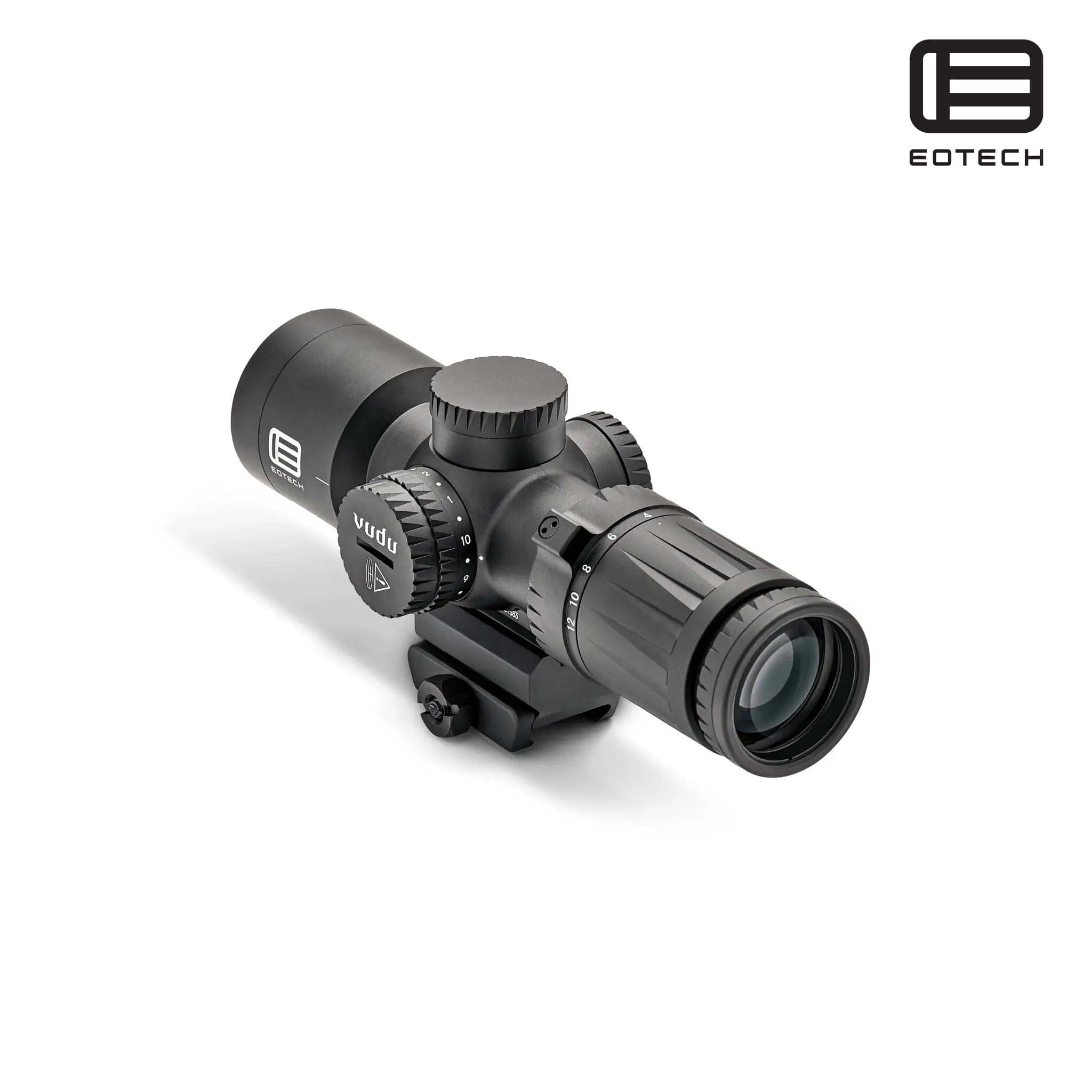

The EOTech Vudu 4-12x36 Rifle Scope in this listing is the first focal plane (FFP) model with the illuminated MR5 MRAD reticle, a 36 mm objective, a 30 mm tube and 0.1 MRAD per click adjustment.
First focal plane is the reason to pick this scope over the 3-9x32: the reticle grows and shrinks with magnification, so every subtension in the MR5 stays true at 4x, 12x and everything between. Holds work at whatever power you happen to be on.
How It Compares
Want a different MRAD reticle? The MD5 MRAD version is the alternative. This scope is also sold with an offset red dot as the Vudu 4-12x36 MR5 with EFLX red dot. Want more magnification? The Vudu 5-25x50 goes further. Browse the Vudu range and read FFP vs SFP rifle scopes explained.
Ideal For
- Target and gallery rifle shooting in MRAD
- Deer stalking at longer ranges
- Straight-pull rifles used for precision work
- Shooters who hold rather than dial, at any magnification
Key Features
-

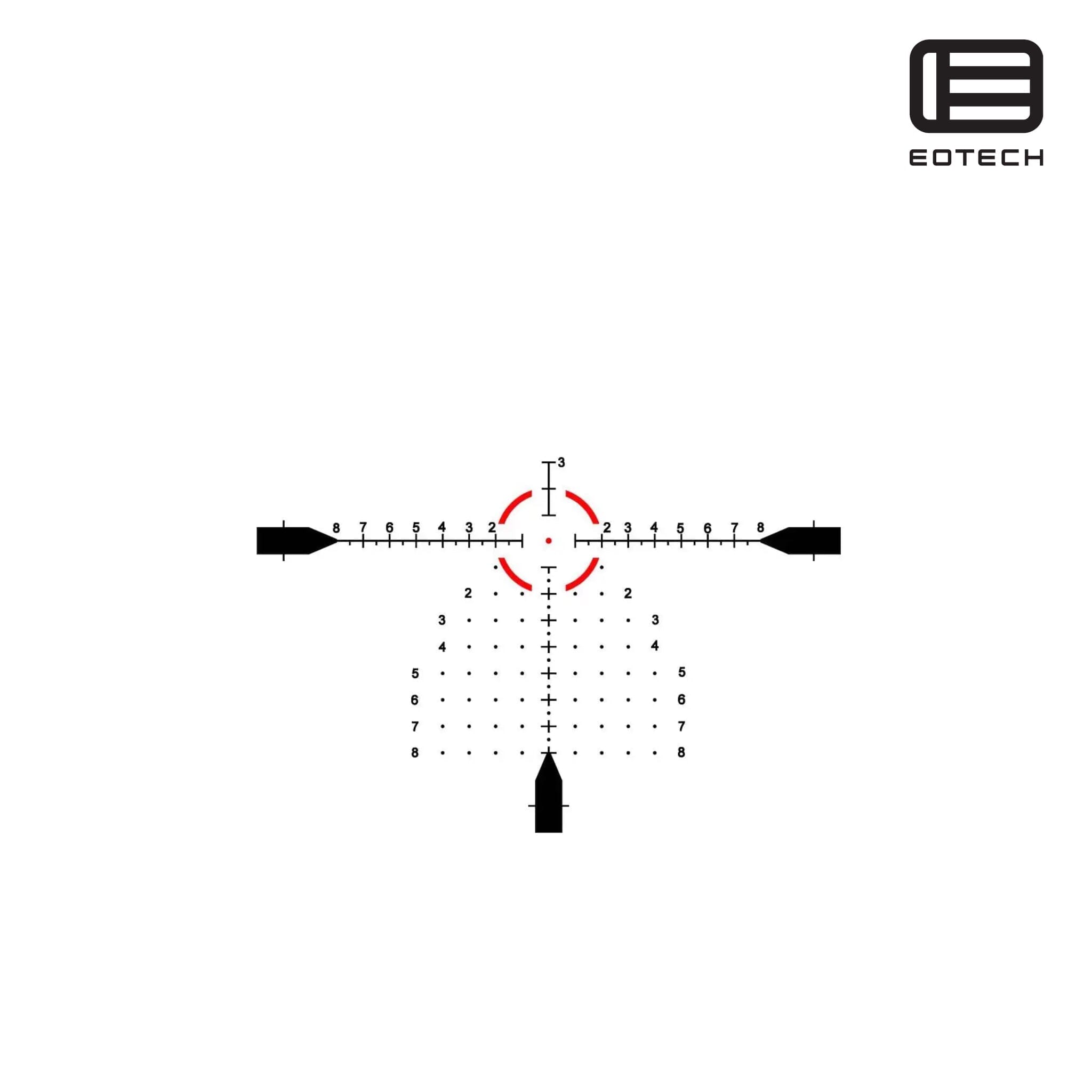

Reticle: MR5 MRAD, illuminated
-
Focal Plane: first focal plane (FFP) — subtensions true at every magnification
-
Turrets: 0.1 MRAD per click; 29 MRAD elevation / 23 MRAD windage
-
Tube: 30 mm
-
Field of View: 24.1 ft at 4x / 8.0 ft at 12x, at 100 yd
-
Weight: 21.0 oz (595 g)
Technical Specifications
| Magnification |
4-12x (variable) |
| Objective |
36 mm |
| Tube |
30 mm |
| Focal Plane |
First focal plane (FFP) |
| Reticle |
MR5 MRAD (illuminated) |
| Click Value |
0.1 MRAD per click |
| Adjustment Range |
29 MRAD elevation / 23 MRAD windage |
| FOV @ 100 yd |
24.1 ft (4x) / 8.0 ft (12x) |
| Length / Weight |
10.6 in (269 mm) / 21.0 oz (595 g) |
| Origin |
Japan |
What's Included
- EOTech Vudu 4-12x36 rifle scope with MR5 MRAD reticle
- Lens covers and documentation
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and EOTech's warranty.
Frequently Asked Questions
Is the EOTech Vudu 4-12x36 first or second focal plane?
The EOTech Vudu 4-12x36 is first focal plane (FFP), so the reticle scales with magnification and its subtensions are correct at any power.
Is the MR5 reticle on the EOTech Vudu 4-12x36 illuminated?
Yes — the MR5 MRAD reticle in this EOTech Vudu 4-12x36 is illuminated.
What are the turret clicks on the EOTech Vudu 4-12x36?
The EOTech Vudu 4-12x36 adjusts in 0.1 MRAD per click, with 29 MRAD of elevation and 23 MRAD of windage available.
What tube diameter does the EOTech Vudu 4-12x36 have?
The EOTech Vudu 4-12x36 has a 30 mm tube, so it needs 30 mm rings or a 30 mm mount.
How much does the EOTech Vudu 4-12x36 weigh?
The EOTech Vudu 4-12x36 weighs 21.0 oz (595 g) and is 10.6 in (269 mm) long.
