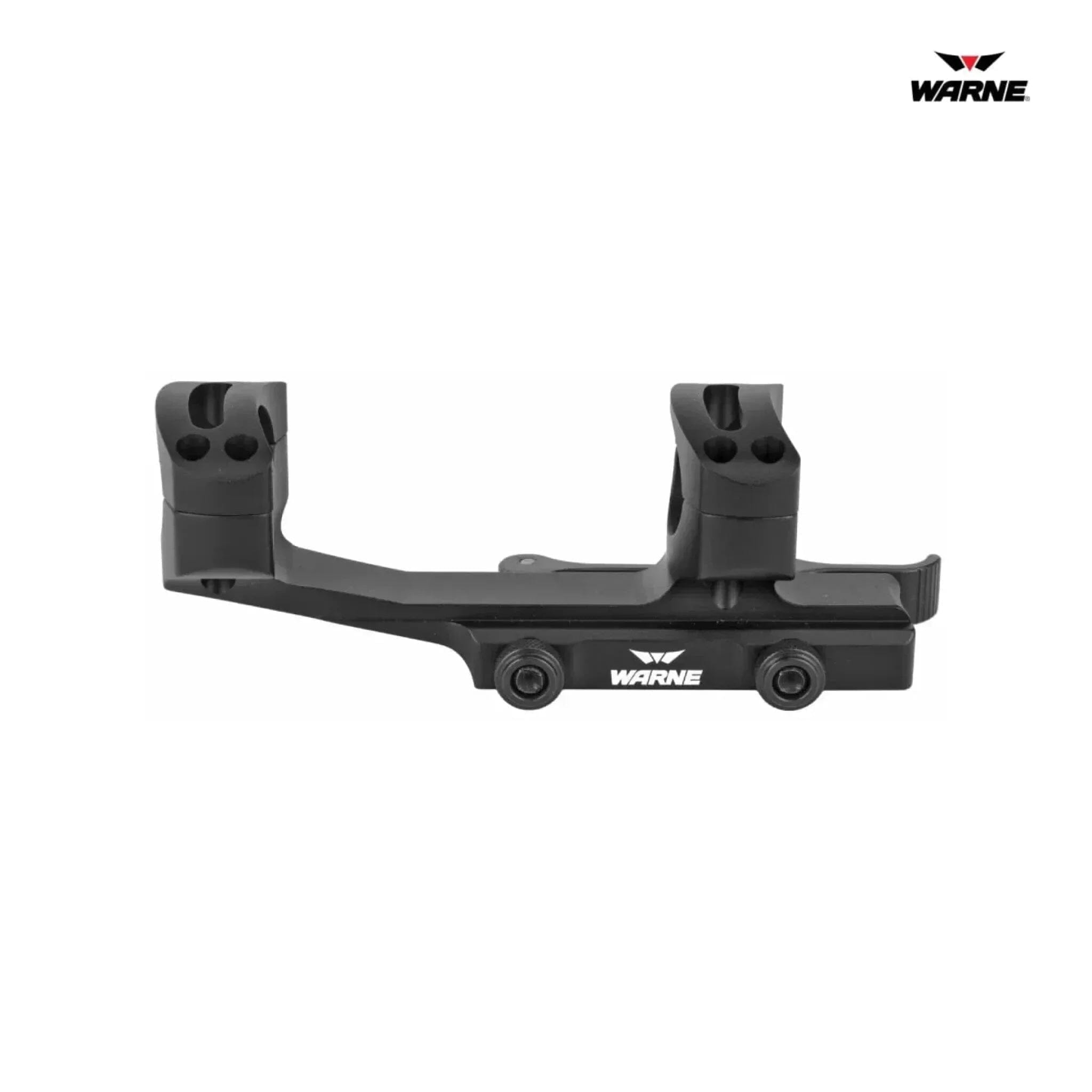

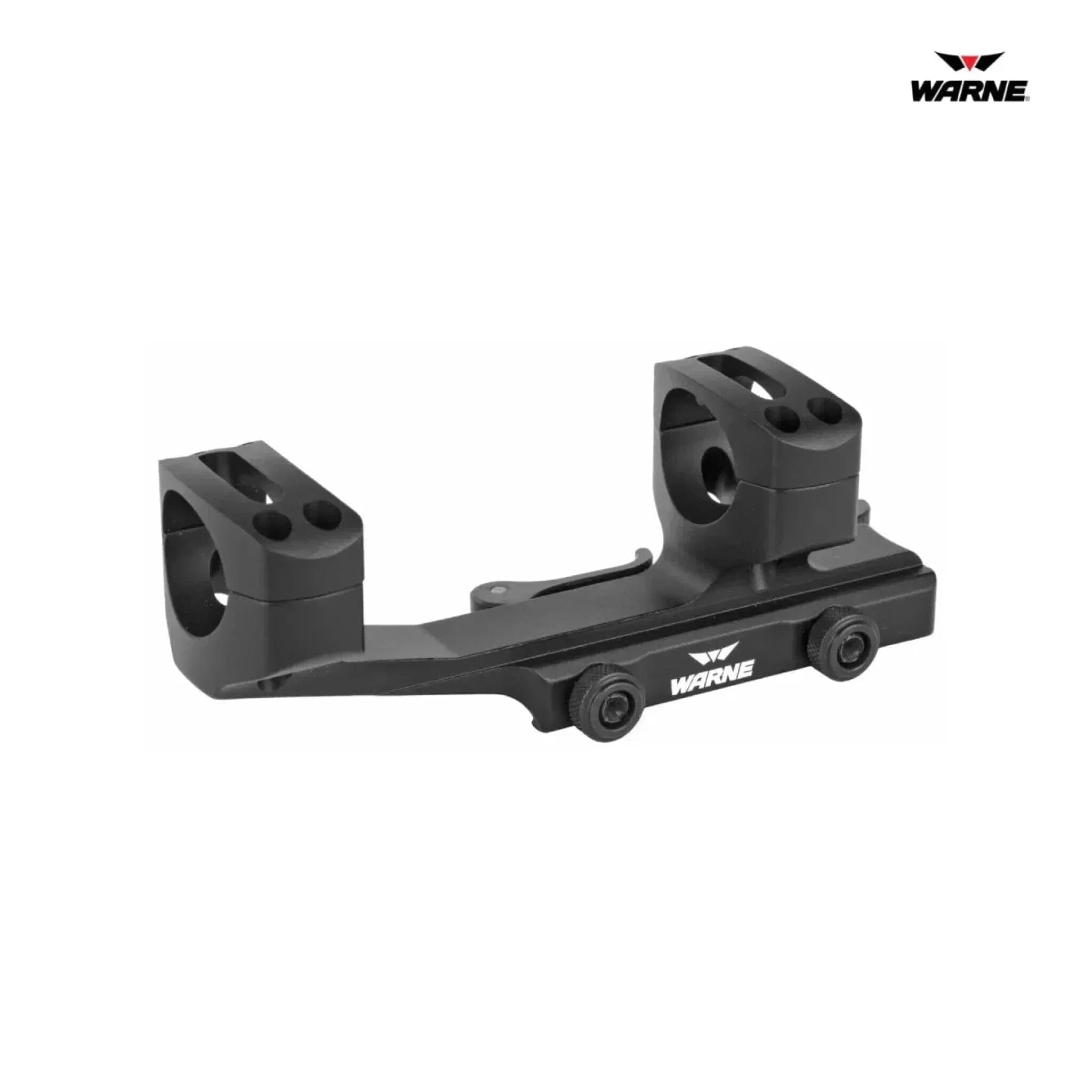

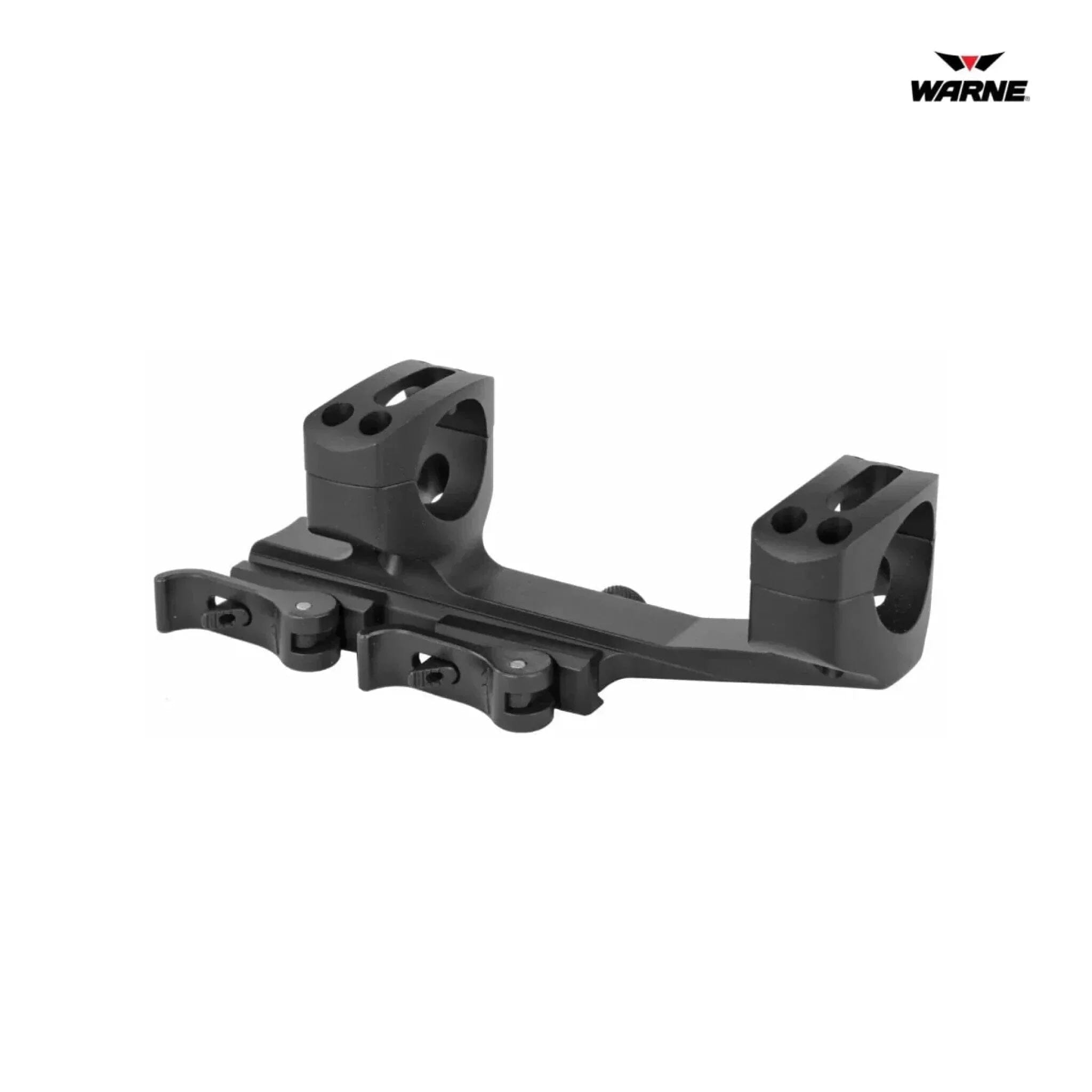

The Warne QD X-SKEL 1-inch Quick Detach Cantilever Scope Mount (QDXSKEL1TW) is a one-piece skeletonised cantilever mount that carries a 1-inch main tube scope on a Picatinny rail. It weighs 8.2 oz (232 g), places the scope over 2 inches (51 mm) further forward than a receiver-mounted ring set, and locks on with two quick-detach levers. Made in the USA and covered by the Warne Lifetime Warranty.
How It Compares
Same mount, different tube size: Warne QD X-SKEL 30mm quick detach cantilever scope mount and Warne QD X-SKEL 34mm quick detach cantilever scope mount. If you want a fixed mount with 20 MOA of built-in elevation instead of quick-detach levers, see the Warne LR-SKEL 1-inch 20 MOA cantilever scope mount. Browse the full Warne scope mount and ring range, every rifle scope mount we stock, or optics built for straight-pull rifles.
Ideal For
- Straight-pull and practical or service rifle work on a flat-top Picatinny receiver, where eye relief has to be set forward of the charging handle
- Running a 1-inch LPVO where the scope needs to come off between sessions and go back on the same zero
- Target and gallery rifle set-ups that share one optic between two rifles
- Weight-conscious builds — 8.2 oz (232 g) for a full one-piece mount with integral rings
Key Features
-
Tube Diameter: 1 inch (25.4 mm) — integral rings, no separate rings needed
-
Mount: Picatinny rail, dual quick-detach levers for repeatable return to zero
-
Cantilever: Over 2 inches (51 mm) of forward scope placement for correct eye relief
-
Height: MSR Ideal Height, giving a natural cheek weld on a flat-top receiver
-
Material: Skeletonised 6061-T6 aluminium with steel threaded inserts at the ring-cap screws
-
Weight: 8.2 oz (232 g)
-
Warranty: Warne Lifetime Warranty
Technical Specifications
| Tube Diameter |
1 inch (25.4 mm) |
| Mount |
Picatinny; dual QD levers |
| Cantilever |
Over 2 inches (51 mm) forward |
| Height |
MSR Ideal Height |
| Material |
6061-T6 aluminium; steel inserts |
| Weight |
8.2 oz (232 g) |
| Ring Cap Torque |
25 in-lb (2.8 Nm) max, no threadlocker |
| Origin |
Made in USA |
| Warranty |
Warne Lifetime |
| SKU / MPN |
QDXSKEL1TW / QDXSKEL1TW |
What's Included
- Warne QD X-SKEL 1-inch cantilever scope mount (QDXSKEL1TW)
- Ring caps, mounting hardware and a T-15 wrench
Warranty
Covered by the Warne Lifetime Warranty against defects in materials and workmanship.
UK Delivery & Support
UK-stocked and dispatched tracked from our UK warehouse — no import duties or customs delays — backed by UK-based support and the Warne Lifetime Warranty.
Frequently Asked Questions
What scope tube diameter does the Warne QD X-SKEL QDXSKEL1TW fit?
The Warne QD X-SKEL QDXSKEL1TW has integral 1-inch rings, so it fits scopes with a 1-inch main tube only. Warne also make the same mount in 30mm and 34mm.
Does the Warne QD X-SKEL return to zero after it is taken off?
Yes — the two quick-detach levers are designed to give a repeatable return to zero when the mount is refitted to the same rail slots.
How far forward does the Warne QD X-SKEL move the scope?
The cantilever places the scope over 2 inches (51 mm) forward of the mounting point, which is what lets you set correct eye relief on a flat-top receiver instead of being tied to where the action puts the rings.
Should I use threadlocker on the ring cap screws?
No. Warne advises against threadlocker on the ring-cap screws and specifies a maximum of 25 in-lb (2.8 Nm), tightened evenly in an alternating pattern.
How much does the Warne QD X-SKEL 1-inch mount weigh?
Warne lists it at 8.2 oz (232 g), which is a complete one-piece mount including its integral rings.
