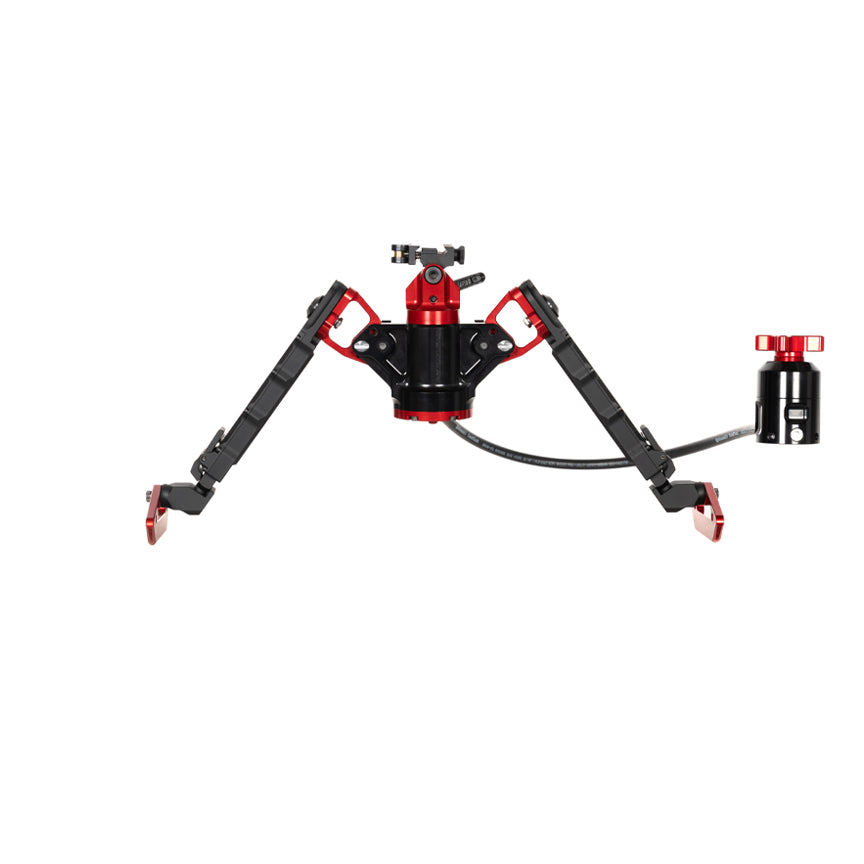

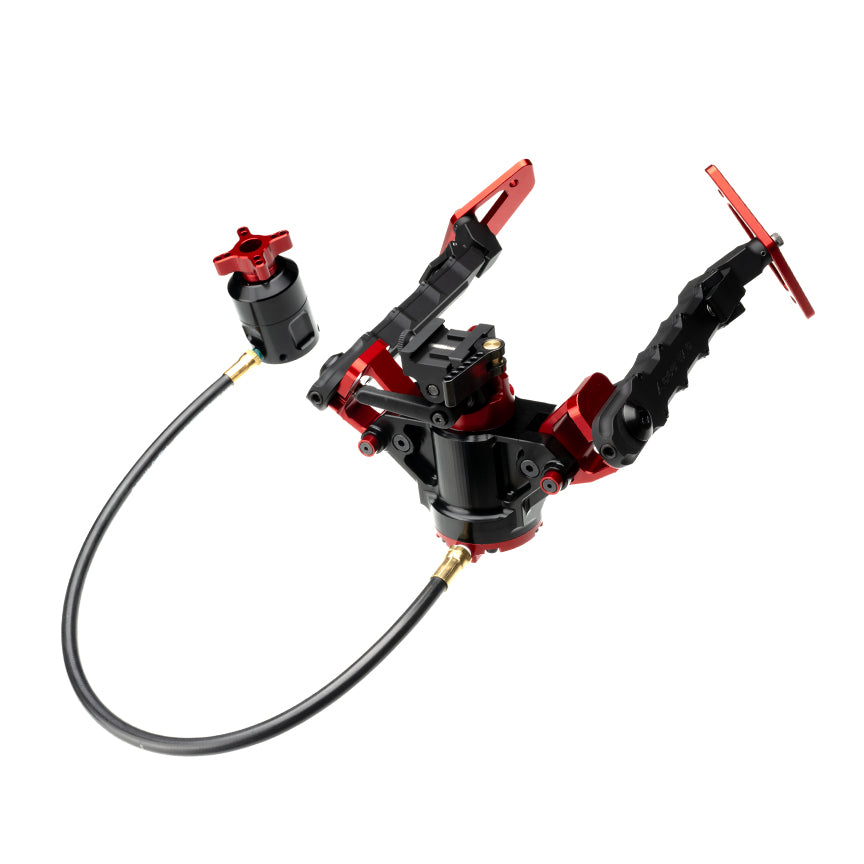

The Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red is a US-made billet aluminium rifle bipod, part number HYB-0500, with a clamp for MIL-STD-1913 Picatinny rail. Height is set hydraulically from an X-handle remote on a 24" / 610 mm hose, covering 5.13" / 130.3 mm to 12" / 304.8 mm, on a stance that opens from 17.25" / 438.15 mm to 25.5" / 647.7 mm.
How It Compares
The Hydro is the one you adjust without moving: an X-handle remote on a 24" / 610 mm hose pushes fluid through the centre hub to raise or lower the rifle while you stay behind the scope, which is a benchrest and F-Class answer rather than a stalking one. For the other rail standard take the Accu-Tac HYBA-500 Arca-Spec Hydro bipod. For a mechanical wide bipod at a fraction of the weight, see the Accu-Tac LP-50 bipod. Compare every F-Class and benchrest bipod we stock, rifle bipods stocked in the UK and all Accu-Tac bipods and accessories.
Ideal For
- Large-calibre and heavy target rifles that need an overbuilt rest
- F-Class and benchrest shooting at extended distances
- Long-range load development from the bench
- Prone shooting with rifles heavy enough to overwhelm a lighter bipod
Key Features
-

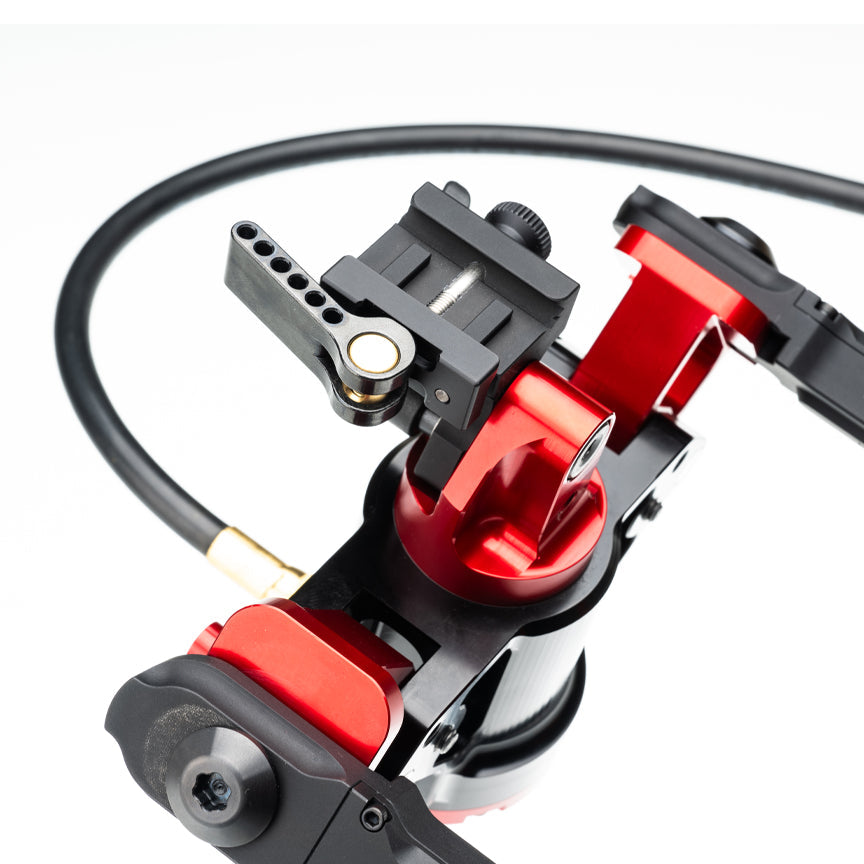

Mount: Picatinny rail
-

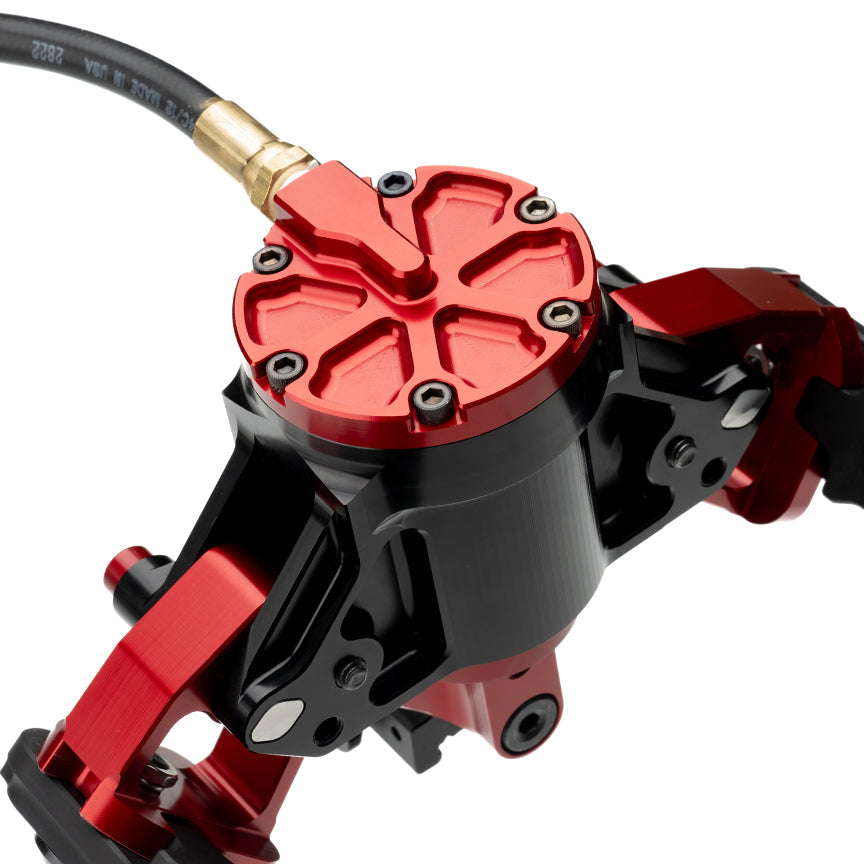

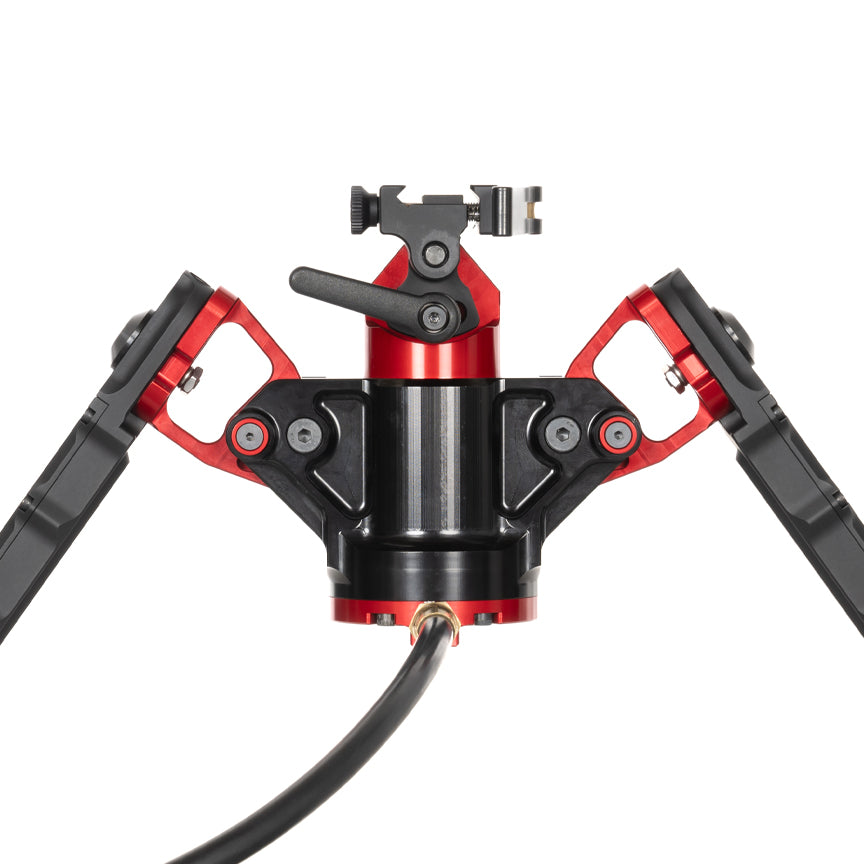

Height adjustment: Hydraulic — an X-handle remote pushes fluid through a 24" / 610 mm hose to raise or lower the centre hub
-
Height: 5.13" / 130.3 mm to 12" / 304.8 mm
-
Stance: 17.25" / 438.15 mm in position one, opening to 25.5" / 647.7 mm
-
Cant: Canting capability for levelling on uneven ground
-
Legs: Outward, forward and backward leg positions, plus extendable legs for added height
-
Weight: 72 oz / 2041 g including the remote
-
Construction: 100% billet 6061-T6 aluminium with high-strength steel hardware
-
Finish: Type III (MIL-SPEC) hard anodise / Type II bright-dip, black and red
-
Origin: Made in USA — designed, engineered and manufactured by Accu-Tac
Technical Specifications
| Mount |
Picatinny rail |
| Min Height |
5.13" / 130.3 mm |
| Max Height |
12" / 304.8 mm |
| Min Stance (position one) |
17.25" / 438.15 mm |
| Max Stance (open position) |
25.5" / 647.7 mm |
| Closed Width |
8.88" / 225.55 mm |
| Closed Length |
11" / 279.4 mm |
| Weight (with remote) |
72 oz / 2041 g |
| Remote Hose Length |
24" / 610 mm |
| Materials |
6061 T6 aluminium alloy / high-strength steel hardware |
| Finish |
Type III (MIL-SPEC) hard anodise / Type II bright-dip, black and red |
| Brand |
Accu-Tac (USA) |
| SKU / MPN / UPC |
HYB-0500 / HYB-0500 / 858520006534 |
What's Included
- 1 × Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red (HYB-0500)
- Manufacturer's documentation
Warranty
Covered by the Accu-Tac Limited Warranty against defects in materials and workmanship.
UK Delivery & Support
Every order is dispatched tracked from our UK warehouse, so there are no import duties or customs surprises, and you are backed by UK-based aftersales support from our team.
Frequently Asked Questions
What does the Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red mount to?
It clamps to a MIL-STD-1913 Picatinny rail, so it fits a Picatinny forend rail, a rail section on an M-LOK or KeyMod handguard, or a Picatinny sling-stud adapter.
How is the height on the Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red adjusted?
Hydraulically. An X-handle remote control on a 24" / 610 mm hose pushes fluid through the centre hub, so the rifle can be raised or lowered from behind the scope without breaking position.
What height and stance does the Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red give?
The height range is 5.13" / 130.3 mm to 12" / 304.8 mm, and the stance opens from 17.25" / 438.15 mm in position one to 25.5" / 647.7 mm fully open.
How much does the Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red weigh?
The Accu-Tac HYB-500 Hydro Picatinny Bipod Black Red weighs 72 oz / 2041 g.
