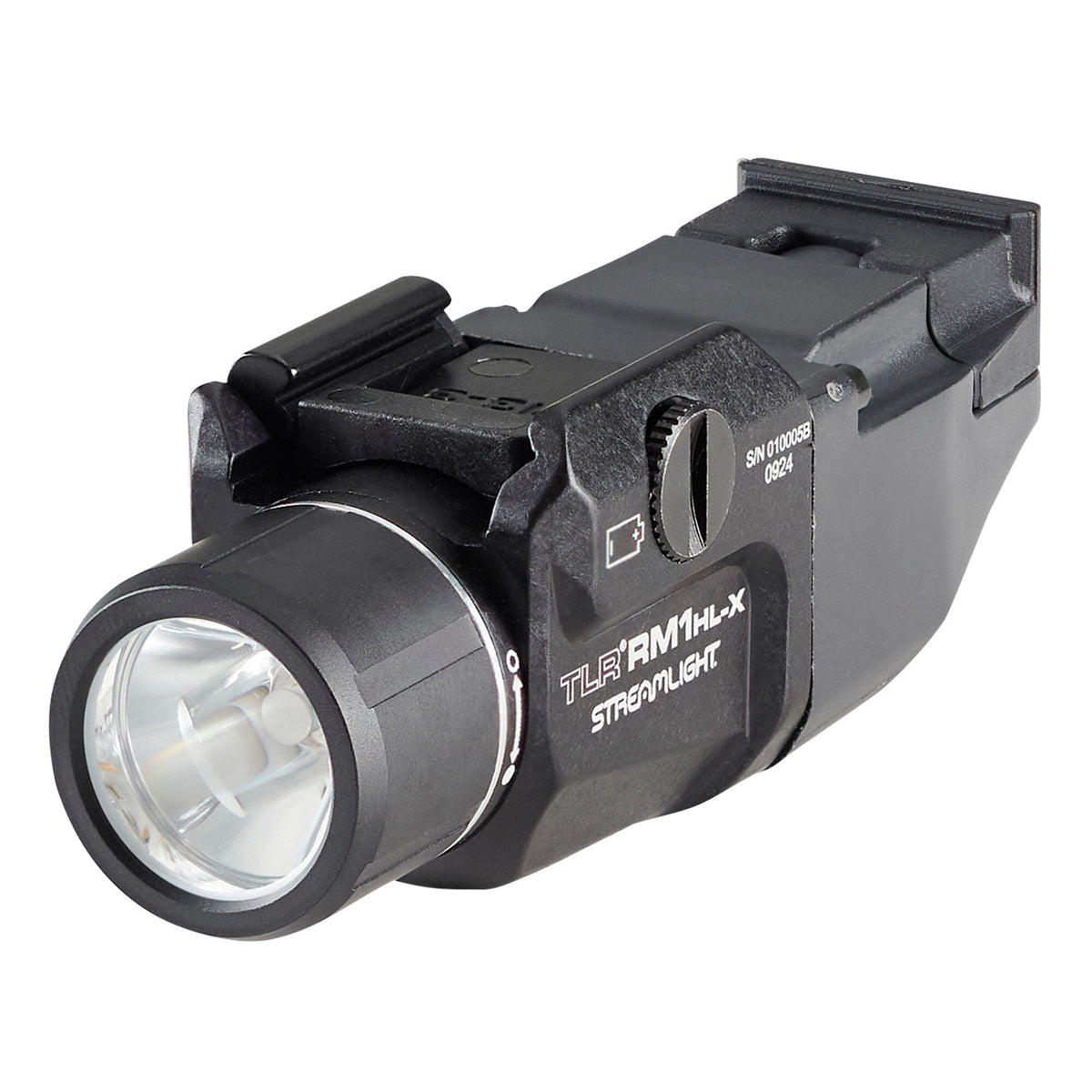

The Streamlight TLR RM 1 HL-X USB System Weapon Light (part 69483) is a compact single-cell rifle weapon light that brings high-lumen multi-fuel power to the low-profile RM 1 body. On the SL-B9 USB-C rechargeable pack supplied it produces 1000 lumens output and 22,000 candela peak beam intensity for a 297-metre beam; on a CR123A lithium cell it runs 500 lumens for 1.5 hours.
This is the System package: the remote pressure switch, key kit and mounting hardware are all in the box, ready to mount, and the push-button tail switch and remote work independently so one backs up the other. It mounts to MIL-STD-1913 Picatinny, measures 3.64 in and weighs around 3 oz, rated IPX7.
How It Compares
Want the standard-output version? The TLR RM 1 System rifle weapon light at 500 lumens. Want the larger two-cell body? The TLR RM 2 System. Want an aiming laser as well? The TLR RM 2 Laser-G System with a green laser. Want far more throw? The TLR-1 HP-X at 77,000 candela. Read the Streamlight TLR comparison guide, or browse all rechargeable weapon lights and weapon light accessories.
Ideal For
- AR-pattern rifles, carbines and straight-pull builds
- Practical shotgun and 3-Gun stages
- Civilian Service Rifle and range work after dark
- Farm, kennels and yard work after dark
- Airsoft skirmish and milsim night games
Key Features
- 1000 lumens / 22,000 candela / 297 metres on the SL-B9 USB-C pack (included)
- 500 lumens on a CR123A lithium cell, for 1.5 hours
- Complete System: remote pressure switch, key kit and mounting hardware supplied

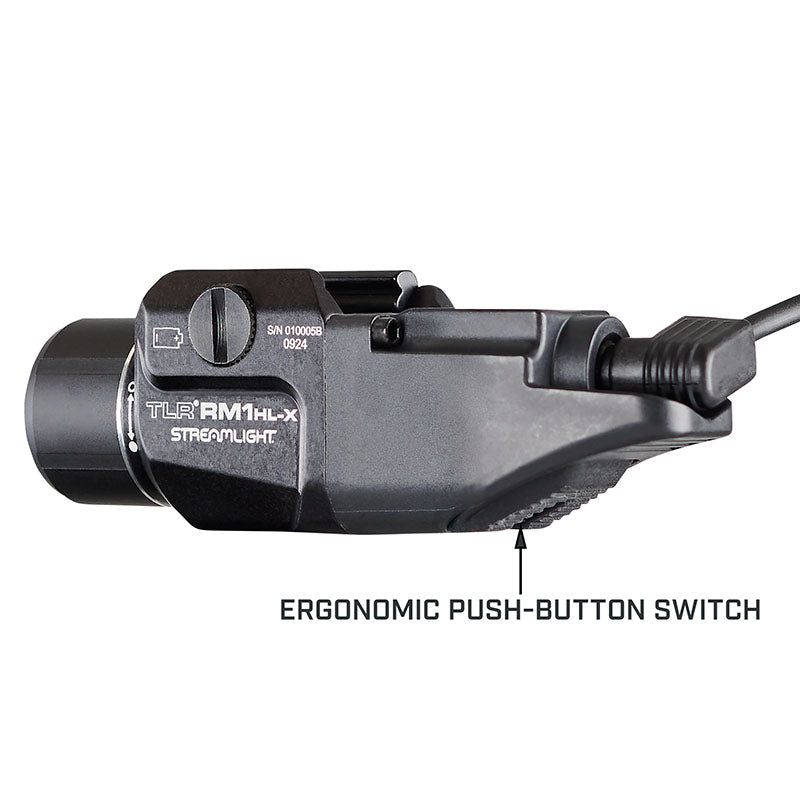

- Push-button tail switch and remote operate independently
- Mounts to MIL-STD-1913 Picatinny; 3.64 in / 3.02–3.12 oz
- IPX7 — waterproof to 1 metre for 30 minutes
Technical Specifications
| Output (SL-B9) |
1000 lumens / 22,000 candela / 297 metres (30 minutes at full output) |
| Output (CR123A) |
500 lumens (1.5 hours) |
| Battery |

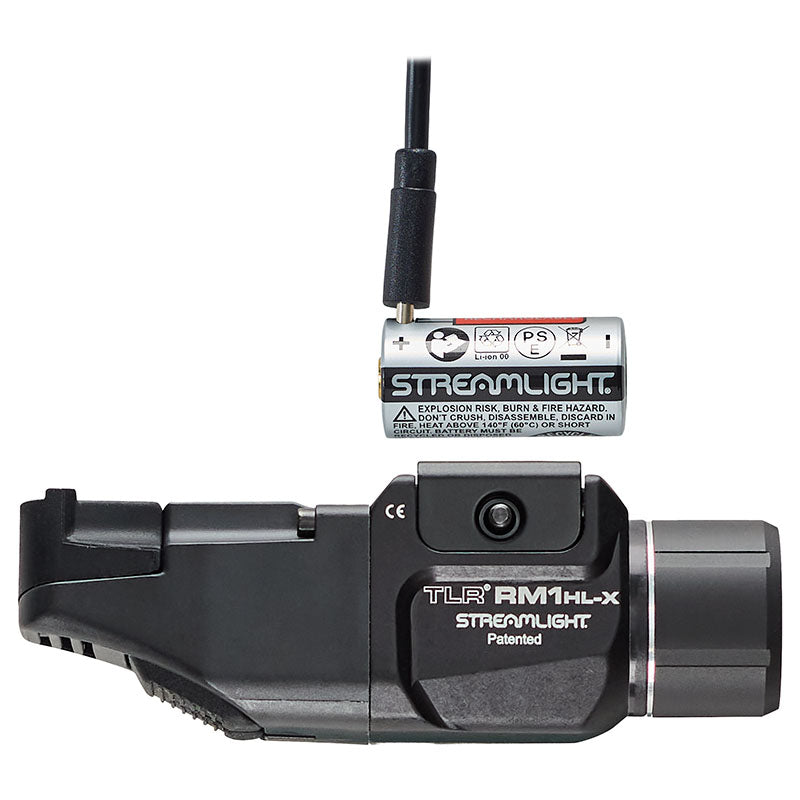

One SL-B9 USB-C rechargeable pack (included) or one CR123A lithium cell |
| Activation |
Push-button tail switch plus remote pressure switch, operating independently |
| Mount |
MIL-STD-1913 Picatinny |
| Length / Weight |
3.64 in / 3.02–3.12 oz |
| Durability |
IPX7 — waterproof to 1 metre for 30 minutes |
| SKU / MPN / UPC |
69483 / 69483 / 080926694835 |

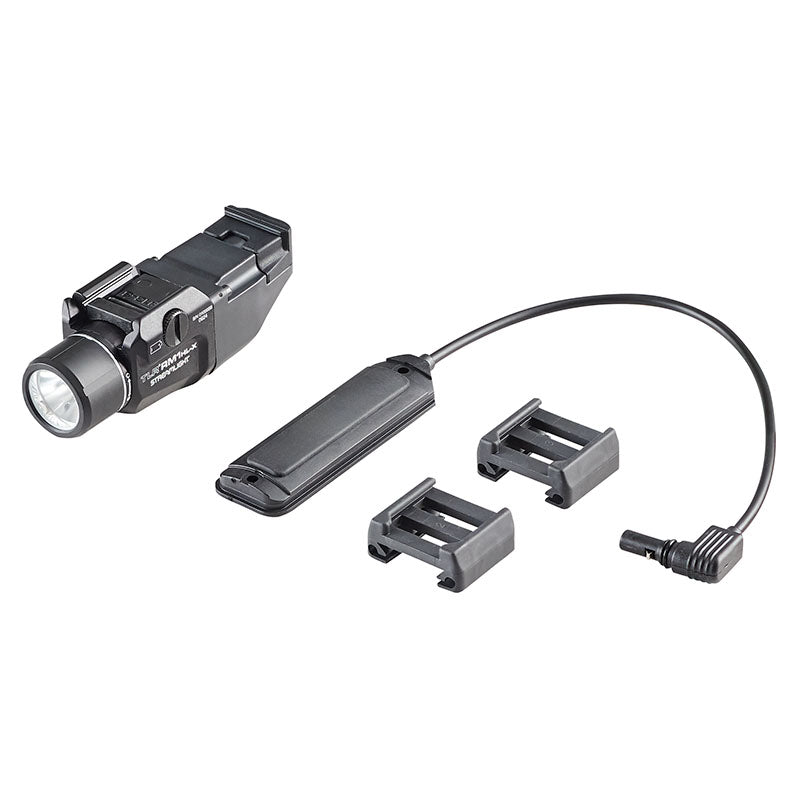

What's Included
- Streamlight TLR RM 1 HL-X weapon light
- Remote pressure switch
- Key kit and mounting hardware
- One SL-B9 USB-C rechargeable battery pack
- USB-C charging cord
UK Delivery & Support
Imported from the USA, duty paid by us, and dispatched tracked from the UK — nothing to pay on delivery — backed by UK-based support.
Frequently Asked Questions
What does the Streamlight TLR RM 1 HL-X USB System (69483) mount to?
The Streamlight TLR RM 1 HL-X USB System mounts to MIL-STD-1913 Picatinny rails using the key kit and mounting hardware supplied in the box, so it suits AR-pattern rifles, carbines and any long gun with a Picatinny section.
How bright is the Streamlight TLR RM 1 HL-X and how far does the beam reach?
The Streamlight TLR RM 1 HL-X produces 1000 lumens output and 22,000 candela peak beam intensity on its SL-B9 rechargeable pack, which gives a beam distance of 297 metres; on a CR123A lithium cell it runs 500 lumens.
Is the Streamlight TLR RM 1 HL-X rechargeable, and what is in the box?
Yes — the Streamlight TLR RM 1 HL-X USB System is supplied with an SL-B9 USB-C rechargeable battery pack and a USB-C charging cord, along with the remote pressure switch, key kit and mounting hardware. It is multi-fuel, so a CR123A lithium cell can be fitted instead.
How long does the Streamlight TLR RM 1 HL-X run for?
The Streamlight TLR RM 1 HL-X runs for 30 minutes at the full 1000 lumens on its SL-B9 pack, or 1.5 hours at 500 lumens on a CR123A lithium cell.
How is the Streamlight TLR RM 1 HL-X different from the standard TLR RM 1?
The Streamlight TLR RM 1 HL-X doubles output to 1000 lumens and 22,000 candela on the rechargeable SL-B9 pack, against 500 lumens and 11,000 candela for the standard TLR RM 1, in the same compact single-cell body.
Do the push-button and the remote switch work independently on the Streamlight TLR RM 1 HL-X?
Yes — on the Streamlight TLR RM 1 HL-X the push-button tail switch and the remote pressure switch operate independently, so either one will work if the other is knocked or damaged.
