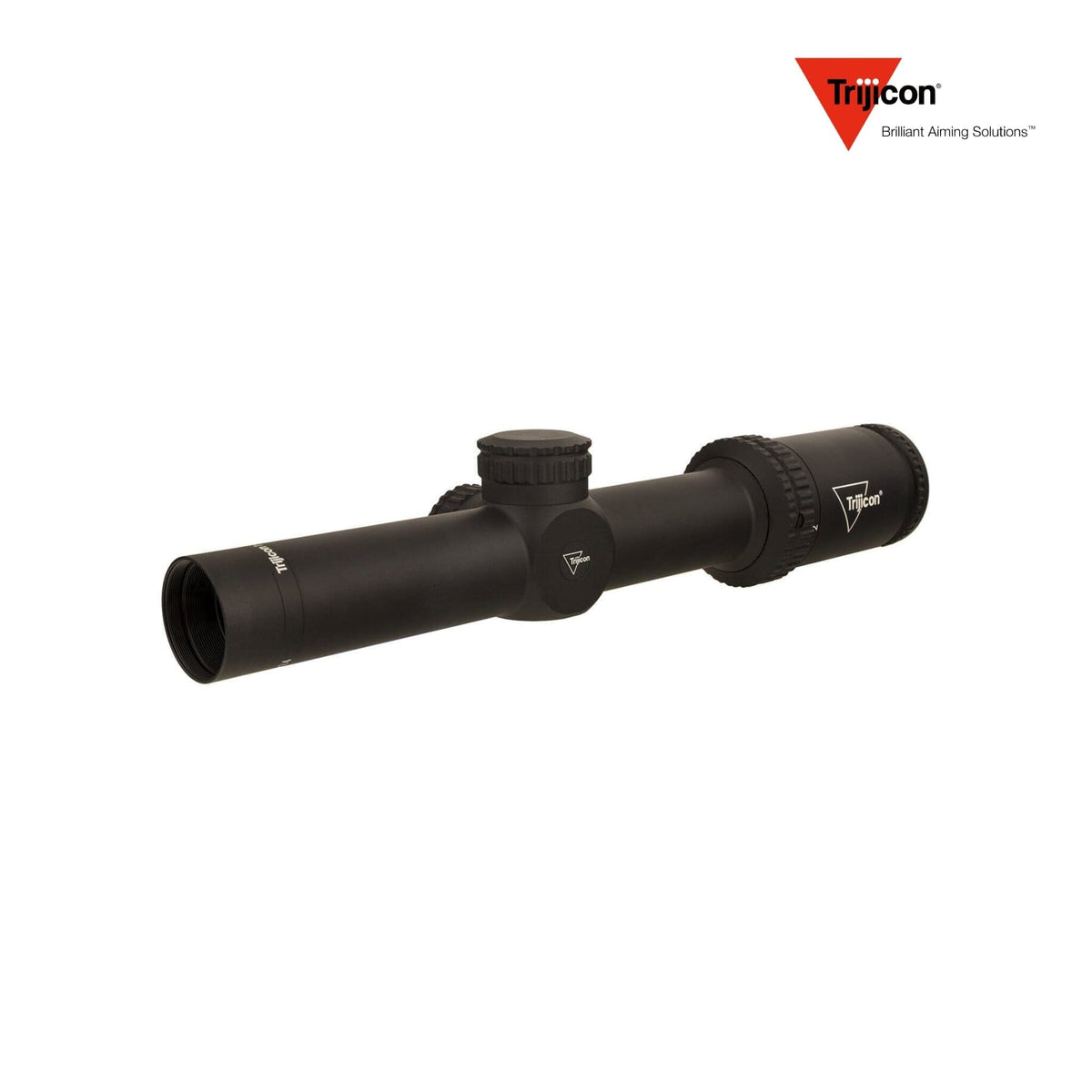

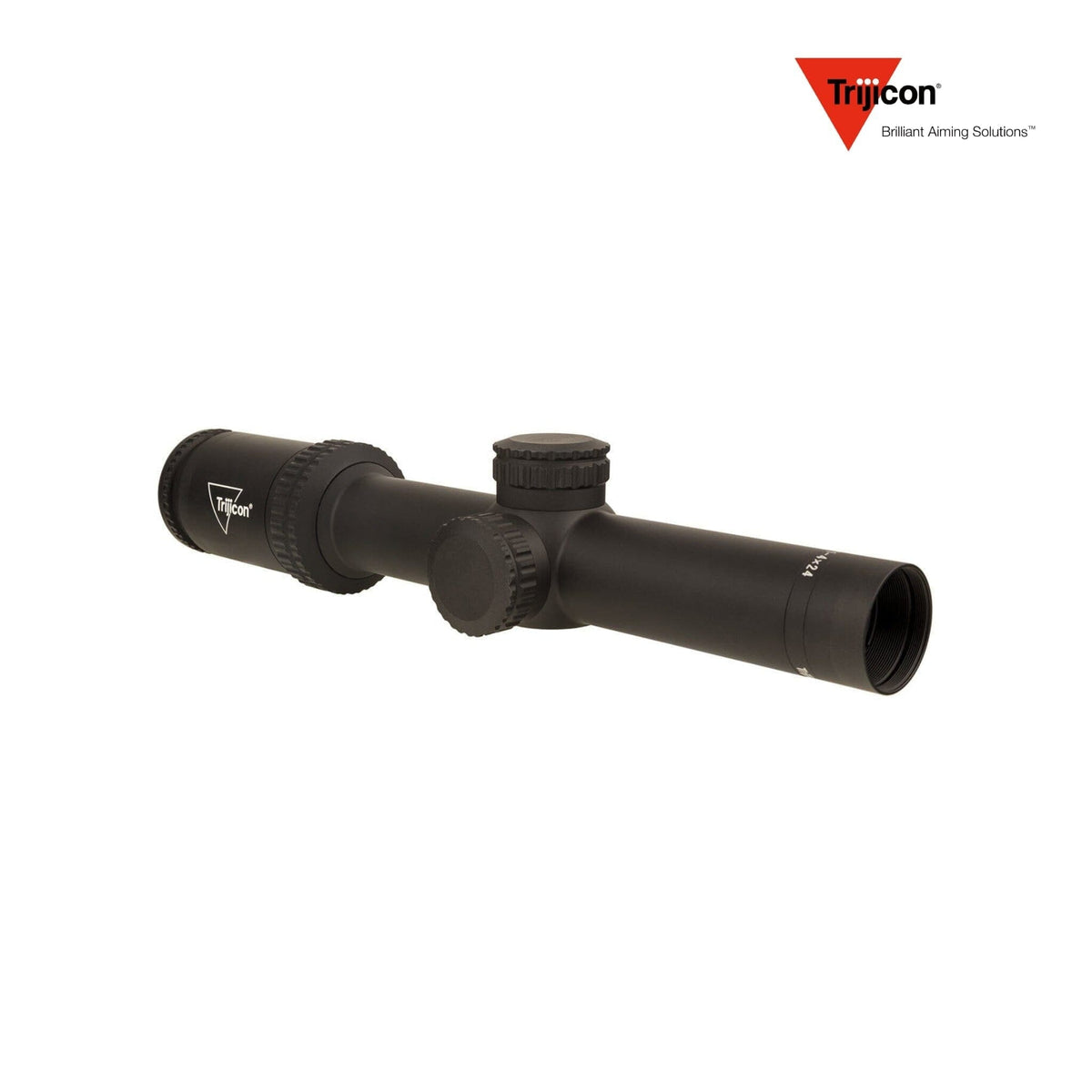

The Trijicon Ascent 1-4x24 Rifle Scope BDC Target Holds Black (SKU AT424-C-2800001) is a 1-4x variable rifle scope on a 30 mm tube, with a second focal plane BDC Target Holds reticle etched in black and no illumination.
How It Compares
The Ascent is Trijicon's straightforward variable-power line: a fully multi-coated, nitrogen-filled scope with capped 1/4 MOA turrets and no battery or tritium to think about. At 1-4x this is the low-power end of the range for close and mid-range work, where the 3-12x40 is the general-purpose option — see the Trijicon Ascent 3-12x40 rifle scope BDC Target Holds. Browse all rifle scopes or the full Trijicon optics range.
Ideal For
- Close and mid-range shooting where 1x on the bottom end keeps both eyes open
- Shooters who want a plain etched reticle with nothing to switch on
- Stalking and general rifle work needing a light, compact variable
Key Features
-

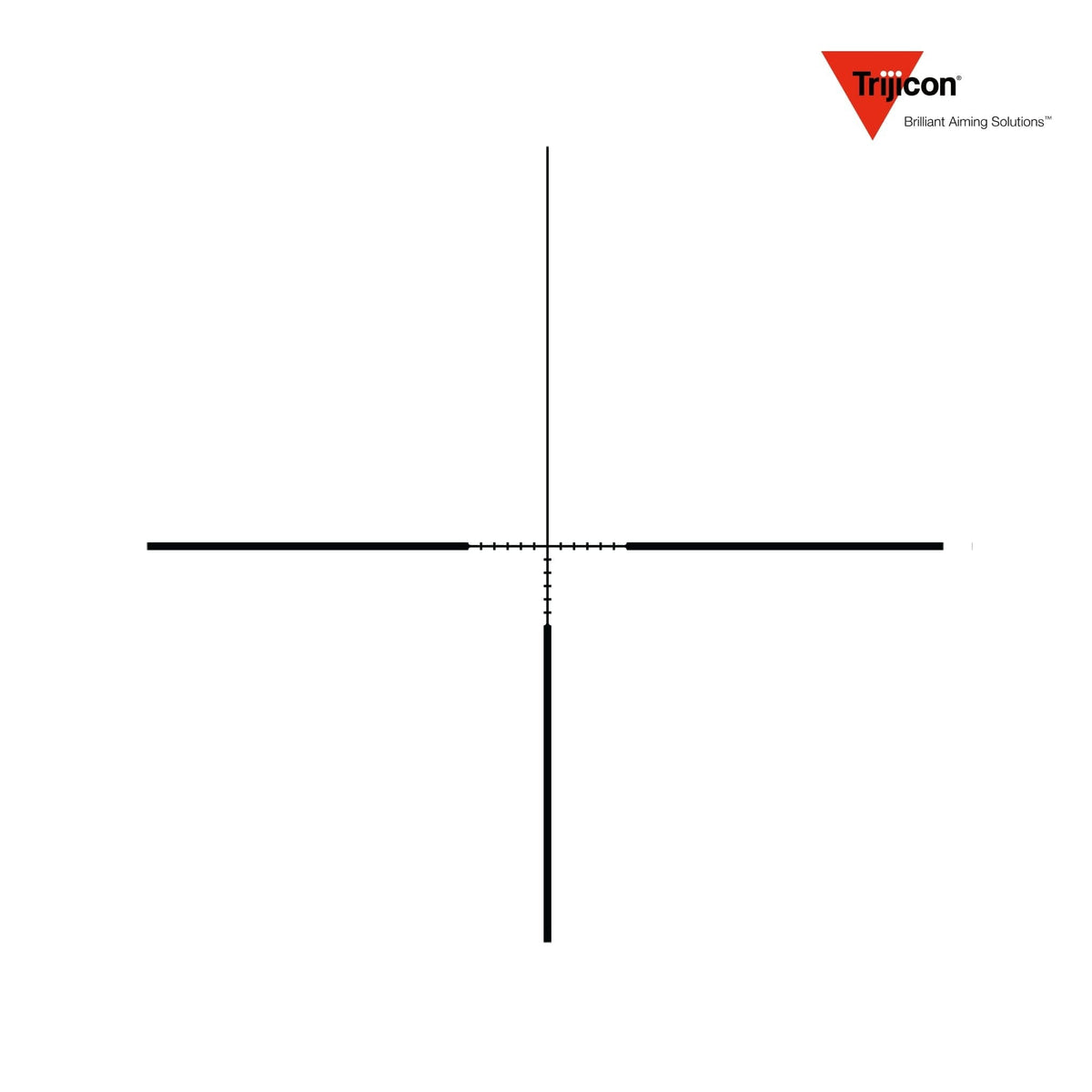

Reticle: BDC Target Holds (etched, non-illuminated; bullet drop compensating)
-
Illumination: None — non-illuminated black etched reticle
-
Focal Plane: Second focal plane (SFP)
-
Turrets: 1/4 MOA per click, 100 MOA total travel
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1-4x |
| Objective |
24 mm |
| Tube Diameter |
30 mm |
| Focal Plane |
Second Focal Plane (SFP) |
| Reticle |
BDC Target Holds (etched, non-illuminated; bullet drop compensating) |
| Reticle Colour |
Black (etched) |
| Illumination |
None — non-illuminated black etched reticle |
| Click Value |
1/4 MOA per click |
| Adjustment Range |
100 MOA total travel |
| Parallax |
Fixed (non-adjustable) |
| Eye Relief |
2.6 - 3.9 in (66 - 99 mm) |
| Field of View |
95 - 24.2 ft at 100 yards (31.7 - 8.1 m at 100 m); 18 - 4.6° |
| Length |
10.4 in (264 mm) |
| Weight |
15.9 oz (451 g) |
| Housing |
6061-T6 aluminium, hard-coat anodised |
| Water Resistance |
Waterproof - submersion depth 10 ft (3 m); nitrogen-filled/fogproof |
| What's Included |
Lens Cap, Scopecoat, Quick Reference Guide, Warranty Card, Vinyl Logo Sticker |
| SKU / MPN / UPC |
AT424-C-2800001 / AT424-C-2800001 / 719307402966 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Is it first or second focal plane?
Second — the reticle stays one size; holds are calibrated at maximum magnification.
Is the reticle illuminated?
No — it is a non-illuminated black etched reticle.
Does it have parallax adjustment?
No — parallax is fixed and non-adjustable.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
