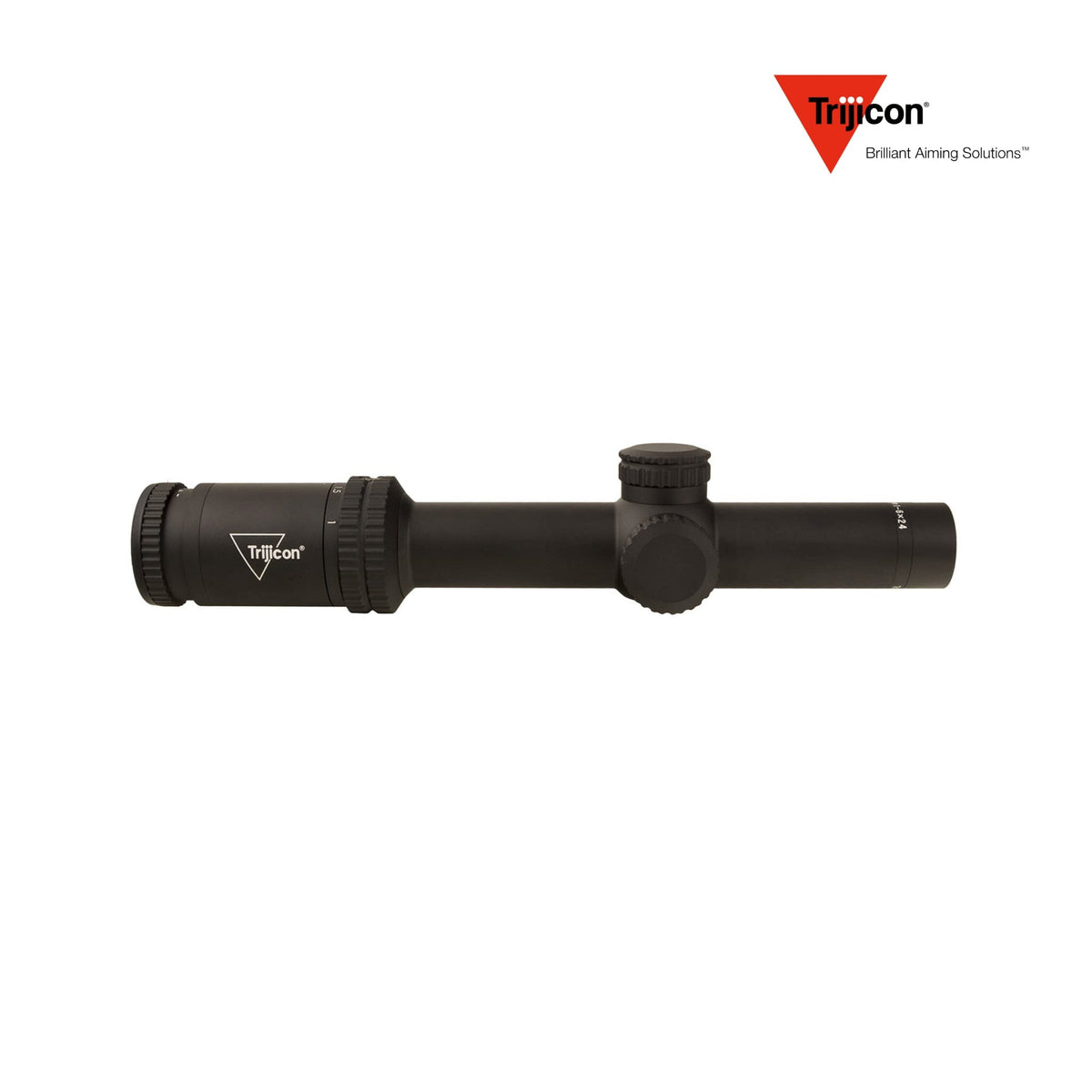

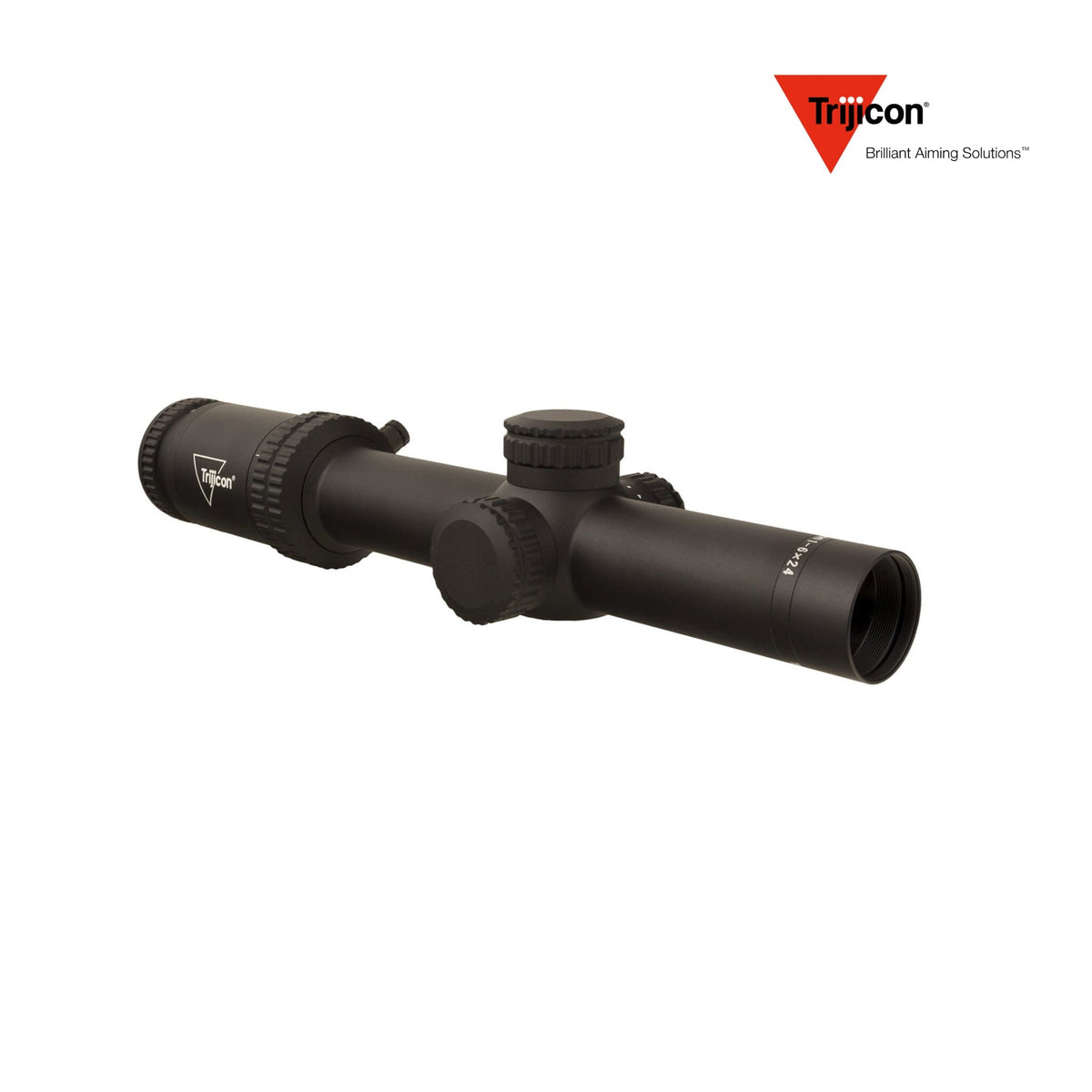

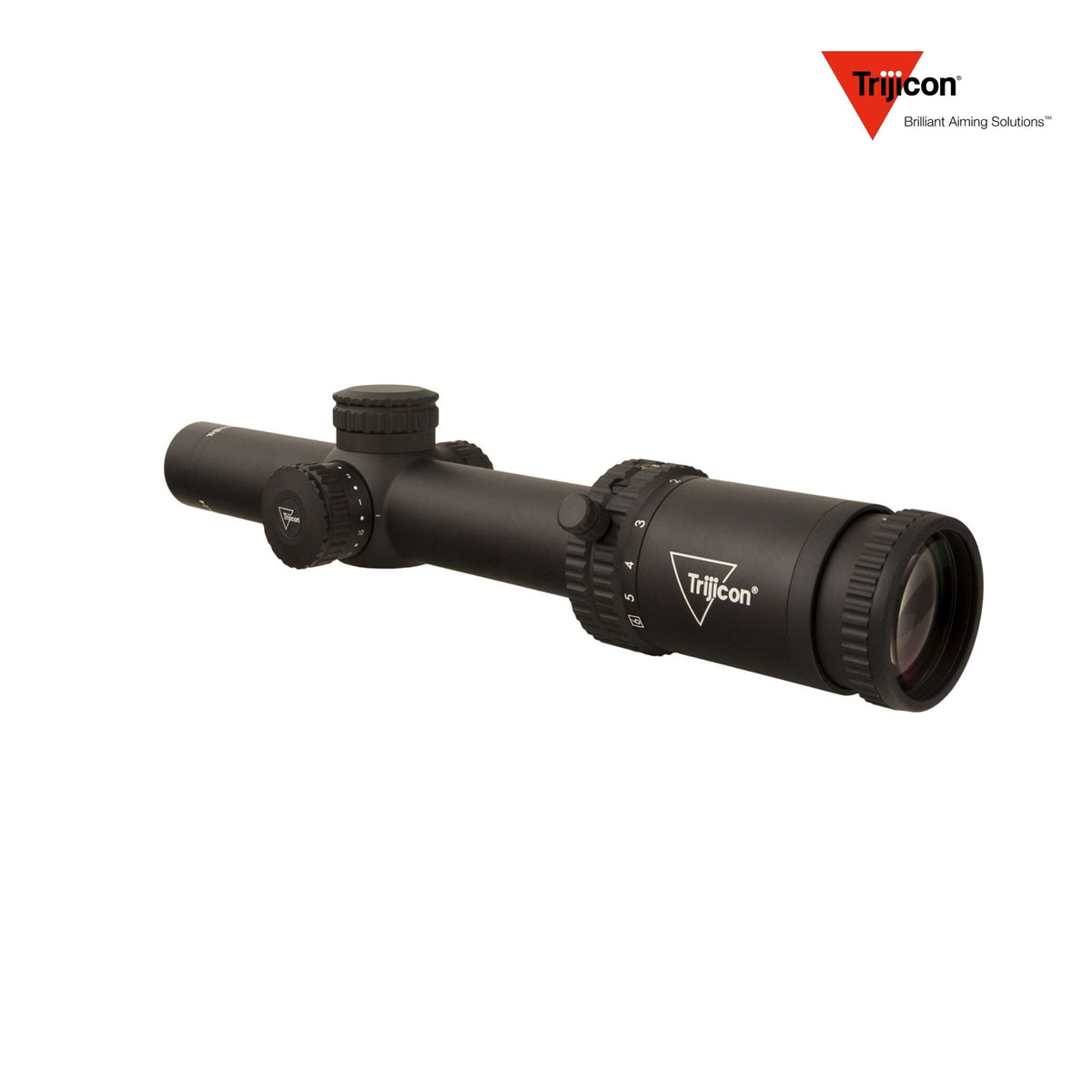

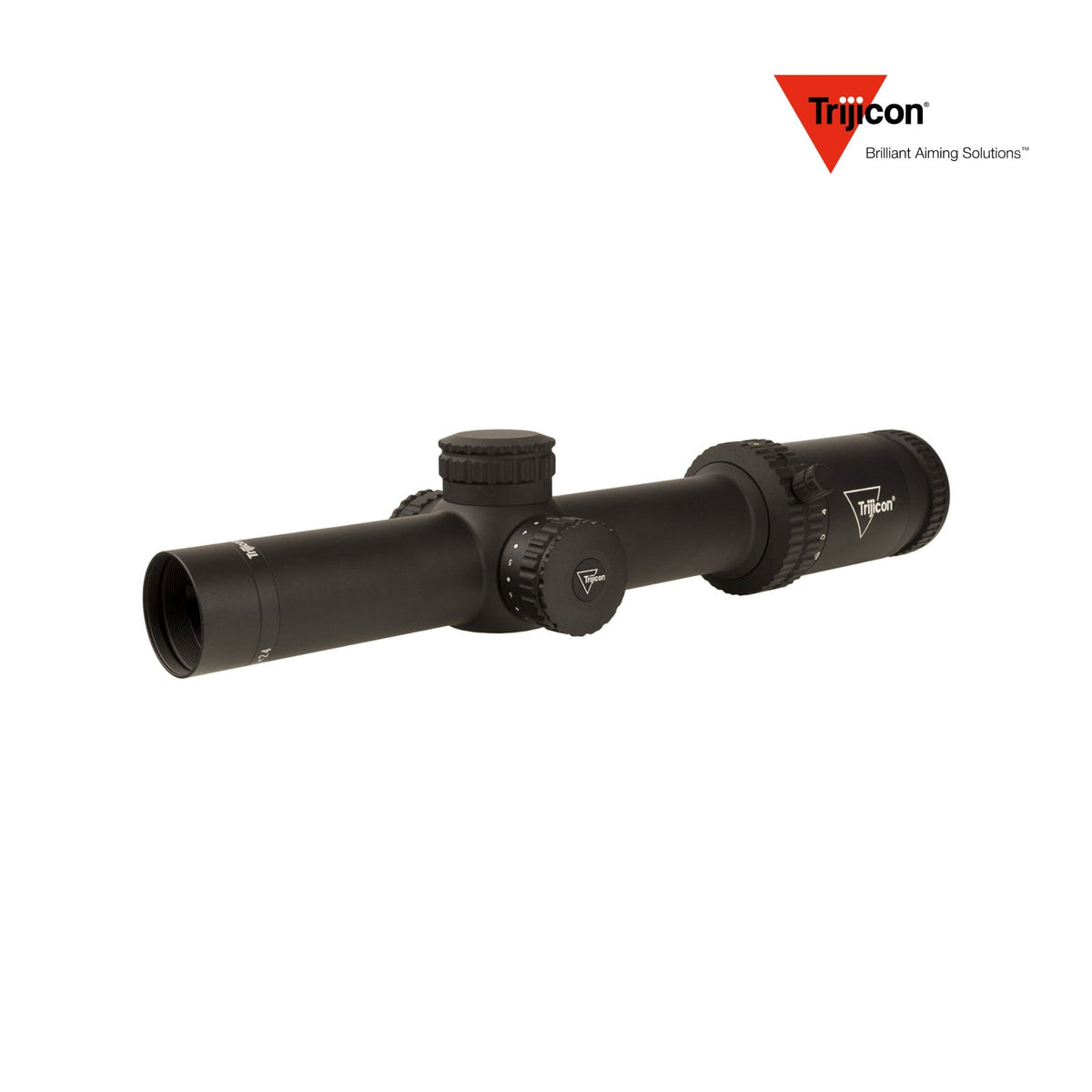

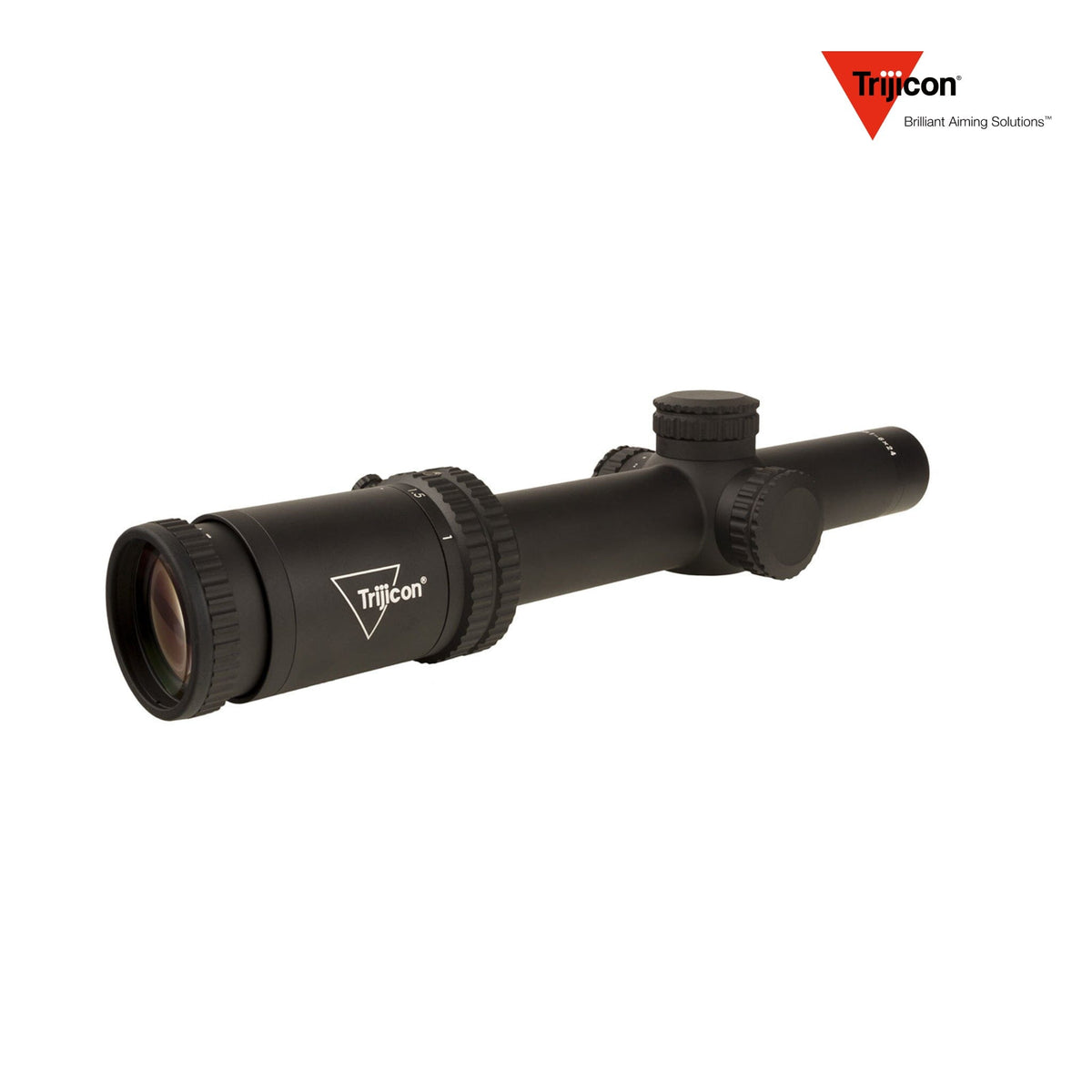

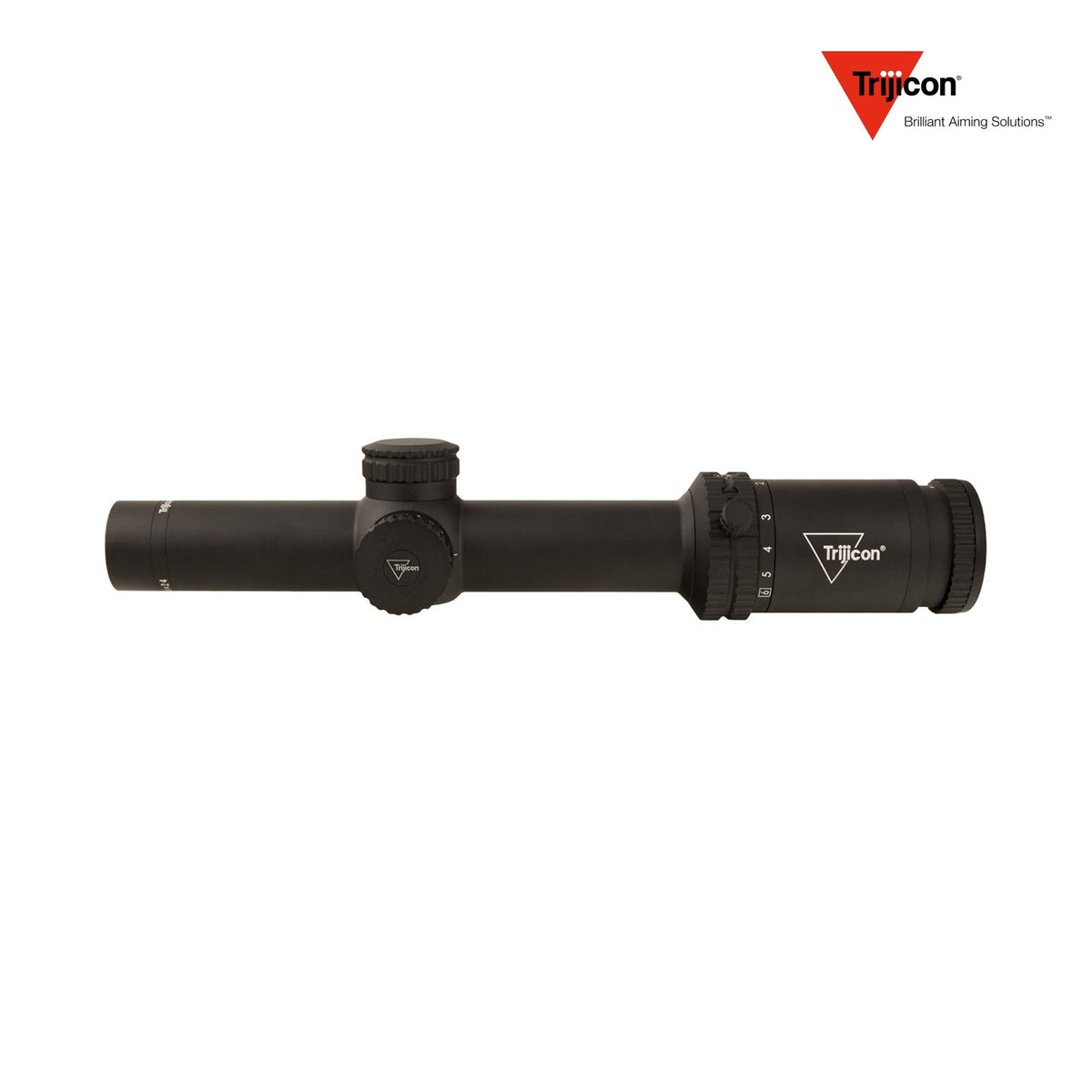

The Trijicon Credo 1-6x24 FFP LPVO Rifle Scope MRAD Segmented Circle Red (SKU CR624-C-2900023) is a 1-6x low power variable rifle scope with a first focal plane MRAD segmented circle reticle, red LED illumination on ten brightness settings, and 0.1 MRAD clicks.
How It Compares
This is the first focal plane MRAD unit of the Credo 1-6x24, in red. The same scope with green illumination is the Credo 1-6x24 FFP MRAD segmented circle in green. If you would rather have a second focal plane reticle with .223 ballistic holds built in, the SFP BDC segmented circle in red and the SFP BDC in green are calibrated for .223 with 55 gr bullets. At 1x the illuminated circle works like a red dot. Browse all LPVO rifle scopes, AR-15 optics or the full Trijicon optics range.
Ideal For
- AR-pattern and straight-pull carbine builds wanting true 1x at the bottom end
- Shooters working in mils who want holds and clicks in the same unit
- Practical and competition use where a bright segmented circle finds the target fast
Key Features
-
Reticle: MRAD Segmented Circle, first focal plane
-
Illumination: LED, 10 brightness settings with 'off' between each; 1x CR2032 (included). Battery life 68 hrs in red at setting 7/10
-
Turrets: 0.1 MRAD per click, 29.1 MRAD total travel
-
Weight: 18.3 oz (519 g) — the lightest of the Credo LPVOs
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1-6x |
| Objective |
24 mm |
| Focal Plane |
First Focal Plane (FFP) |
| Reticle |
MRAD Segmented Circle |
| Reticle Colour |
Red |
| Illumination |
LED, 10 brightness settings with 'off' between each; 1x CR2032 (included). Battery life 68 hrs in red at setting 7/10 |
| Click Value |
0.1 MRAD per click |
| Adjustment Range |
29.1 MRAD total travel |
| Parallax |
Fixed (non-adjustable) |
| Eye Relief |
3.5 - 3.9 in (89 - 99 mm) |
| Exit Pupil |
11.9 - 4.1 mm (0.47 - 0.16 in) |
| Field of View |
113.4 - 18.8 ft at 100 yards (37.8 - 6.3 m at 100 m); 21.4 - 3.58° |
| Length |
10.9 in (277 mm); L×W×H 10.9 × 2.8 × 2.0 in (277 × 71 × 51 mm) |
| Weight |
18.3 oz (519 g) |
| Housing |
6061 aircraft grade aluminium, matte black |
| Water Resistance |
Waterproof/fogproof |
| What's Included |
Bikini caps, Scopecoat, 3 mm hex key, repositionable magnification knob + replacement screw, 1 CR2032 battery, quick reference guide, warranty card, vinyl logo sticker |
| SKU / MPN / UPC |
CR624-C-2900023 / CR624-C-2900023 / 719307403673 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Is it first or second focal plane?
First — holdovers stay true at every magnification.
Is the reticle illuminated?
Yes — a red LED with 10 brightness settings and an off position between each, powered by one CR2032 (included), with about 68 hours at setting 7 of 10.
Does it have parallax adjustment?
No — parallax is fixed and non-adjustable.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. Electronics carry a five-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
