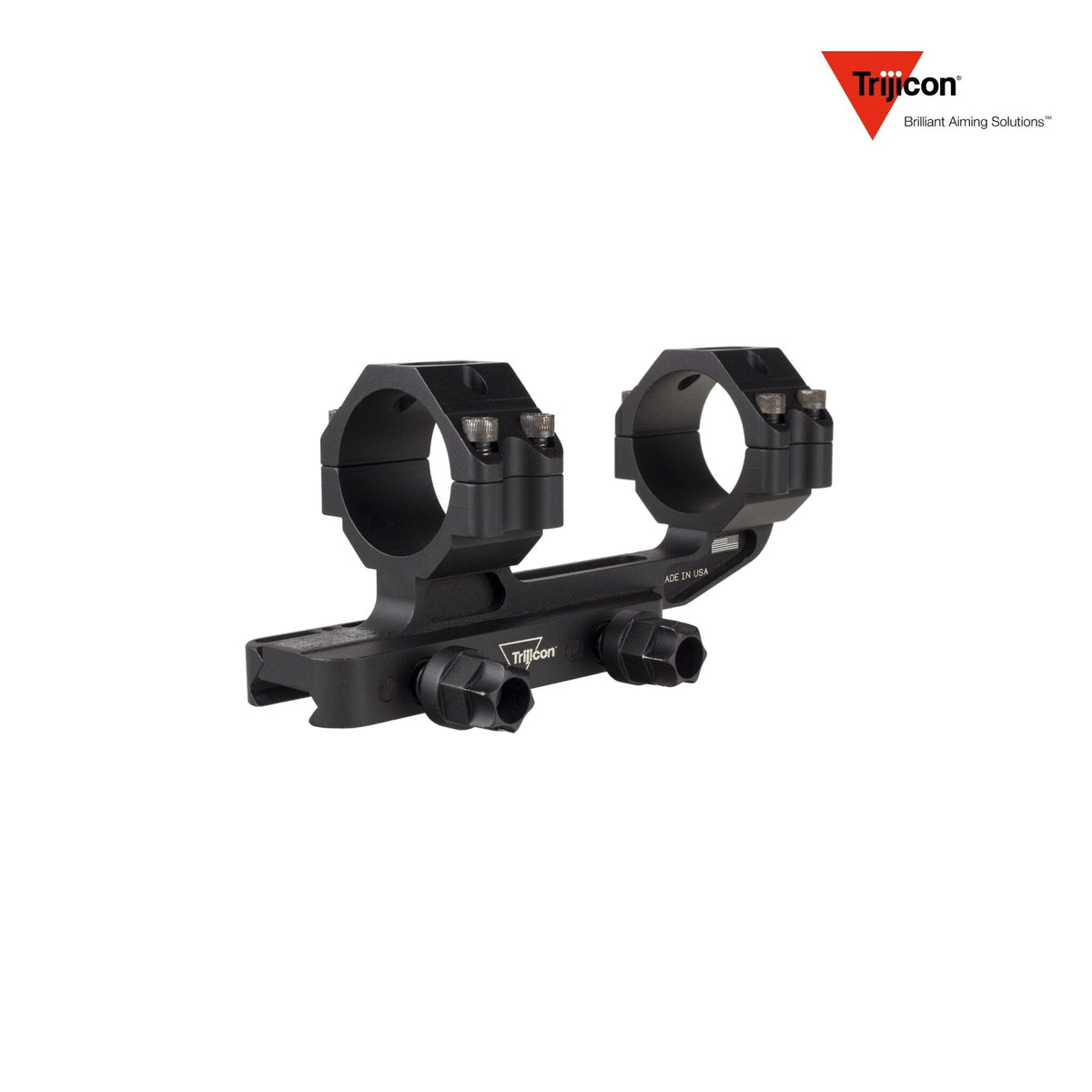

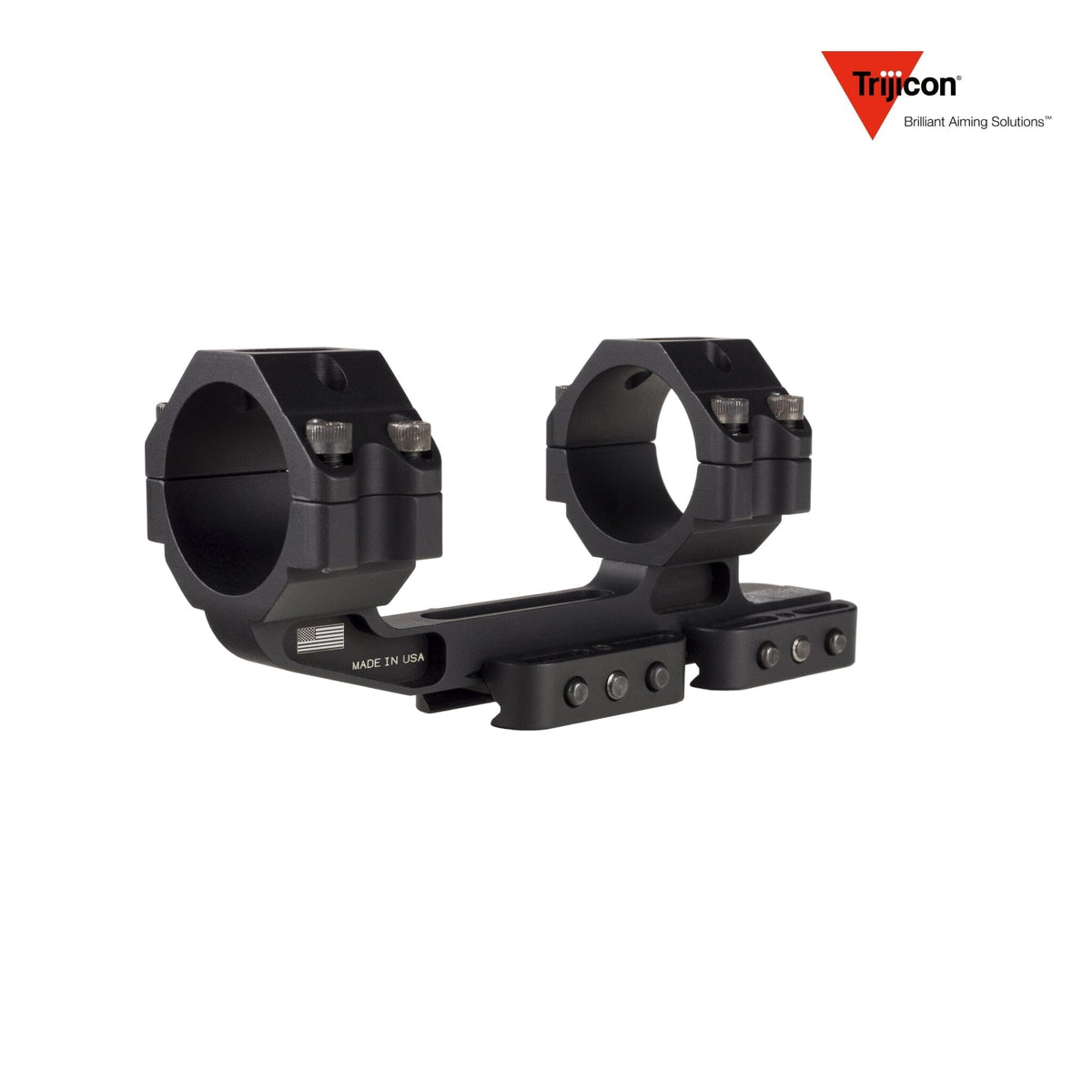

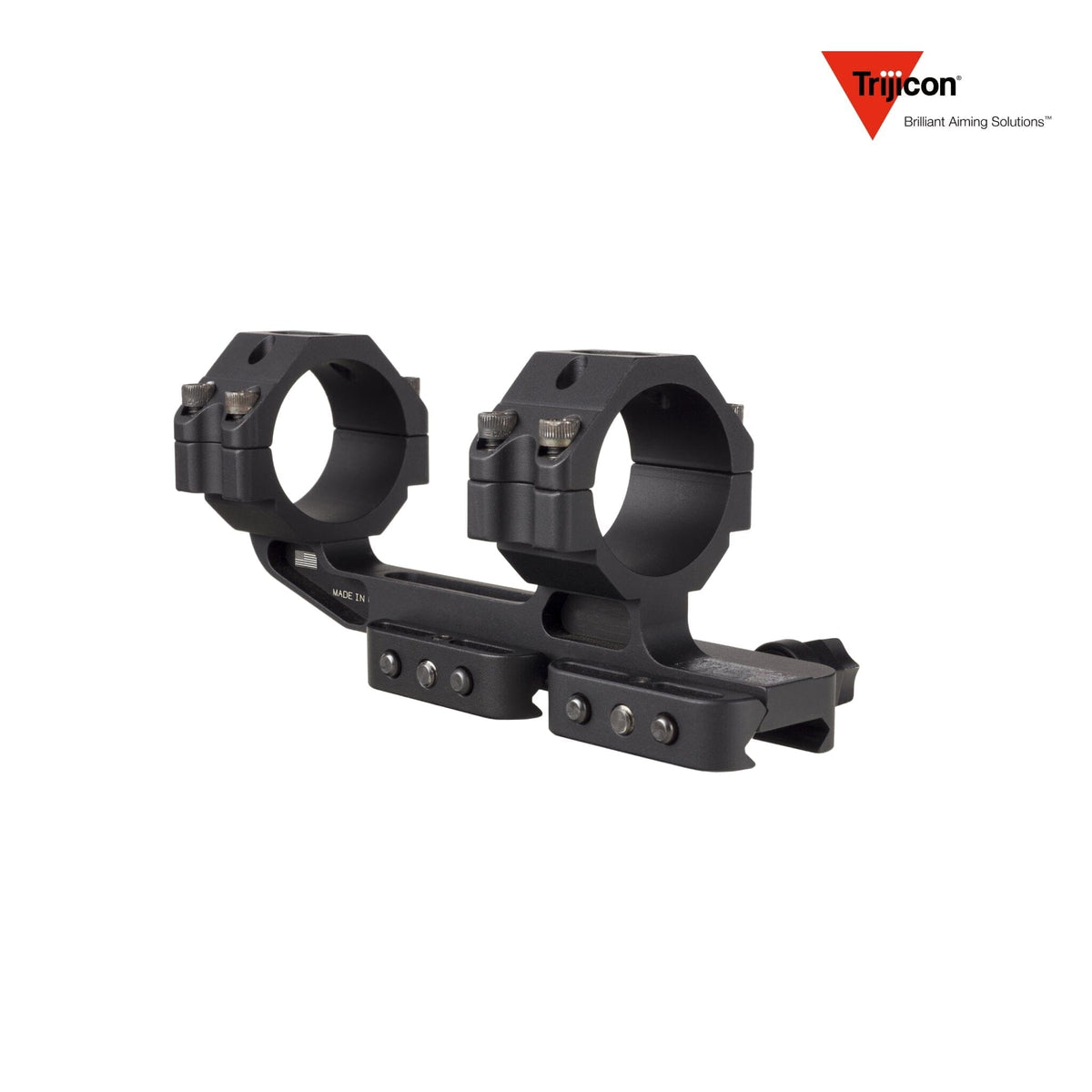

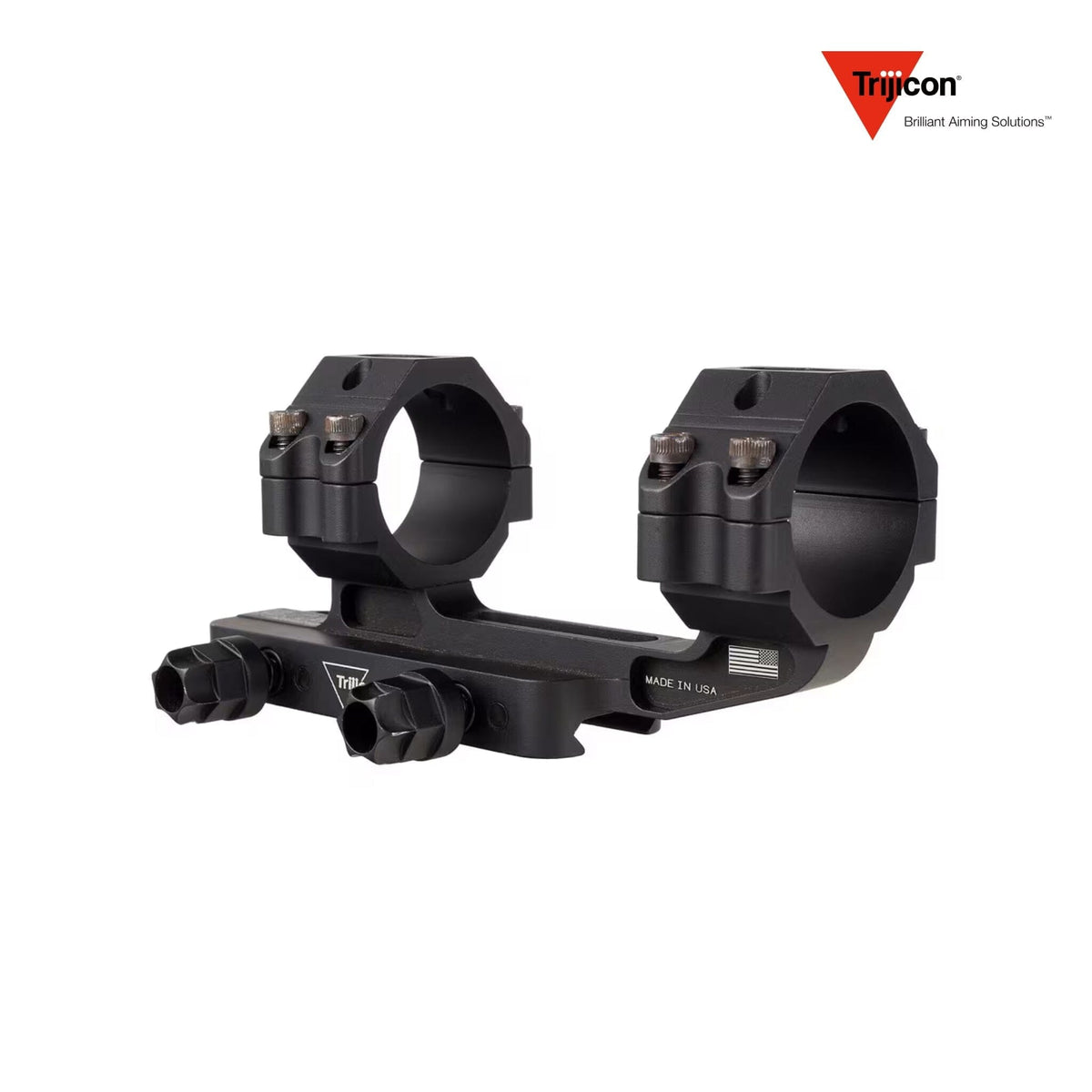

The Trijicon Q-LOC 30mm Cantilever Scope Mount 1.125in 20 MOA (SKU AC22049) is a one-piece cantilever scope mount for 30 mm tubes with 20 MOA of built-in elevation, using Trijicon's Q-LOC quick-release system, with the optical axis 1.125 in (29 mm) above the rail.
How It Compares
This is the low 20 MOA cantilever: 1.125 in (29 mm) rather than 1.535 in (39 mm), which suits a bolt-action or a rifle where you want the scope close to the bore and a low cheek weld. The taller version of the same mount is the Trijicon Q-LOC 30 mm cantilever mount, 1.535 in with 20 MOA, and the flat, no-bias option is the 1.535 in mount with no MOA. Browse all rifle scope mounts or the full Trijicon optics range.
Ideal For
- Bolt-action and precision rifles wanting the scope low over the bore
- Long-range shooting that needs elevation built into the mount
- Set-ups that come on and off the rail and must return to zero
Key Features
-
Fits: 30 mm scope tubes
-
Height: 1.125 in (29 mm) optical axis above the rail
-
Elevation Bias: 20 MOA built in
-
Attachment: Trijicon Q-LOC quick-release lever system
-
Material: 6061-T6 aluminium, matte black anodised
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Product Type |
One-piece cantilever scope mount |
| Ring Size |
30 mm |
| Height |
1.125 in (29 mm) optical axis |
| Elevation Bias |
20 MOA |
| Attachment |
Trijicon Q-LOC quick-release |
| Material |
6061-T6 aluminium |
| Finish |
Matte black anodised |
| SKU / MPN / UPC |
AC22049 / AC22049 / 719307618794 |
Warranty
Trijicon back this with their Limited Lifetime Warranty against defects in materials and workmanship for the lifetime of the original owner.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
What tube size does this mount take?
30 mm scope tubes. Tell us your scope model by email or message and we will confirm the fit before you order.
What does 20 MOA mean on a mount?
The mount is machined with a 20 MOA downward tilt relative to the bore, so more of the scope's elevation travel is left for dialling at distance rather than being used up reaching your zero.
How high does it sit?
The optical axis is 1.125 in (29 mm) above the rail, the lower of the two Trijicon Q-LOC cantilever heights.
Is this a genuine Trijicon product?
Yes — a factory Trijicon mount rather than an aftermarket copy, covered by Trijicon's Limited Lifetime Warranty.
