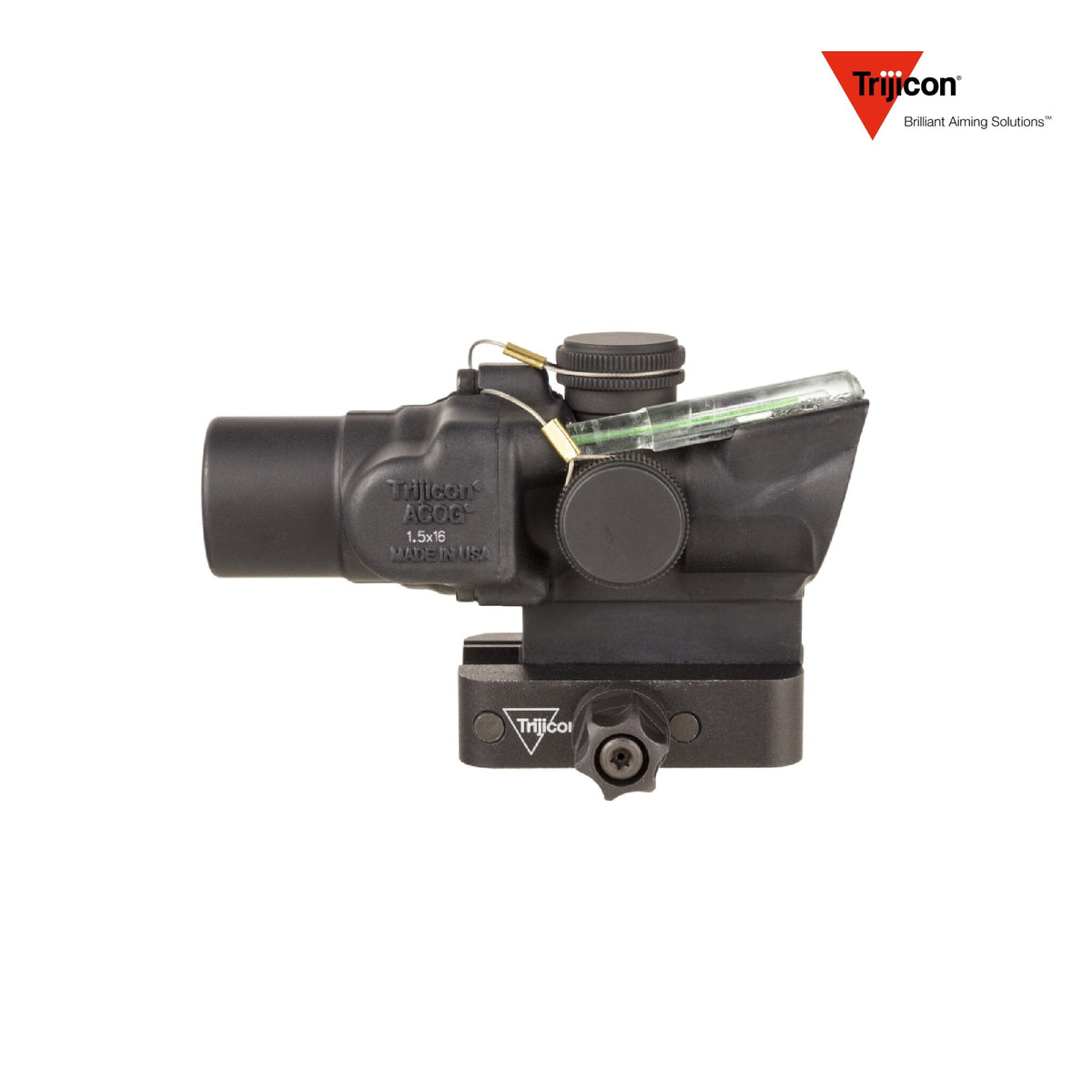

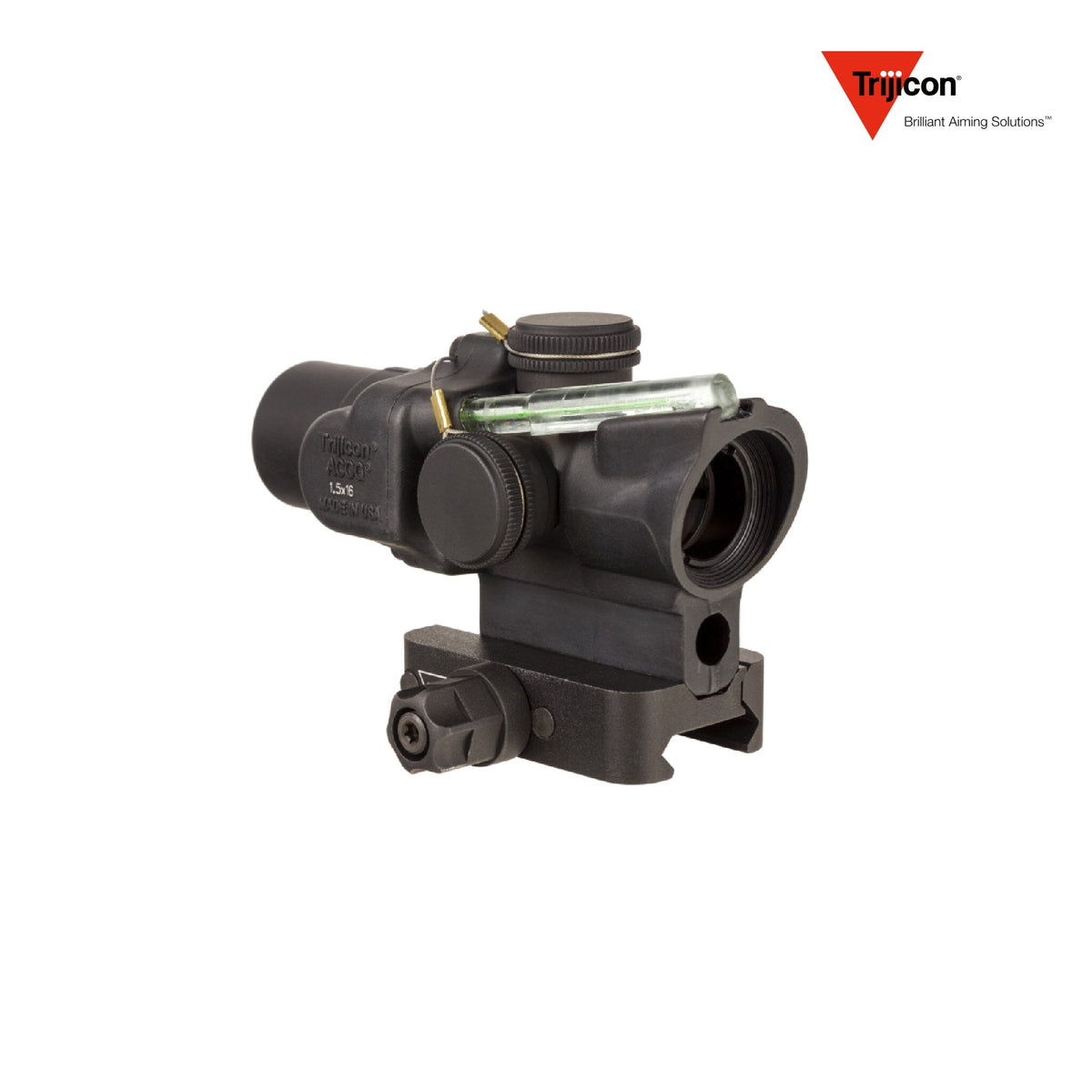

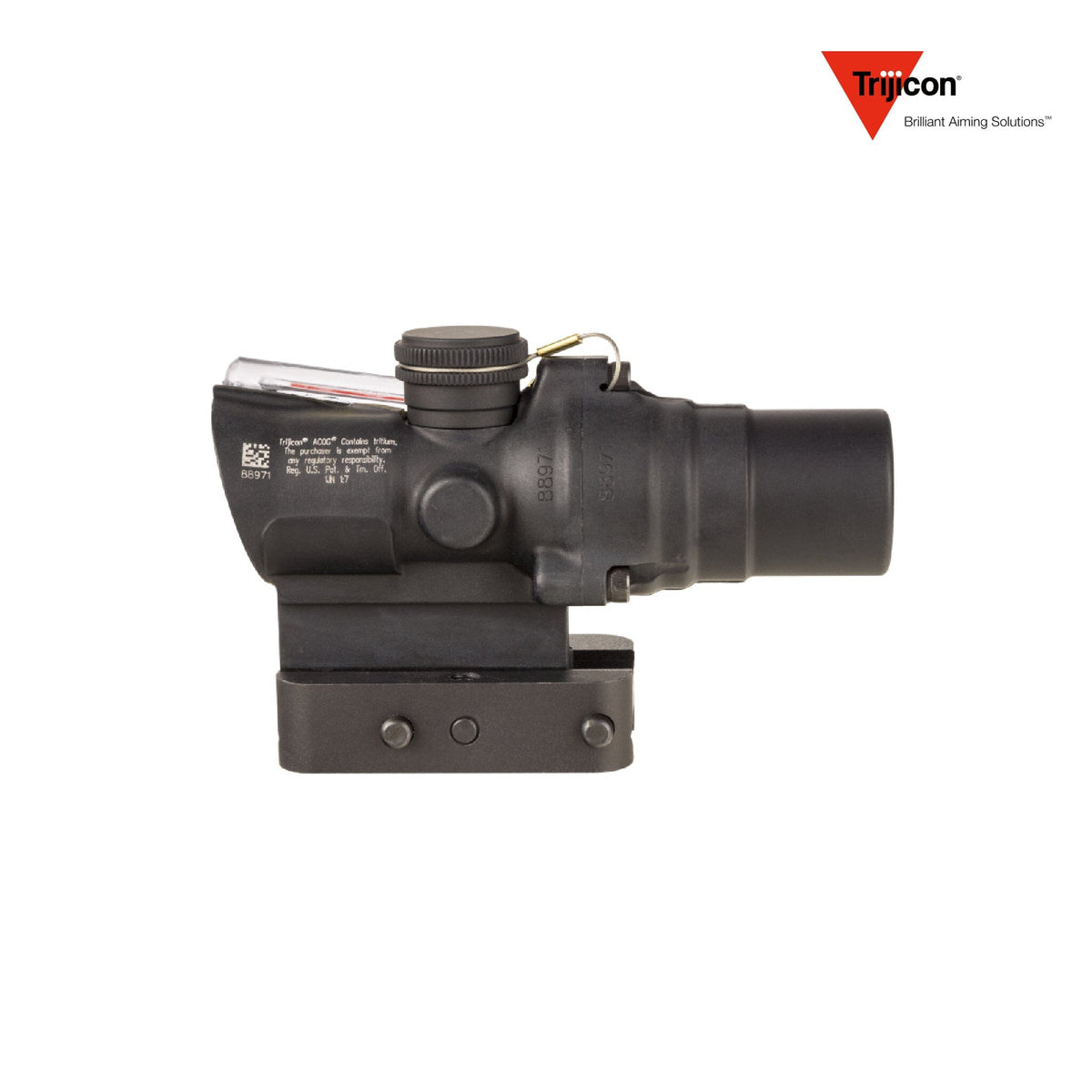

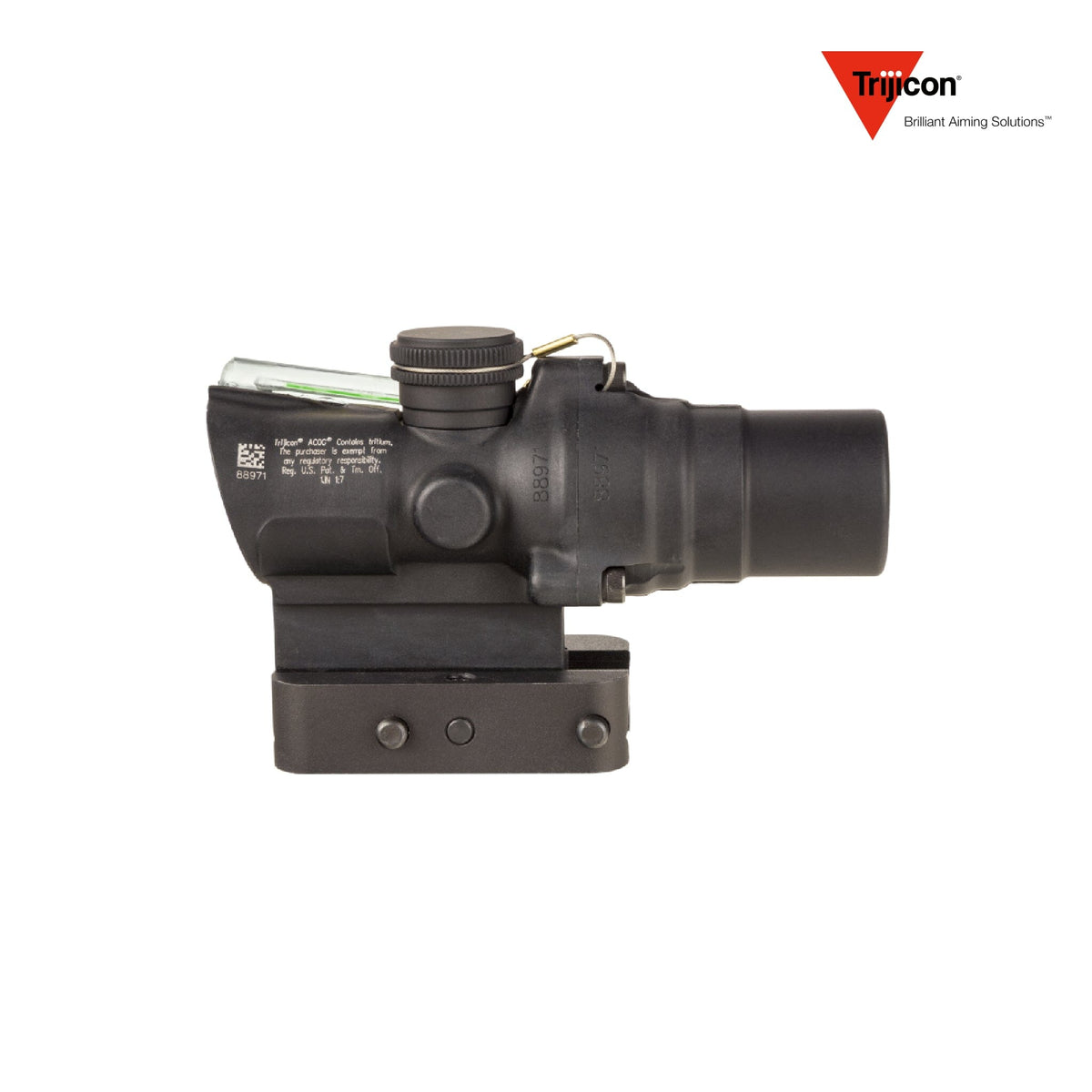

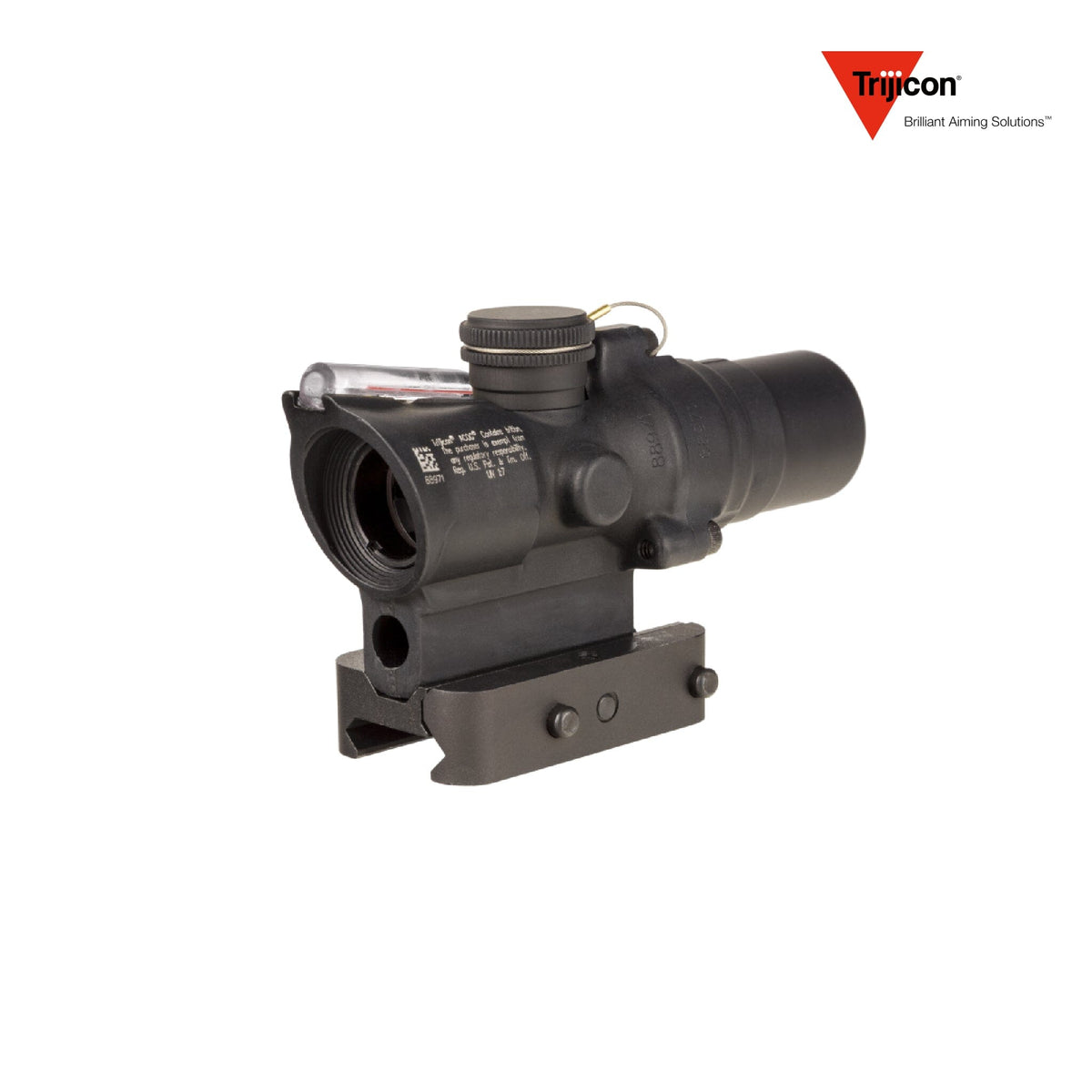

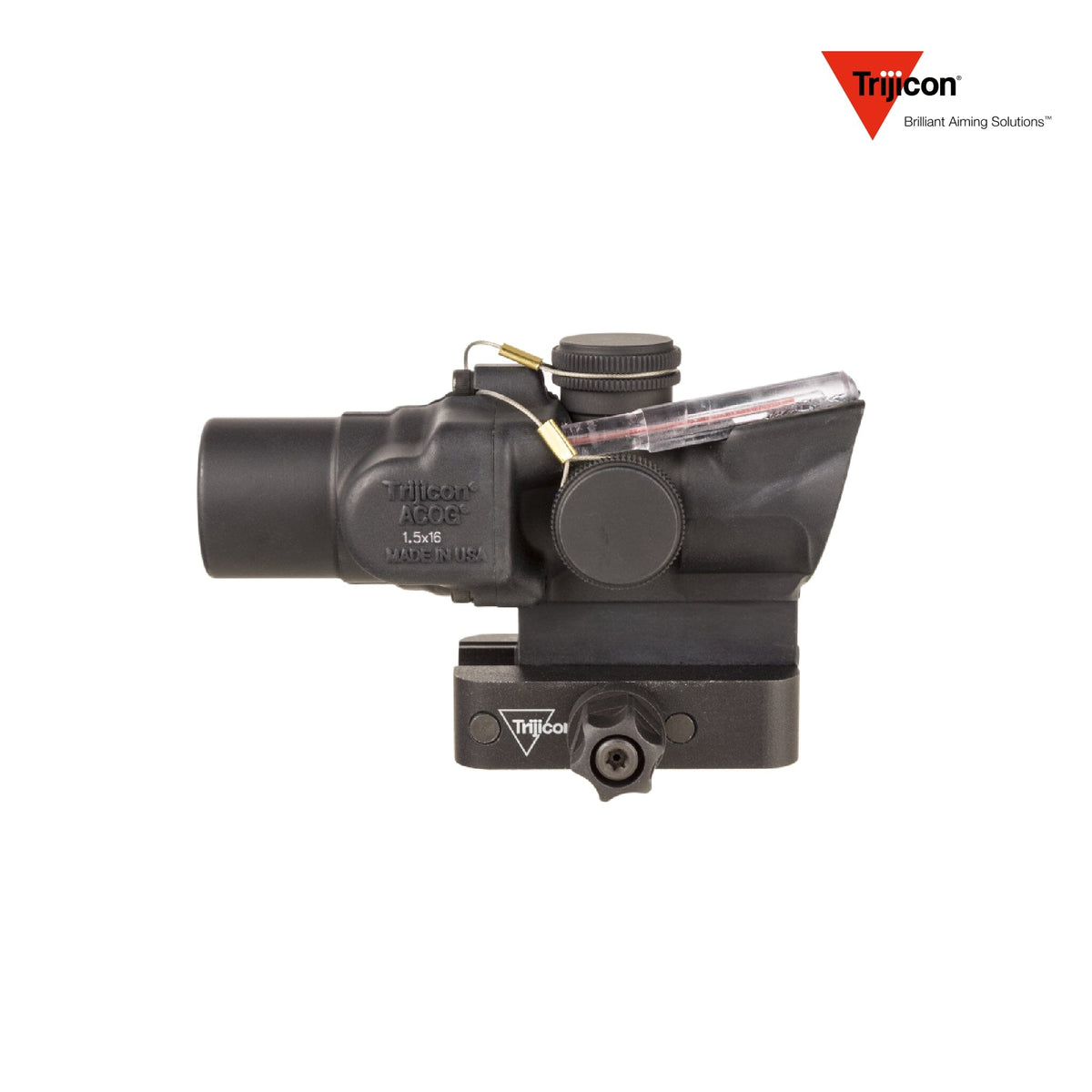

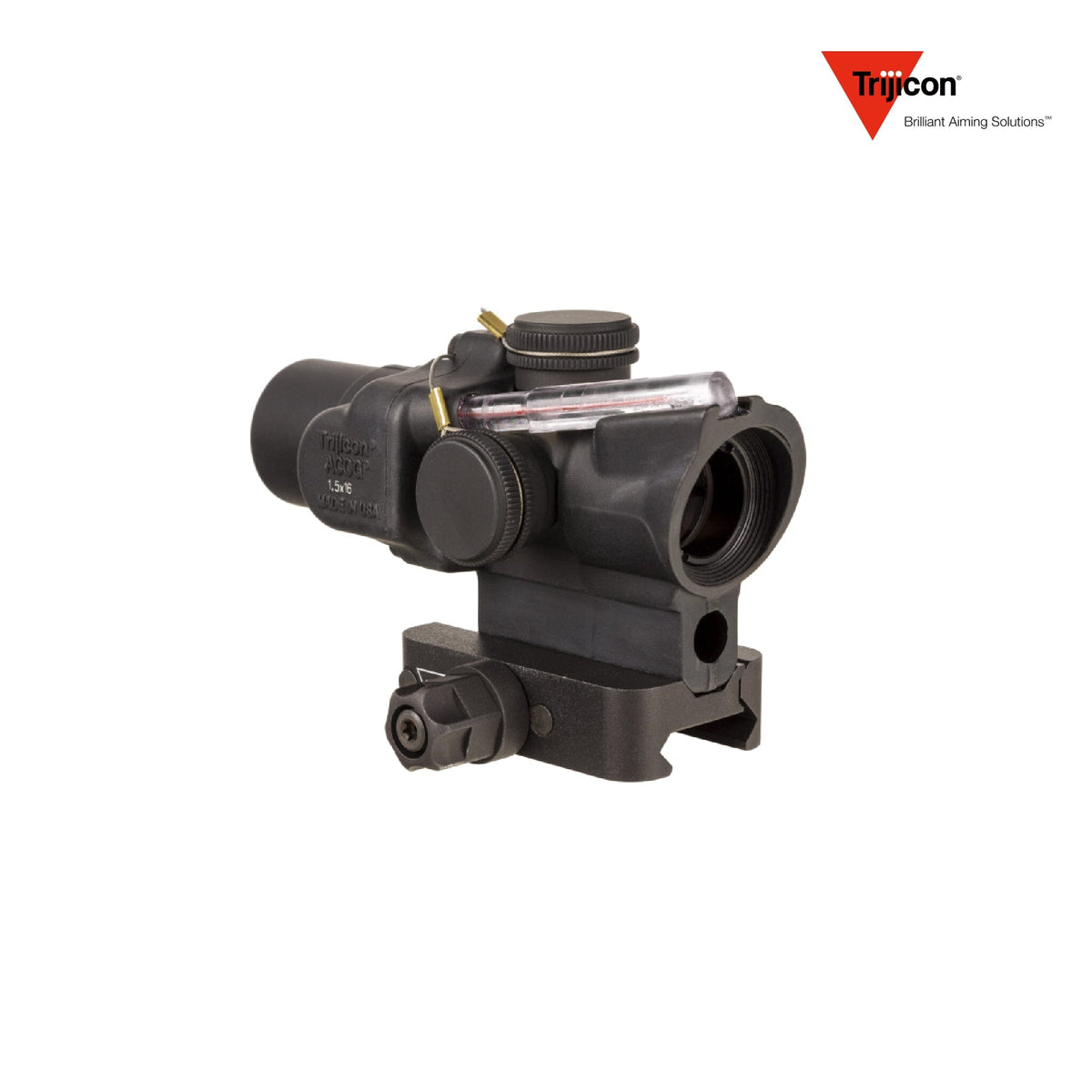

The Trijicon ACOG 1.5x16S Rifle Scope RTR .223 55gr Dual-Illuminated Red Reticle (SKU TA44-C-400390) is the smallest ACOG Trijicon build: 1.5x magnification, a 16 mm objective and a red Rapid Target Reticle with .223/55gr bullet drop marks, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares

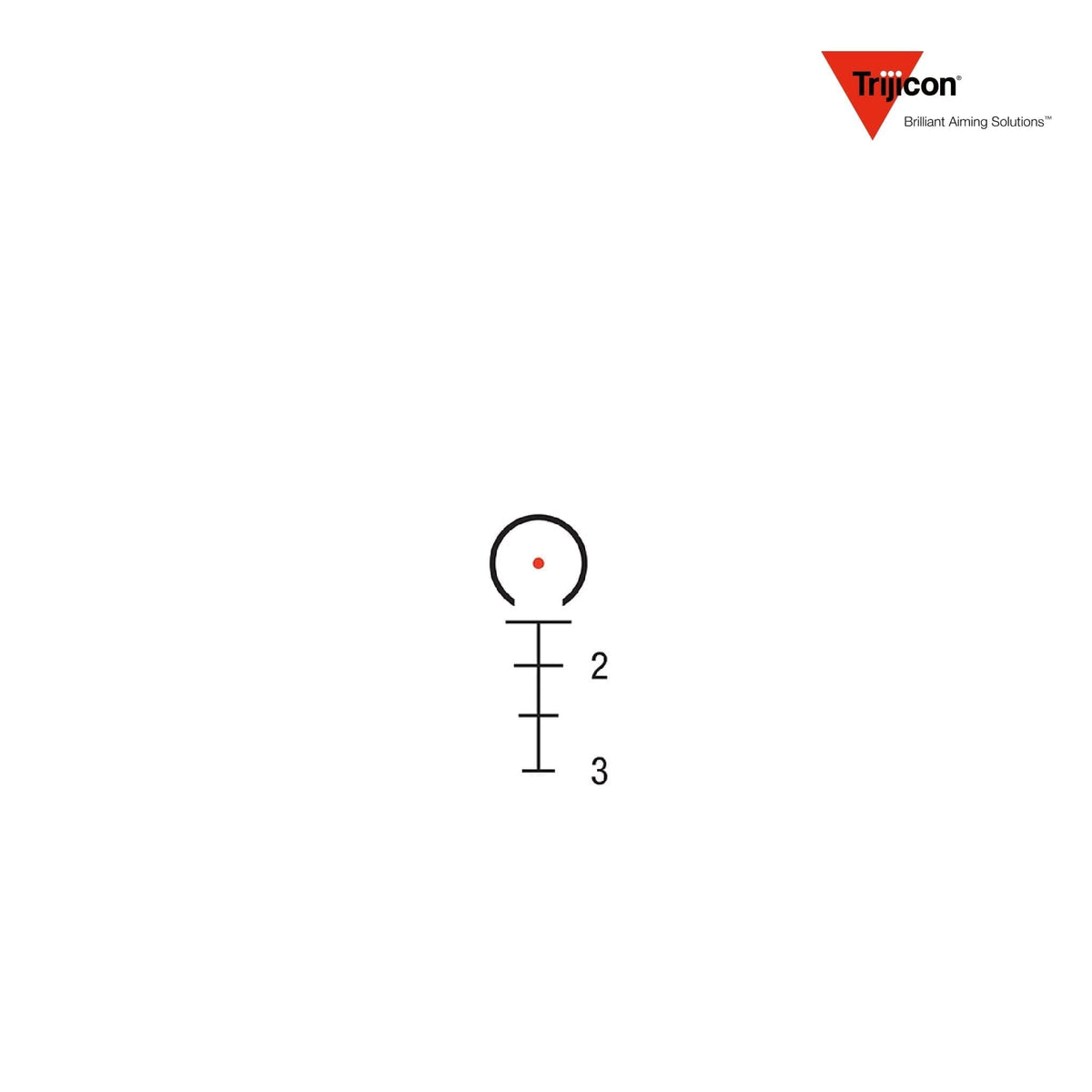

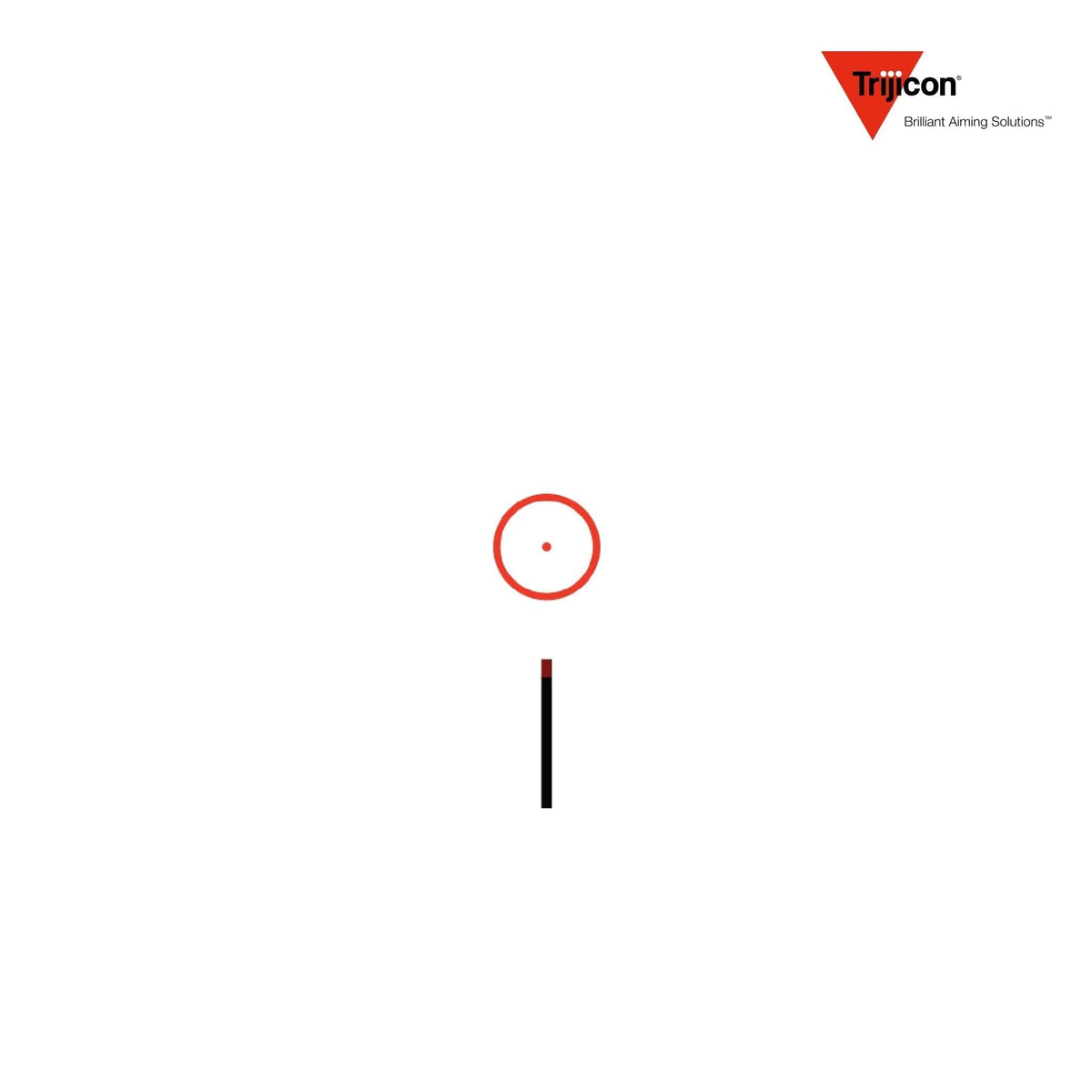

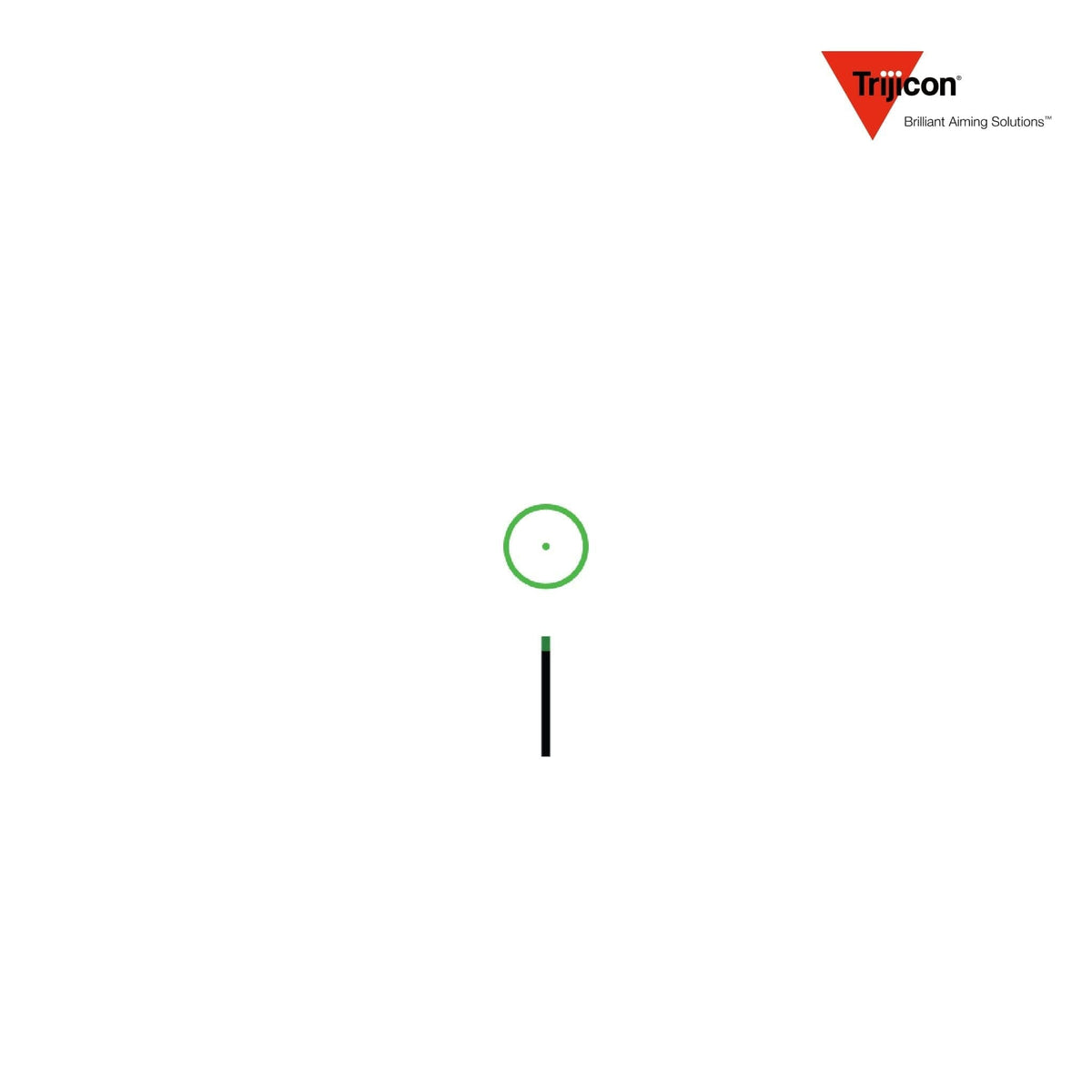

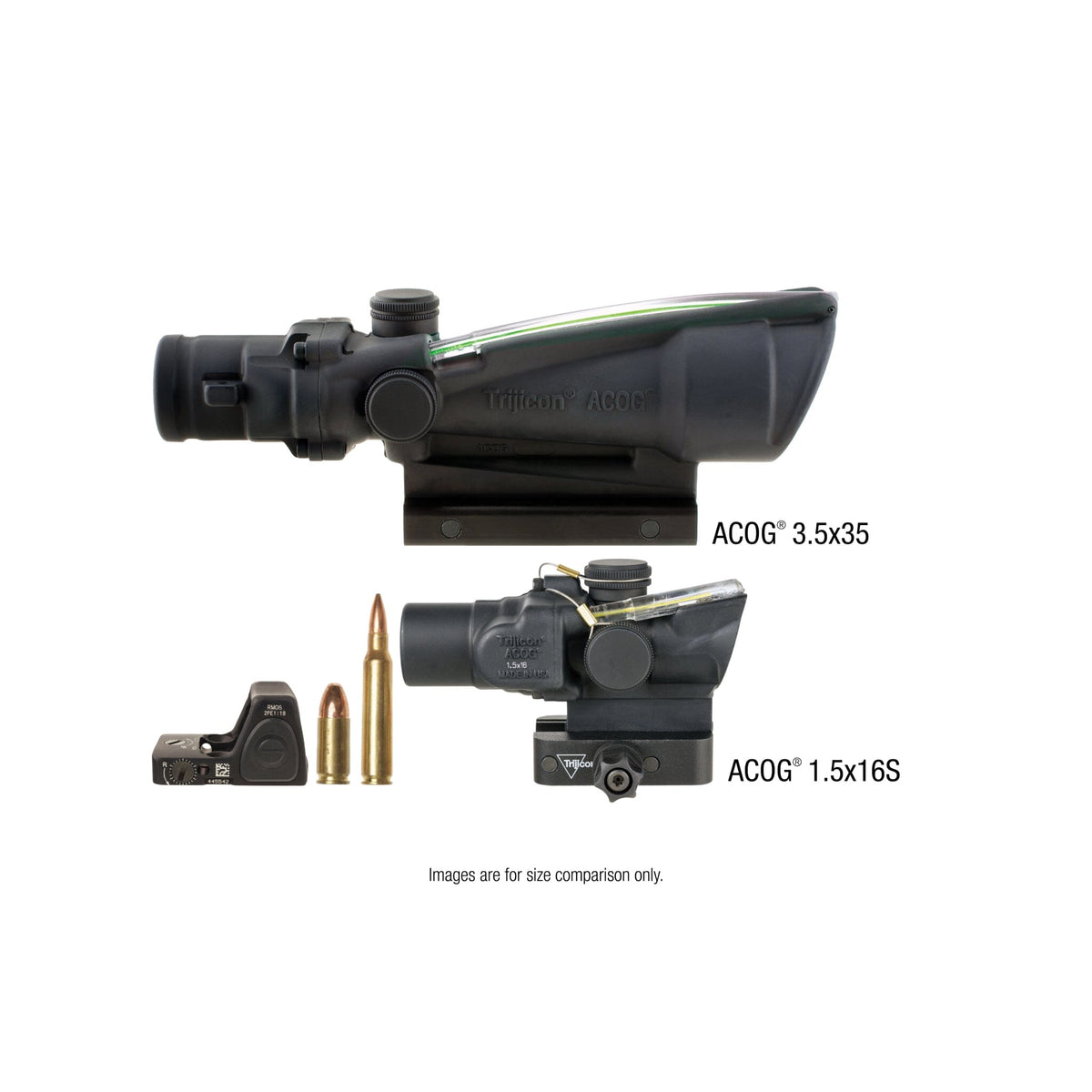

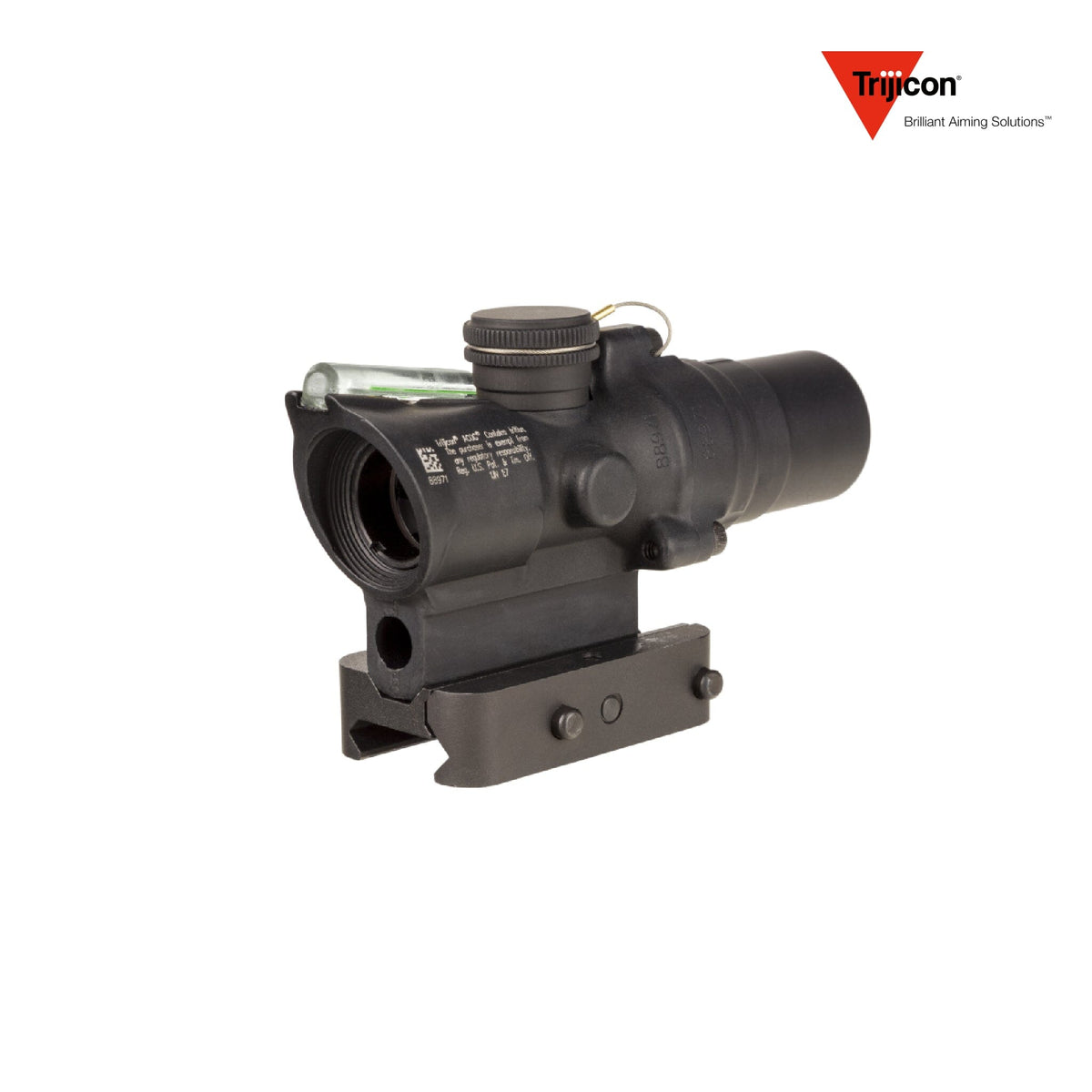

At 1.5x this is a close-quarters optic first and a magnified sight second, which is why the RTR reticle is built around a large ring for speed rather than a fine crosshair. The same body with a reticle cut for a 9mm carbine is the ACOG 1.5x16S RTR 9mm PCC, while the red ring with 2 MOA centre dot and the green ring with 2 MOA centre dot drop the bullet drop marks for a plain ring and dot. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- Close-quarters carbine work where speed matters more than magnification
- Shooters who want battery-free reliability with nothing to switch on
- Builds that need the optic off and back on again without losing zero, using the Q-LOC mount
Key Features
-
Reticle: Dual illuminated RTR (Rapid Target Reticle), .223 red
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .223 Remington / 55gr BDC
-
Mount: Trijicon Q-LOC quick-release Picatinny mount (removable)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1.5x fixed |
| Objective |
16 mm |
| Reticle |
Dual illuminated RTR (Rapid Target Reticle), .223 red |
| Calibre Calibration |
.223 Remington / 55gr BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.5 MOA per click |
| Eye Relief |
2.4 in (61 mm) |
| Exit Pupil |
0.42 in (10.7 mm) |
| Field of View |
39 ft at 100 yards (13 m at 100 m); 7.4° |
| Weight |
5.1 oz (145 g) without the mount; about 7.2 oz (204 g) with it |
| Housing |
Forged 7075-T6 aircraft-grade aluminium, matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (removable, not integrated) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Scopecoat, LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA44-C-400390 / TA44-C-400390 / 719307617209 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
.223 Remington with a 55gr bullet. The drop marks below the ring are cut for that load.
Does it come with a mount?
Yes — a Trijicon Q-LOC Technology quick-release Picatinny mount, which is removable rather than integrated.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What is an RTR reticle?
Rapid Target Reticle: a large illuminated ring for fast both-eyes-open aiming, with a centre aiming point and bullet drop marks beneath it.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
