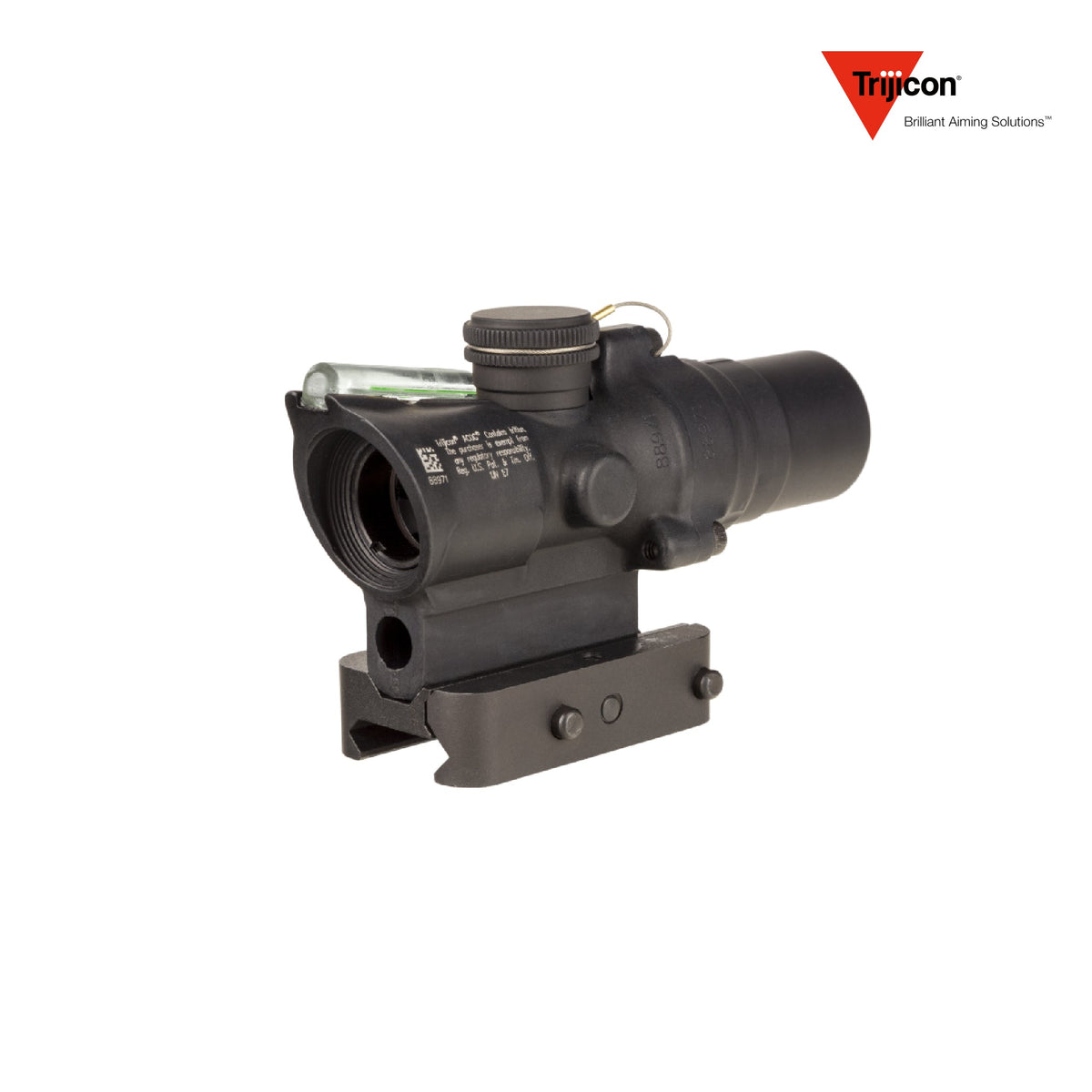

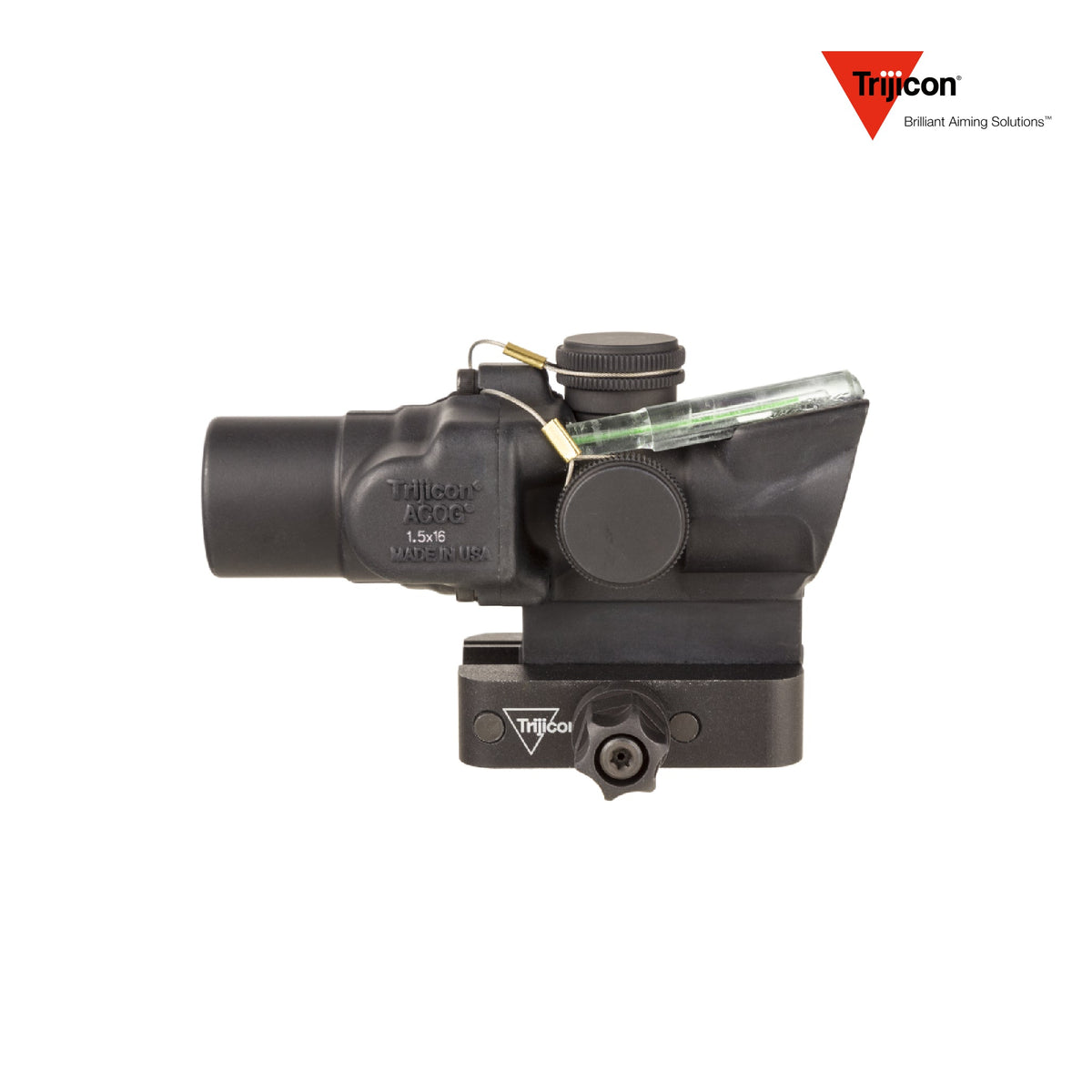

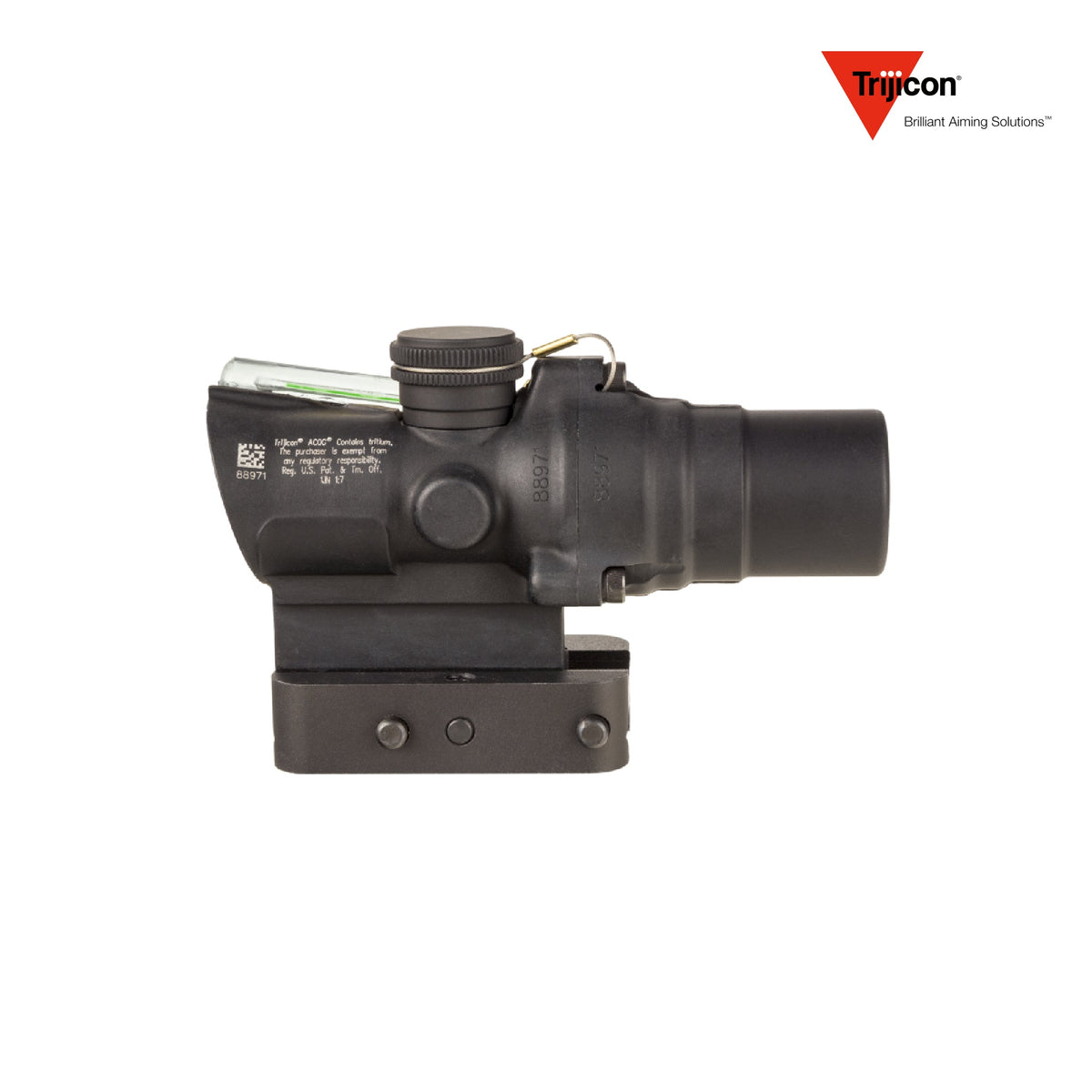

The Trijicon ACOG 1.5x16S Rifle Scope Ring & 2 MOA Dot Dual-Illuminated Green Reticle (SKU TA44-C-400329) is the smallest ACOG Trijicon build: 1.5x magnification, a 16 mm objective and a green ring with a 2 MOA centre dot, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
Green tends to be the easier lamp to pick out against woodland and foliage, red the easier against snow and pale ground; the red ring with 2 MOA centre dot is otherwise the identical optic. The ring and dot carries no drop marks, so nothing ties it to one load — for holds cut to a cartridge, the ACOG 1.5x16S RTR .223 and the ACOG 1.5x16S RTR 9mm PCC add bullet drop marks. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- Woodland and foliage backgrounds where a green lamp stands out better than red
- Shooters running loads or cartridges that no factory BDC reticle matches
- Builds that need the optic off and back on again without losing zero, using the Q-LOC mount
Key Features
-

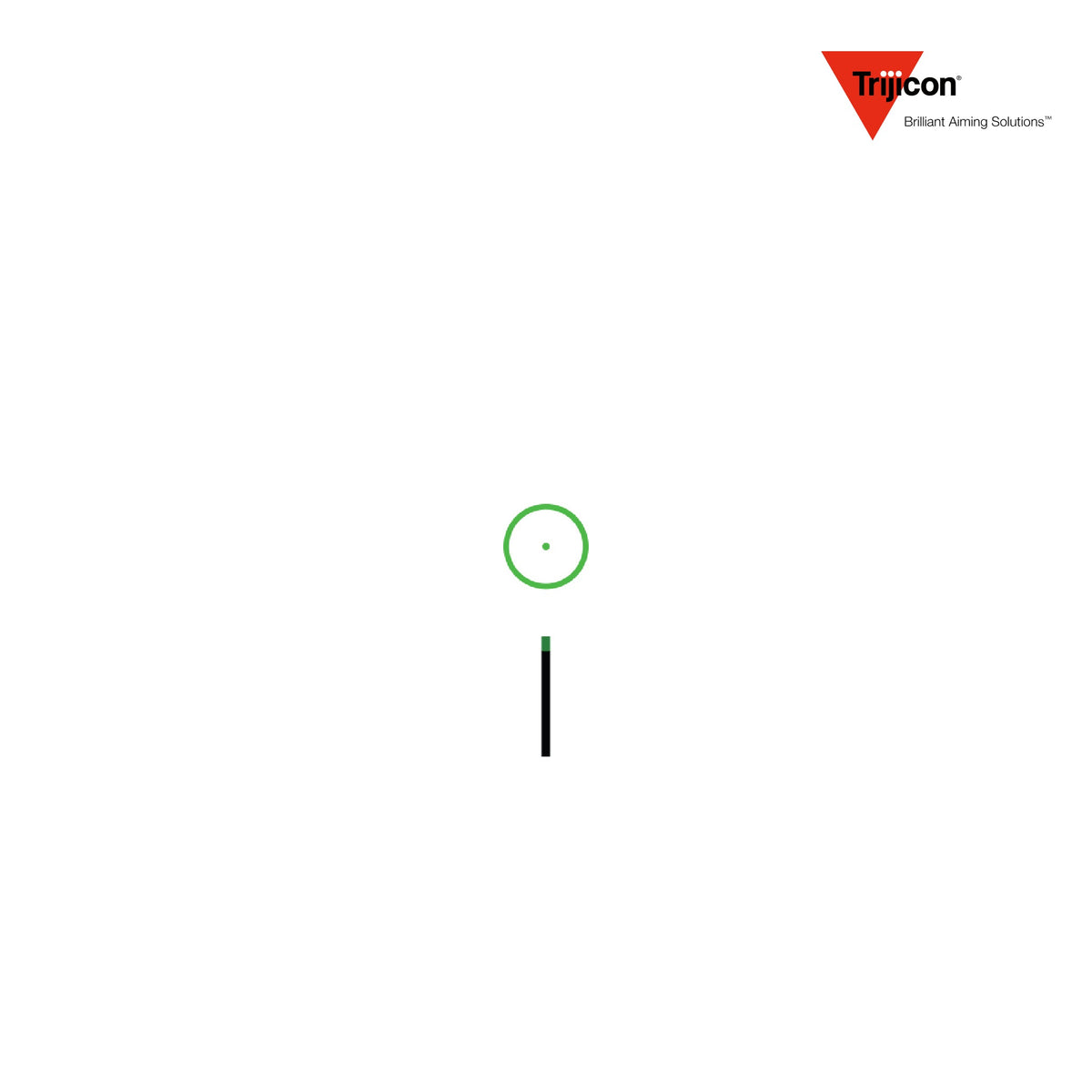

Reticle: Dual illuminated green ring with 2 MOA centre dot
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: None - the ring and dot carries no bullet drop compensation
-
Mount: Trijicon Q-LOC quick-release Picatinny mount (removable)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1.5x fixed |
| Objective |
16 mm |
| Reticle |
Dual illuminated green ring with 2 MOA centre dot |
| Calibre Calibration |
None - the ring and dot carries no bullet drop compensation |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.5 MOA per click |
| Eye Relief |
2.4 in (61 mm) |
| Exit Pupil |
0.42 in (10.7 mm) |
| Field of View |
39 ft at 100 yards (13 m at 100 m); 7.4° |
| Weight |
5.1 oz (145 g) without the mount; about 7.2 oz (204 g) with it |
| Housing |

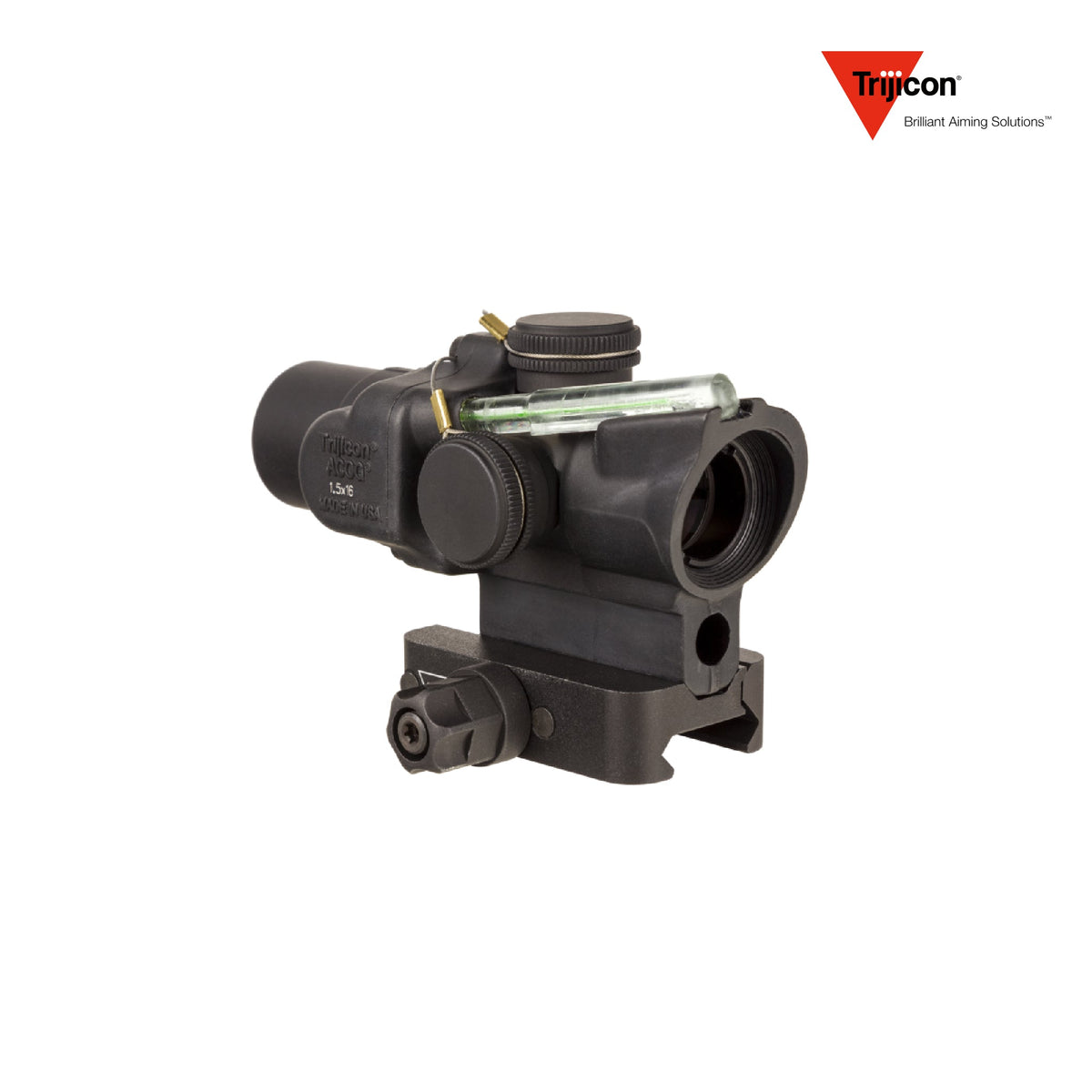

Forged 7075-T6 aircraft-grade aluminium, matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (removable, not integrated) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Scopecoat, LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA44-C-400329 / TA44-C-400329 / 719307313880 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
None — the ring and dot has no bullet drop compensation, so it is not tied to a cartridge or a load.
Why choose green over red?
Green tends to stand out better against woodland and foliage, red against snow and pale ground. The two optics are otherwise identical.
How big is the centre dot?
2 MOA, which is about 2 in at 100 yards (5.6 cm at 100 m).
Does it come with a mount?
Yes — a Trijicon Q-LOC Technology quick-release Picatinny mount, which is removable rather than integrated.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
