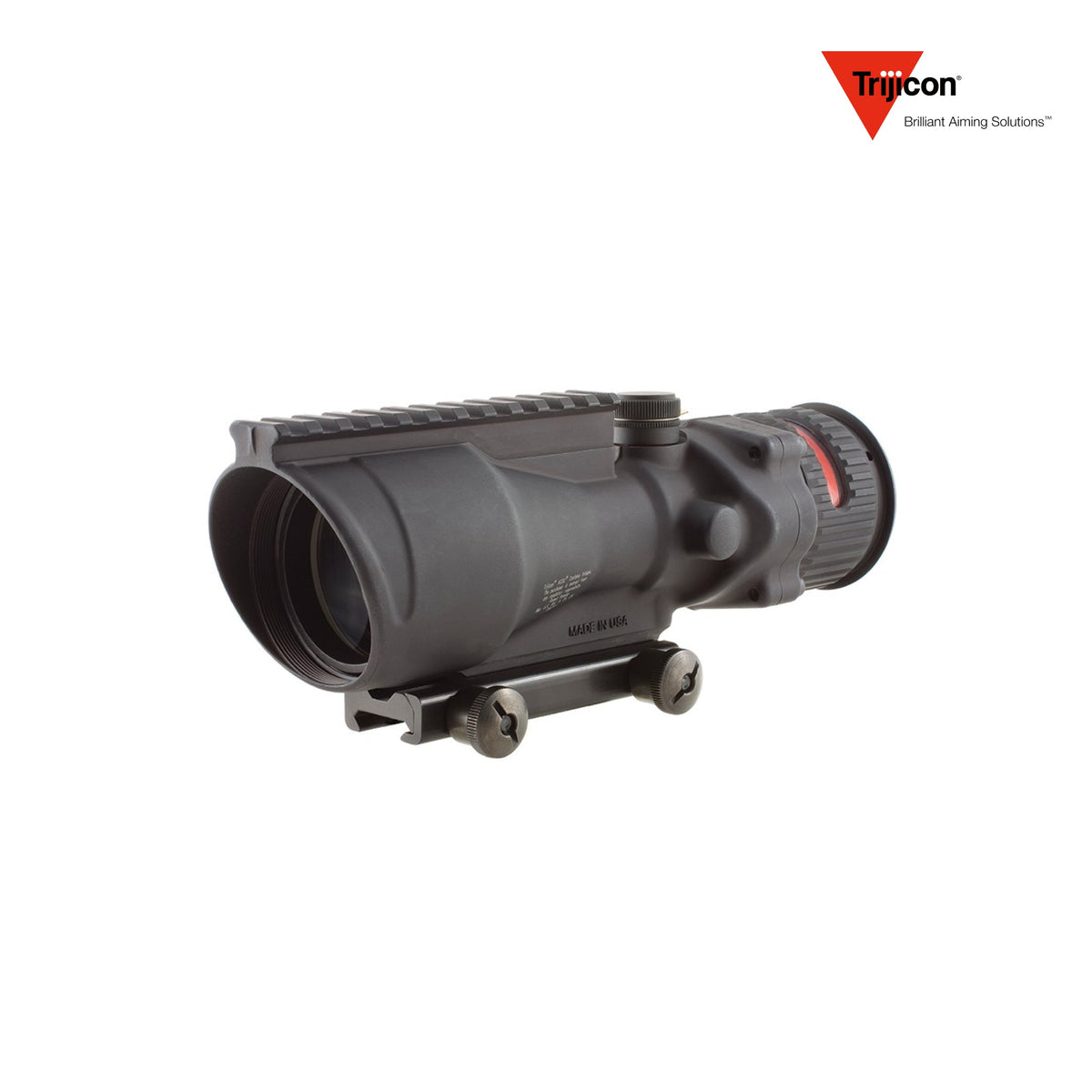

The Trijicon ACOG 6x48 Rifle Scope Horseshoe/Dot .308 Red Reticle (SKU TA648-308H) is the long-range ACOG: fixed 6x magnification, a 48 mm objective and a red horseshoe and dot bullet drop compensating reticle cut for .308 Winchester and 7.62 NATO, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
The horseshoe is the difference here: where the chevron gives a fine point of aim, the horseshoe is a shape the eye finds faster, which takes some of the sting out of a fixed 6x optic at closer range. The red chevron and the green chevron are the finer-aiming-point versions of the same 6x48, the red chevron with a factory-fitted RMR solves the close-range problem with a separate red dot instead, and the green M240 horseshoe dot is cut for the machine gun. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- .308 and 7.62 NATO rifles that need reach but still see close work
- Shooters who find a horseshoe quicker to pick up than a chevron
- Open country and pale backgrounds where a red lamp reads more clearly than green
Key Features
-
Reticle: Red Horseshoe/Dot BDC, dual illuminated
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .308 / 7.62 NATO BDC
-
Turrets: 4 clicks per inch at 100 yards (about 0.25 MOA per click)
-
Mount: TA75 Picatinny rail adapter with Colt-style thumbscrews (included)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
6x fixed |
| Objective |
48 mm |
| Reticle |
Red Horseshoe/Dot BDC, dual illuminated |
| Calibre Calibration |
.308 / 7.62 NATO BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
4 clicks per inch at 100 yards (about 0.25 MOA per click) |
| Eye Relief |
2.7 in (69 mm) |
| Exit Pupil |
0.32 in (8.1 mm) |
| Field of View |
17 ft at 100 yards (5.7 m at 100 m); 3.3° |
| Length |
9 in (229 mm); L×W×H 9 × 2.9 × 3.4 in (229 × 74 × 86 mm) |
| Weight |
36.9 oz (1,046 g) |
| Housing |
Forged aluminium, matte black |
| Mount |
TA75 Picatinny rail adapter with Colt-style thumbscrews (included) |
| Water Resistance |
Waterproof to 66 ft (20 m); dry-nitrogen filled |
| What's Included |
ACOG, TA75 Picatinny rail adapter, LensPen (TA56), lanyard assembly for adjuster caps (TA107), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA648-308H / TA648-308H / 719307303089 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
.308 Winchester and 7.62 NATO. The stadia below the horseshoe are the drop holds for that cartridge.

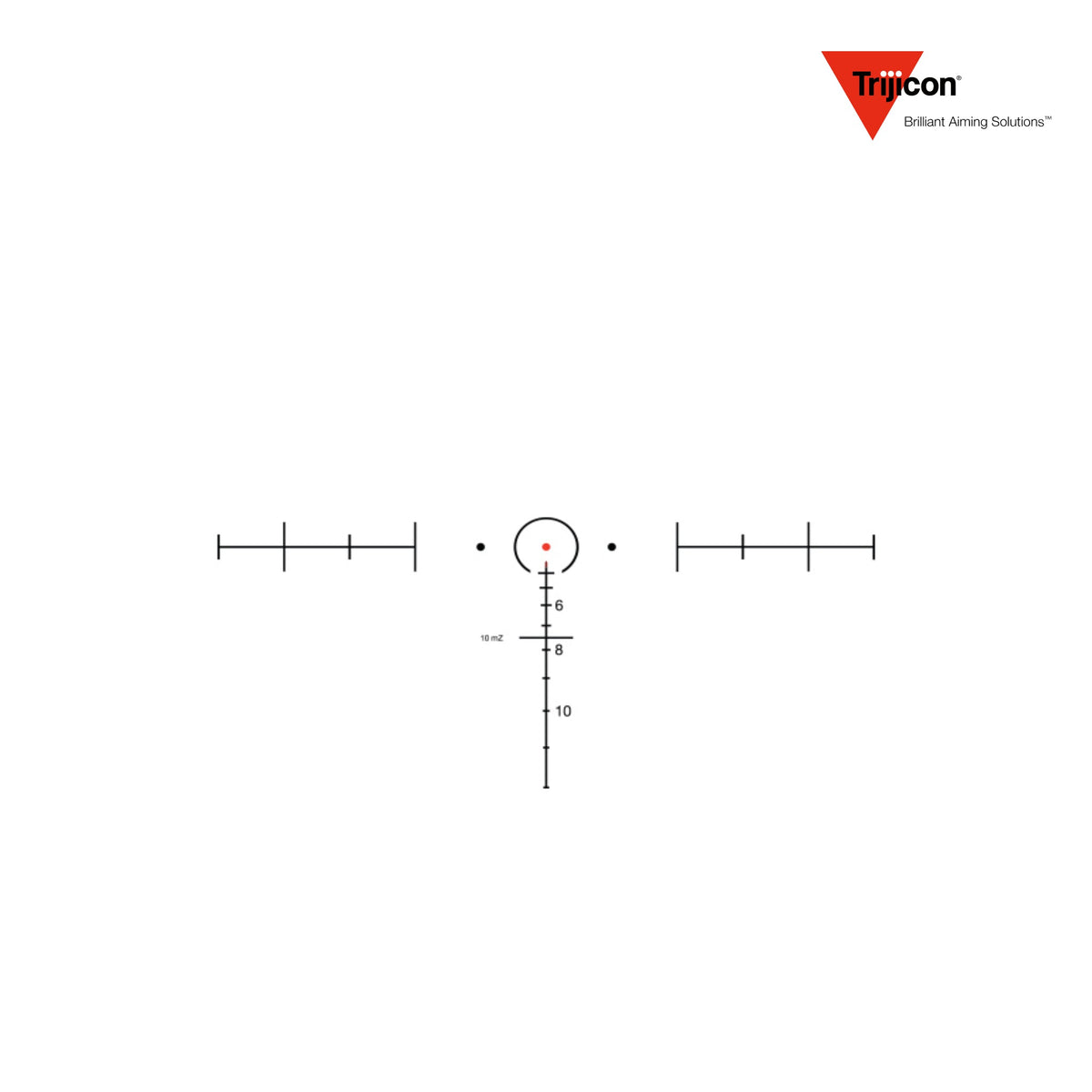

Where do I aim with a horseshoe and dot?
The dot in the middle of the horseshoe is the aiming point. The horseshoe itself is there to catch the eye quickly at close range.
Does it come with a mount?
Yes — a TA75 Picatinny rail adapter with Colt-style thumbscrews is included.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
How heavy is it?
36.9 oz (1,046 g). This is the biggest ACOG Trijicon build, and it is a substantial weight on a rifle.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
