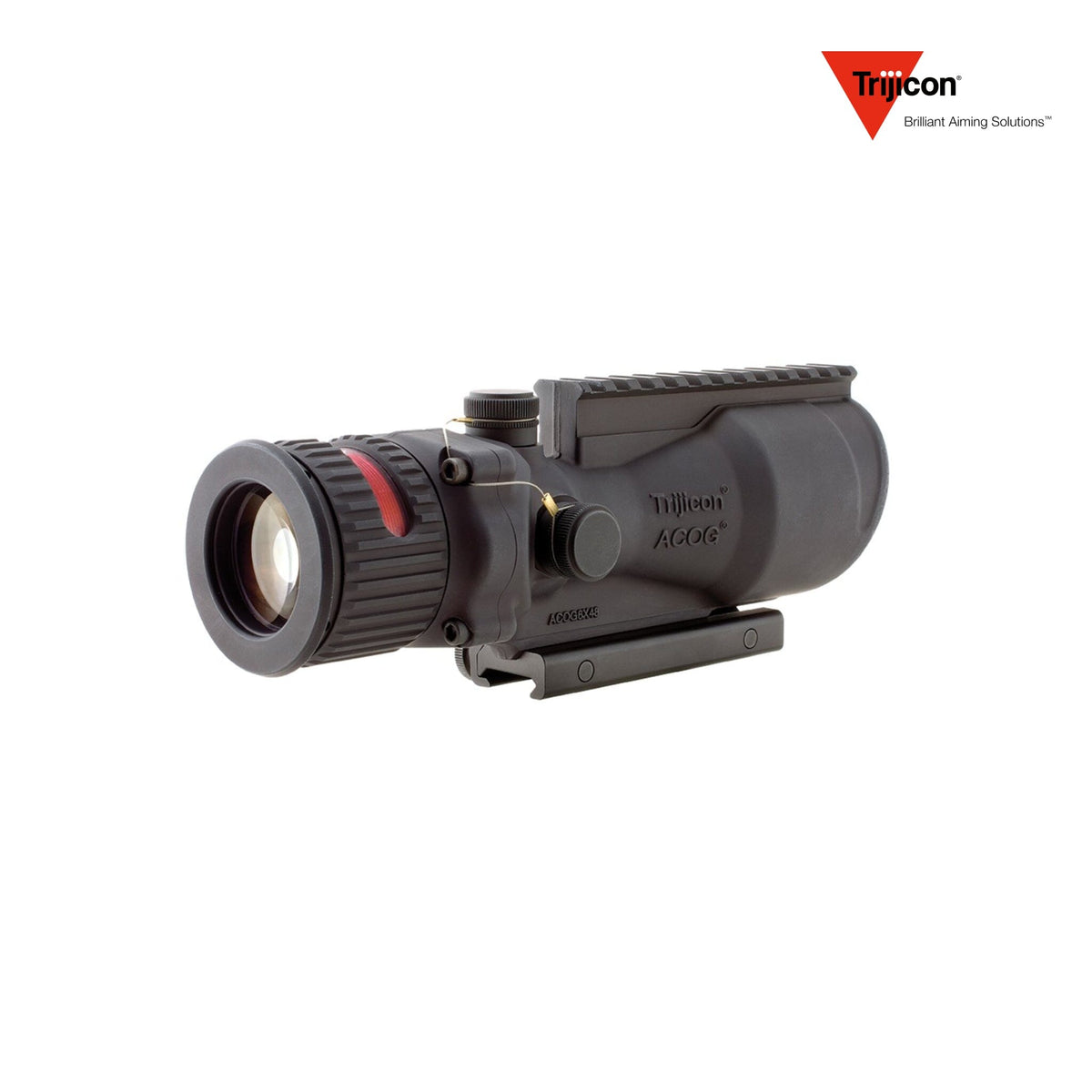

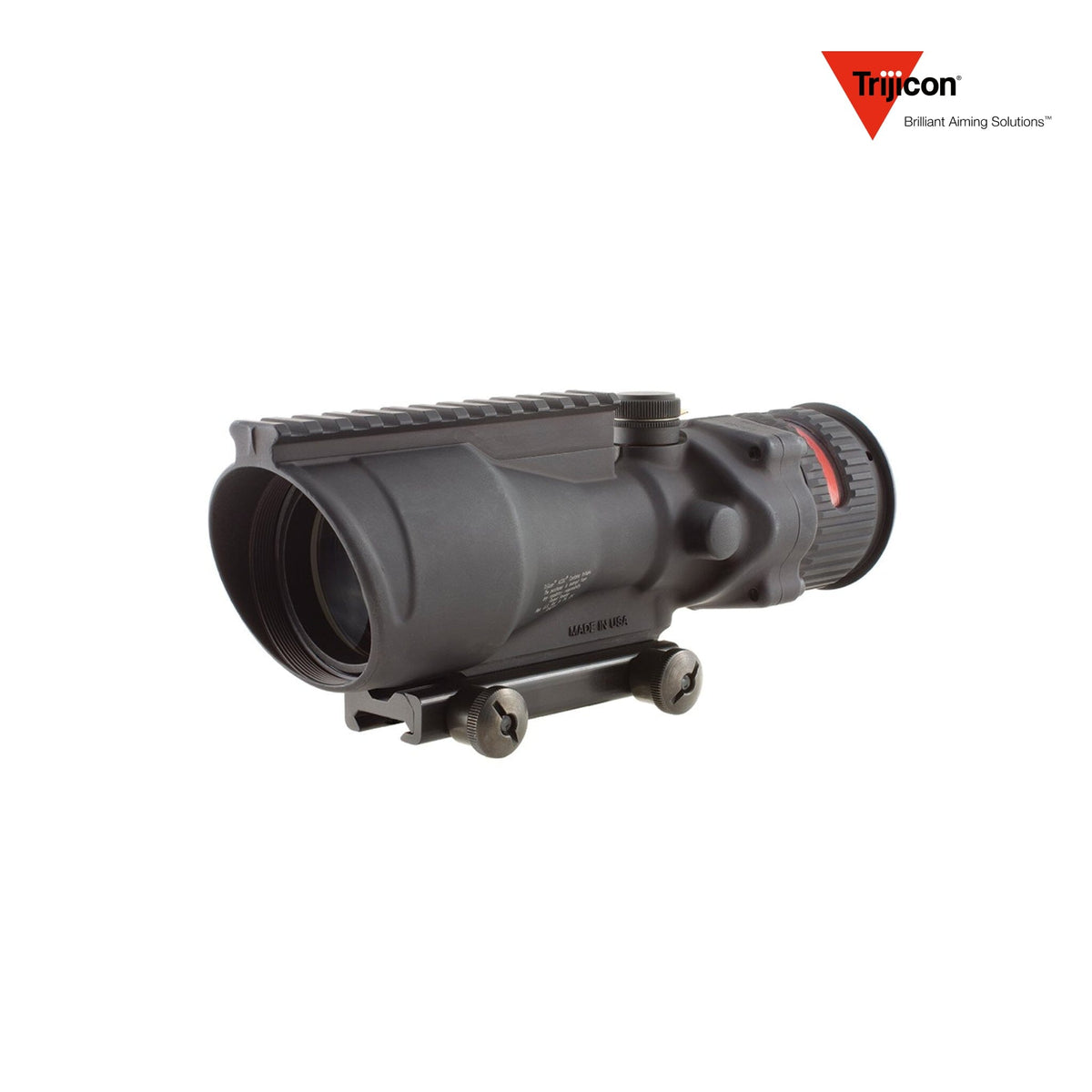

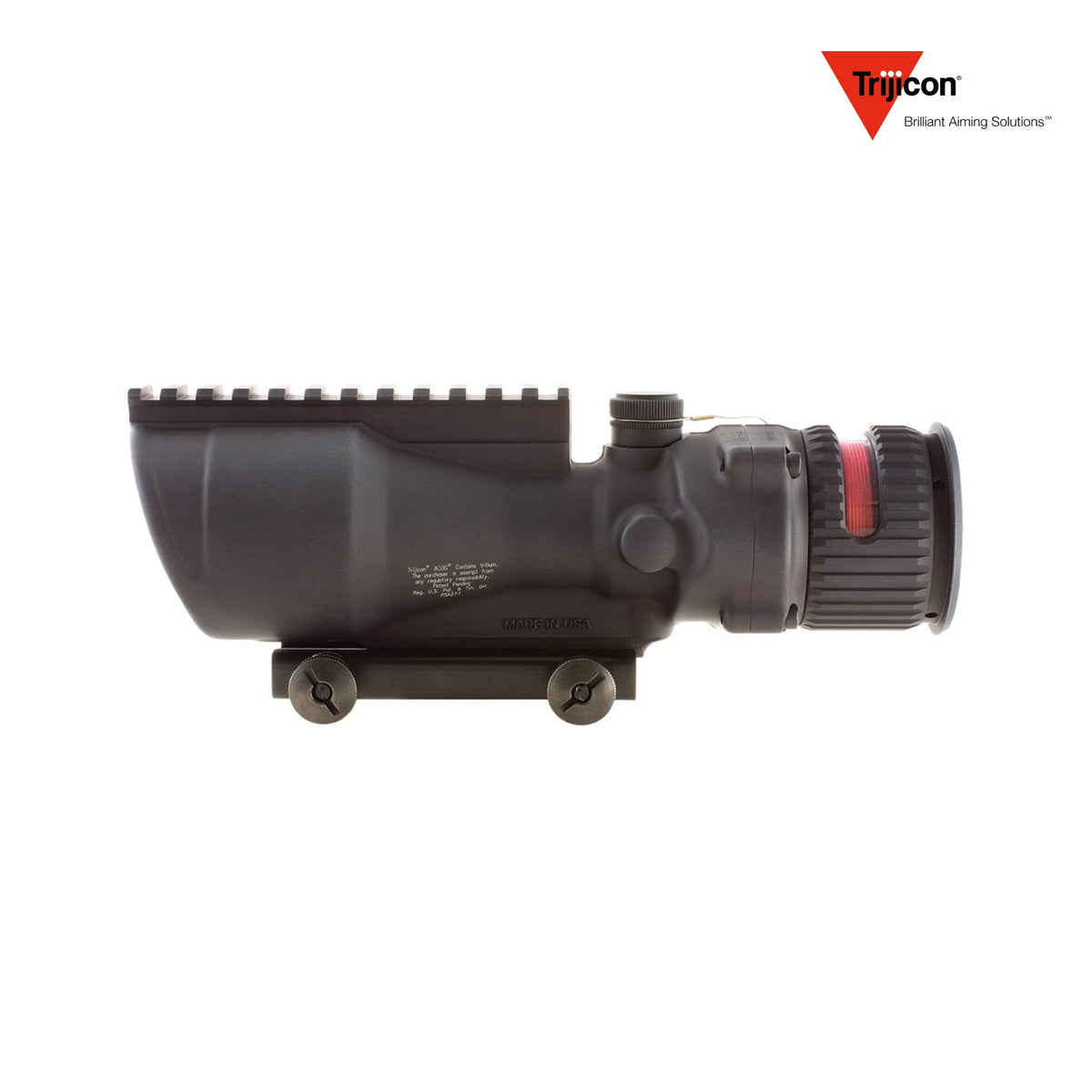

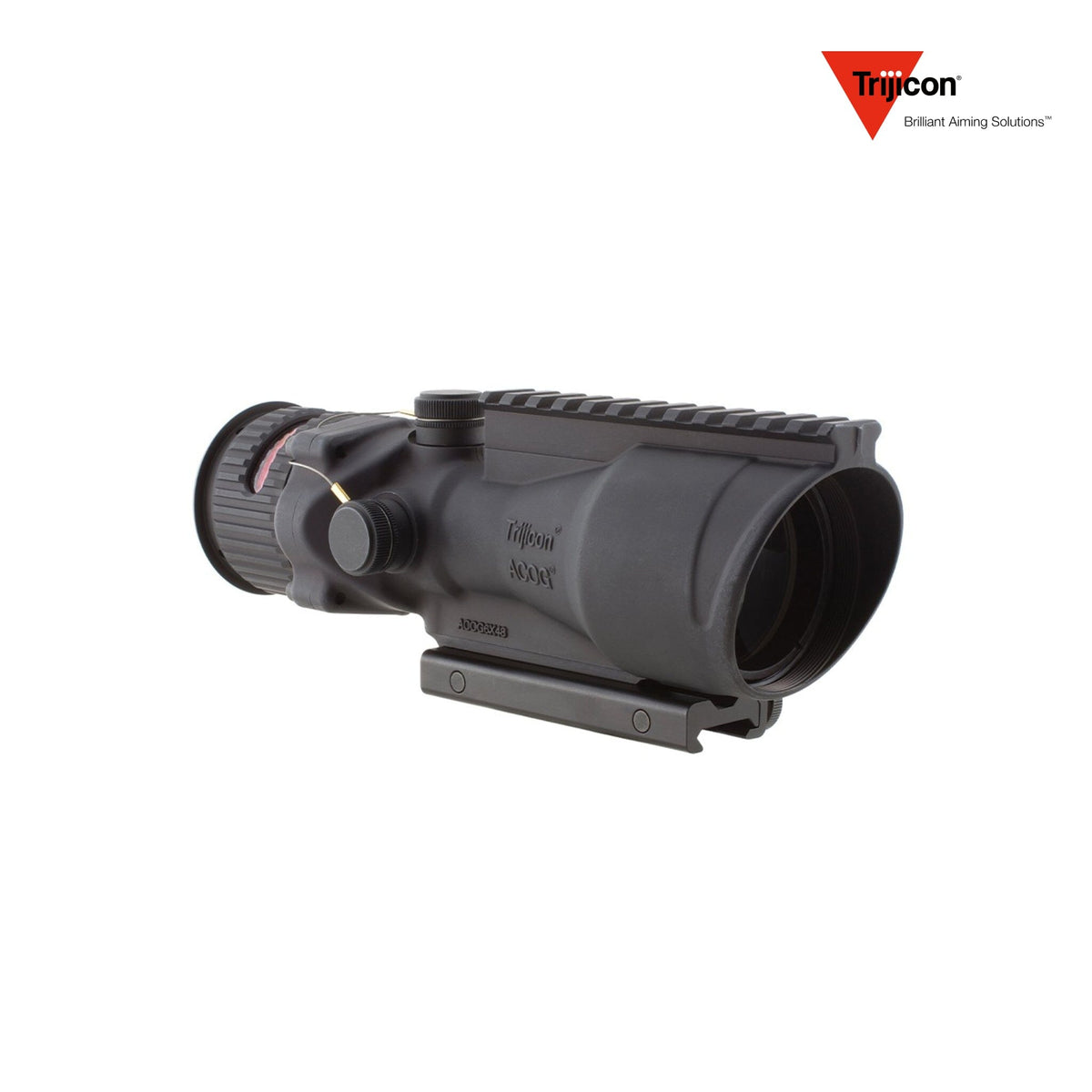

The Trijicon ACOG 6x48 Rifle Scope Chevron .308 Red Reticle (SKU TA648-308) is the long-range ACOG: fixed 6x magnification, a 48 mm objective and a red chevron bullet drop compensating reticle cut for .308 Winchester and 7.62 NATO, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares

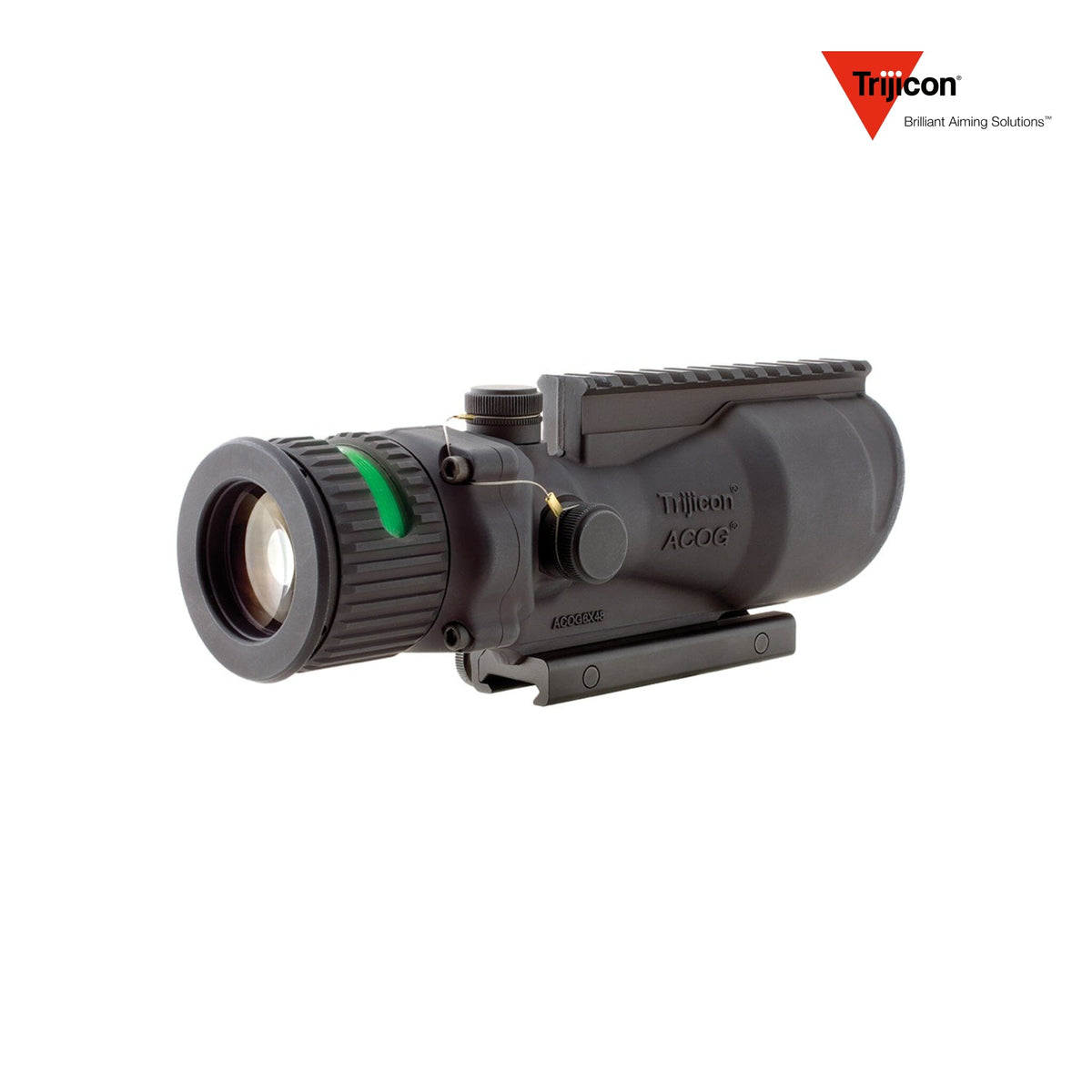

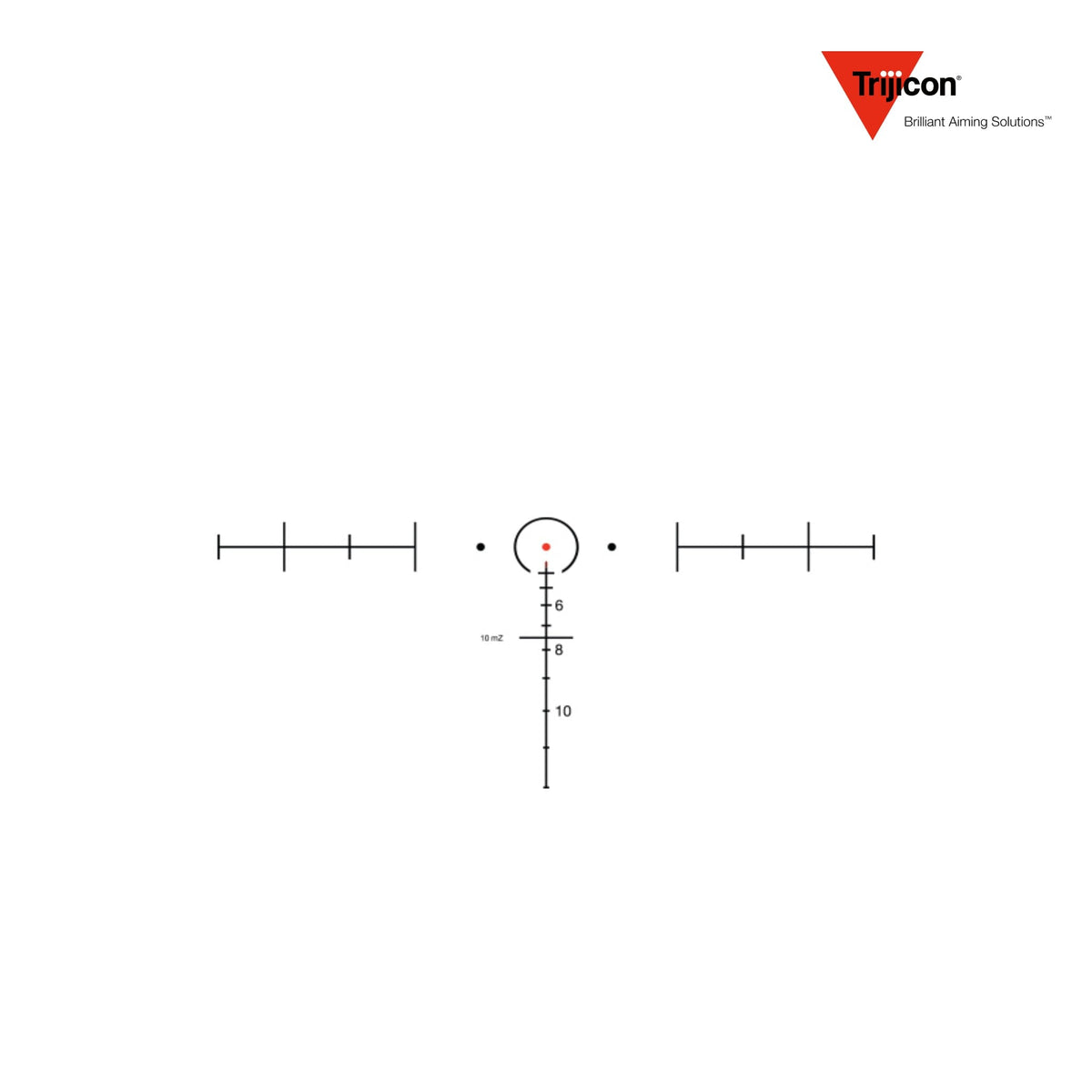

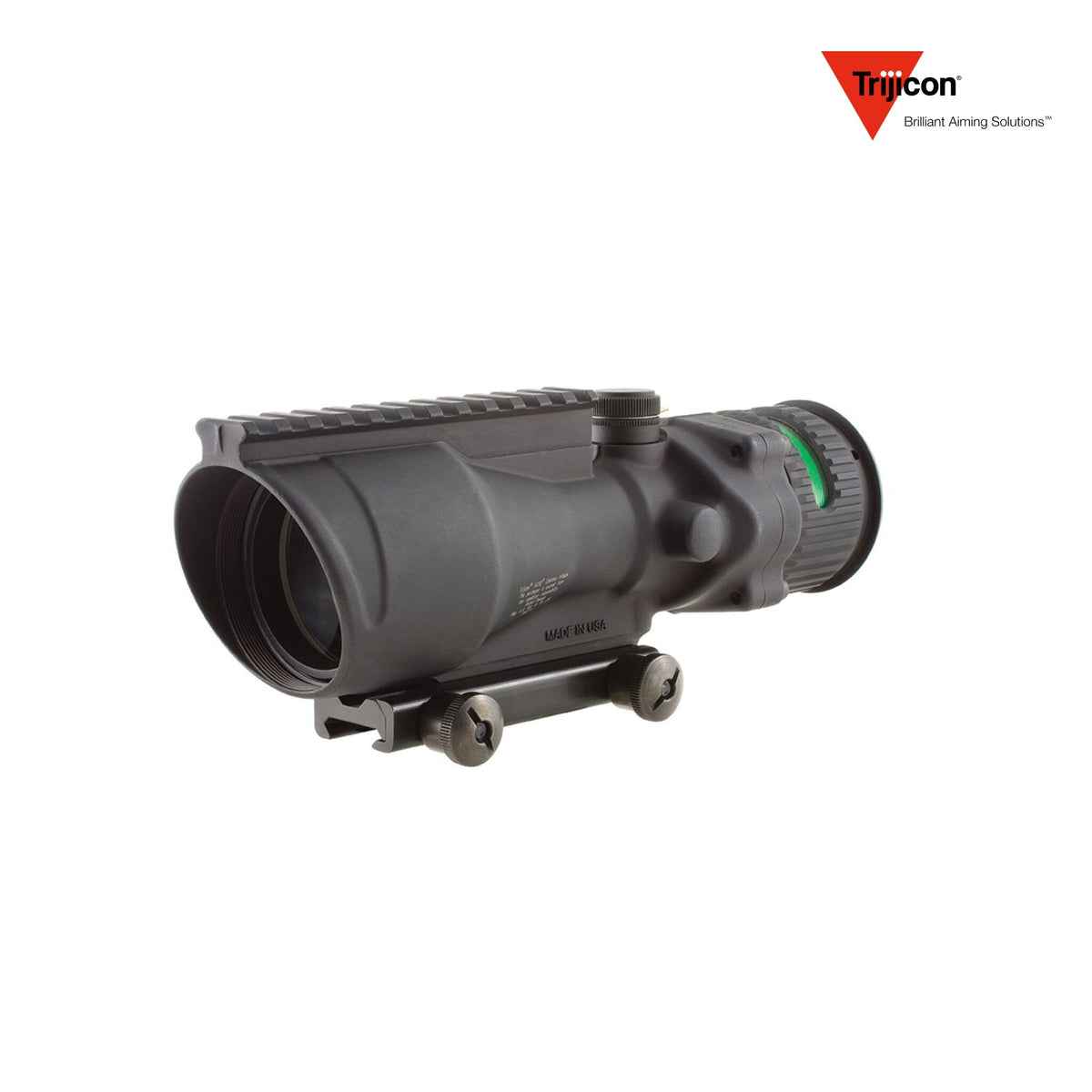

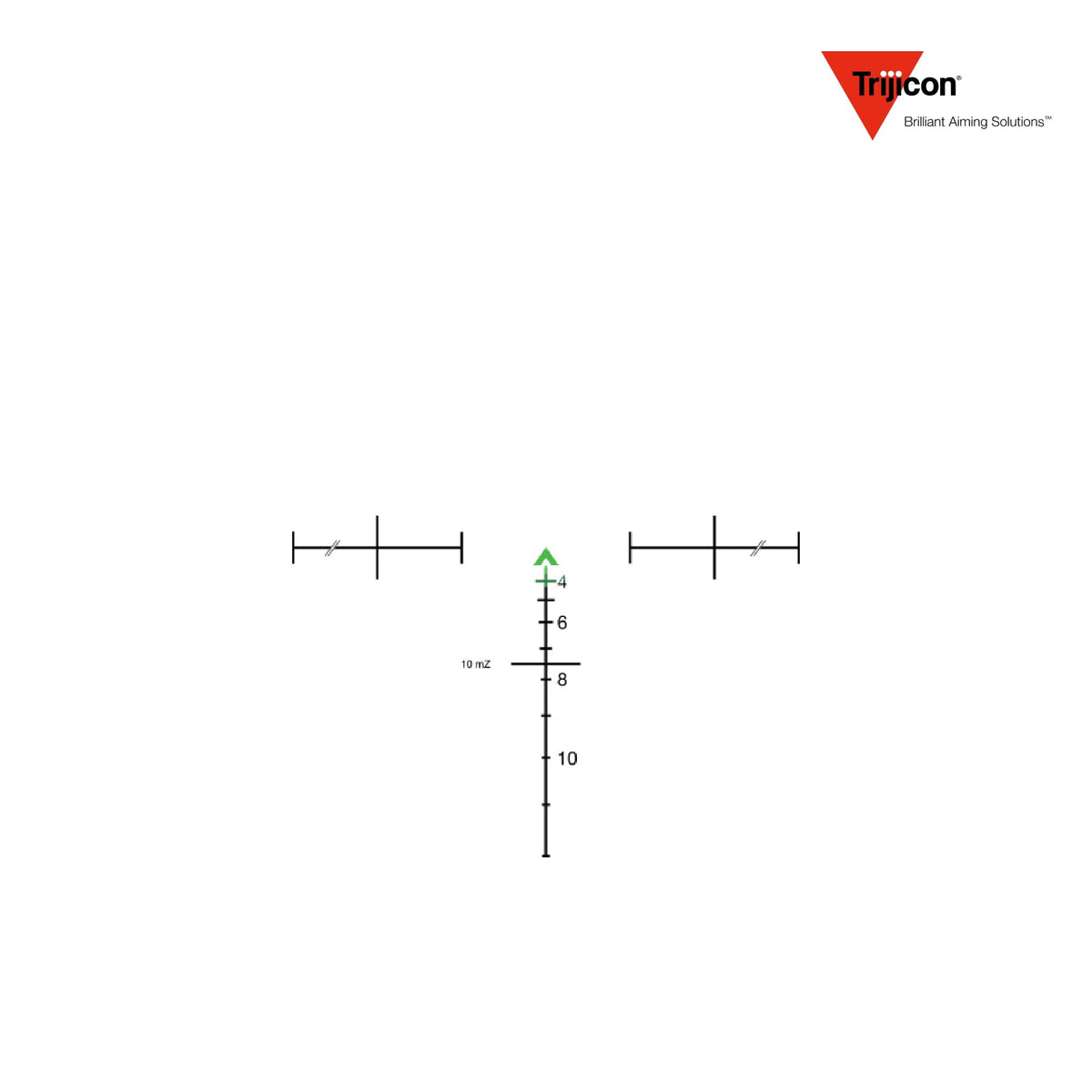

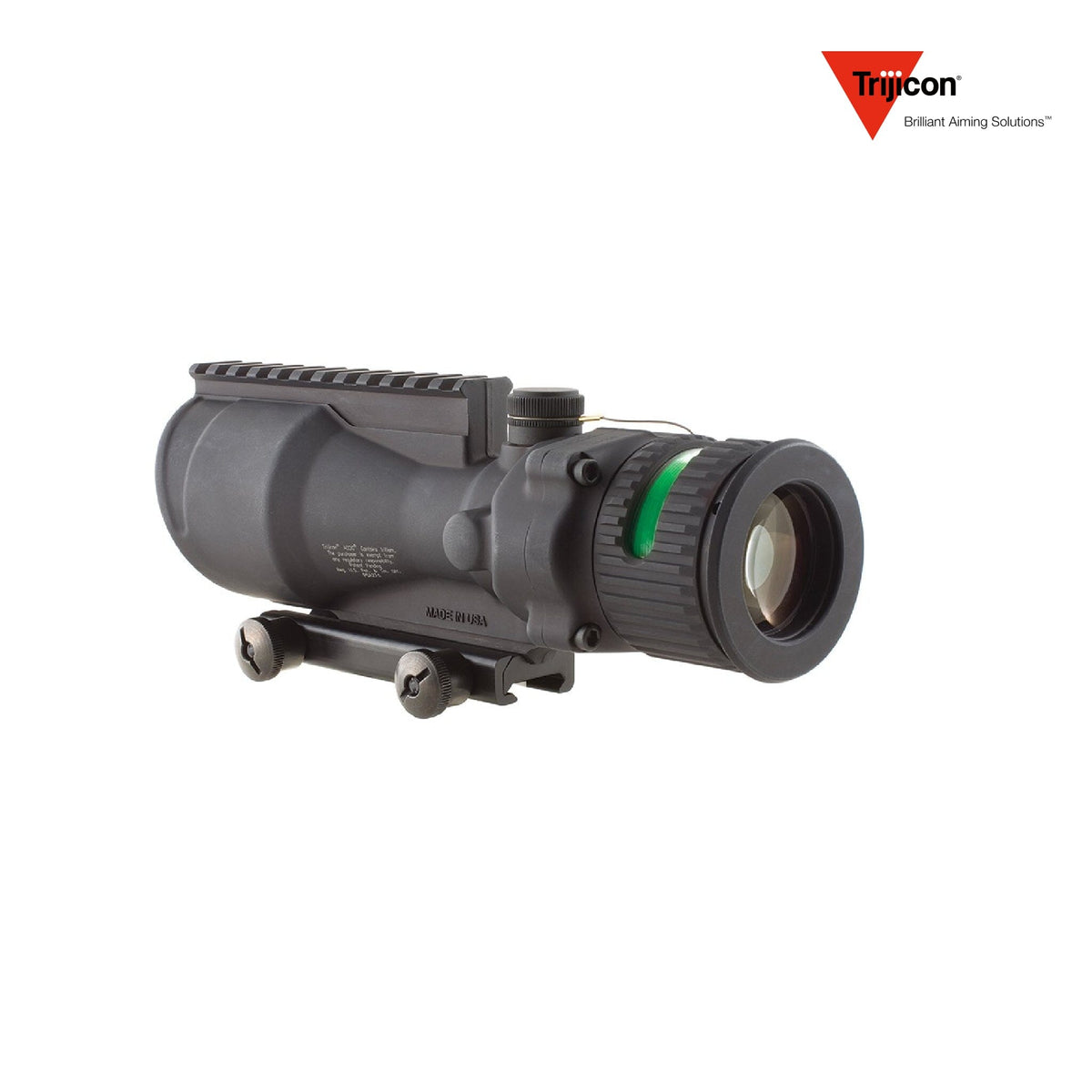

This is the biggest ACOG Trijicon build, and the reason for the 48 mm objective is the reach: the holds run out along the M80 trajectory to 1,312 yd (1,200 m), which is a long way past what the 4x32 models are cut for. The same reticle with a green lamp is the ACOG 6x48 Chevron .308 Green, the red horseshoe dot swaps the chevron for a horseshoe, and the chevron with a factory-fitted RMR adds a red dot on top for close work. There is also the M240 horseshoe dot cut for the machine gun. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- Designated marksman and .308 semi-automatic rifles working past 500 yards
- Shooters who want battery-free reliability with nothing to switch on
- Duty and range use where a fixed 6x is enough and a variable is not wanted
Key Features
-
Reticle: Red Chevron BDC, dual illuminated
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .308 / 7.62 NATO; 7.62 M80 trajectory out to 1,312 yd (1,200 m)
-
Turrets: 4 clicks per inch at 100 yards (about 0.25 MOA per click)
-
Mount: TA75 Picatinny rail adapter with Colt-style thumbscrews (included)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
6x fixed |
| Objective |
48 mm |
| Reticle |
Red Chevron BDC, dual illuminated |
| Calibre Calibration |
.308 / 7.62 NATO; 7.62 M80 trajectory out to 1,312 yd (1,200 m) |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
4 clicks per inch at 100 yards (about 0.25 MOA per click) |
| Eye Relief |
2.7 in (69 mm) |
| Exit Pupil |
0.32 in (8.1 mm) |
| Field of View |
17 ft at 100 yards (5.7 m at 100 m); 3.3° |
| Length |
9 in (229 mm); L×W×H 9 × 2.9 × 3.4 in (229 × 74 × 86 mm) |
| Weight |
36.9 oz (1,046 g) |
| Housing |
Forged aluminium, matte black |
| Mount |
TA75 Picatinny rail adapter with Colt-style thumbscrews (included) |
| Water Resistance |
Waterproof to 66 ft (20 m); dry-nitrogen filled |
| What's Included |
ACOG, TA75 Picatinny rail adapter, LensPen (TA56), lanyard assembly for adjuster caps (TA107), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA648-308 / TA648-308 / 719307302266 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the ACOG reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
.308 Winchester and 7.62 NATO, cut to the M80 trajectory out to 1,312 yd (1,200 m).
Does it come with a mount?
Yes — a TA75 Picatinny rail adapter with Colt-style thumbscrews is supplied with the scope.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
How heavy is it?
36.9 oz (1,046 g). It is the heaviest ACOG in the range, which is the price of the 48 mm objective and 6x magnification.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
