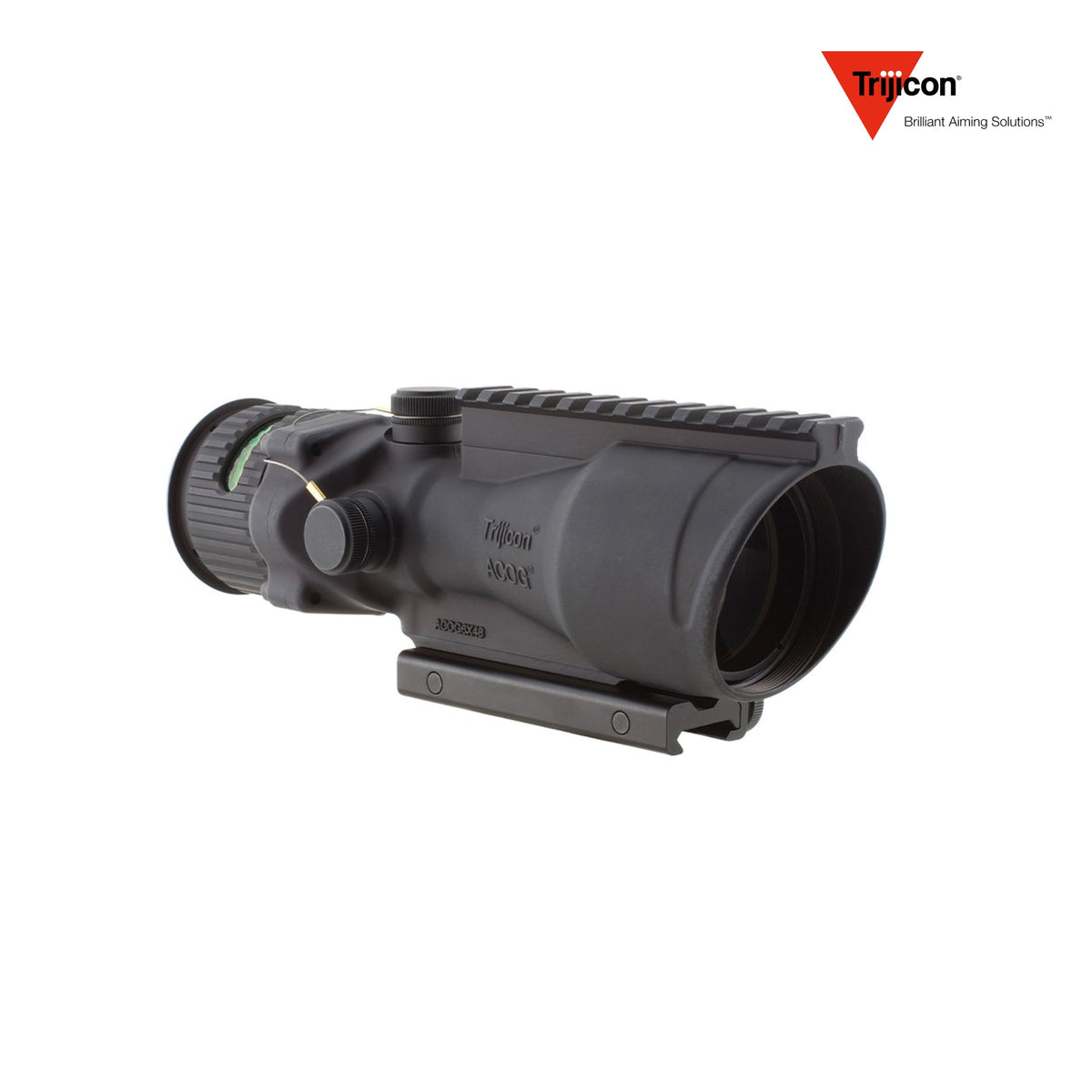

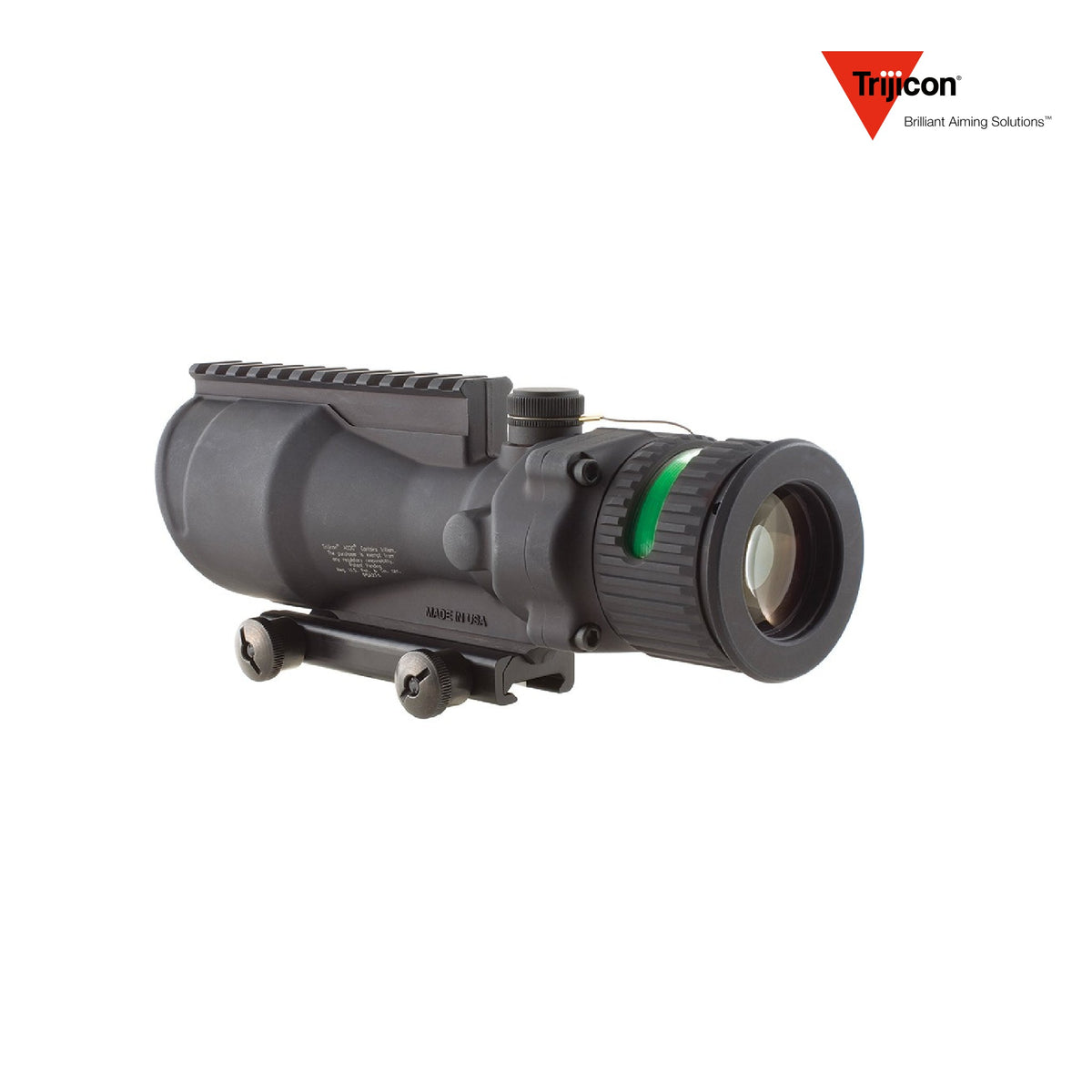

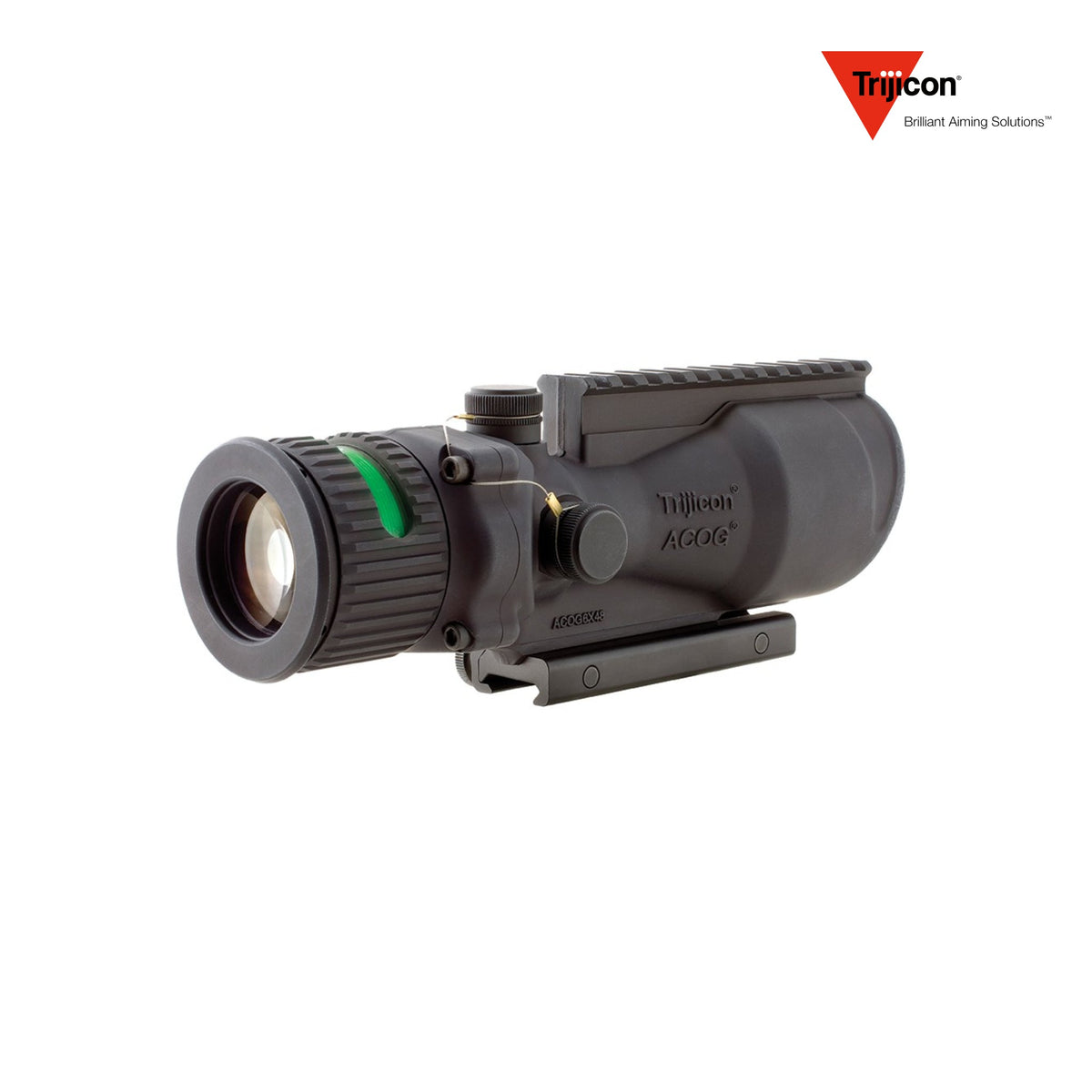

The Trijicon ACOG 6x48 Rifle Scope Chevron .308 Green Reticle (SKU TA648-308G) is the long-range ACOG: fixed 6x magnification, a 48 mm objective and a green chevron bullet drop compensating reticle cut for .308 Winchester and 7.62 NATO, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
This is the 6x48 with a green lamp, which is the colour that reads best against woodland and foliage where red can wash out. The same reticle with a red lamp is the ACOG 6x48 Chevron .308 Red, the red horseshoe dot swaps the chevron for a horseshoe that is quicker to find at close range, and the red chevron with a factory-fitted RMR adds a red dot on top. There is also the green M240 horseshoe dot cut for the machine gun. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- .308 and 7.62 NATO rifles that need reach rather than close-range speed
- Woodland and foliage backgrounds where a green lamp stands out better than red
- Shooters who want a fine aiming point without a battery anywhere in the system
Key Features
-

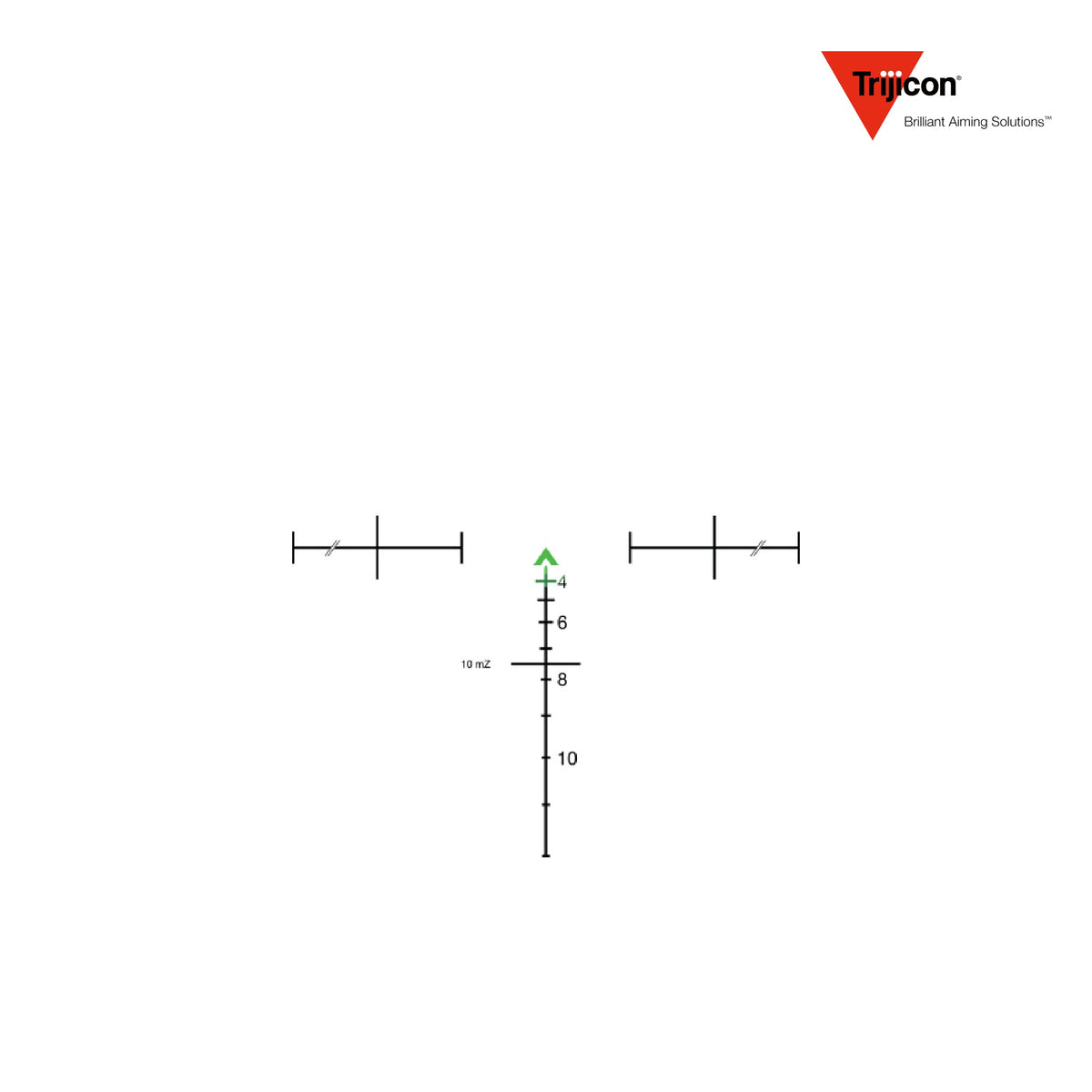

Reticle: Green Chevron BDC, dual illuminated
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .308 / 7.62 NATO BDC
-
Turrets: 4 clicks per inch at 100 yards (about 0.25 MOA per click)
-
Mount: TA75 Picatinny rail adapter with Colt-style thumbscrews (included)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
6x fixed |
| Objective |
48 mm |
| Reticle |
Green Chevron BDC, dual illuminated |
| Calibre Calibration |
.308 / 7.62 NATO BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
4 clicks per inch at 100 yards (about 0.25 MOA per click) |
| Eye Relief |
2.7 in (69 mm) |
| Exit Pupil |
0.32 in (8.1 mm) |
| Field of View |
17 ft at 100 yards (5.7 m at 100 m); 3.3° |
| Length |
9 in (229 mm); L×W×H 9 × 2.9 × 3.4 in (229 × 74 × 86 mm) |
| Weight |
36.9 oz (1,046 g) |
| Housing |
Forged aluminium, matte black |
| Mount |
TA75 Picatinny rail adapter with Colt-style thumbscrews (included) |
| Water Resistance |
Waterproof to 66 ft (20 m); dry-nitrogen filled |
| What's Included |
ACOG, TA75 Picatinny rail adapter, LensPen (TA56), lanyard assembly for adjuster caps (TA107), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA648-308G / TA648-308G / 719307303515 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
.308 Winchester and 7.62 NATO. The marks below the chevron are the drop holds for that cartridge.
Why choose green over red?
Green tends to stand out better against woodland and foliage, red against snow and pale ground. The two optics are otherwise identical.
Where exactly do I aim with a chevron?
The tip of the chevron is the aiming point. The wide base below it draws the eye in quickly at close range.
Does it come with a mount?
Yes — a TA75 Picatinny rail adapter with Colt-style thumbscrews is included.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
How heavy is it?
36.9 oz (1,046 g). This is the biggest ACOG Trijicon build, and it is a substantial weight on a rifle.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
