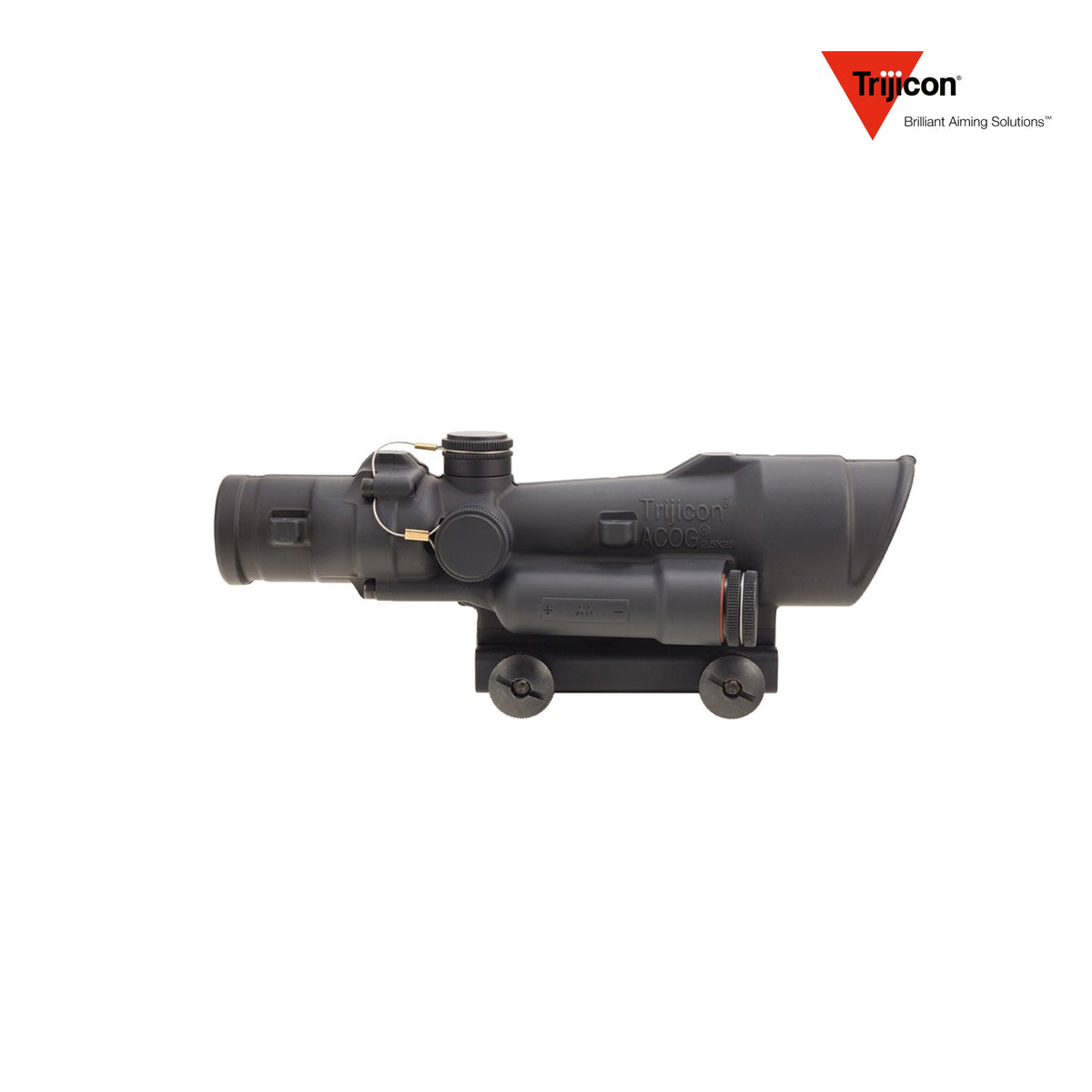

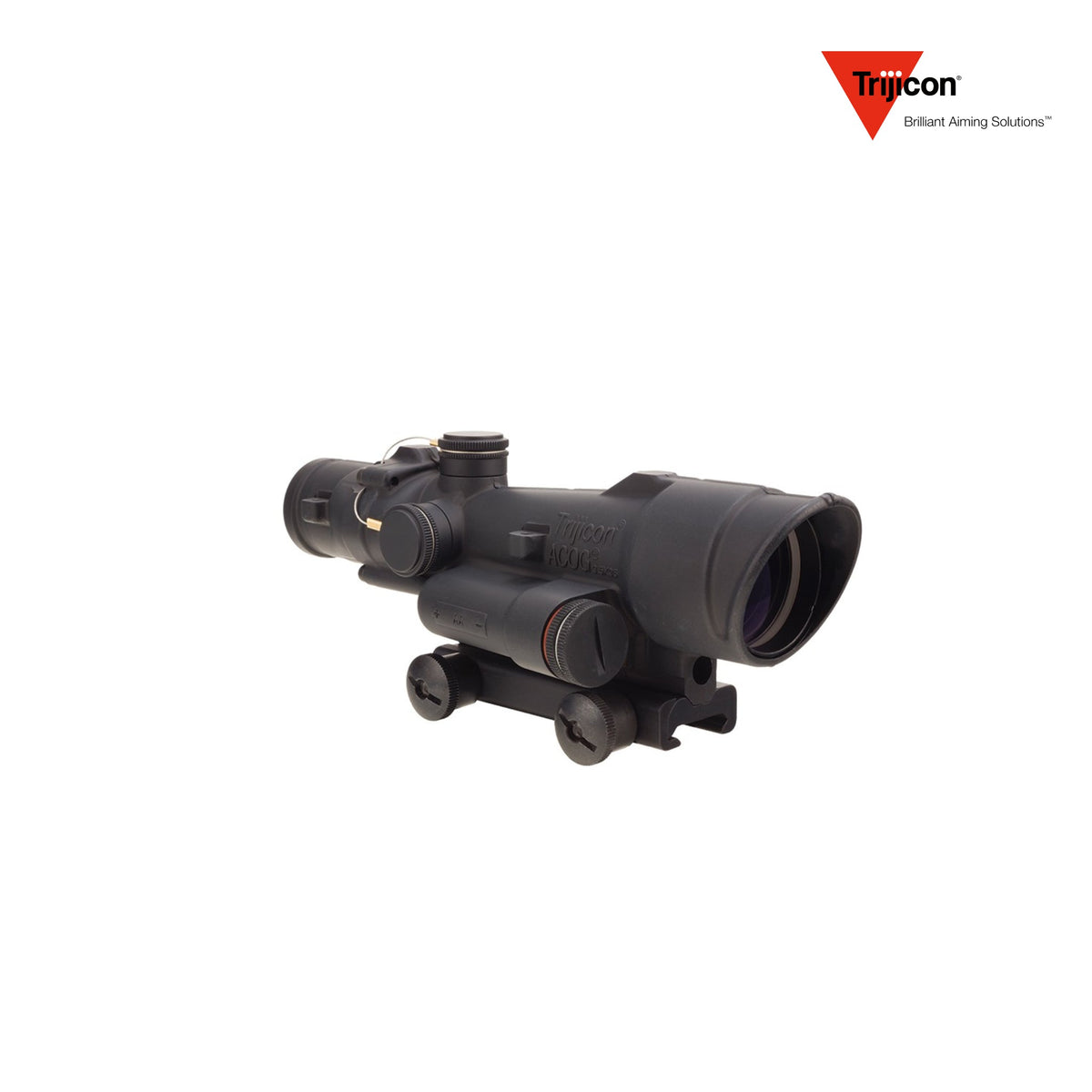

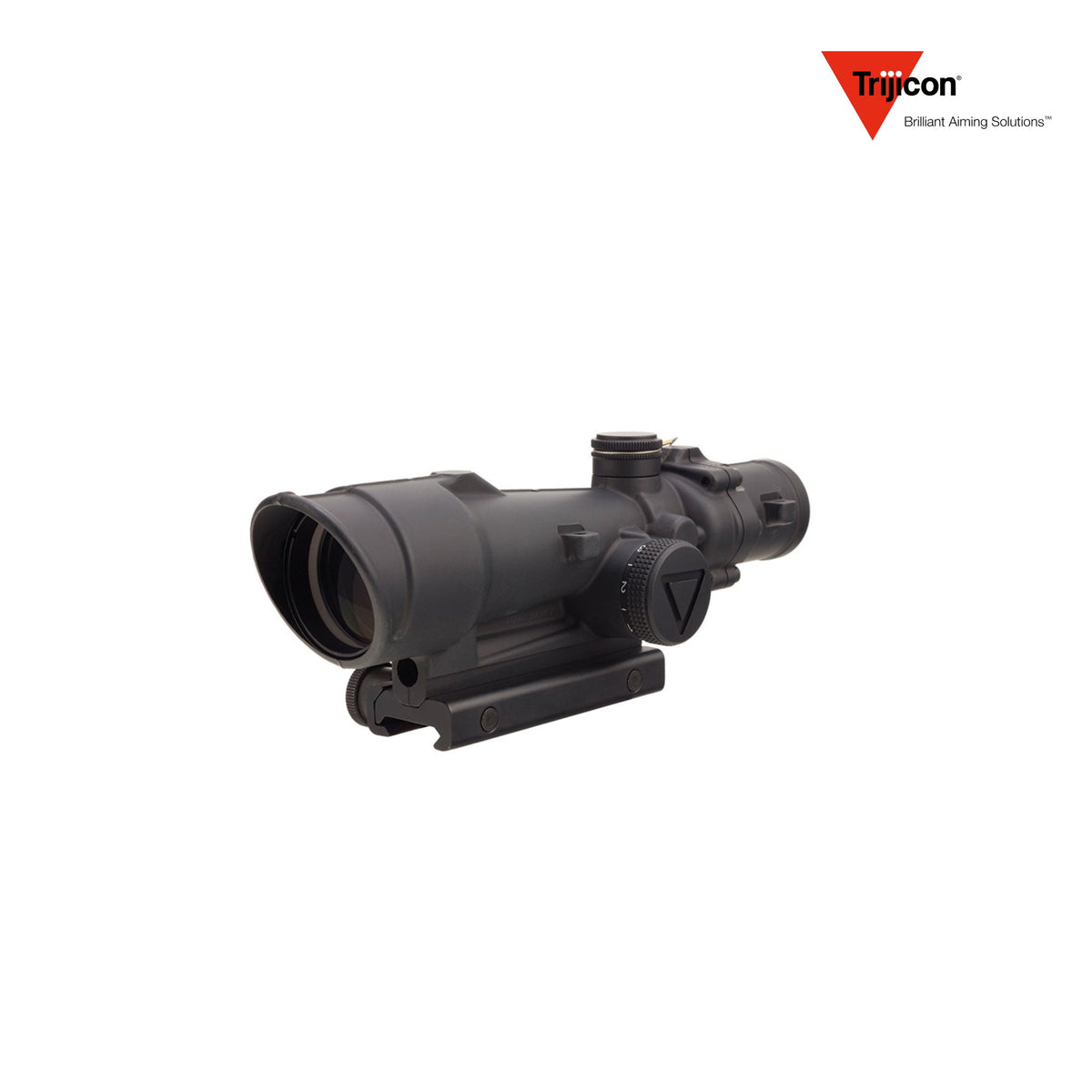

The Trijicon ACOG 3.5x35 Rifle Scope Crosshair .223 LED Green Reticle (SKU TA110-D-100496) is a fixed 3.5x ACOG with a 35 mm objective and a green crosshair reticle with .223/5.56 bullet drop marks, lit by an LED with six brightness settings rather than by tritium.
How It Compares
This is the green-lamp crosshair: a conventional cross that stays out of the way at distance, with a lamp that reads better against woodland and foliage than red does. The red crosshair is otherwise the identical optic, and the ACOG 3.5x35 LED Crosshair .308 Green is cut for 7.62 NATO. For a faster aiming point the green chevron and the green horseshoe and dot use the same body. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- Duty and hard-use carbines chambered in .223 Remington or 5.56 NATO
- Woodland and foliage backgrounds where a green lamp stands out better than red
- Deliberate shooting where a fine aiming point matters more than close-range speed
Key Features
-

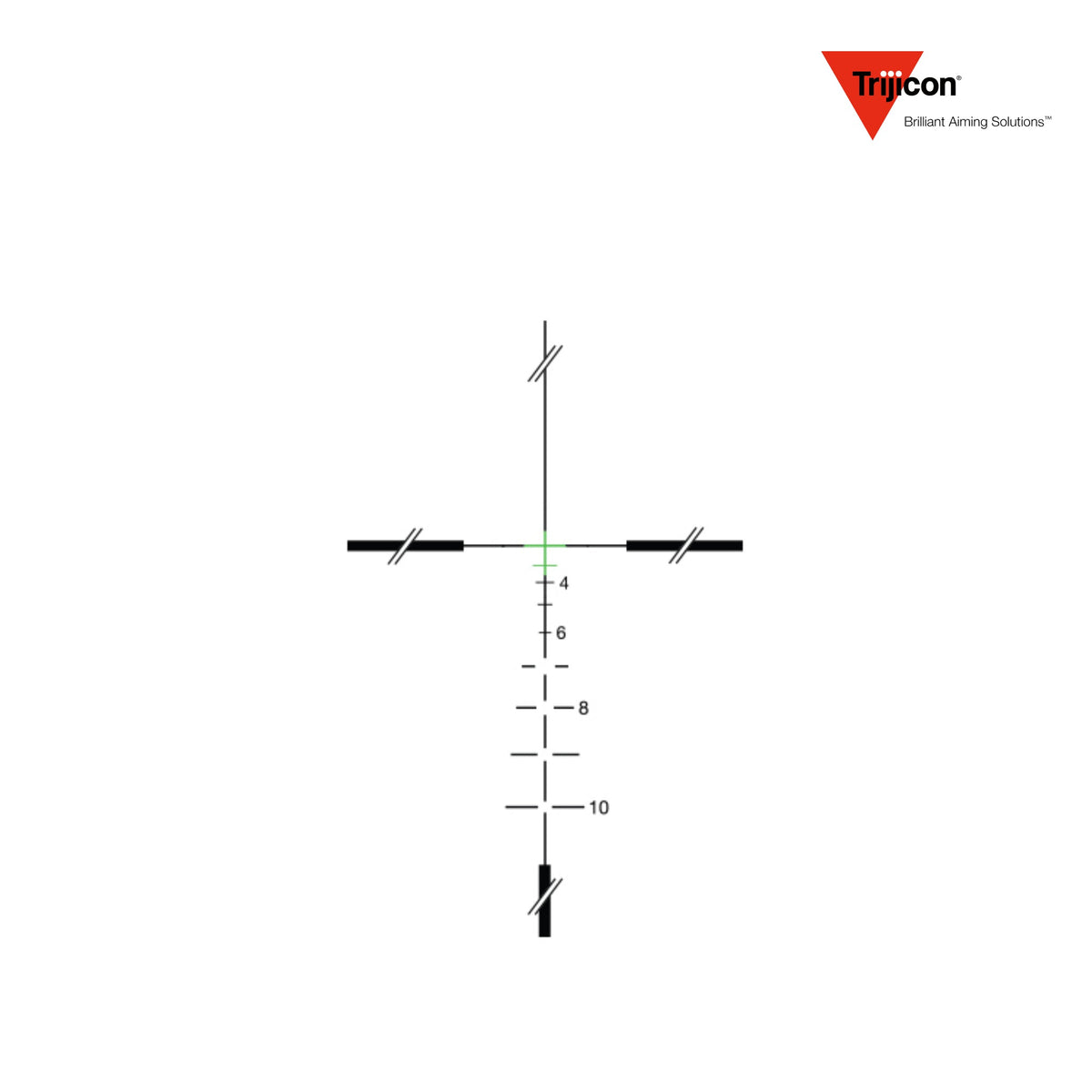

Reticle: Green Crosshair with .223 / 5.56 BDC
-

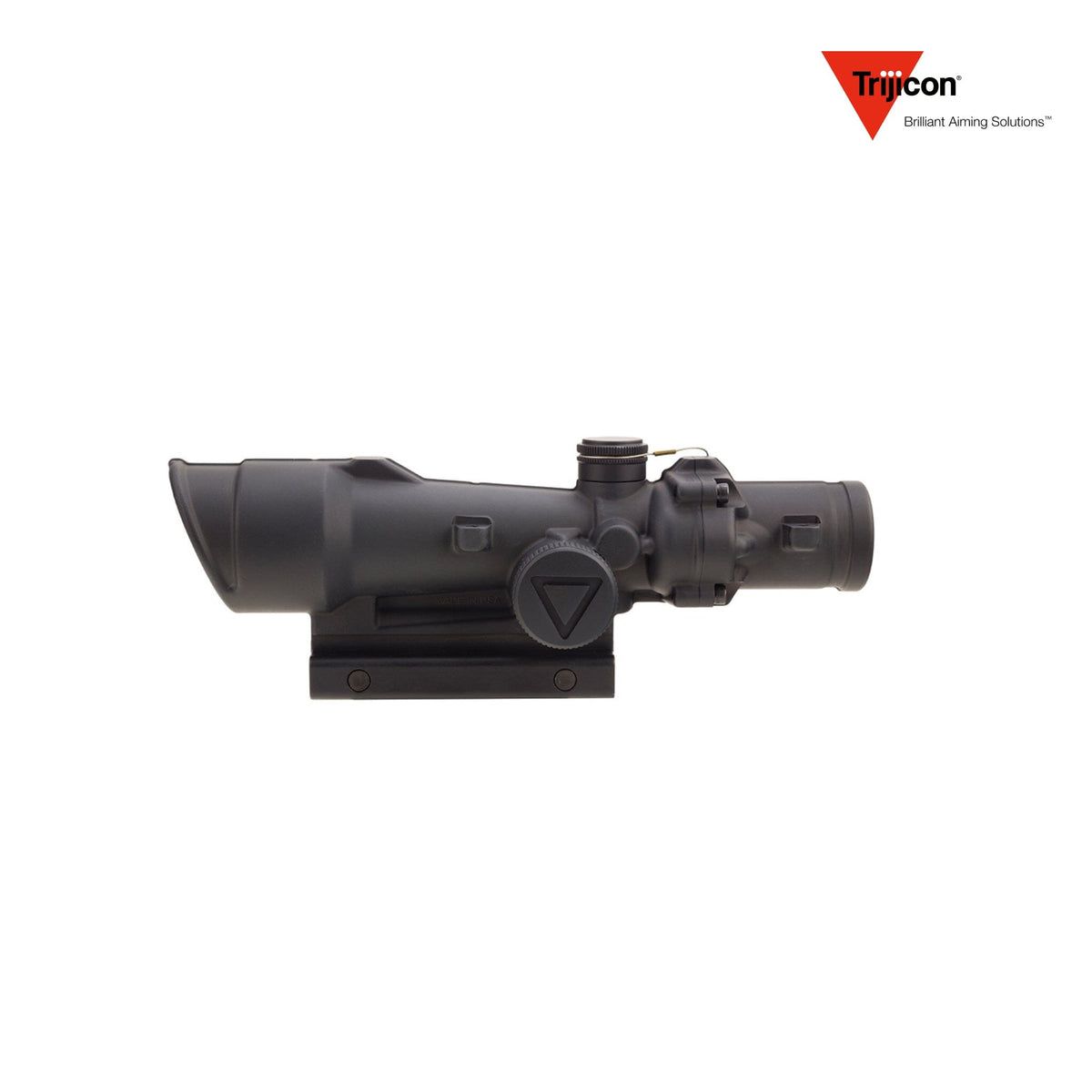

Illumination: LED, 6 user-selectable brightness settings with an 'off' position between each
-
Battery: Single AA, lithium or alkaline (AA included); over 12,000 hours on setting 4
-
Turrets: 3 clicks per inch at 100 yards; 40 MOA total travel
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
3.5x fixed |
| Objective |
35 mm |
| Reticle |
Green Crosshair with .223 / 5.56 BDC |
| Illumination |
LED, 6 user-selectable brightness settings with an 'off' position between each |
| Battery |
Single AA, lithium or alkaline; AA battery included |
| Battery Life |
Over 12,000 hours on setting 4 with the supplied alkaline cell at 21°C (70°F) |
| Adjustment Range |
3 clicks per inch at 100 yards; 40 MOA total travel |
| Eye Relief |
2.4 in (61 mm) |
| Exit Pupil |
0.39 in (9.9 mm) |
| Field of View |
28.9 ft at 100 yards (9.6 m at 100 m); 5.5° |
| Weight |
20.8 oz (590 g) |
| Housing |
Forged aluminium |
| Finish |
Matte black |
| Mount |
Thumbscrew Flattop Adapter (TA51) included - a removable adapter for MIL-STD-1913 flattop rails, not an integral mount |
| Water Resistance |
Waterproof |
| SKU / MPN / UPC |
TA110-D-100496 / TA110-D-100496 / 719307321007 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
Yes — this is the LED version of the ACOG. It takes a single AA cell, supplied with the scope, and runs over 12,000 hours on setting 4.
What calibre is the reticle calibrated for?
.223 Remington and 5.56 NATO. The crosshair centre is the primary aiming point and the marks below it are the drop holds.
Does it come with a mount?
It ships with the TA51 Thumbscrew Flattop Adapter for MIL-STD-1913 flattop rails. That is a removable adapter rather than an integral mount.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
How bright can the reticle go?
Six user-selectable settings with an off position between each, so it can be run bright enough for direct sun or dim enough not to wash out your night vision.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. Electronics carry a five-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
