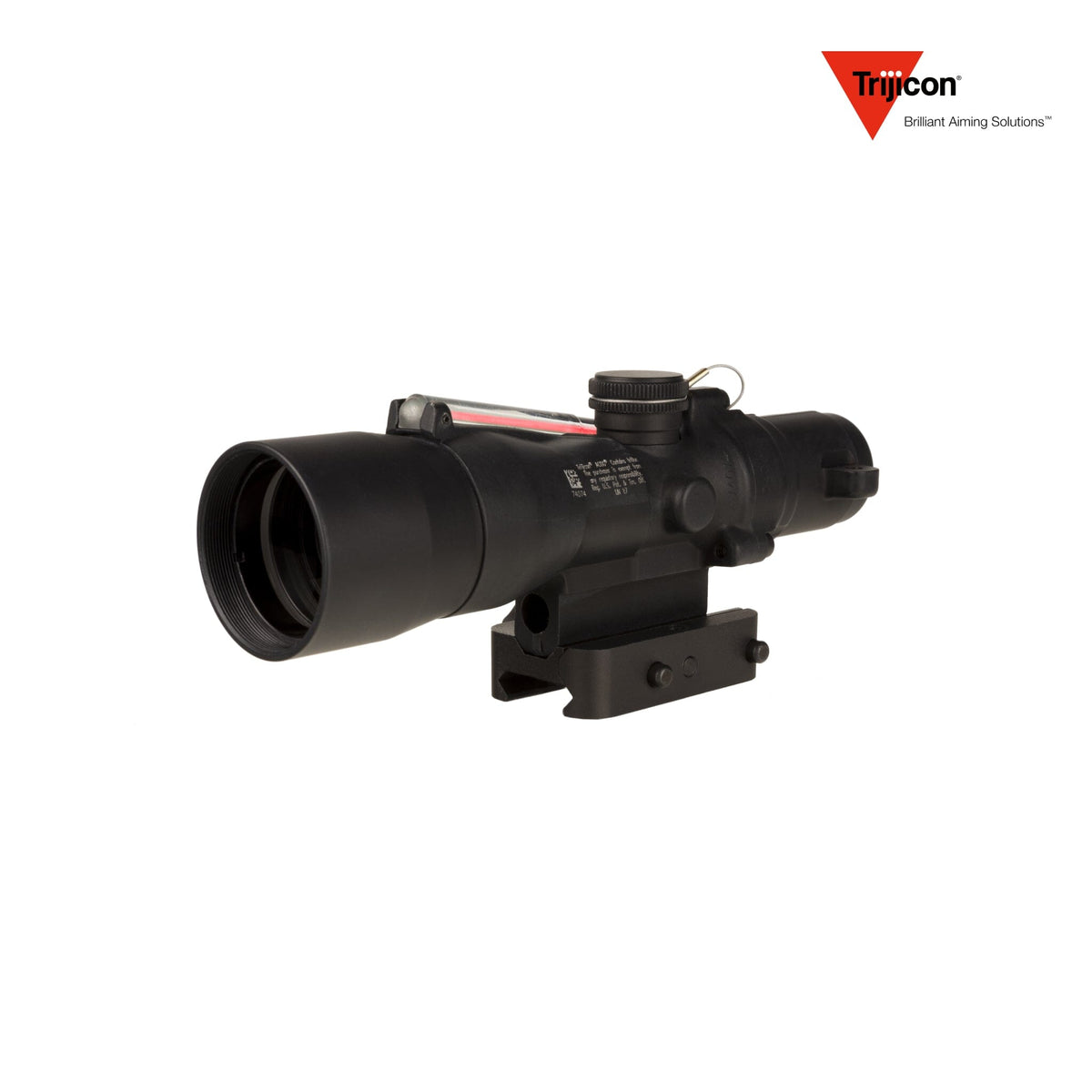

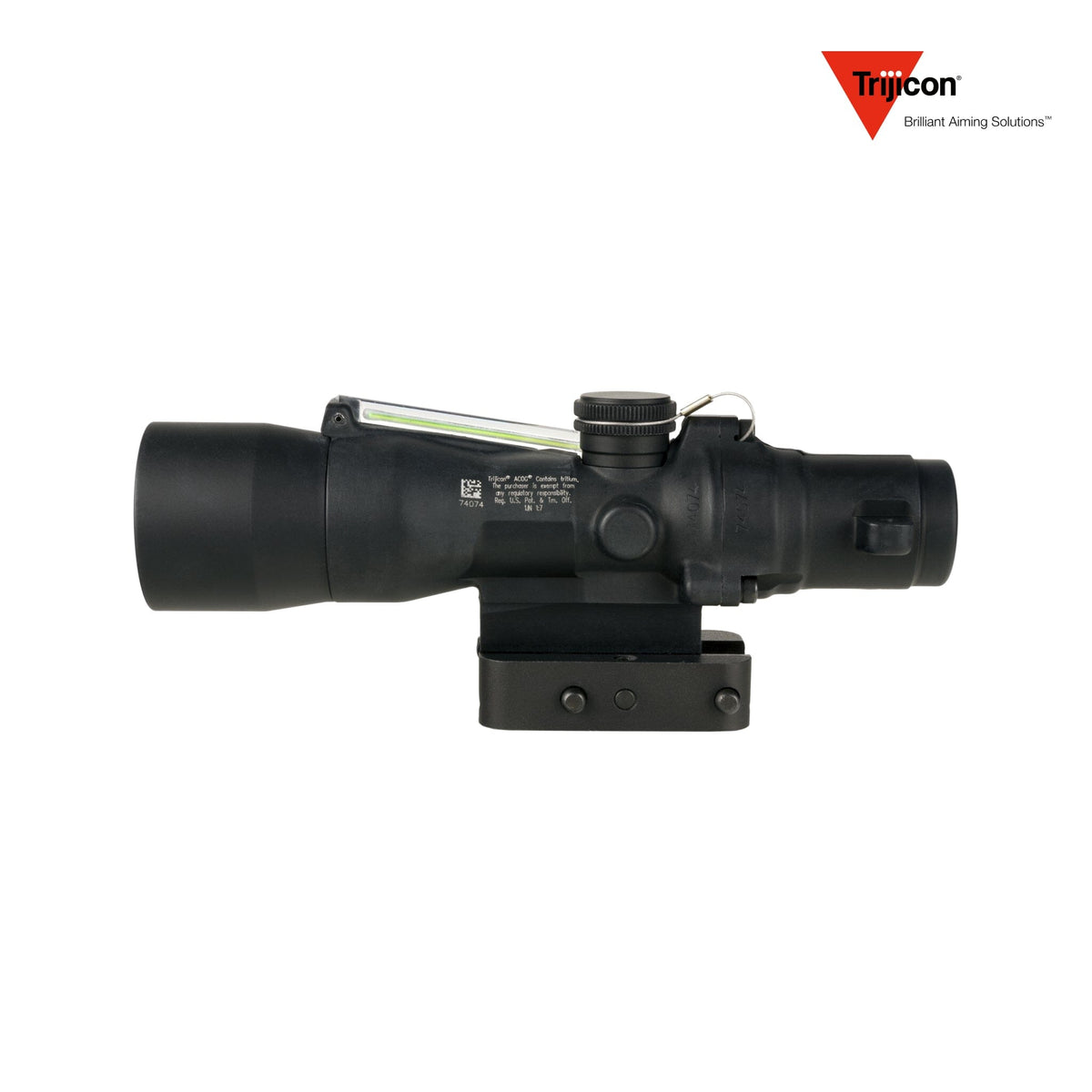

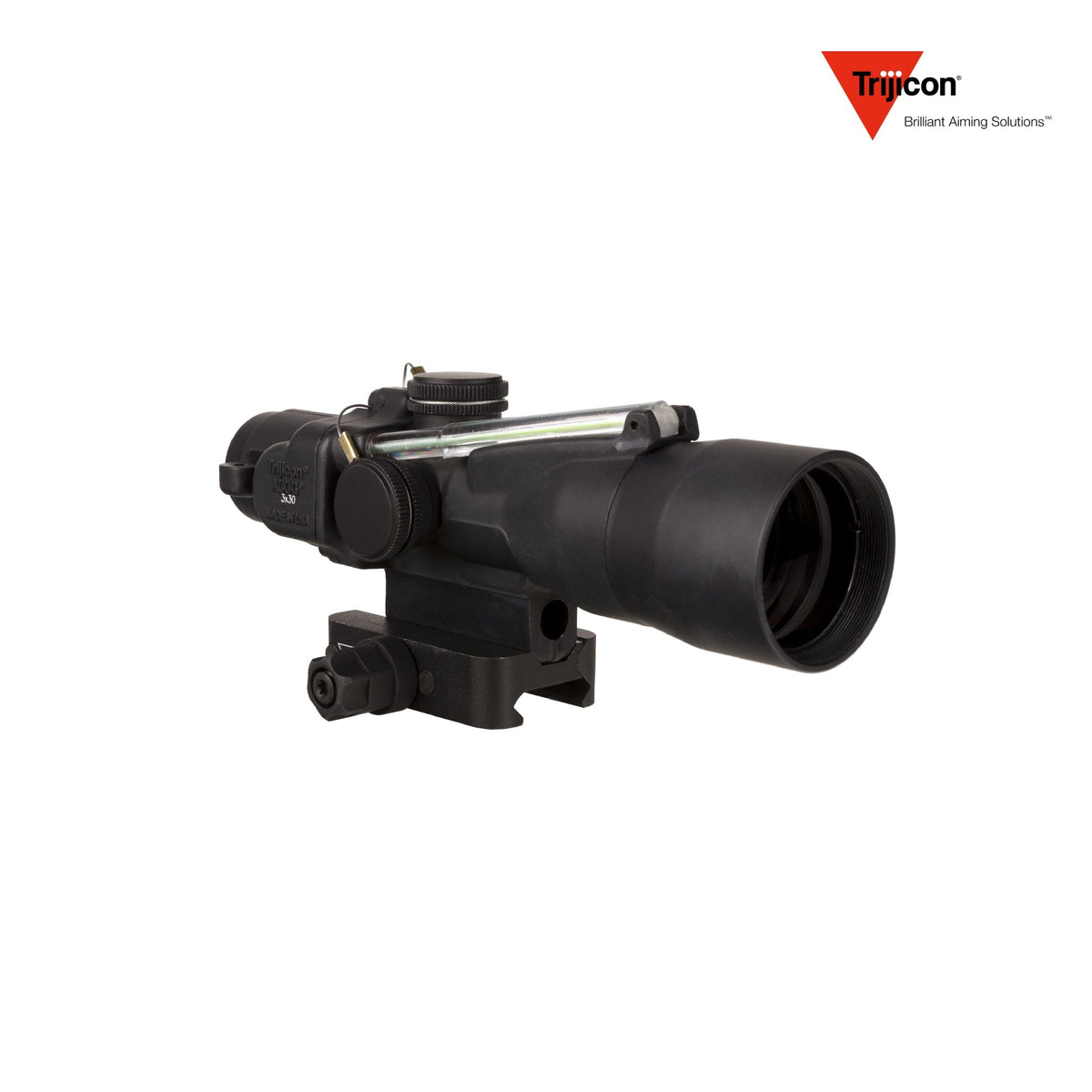

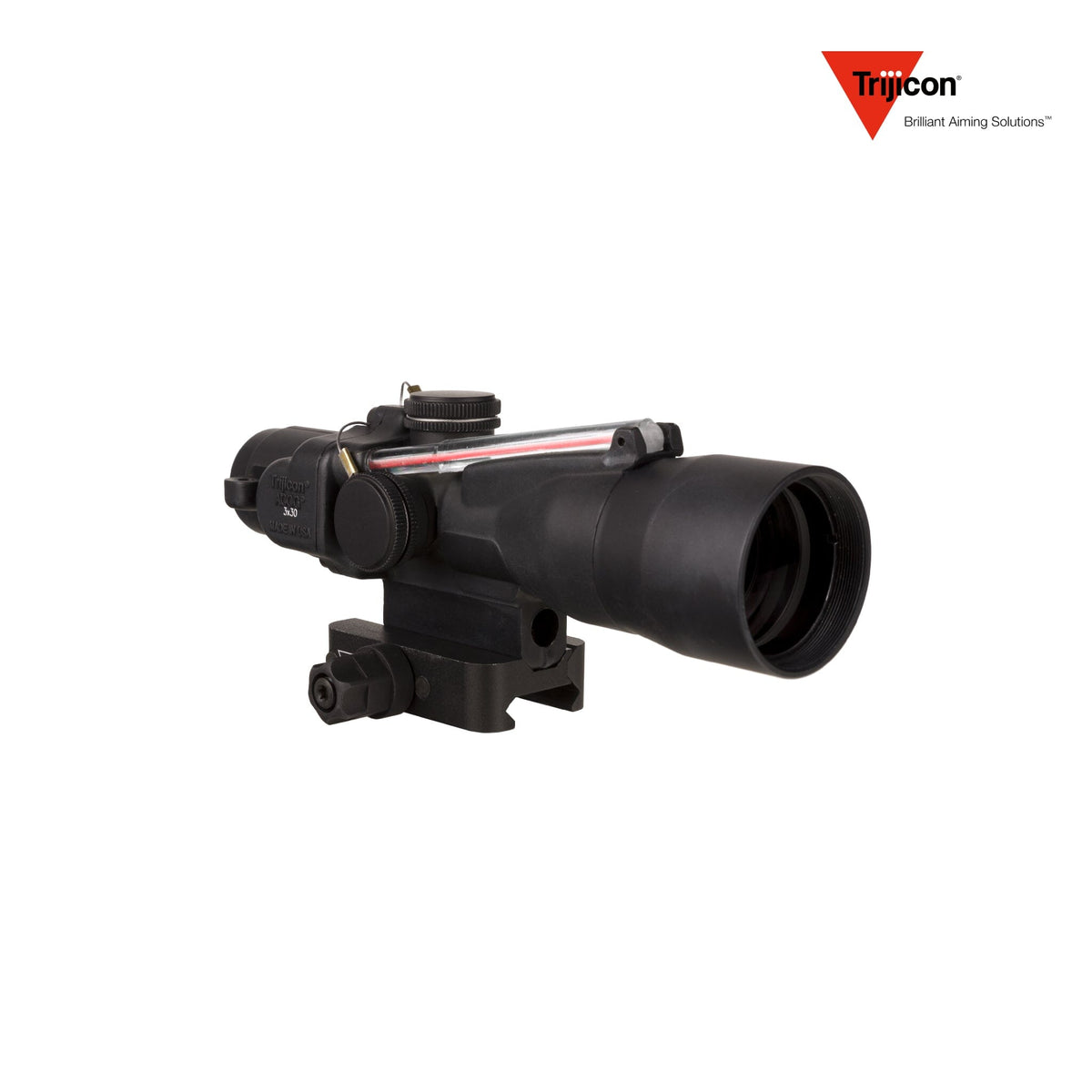

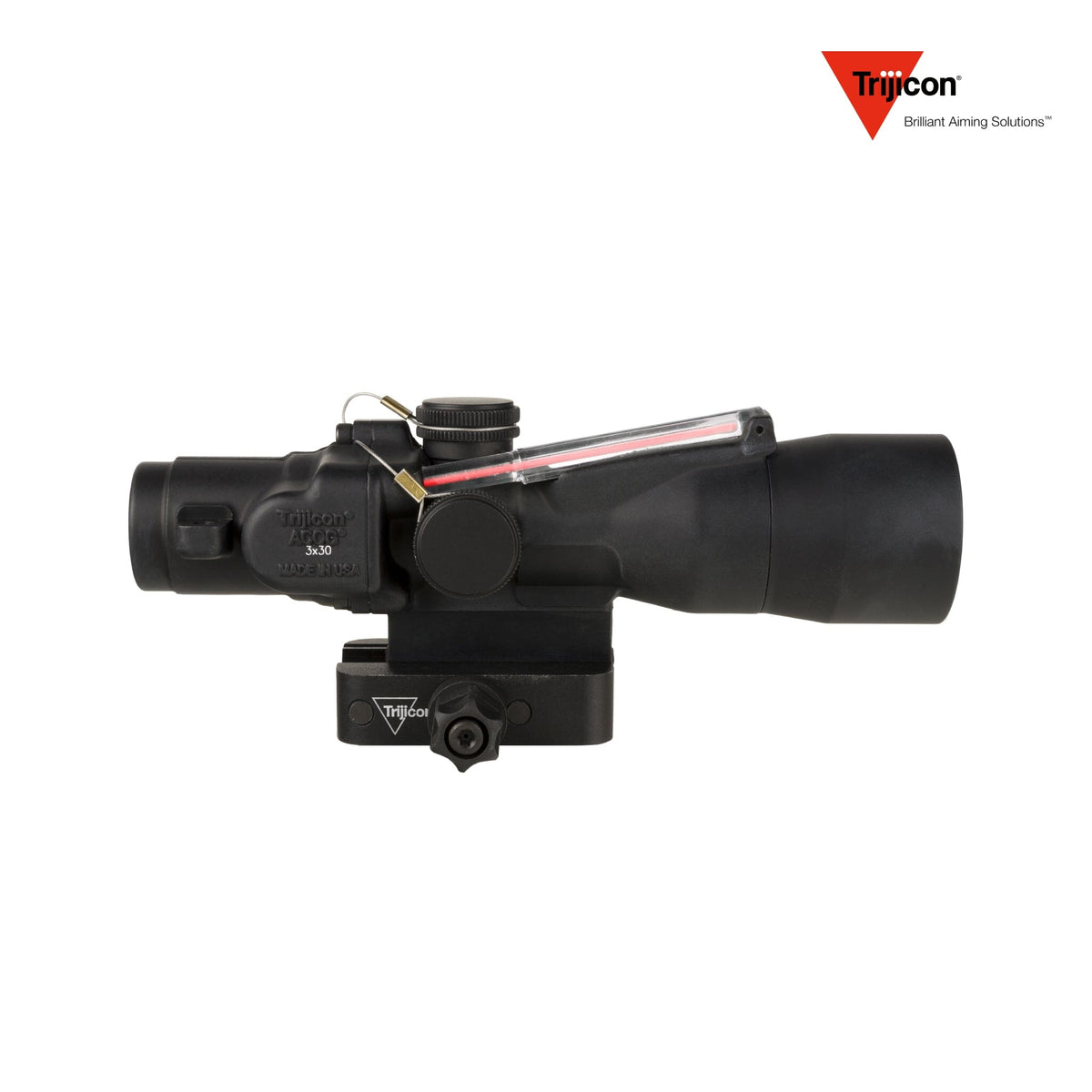

The Trijicon ACOG 3x30 Rifle Scope Horseshoe/Dot 5.56x45 62gr Dual-Illuminated Red Reticle (SKU TA33-C-400380) is a compact fixed 3x ACOG with a 30 mm objective and a red horseshoe and dot reticle carrying 5.56x45 62gr bullet drop marks, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares

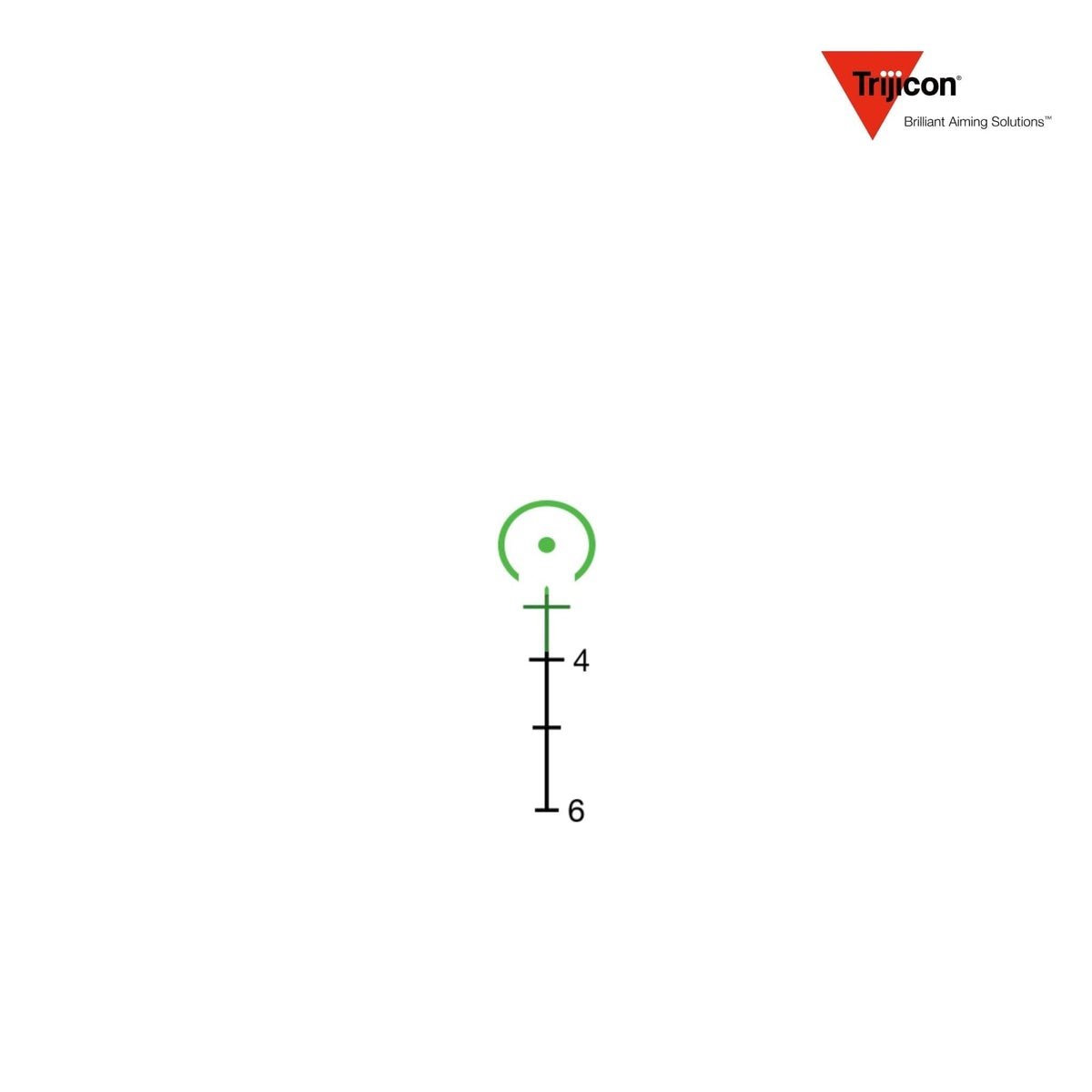

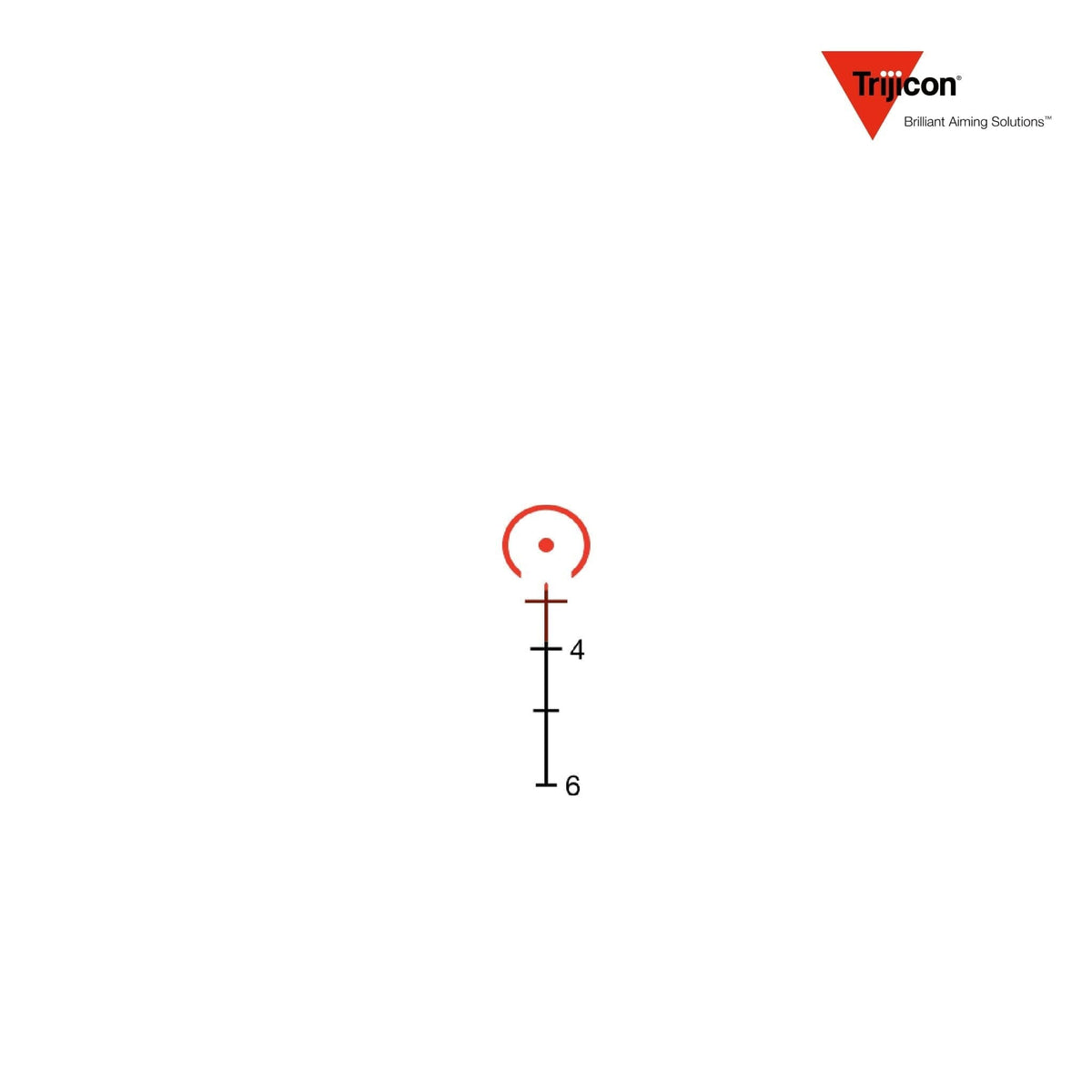

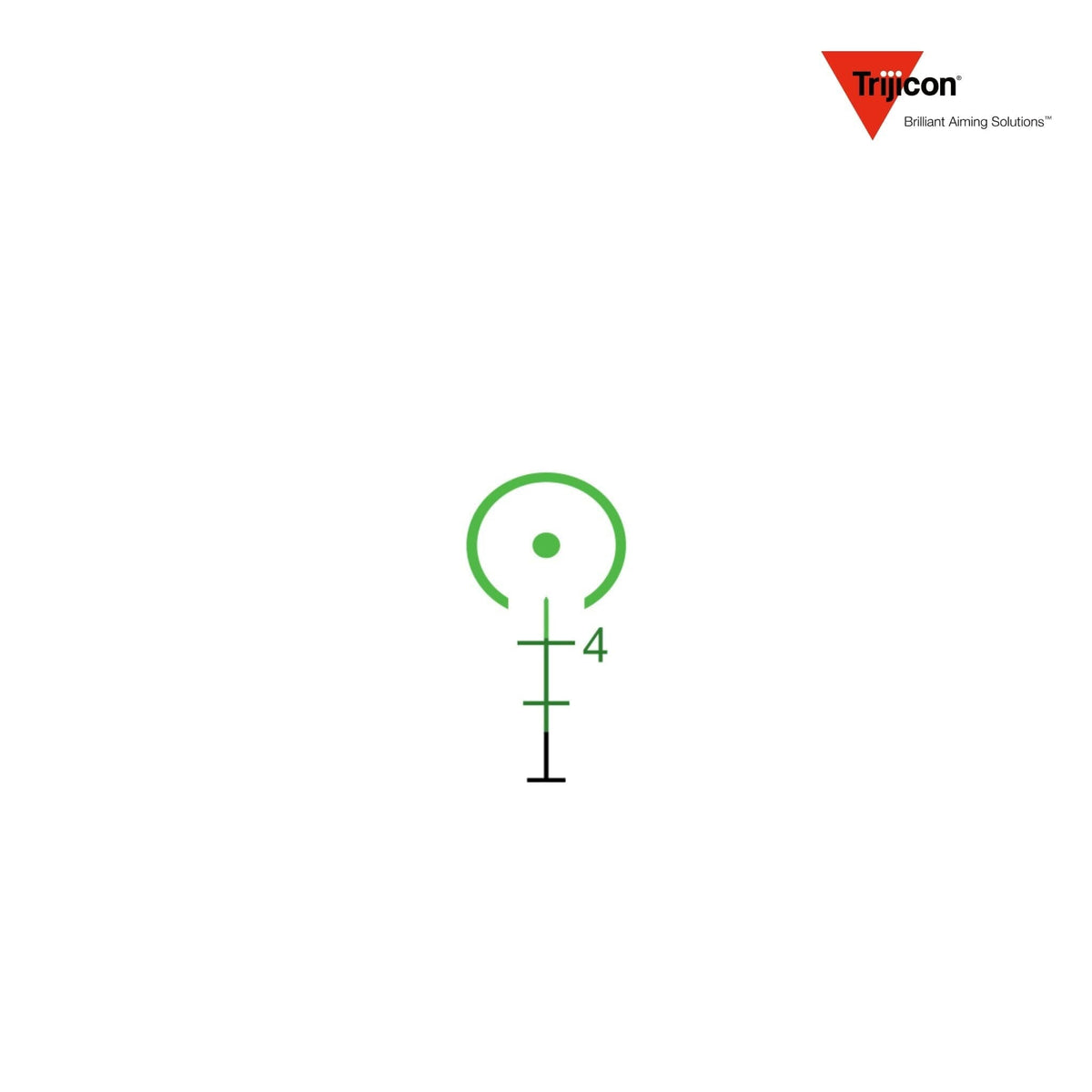

The TA33 is the compact ACOG with usable eye relief — 1.9 in rather than the 1.4 in of the 3x24 — which makes it far easier to live with on a service stock. The horseshoe and dot is the fastest of its reticle patterns: the horseshoe draws the eye at close range and the dot inside it is the precise aiming point. For a finer point of aim on the same body see the red chevron cut for .223 62gr; for a different cartridge the red horseshoe dot for 7.62x39 is cut for 123gr, and the green horseshoe dot for .223 62gr is the green-lamp equivalent of this one. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- Carbines chambered in 5.56 NATO running a 62gr load
- Close and mid-range work where the horseshoe finds the eye faster than a crosshair
- Shooters who want battery-free reliability with nothing to switch on
Key Features
-
Reticle: Dual illuminated red horseshoe/dot
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: 5.56x45 / 62gr BDC
-
Mount: Trijicon Q-LOC quick-release Picatinny mount (removable)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
3x fixed |
| Objective |
30 mm |
| Reticle |
Dual illuminated red horseshoe/dot |
| Reticle Colour |
Red |
| Calibre Calibration |
5.56x45 / 62gr BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.25 MOA per click |
| Eye Relief |
1.9 in (48 mm) - long for a compact ACOG, still short by conventional rifle scope standards |
| Exit Pupil |
0.33 in (8.4 mm) |
| Field of View |
19.3 ft at 100 yards (6.4 m at 100 m); 3.7° |
| Length |
6.2 in (157 mm); L×W×H 6.2 × 2.2 × 2.6 in (157 × 56 × 66 mm) |
| Weight |
9.8 oz (278 g) |
| Housing |
Forged aluminium (7075-T6), matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (removable, not integrated) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Compact ACOG Scopecoat (TA62), LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA33-C-400380 / TA33-C-400380 / 719307313866 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the ACOG reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
5.56x45 NATO with a 62gr bullet. The stadia below the horseshoe are the drop holds for that load.

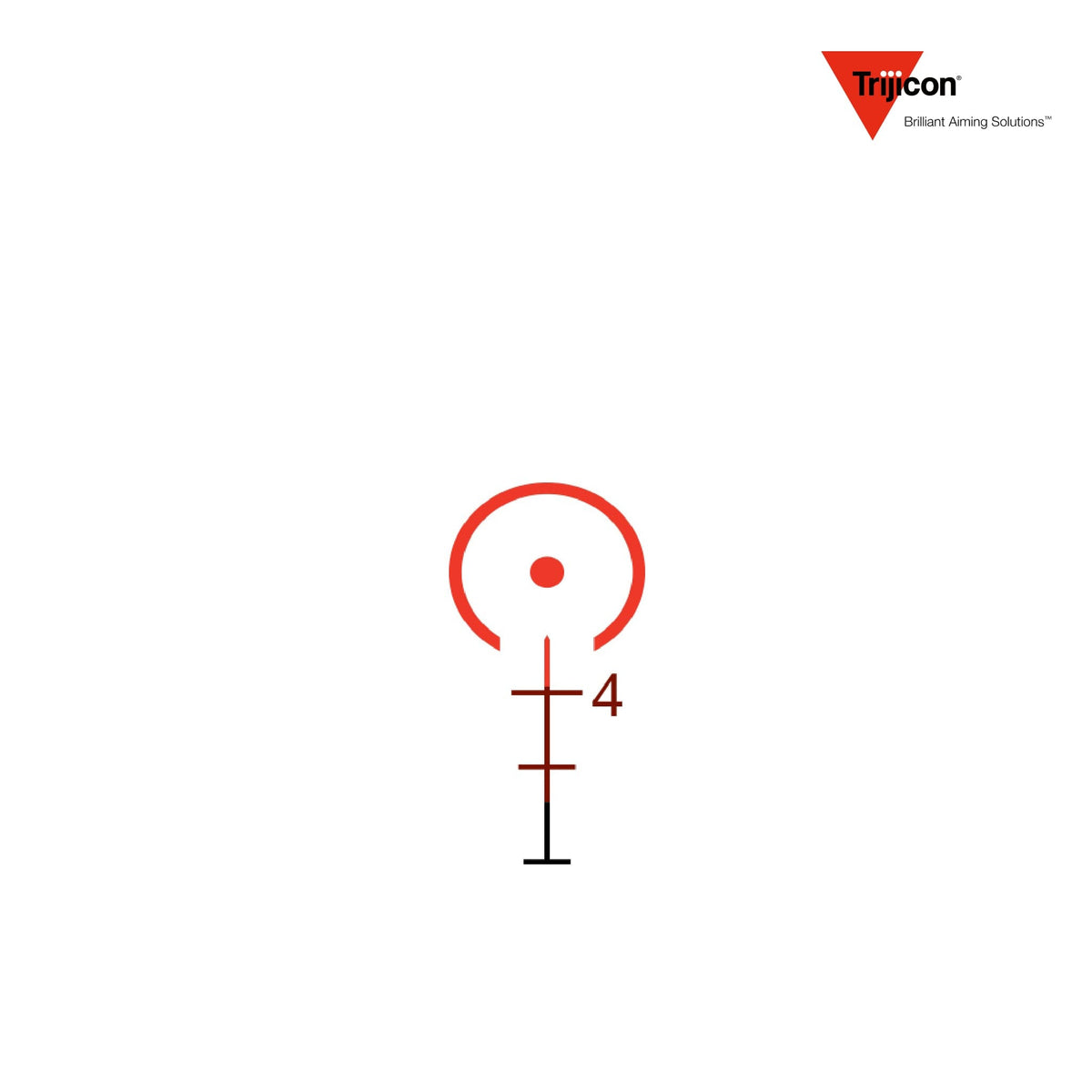

Where do I aim with a horseshoe and dot?
The dot in the middle of the horseshoe is the aiming point. The horseshoe itself is there to catch the eye quickly at close range.
Does it come with a mount?
Yes — a Trijicon Q-LOC Technology quick-release Picatinny mount, which is removable rather than integrated.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
