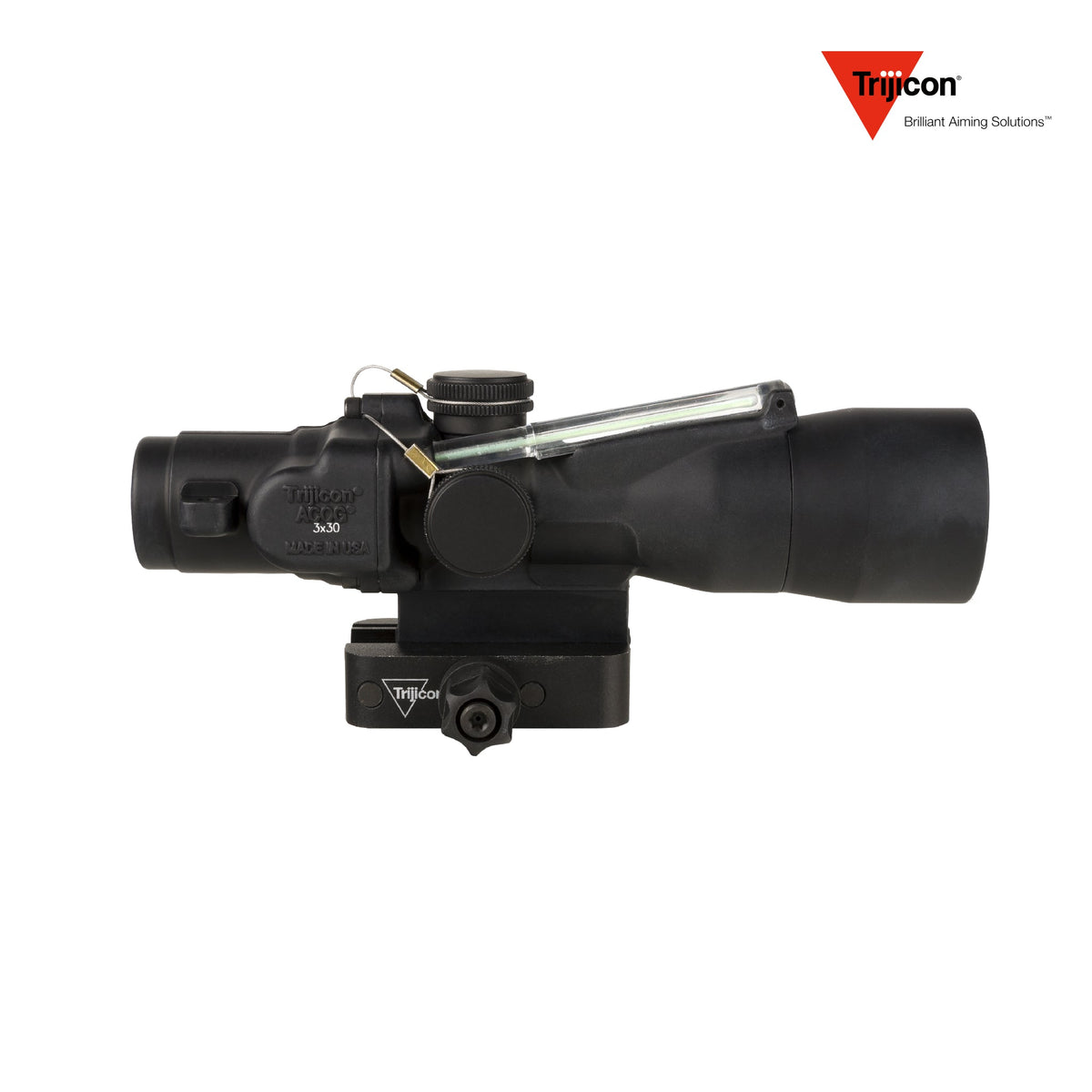

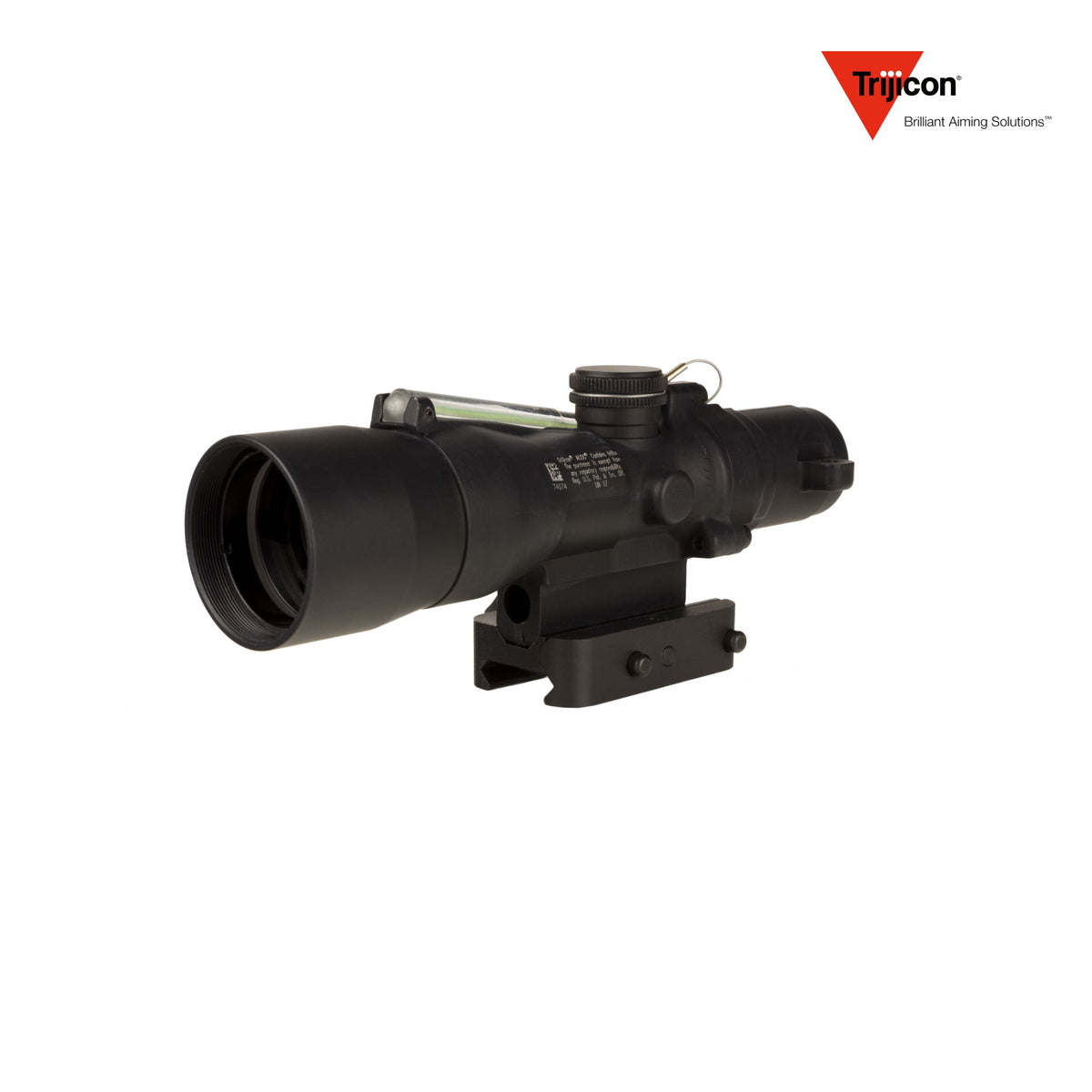

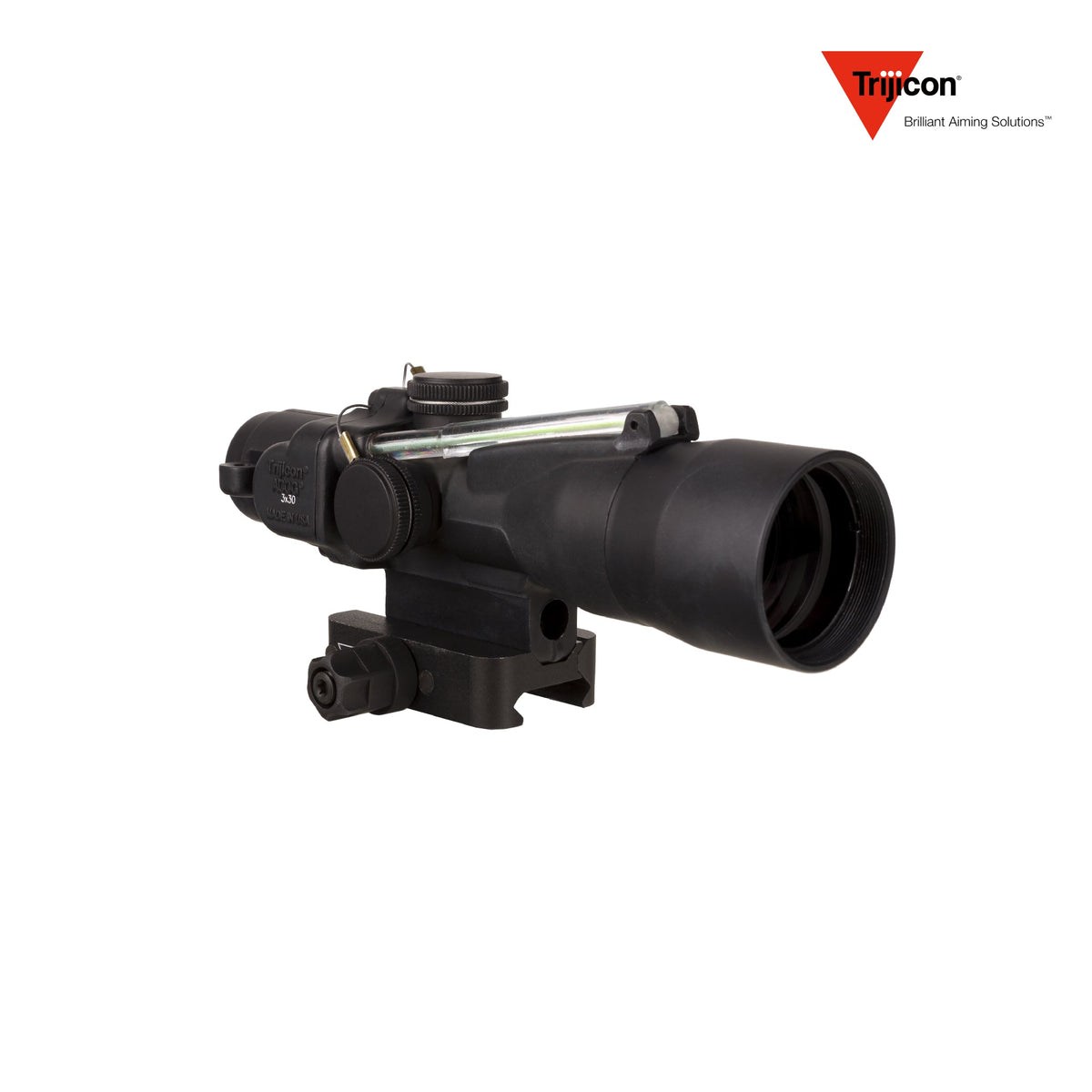

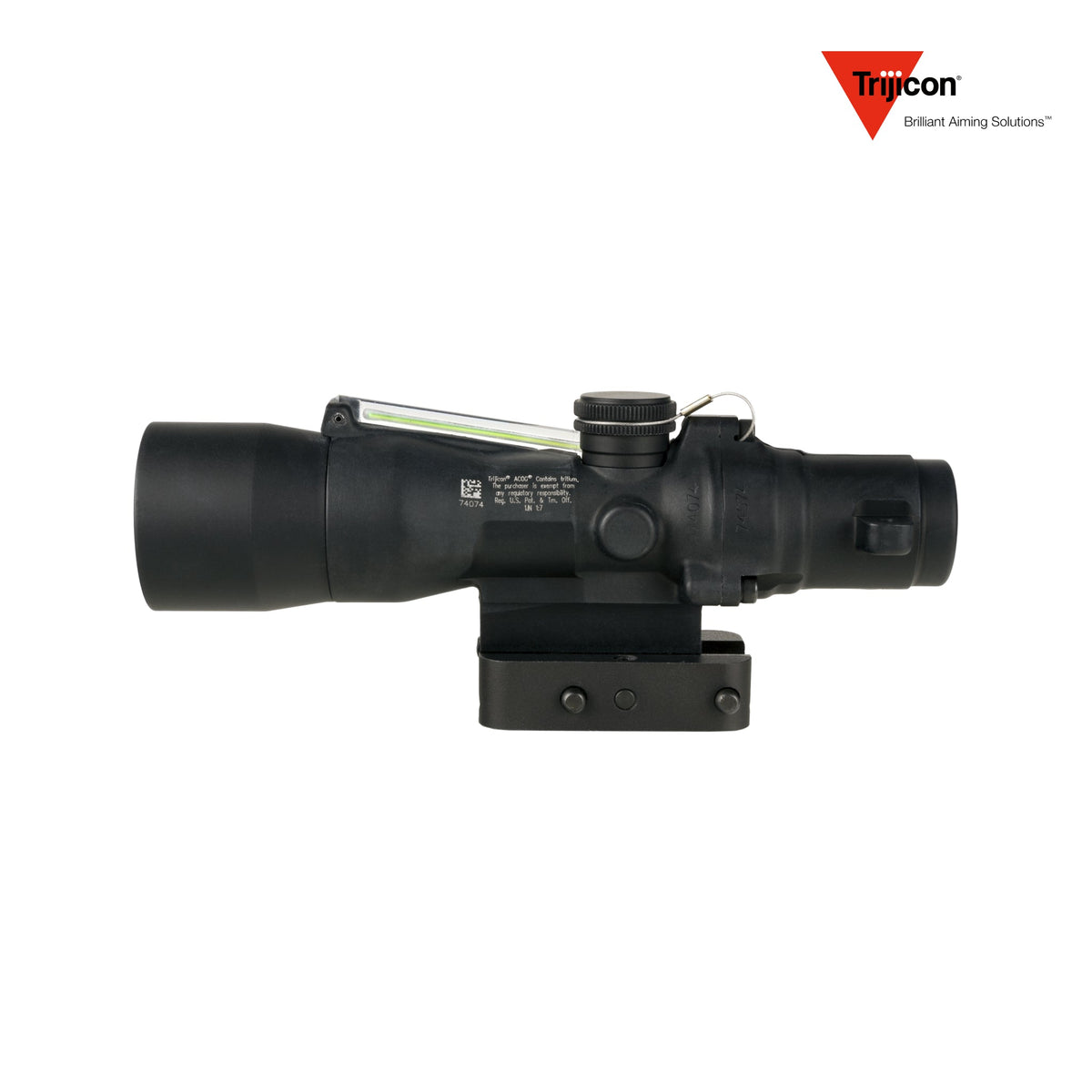

The Trijicon ACOG 3x30 Rifle Scope Horseshoe/Dot .223 62gr Dual-Illuminated Green Reticle (SKU TA33-C-400373) is a compact fixed 3x ACOG with a 30 mm objective and a green horseshoe and dot reticle carrying 62gr bullet drop marks for .223 Remington and 5.56x45, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
This is the green-lamp horseshoe on the standard 62gr service calibration, and the horseshoe is the quickest shape in the TA33 range to find at close range. The identical optic with a red lamp is the ACOG 3x30 Horseshoe/Dot 5.56x45 62gr Red. If your rifle is chambered in 7.62x39 instead, the green horseshoe dot cut for 7.62x39 123gr is the direct equivalent. On the same 62gr calibration the green chevron gives a finer point of aim, and the green crosshair is cut for a heavier 69gr match load. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- .223 and 5.56 carbines running a 62gr load
- Woodland and foliage backgrounds where a green lamp stands out better than red
- Close and mid-range work where the horseshoe finds the eye faster than a crosshair
Key Features
-
Reticle: Dual illuminated green horseshoe/dot
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: 5.56x45 / 62gr BDC
-
Mount: Trijicon Q-LOC quick-release Picatinny mount (removable)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
3x fixed |
| Objective |
30 mm |
| Reticle |
Dual illuminated green horseshoe/dot |
| Reticle Colour |
Green |
| Calibre Calibration |
5.56x45 / 62gr BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.25 MOA per click |
| Eye Relief |
1.9 in (48 mm) - long for a compact ACOG, still short by conventional rifle scope standards |
| Exit Pupil |
0.33 in (8.4 mm) |
| Field of View |
19.3 ft at 100 yards (6.4 m at 100 m); 3.7° |
| Length |
6.2 in (157 mm); L×W×H 6.2 × 2.2 × 2.6 in (157 × 56 × 66 mm) |
| Weight |
9.8 oz (278 g) |
| Housing |
Forged aluminium (7075-T6), matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (removable, not integrated) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Compact ACOG Scopecoat (TA62), LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA33-C-400373 / TA33-C-400373 / 719307313798 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
A 62gr bullet in .223 Remington or 5.56x45 — Trijicon list the calibration as 5.56x45 62gr, and the two cartridges share the same drop holds here.

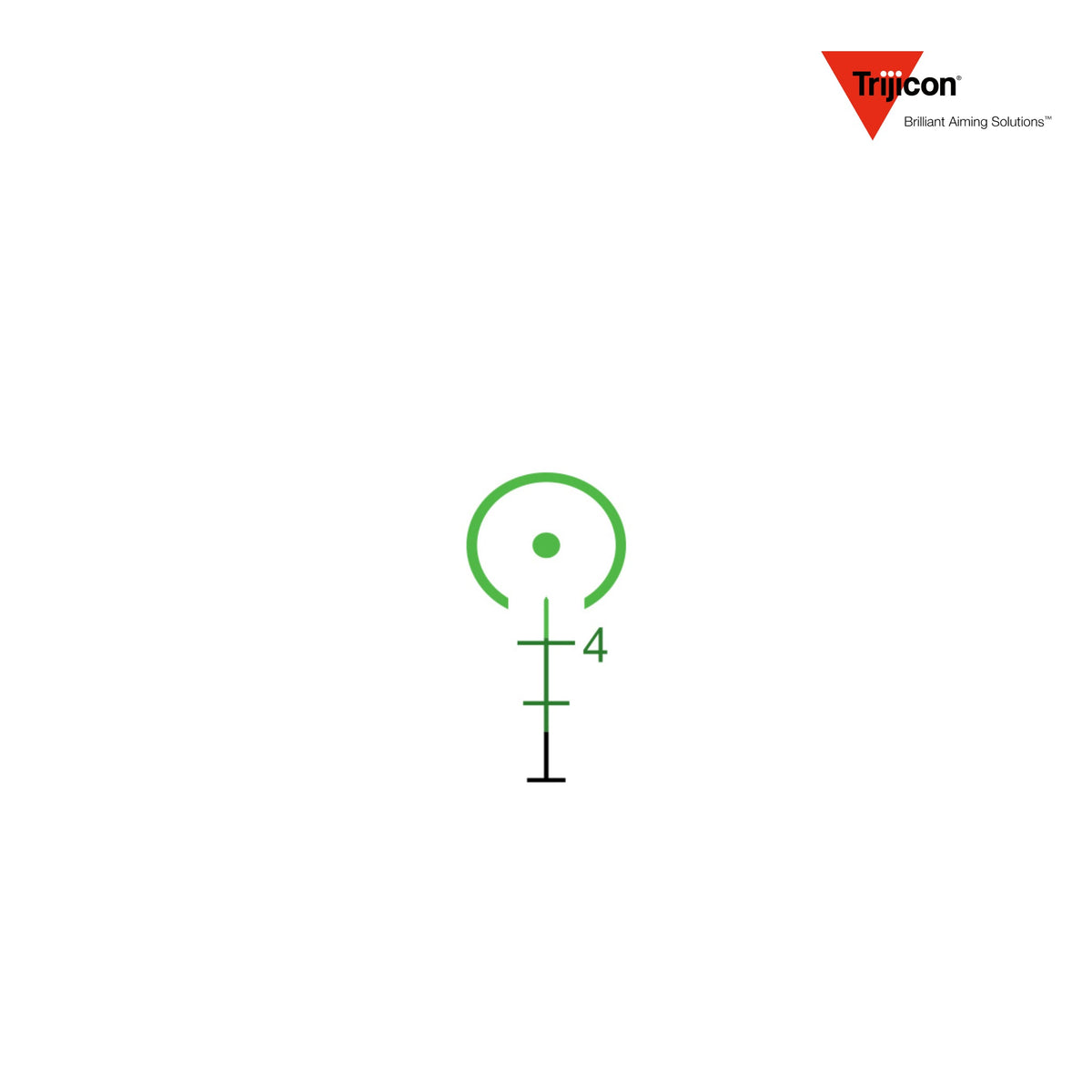

Where do I aim with a horseshoe and dot?
The dot in the middle of the horseshoe is the aiming point. The horseshoe itself is there to catch the eye quickly at close range.
Why choose green over red?
Green tends to stand out better against woodland and foliage, red against snow and pale ground. The two optics are otherwise identical.
Does it come with a mount?
Yes — a Trijicon Q-LOC Technology quick-release Picatinny mount, which is removable rather than integrated.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
