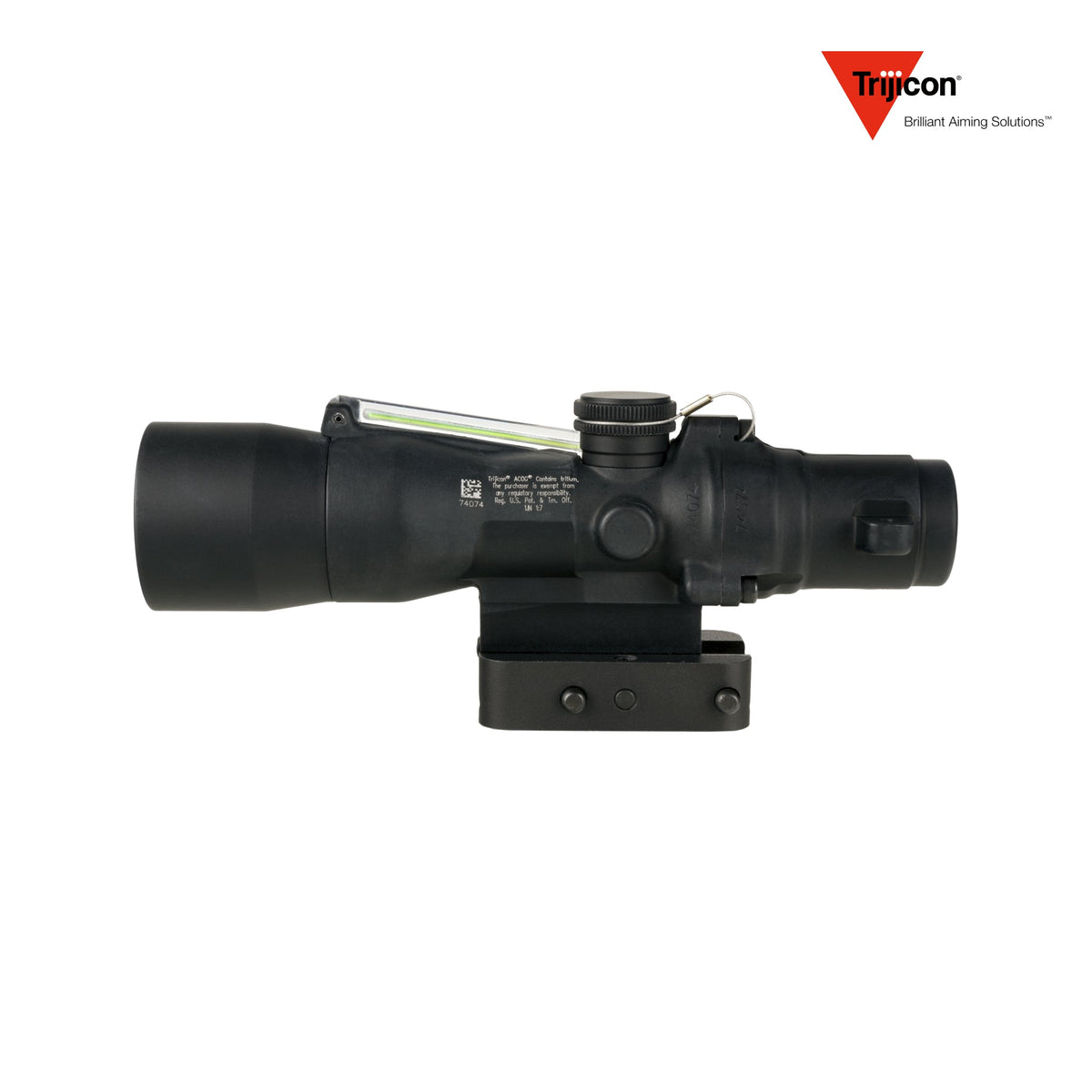

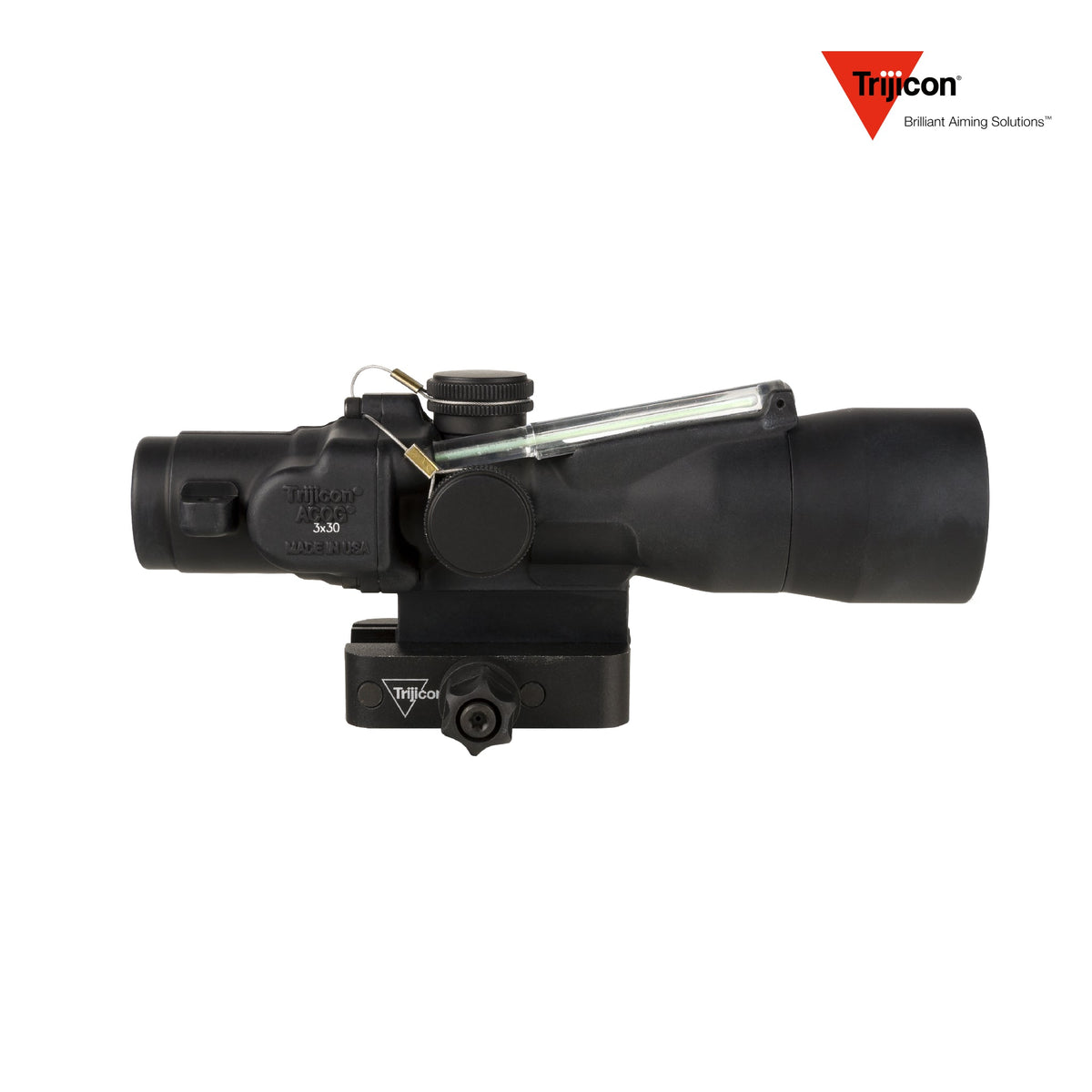

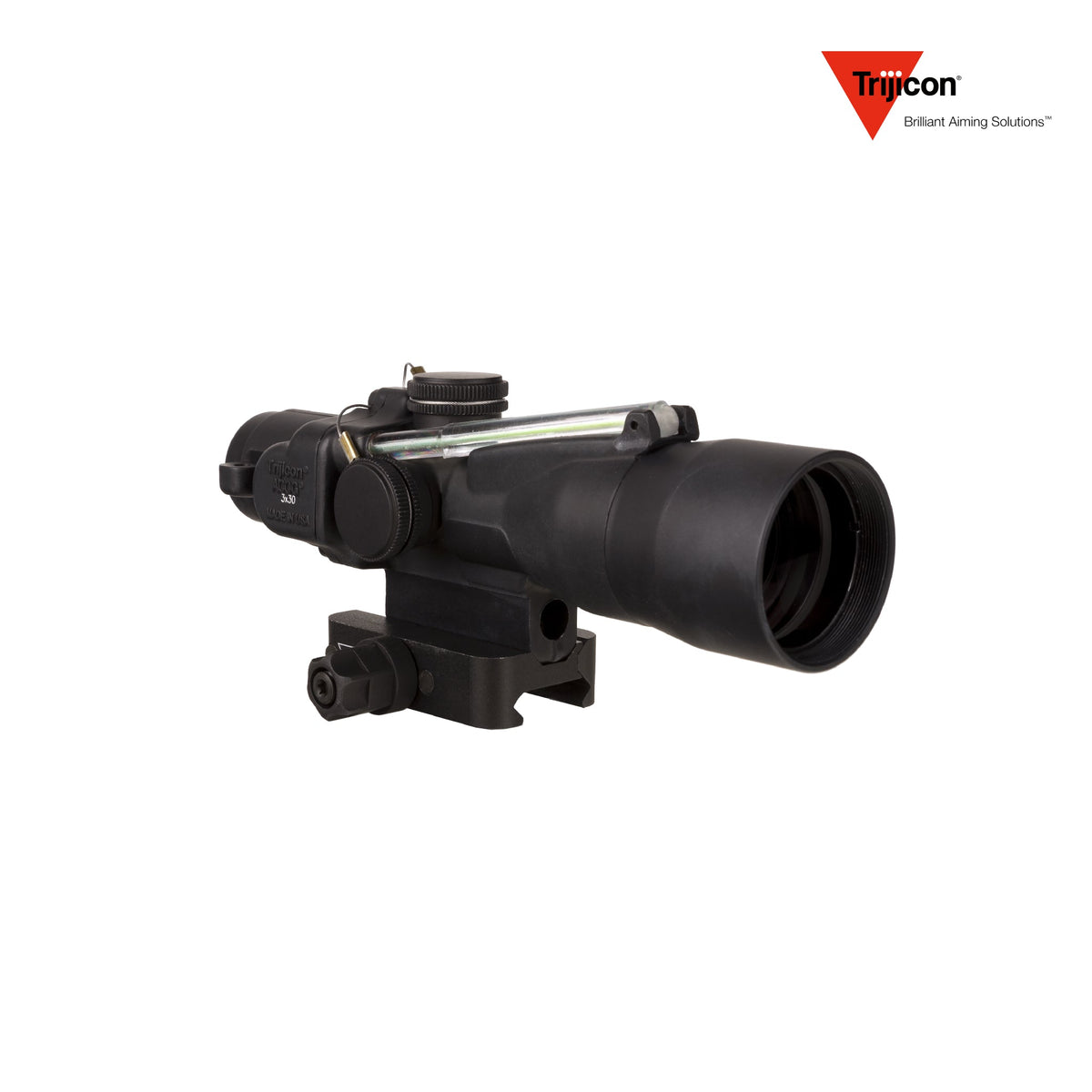

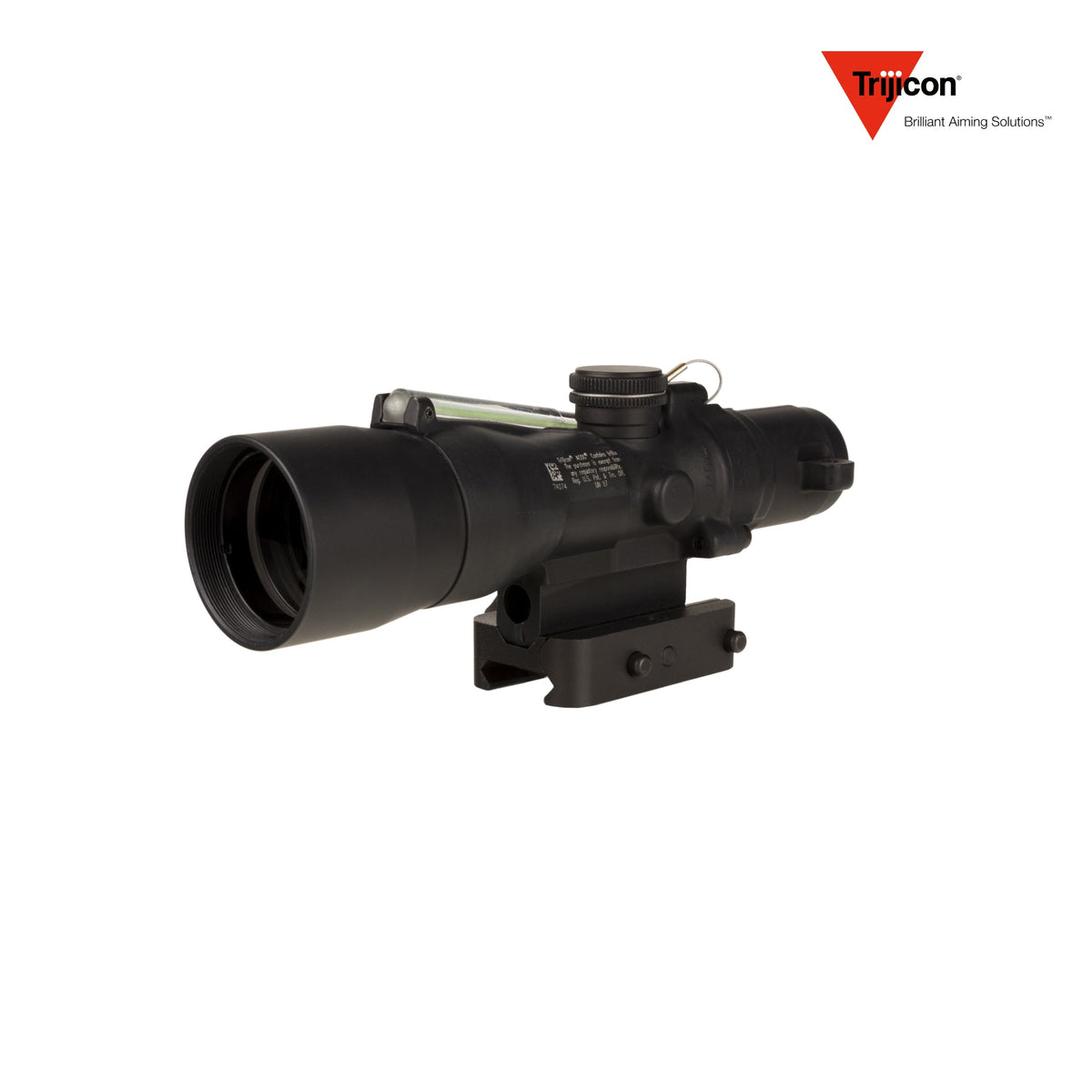

The Trijicon ACOG 3x30 Rifle Scope Crosshair .223 69gr Dual-Illuminated Green Reticle (SKU TA33-C-400368) is a compact fixed 3x ACOG with a 30 mm objective and a green crosshair carrying a .223 Remington ballistic drop scale for a 69gr bullet, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
The 69gr calibration is the giveaway here: this is the TA33 cut for a heavier match bullet rather than the 55gr and 62gr service loads the rest of the range is built around, and the crosshair is the most precise of its reticle patterns. The red crosshair cut for .308 168gr is the same pattern on a heavier cartridge. For a faster close-range shape on a 62gr load, see the green chevron for .223 62gr or the green horseshoe dot for .223 62gr. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- .223 and 5.56 rifles running a heavier 69gr match load
- Precise work where a fine crosshair beats a horseshoe or a chevron
- Woodland and foliage backgrounds where a green lamp stands out better than red
Key Features
-

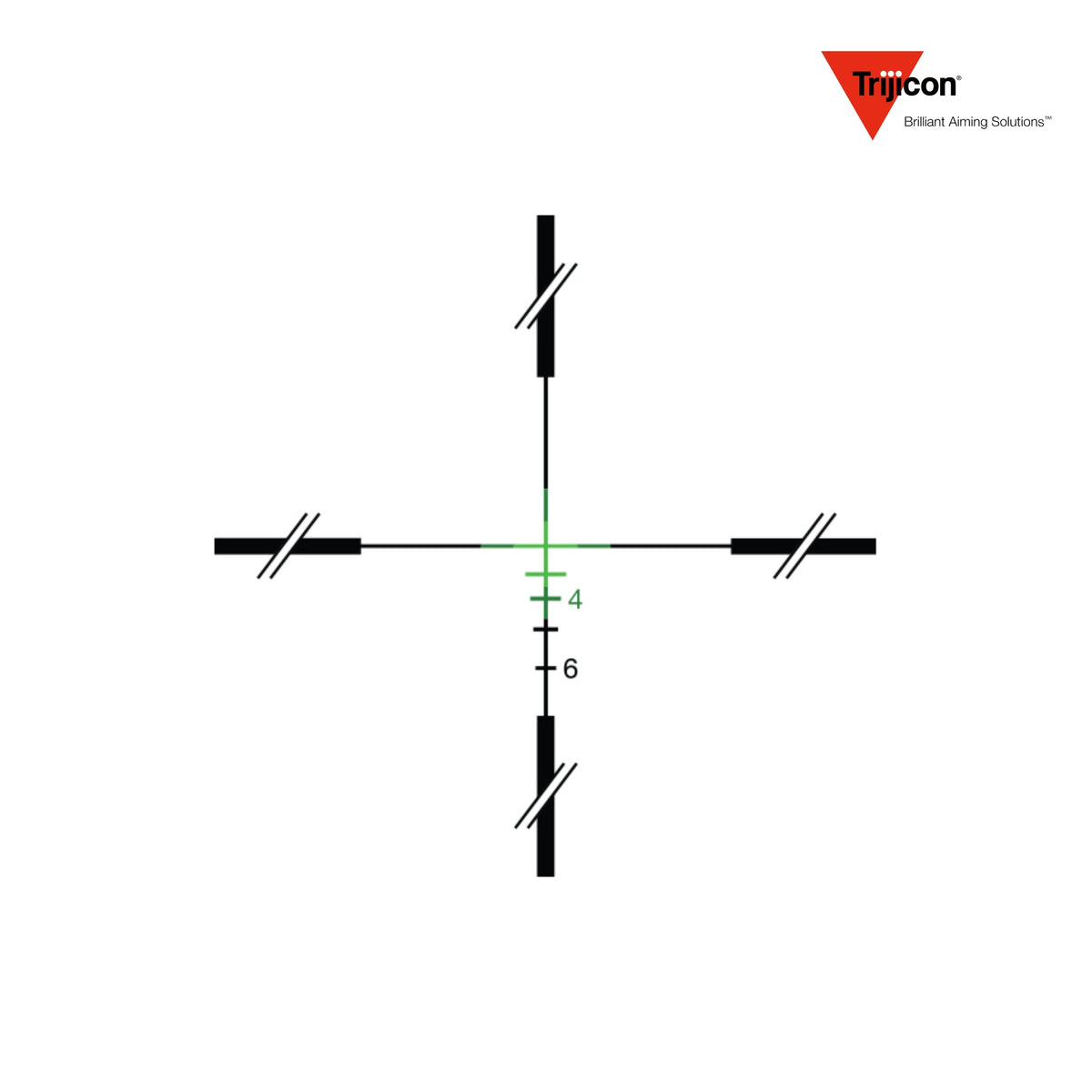

Reticle: Dual illuminated green crosshair with a .223 Remington ballistic scale
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .223 / 69gr BDC
-
Mount: Trijicon Q-LOC quick-release Picatinny mount (removable)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
3x fixed |
| Objective |
30 mm |
| Reticle |
Dual illuminated green crosshair with a .223 Remington ballistic scale |
| Reticle Colour |
Green |
| Calibre Calibration |
.223 / 69gr BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.25 MOA per click |
| Eye Relief |
1.9 in (48 mm) - long for a compact ACOG, still short by conventional rifle scope standards |
| Exit Pupil |
0.33 in (8.4 mm) |
| Field of View |
19.3 ft at 100 yards (6.4 m at 100 m); 3.7° |
| Length |
6.2 in (157 mm); L×W×H 6.2 × 2.2 × 2.6 in (157 × 56 × 66 mm) |
| Weight |
9.8 oz (278 g) |
| Housing |
Forged aluminium (7075-T6), matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (removable, not integrated) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Compact ACOG Scopecoat (TA62), LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA33-C-400368 / TA33-C-400368 / 719307313743 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
.223 Remington with a 69gr bullet, which is heavier than the 55gr and 62gr loads most of the range is cut for.
How much eye relief does it have?
1.9 in (48 mm). That is long for a compact ACOG, though still short by conventional rifle scope standards.
Does it come with a mount?
Yes — a Trijicon Q-LOC Technology quick-release Picatinny mount, which is removable rather than integrated.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
