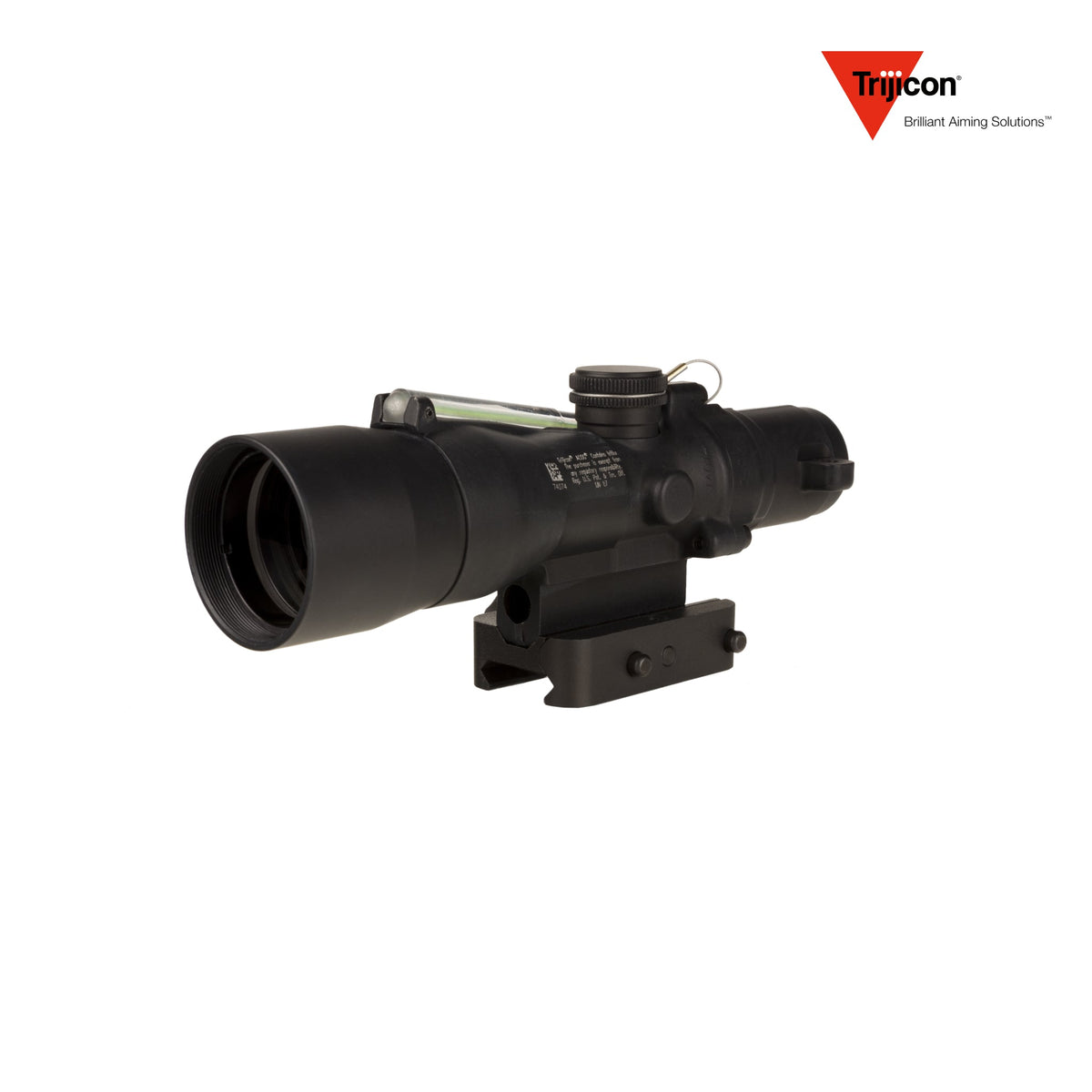

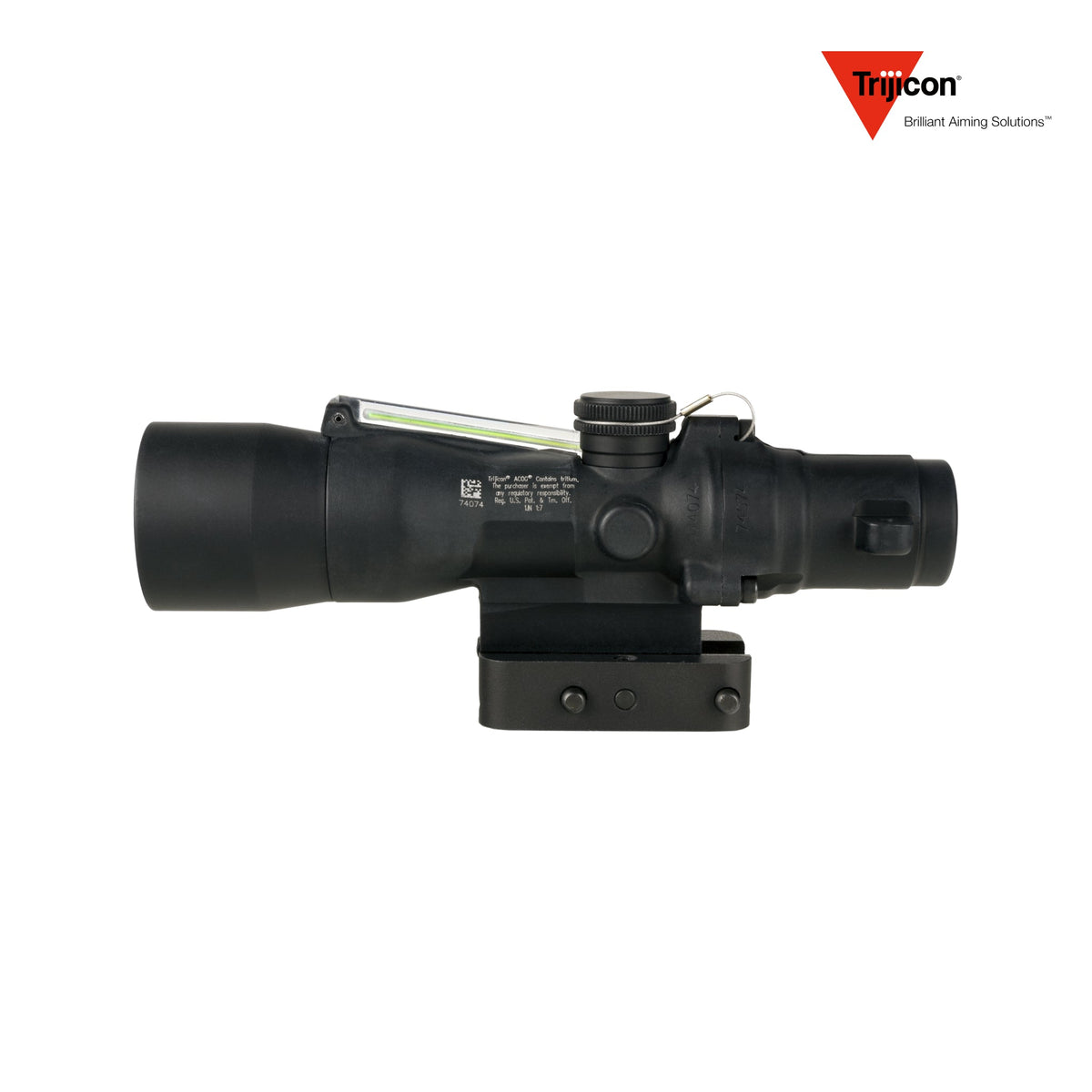

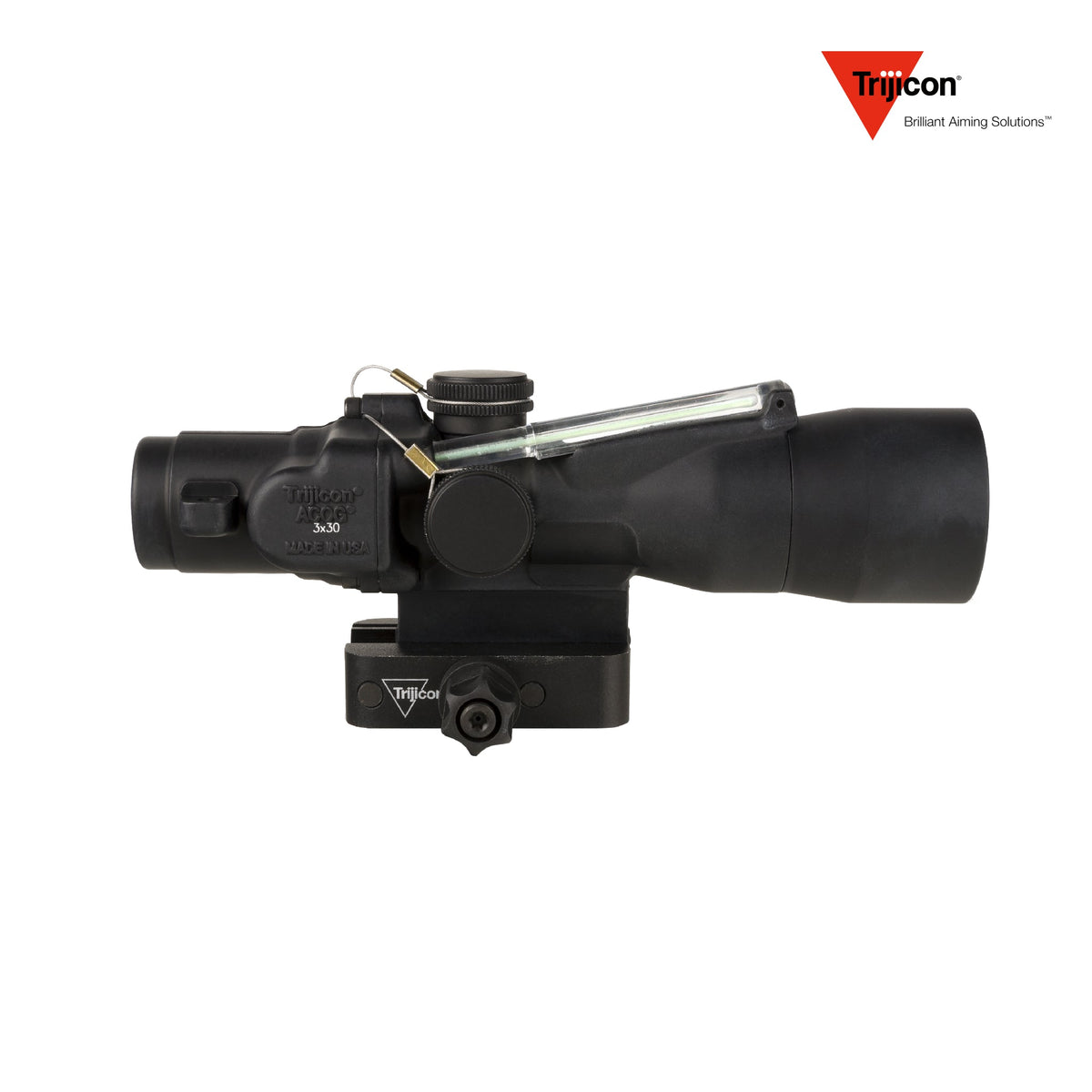

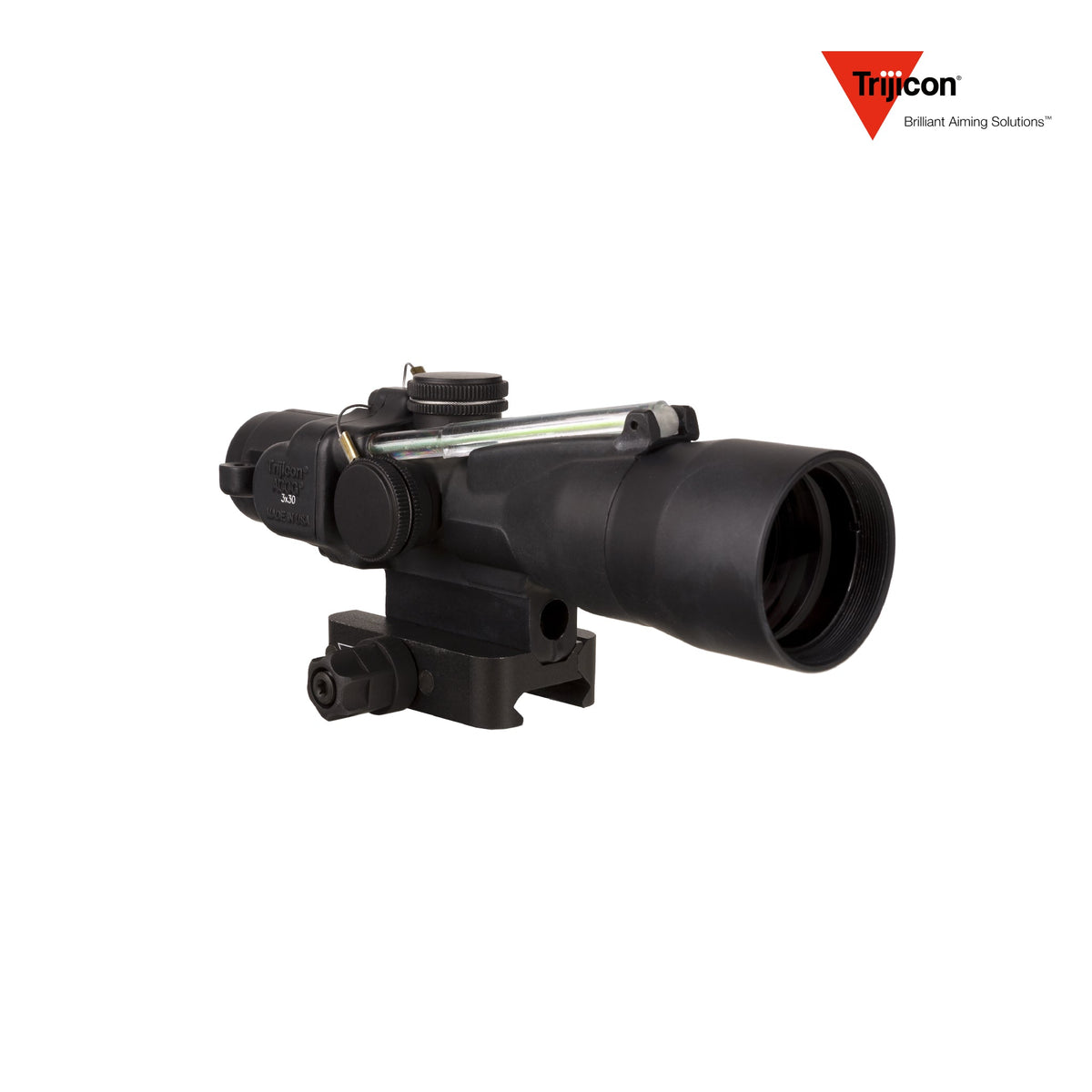

The Trijicon ACOG 3x30 Rifle Scope Chevron .223 62gr Dual-Illuminated Green Reticle (SKU TA33-C-400371) is a compact fixed 3x ACOG with a 30 mm objective and a green chevron bullet drop compensating reticle cut for .223 Remington with a 62gr bullet, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
This is the green-lamp chevron: the tip gives a fine aiming point, the wide base keeps it quick to find, and green tends to be the easier of the two lamp colours against woodland. The identical optic with a red lamp is the ACOG 3x30 Chevron .223 62gr Red. The other green TA33 reticles on the same 62gr calibration are the green horseshoe dot, while the green crosshair is cut for a heavier 69gr load. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- .223 and 5.56 carbines running a 62gr load
- Woodland and foliage backgrounds where a green lamp stands out better than red
- Shooters who want a fine aiming point without giving up close-range speed
Key Features
-

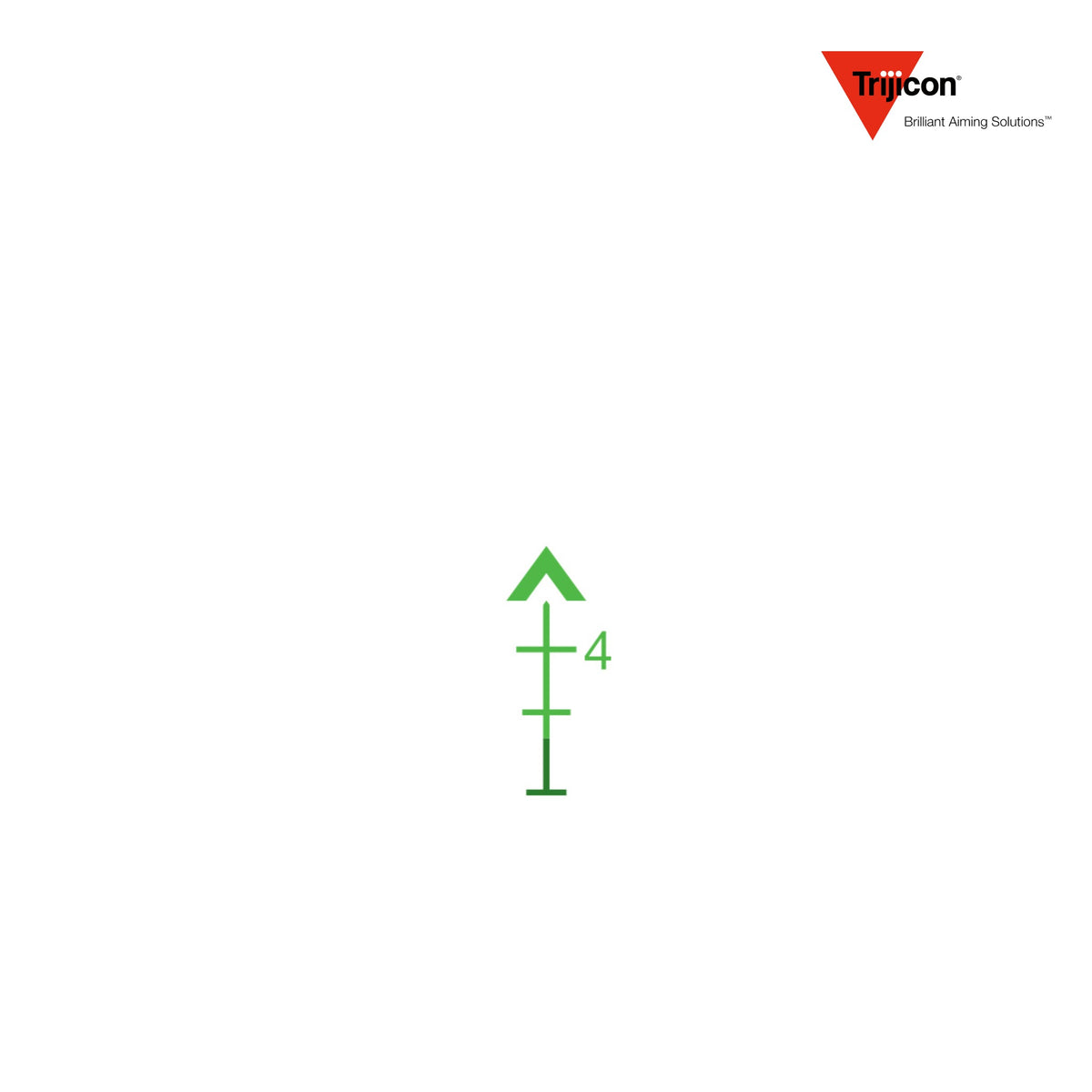

Reticle: Dual illuminated green chevron
-
Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .223 / 62gr BDC
-
Mount: Trijicon Q-LOC quick-release Picatinny mount (removable)
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
3x fixed |
| Objective |
30 mm |
| Reticle |
Dual illuminated green chevron |
| Reticle Colour |
Green |
| Calibre Calibration |
.223 / 62gr BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.25 MOA per click |
| Eye Relief |
1.9 in (48 mm) - long for a compact ACOG, still short by conventional rifle scope standards |
| Exit Pupil |
0.33 in (8.4 mm) |
| Field of View |
19.3 ft at 100 yards (6.4 m at 100 m); 3.7° |
| Length |
6.2 in (157 mm); L×W×H 6.2 × 2.2 × 2.6 in (157 × 56 × 66 mm) |
| Weight |
9.8 oz (278 g) |
| Housing |
Forged aluminium (7075-T6), matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (removable, not integrated) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Compact ACOG Scopecoat (TA62), LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA33-C-400371 / TA33-C-400371 / 719307313774 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?
.223 Remington with a 62gr bullet. The marks below the chevron are the drop holds for that load.
Why choose green over red?
Green tends to stand out better against woodland and foliage, red against snow and pale ground. The two optics are otherwise identical.
Does it come with a mount?
Yes — a Trijicon Q-LOC Technology quick-release Picatinny mount, which is removable rather than integrated.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
