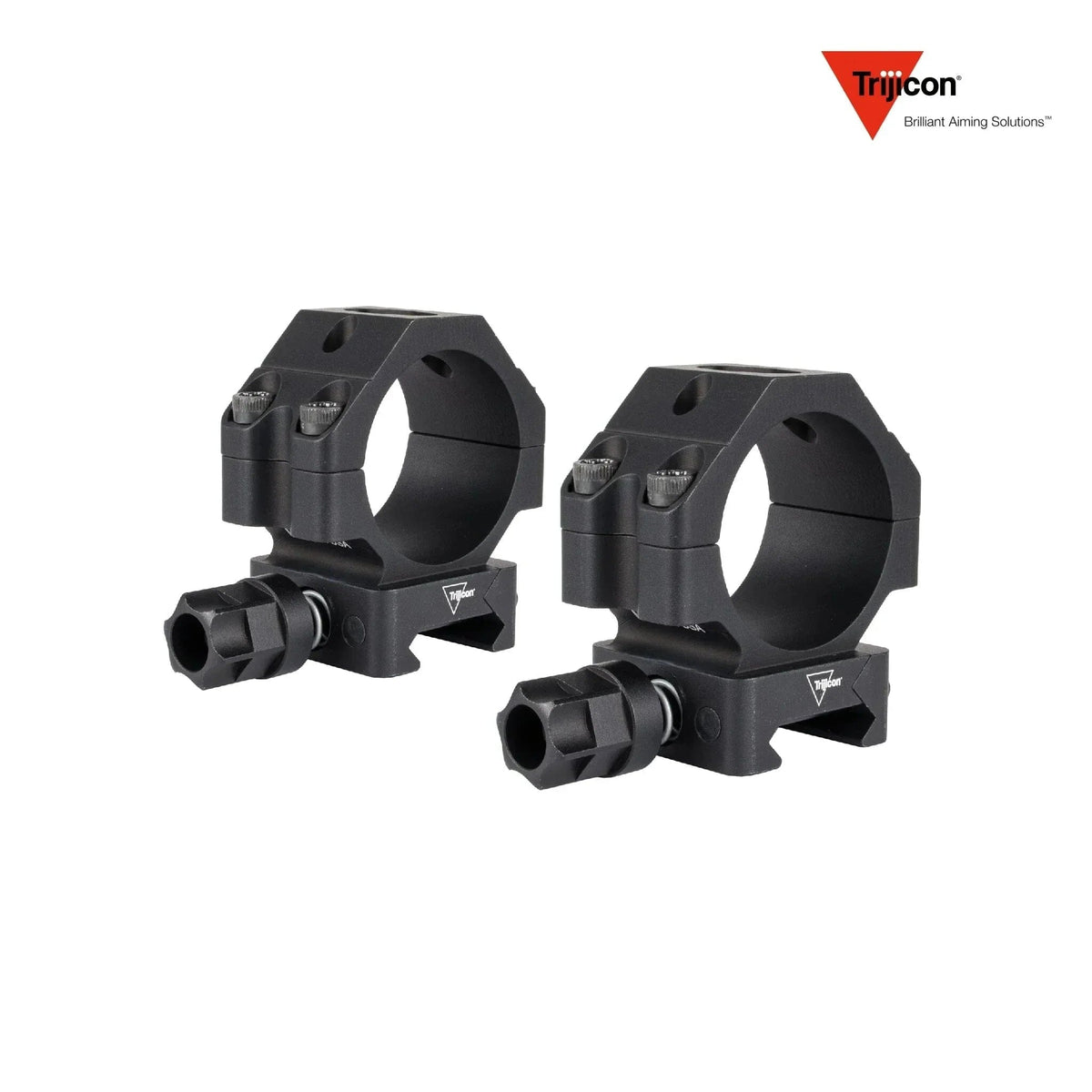

The Trijicon Q-LOC 30mm Scope Rings Low (SKU AC22064) are a matched pair of 30 mm scope rings in Trijicon's low height, 1.0 in (25 mm) above the rail, using the Q-LOC quick-detach lever system.
How It Compares
Ring height is chosen by objective diameter: the barrel of the scope has to clear the rail and, on a bolt gun, the barrel itself. This Low set suits objectives up to 40 mm. Going up, the medium rings take a 44 mm objective, the high rings a 50 mm, and the extra-high rings a 56 mm. For a 34 mm tube instead, start with the 34 mm low rings. Browse all rifle scope mounts or the full Trijicon optics range.
Ideal For
- Scopes with a 30 mm tube and an objective up to 40 mm
- Shooters who want the lowest practical mounting height for a solid cheek weld
- Rifles whose optic comes off and goes back on without losing zero
Key Features
-
Fits: 30 mm scope tubes
-
Height: 1.0 in (25 mm) above the rail — Trijicon 'Low' class
-
Maximum Objective: Up to 40 mm
-
Attachment: Trijicon Q-LOC quick-detach
-
Material: 6061-T6 aluminium (Mil-Spec drop test rated), matte black
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Product Type |
Scope ring pair |
| Height |
1.0 in (25 mm) above rail (Low) |
| Ring Diameter |
30 mm |
| Max Objective |
Up to 40 mm (Trijicon 'Low' ring class) |
| Attachment |
Trijicon Q-LOC quick-detach |
| Material |
6061-T6 aluminium (Mil-Spec drop test rated) |
| Finish |
Matte black |
| SKU / MPN / UPC |
AC22064 / AC22064 / 719307618923 |
Warranty
Trijicon back this with their Limited Lifetime Warranty against defects in materials and workmanship for the lifetime of the original owner.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
What does this fit?
Rifle scopes with a 30 mm main tube and objectives up to 40 mm, which is Trijicon's 'Low' ring class.
Which ring height do I need?
Match the height to your objective: low for up to 40 mm, medium for 44 mm, high for 50 mm and extra high for 56 mm. If you are unsure, send us your scope model and we will check it.
Are the rings sold as a pair?
Yes — a matched pair of rings with their fittings.
Is this a genuine Trijicon product?
Yes — a factory Trijicon part rather than an aftermarket copy, covered by Trijicon's Limited Lifetime Warranty.
