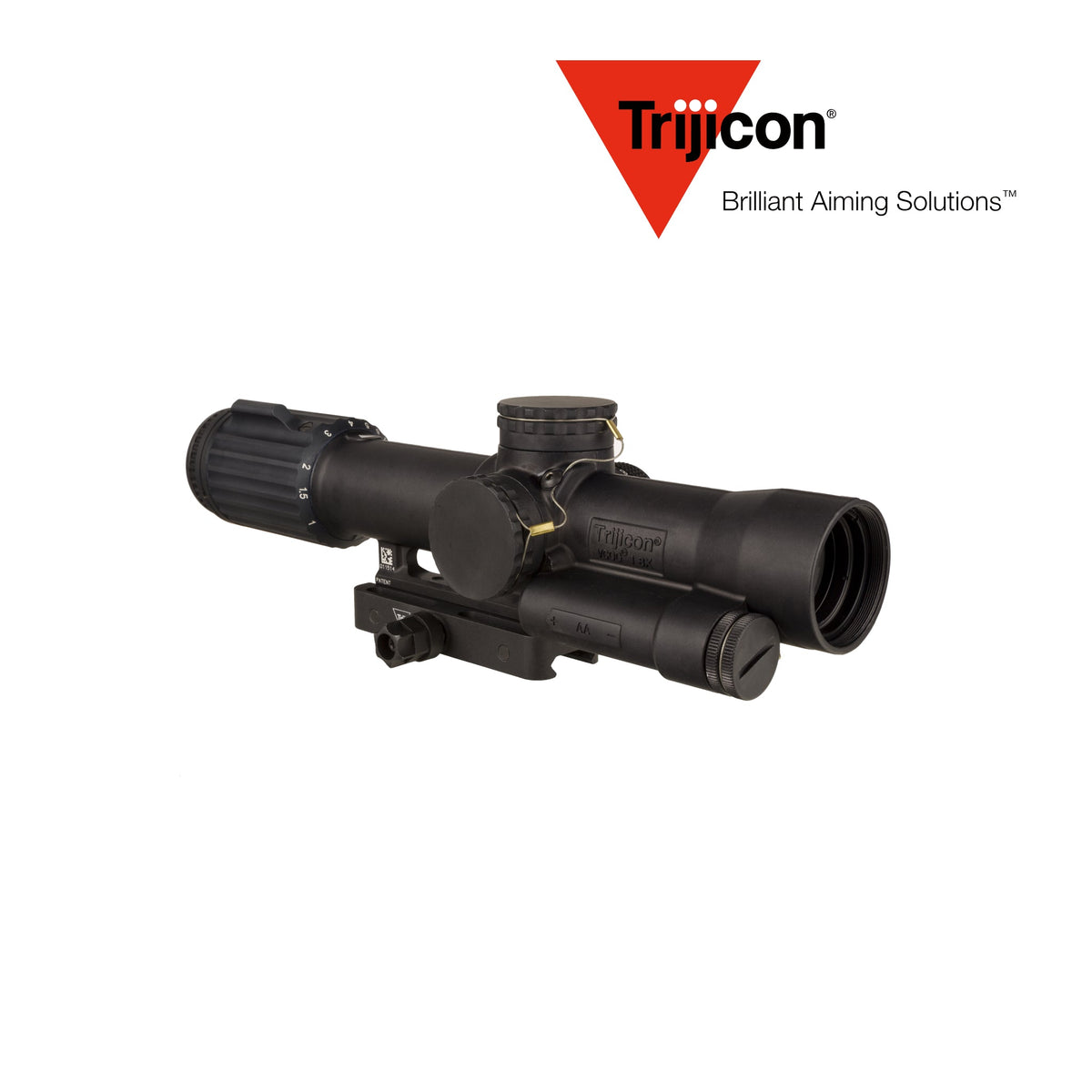

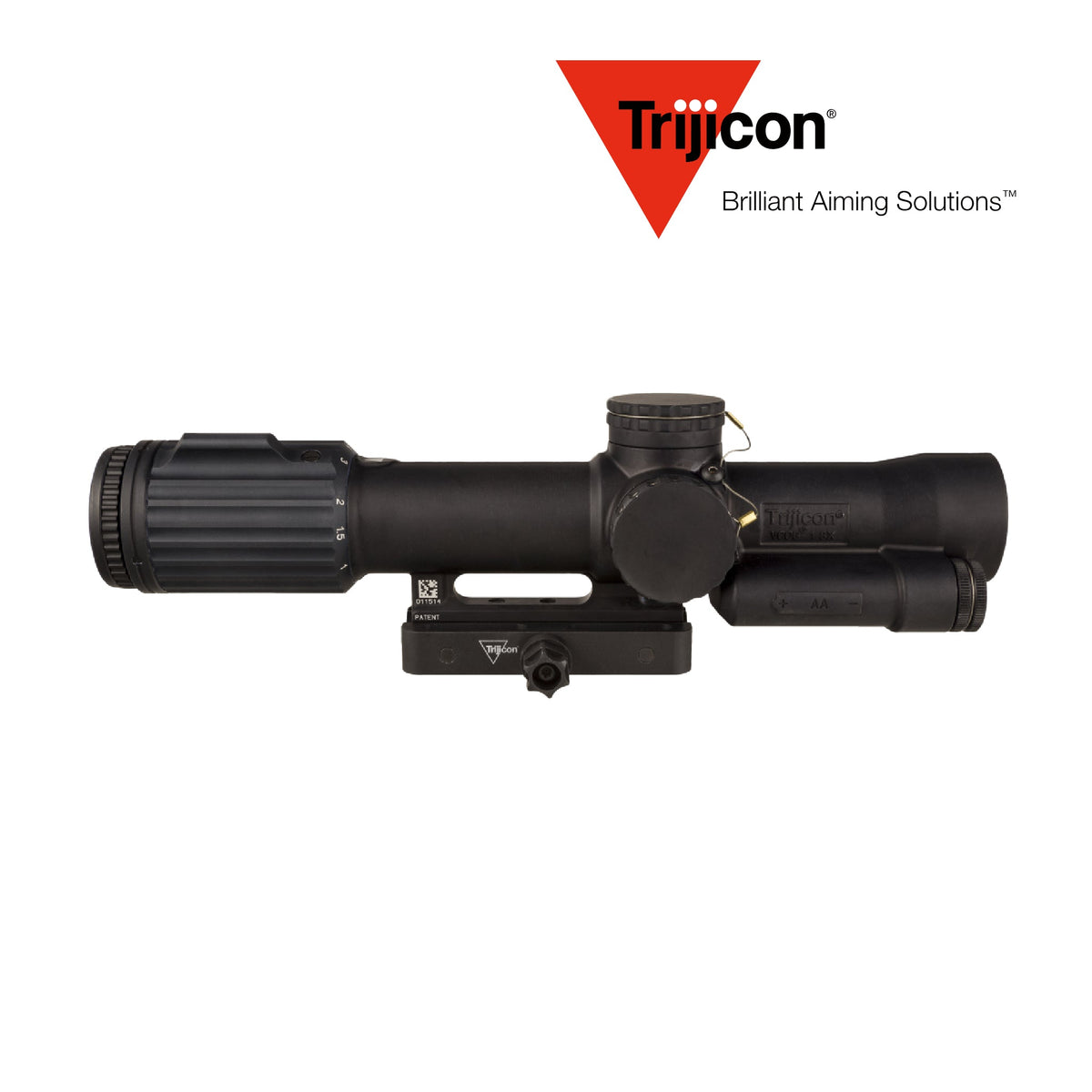

The Trijicon VCOG 1-8x28 FFP LPVO Rifle Scope MRAD Crosshair Dot Red (SKU VC18-C-2400014) is a 1-8x variable combat optical gunsight with a first focal plane MRAD crosshair dot reticle, an LED lamp bright enough for daylight and dim enough for night vision, and a Q-LOC quick-release mount in the box.
How It Compares
The VCOG is the armoured end of the low-power variable range: a forged 7075-T6 body, a single AA cell rather than a coin battery, and a quick-release mount supplied as standard. This is the milliradian version, with 0.1 MRAD clicks matched to the mil crosshair dot. The VCOG 1-8x28 MOA Crosshair Dot is the same optic in minutes of angle, and the USMC SCO VCOG 1-8x28 is the issued configuration with a LaRue LT799 mount, flip caps and a soft case. Browse all LPVO rifle scopes, the full rifle scope range or all Trijicon optics.
Ideal For
- Duty and service rifles where the optic has to take abuse rather than be looked after
- Shooters who want a full working day of illumination from a battery they can buy anywhere
- Builds that need the optic off and back on again without losing zero, using the Q-LOC mount
Key Features
-
Reticle: MRAD Crosshair Dot, first focal plane, illuminated red
-
Illumination: LED with 11 brightness settings — 2 night-vision, 8 daylight and 1 super-bright — with 'off' positions between them; one AA battery, lithium or alkaline (lithium AA included); about 633 hours continuous at setting 6 on lithium
-
Turrets: 0.1 MRAD per click; 35 MRAD adjustment range
-
Mount: Trijicon Q-LOC quick-release mount included
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1-8x |
| Objective |
28 mm |
| Focal Plane |
First Focal Plane (FFP) |
| Reticle |

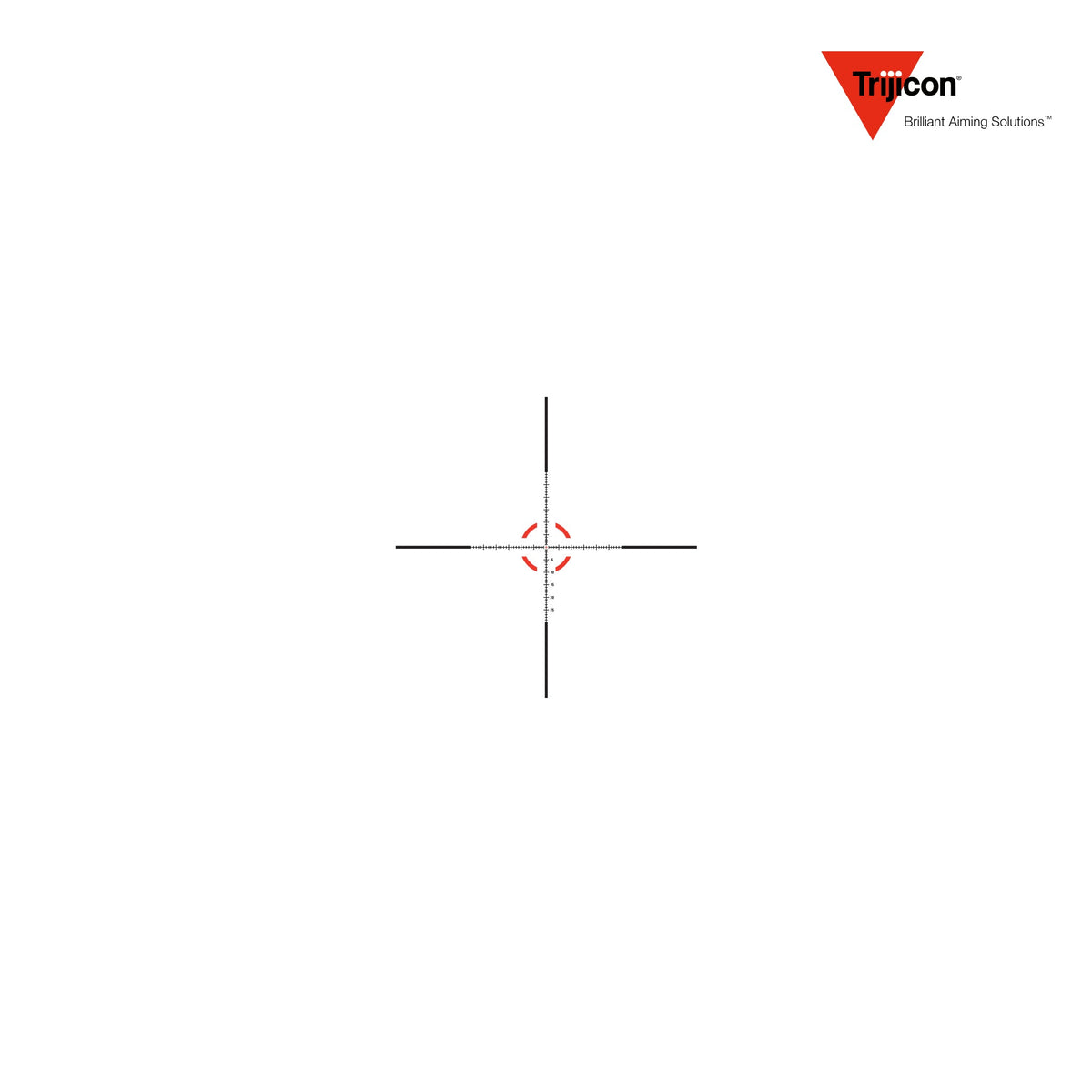

MRAD Crosshair Dot (segmented circle with mil crosshair and centre dot) |
| Reticle Colour |
Red, day and night |
| Illumination |
LED with 11 brightness settings — 2 night-vision, 8 daylight and 1 super-bright — with 'off' positions between them; one AA battery, lithium or alkaline (lithium AA included); about 633 hours continuous at setting 6 on lithium |
| Click Value |
0.1 MRAD per click |
| Adjustment Range |
35 MRAD |
| Eye Relief |
4 - 3.9 in (102 - 99 mm), near-constant through the range |
| Exit Pupil |
0.4 - 0.14 in (10.2 - 3.6 mm) |
| Field of View |
109.2 - 13.1 ft at 100 yards (36.4 - 4.4 m at 100 m); 20 - 2.5° |
| Length |
10.8 in (274 mm); L×W×H 10.8 × 2.8 × 3.3 in (274 × 71 × 84 mm) |
| Weight |
28.9 oz (819 g) |
| Housing |
Forged 7075-T6 aircraft-grade aluminium |
| Mount |
Trijicon Q-LOC quick-release mount (included) |
| Water Resistance |
Waterproof to 66 ft (20 m) submersion; nitrogen-filled; tested to MIL-STD-810G |
| What's Included |
VCOG, Q-LOC quick-release mount, lithium AA battery, LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
VC18-C-2400014 / VC18-C-2400014 / 719307617148 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Is it first or second focal plane?
First — the reticle scales with magnification, so holdovers stay true at every setting.
Is the reticle illuminated?
Yes — an LED with eleven settings: two for night vision, eight for daylight and one super-bright, with off positions between them.
What battery does it take?
One AA cell, lithium or alkaline. A lithium AA is included, and gives about 633 hours of continuous use at setting 6.
Does it come with a mount?
Yes — a Trijicon Q-LOC quick-release mount is supplied with the scope, so nothing further is needed to fit it to a Picatinny rail.
How tough is it?
The body is forged 7075-T6, nitrogen-filled and waterproof to 66 ft (20 m) submersion, and the optic is tested to MIL-STD-810G.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. Electronics carry a five-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
