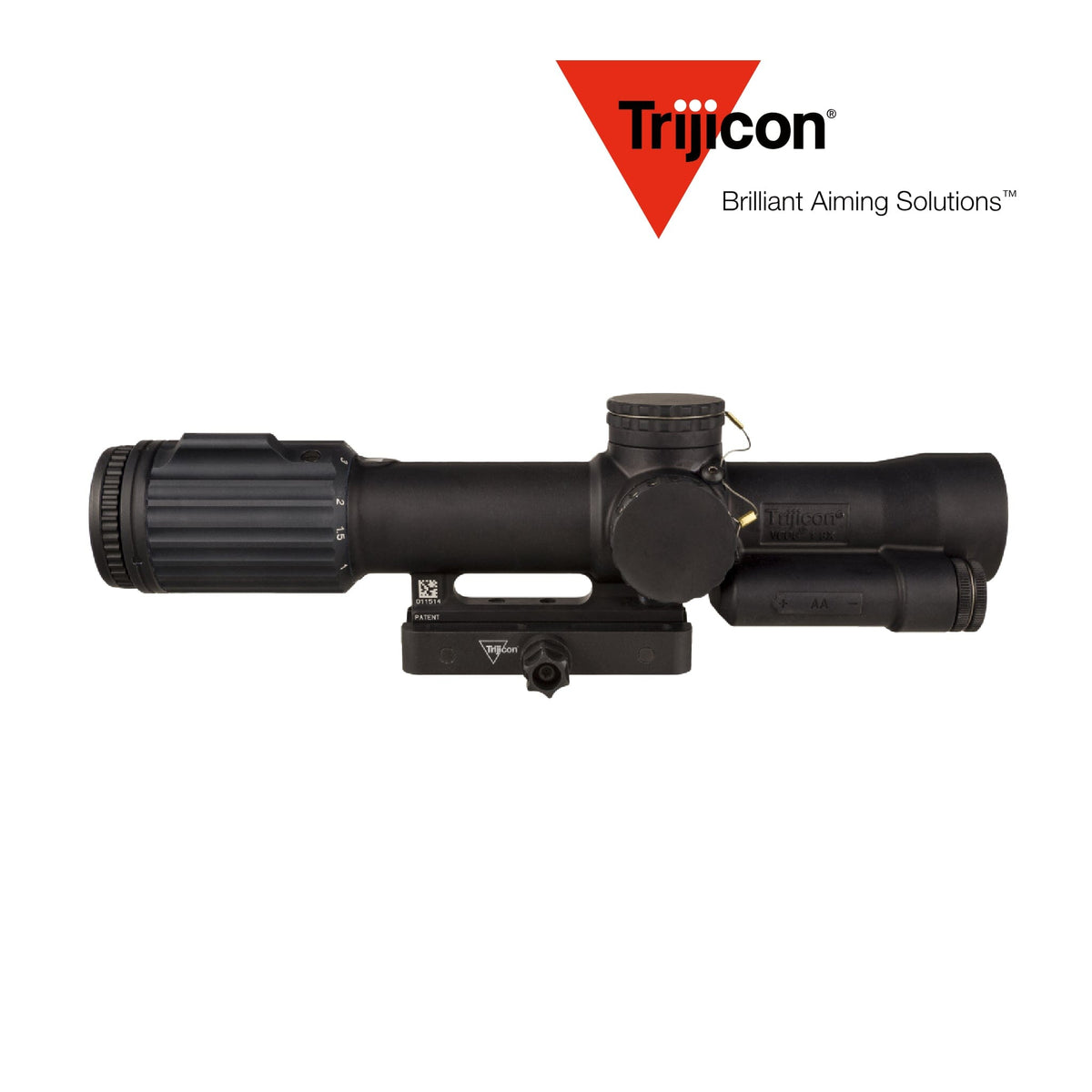

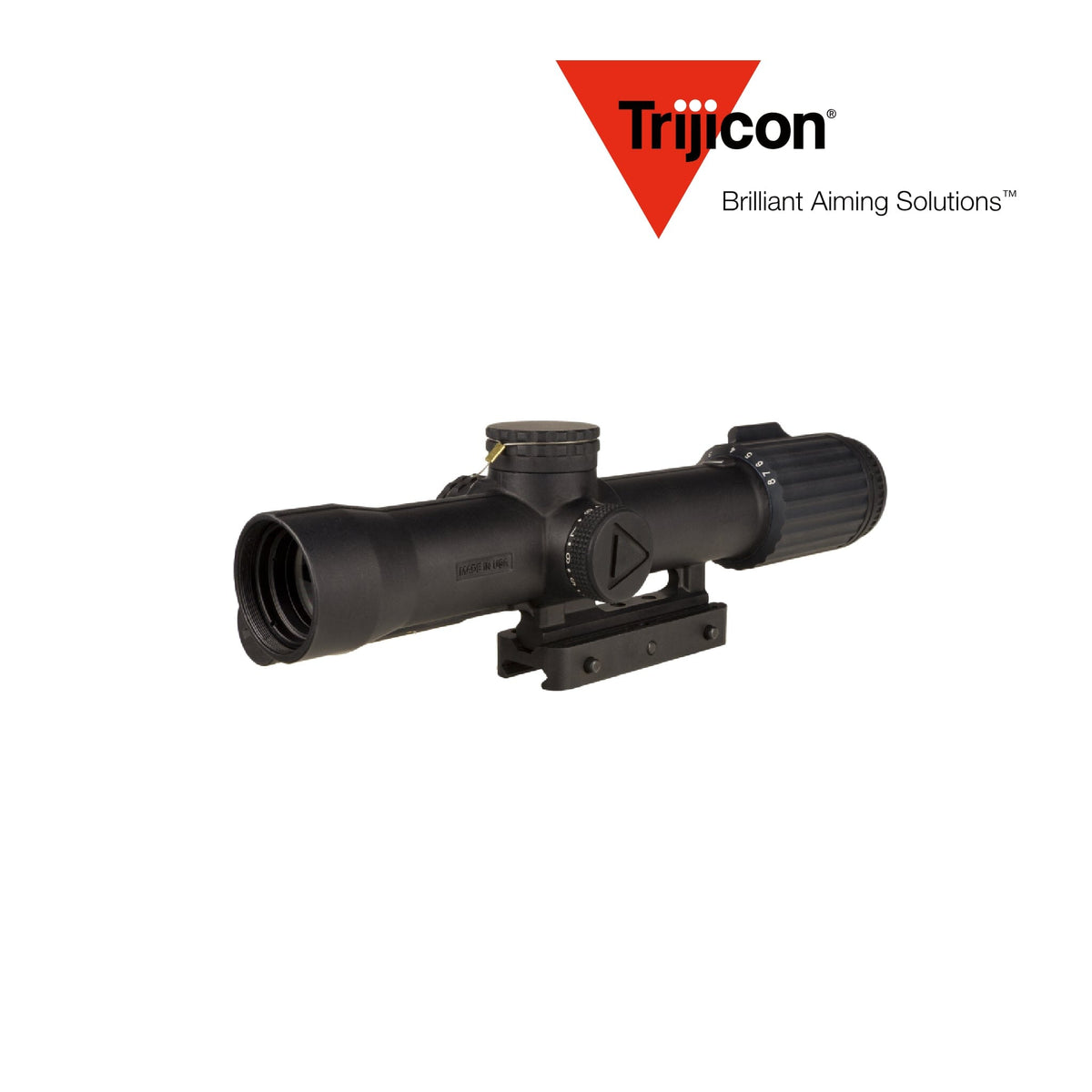

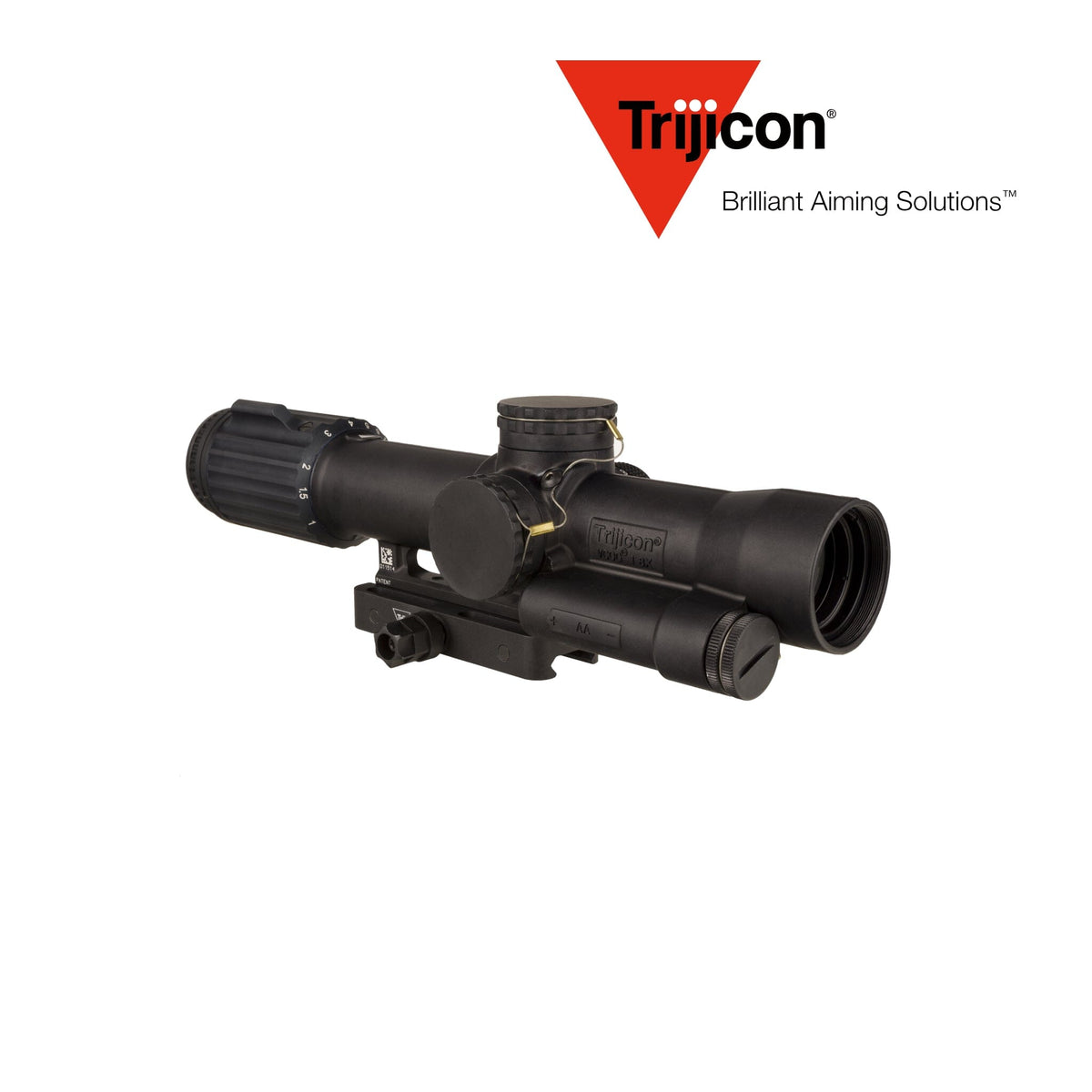

The Trijicon VCOG 1-8x28 FFP LPVO Rifle Scope MOA Crosshair Dot Red (SKU VC18-C-2400013) is a 1-8x first focal plane rifle scope with the red MOA crosshair dot reticle, LED illumination on eleven settings from a single AA battery, and a Q-LOC quick-release mount included.
How It Compares
The VCOG is Trijicon's armoured LPVO: a forged 7075-T6 body, submersion to 66 ft (20 m) and MIL-STD-810G testing, with eye relief that stays near-constant through the zoom range so your head does not move on the stock. This is the MOA unit, with 1/4 MOA clicks and 120 MOA of travel; the mil version is the VCOG 1-8x28 with the red MRAD crosshair dot. If you want it supplied on a LaRue LT799 mount with flip caps and a case, that is the USMC SCO VCOG package. Browse all LPVO rifle scopes, AR-15 optics or the full Trijicon optics range.
Ideal For
- Hard-use AR-pattern and straight-pull carbines that need a scope built like a prism optic
- Shooters who want true 1x and 8x from one scope without changing cheek position
- Set-ups that need a quick-release mount included rather than bought separately
Key Features
-
Reticle: Red MOA Crosshair Dot (universal segmented circle / MOA crosshair dot), first focal plane
-
Illumination: LED, 11 brightness settings: 2 night-vision, 8 day, 1 super-bright, with 'off' positions between settings; single AA battery, lithium or alkaline (lithium AA included); 633 hours continuous at setting 6
-
Turrets: 1/4 MOA per click, 120 MOA total travel (20 MOA per revolution)
-
Eye Relief: Near-constant 4.0 - 3.9 in (102 - 99 mm) through the zoom range
-
Mount: Q-LOC quick-release mount included
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1-8x |
| Objective |
28 mm |
| Focal Plane |
First Focal Plane (FFP) |
| Reticle |
Red MOA Crosshair Dot (universal segmented circle/MOA crosshair dot) |
| Reticle Colour |
Red (day and night) |
| Illumination |
LED, 11 total brightness settings: 2 night-vision, 8 day, 1 super-bright; 'off' positions between settings. Powered by a single AA battery, lithium or alkaline (lithium AA included). Battery life 633 hours (26.4 days) continuous at setting 6 (lithium) |
| Click Value |
1/4 MOA per click |
| Adjustment Range |
120 MOA total travel (20 MOA per revolution) |
| Eye Relief |
4.0 - 3.9 in (102 - 99 mm), near-constant |
| Exit Pupil |
10.16 - 3.56 mm (0.40 - 0.14 in) |
| Field of View |
109.2 - 13.1 ft at 100 yards (36.4 - 4.4 m at 100 m); 20 - 2.5° |
| Length |
10.8 in (274 mm); L×W×H 10.8 × 2.8 × 3.3 in (274 × 71 × 84 mm) |
| Weight |
28.9 oz (819 g) |
| Housing |
Forged 7075-T6 aircraft-grade aluminium |
| Water Resistance |
Waterproof to 66 ft (20 m) submersion; dry-nitrogen filled; MIL-STD-810G tested |
| What's Included |
Q-LOC quick-release mount, lithium AA battery, lenspen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
VC18-C-2400013 / VC18-C-2400013 / 719307617131 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Is it first or second focal plane?
First — holdovers stay true at every magnification.
Is the reticle illuminated?
Yes — an LED with 11 brightness settings, two of them night-vision compatible and one super-bright, with off positions between settings. It runs on a single AA battery, with a lithium AA included, and gives 633 hours of continuous use at setting 6.
What battery does it take?
One AA battery, lithium or alkaline. A lithium AA is supplied with the scope.
Does it come with a mount?
Yes — a Q-LOC quick-release mount is included.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. Electronics carry a five-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
