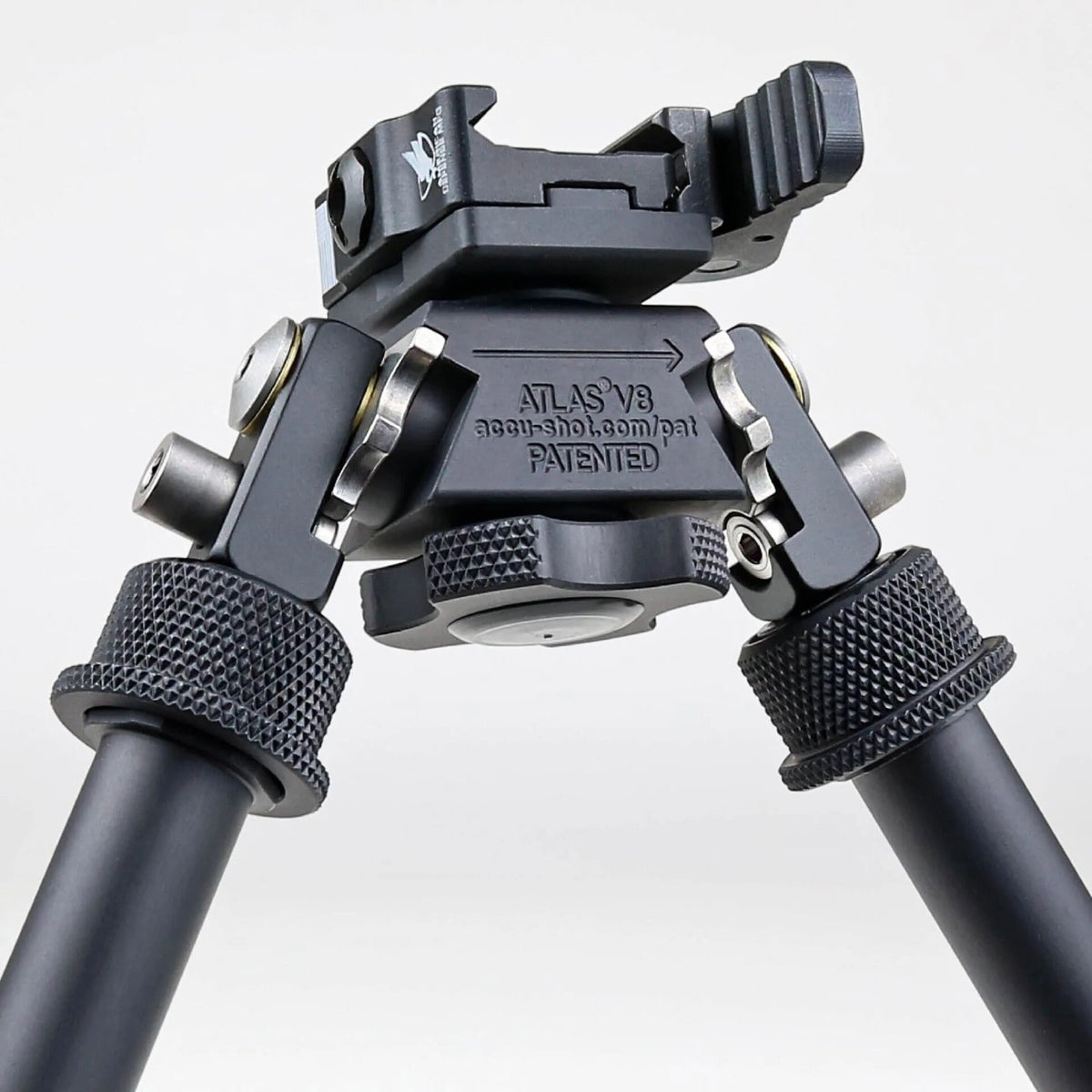

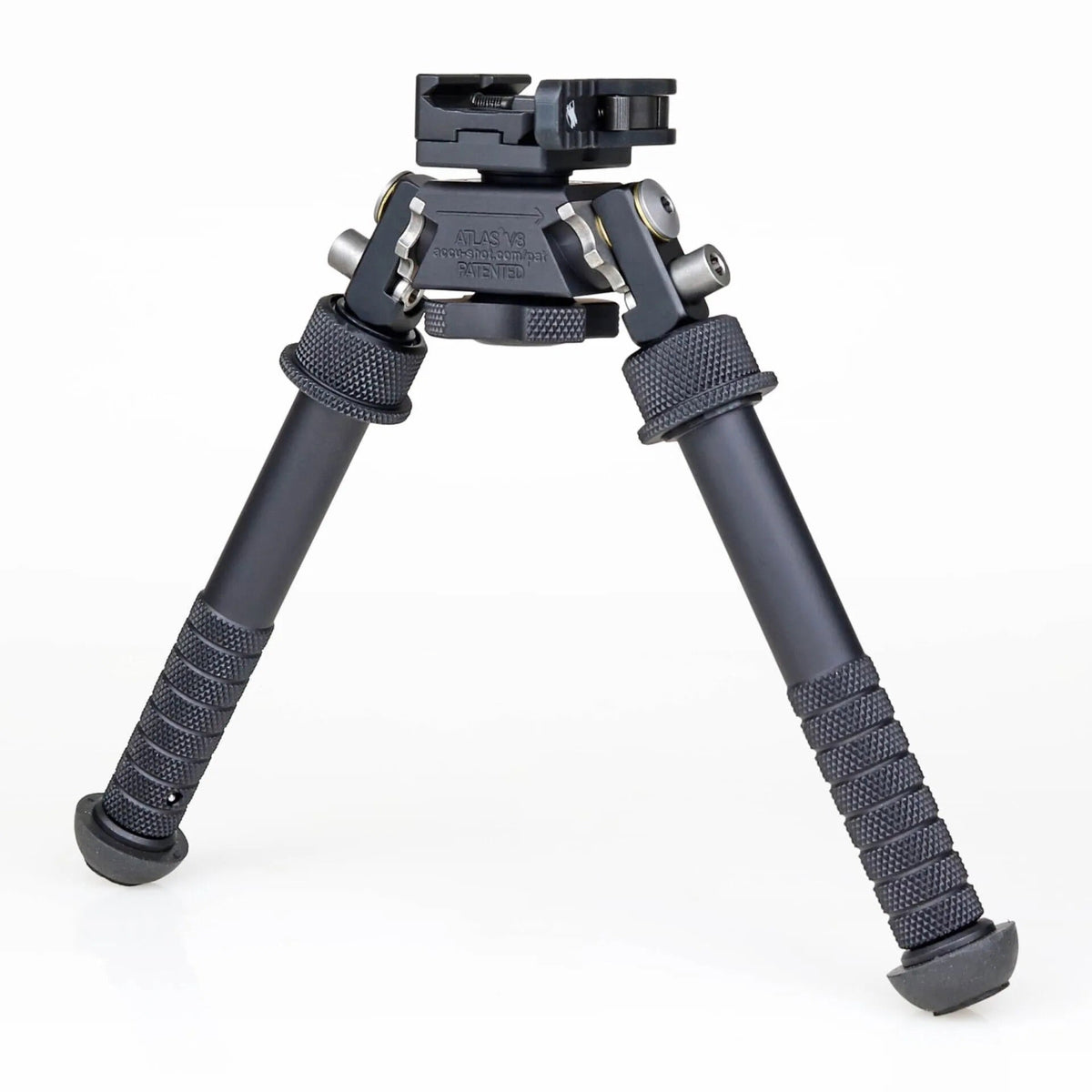

The Atlas Bipod BT10-LW17 V8, part number BT10-LW17 from B&T Industries, is the standard-height Atlas V8 rifle bipod supplied with the American Defense ADM-170-S quick-detach lever mount fitted. Throw the lever and it clamps to, or comes off, any MIL-STD-1913 Picatinny rail in seconds, with independent pan and cant and the Atlas quick-change foot system.
How It Compares
Mount type is the only difference across the BT10 family. This one carries the ADM lever for shooters who share one bipod between rifles; the BT10 V8 with the two-screw Picatinny clamp is the fixed, torqued-down option; and the BT10-NC V8 supplied with no clamp lets you choose your own 17S-size mount. The lever itself is also sold on its own as the American Defense ADM-170-S Picatinny lever mount. Compare the rest of the family in our Atlas bipod range.
Ideal For
- Deer stalkers who move one bipod between a stalking rifle and a range rifle
- Hill and woodland stalking, where the bipod comes off for the carry and back on for the shot
- Practical and service rifle, and PRS-style stages with a strict kit list
- Night fox and vermin control where the rifle is cased and uncased repeatedly
Key Features
Technical Specifications
| Series |
Atlas V8, standard height |
| Mount |
American Defense ADM-170-S lever quick-detach, MIL-STD-1913 Picatinny, supplied fitted |
| Lever Adjustment |
Adjustable clamping nut for rail-specific tension |
| Adjustment |
Independent pan and cant |
| Compatible Feet |
Atlas quick-change: BT32 rubber, BT23 ski, BT74 Raider cleat (V8 / PSR / CAL pattern) |
| Leg Extensions |
BT22 fixed 3 inch (76 mm); BT85 adjustable |
| Pouch |
BT30-B, BT30-C or BT30-R standard-height Atlas bipod pouch |
| Brand |
B&T Industries, LLC — Made in USA |
| SKU / MPN / UPC |
BT10-LW17 / BT10-LW17 / 810040220104 |
What's Included
- 1× Atlas BT10 V8 bipod
- 1× American Defense ADM-170-S lever quick-detach mount, fitted
Warranty
Supplied as genuine B&T Industries stock and covered by the manufacturer's warranty — contact our UK team and we will handle any claim on your behalf.
UK Delivery & Support
This Atlas bipod is dispatched tracked from our UK warehouse — no import duties and no customs delays — and is backed by UK-based aftersales support.
Frequently Asked Questions
Which mount does the Atlas BT10-LW17 need?
The Atlas BT10-LW17 needs no separate mount, because the American Defense ADM-170-S quick-detach lever is supplied already fitted; the rifle only needs a MIL-STD-1913 Picatinny rail section for the lever to clamp onto.

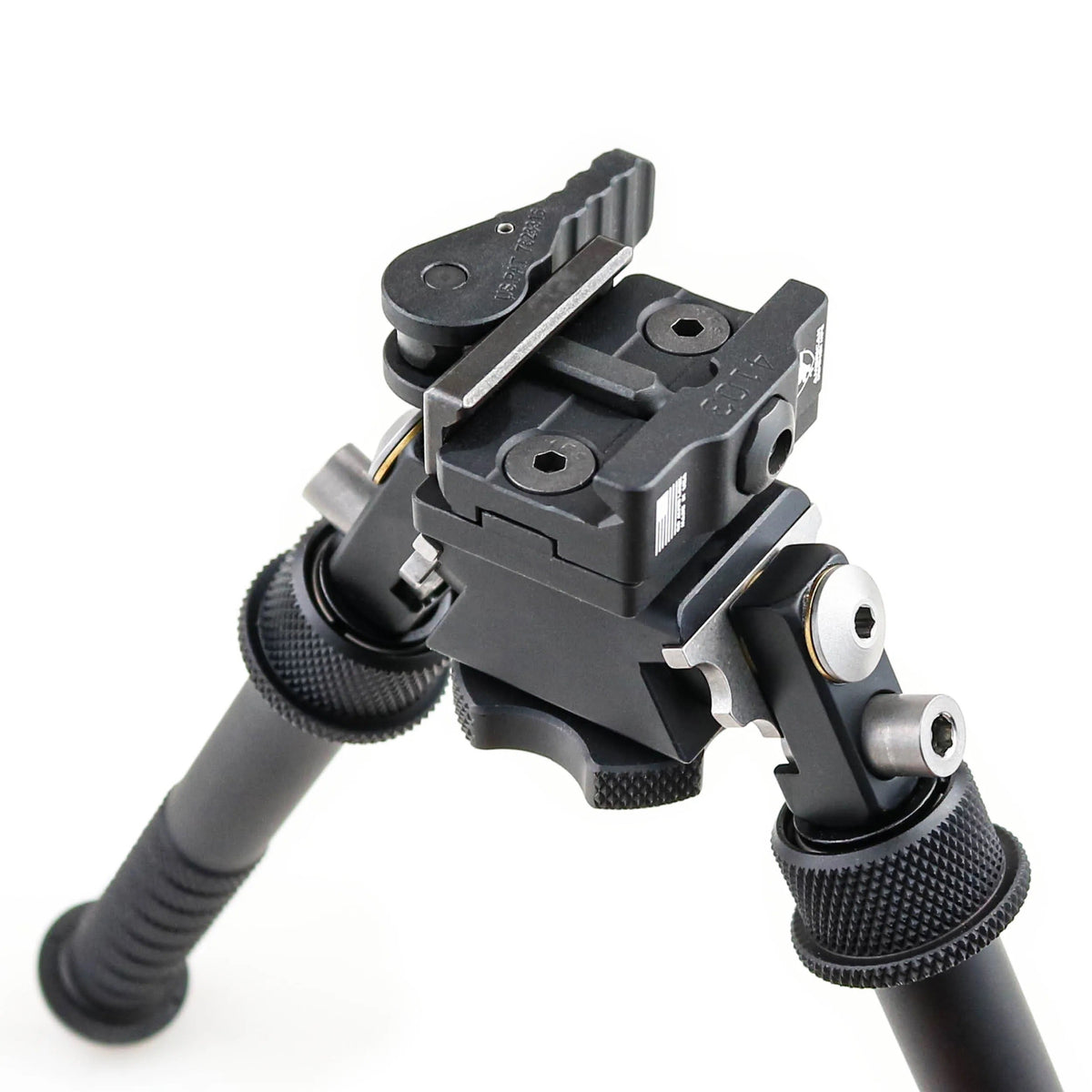

Will the Atlas BT10-LW17 hold zero if I take it off and put it back on?
The ADM-170-S lever mount is designed for repeatable refitting to the same rail slot, so returning it to the slot you removed it from is what keeps the fit consistent.

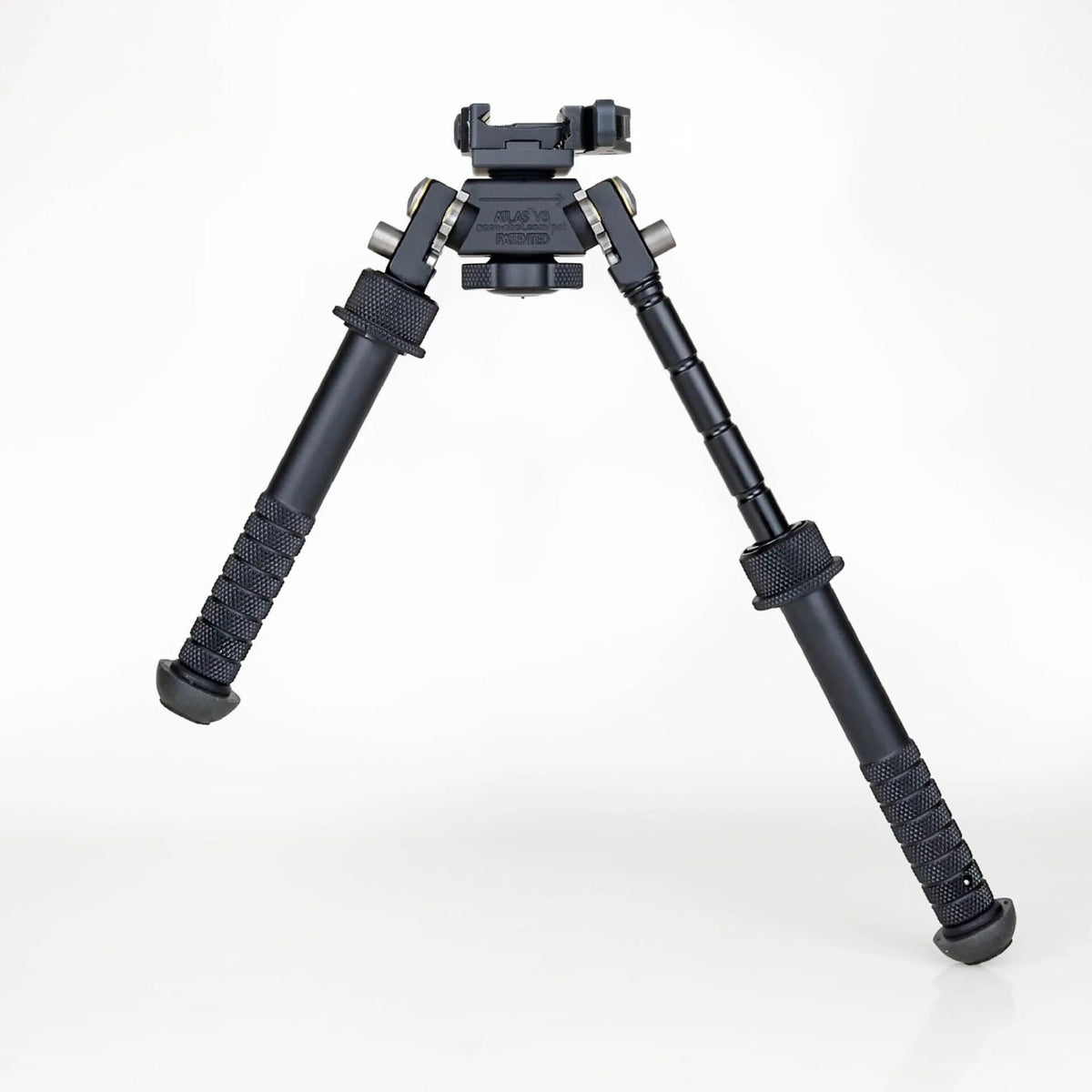

Can the lever tension be adjusted?
Yes — the ADM-170-S has an adjustable clamping nut, so the lever tension can be tuned to the tolerances of your own Picatinny rail.
Which feet fit the Atlas BT10-LW17 V8 bipod?
It takes the V8, PSR and CAL pattern Atlas quick-change feet — BT32 standard rubber feet, BT23 quick-change ski feet and BT74 Raider stainless steel cleat feet — each sold as a pair and listed in our bipod accessories.
Is the Atlas BT10-LW17 ARCA compatible?
No — the BT10-LW17 is a Picatinny lever mount and no Atlas bipod in this range is natively ARCA-Swiss; ARCA compatibility comes from a separate clamp such as the Area 419 ARCALOCK QD clamp for Atlas bipods or the Really Right Stuff BTC-Pro dual ARCA and Picatinny clamp.
What is in the box?
The box contains one Atlas BT10 V8 bipod with the American Defense ADM-170-S lever quick-detach mount already fitted.
