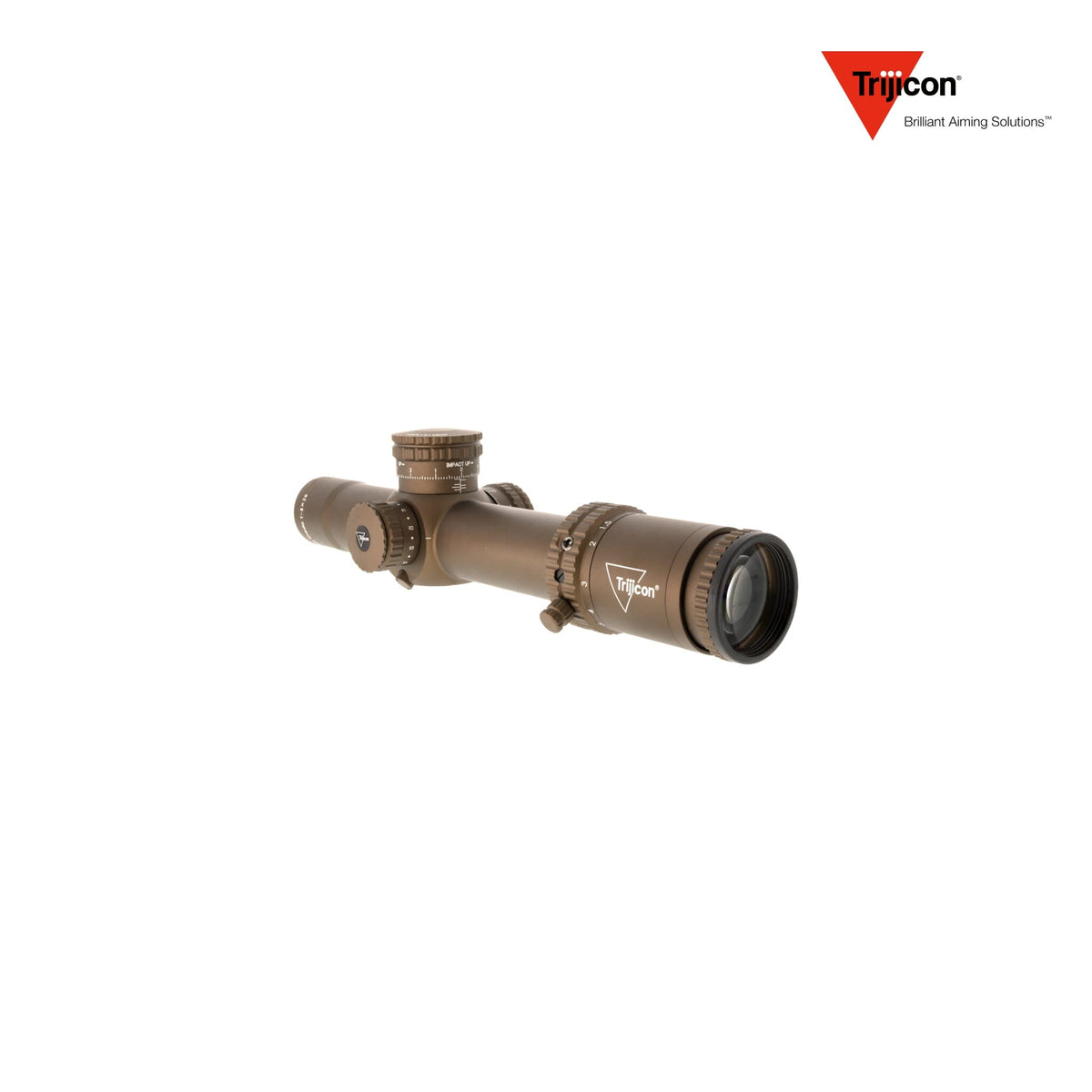

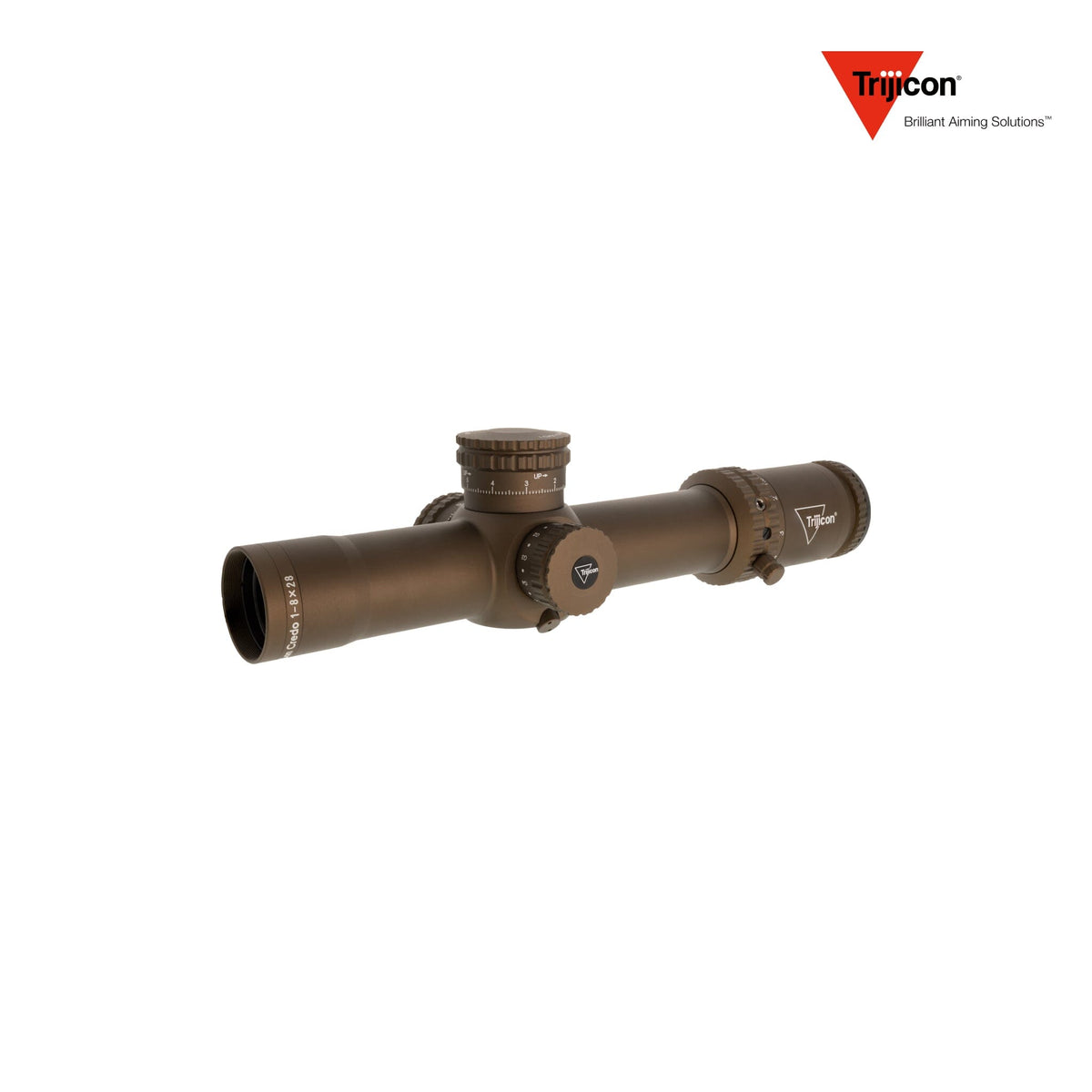

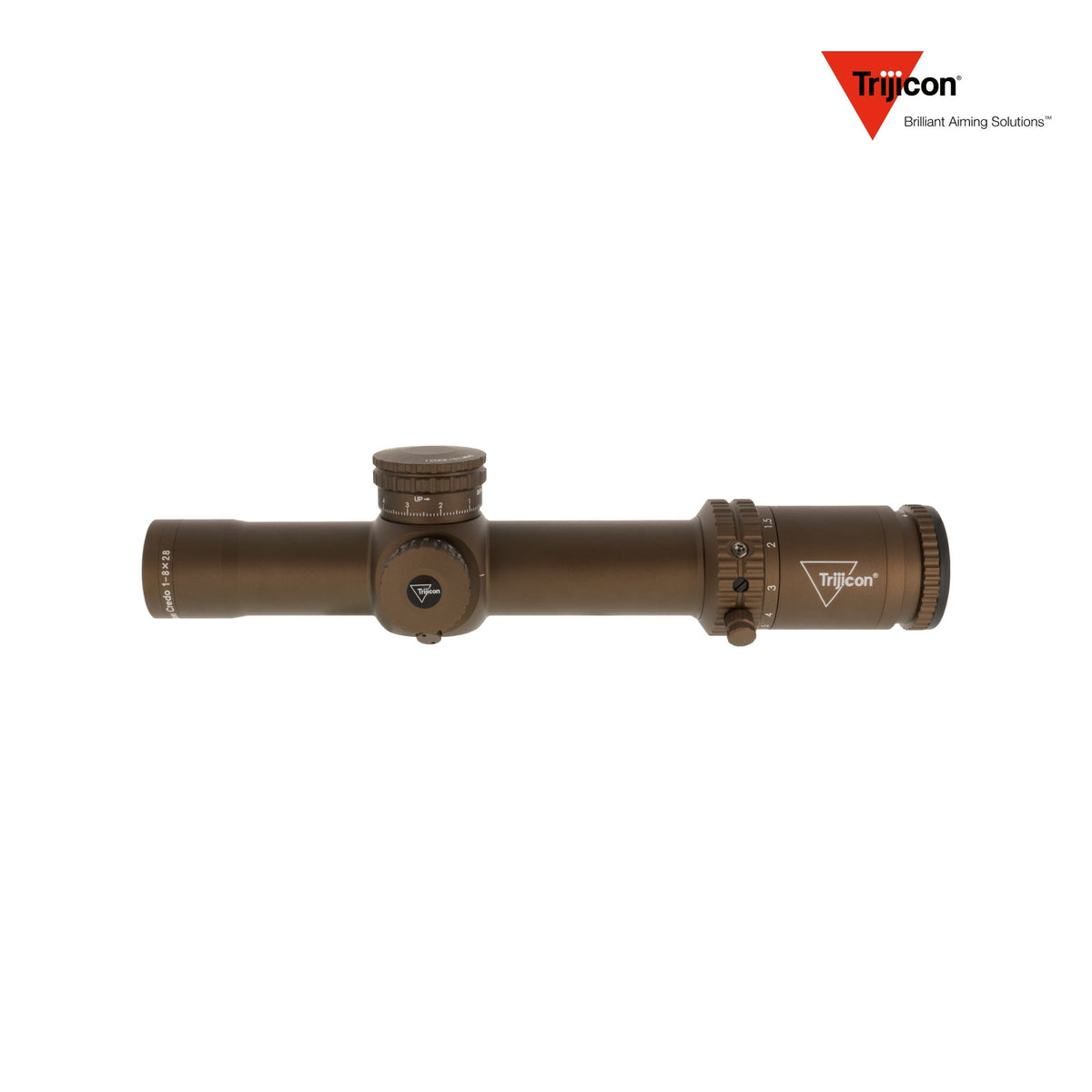

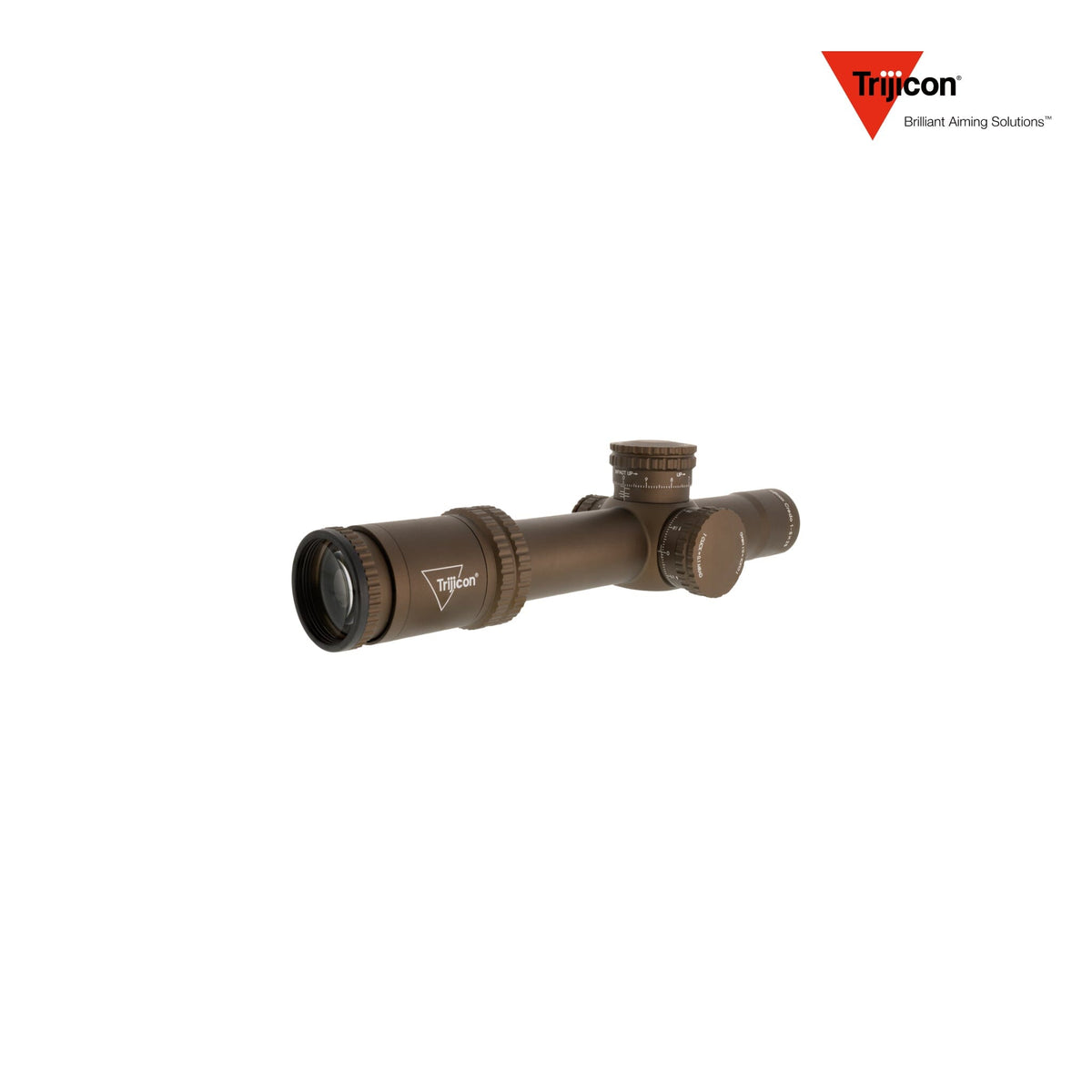

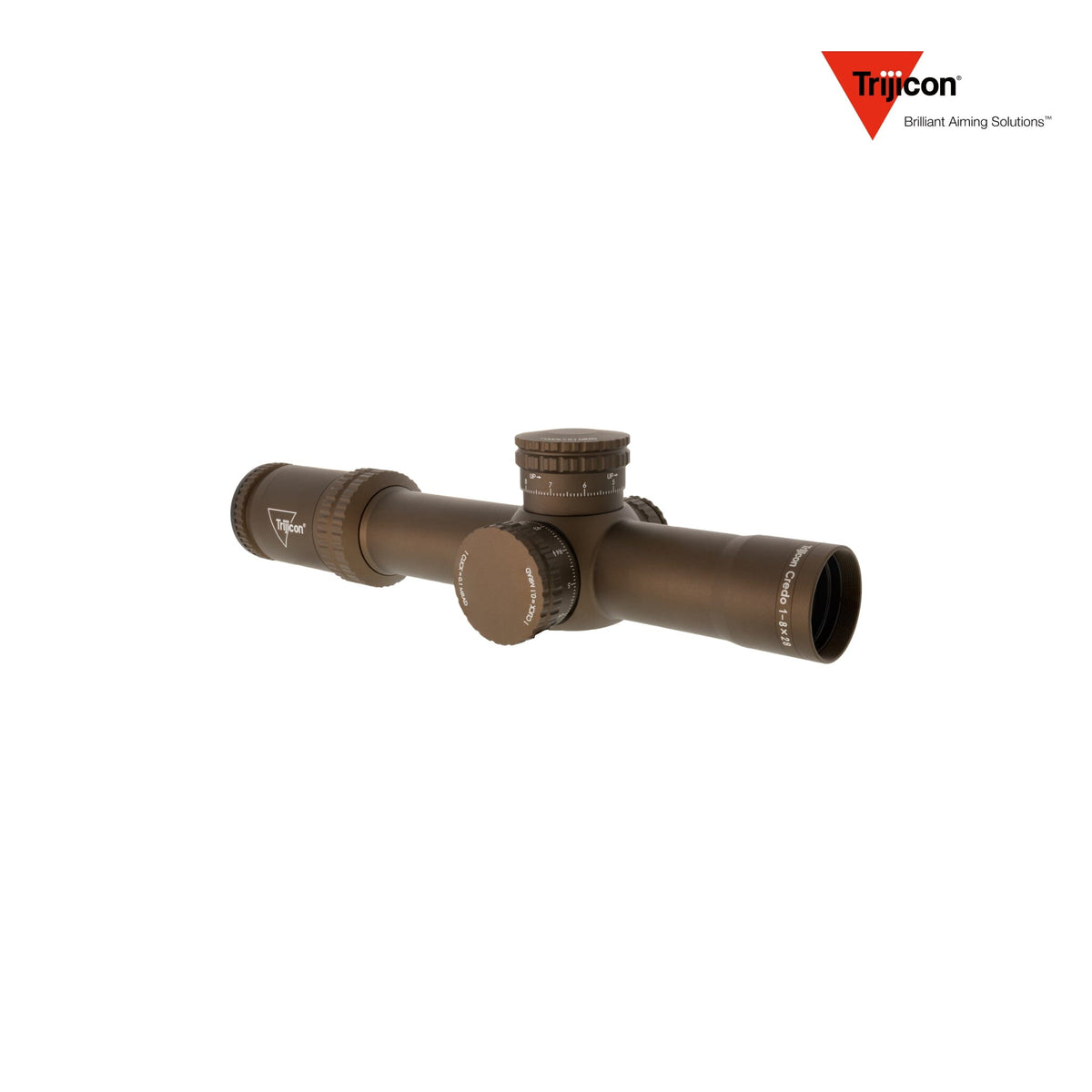

The Trijicon Credo 1-8x28 LPVO Rifle Scope MOA Segmented Circle Red/Green Coyote Brown (SKU CR828-C-2900055) is a 1-8x low power variable rifle scope with a first focal plane MOA segmented circle reticle, red and green LED illumination, and a Coyote Brown anodised finish.
How It Compares
This is the MOA unit of the Coyote Brown Credo 1-8x28: MOA subtensions in the reticle and 1/4 MOA clicks on the turrets, with 100 MOA of total travel. If you work in mils instead, the same scope is offered as the Trijicon Credo 1-8x28 MRAD segmented circle Coyote Brown, and in matte black as the Trijicon Credo 1-8x28 FFP red/green MRAD segmented circle. Because the reticle is first focal plane, the segmented circle and its holds stay true at every magnification. Browse all LPVO rifle scopes, AR-15 optics or the full Trijicon optics range.
Ideal For
- AR-pattern and straight-pull carbine builds wanting true 1x at the bottom end
- Shooters who think in MOA and want the reticle and turrets to agree
- Practical and competition use where a bright segmented circle finds the target fast
Key Features
-

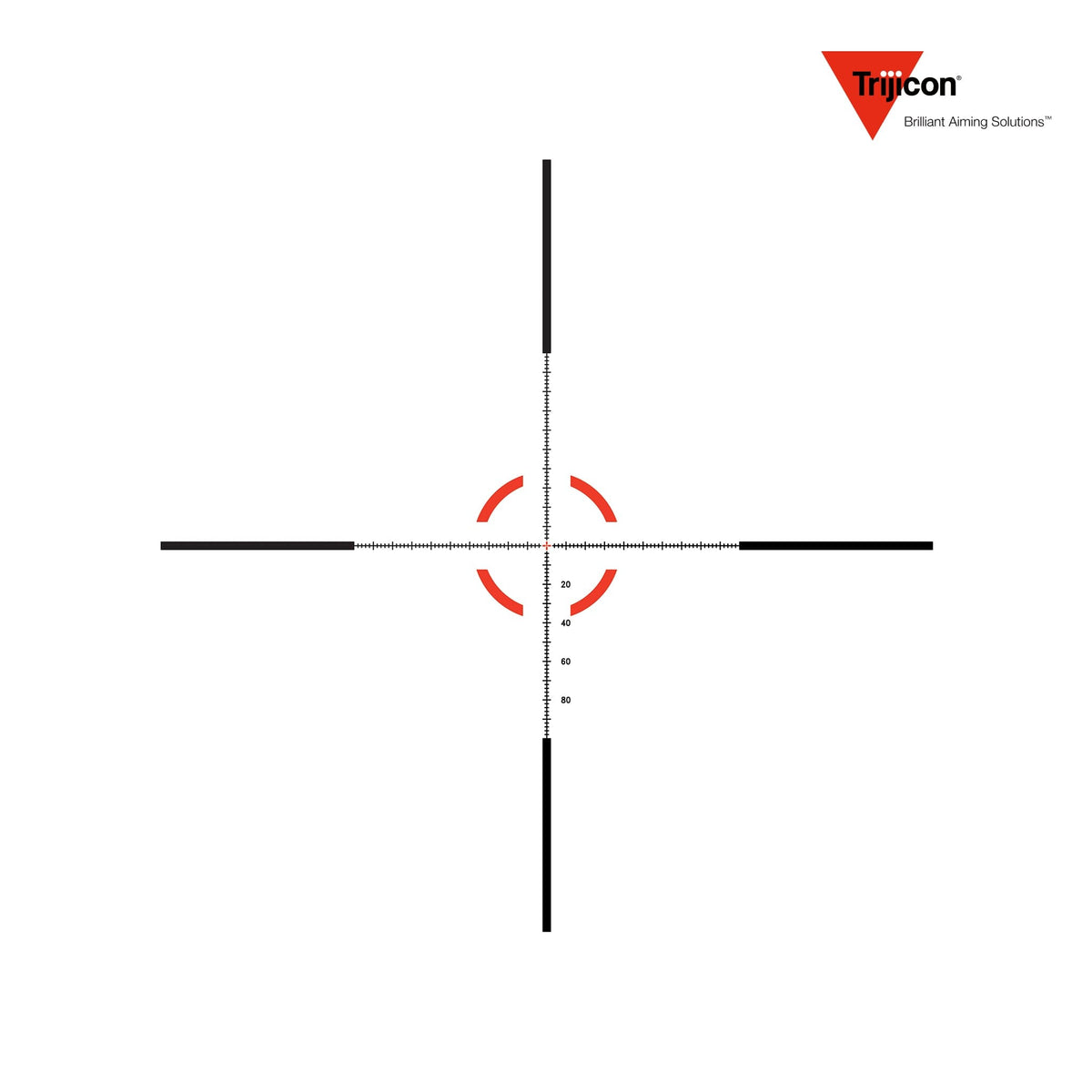

Reticle: MOA Segmented Circle, first focal plane
-
Illumination: LED, 10 settings total (5 red + 5 green) with 'off' between each; 1x CR2032 (included). Battery life red 39 hrs, green 94 hrs at setting 7/10
-
Focal Plane: First focal plane (FFP)
-
Turrets: 1/4 MOA per click, 100 MOA total travel
-
Finish: Coyote Brown anodised
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
1-8x |
| Objective |
28 mm |
| Focal Plane |
First Focal Plane (FFP) |
| Reticle |
MOA Segmented Circle |
| Reticle Colour |
Dual Red/Green |
| Illumination |
LED, 10 settings total (5 red + 5 green) with 'off' between each; 1x CR2032 (included). Battery life red 39 hrs, green 94 hrs at setting 7/10 |
| Click Value |
1/4 MOA (0.25 MOA) per click |
| Adjustment Range |
100 MOA total travel |
| Parallax |
Fixed (non-adjustable) |
| Eye Relief |
3.0 - 4.0 in (76 - 102 mm) |
| Exit Pupil |
11.7 - 3.5 mm (0.46 - 0.14 in) |
| Field of View |
105.8 - 13.2 ft at 100 yards (35.3 - 4.4 m at 100 m); 20 - 2.53° |
| Length |
10.8 in (274 mm); L×W×H 10.8 × 3.2 × 2.6 in (274 × 81 × 66 mm) |
| Weight |
25.6 oz (726 g) |
| Housing |
6061 aircraft grade aluminium, Coyote Brown anodised |
| Water Resistance |
Waterproof/fogproof |
| What's Included |
Scopecoat, 3 mm hex key, repositionable magnification knob + replacement screw, 1 CR2032 battery, quick reference guide, warranty card, vinyl logo sticker |
| SKU / MPN / UPC |
CR828-C-2900055 / CR828-C-2900055 / 719307622777 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. Electronics are separately warranted for five years from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Is it first or second focal plane?
First — holdovers stay true at every magnification.
Is the reticle illuminated?
Yes — LED illumination with 10 settings (5 red and 5 green) and an off position between each, powered by one CR2032 (included). Battery life is 39 hours in red and 94 hours in green at setting 7 of 10.
Does it have parallax adjustment?
No — parallax is fixed and non-adjustable.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. Electronics carry a five-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
