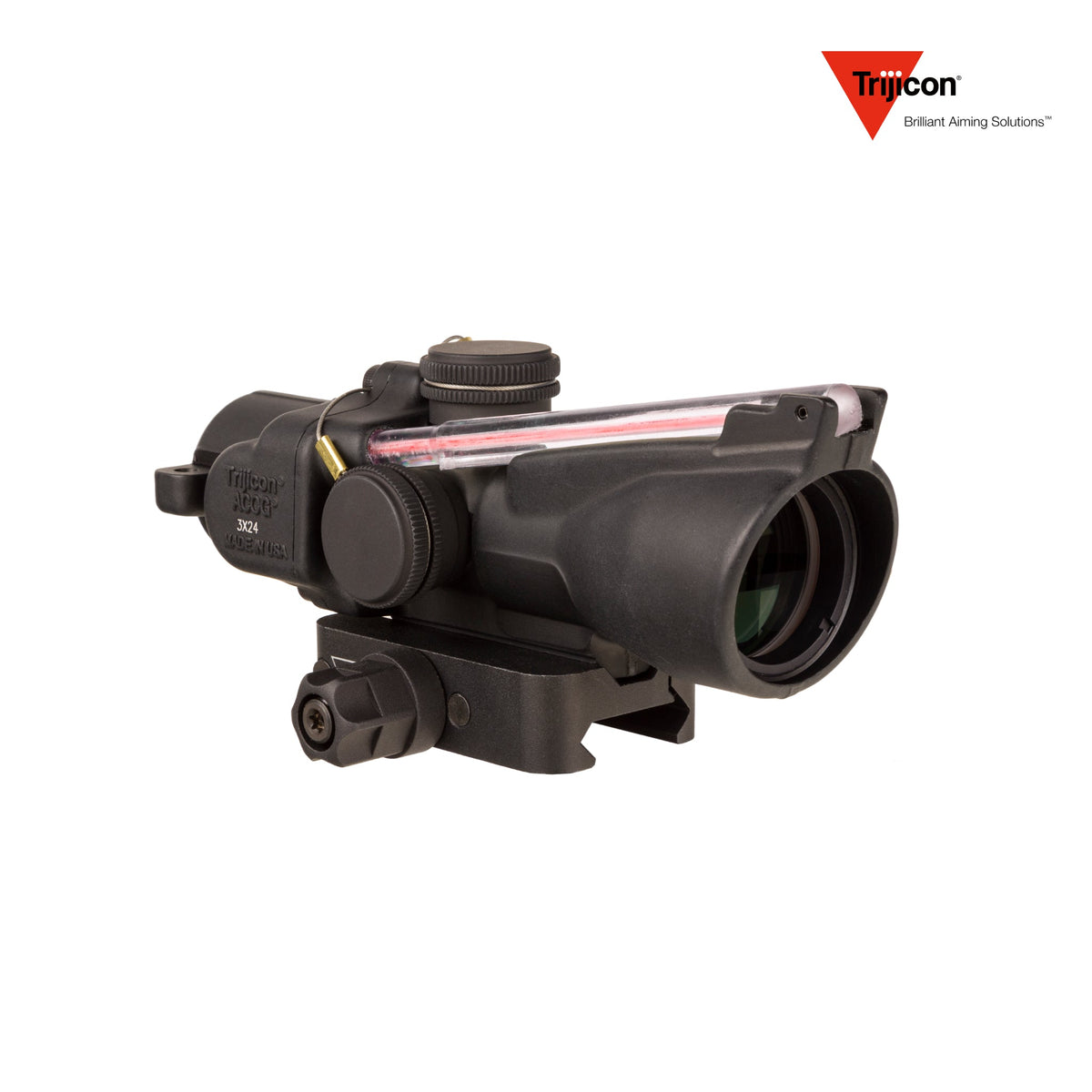

The Trijicon ACOG 3x24 Rifle Scope Horseshoe/Dot .223 55gr Dual-Illuminated Red Reticle Low Height (SKU TA50-C-400354) is a compact fixed 3x ACOG with a 24 mm objective and a red horseshoe and dot reticle carrying .223/55gr bullet drop marks, lit by fibre optics in daylight and a tritium lamp after dark with no battery of any kind.
How It Compares
Two builds of this optic exist and the only difference is how high it sits: this is the Low Height Q-LOC, which puts the ACOG close down over the receiver and suits an absolute or lower-third co-witness with iron sights. The same optic on the standard-height Q-LOC is the taller option. With a green lamp instead, the green horseshoe dot on the Low Height mount is the direct equivalent, and if you want a finer aiming point the red crosshair replaces the horseshoe. Browse all rifle scopes, the Trijicon ACOG rifle scopes range or the full Trijicon optics range.
Ideal For
- .223 and 5.56 carbines running a 55gr load
- Builds that co-witness with iron sights and want the optic sitting low
- Short builds where a full-size rifle scope would not fit
Key Features
-

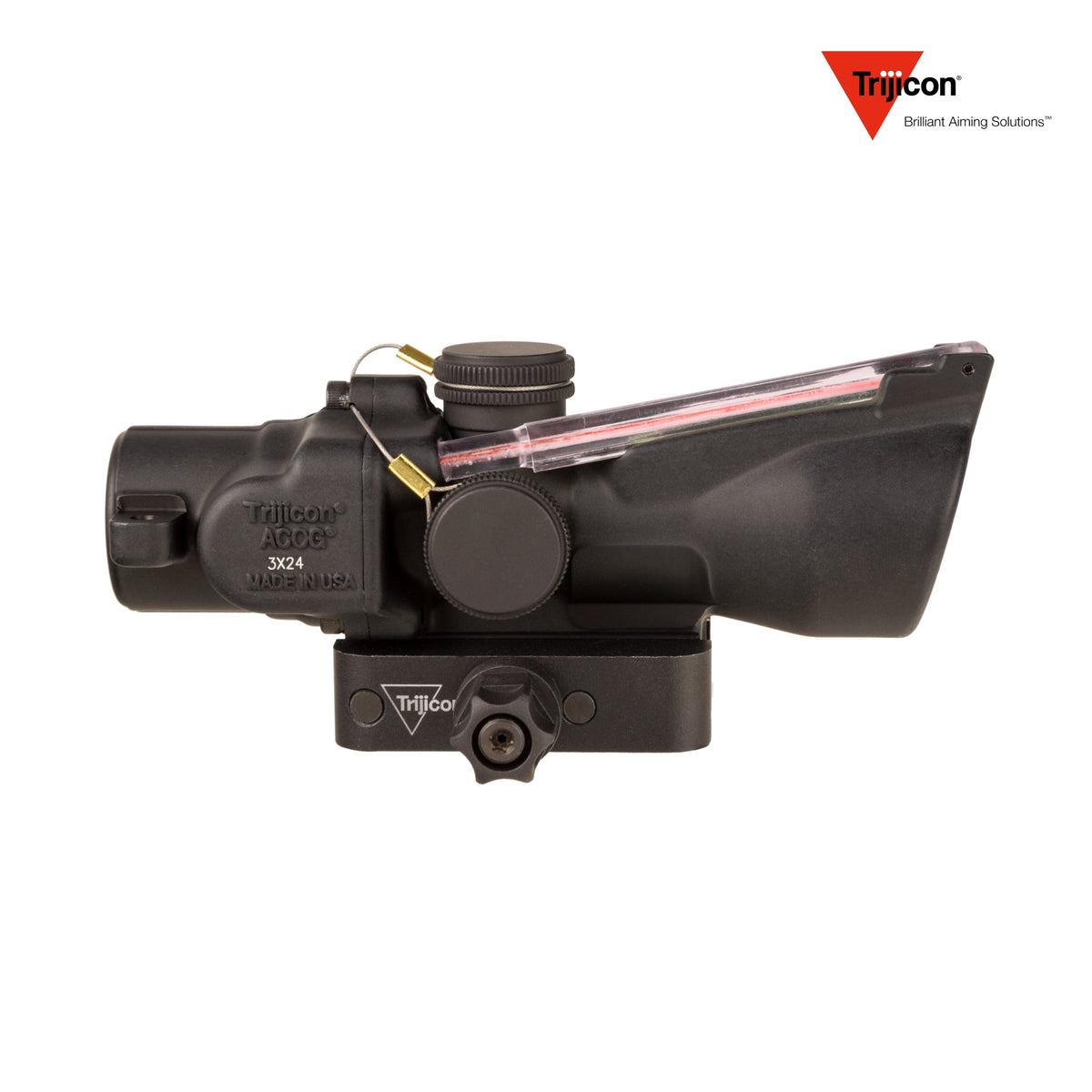

Reticle: Dual illuminated red horseshoe/dot
-

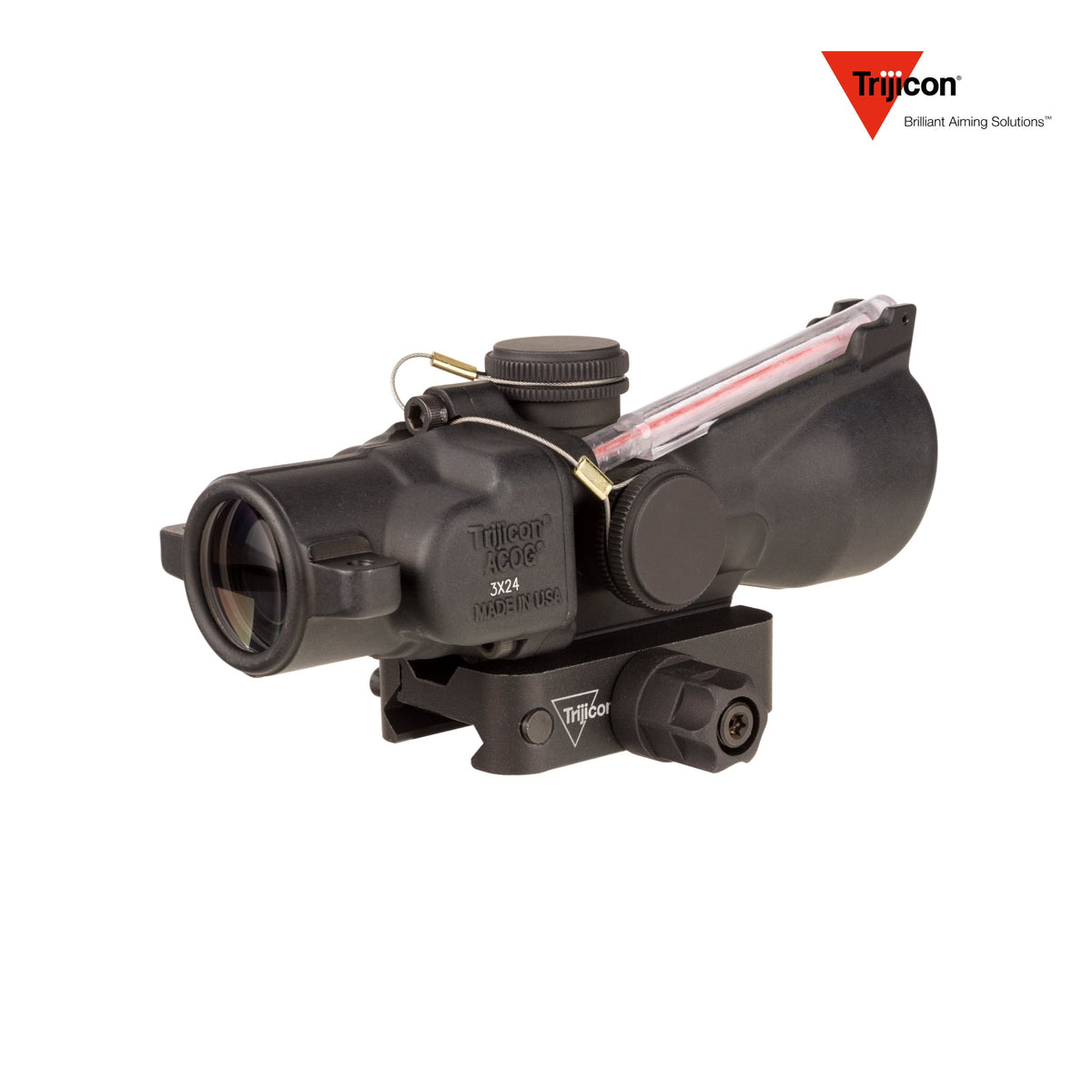

Illumination: Dual illuminated: fibre optics (day) + tritium (night); battery-free
-
Calibre Calibration: .223 / 55gr BDC
-

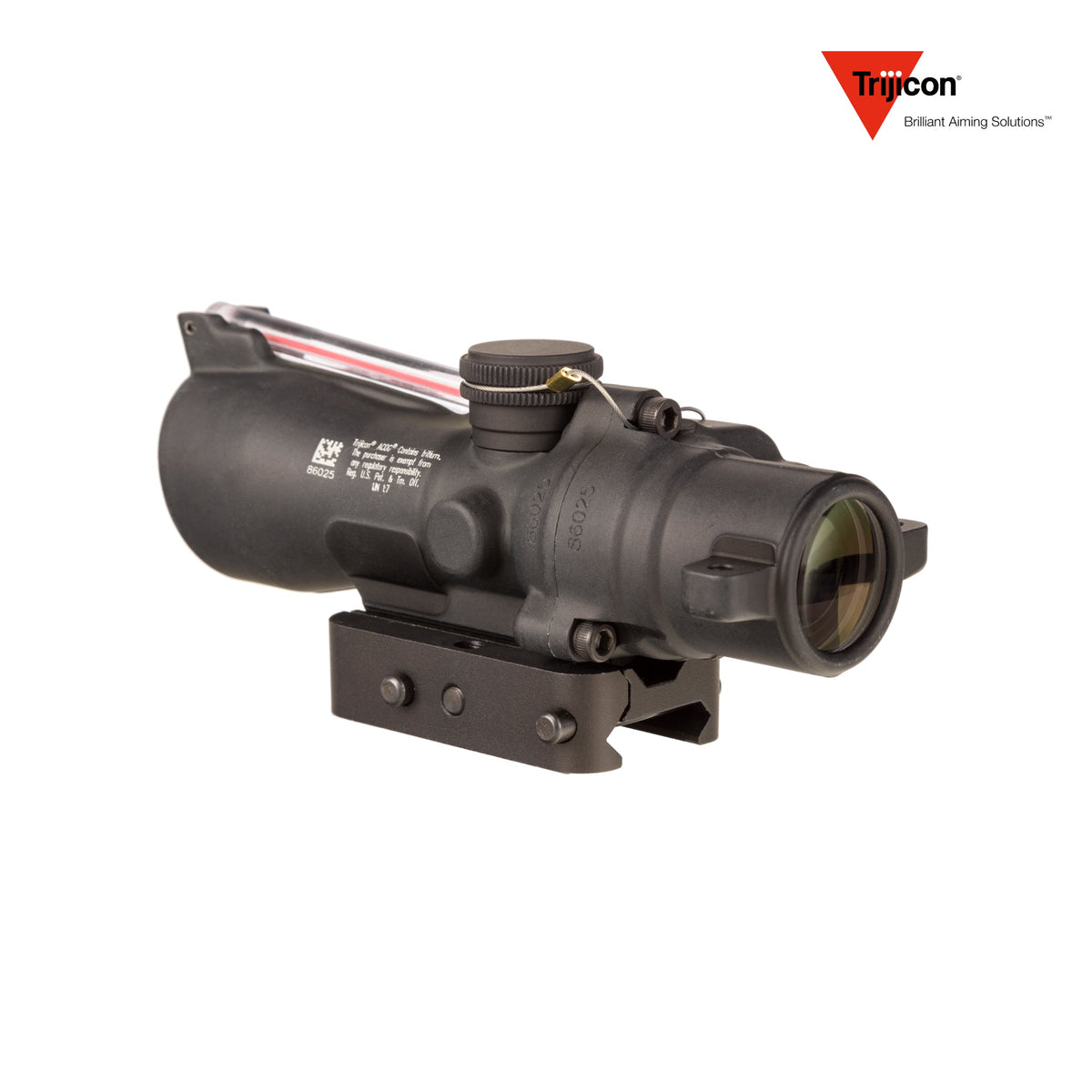

Mount: Low Height Trijicon Q-LOC quick-release Picatinny mount
-
Warranty: Trijicon Limited Lifetime Warranty
Technical Specifications
| Magnification / Objective |
3x fixed |
| Objective |
24 mm |
| Reticle |
Dual illuminated red horseshoe/dot |
| Calibre Calibration |
.223 / 55gr BDC |
| Illumination |
Dual illuminated: fibre optics (day) + tritium (night); battery-free |
| Adjustment Range |
0.5 MOA per click |
| Eye Relief |
1.4 in (36 mm) - very short, the shortest of the compact ACOGs |
| Exit Pupil |
0.32 in (8.1 mm) |
| Field of View |
25.6 ft at 100 yards (8.5 m at 100 m) |
| Length |
4.9 in (124 mm); L×W×H 4.9 × 2.2 × 2.3 in (124 × 56 × 58 mm) |
| Weight |
7.9 oz (224 g) |
| Housing |
Forged 7075-T6 aircraft-grade aluminium, matte black |
| Mount |
Trijicon Q-LOC Technology quick-release Picatinny mount (Low Height Q-LOC) |
| Water Resistance |
Waterproof, dry-nitrogen filled |
| What's Included |
ACOG, Q-LOC mount, Compact ACOG Scopecoat (TA62), LensPen (TA56), Trijicon logo sticker (PR15) |
| SKU / MPN / UPC |
TA50-C-400354 / TA50-C-400354 / 719307314139 |
Warranty
Trijicon back this with their Limited Lifetime Warranty: the optical system and metal structure are covered against defects in materials and workmanship for the lifetime of the original owner. The tritium lamp carries its own multi-year term from date of manufacture.
UK Delivery & Support
Delivery is a flat £5 by Royal Mail Tracked 24, UK addresses only, with no free-delivery threshold. Allow 7–10 business days from order to doorstep — most of that window is sourcing, and the Tracked 24 leg is the last day of it. Duties and import fees are prepaid, so there is nothing to pay on arrival. Questions about reticles, mounts or fit? Email info@xtremetactical.co.uk, or message us on WhatsApp or by text on +44 7940 435857 — messages only, we don't answer voice calls.
Frequently Asked Questions
Does it need batteries?
No — the reticle is lit by fibre optics in daylight and tritium in the dark. There is nothing to switch on and nothing to run flat.
What calibre is the reticle calibrated for?

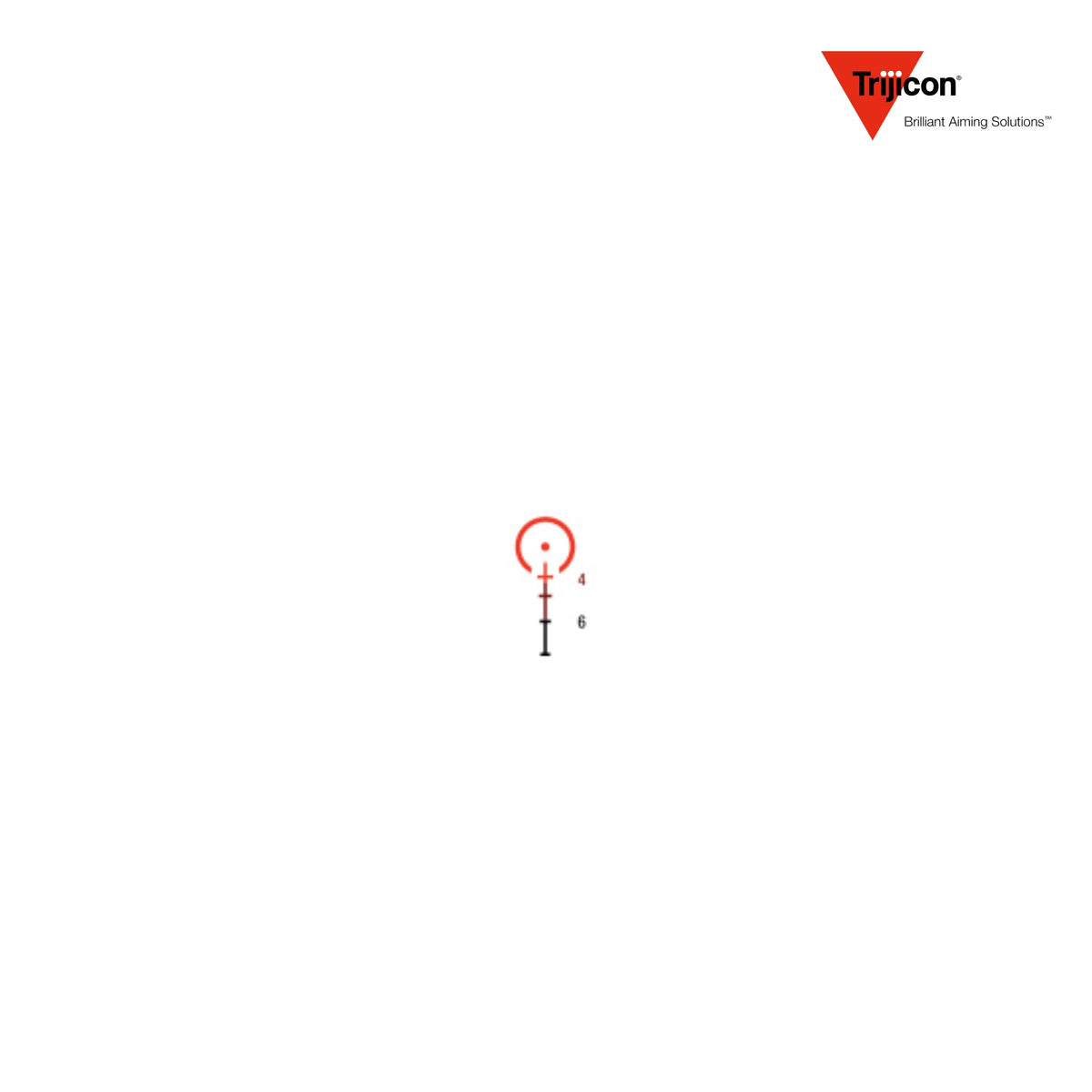

.223 Remington with a 55gr bullet. The stadia below the horseshoe are the drop holds for that load.
What does the Low Height mount change?
It sits the ACOG lower over the receiver than the standard-height Q-LOC, which suits an absolute or lower-third co-witness with iron sights and puts the eye closer to the bore.
Where do I aim with a horseshoe and dot?
The dot in the middle of the horseshoe is the aiming point. The horseshoe itself is there to catch the eye quickly at close range.
How much eye relief does it have?
1.4 in (36 mm). That is very short — the shortest of the compact ACOGs — so it wants mounting well forward of a service stock.
Can I shoot with both eyes open?
Yes — the ACOG is designed around the Bindon Aiming Concept for both-eyes-open shooting at speed.
What warranty does it carry?
Trijicon's Limited Lifetime Warranty. The tritium lamp carries its own multi-year term from date of manufacture.
Is this a genuine Trijicon product?
Yes — factory-new, genuine Trijicon, covered by Trijicon's Limited Lifetime Warranty.
