The Trijicon MRO is a straightforward optic sold in a confusing way. There is one 1x sight with a 25 mm objective, and then there are two reticle versions, four mount configurations, a separate quick-release family and a choice of dot colour and body finish — each of them a different product with a different SKU. The mount is not an accessory you add to a basket afterwards. It is part of the item you order, and you cannot change it later without buying another mount. This guide gets you to the right one in three decisions.
Decision one: SD or HD
MRO stands for Miniature Rifle Optic. SD and HD tell you what is in the window, and nothing else about quality.
| MRO SD | MRO HD | |
|---|---|---|
| Reticle | 2 MOA dot only | Switchable: 68 MOA segmented circle with 2.0 MOA centre dot, or the dot alone |
| Brightness settings | 8, including night-vision positions | 16, including night-vision positions |
| Objective lens | Standard | Re-engineered to work behind a magnifier |
| Best for | An uncluttered window and lower cost | Speed on close targets, and magnifier builds |
SD stands for Standard Dot. A single 2 MOA dot, covering roughly 53 mm (2.1 in) at 100 yards, and nothing else. Choose it if you want the cleanest possible sight picture, or if the rifle will never wear a magnifier — the MRO SD with the low mount is the simplest version there is.

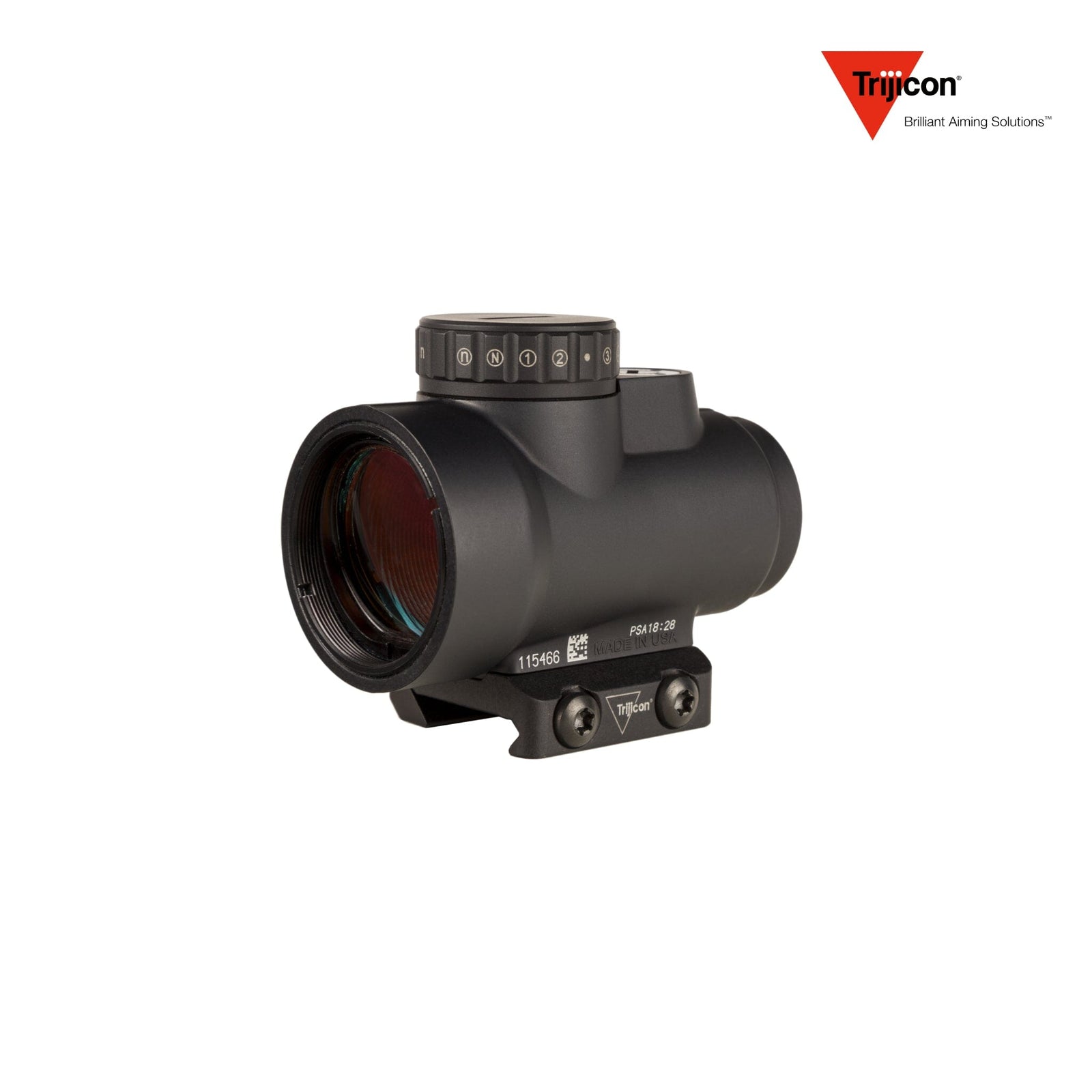

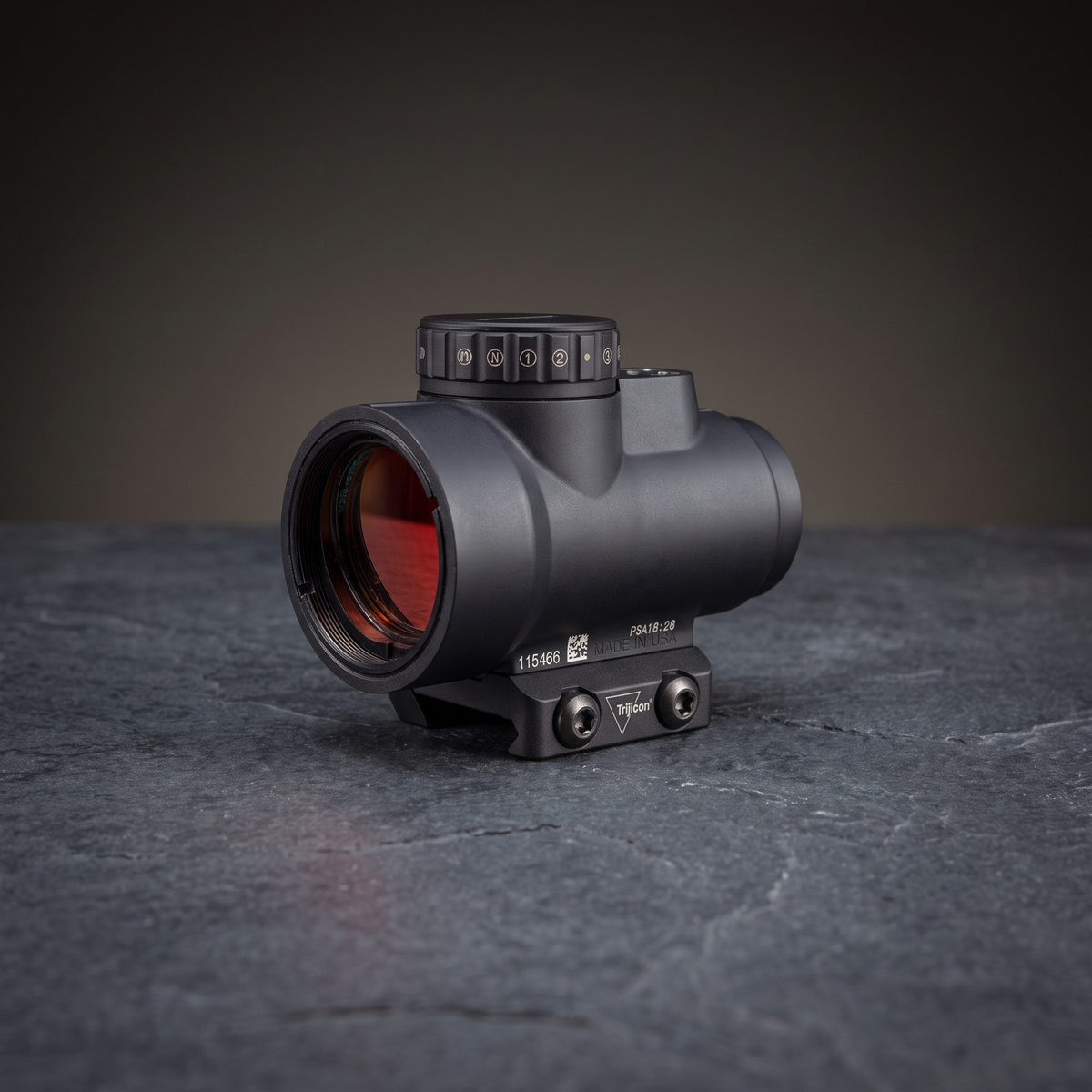

HD is the high-definition reticle set. The 68 MOA circle subtends about 1.8 m (71 in) at 100 yards, which is why it is so fast — a circle that big funnels the eye onto a close target almost involuntarily, and you switch it off to leave a plain dot when you want precision. See the MRO HD with low mount.
The point most people miss is the second HD difference: its objective lens is specifically re-engineered to be looked through by a magnifier. If there is any chance of adding a 3x behind the optic later, that alone decides it. Our guide to choosing a red dot magnifier covers what to pair it with, and the general circle-dot argument is in the red dot size chart.
Both share the rest: 0.5 MOA clicks, one CR2032 cell with up to 2.5 years of run time, a forged 7075 aluminium housing and sub-flush adjusters that will not be knocked off zero in a slip.
Decision two: mount height, fixed at the point of order
This is the one that causes wrong orders. Each MRO is stocked in four mounting configurations, and they are four separate products.
- No mount. The bare optic, for fitting to a mount you already own or a third-party riser. The MRO HD with no mount and the MRO SD green with no mount are these. Do not order this expecting a mount in the box.
- Low mount. Sits the dot below the line of iron sights for a clean, uncluttered window. The right answer for a shotgun, a rimfire, or any rifle without irons.
- Full co-witness. Puts the dot at the same height as AR-pattern iron sights, so the irons appear in the middle of the window and line up with the dot — as on the MRO HD full co-witness.
- Lower 1/3 co-witness. Raises the dot so the irons sit in the bottom third, leaving a cleaner view and a more upright head position — the MRO HD lower 1/3. This is the most popular choice on modern AR-pattern and straight-pull builds.
If you are not sure which height suits your rifle, do not guess from this page — our red dot mount height chart sets the actual figures side by side and co-witness heights explained covers what each does to your sight picture and cheek weld. Decide there, then come back and order the matching SKU.
The short version for a straight-pull AR: lower 1/3 if the rifle has irons, low mount if it does not.
Decision three: Patrol, or not
The Patrol models are the same optics on Trijicon's Q-LOC quick-release Picatinny mount instead of a fixed one. Throw the lever and the optic comes off the rifle without tools, and goes back on returning to zero.
That is worth paying for in exactly two situations: the rifle travels in a slip where a protruding optic is vulnerable, or the same optic moves between rifles. If neither applies, a fixed mount is one fewer moving part and cheaper. The Patrol range covers both reticles at both co-witness heights — the MRO SD Patrol at lower 1/3, the SD Patrol at full co-witness, the HD Patrol at lower 1/3 and the HD Patrol at full co-witness, plus an HD Patrol with no mount.
Q-LOC is Trijicon's mounting system generally, not just an MRO part — it also appears on much of the current ACOG range and across Trijicon's scope mounts and rings for tube scopes.
The two smaller choices
Dot colour. Red or green. Green reads brighter to the human eye at the same output; red preserves dark adaptation better, which matters if you are shooting at night and want to keep your night vision between shots. Compare the MRO SD green against the red version, and see green vs red dot sights for the full argument. If you have astigmatism, read why red dots look blurry first — it may change what you buy entirely.
Body finish. Matte black or coyote, as with the MRO SD in coyote. Purely cosmetic.
Putting it together
Work through it in order and you land on one product: reticle first (HD if a magnifier is even a possibility, SD if not), then mount height from the chart, then Patrol only if the optic genuinely comes on and off. A straight-pull AR with irons that stays built typically wants an MRO HD at lower 1/3 co-witness. A practical shotgun without irons wants an MRO SD or HD on the low mount.
Whatever you choose, the rifle needs a Picatinny rail for it. On an AR-pattern or straight-pull flat-top that is already there; on a shotgun or a bolt gun it may not be, and our fitment guide to Tikka, Sako, CZ, Blaser and Weaver actions covers what has to happen first.
Frequently asked questions
What is the difference between the Trijicon MRO SD and MRO HD?
The SD has a single 2 MOA dot and eight brightness settings. The HD has a switchable 68 MOA segmented circle around a 2.0 MOA centre dot, sixteen brightness settings, and an objective lens re-engineered to work behind a magnifier.
Does the Trijicon MRO come with a mount?
It depends which product you order. The MRO is stocked with no mount, a low mount, a full co-witness mount and a lower 1/3 co-witness mount, as four separate items, plus Patrol versions on the quick-release Q-LOC mount. Check the title before ordering.
Can I change the mount height after buying?
Only by buying a different mount. The height is set by the mount supplied with the optic you ordered, so choose it at purchase.
What does Patrol mean on a Trijicon MRO?
Patrol models come on Trijicon's Q-LOC quick-release Picatinny mount, which throws a lever to remove the optic without tools and returns to zero when refitted, rather than on a fixed mount.
Which MRO works with a magnifier?
The HD. Its objective lens is specifically built to be looked through by a magnifier; the SD's is not.
