Almost every bipod that gets sent back to us goes back for the same reason, and it is never that the bipod was bad. It is that the bipod could not be attached to the rifle. Accu-Tac will sell you the identical bipod — same legs, same chassis, same price — in five different mounting interfaces, and Atlas will sell you a body with no mount on it at all. Choose the wrong one and you have a beautifully machined paperweight. This guide sets out what each interface is, how to work out which one your rifle presents, and exactly which part bridges the gap when the two do not match.
Start with the rifle, not the bipod
Look at the underside of your forend. One of five things is there, and that is the only fact that matters at the point of ordering.
| What is on your forend | What it is | Typical rifle | Takes a bipod directly? |
|---|---|---|---|
| A single small stud near the tip | Sling stud | Sporter stalking rifle, most wooden and synthetic stocks | No — needs an adapter |
| A slotted rail with square cross-cuts | Picatinny, MIL-STD-1913 / NATO STANAG 4694 | Chassis rifles, AR-pattern and straight-pull, tactical forends | Yes |
| A smooth angled dovetail running fore and aft | ARCA-Swiss | Precision chassis, F-Class and PRS-style builds | Yes |
| Long narrow slots with rounded ends | M-LOK | Modern free-float handguards | Yes, with an M-LOK-interface bipod |
| Keyhole-shaped slots | KeyMod | Handguards from roughly 2014–2018 | No — see below |
If you are unsure between M-LOK and KeyMod, the tell is the shape. M-LOK slots are plain rounded-end rectangles all the same size. KeyMod slots look like a keyhole — a round hole at one end opening into a narrow slot. They are not interchangeable in either direction.
Picatinny: the common denominator
Picatinny is the interface everything else converts to. It is a properly specified standard — MIL-STD-1913, also published as NATO STANAG 4694 — with a fixed recoil slot width of 5.23 mm (0.206 in) and fixed 10.0 mm (0.394 in) slot spacing, which is why a Picatinny clamp made by one firm reliably fits a rail made by another. We set the Picatinny and Weaver difference out in full in our guide to Tikka, Sako, CZ, Blaser and Weaver fitment, and the short version matters here too: a Picatinny bipod clamp will not enter the narrower slots of an old Weaver base.
Within Picatinny there is a second choice, and it is about how often the bipod comes off. A fixed clamp such as the one on the Accu-Tac FD-4 Picatinny bipod is tightened with a tool and left alone. A quick-detach clamp such as the Accu-Tac BR-4 G2 Picatinny QD throws a lever and comes off in a second. If the rifle lives in a slip and the bipod only goes on for the shot, pay for QD; if it is a range or F-Class rifle that gets set up once, the fixed clamp is one less thing to work loose.
ARCA-Swiss, and why nobody writes just "ARCA"
ARCA-Swiss came from camera tripods, not rifles. It is a smooth dovetail running the length of the forend, and its great advantage is that the bipod slides fore and aft to any position and locks there — no slot spacing to land on, so you can balance the rifle exactly where you want it. That is why precision and F-Class shooters have adopted it wholesale.

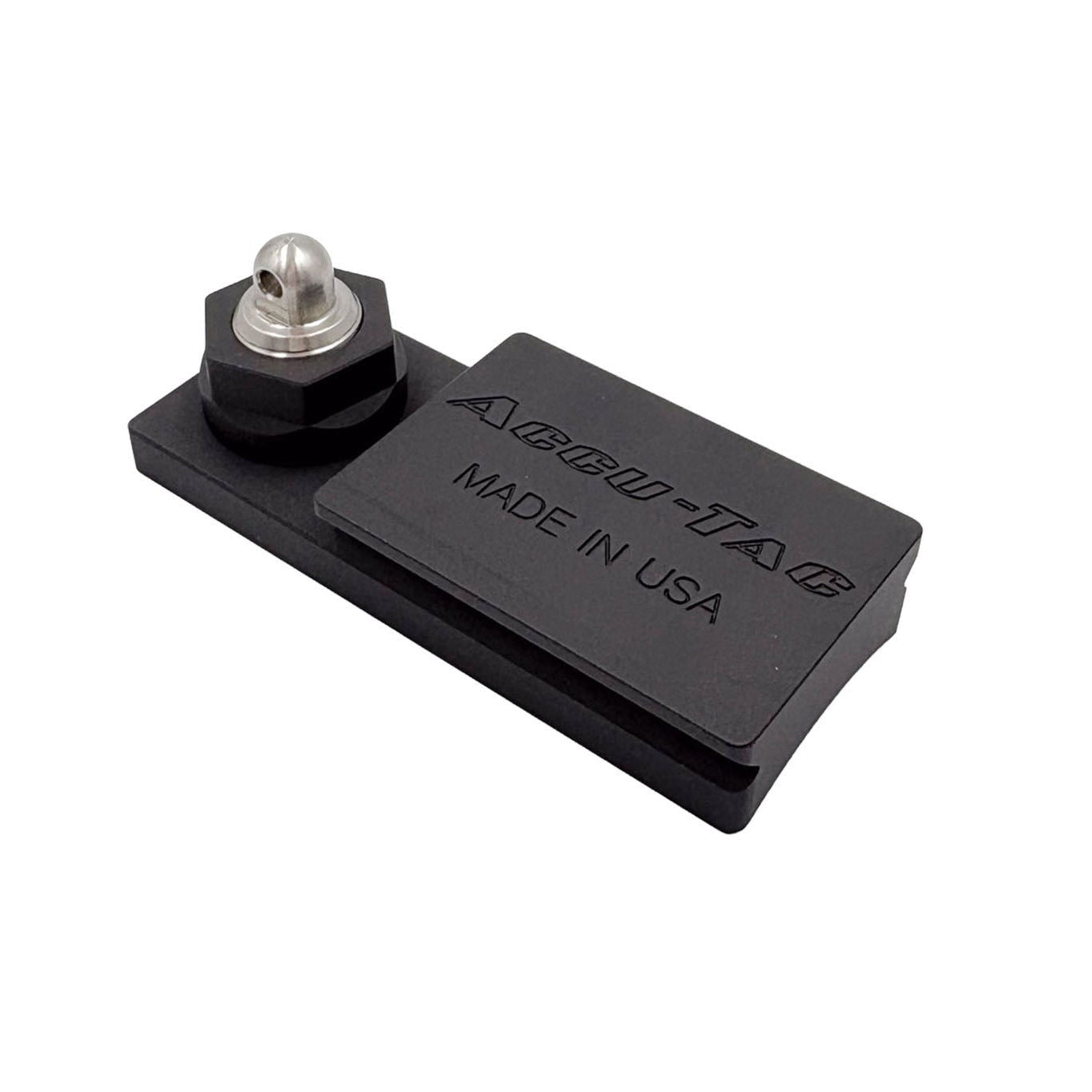

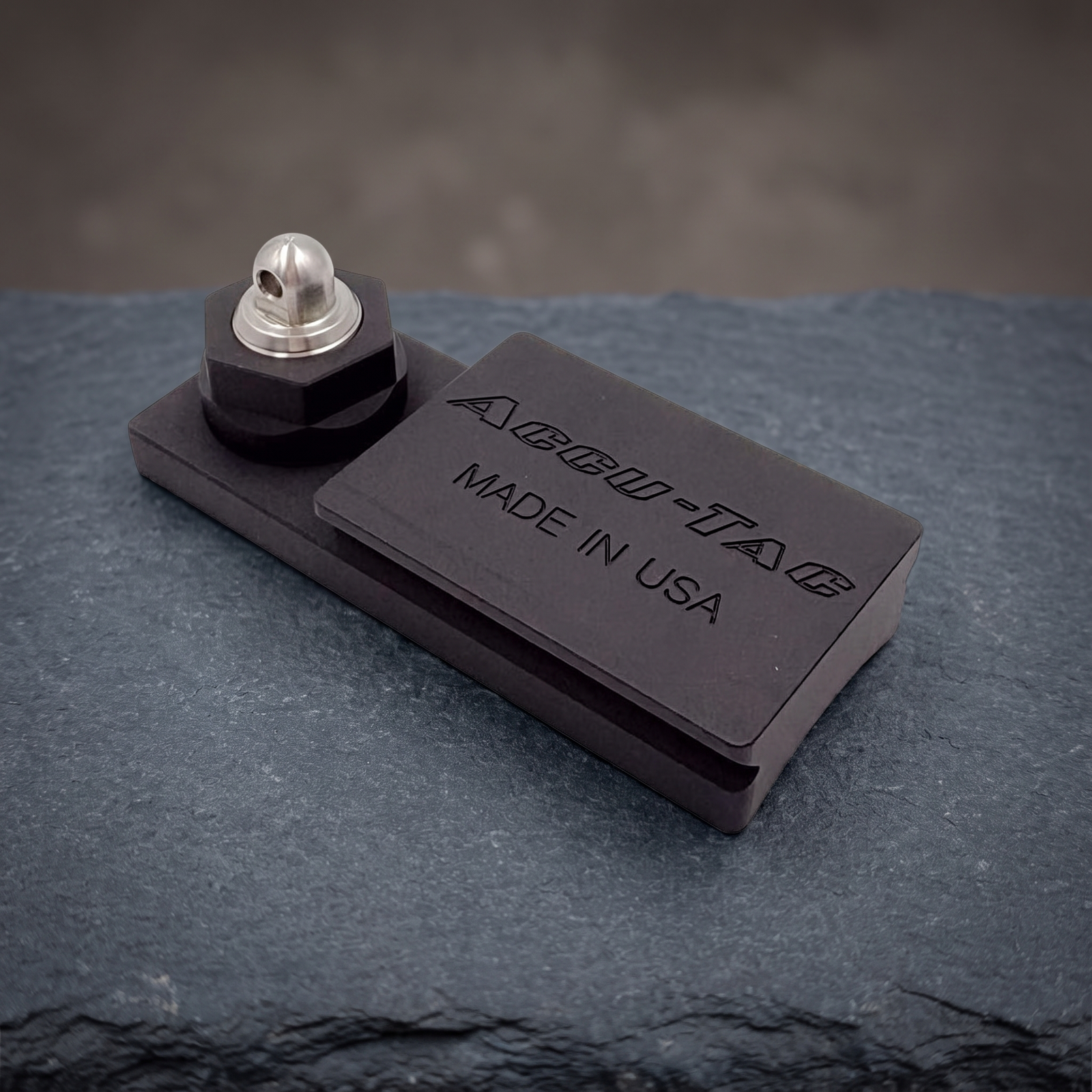

The catch is that it is a de facto standard rather than a military one, and tolerances genuinely vary between makers. That is why you see "Arca-Spec" on the Accu-Tac BR-4 G2 Arca-Spec QD and "ARCALOCK" on the Area 419 clamps rather than a single agreed name. In practice the mainstream parts interoperate, but a very tight or very loose fit between two brands is not a fault — it is the standard. As a concrete reference point, the dovetail presented by our Accu-Tac Arca Sling Stud Rail Adapter is 89 × 36 mm (3.5 × 1.4 in).
The sling stud: the British default, and the one that needs a part
This is the single most important paragraph in the guide for most readers, because the majority of rifles owned in Britain — stalking sporters, rimfires, vermin rifles on wooden or synthetic stocks — present a plain front sling stud and nothing else.
We do not stock a bipod that clamps directly to a bare sling stud. Every route from a stud goes stud → adapter → rail → bipod, and the adapter is a separate purchase of around £55 to £70. Saying so plainly is cheaper than a return. The two parts that do it are the Accu-Tac Sling Stud Rail Adapter (SSRA-200), which bolts to the stud and presents a short Picatinny section, and the Arca version (ASSRA-300), which presents an ARCA dovetail instead. The Atlas BT81 Lil' Brandi does the same job for Atlas bipods and clamps on without drilling.
If your forend has neither a rail nor a stud — a target stock, a purpose-built rest, a bench block — the Accu-Tac PRM-100 Picatinny Rail Mount adds a 64 mm (2.5 in) rail section wherever you decide to put it, fixed with two bolts on a 48 mm span or with wood screws.
M-LOK: bolting straight to the handguard
M-LOK is negative space rather than a rail. The slot is cut into the handguard itself, a T-nut drops through and rotates 90 degrees to lock, and the accessory pulls down flush against the material. It saves the weight and bulk of a rail section, which is why it has won on modern free-float handguards.
Two routes exist. Either fit a bipod with a native M-LOK interface such as the Accu-Tac M-LOK Spec-4 or the taller M-LOK Spec-5, which bolt straight in with nothing between bipod and handguard — the lowest and most rigid answer. Or bolt a short rail into the M-LOK slots and use a conventional Picatinny bipod on top, which is what the Atlas BT73 M-LOK Picatinny Rail is for. The Atlas BT70 M-LOK Adaptor takes a no-clamp Atlas body directly onto M-LOK without a rail in between.
On KeyMod we are a dead end. We hold no KeyMod bipod interface and no KeyMod-to-Picatinny rail. If your handguard is KeyMod, source that rail section elsewhere and then any Picatinny bipod here will fit it.
Two philosophies, and this is what catches people
The two biggest bipod makers we stock solve the mounting problem in opposite ways, and knowing which you are buying into prevents most ordering mistakes.
Accu-Tac builds the interface into the bipod. The BR-4 G2 chassis is sold as a Picatinny QD, an Arca-Spec QD, an M-LOK Spec and a 17S Spec — identical legs, identical 509 g (17.95 oz) weight, identical 133 mm (5.12 in) minimum height at 45 degrees, different mount. You choose the interface at the moment you choose the bipod, and you cannot change it afterwards.
Atlas sells the body and the clamp separately. An Atlas bipod comes in one of three forms: with a two-screw Picatinny mount, like the BT10 V8; with an American Defense lever quick-detach mount, like the BT10-LW17 V8; or as an NC "No Clamp" body such as the BT10-NC V8, which has no mount on it whatsoever and is useless until you add one. That is deliberate, not a mistake — it is how you put an Atlas onto an ARCA rail, because no Atlas bipod is natively ARCA.
Which part bridges which gap
| You have | You want to fit | The part you need |
|---|---|---|
| Sling stud | A Picatinny bipod | Accu-Tac SSRA-200 or Atlas BT81 |
| Sling stud | An Arca-Spec bipod | Accu-Tac ASSRA-300 |
| No stud and no rail | Any Picatinny bipod | Accu-Tac PRM-100 |
| M-LOK handguard | A Picatinny bipod | Atlas BT73 |
| M-LOK handguard | An NC Atlas body | Atlas BT70 |
| ARCA rail | An NC Atlas body | Area 419 ARCALOCK knob clamp, or the ARCALOCK QD lever |
| Both ARCA and Picatinny rifles | One NC Atlas body across both | Really Right Stuff BTC-Pro or the Area 419 ARCALOCK Dual-Clamp |
| Picatinny rail, want fore-aft adjustment | An NC Atlas body | Arisaka Picatinny Rail Slider |
| AR-15, AR-10 or M1A stock | A sling stud to build from | Accu-Shot BT03 |
| KeyMod handguard | Any bipod | Not stocked — source a KeyMod rail section elsewhere |
One more part worth knowing about: the Area 419 ARCALOCK Spigot Extension is a spacer that sits between an ARCA rail and an ARCALOCK clamp, for when the bipod needs to sit further forward than the rail alone allows.
The rear monopod is the same question again
A rear monopod under the butt turns a bipod into a rest you can hold on target without muscle, and it asks exactly the same interface question. The Accu-Shot range splits into sling-stud models such as the BT01-QK and the locking BT04-QK, and rail-mounted PRM models such as the BT12-QK. Chassis-specific versions exist too — the BT08-QK for Accuracy International actions, with the BT39 bracket to suit particular AI stocks.
Once it fits, the feet still matter
The interface gets the bipod on the rifle; the feet decide whether it stays where you put it. Spiked feet such as the Accu-Tac G1 spiked set bite into soft ground and are the right answer for a British field or hillside. Broad skis like the P-SKI feet let the rifle slide straight back under recoil on a mat or a bench, which is what you want for load development and F-Class. Both are in bipod accessories.
Frequently asked questions
Will an Atlas bipod fit an ARCA rail?
Not as supplied. Atlas bipods ship with a two-screw Picatinny mount, an American Defense lever mount, or as an NC "No Clamp" body. ARCA mounting always comes from a separate clamp such as the Area 419 ARCALOCK or the Really Right Stuff BTC-Pro, fitted to an NC body.
Can I put a bipod on a rifle that only has a sling stud?
Yes, but not directly. A sling stud adapter bolts to the stud and presents either a Picatinny rail or an ARCA dovetail, and the bipod clamps to that. Budget for the adapter as a separate part.
Is ARCA better than Picatinny for a bipod?
For precision shooting, usually — the bipod slides to any point along the rail rather than landing in fixed slots, so you can balance the rifle exactly. For a stalking rifle that carries a bipod occasionally, Picatinny is cheaper, more common and perfectly rigid.
Do M-LOK and KeyMod interchange?
No, in either direction. M-LOK slots are plain rounded-end rectangles; KeyMod slots are keyhole-shaped. We stock M-LOK interfaces and no KeyMod ones.
Can I change my bipod's mount later?
On an Accu-Tac, no — the interface is part of the bipod, so choose it at purchase. On an Atlas, yes, because the clamp is a separate component; buying the NC body plus the clamp you want is the flexible route.
